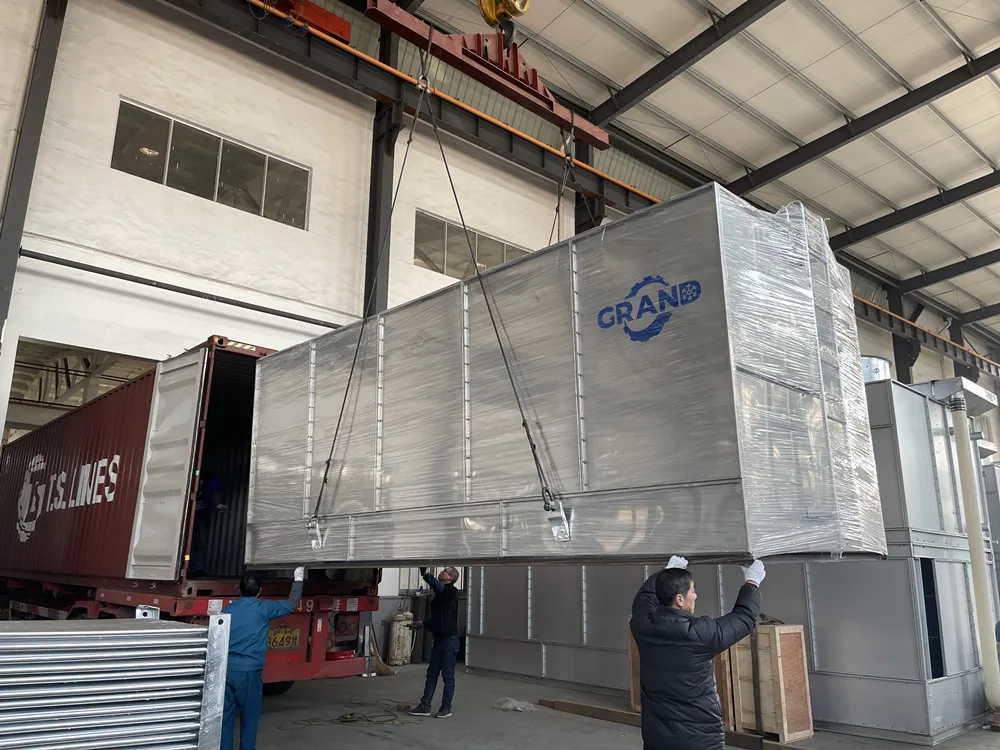

GDN 400 China NH3 R717 Ammonia refrigerant evaporative condenser supplier
- Category: >>>
- Supplier: Yantai Grand Machinery Engineering Co. Ltd.
Share on (1601025352121):
Product Overview
Description
Product Description
What is Evaporative condenser?
Evaporative condensers are used to remove excess heat from cold systems when the heat cannot be used for other purposes. Excess heat is removed by evaporating water. Evaporating water enables this excess heat to be removed.
Evaporative Condenser Working Principle
Heat exchange takes place between the high-temp Gaseous refrigerant in pipe coil and water sprayed onto it. The high-temp Gaseous refrigerant turns into liquid during the process.
The fresh air travels from the bottom to the top of the condenser, taking away the vapor of the heated spay water. The vapor water will be stopped by the water fender board and flows into the collection basin through pipe coils, and then pumped back into the circulation system. The lost water can be re-supplied with the water level regulator
Detailed Images

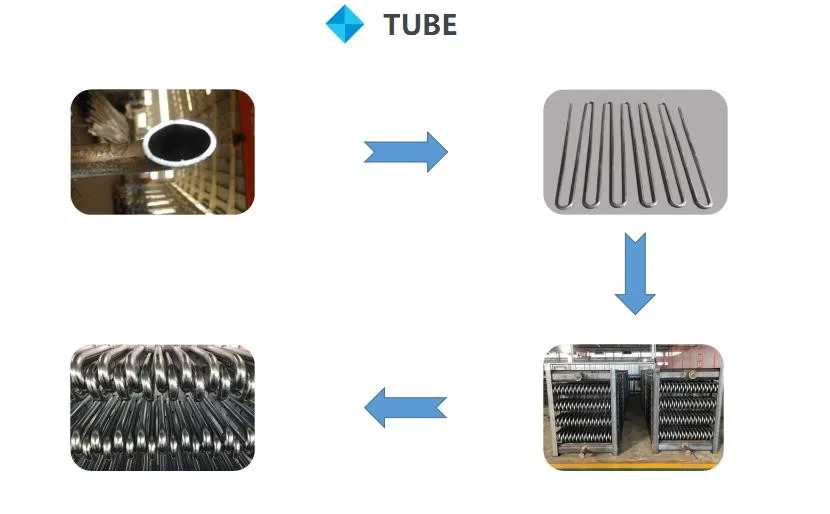

Pipe coil:
Continuous bend coil pipe, with long flow path, few weld joint and leakage points;
Hot dipped galvanized technology adopted to improve the corrosion prevention performance;
Tube Diameter 26.7 mm
Axial flow fan
Our product adopt special axial fan with aluminum alloy blade.
The structure design of tilting type wind page, streamline inlet air duct, no pulley drive, and adopts the fully enclosed self-cooled low noise special motor.
It has the advantage of small size, light weight, good start-up performance, reliable operation and durability.
Water Pump
The water pump adopts high-quality mechanical seals that are not restricted by steering,
It has characteristics such as no leakage, long lifetime, less power consumption,large flow, low noise, high efficiency etc.
The water pump motor we use famous brand such as Siemens.
Removable dehydrator
Evaporation condenser original removable dehydrator is made of corrosion-resistant PVC material.
Its structure makes the air flow direction change can effectively remove the moisture from the coil, so that the water drift rate reaches 0.001%.
When the water eliminator or packing is cleaned, the eliminator can be removed easily .

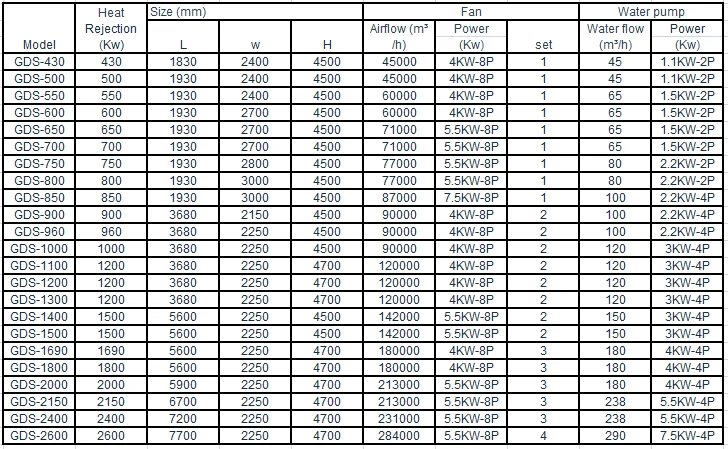

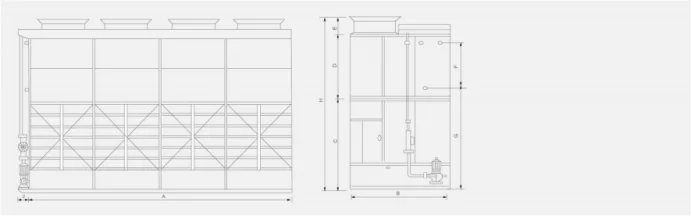

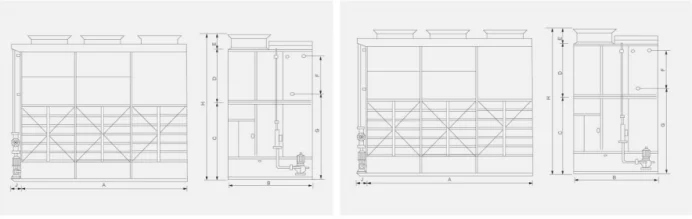

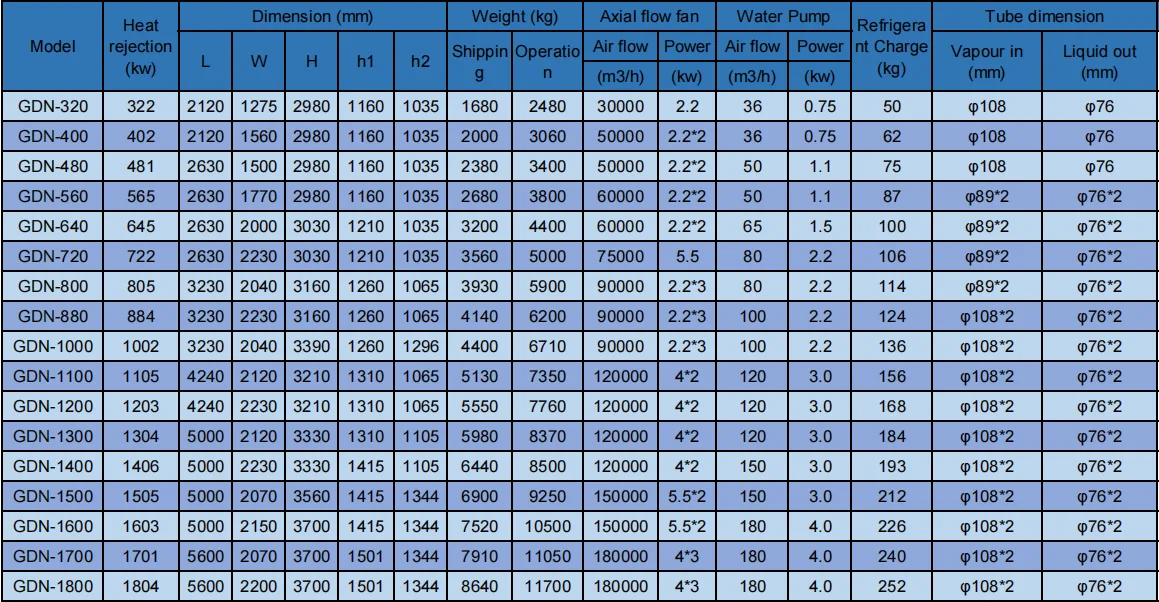

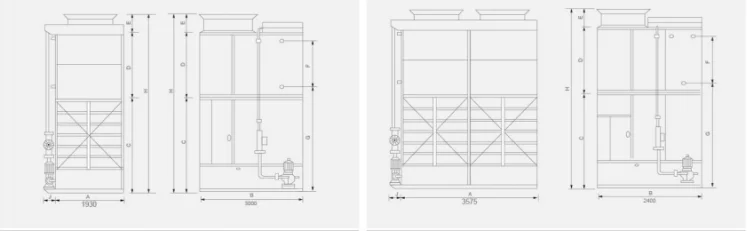

Technical Parameters
Single room
Double rooms
Three rooms
Three rooms
Four rooms
Recommend Products
Evapoco Type Evaporative Condenser
Crossflow Evaporative Condenser
Evaporative Condenser Refrigeration
Our Company
Certificates | ||||||
Packaging and Delivery | ||||||
FAQ
If you want to sent us one inquiry about the evaporative condenser ,below information are needed:
1) Your local electrical power (?V ?HZ ?P)
2 ) Where will the evaporation condenser will be installed in , close to the ocean or far away to the ocean ?
3 ) What material of panel and condenser coil will you choose , stainless steel or hot dip galvanized or other ?
4 ) If you do not know how to choose one right model , please tell us the compressor 's cooling capacity(kw) ,motor power. (kw) ,
quantity (set) , condensing temperature and your local wet bulb temperature . According those data , one right evaporative
condenser capacity will be calculated .
2 ) Where will the evaporation condenser will be installed in , close to the ocean or far away to the ocean ?
3 ) What material of panel and condenser coil will you choose , stainless steel or hot dip galvanized or other ?
4 ) If you do not know how to choose one right model , please tell us the compressor 's cooling capacity(kw) ,motor power. (kw) ,
quantity (set) , condensing temperature and your local wet bulb temperature . According those data , one right evaporative
condenser capacity will be calculated .
