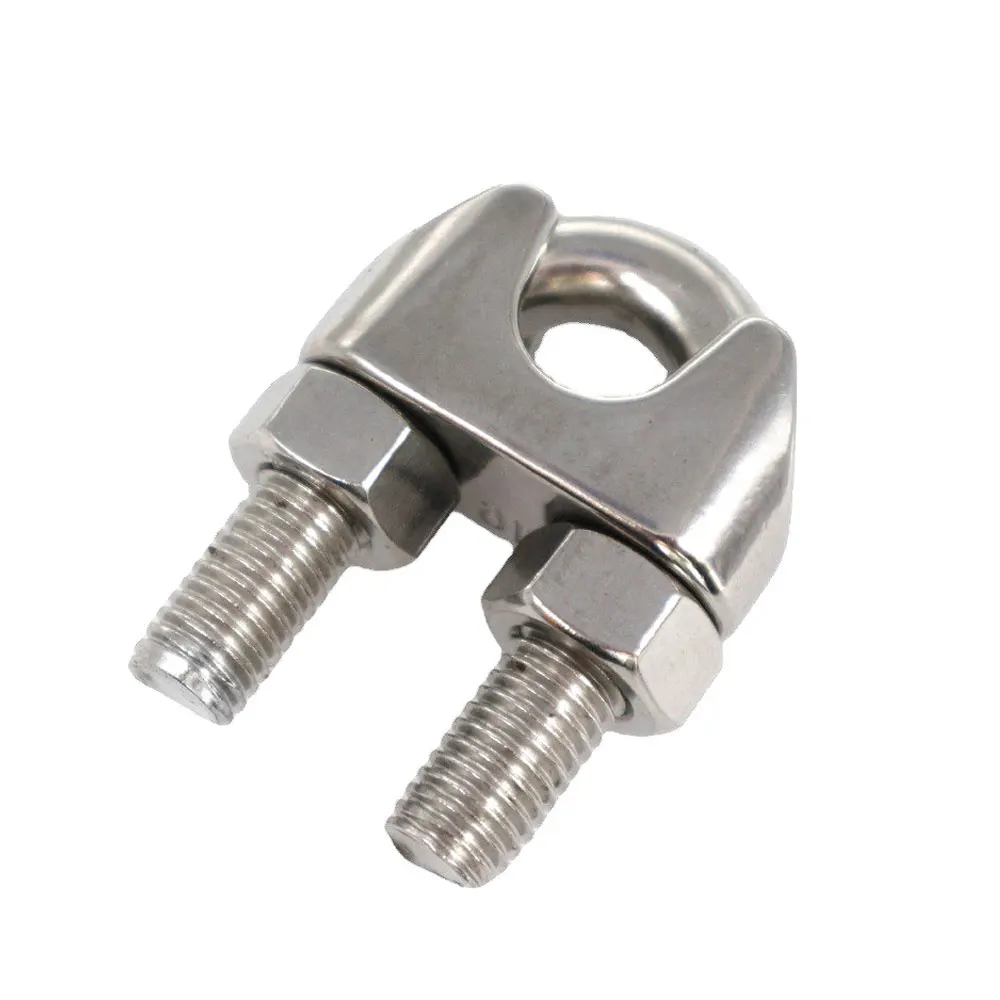

Din741 304 316 stainless steel wire rope clip clamp for wire rope and cable

Share on (1601025376394):


Price:$0.23 - $0.40

Quantity:


Product Overview

Description

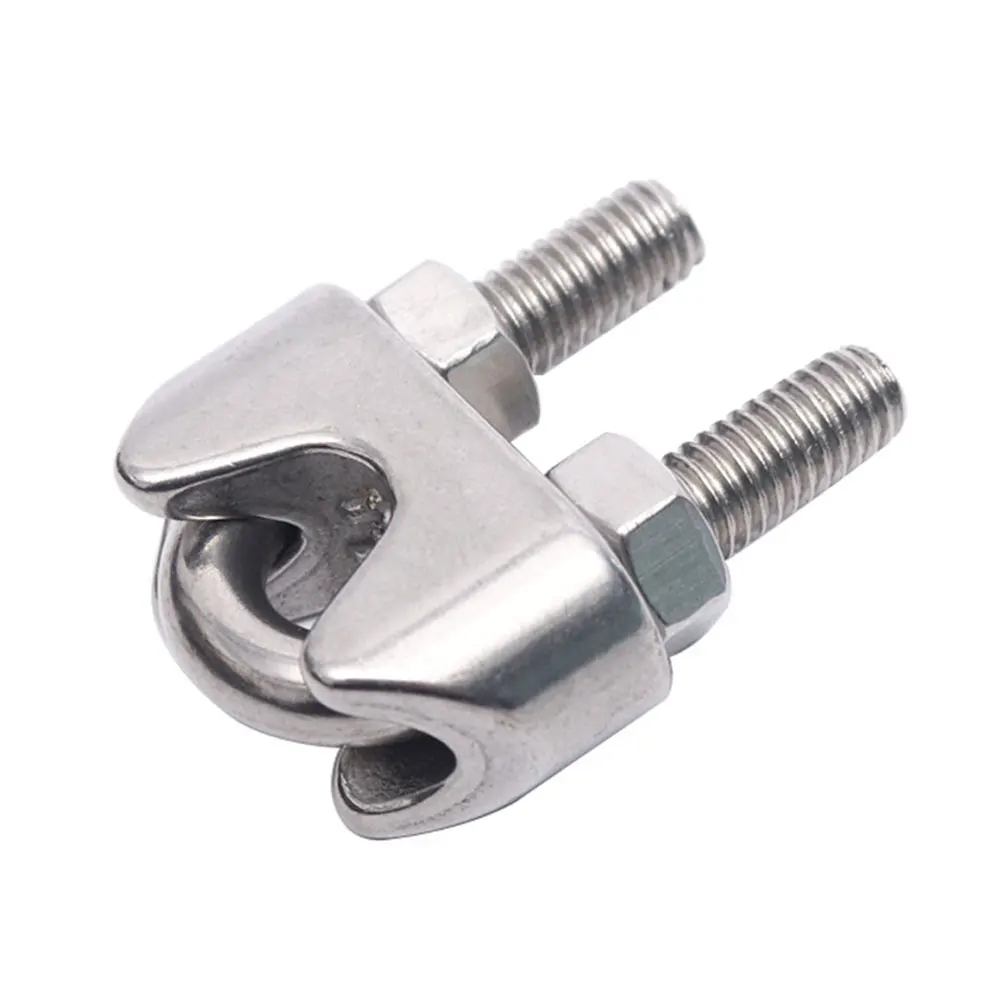

Din741 304 316 stainless steel wire rope clip clamp for wire rope and cable

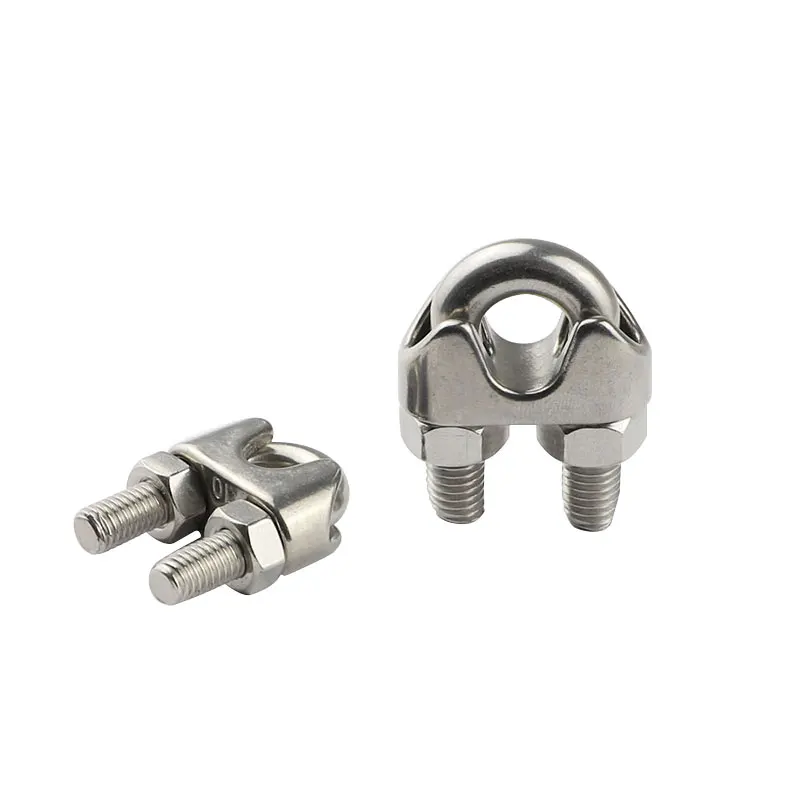

Stainless steel wire rope clamp, also known as stainless steel clamp and wire lock, is suitable for fixing and locking both ends of the wire rope. lt can be used with the wire ropecollar and is easy to remove. The specification is the diameter of the wire rope used. DIN741is a German standard, which is the most widely used card head. Our company always has alarge amount of stock.




The wire rope clip, also known as the wire rope clip and the wire rope clip, is mainly used for the temporary connection of the wire rope and the fixation of the rear hand rope whenthe wire rope passes through the pulley block, as well as the fixation of the head of the cable wind rope on the mast, including phosphating coated wire rope, galvanized wire rope, stainless steel wire rope and smooth wire rope.

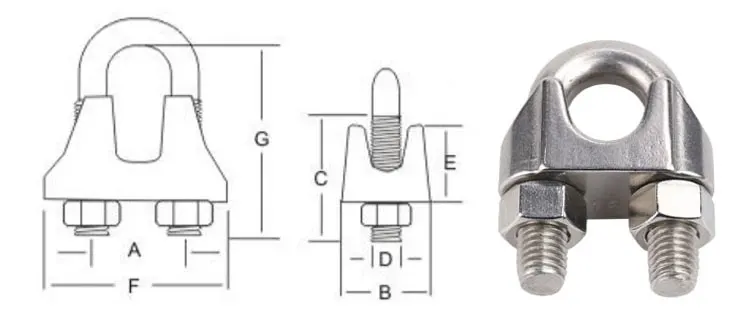

Rope Size(mm)
Dimensions(mm)
Weight Each (kg/pc)
A
B
C
D
F
G
3
9
10
12
4
21
20
0.014
5
11
11
13
5
23
24
0.015
6.5
13
12
15
5
26
28
0.021
8
16
14
19
6
28
34
0.041
10
19
18
22
8
34
42
0.068
11
20
19
22
8
36
54
0.072
13
24
23
30
10
42
55
0.13
14
25
23
30
10
44
57
0.135
16
29
26
33
12
50
63
0.21
19
32
29
38
12
54
75
0.28
22
37
33
44
14
61
85
0.04
26
41
35
45
14
65
95
0.44








Shandong Licheng Link Chain Co.LTD.is a new generation enterprise committed to the hardware industry.Located in Jining,Shandong Province,the hometown of Confucius and Mencius.
The company is a professional hardware supporting enterprise integrating design,research and development,production and sales.The main products are chains and wire ropes and their accessories:shackles,turnbuckles,clips,loops,spring hooks and other forged parts And castings,and accept drawings and samples for processing.
