Reinforcement Geogrid Ground Stabilization Civil Engineering Polyester Geogrid 50kn 100kn 150kn
- Category: >>>
- Supplier: Taian Road Engineering Materials Co. Ltd.
Share on (1601025401159):
Product Overview
Description

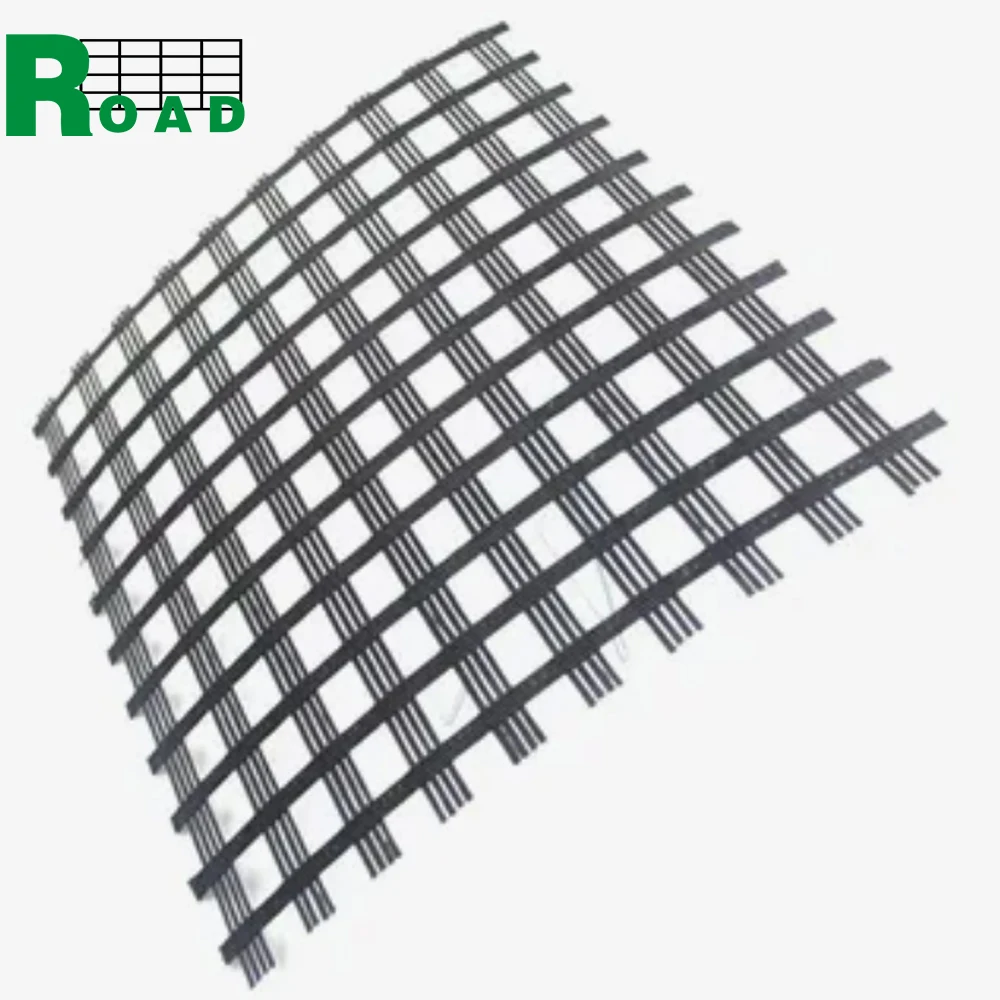

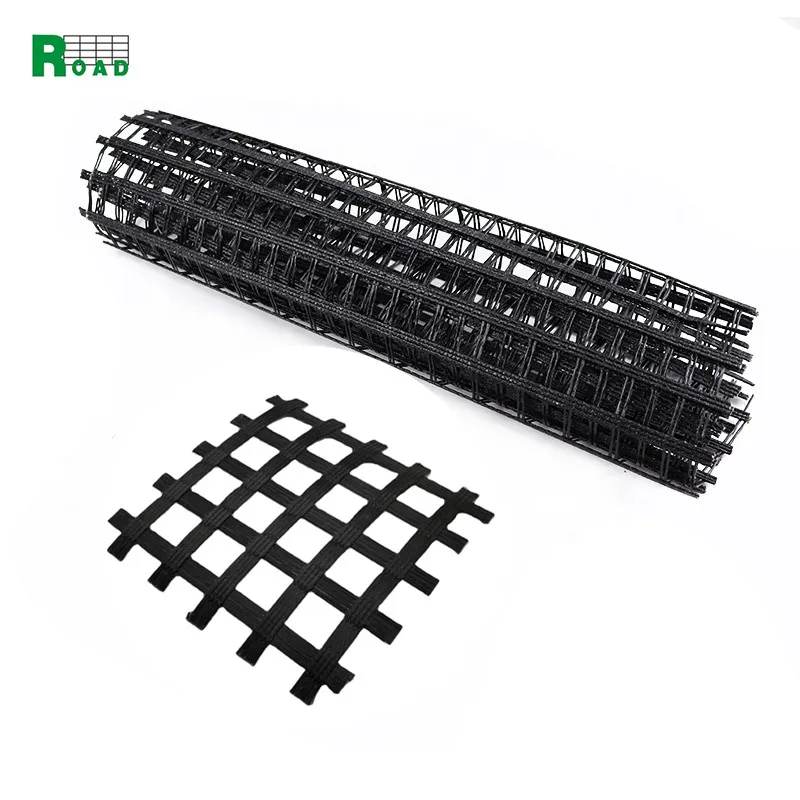

Product Display

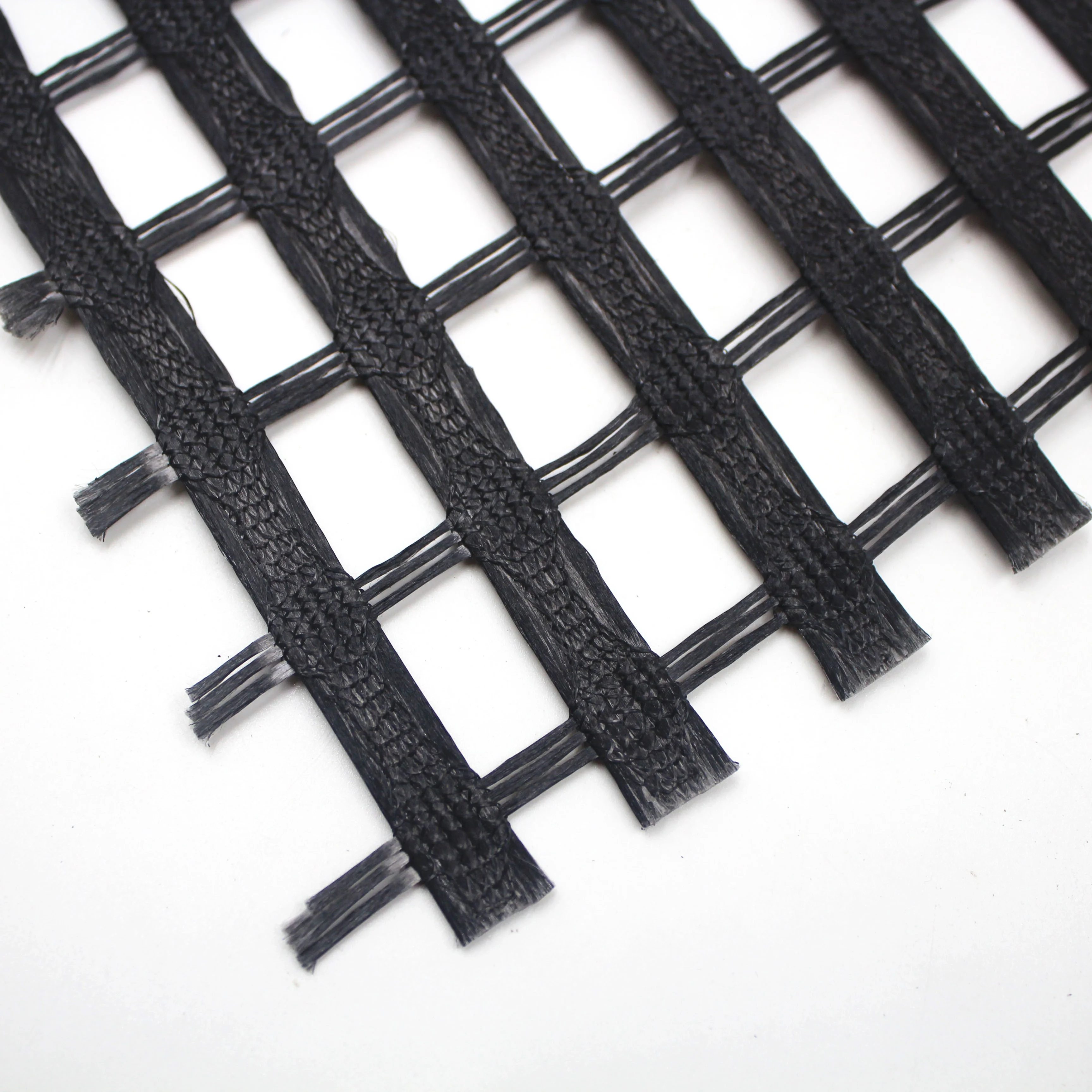

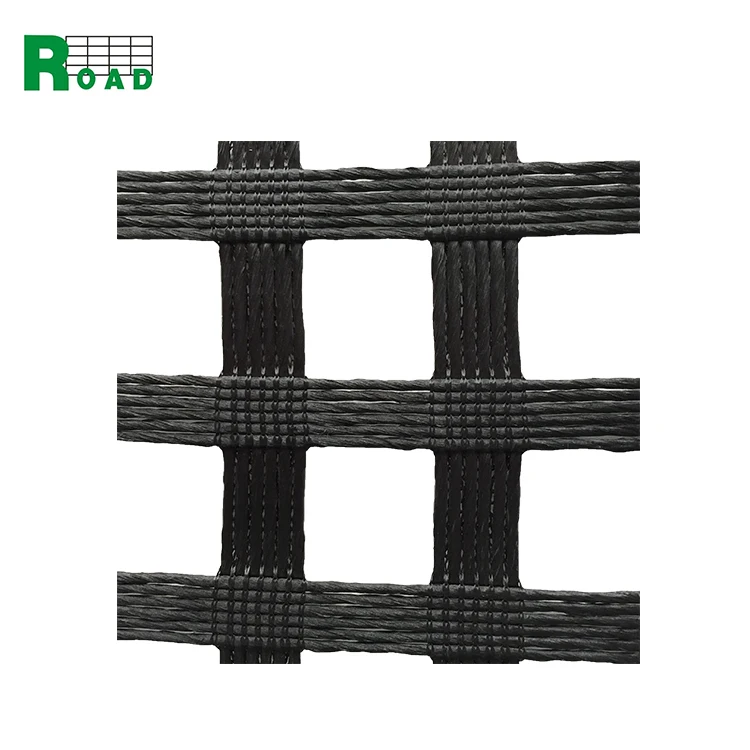

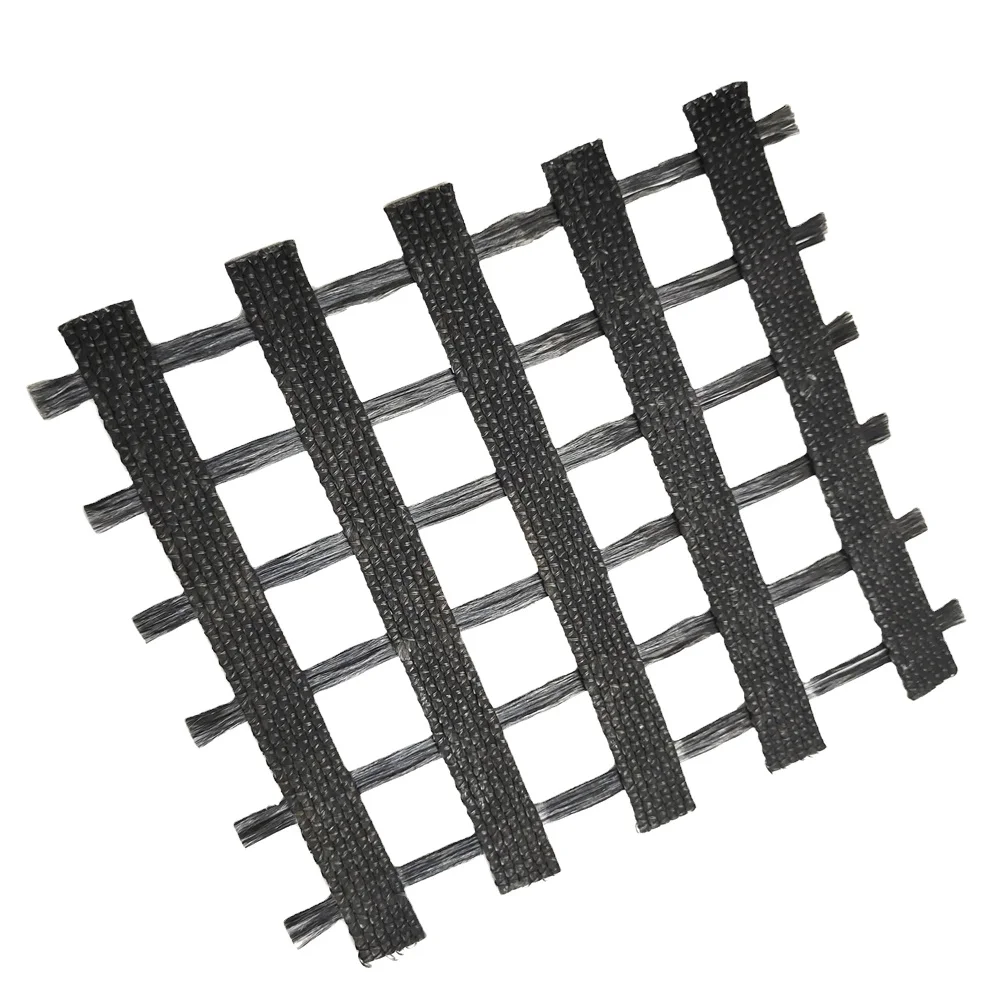

Polyester Geogrid 50-50kN/m
Polyester Geogrid 400-50kN/m
Polyester Geogrid 100 kN/m
Polyester Geogrid 150-30 kN/m
Product Details
Product Name | Polyester geogrid |
Polymer | High strength polyester yarn coated with PVC |
Tensile Strength | from 20-20 to 1200-1200 kN/m from 60-30 to 1200-200 kN/m |
Mesh Size | 25.4x25.4 mm 50.8x50.8 mm 76.2x76.2mm |
Roll Width | 2m 3.95m 5.0m 5.2m 5.95 m |
Roll Length | 50m or 100 m |
Standard | CE / ISO / ASTM |
Spec | JBGS60-30 | JBGS80-30 | JBGS 100-30 | JBGS 150-30 | JBGS 200-30 | JBGS 400-50 | JBGS 800-100 | JBGS 1200-200 | |||||||||
Tensile strength≥（kN/m） | warp | 60 | 80 | 100 | 150 | 200 | 400 | 800 | 1200 | ||||||||
weft | 30 | 30 | 30 | 30 | 30 | 50 | 100 | 200 | |||||||||
Elongation≤（%） | 13 or 10 | ||||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||
Width(m) | 2 or 2.5 or 3.95 or 5.0 or 5.2 or 5.95 | ||||||||||||||||
NOTES | Other tensile strength can be made: 55-30, 120-30, 300-30, 600-50 etc. | ||||||||||||||||
Spec | JBGS30-30 | JBGS50-50 | JBGS 60-60 | JBGS 80-80 | JBGS 100-100 | JBGS 120-120 | JBGS 150-150 | JBGS 260-260 | |||||||||
Tensile strength≥（kN/m） | warp | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 260 | ||||||||
weft | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 260 | |||||||||
Elongation≤（%） | 13 or 10 | ||||||||||||||||
Grid size(mm) | 25.4x25.4 or 50.8x50.8 or 76.2x76.2 | ||||||||||||||||
Width(m) | 2 or 2.5 or 3.95 or 5.0 or 5.2 or 5.95 | ||||||||||||||||
NOTES | Other tensile strength can be made: 400-400,600-600,800-800,1200-1200 etc. | ||||||||||||||||
Roads, railways, water conservancy and other soft soil foundations are strengthened and reinforced.
2. Railway retaining wall: Geogrid is used to strengthen the retaining wall on the side of the railway, such as the platform and cargo platform in the railway station, which can extend the service life and reduce the maintenance cost;
3. Reinforced retaining wall: add geogrid beside the highway and in the vertical retaining wall to improve the bearing capacity of the retaining wall;
4. The foundation of the abutment is generally easy to sink downwards and the phenomenon of vehicle jumping occurs. Paving the geogrid under the foundation of the abutment can increase the bearing capacity and stabilize the abutment.

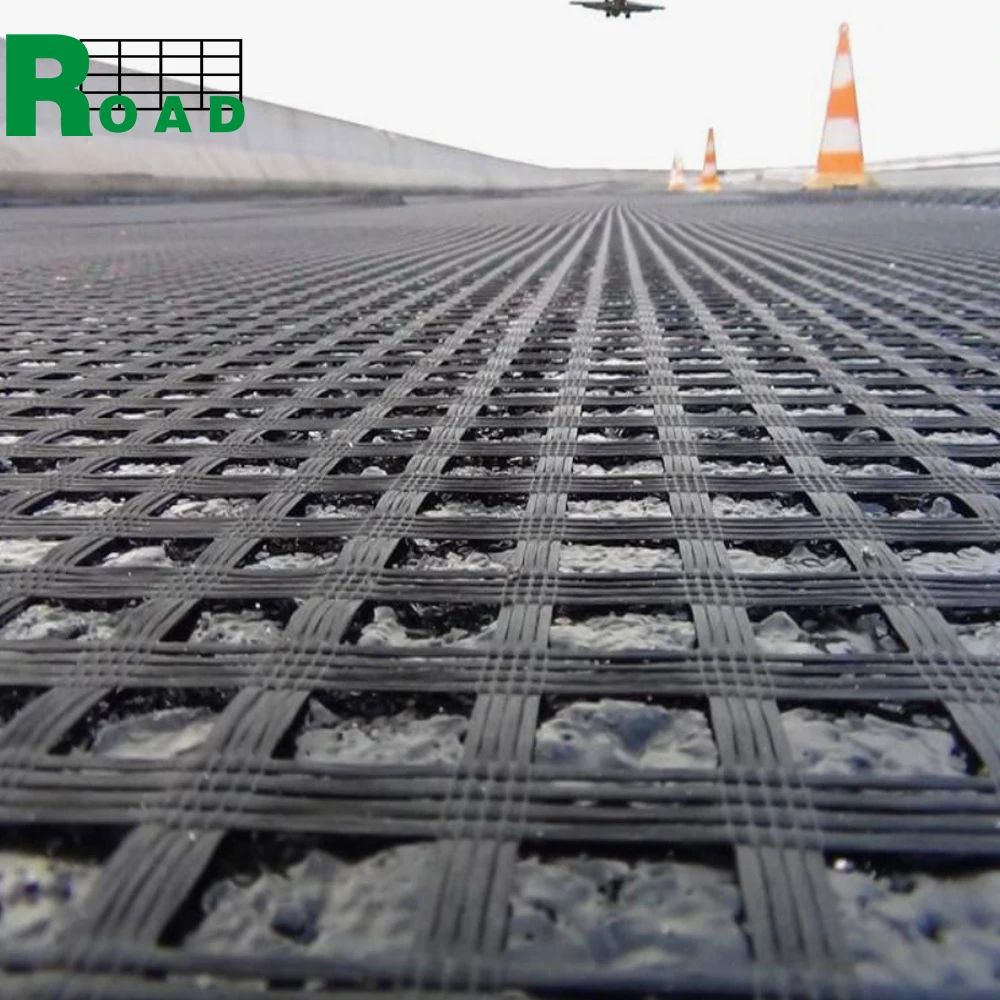

Ground reinforcement

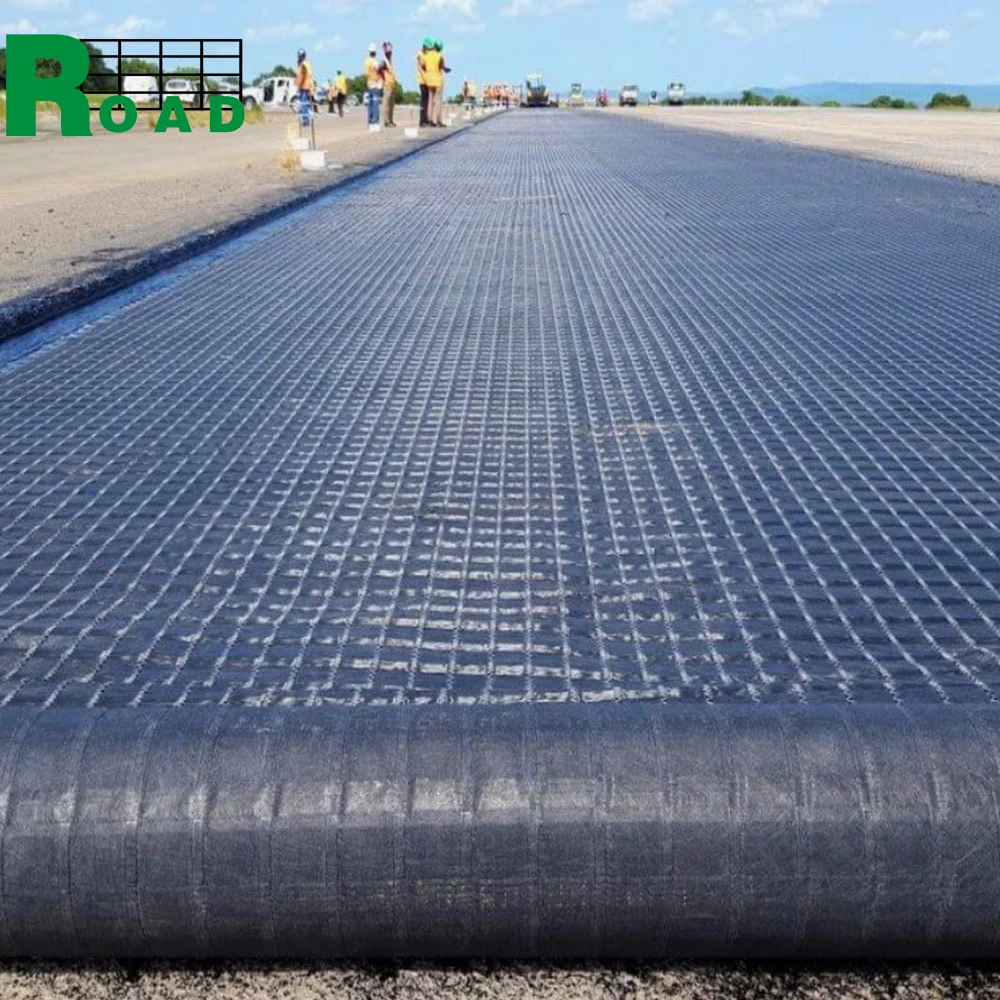

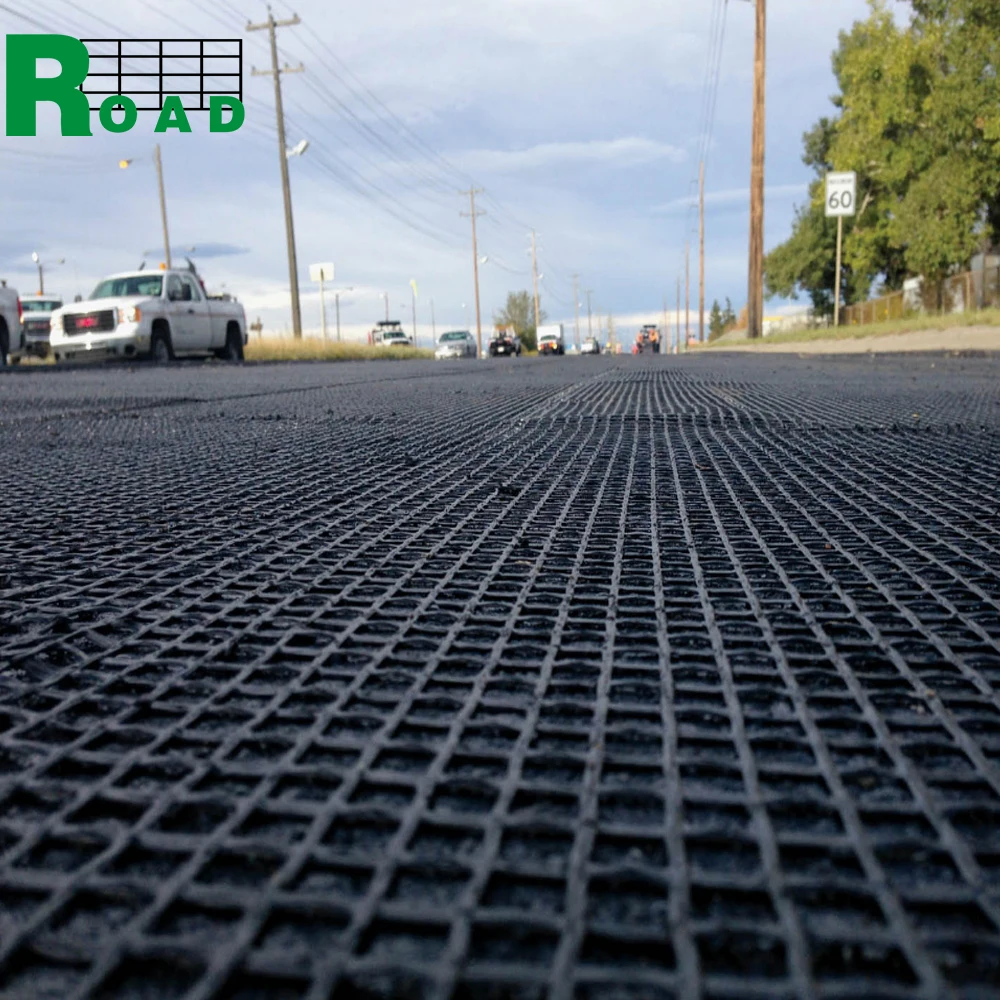

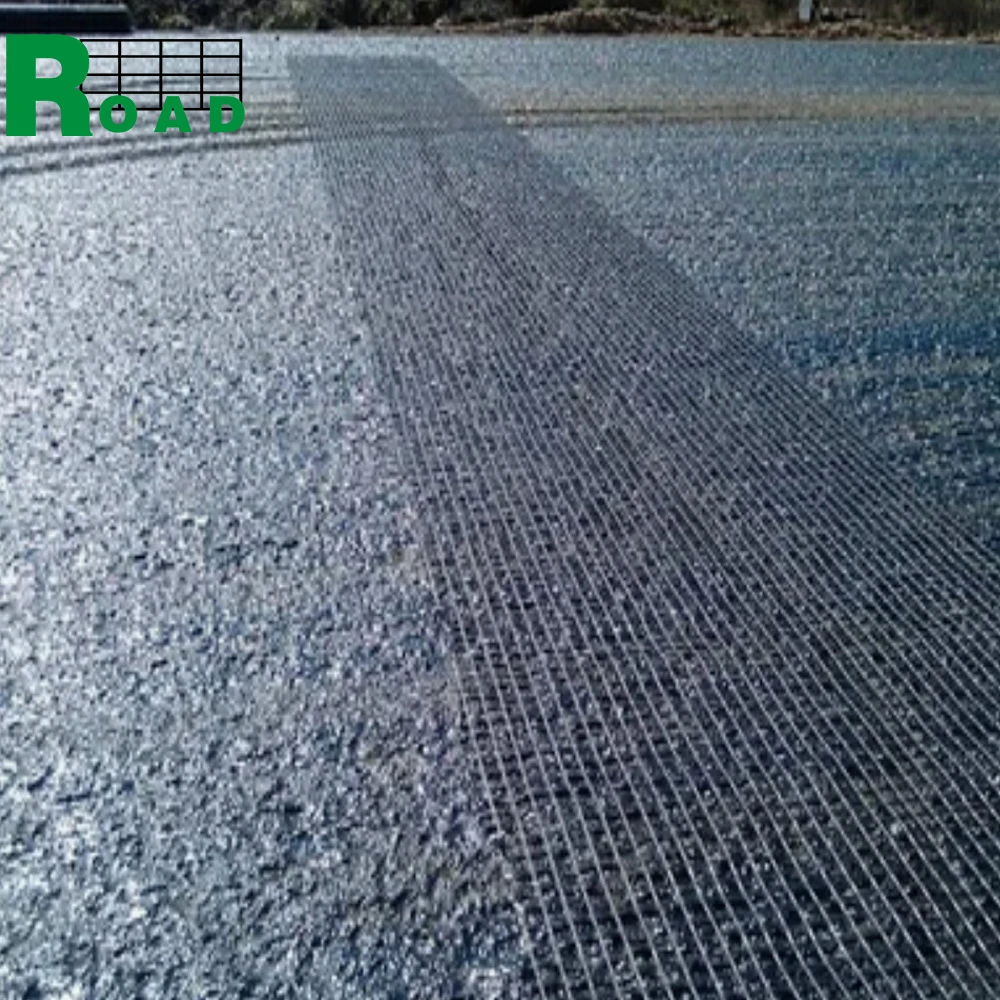

Road reinforcement
Dam reinforcement
Water conservancy construction
Best Seller Products

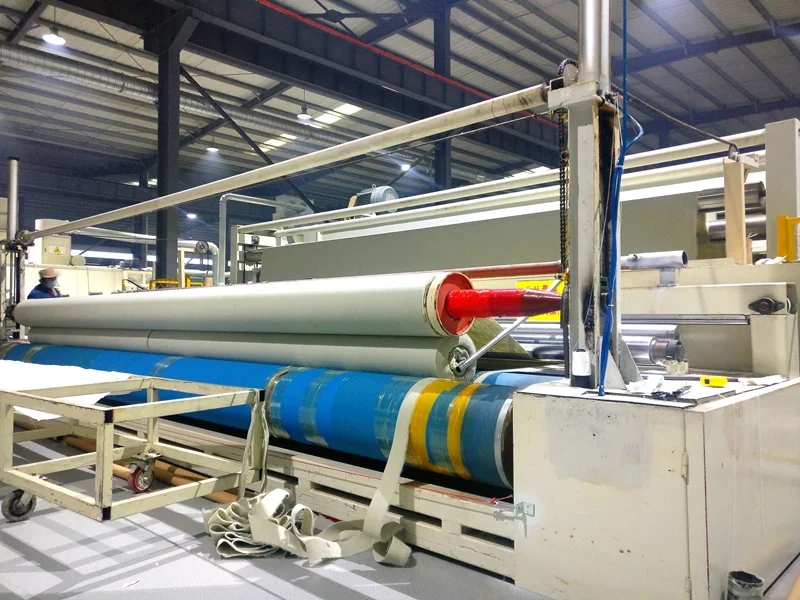

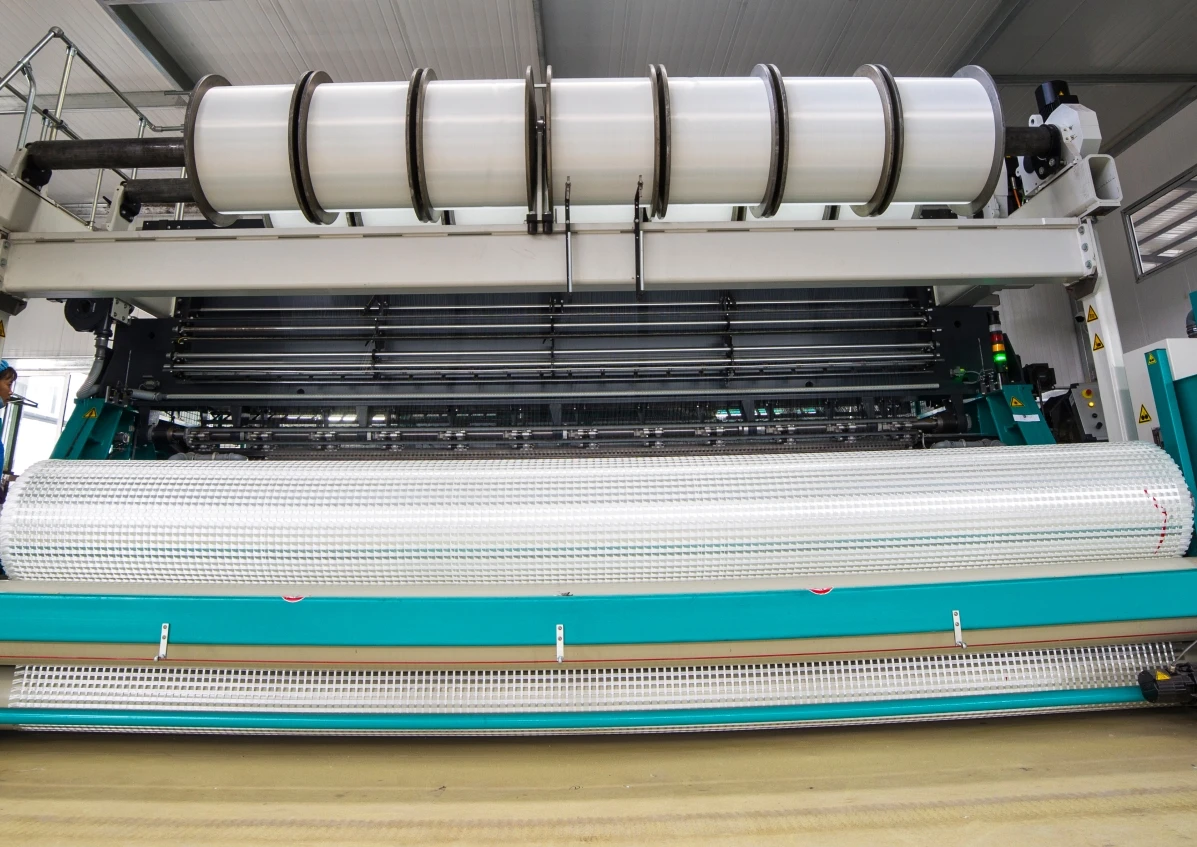

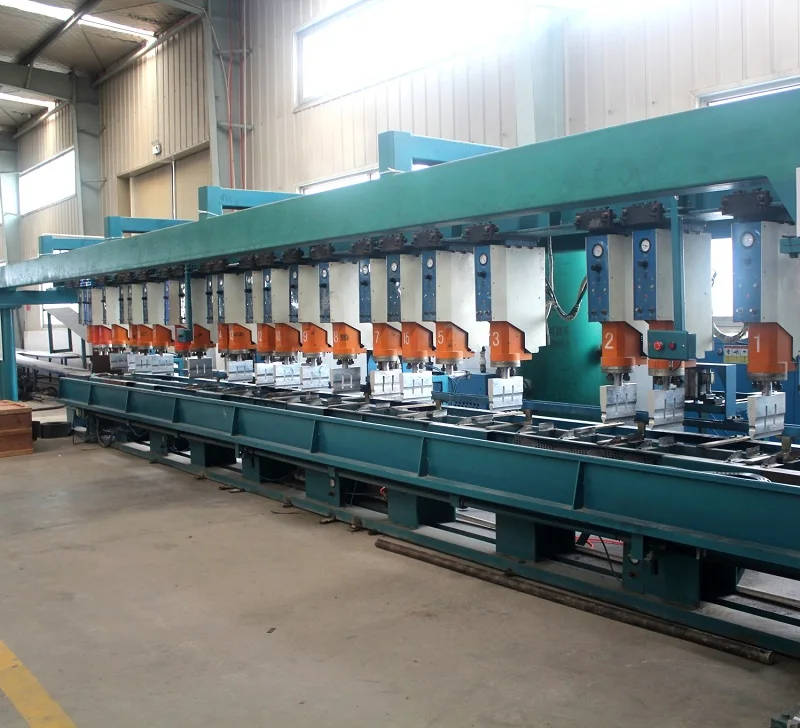

Production Display
Packaging&Shipping
Selling packing: Customers' company Logo mark can be designed and added.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Transport Packing: Put in the container.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Outer packing: Packed in double layer woven bags to ensure smooth arrival and avoid rough handle.
Transport Packing: Put in the container.
Delivery Detail: Winthin 10 days after received your deposit
Delivery Detail: 100,000 square meters can be finished within 3 days
Delivery Time: 3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
Company Introduction
Strict Quality Control
ROAD® Geosynthetics has established advancing laboratory in China for internal inspecting. We founded strict quality control system from raw material to finished products testing. As national high tech eterprise, we obtained ISO9001:2008 & ISO14001:2004 quality & environment management system certification.
With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification.
With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification.
Introduction
ROAD Geosynthetics(Taian Road Engineering Materials Co.,Ltd), established in 2002, specialized in manufacturing plastic uniaxial geogrid, biaxial geogrid,fiberglass geogrid, polyester geogrid, 3D geomat, geonet, geocell, geotextile, geomembrane, BOP stretched net, safety fence and Geocomposite products. They are mainly used in the foundation construction such as roadways, railways, irrigation works, electric power, water and land protection, and environment greening, etc.As the leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time. We have established advancing laboratory in China for internal inspecting. We founded strict quality control system from raw material to finished products testing. As national high tech enterprise, we obtained ISO9001:2008 & ISO14001:2004 quality & environment management system certification.With top quality and professional management, we passed the CE certificate and Bureau Veritas Certification.As the famous brand, our products have been exported to more than seventy countries and areas, we wish to do cooperate with you!

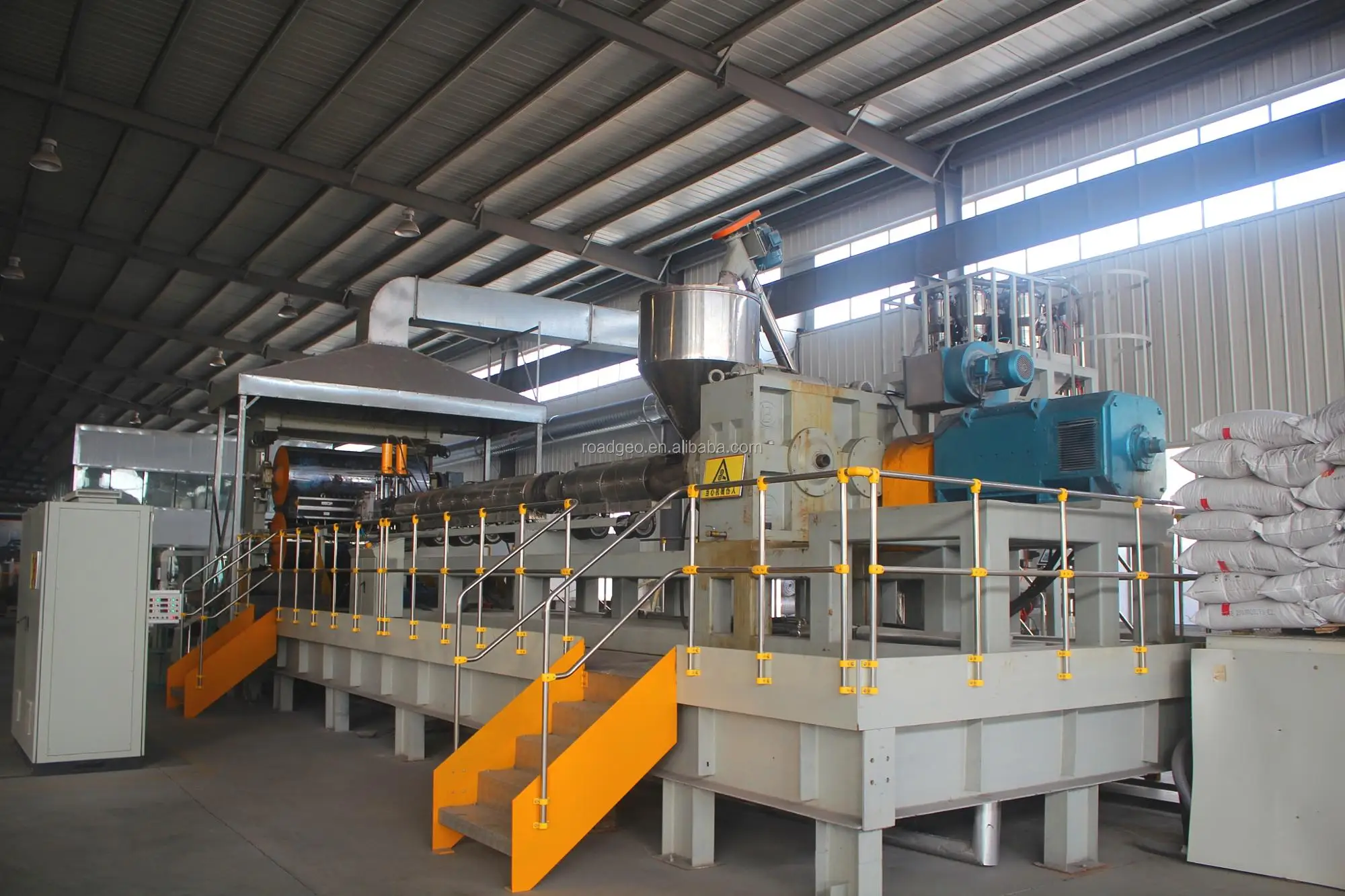

Large Production Scale
ROAD® Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
Excellent Markering
ROAD® Geosynthetics, as famous brand, our products has been exported to more than seventy countries and areas, such as Russia,Unites Kingdom, Italy, Poland, United States, Canda, Chile, Brazil, South Africa, Japan, Korea, Singapore and so on.
