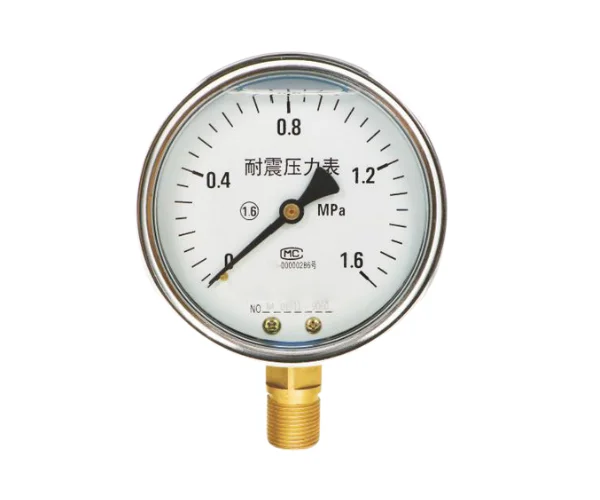

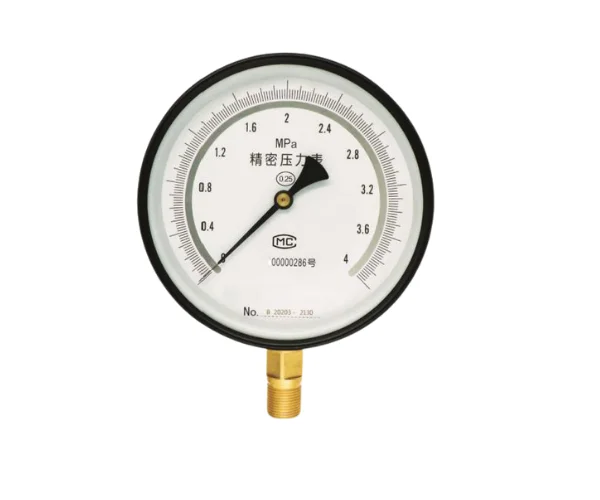

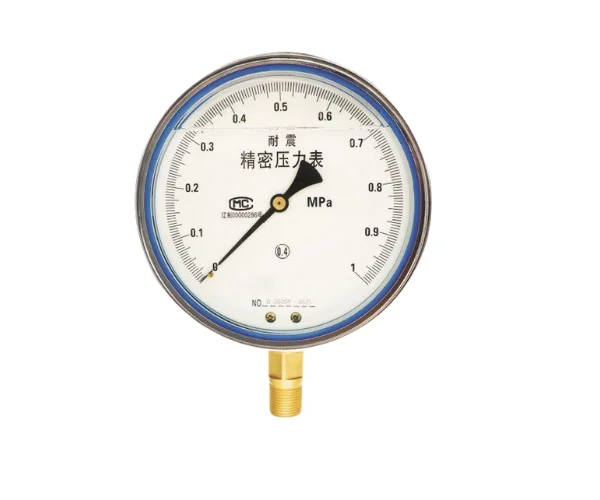

Stainless Steel Pressure Gauge for Accurate Measurement

Product Overview

Description

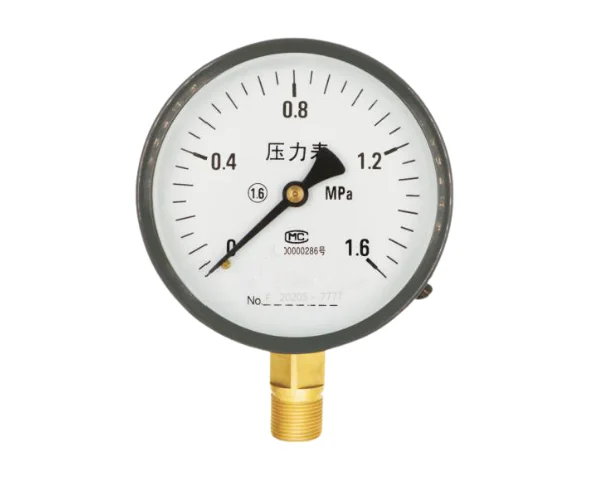

Bourdon Tube Pressure Gauge for Accurate Measurement

Description

The Y series Economical Bourdon Tube Pressure Gauge is designed for non-explosive, non-crystalline, non-solid, and non-corrosive environments, suitable for copper alloy applications. It consists of a socket, bourdon tube, and transfer mechanism, displaying pressure values via a pointer.





Product Structure

Bourdon tube is a C-shaped tube with an irregular cross-section. If there is pressure inside the tube, the irregular cross-section will have a tendency to become round. Radial pressure is generated in the wall of the tube, causing the radius of the C-tube to increase and the end piece to move, a process known as end travel. The end movement of just a few millimetres is transmitted to the movement so that the change in evoked pressure is visible on the scale.





Specifications
Accuracy: Φ60, ±2.5%;Φ100, Φ150, ±1.6%
Working pressure:
Steady: 3/4 of full scale value. Fluctuating: 3/2 of full scale value. Short time: full scale value.
Ambient temperature: -40 ~70 °C (Relative humidity ≤85%)
Temperature impact: The temperature change is not more than 0.6%/10°C When the temperature deviates from 20±5°C.
Connector: Brass
Bourdon tube: Brass
Case: steel with black plated
Dial: white aluminium dials with black marking •
Pointer: Aluminium, black.
Window: plain glass, plexiglass.
Connection: Φ40/50 M10x 1; Φ60 M14x 1.5;
                        Φ100, Φ150 M20x 1.5 Other threads available.
