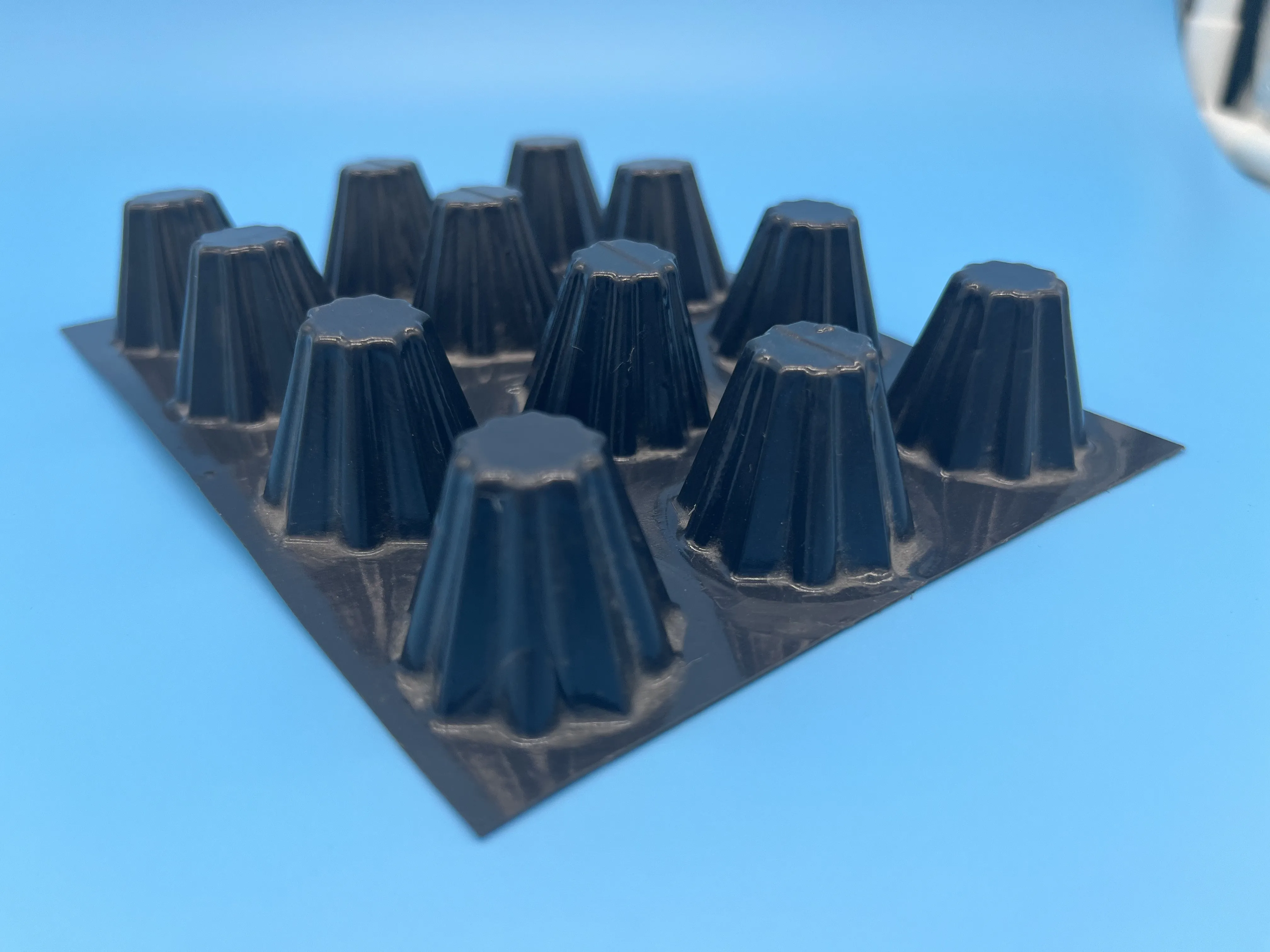

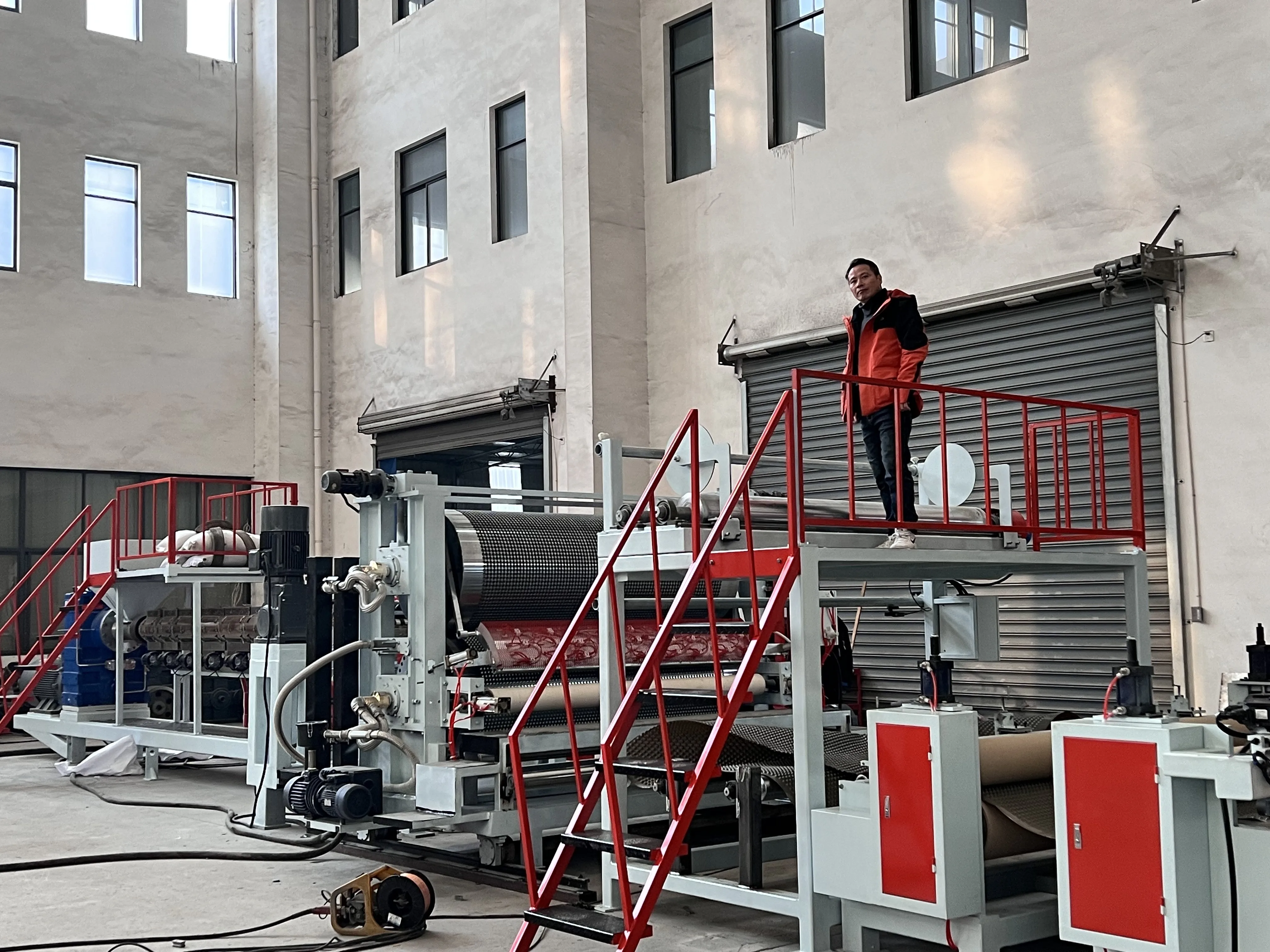

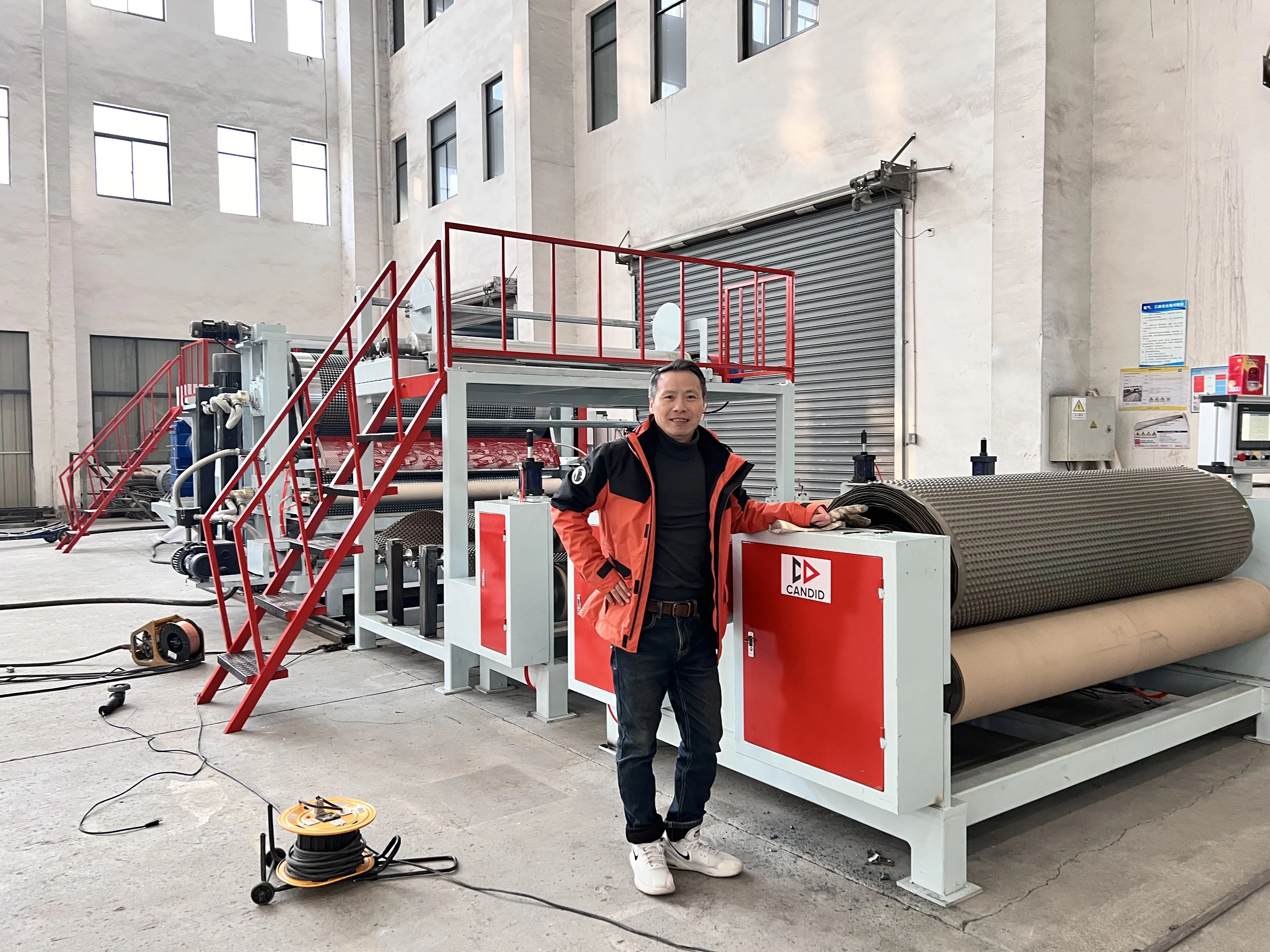

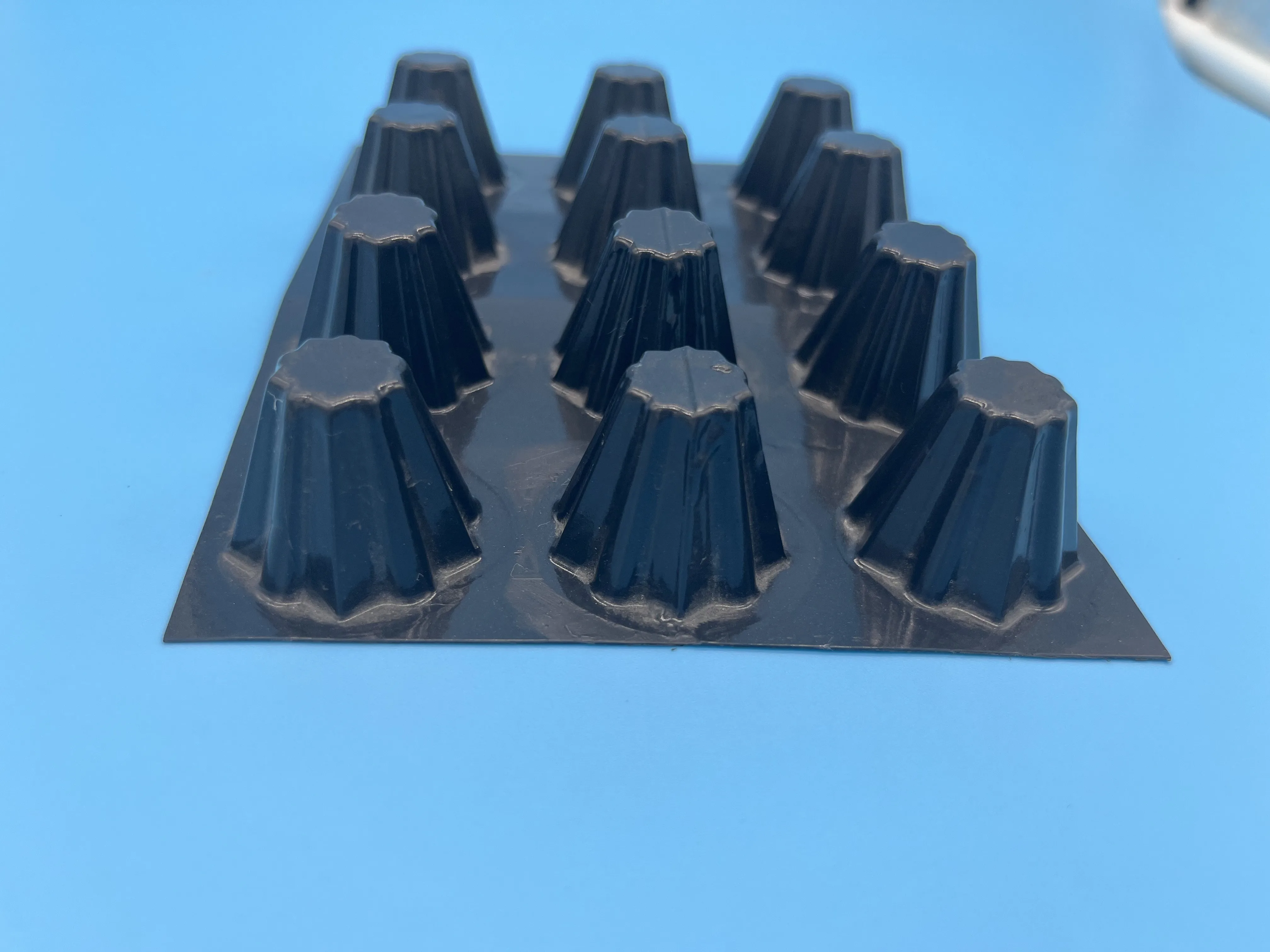

HDPE PP Dimple Drainage sheet ,Extruder Production Machine,Plastic Dimple water stop panel extruder Machine

No.

Qty.

Specification & description

Remark

Main Unit

 1 set

Capacity:  Continuous feeding

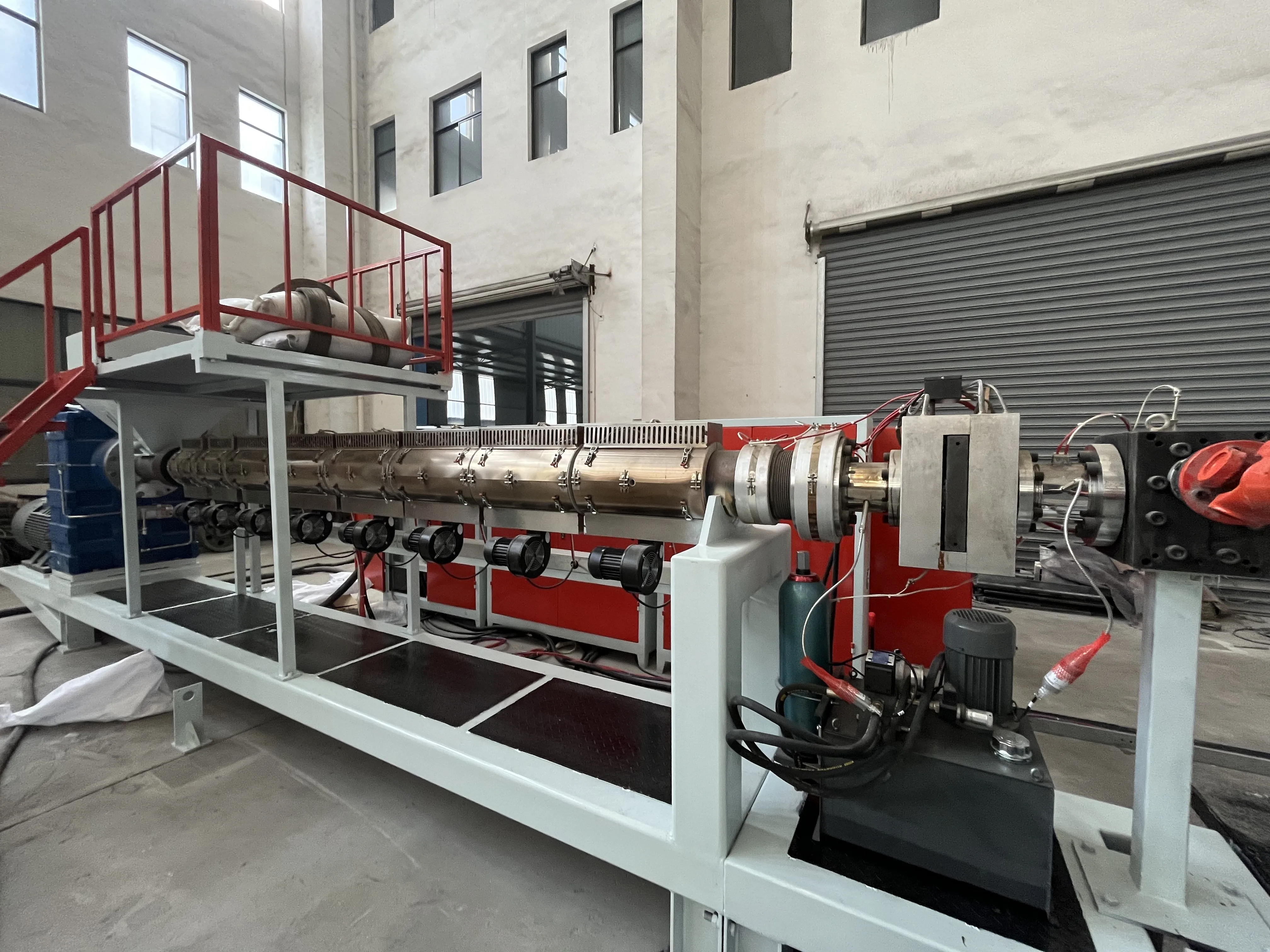

SINGLE SCREW EXTRUDER

Single Screw Extruder diameterΦ160 L/D ratio 35:1

Screw and barrel,  origin Zhoushan,Zhejiang, China

Barrel: 38CrMoAL,nitridation treatment, water cooling in feeding parts

1 set

Frequency converter

1 set

Motor power 200kw

ZLYJ420Gear box,high torque, low noisy and hard gear face, with oil cooling system

Pressure sensors

Each set in front and back of pump

Screen changer

Hydraulic cylinder control, quick change ans easy operation.

Flat head die (T Die) 4300mm

 With rack cavity and compounding die orifice to make film flat and it is easy to be adjusted. It can be adjusted in a large range and produce products of various thickness.

Material:Stable alloy tool steel with the tempering treatment, less change in shape after heating, inner surface polished, hard chrome plating and abrading treatment.

Heating zone:  Stainless steel heating tube;

Width adjustable by using deckles
