Product Overview
Description
Products Description

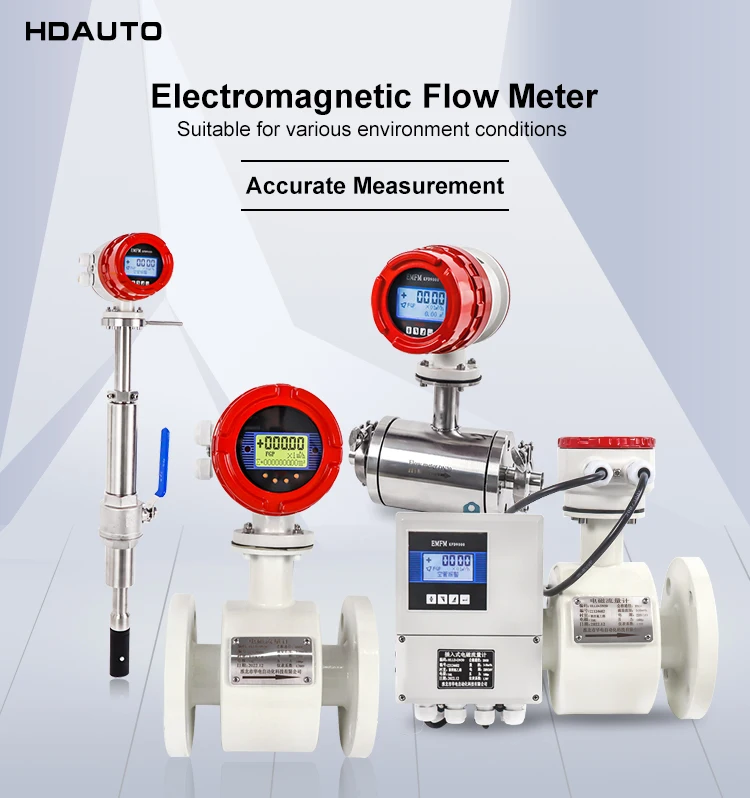

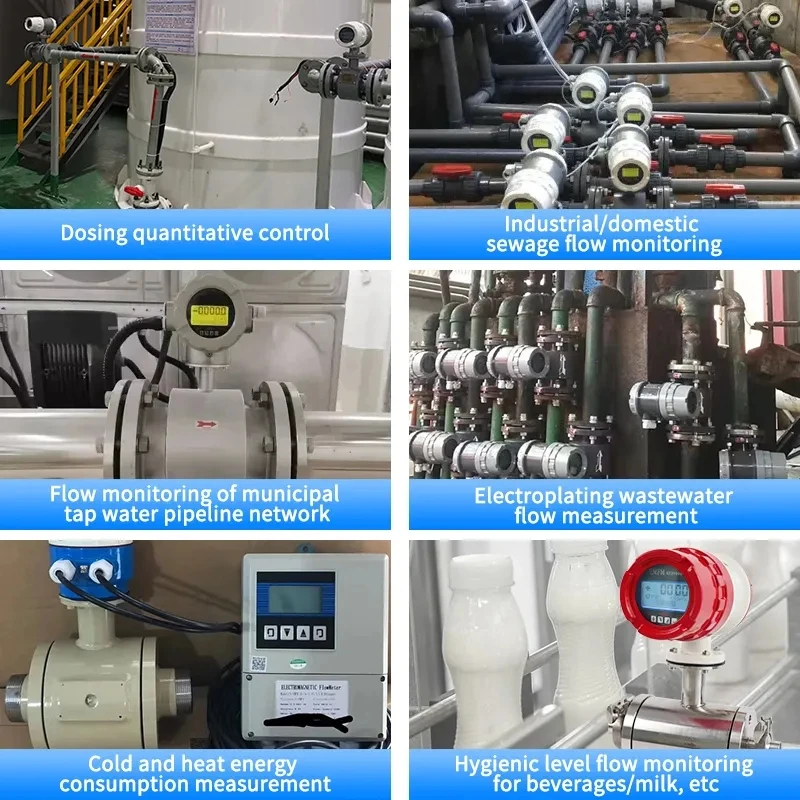

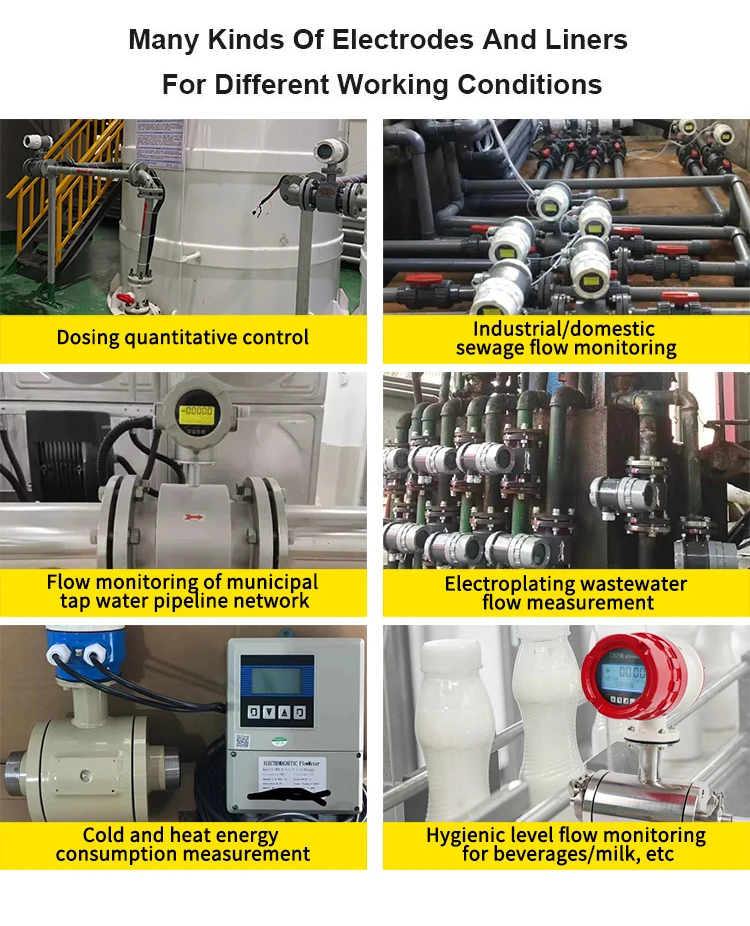

Electromagnetic flow meter is a high-performance, high-reliability flow meter. It used to measure the volume flow of conductive liquid and slurry in closed pipelines. Widely used in all conductive liquids in every industry, such as water, acid, alkali, milk, slurry etc.
Product Paramenters | ||||||||
Compact Type | IP65 | |||||||
Remote Type | IP65(IP68 optional) | |||||||
Measurement sensor | ||||||||
Nominal Diameter | DN15-DN3000 | |||||||
Pressure rating (High pressure can be customized) | DN15 - DN80, PN<4.0MPa | |||||||
DN100 - DN150, PN<1.6MPa | ||||||||
DN200 – DN1000, PN<1.0MPa | ||||||||
DN1200 – DN2000, PN<0.6MPa | ||||||||
Electrode Material | 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt | |||||||
Lining Material | Chloroprene rubber (CR), Polytetrafluoroethylene (PTFE/F4), Fluorinated ethylene propylene (FEP/F46), Teflon(PFA) | |||||||
IP Rate | IP68 | IP65 | ||||||
Medium temperature | -20 – 180℃ | -10 – 80℃ | ||||||
Serial communications | RS-485 | |||||||
Output | Current (4-20 mA) , pulse , frequency , state switch | |||||||
Max measuring error | Measurement value ±0.5%（Flow speed > 1m/s）； Measurement value ±0.5% ±2mm/s（Flow speed <1m/s） | |||||||
Repetitiveness | 0.15% | |||||||
Power supply | 100-240VAC，50/60Hz, 22VDC—26VDC | |||||||
Power consumption | Max 15VA | |||||||
Signal cable | Apply only to remote type | |||||||
Shielded cable | Signal section，wire: 0.5mm2 Cu /AWG20 | |||||||

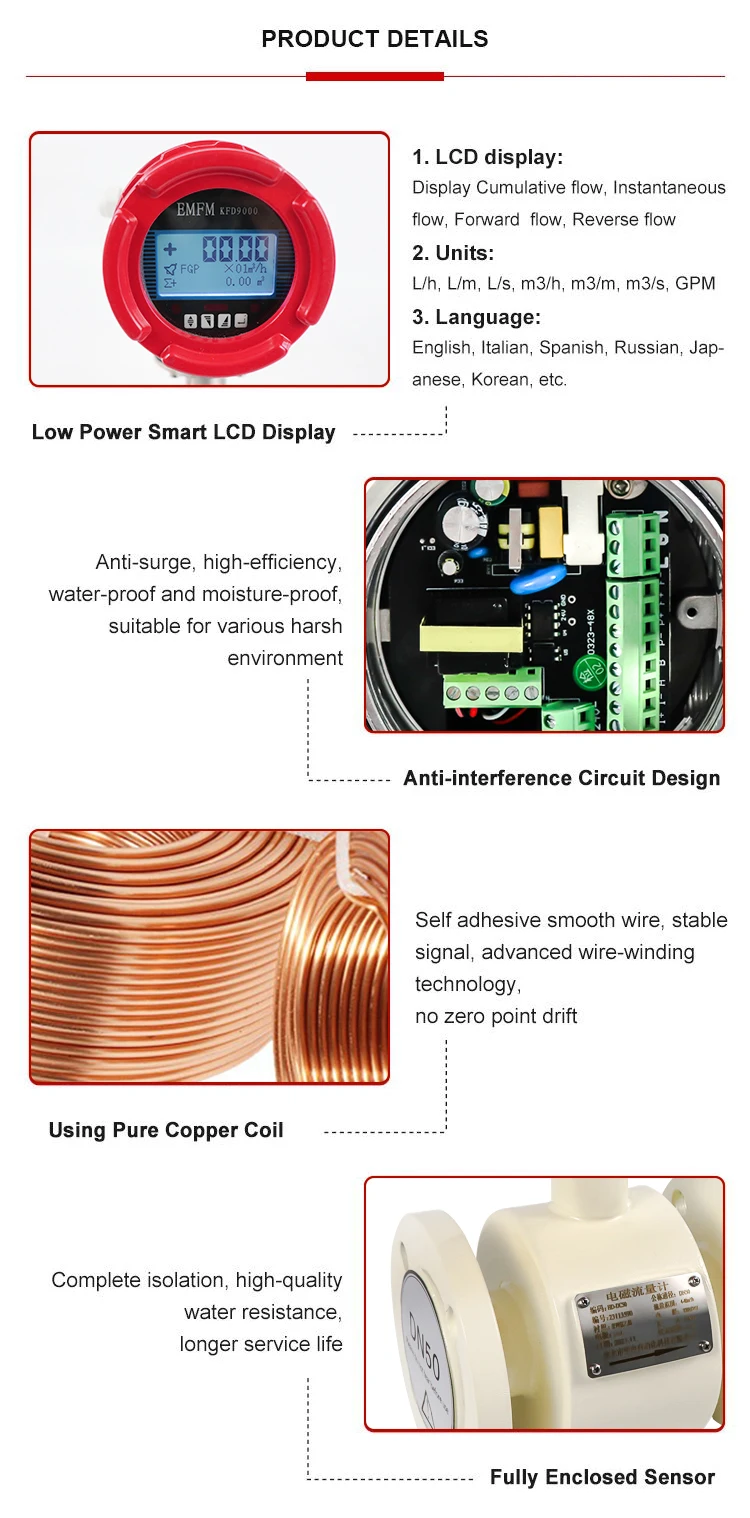

Product Feature

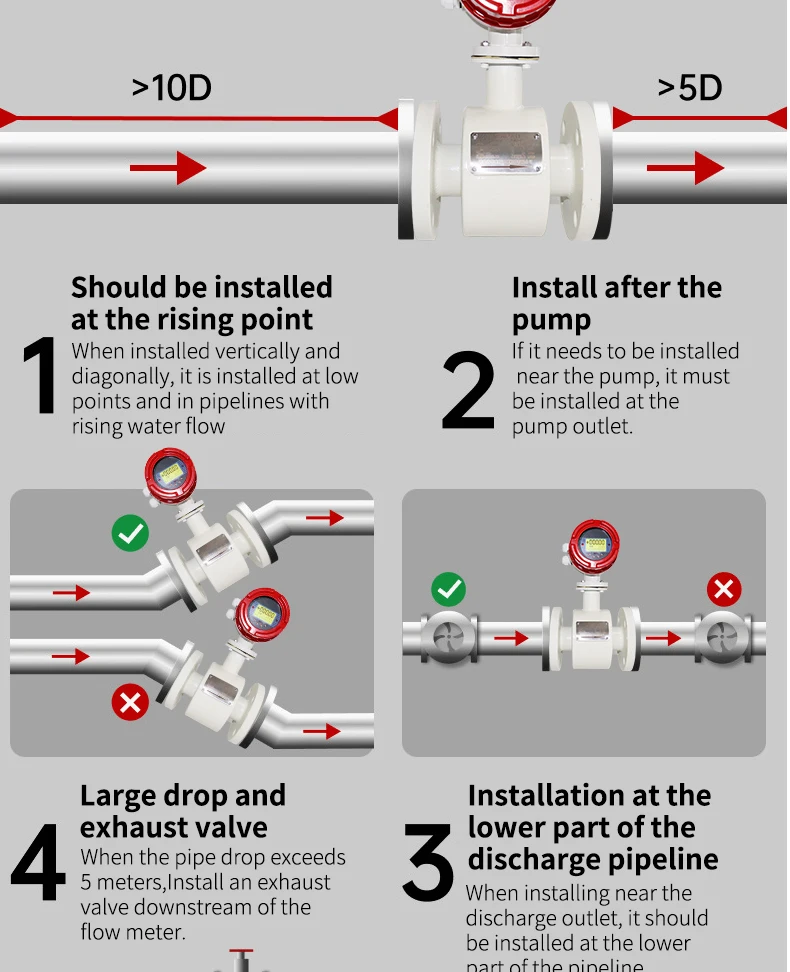

Installation demonstration diagram
If the on-site situation is more complicated, or you want to know more about flow meters and other products, you can consult our customer service. We have professional engineers to solve all your problems. Huadian is happy to communicate with you and become friends. We Willing to provide one-stop service to every customer.
