Large Capacity Activated Carbon Rake Furnace Biochar Carbonized Stove Bamboo Charcoal Carbonizaton Furnace
- Category: >>>
- Supplier: Zhengzhou Songbai Machinery Equipment Co. Ltd.
Share on (1601025520585):
Product Overview
Description
Product Description
The Introduction Of Charcoal Making Machine
It adopts the advanced carbonized technology heat flow, carbonized rate increased significantly, The carbonized rate is 99%.And the operation is very convenient, good safety, high production efficiency, can save a lot of energy, good environmental protection performance. Shunt can also dry burning boiler flue gas and so on. Truly the charcoal, gas and oil range of equipment is currently the world's most advanced carbonization furnace.
Product Features

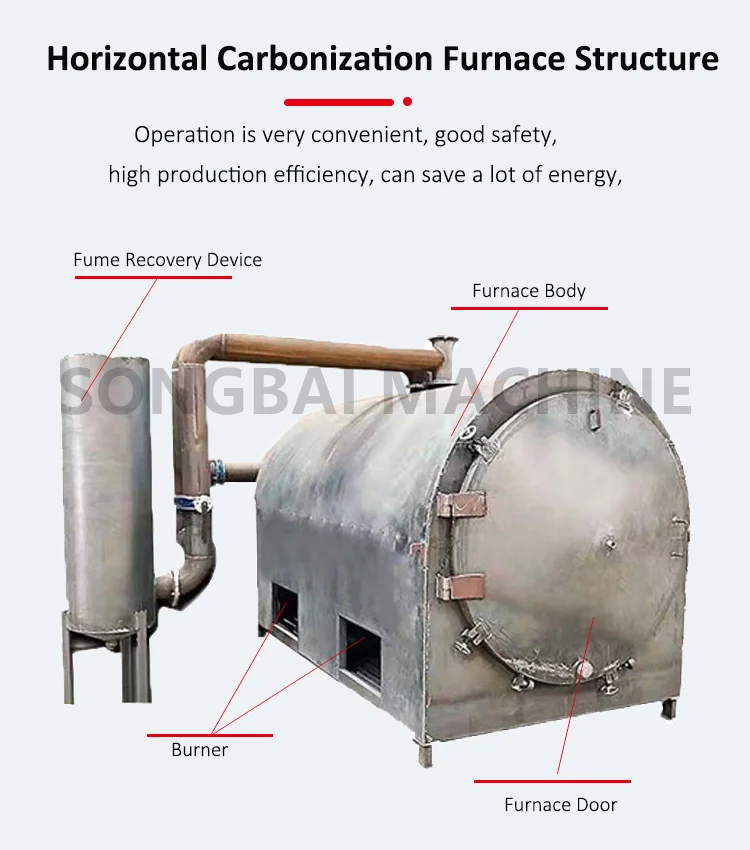

1.Carbonization furnace is the use of horizontal manufacturing process, carbonization furnace has a three-layer structure, and the middle of light insulation materials,It is possible to keep the temperature in the furnace at all times. | ZH-MC-420 | ZH-MC- 500 | ZH-MC-600 | ZH-MC-800 | ZH-MC-900 | ZH-MC-1000 | ||||||

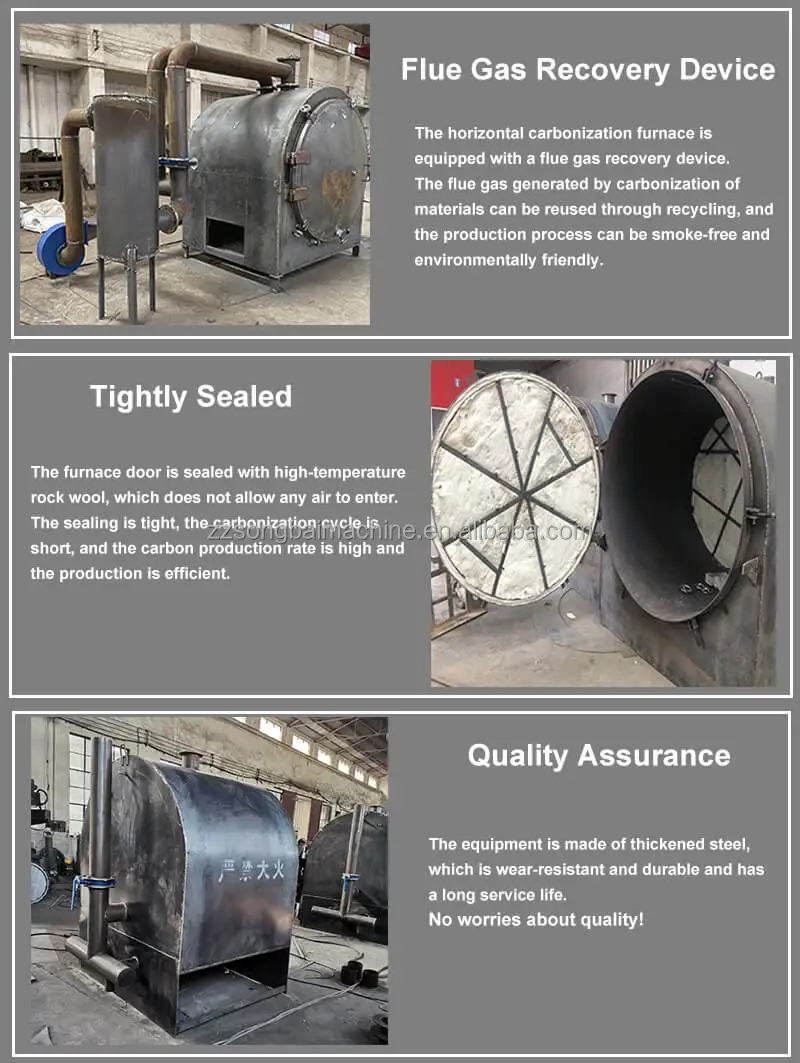

2.The door use packing seal, not into the air, Out of carbon than the conventional carbonization furnace is much higher. | 380V/50HZ,3PH electricity, Customized according to client require | ZS-MC500 | ZS-MC600 | ZS-MC1000 | ||||||||
3.The reason is called green carbonization furnace because the stick in the carbonization process will produce a lot of light yellow combustible gas. These gases through the carbonization furnace with there own pipes can make combustible gas diversion to the charring furnace combustion zone to the second fire heating. More environmentally friendly and saving fuel. | 11KW | 18.5KW | 22KW | 37KW | 55KW | 75KW | ||||||
4.Carbonization furnace excess gas can be used to dry the sawdust or to burn the boiler. | 15HP | 25HP | 32HP | 4102 diesel engine | 4105 diesel engine| | 4105 diesel engine | ||||||
5.Carbonization furnace to end charcoal cooling time is shorter, we use the inter layer of the gap between the unit water cooling carbonization furnace natural cooling, more efficient | 300-1000kg/h | 800-1500kg/h | 1000-2000kg/h | 1500-2500kg/h | 2000-3000kg/h | 3000-4000kg/h | ||||||
Machine Details
Model | Inner size(m) | Dimension(m) | Weight(kg) | Carbonization cycle | Output |
0815 | 0.8*1.5 | 1.8*1.1*1.3 | 400 | 8-10h | 150-200kg |
1215 | 1.2*1.5 | 1.9*1.5*1.8 | 650 | 10-12h | 200-300kg |
1515 | 1.5*1.5 | 1.9*1.8*2.3 | 1000 | 18-20h | 400-500kg |
1220 | 1.2 * 2 | 2.3*1.6*1.8 | 1200 | 18-24h | 500-600kg |
1330 | 1.3*3 | 3.3*1.8*2.3 | 2300 | 18-24h | 700-800KG |
1530 | 1.5*3 | 3.3*2*2.4 | 2800 | 18-24h | 800-1000Kg |
1545 | 1.5*4.5 | 4.7*1.9*2.3 | 3200 | 18-24h | 1800-2000kg |
2060 | 1.9 * 6 | 6.2*2.3*2.8 | 7000 | 18-24h | 2800-3000 kg |

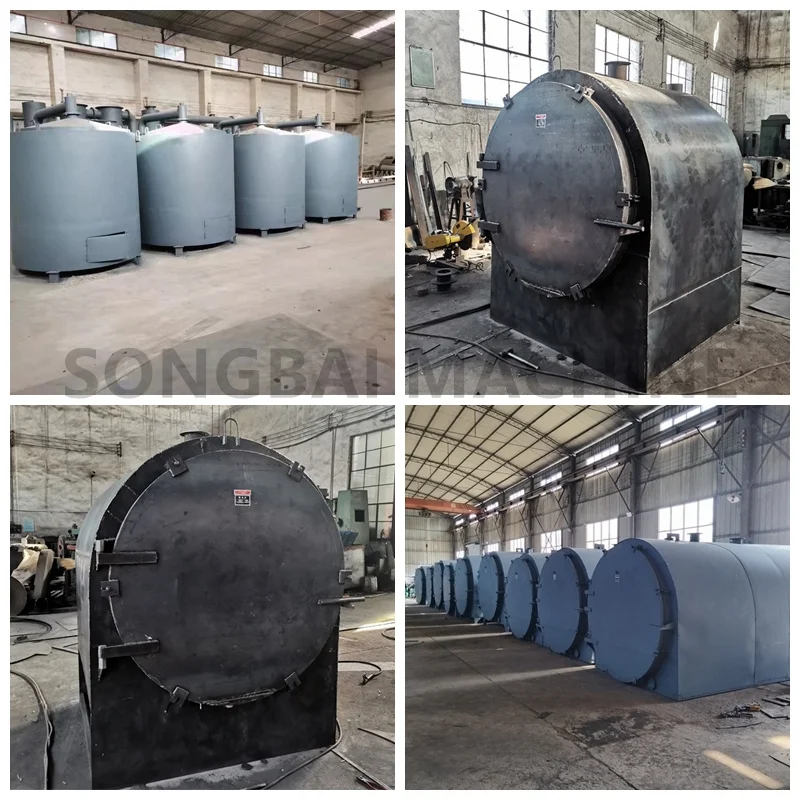

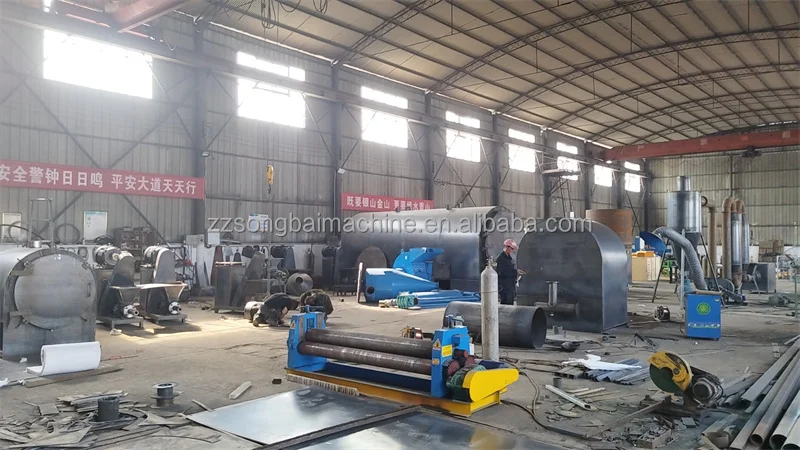

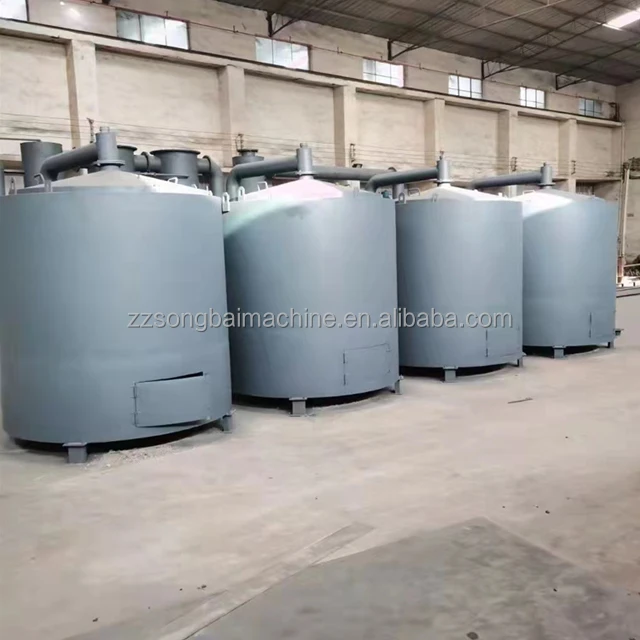

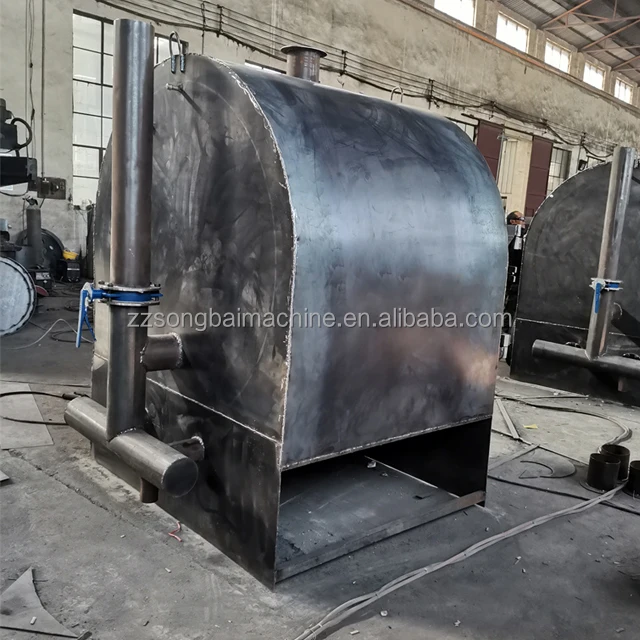

Factory Real Shot

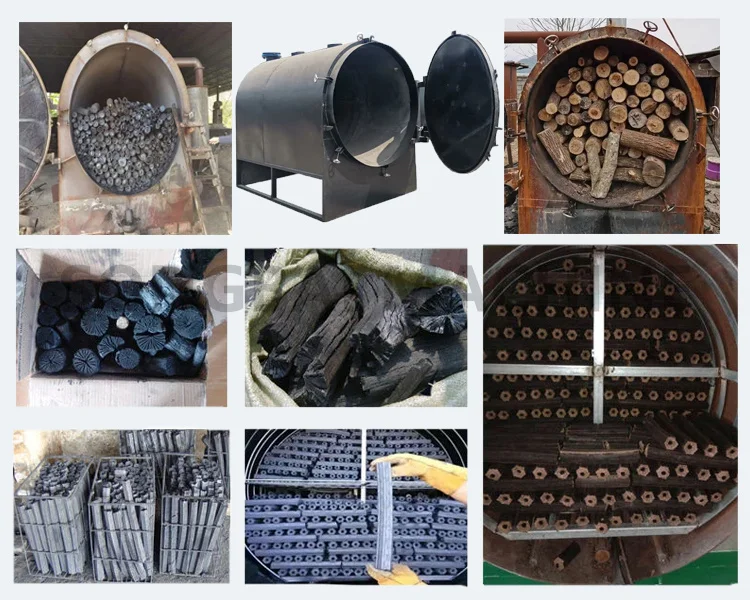

Product Application
Packing & Delivery

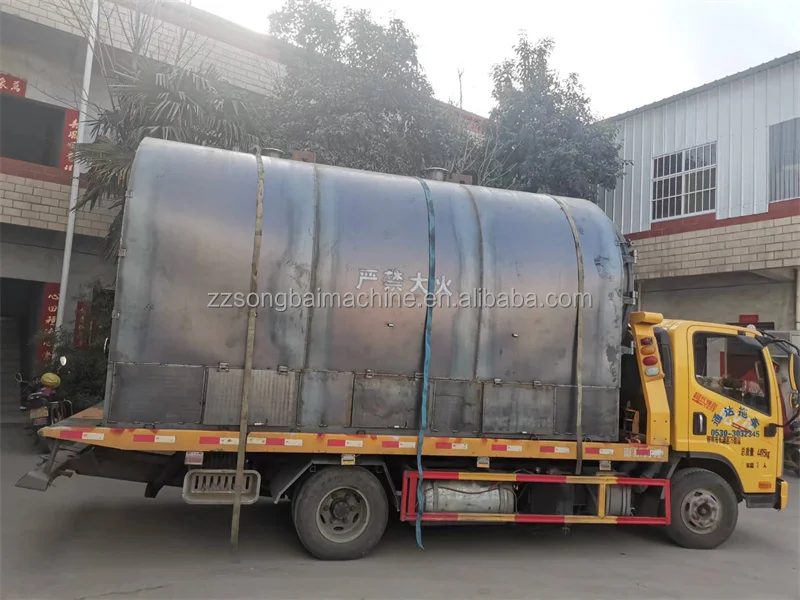

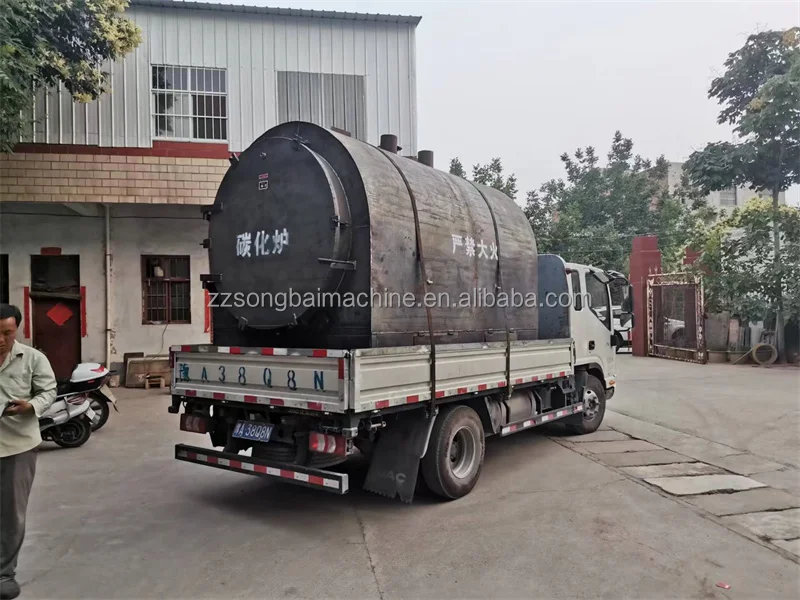

Carbonization furnace packing and shipping
Packed in standard wooden case
Shipping by sea
Company Profile
Zhengzhou Songbai Machinery Co., Ltd. is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business, we can supply carbonization furnace, wood pellet machine, animal husbandry machinery, spare parts and so on.
Our main products include mixer, feed mixer, chaff cutter, pellets machine, hammers mill and so on.
Team：50+ people；Sales team：30+ people；
Engineer team：8 people；After-sale team：10+ people.
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers.
Zhengzhou Songbai Machinery wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Zhengzhou Songbai Machinery welcomes you at any time!
Our main products include mixer, feed mixer, chaff cutter, pellets machine, hammers mill and so on.
Team：50+ people；Sales team：30+ people；
Engineer team：8 people；After-sale team：10+ people.
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers.
Zhengzhou Songbai Machinery wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Zhengzhou Songbai Machinery welcomes you at any time!
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can
be provided in advance.
be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request. 5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service:
1.Allocation chart as the buyer’s request will be supplied. 2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price. 4.Free easy broken spare parts will be sent with container . 5.First installation can be done by engineer.
6.Training workers in customer’s factory.
