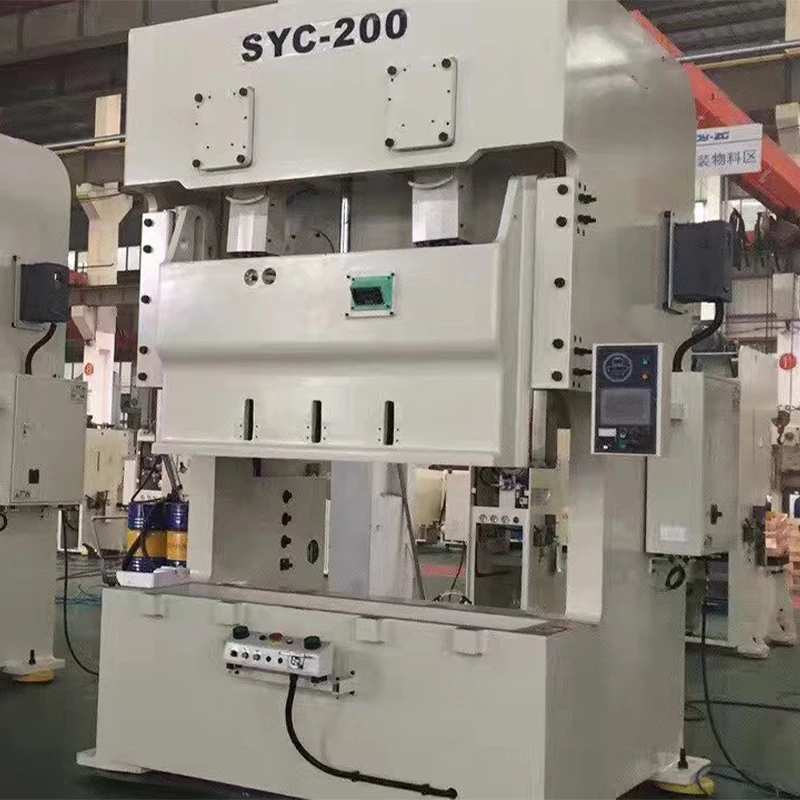

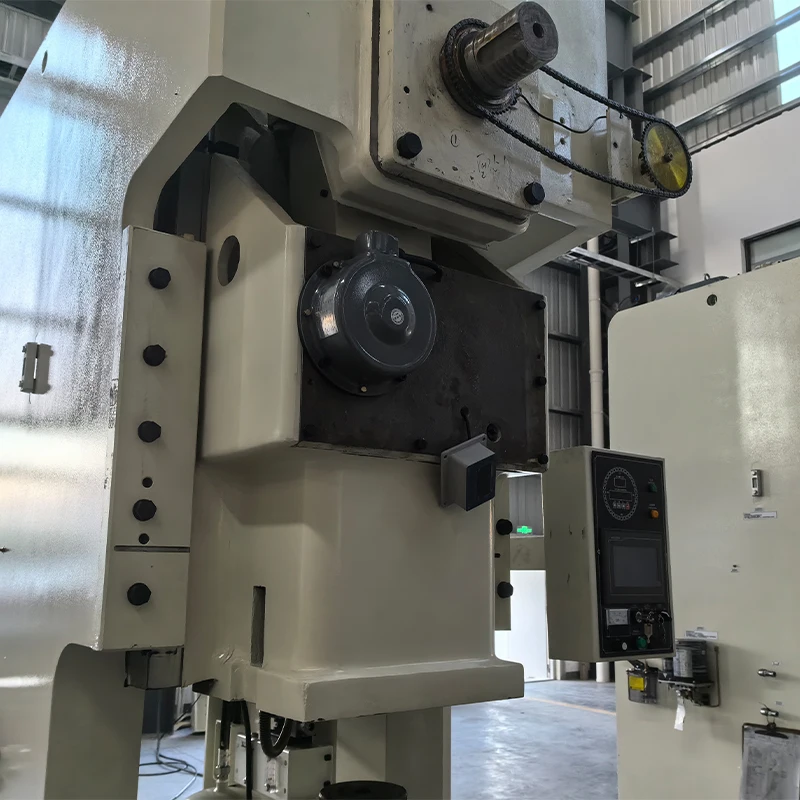

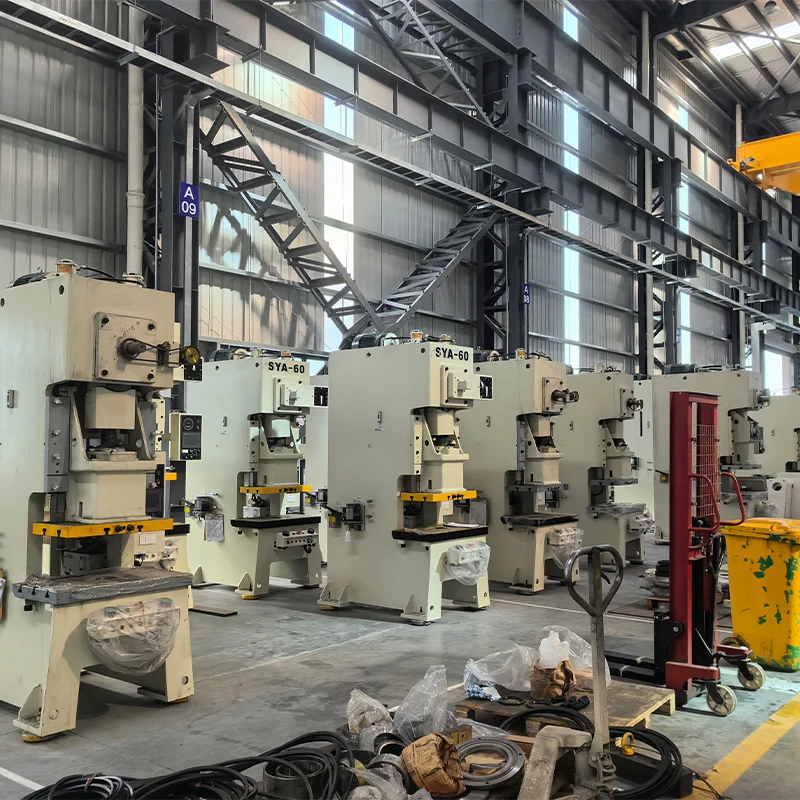

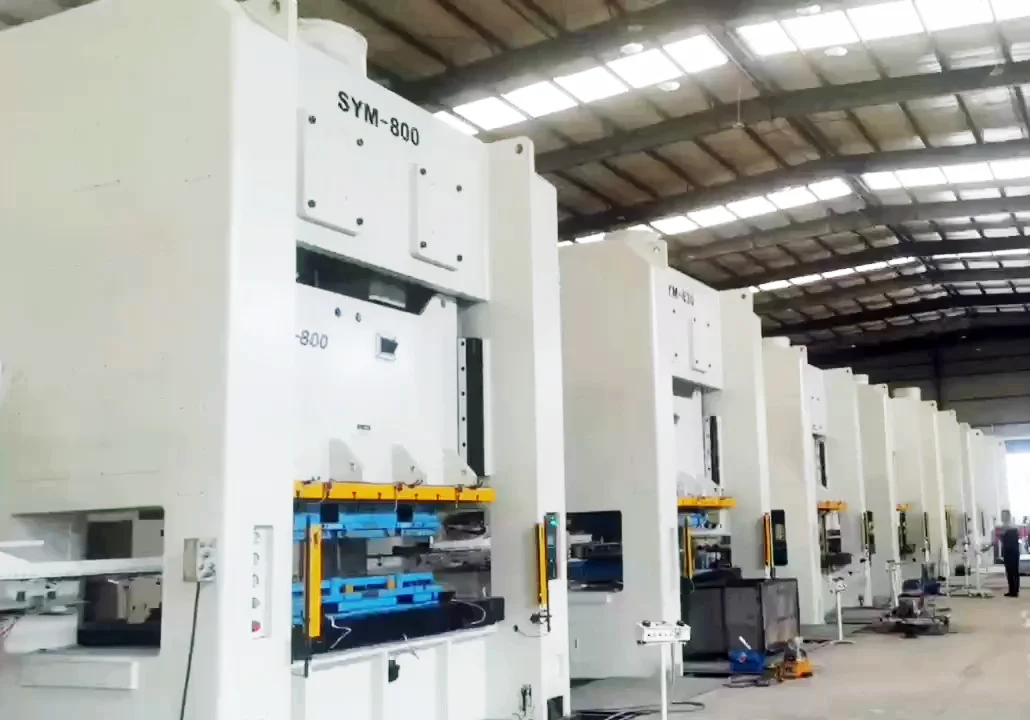

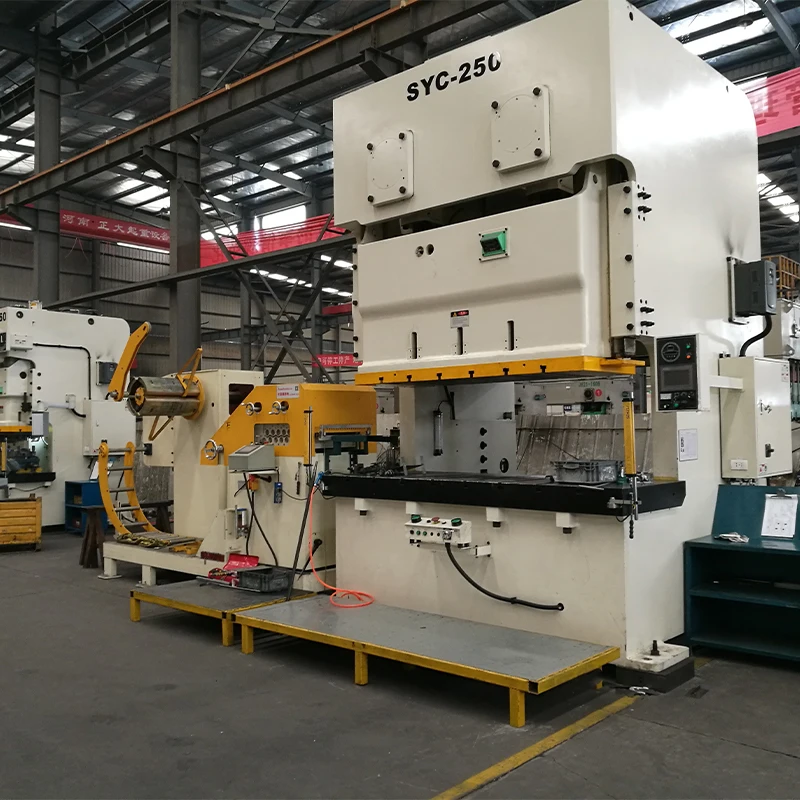

Frame Double Crank Power Press Machine 200 Ton Punch Forming Punching Machine Pneumatic Power Press
- Category: >>>
- Supplier: Shenzhen Lihao Machinery Equipment Co. Ltd.
Share on (1601025523196):
Product Overview
Description
Professional stamping automation equipment
The machine body is welded of quality and treated by tension elimination, improve stability and reliability of precision of the machine.
Crank, gear, connect bar are oxidized hardening and milled, having super comrehensive mechanical perfor-mance and durable function.
Reasonable structural design, is convenient for au-tomatic production and line production.
Used reliable high intensity clutch/brake and twin electromagnetic valve, overloading protector can guar-antee safe production all-around.
Adopt safety double solenoid valve and hydraulic overload protection device to ensure production and operation safety.
The mold bearing large impact loading as well as pressing of eccentric mold.
Adopted closed electric loop circuit, have compatible with any automatic equipments.
Crank, gear, connect bar are oxidized hardening and milled, having super comrehensive mechanical perfor-mance and durable function.
Reasonable structural design, is convenient for au-tomatic production and line production.
Used reliable high intensity clutch/brake and twin electromagnetic valve, overloading protector can guar-antee safe production all-around.
Adopt safety double solenoid valve and hydraulic overload protection device to ensure production and operation safety.
The mold bearing large impact loading as well as pressing of eccentric mold.
Adopted closed electric loop circuit, have compatible with any automatic equipments.
Specification | Unit | SYC-110 | SYC-160 | SYC-200 | SYC-200 | SYC-250 | ||||||||||
Model | V | H | V | H | V | H | V | H | ||||||||
Capacity | Ton | 110 | 160 | 200 | 250 | |||||||||||
Rate tonnage point | mm | 5 | 3 | 6 | 3 | 6 | 3 | 7 | 3.5 | |||||||
Stroke | mm | 180 | 110 | 200 | 130 | 250 | 150 | 280 | 170 | |||||||
Stroker per Minute | s.p.m | 35-65 | 50-100 | 30-55 | 40-85 | 25-45 | 35-70 | 20-35 | 30-60 | |||||||
Die height | mm | 400 | 435 | 450 | 485 | 500 | 550 | 550 | 605 | |||||||
Slide adjustment | mm | 100 | 100 | 120 | 120 | |||||||||||
Slide area | mm | 1400ｘ500ｘ70 | 1600ｘ550ｘ70 | 1850ｘ650ｘ95 | 2100ｘ700ｘ95 | |||||||||||
Bolster area | mm | 1800ｘ650ｘ130 | 2000ｘ760ｘ150 | 2400ｘ840ｘ170 | 2700ｘ900ｘ170 | |||||||||||
Main motor | kw.p | 11ｘ4 | 15ｘ4 | 18.5ｘ4 | 22ｘ4 | |||||||||||
Air pressure | kg/cm2 | 6 | ||||||||||||||
Presses precision | GB/JIS 1 class | |||||||||||||||
Presses dimension | mm | 1745ｘ2000ｘ3059 | 1940ｘ2200ｘ3709 | 2235ｘ2620ｘ3849 | 2545ｘ3000ｘ4304 | |||||||||||
Why choose us？

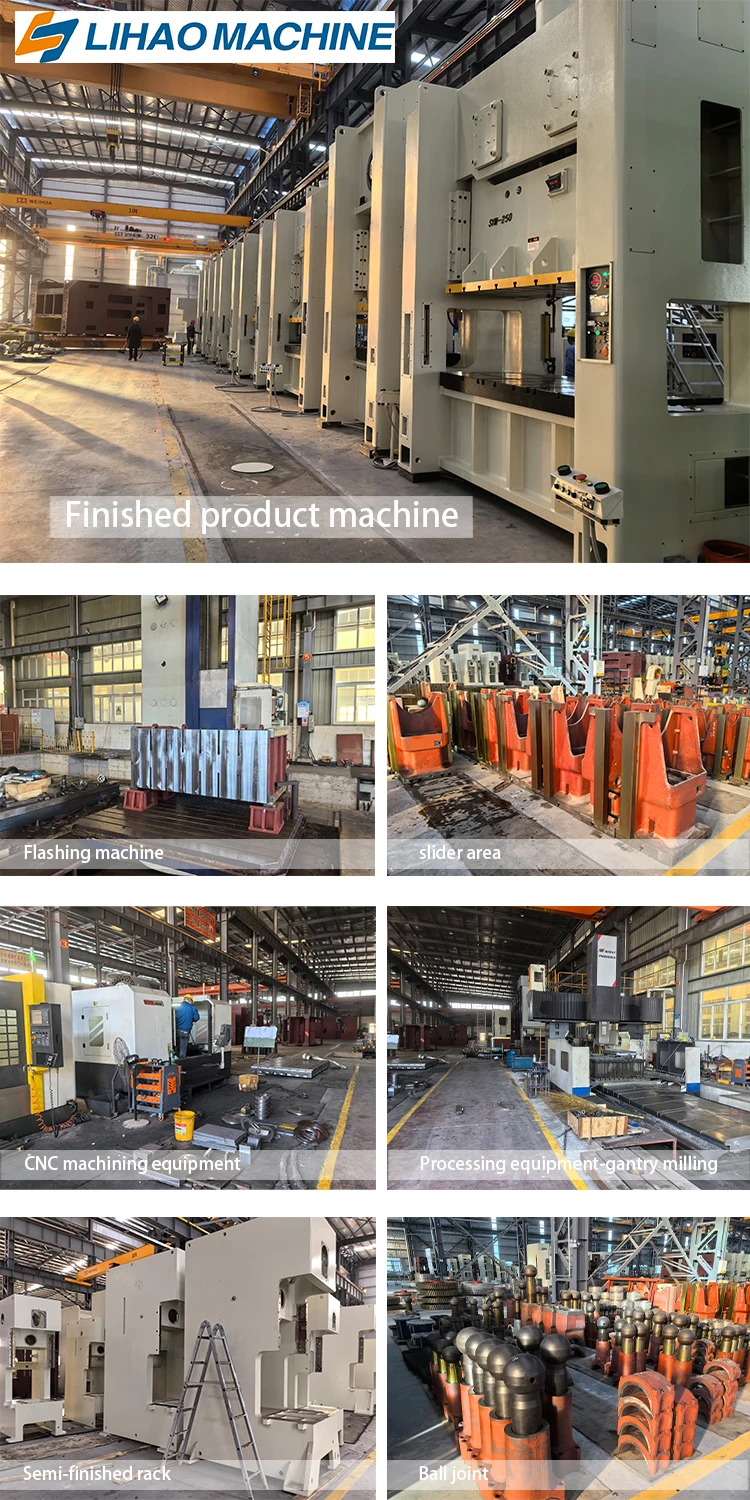

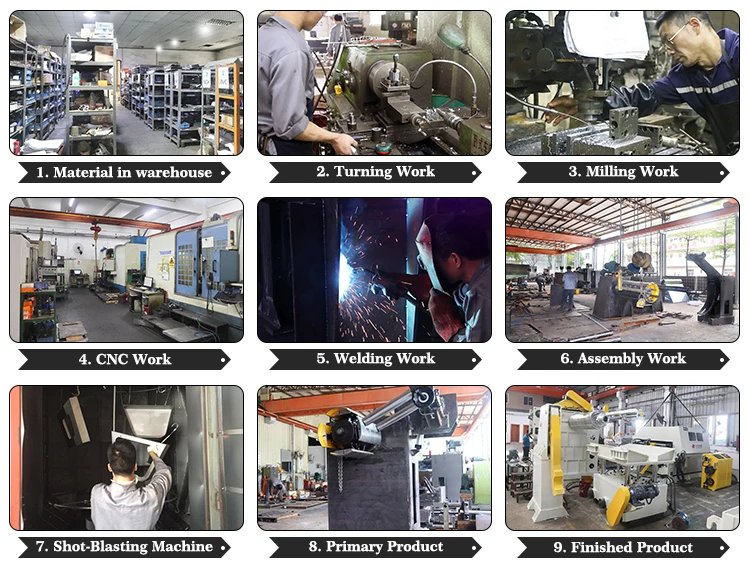

Shenzhen LIHAO Machine Equipment Co., Ltd. in Shenzhen is a professional machinery manufacturer integrating design, production, sales, service, and trade. Our product range includes punch presses, three-in-one feeders, two-in-one uncoilers, straightening machines, CNC servo feeders, and more. We specialize in delivering customized, high-performance, cost-effective manufacturing services for stamping press automation equipment to meet the unique needs of our clients.
Warranty Policy
Warranty period one year free, support lifetime after-sales.
Technology Support
Available(online + offline). Operation & maintenance manual(English Version)available
Installation & Commissioning
Seller can arrange the techanicals to do the installation for buyer if it is necessary. In addition, we have included installation tools
Can you supply the relevant documentation?
we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
