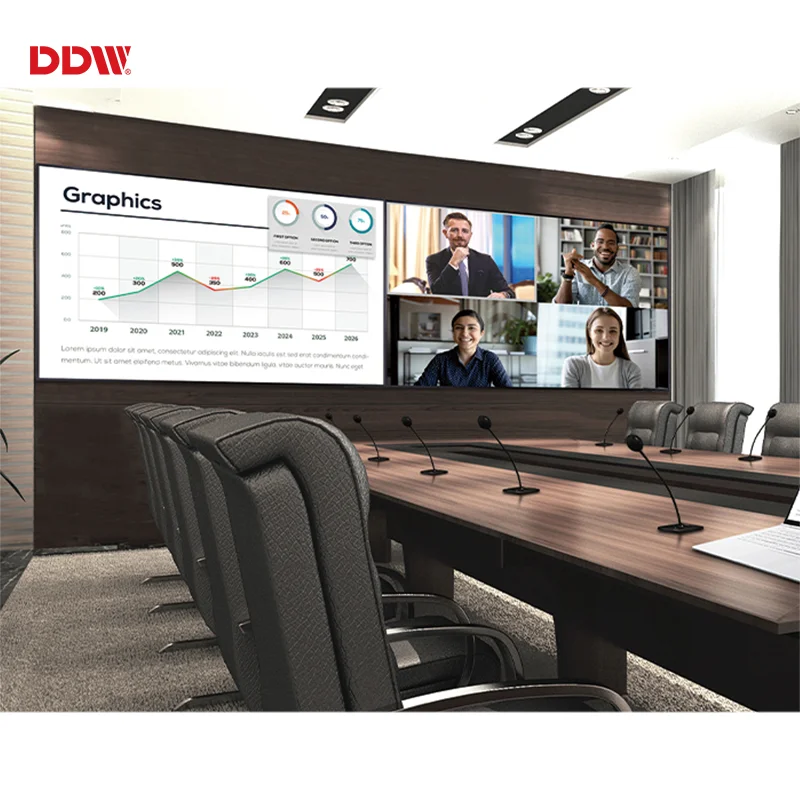

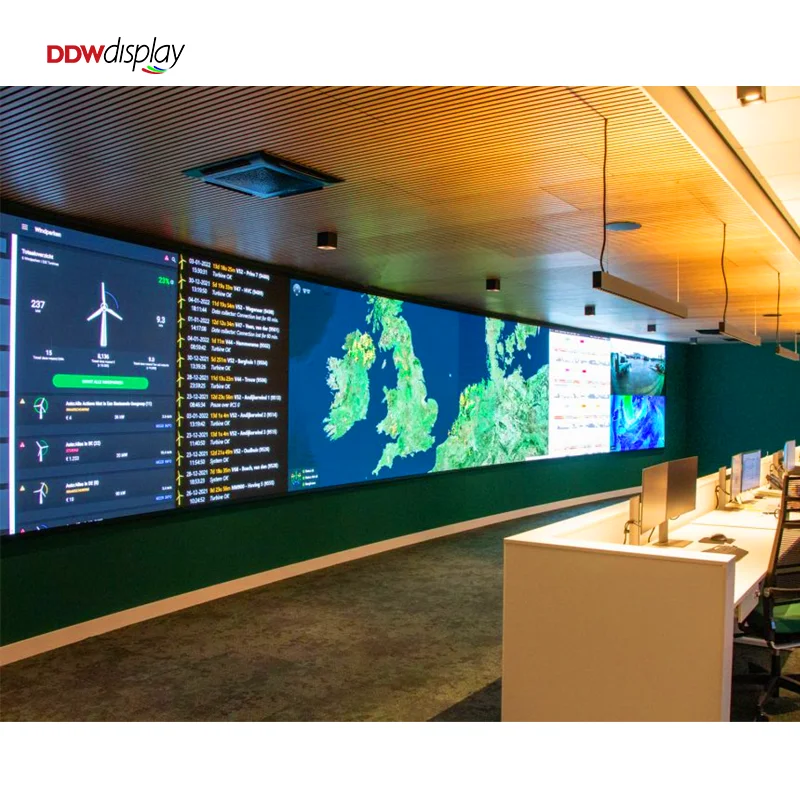

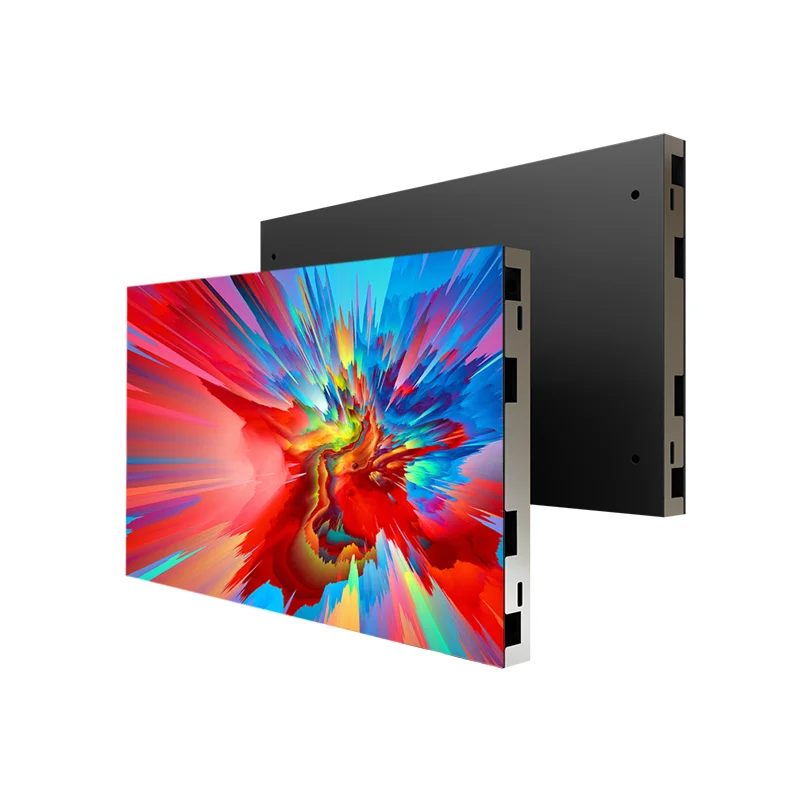

High Definition P0.93 P1.25 P1.56 P1.87 Fine Pitch Cob LED Screen 3840Hz Refresh Rate HD Video Wall For Indoor Display
- Category: >>>
- Supplier: Shenzhen DDW Technology Co. Ltd.
Share on (1601025565971):
Product Overview
Description
Discover Your Right Application , Make Your Business Possible !
Common warranty in LED field is 2 years, ours is 3 years Longer warranty periods, better after-sale services, worry-free user experience

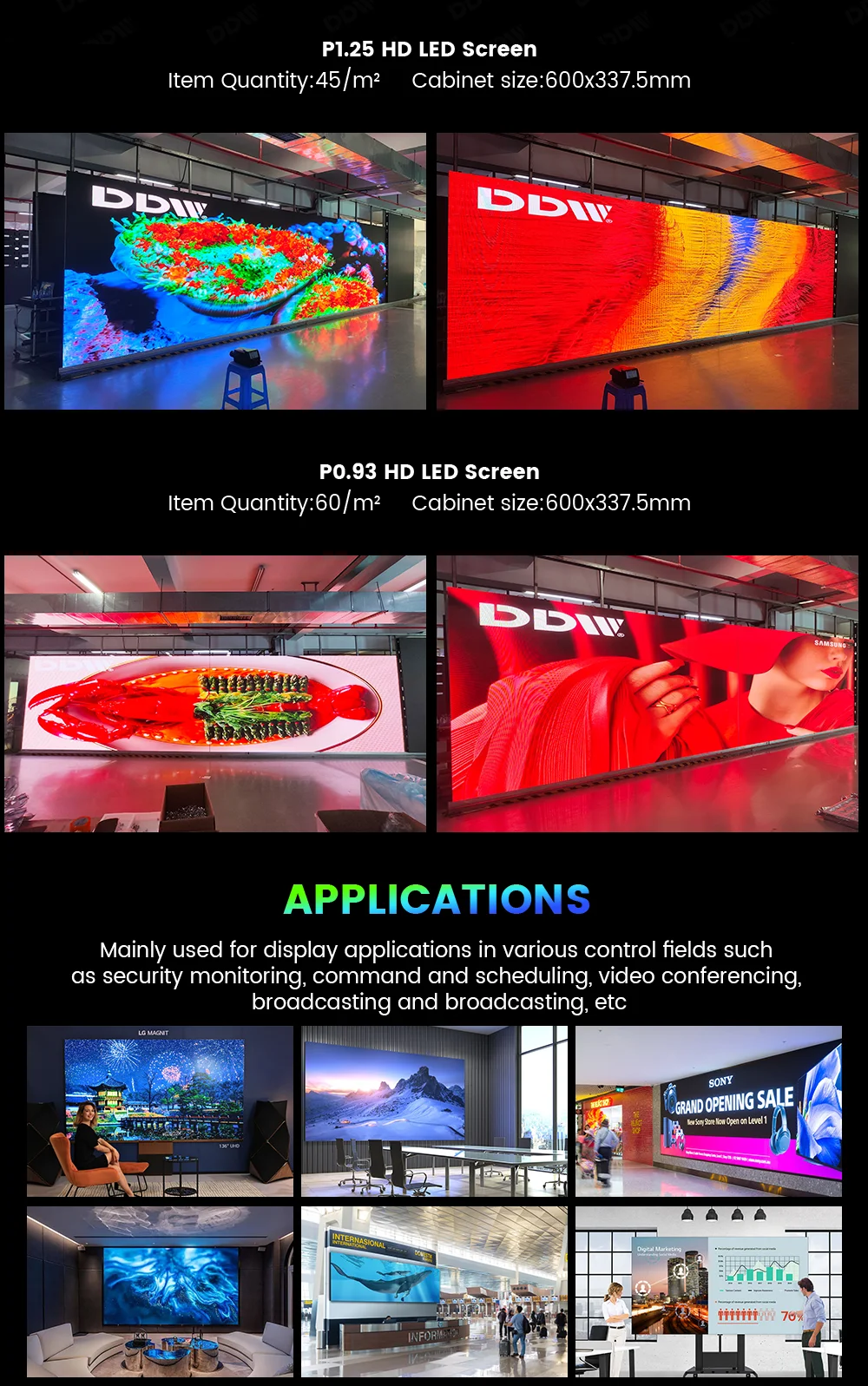

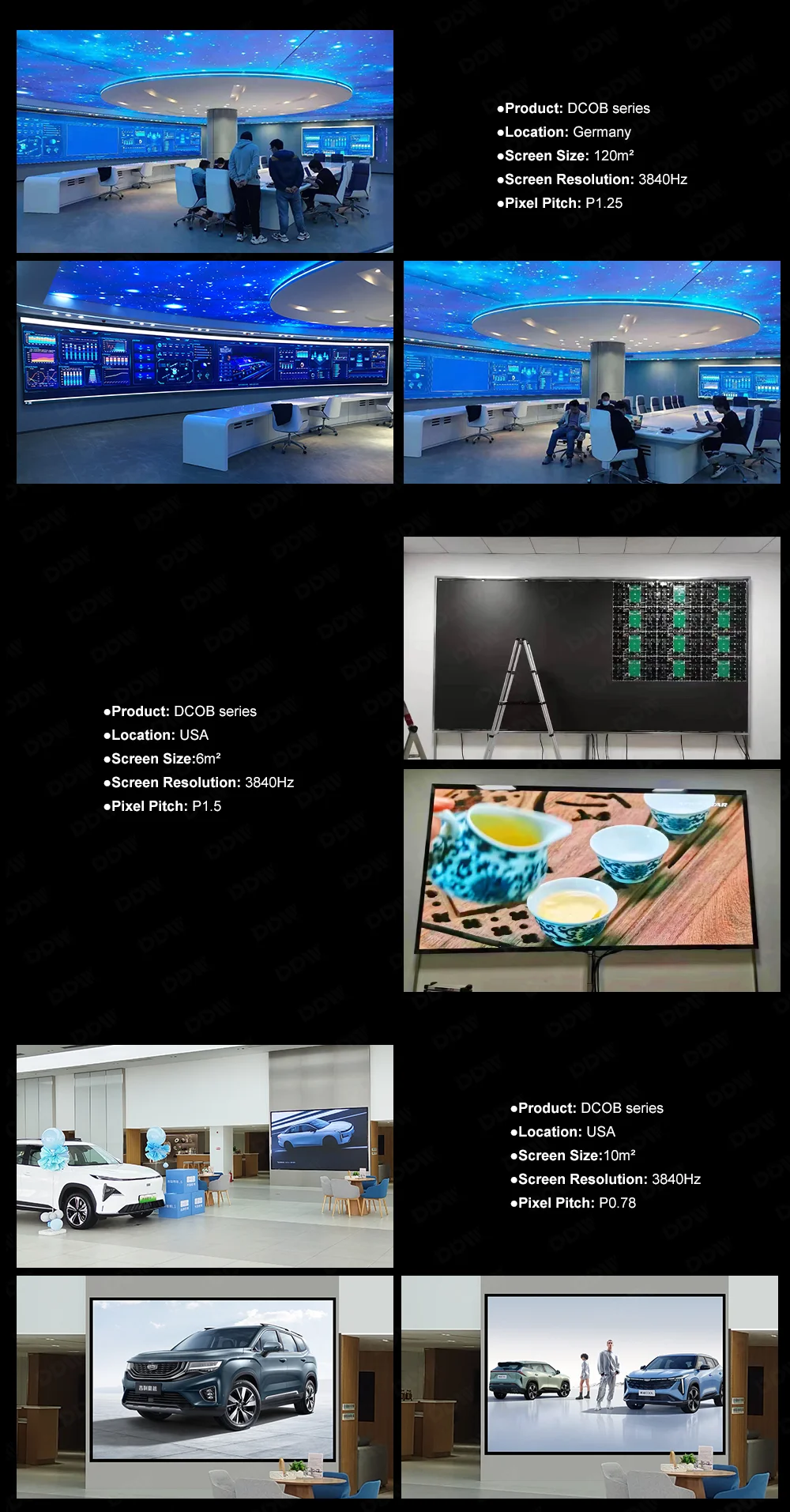

Project Case
LED displays have been exported to many countries and rigions in the World, and we are highly praised by our customers.
Products Description
Specifications

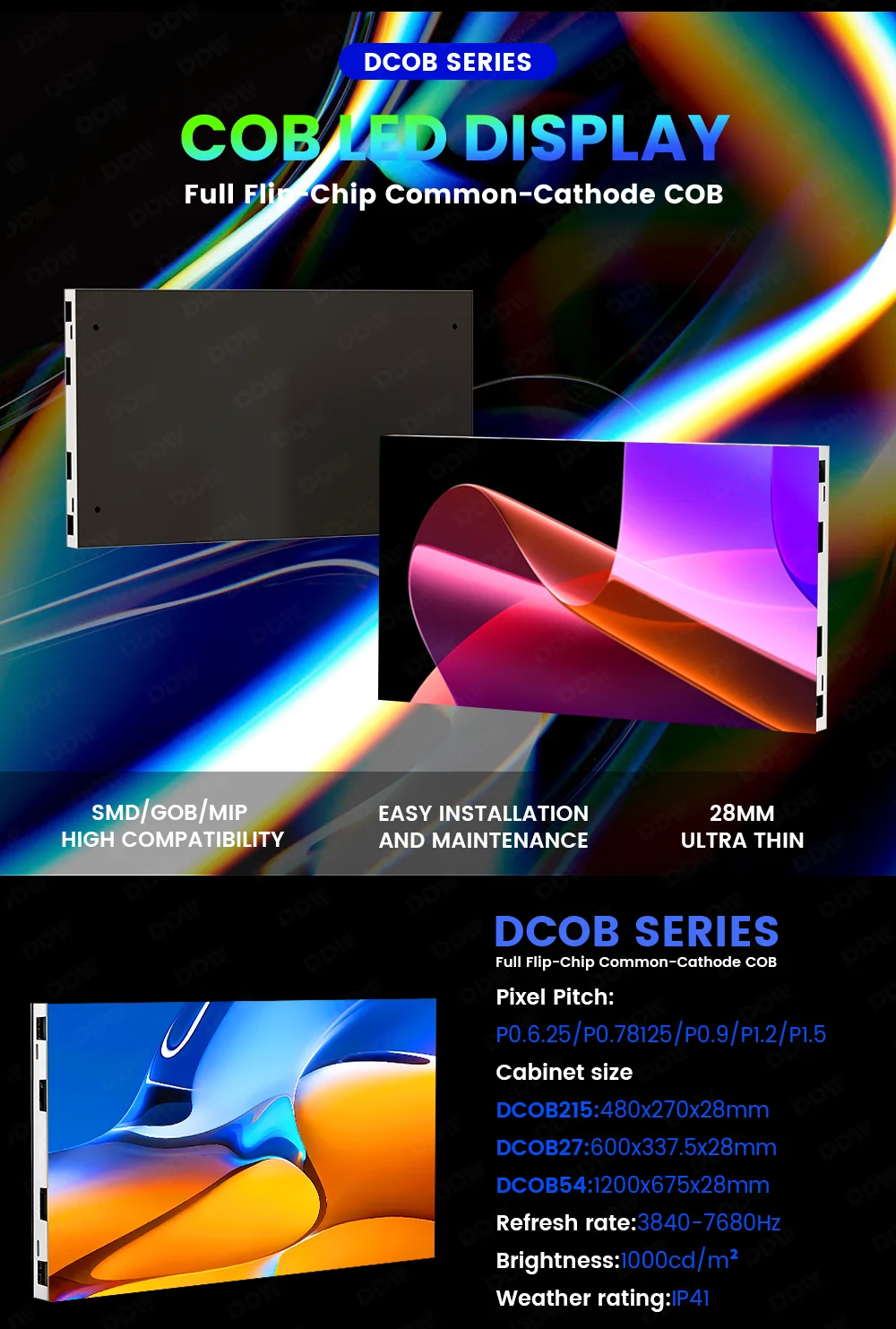

DCOB215
Pixel Pitch (mm) | 0.75 | 1 | 1.25 | 1.5 | |||
Cabinet Resolution (mm)(W×H) | 640×360 | 480×270 | 384×216 | 320×180 | |||
Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | ||||||
Pixel Density (dots/m²) | 1,777,778 | 1,000,000 | 640,000 | 444,444 | |||

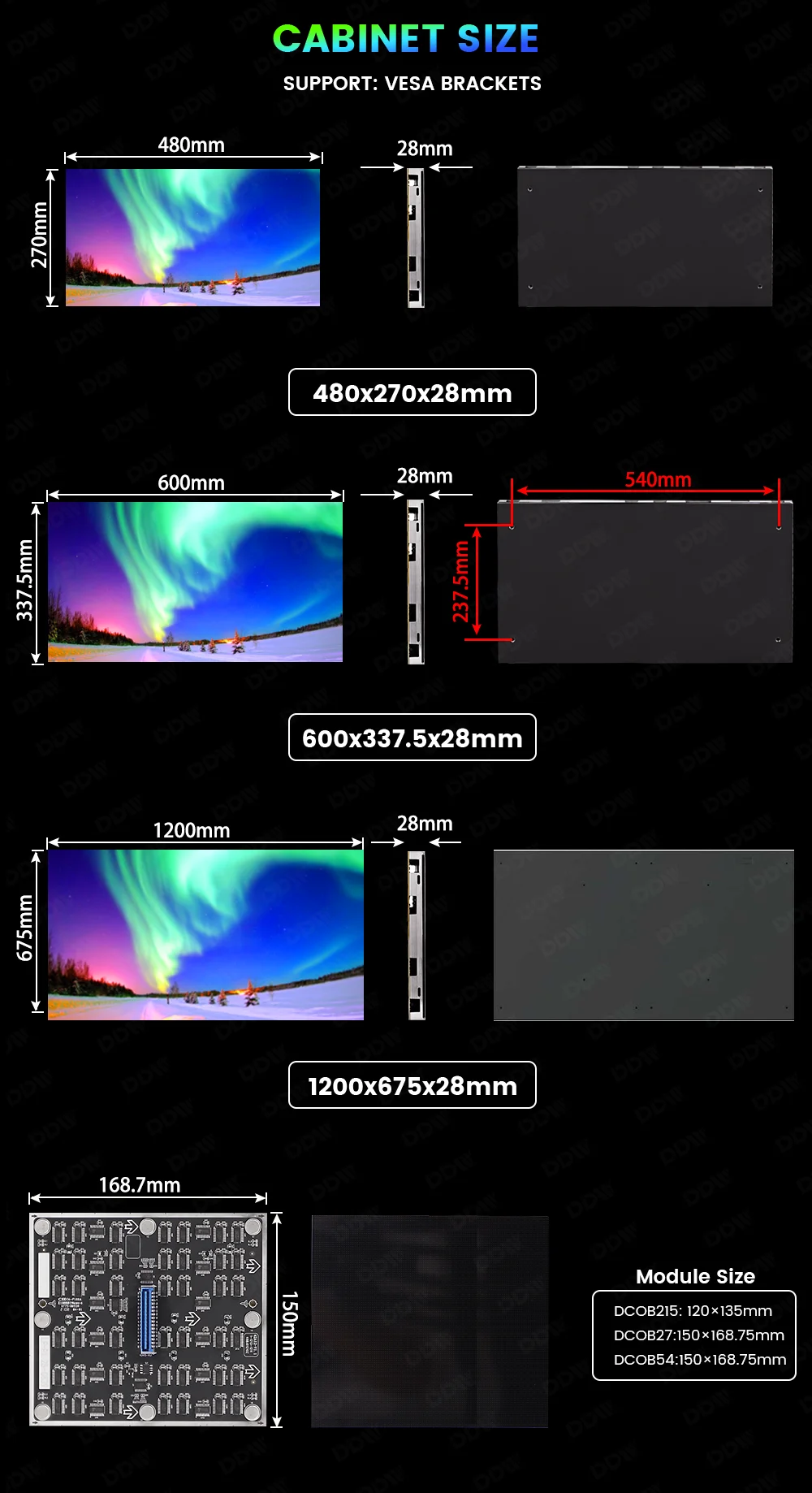

Cabinet Size (mm)(W×H×D) | 480×270×28 | ||||||
Cabinet Weight (kg) | 3.11 | ||||||
Refresh Rate (Hz) | 3840~7680 | ||||||

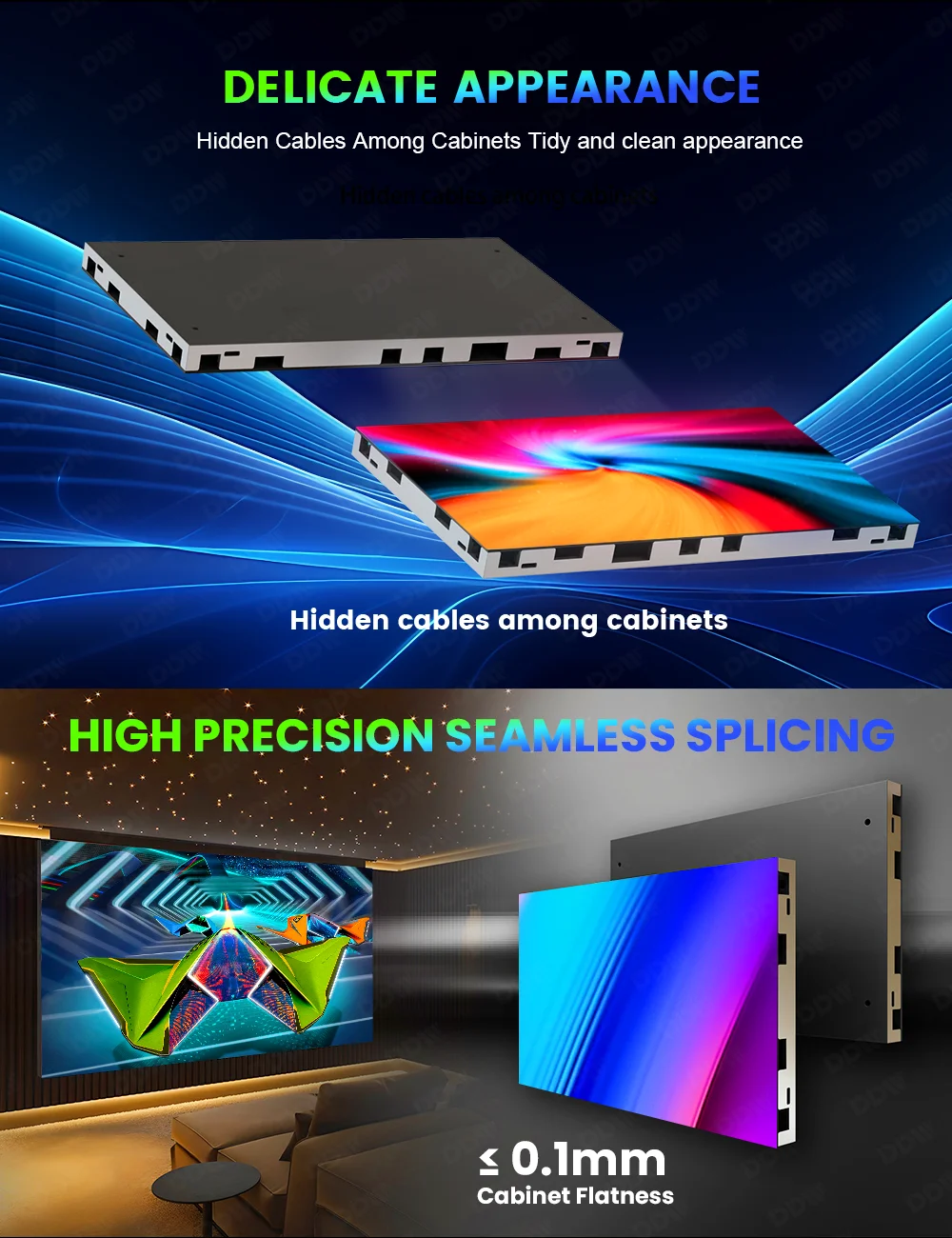

Cabinet Flatness (mm) | ≤0.1 | ||||||

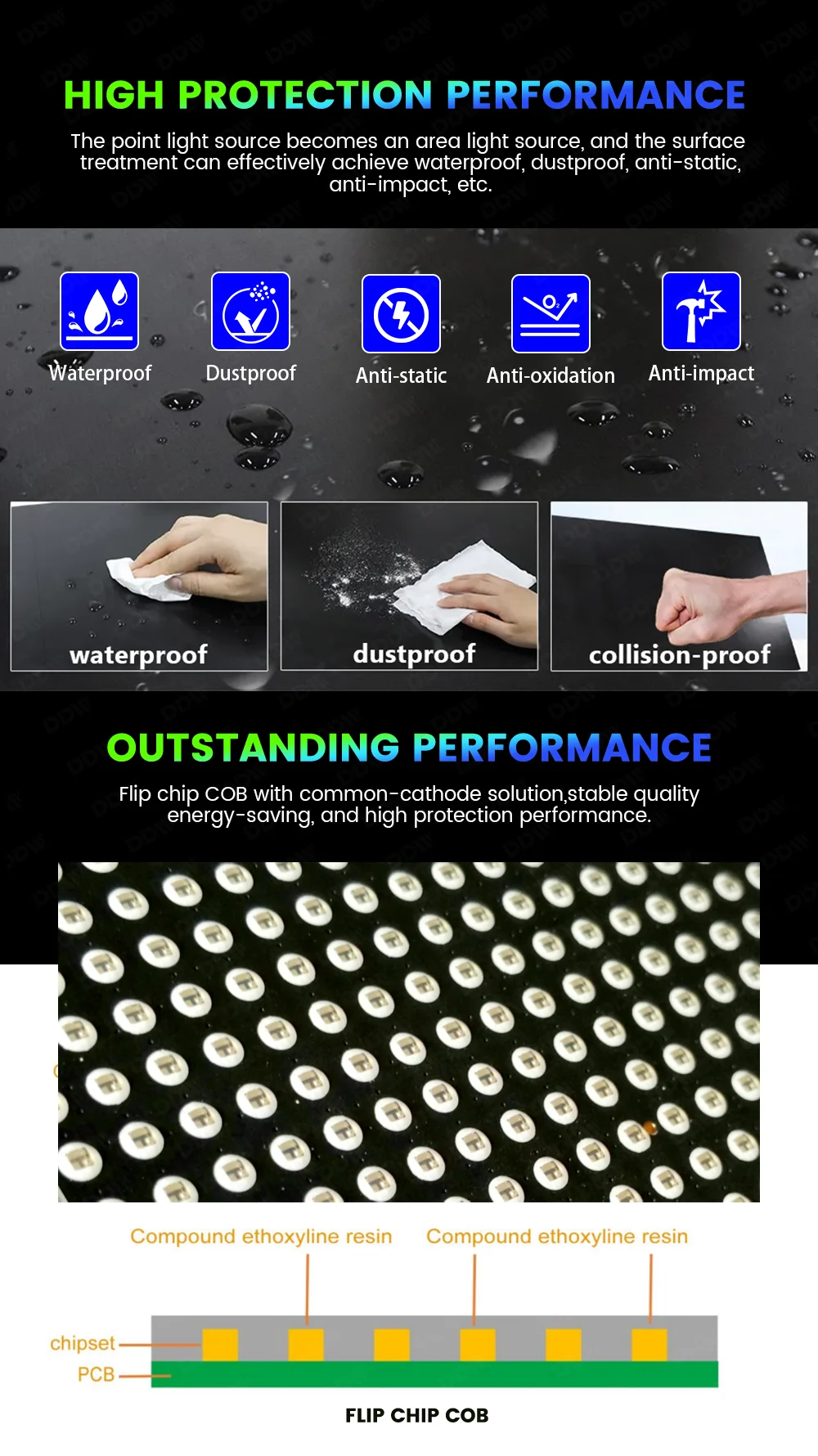

Pixel Configuration | COB | ||||||
Contrast Ratio | ≤1,000,000:1, Ultra high contrast ratio | ||||||
Gray Scale (bit) | 16 (Control system algorithm processing) | ||||||
Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | ||||
Avg. Power Consumption (W/m²) | ≤200 | ≤170 | ≤150 | ||||
Pixel Pitch (mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 | |||
Cabinet Resolution (mm)(W×H) | 768×432 | 640×360 | 480×270 | 384×216 | |||
Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | ||||||
Pixel Density (dots/m²) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | |||
Cabinet Size (mm)(W×H×D) | 600×337.5×28 | ||||||
Cabinet Weight (kg) | 4.69 | ||||||
Refresh Rate (Hz) | 3840~7680 | ||||||
Cabinet Flatness (mm) | ≤0.1 | ||||||
Pixel Configuration | COB | ||||||
Contrast Ratio | ≤1,000,000:1, Ultra high contrast ratio | ||||||
Gray Scale (bit) | 16 (Control system algorithm processing) | ||||||
Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | ||||
Avg. Power Consumption (W/m²) | ≤200 | ≤170 | ≤150 | ||||
DCOB27
Pixel Pitch (mm) | 0.78125 | 0.9375 | 1.25 | 1.5625 | |||
Cabinet Resolution (mm)(W×H) | 768×432 | 640×360 | 480×270 | 384×216 | |||
Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | ||||||
Pixel Density (dots/m²) | 1,638,400 | 1,137,778 | 640,000 | 409,600 | |||
Cabinet Size (mm)(W×H×D) | 600×337.5×28 | ||||||
Cabinet Weight (kg) | 4.69 | ||||||
Refresh Rate (Hz) | 3840~7680 | ||||||
Cabinet Flatness (mm) | ≤0.1 | ||||||
Pixel Configuration | COB | ||||||
Contrast Ratio | ≤1,000,000:1, Ultra high contrast ratio | ||||||
Gray Scale (bit) | 16 (Control system algorithm processing) | ||||||
Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | ||||
Avg. Power Consumption (W/m²) | ≤200 | ≤170 | ≤150 | ||||
DCOB54
Pixel Pitch (mm) | 0.6.25 | 0.78 | 0.93 | 1.25 | 1.5625 | ||||
Cabinet Resolution (mm)(W×H) | 1920x1080 | 1536x864 | 1280x720 | 768x432 | 768x432 | ||||
Brightness (nits)(Colour temp 6500K) | Factory delivery standard: 1000 after calibration | ||||||||
Pixel Density (dots/m²) | 2,560,000 | 1,638,400 | 1,137,776 | 640,000 | 409600 | ||||
Cabinet Size (mm)(W×H×D) | 1200×675×28 | ||||||||
Cabinet Weight (kg) | 17.5 | ||||||||
Refresh Rate (Hz) | 3840~7680 | ||||||||
Cabinet Flatness (mm) | ≤0.1 | ||||||||
Pixel Configuration | COB | ||||||||
Contrast Ratio | ≤1,000,000:1, Ultra high contrast ratio | ||||||||
Gray Scale (bit) | 16 (Control system algorithm processing) | ||||||||
Max. Power Consumption (W/m²) | ≤600 | ≤500 | ≤450 | ||||||
Avg. Power Consumption (W/m²) | ≤240 | ≤200 | ≤180 | ||||||

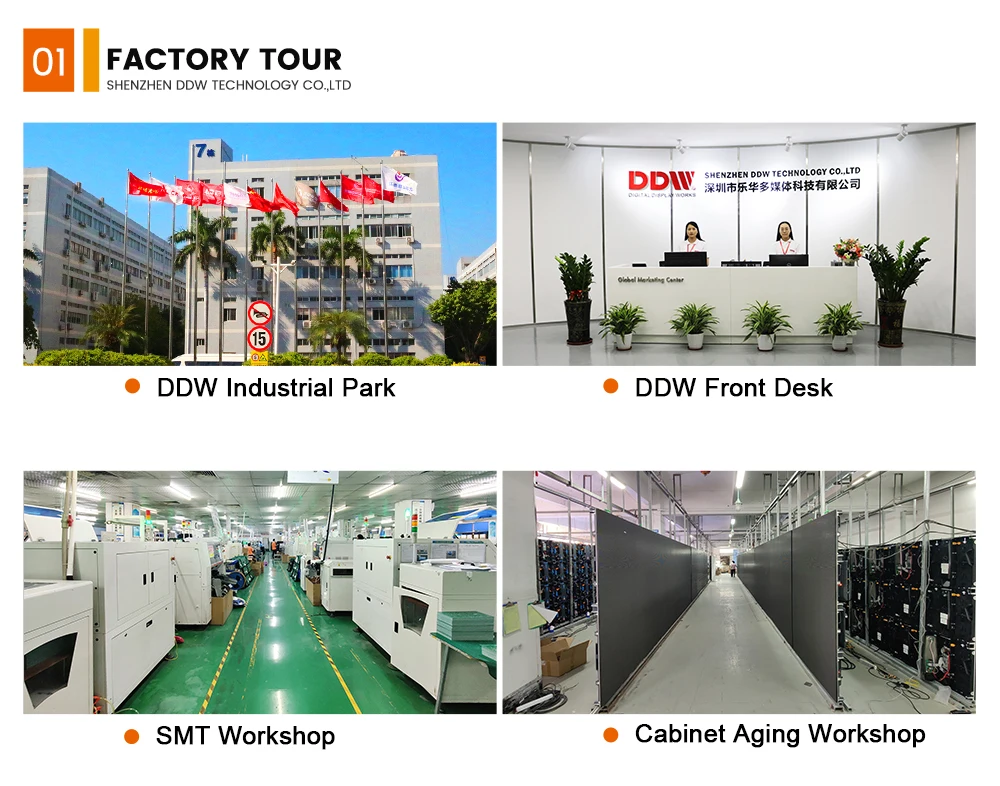

Company Profile
About DDW
Shenzhen DDW Technology Co, Ltd is a professional manufacturer and developer of LED display screens in Shenzhen, China since 2012. DDW Display focus on providing indoor outdoor creative LED screen, LED poster, Rental LED screen,Ultra fine HD LED screen,Flexible LED Display,Transparent LED display and various of LED display screens. We are always committed to providing high-quality hardware and software, our excellent pre-sales and after-sales service, and win-win cooperation for all customers.
