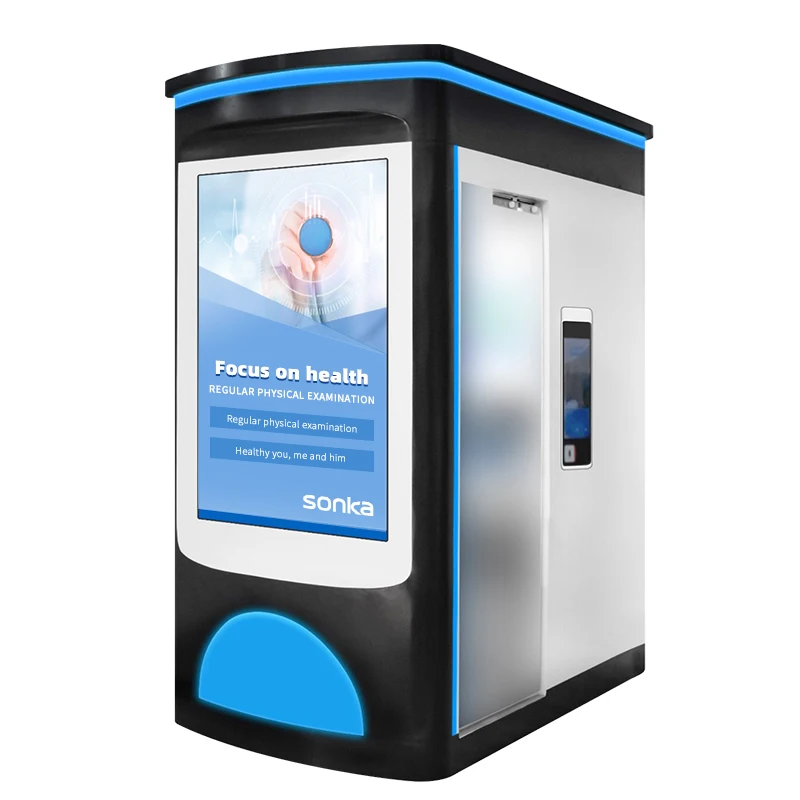

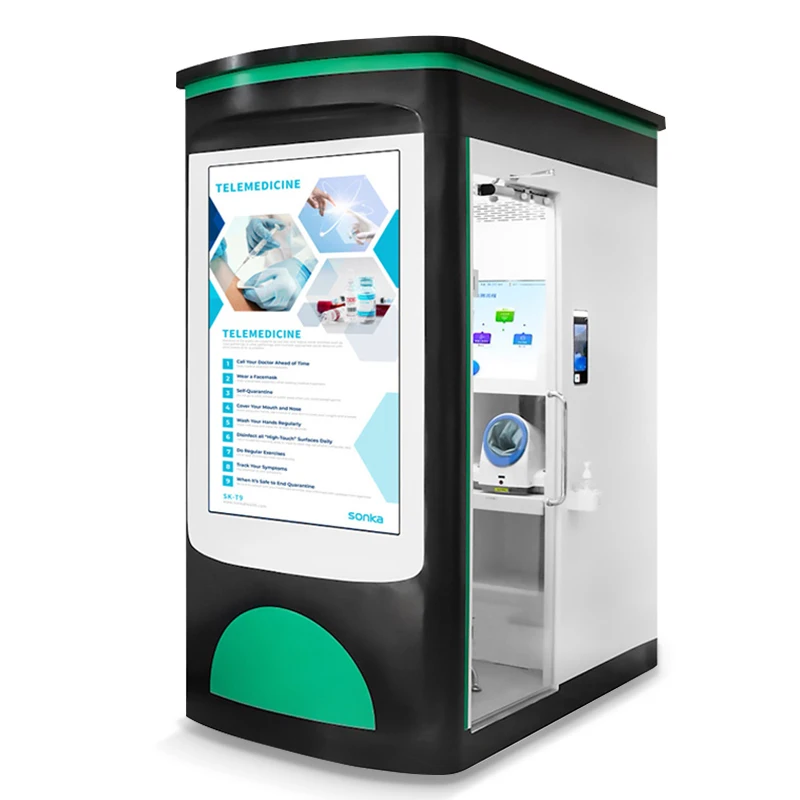

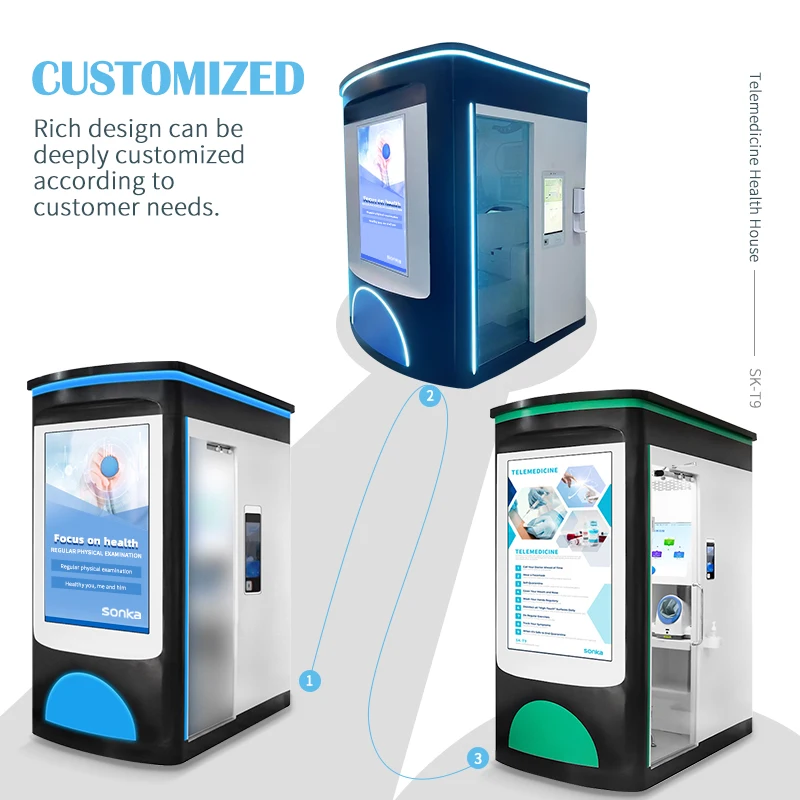

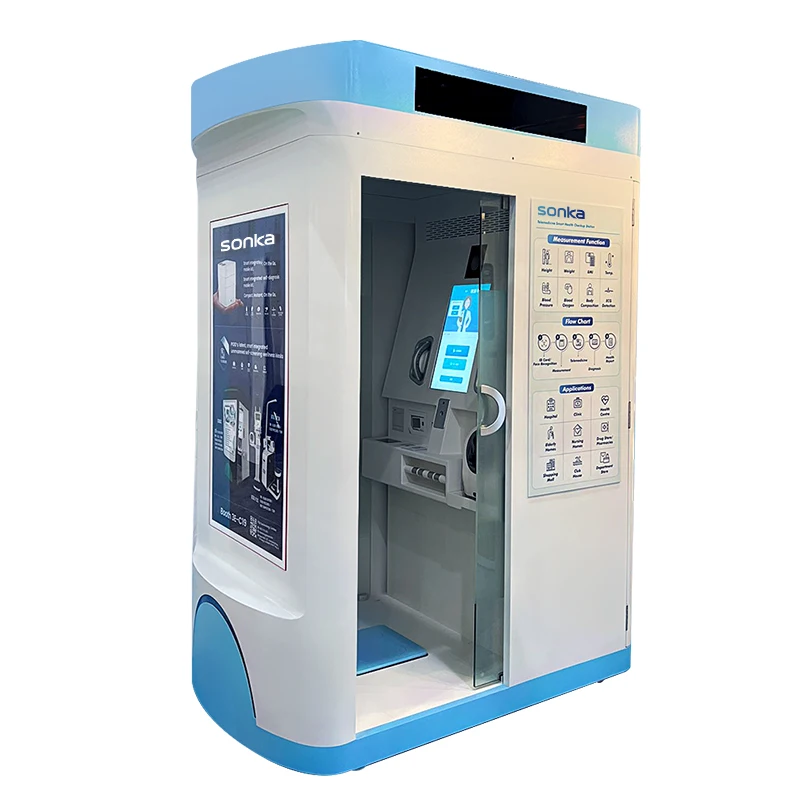

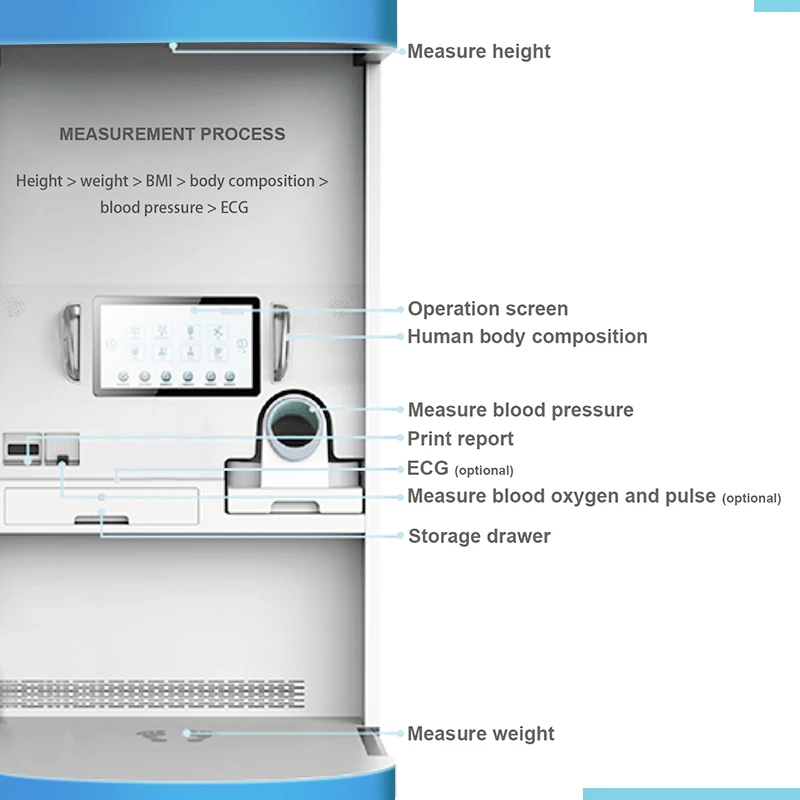

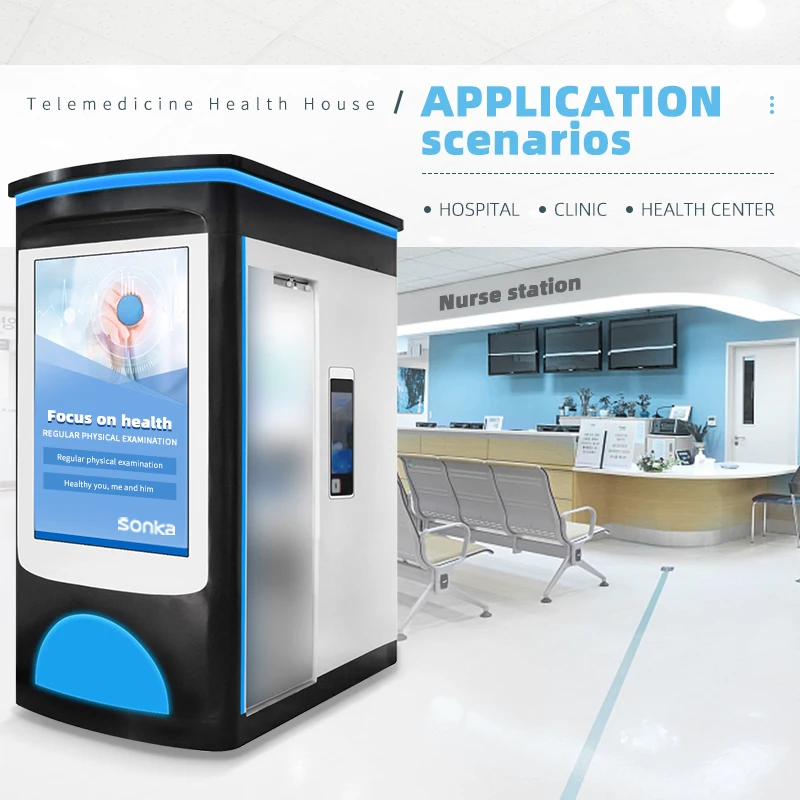

Intelligent health examination kiosk medical equipment ecg machine body health check up data transmission system telemedicine
- Category: >>>
- Supplier: Shenzhen Sonka Medical Technology Co. Limited
Share on (1601025615728):
Product Overview
Description
Project name | Parameter | Specification |
Machine parameters | Data output interface | LAN network port*1 USB*2 |
Power supply | 100V～240V，50/60Hz | |
Power rating | （100W）Maximum | |
LCD screen | 21.5inch | |
ID card reader | ||
Operating humidity range (storage temperature range) | 5℃～45℃（-10℃～+60℃） | |
Operating System | Windows 10 (More than 32) | |

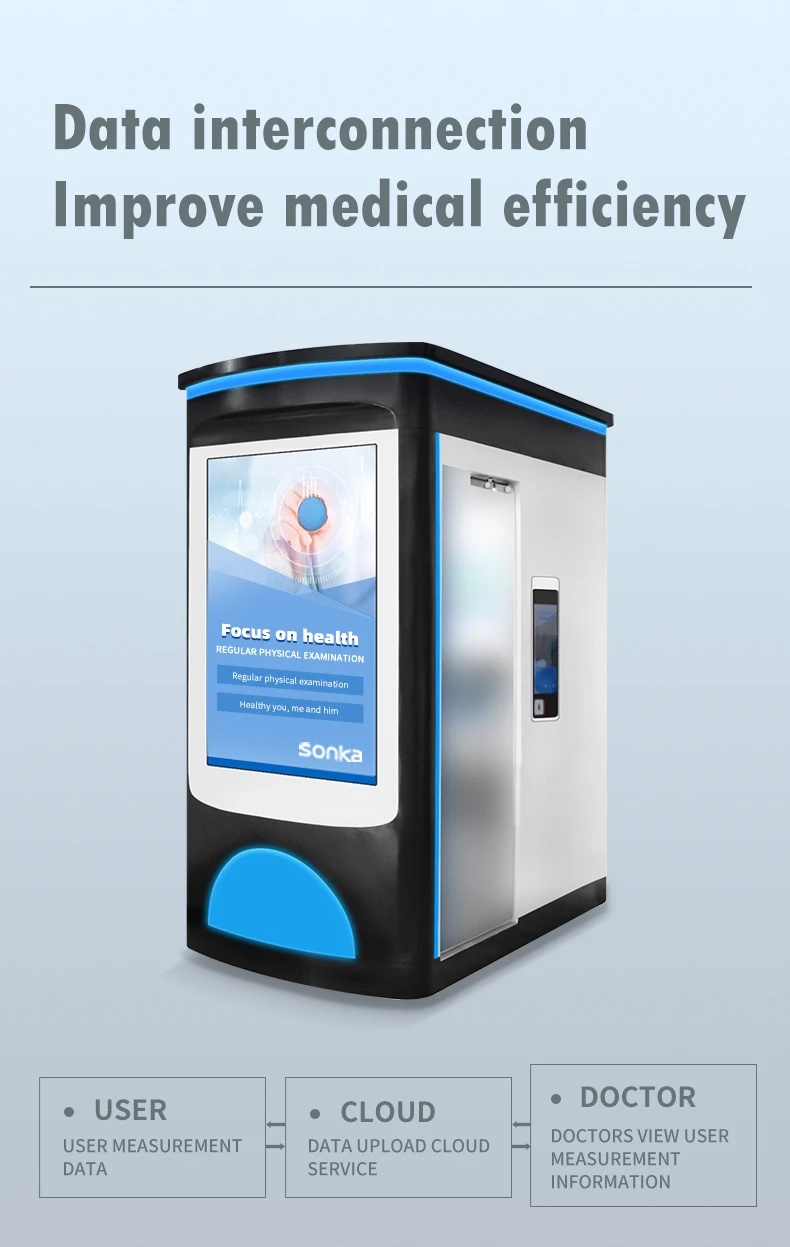

Data Transmission Mode | internet access、WIFI | |
Overall Dimension | 1800(length）*1200（ Width）*2450（height ）mm | |
Weight | About 220KG | |
Height | Measuring system | Ultrasonic measurement (high precision temperature difference compensation) |
Measuring range | 70.0～205cm | |
Permissible error | ±0.5cm | |
Weight | Measuring system | Precision balance beam pressure sensor weighing |
BMI | The automatic intelligence calculates the body mass index | |
Measuring range | 1～300kg | |
Permissible error | ±0.1kg | |
Body fat | Measuring frequency | Multi frequency 4- electrode |
Electrode material | Electroplating material | |
Measuring range | 200～1000Ω | |
Body temperature (DT-8836) | Display exact number | 0.1 ℃ |
Human body temperature measurement | 32.0～42.5℃ | |
Object temperature measurement | 0～100℃ | |
Accuracy | ≤±0.3℃ | |
Power Consumption | ≤120mw | |
Measuring distance | 5-8cm | |
Auto Power -Off | About 15 second | |
Blood pressure（RBP-7000） | Display | Digital display |
Measuring method | Oscillographic method | |
Measuring range | Pressure (0~300) mmHg [ (0~ 40)kPa] rate 30/minute~200/minute | |
Accuracy | Pressure 士2mmHg(士0.267kPa)within Rate士2% within | |
Screen | LCD screen | |
Data Transmission Mode | 232 port/USB | |
Power Supply | Power Adapter（Input AC100V~240V,50/60Hz,Output DC12V,3.5A） | |
Operating temperature and humidity | 5℃～40℃，15%RH～80%RH | |
Transport and storage temperature and humidity | -20℃～+55℃，≤93%RH | |
Operating atmospheric pressure | 80kPa～106kPa | |
Transport and storage atmospheric pressure | 50kPa～106kPa | |
Overall dimensions | 387.7mm（L）×244.1mm（W）×340.2mm（H） | |
Net Weight | About 6.0Kg | |
Cuff applies to perimeter range | 17cm～42cm | |
Blood oxygen KS-CM01 | Sensor | Dual wavelength light emitting diode |
Wavelength | Red Lights：663nm | |
Infrared light：890nm | ||
Measuring range | 35%～100%; | |
Maximum average optical Output power | ≤2mW | |
Permissible error | The measurement error was ±2% in the range of 70% to 100% | |
Pulse rate measurement error | Tolerance of 30-250bpm was ±2bpm or ±%2, which was the maximum | |
Single lead ECG | Operating temperature | 5℃～40℃ |
Environment temperature | 30%～80% Non - Condensing | |
Range of atmospheric Pressure | 70KPa～106KPa | |
Heart rate measurement range | 30bpm～240bpm | |
Accuracy of heart rate Measurement | The maximum value is ± 2BPM or ±2 | |
Waveform display sensitivity | 5.0mm/mv error±10% | |
Scanning speed | 20mm/s error±10% | |
Input impedance | ≥5.0Ω | |
Operating voltage | d.c.2.5V±0.2V | |
Blood sugar, uric acid, total cholesterol （BeneCheck BKM13-1） | Specimens | Whole fingertip micro-vascular blood |
Detection time | Blood sugar 10 seconds; uric acid 15 seconds; total cholesterol 26 seconds | |
Measuring range | blood glucose：20-600mg/dL (1.1-33.3mmol/L) Uric Acid：3-20mg/dL（0.18-1.19mmol/L） Total cholesterol：100-400mg/dL（2.59-10.35mmol/L） | |
Liquid volume inspector | blood glucose 0.9uL,Total cholestero l10uL, Uric Acid 1uL | |
Storage Temperature | 10℃-30℃ | |
Operating Temperature | 10℃-40℃ | |
Relative humidity | ＜95% | |
Memory capacity | Blood glucose 360 group, total cholesterol 50 group, uric acid 50 group | |
Battery type | A 3V (CR2032) button lithium battery | |
Validity of battery | About 1000 tests | |

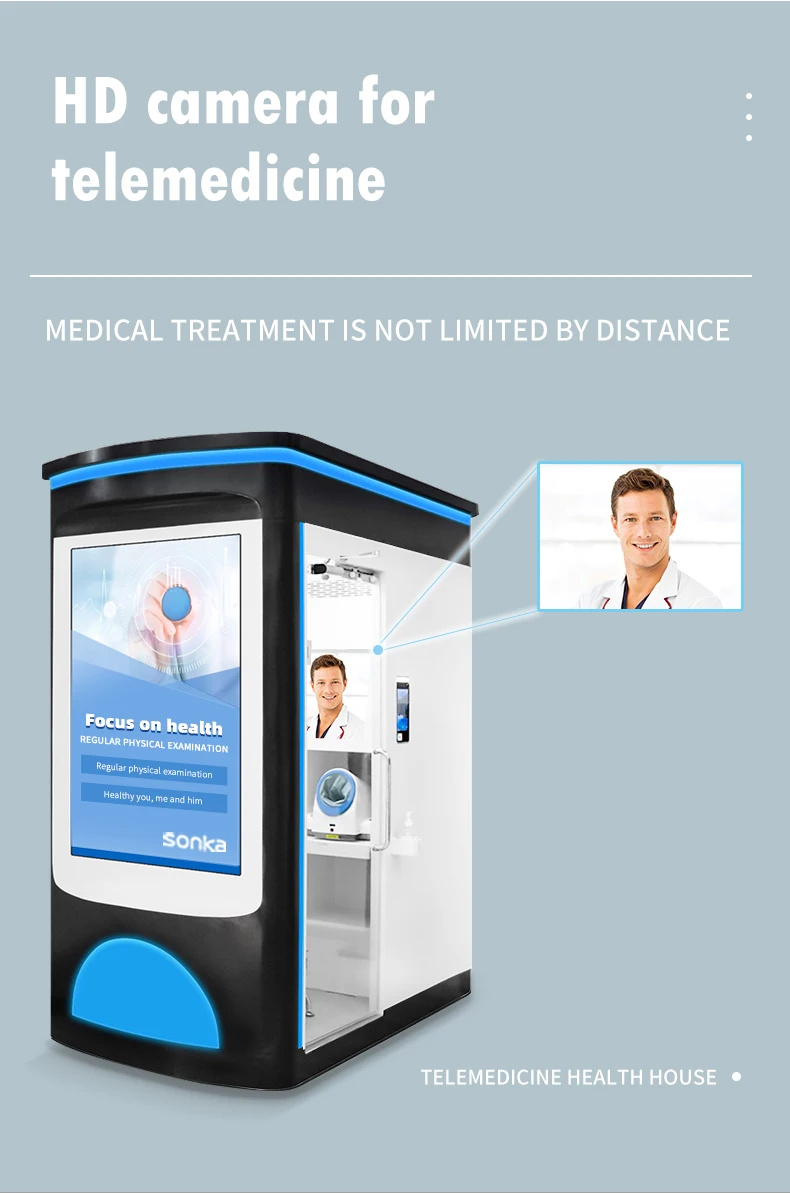

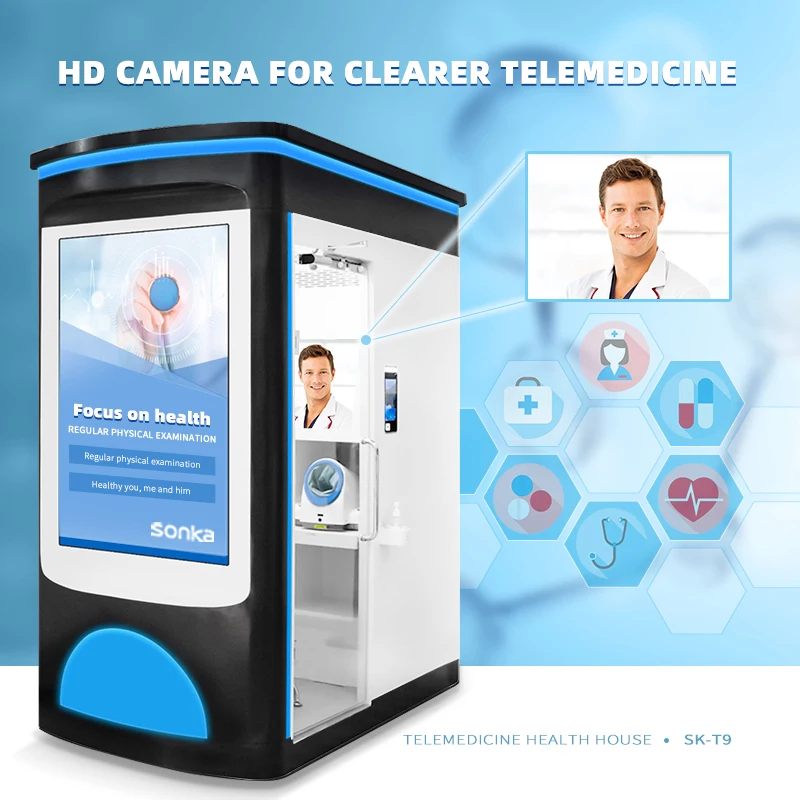

Camera | Pixels | 5 million |
Port | USB 2.0 | |
Driver | free drive | |
Thermal printer（SP-EU58） | Printing method | Line thermal printing |
Printing paper | (straight roll) Heat sensitive 57.5mm× paper roll 100mm (MAX) | |
Carriage Paper Width | 57.5±0.5 mm | |
Effective print width | 48mm | |
Image resolution | 8 /mm（203dp） | |
Printing speed | Max 80mm/S（No more than 25% print points per line） | |
Paper thickness | 0.06~0.08 mm | |
Print head span | 50KM | |
Operating ambient temperature/humidity | 0-50℃/10-80% | |
Temperature/humidity of the storage environment | -20-60℃/10-90% |
