Two Arms Cold Light Shadowless surgical lamp YCZF500/500 Overall reflection operation operating lamp
- Category: >>>
- Supplier: Shandong Hereme Trading Co. Ltd.
Share on (1601025616035):
Product Overview
Description

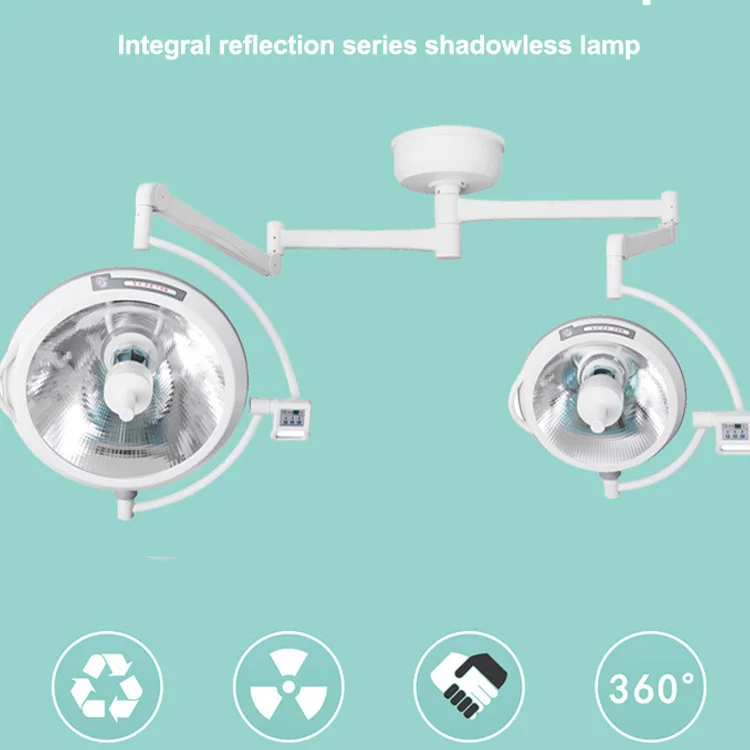

Two Arms Cold Light Shadowless surgical lamp YCZF500/500 Overall reflection operation operating lamp
.
Introduction to the overall reflection series surgical shadowless lamp:
Unique multi-mirror reflective technology, precisely designed by computer, each 700 lamp body has 3584 pieces, and the 500 lamp body has 2150 multi-functional filter reflective mirrors. Special optical coating materials are used to make the lighting effect perfect. The beam is uniform, eliminating glare; excellent cold light effect, using a comprehensive two-level infrared filter design to filter out 99.7% of radiant heat. During long-term surgery, the temperature rise under the lamp head does not exceed 2°C.
Excellent deep illumination, the unique structure of the multifunctional reflection system focuses the beam into a high-brightness light column with a depth of field of up to 80cm; the focusing sequence enables many focusing points to accurately cover the focusing surface, ensuring a soft and uniform depth. Focusing effect: Focusing technology brings revolutionary breakthroughs to shadowless lamp operation. Excellent shadowless effect, the principle of the multi-mirror system enhances the light at the edge of the lamp head and potential shadow areas: even if the light brightness is weakened due to obstacles, the shadowless effect and brightness of the surgical field are always good.
The streamlined lampshade minimizes the interference of vertical laminar flow and reduces visual clutter in the operating room. The dustproof, insectproof and waterproof design makes the entire shadowless lamp beautiful and smooth in appearance, easy to clean and disinfect, strong and durable, and extremely lightweight.
Unique multi-mirror reflective technology, precisely designed by computer, each 700 lamp body has 3584 pieces, and the 500 lamp body has 2150 multi-functional filter reflective mirrors. Special optical coating materials are used to make the lighting effect perfect. The beam is uniform, eliminating glare; excellent cold light effect, using a comprehensive two-level infrared filter design to filter out 99.7% of radiant heat. During long-term surgery, the temperature rise under the lamp head does not exceed 2°C.
Excellent deep illumination, the unique structure of the multifunctional reflection system focuses the beam into a high-brightness light column with a depth of field of up to 80cm; the focusing sequence enables many focusing points to accurately cover the focusing surface, ensuring a soft and uniform depth. Focusing effect: Focusing technology brings revolutionary breakthroughs to shadowless lamp operation. Excellent shadowless effect, the principle of the multi-mirror system enhances the light at the edge of the lamp head and potential shadow areas: even if the light brightness is weakened due to obstacles, the shadowless effect and brightness of the surgical field are always good.
The streamlined lampshade minimizes the interference of vertical laminar flow and reduces visual clutter in the operating room. The dustproof, insectproof and waterproof design makes the entire shadowless lamp beautiful and smooth in appearance, easy to clean and disinfect, strong and durable, and extremely lightweight.
Product Description
Product parameters
Surgical shadowless lamp YCZF700 /500 | ||||
Lamp holder model | YCZF700 | YCZF500 | ||
Illumination (LUX at 1M distance) | 40000-160000 | 40000-160000 | ||
Spot diameter (mm) | 100—300 | 100—300 | ||
Illumination depth (mm) | ≥1200 | ≥1200 | ||
Dimming | 1-100 | 1-100 | ||
color rendering index CRI | ≥97% | ≥97% | ||
Color reproduction index Ra | ≥97% | ≥97% | ||
Operator’s head temperature rise (°C) | ≤1 | ≤1 | ||
Temperature rise in surgical field working area (°C) | ≤2 | ≤2 | ||
Operating radius (mm) | ≥2200 | ≥2200 | ||
Working radius (mm) | 600—1800 | 600—1800 | ||
voltage | 100-240VAC 50/60HZ | 100-240VAC 50/60HZ | ||
input power | 400VA | 400VA | ||
Average bulb life (h) | ≥60000 | ≥60000 | ||
Bulb power | 3W/3V | 3W/3V | ||
Optimal installation height (mm) | 2800—3000 | 2800—3000 | ||
Product advantage
1. Ideal cold light effects.
Using the new LED cold light source, energy saving and environmental protection and long service life up to 80,000 hours or more.
Temperature increases over the surgeon’s head<1℃.
LED does not engender infrared rays and ultraviolet radiation, it doesn’t have the temperature rise and tissue damage caused by halogen shadowless light, can accelerate wound healing after surgery, and has no Radiation pollution.
LED color temperature is constant, soft, and very close to the natural sunlight.
2. Excellent shadowless effect
Lamp with the most scientific radian, Multi-point light source design, so that more fullness of the light spot, When the lamps are partially occluded, also can achieve the perfect shadowless effect.
Lamp panel radius of gyration: ≥182cm, the lamp can be pulled to a vertical floor, convenient for any angle illumination.
3. Excellent deep lighting

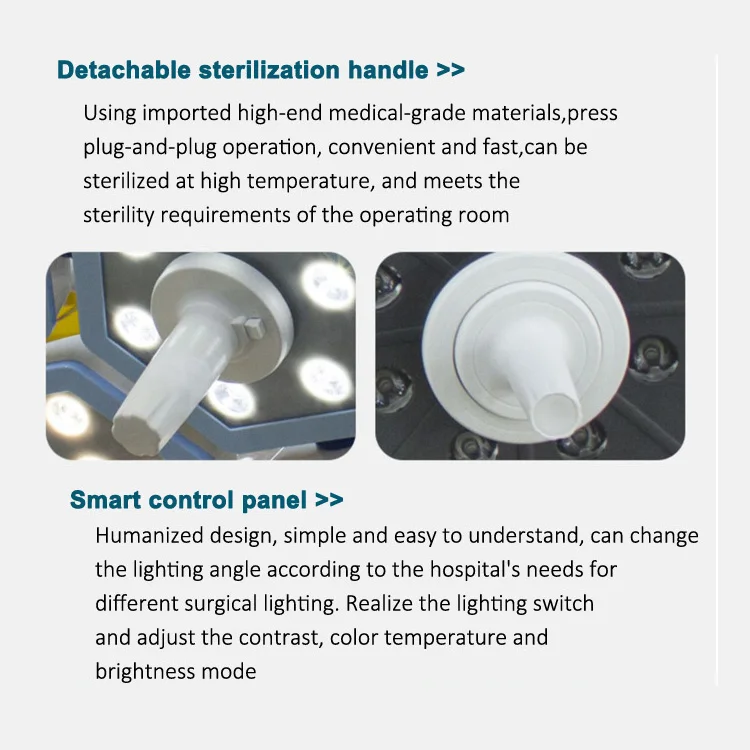

4. Advanced control system
The use of liquid crystal display button control, to meet the needs of the medical staff
of different patients with the brightness of the operation. It offers an illuminance memory function.
of different patients with the brightness of the operation. It offers an illuminance memory function.
5. Universal suspension system
The rotating arm, a new type of alloy material is made of an edge type.
The balanced system uses an imported arm module, with more than 5 group universal joints, every cantilever must have more than 3 joints that can be rotated at 360°, The structure is light, easy to manipulate, has accurate positioning, and can provide the maximum range of regulation. The equipped with a fatigue correcting unit and fixed position hand handle device, easy to fix position after a long time of use.
6.Modern laminar lamp
The thickest part of the lamp chimney is not more than 10cm.
The lamp chimney is made of ABS, The handle on the center of the lamp can be detachable, can take high temperature (≤ 134°C) sterilization treatment, easily adjusted, flexible fixed.
