Factory Water Activated Fiber Cast Repair Tape Polyurethane Impregnated for Industrial Pipeline Reinforcement
- Category: >>>
- Supplier: Shaanxi Ansen Medical Technology Development Co. Ltd.
Share on (1601025629224):
Product Overview
Description
Product Description

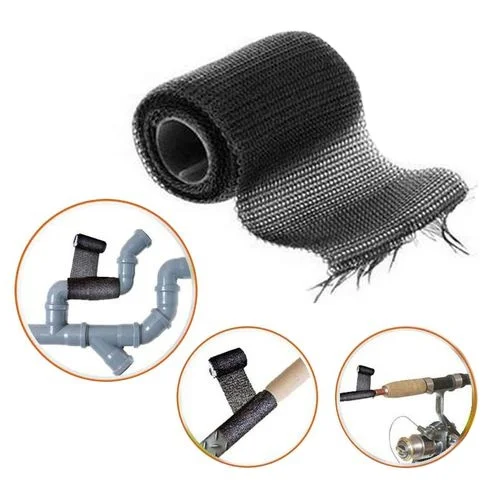

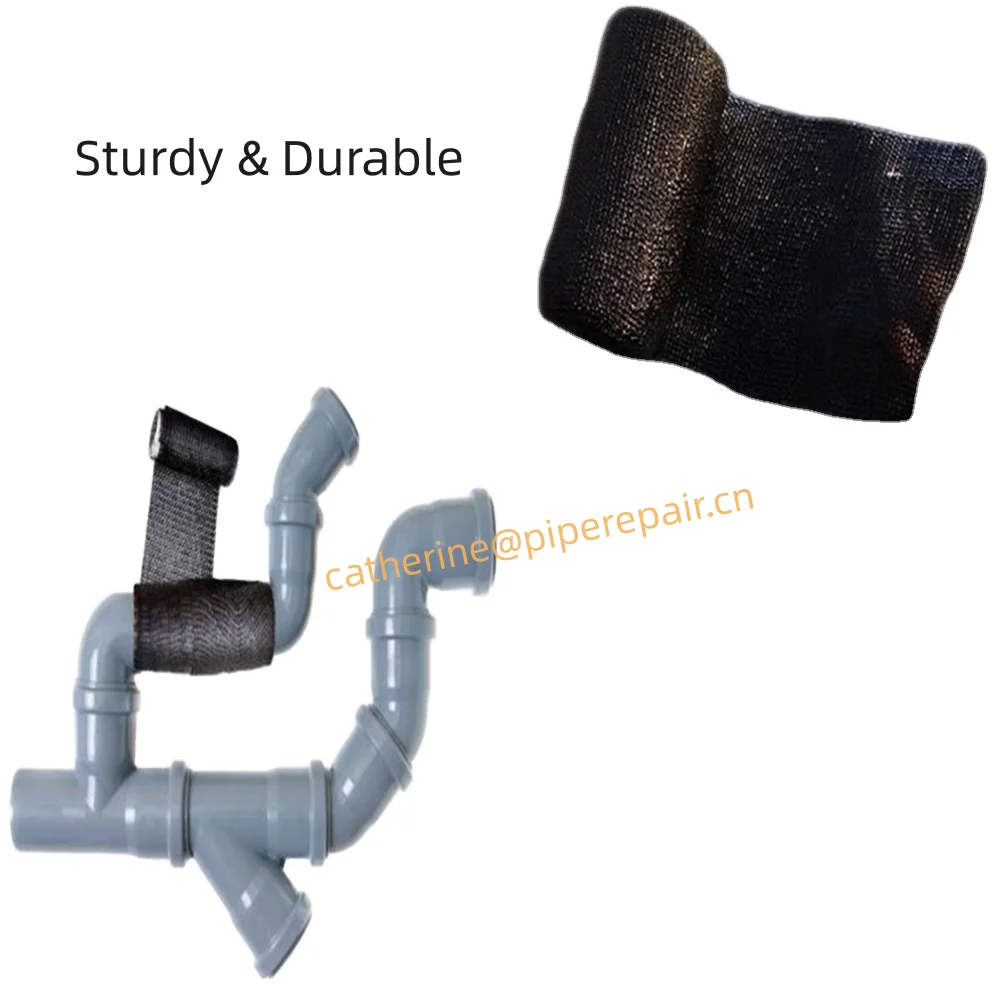

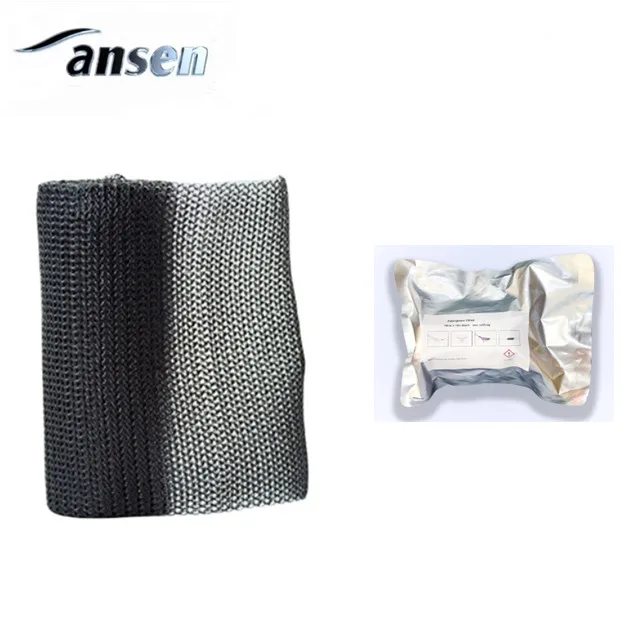

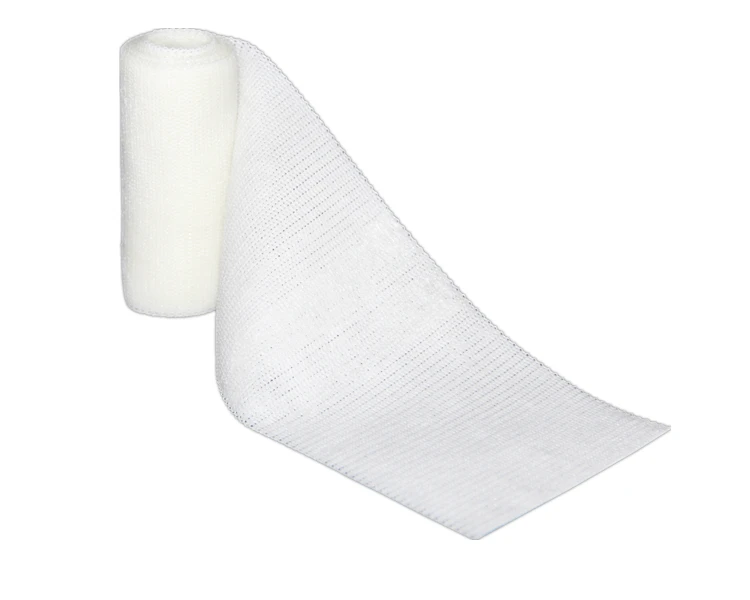

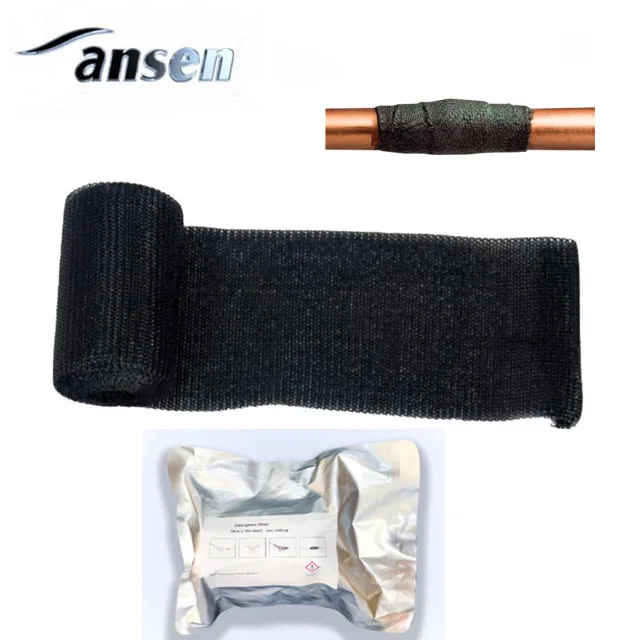

Ansen pipe repair bandage is a fast curing tape composed of flexible fiberglass cloth impregnated with water activated
polyurethane resin.

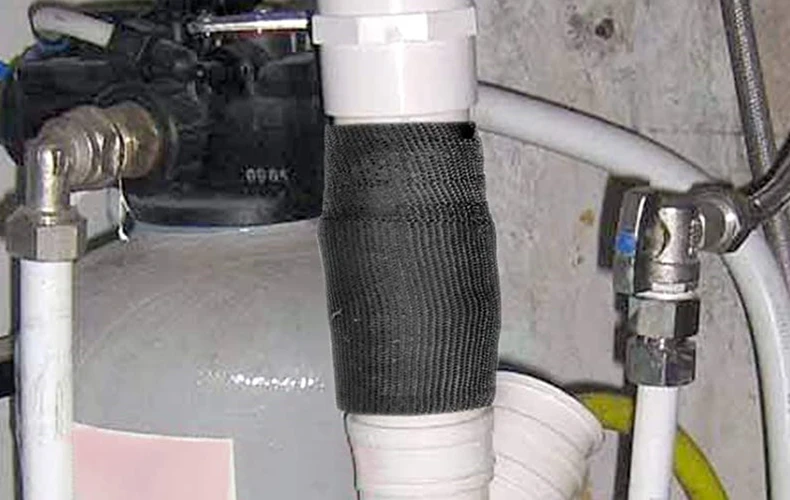

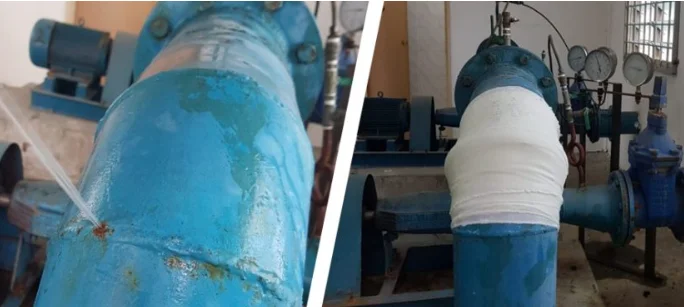

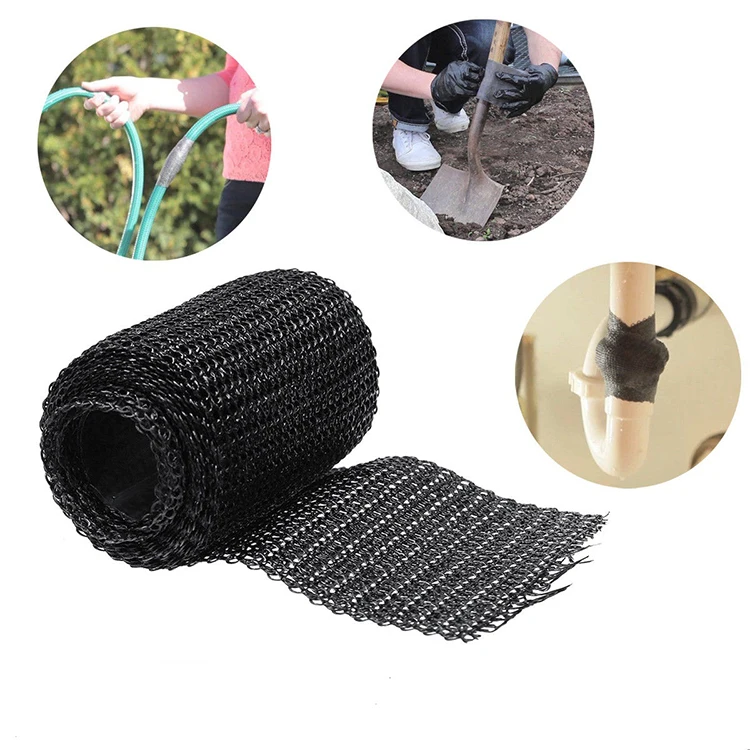

Our repair bandage is mainly used to repair, reinforce and protect oil, gas, water etc pipeline. It adheres to metal, plaster,
pvc, copper, rubber, concrete, wood, ceramic etc. It can be applied on cracked, fractured, corroded, damaged and leaking

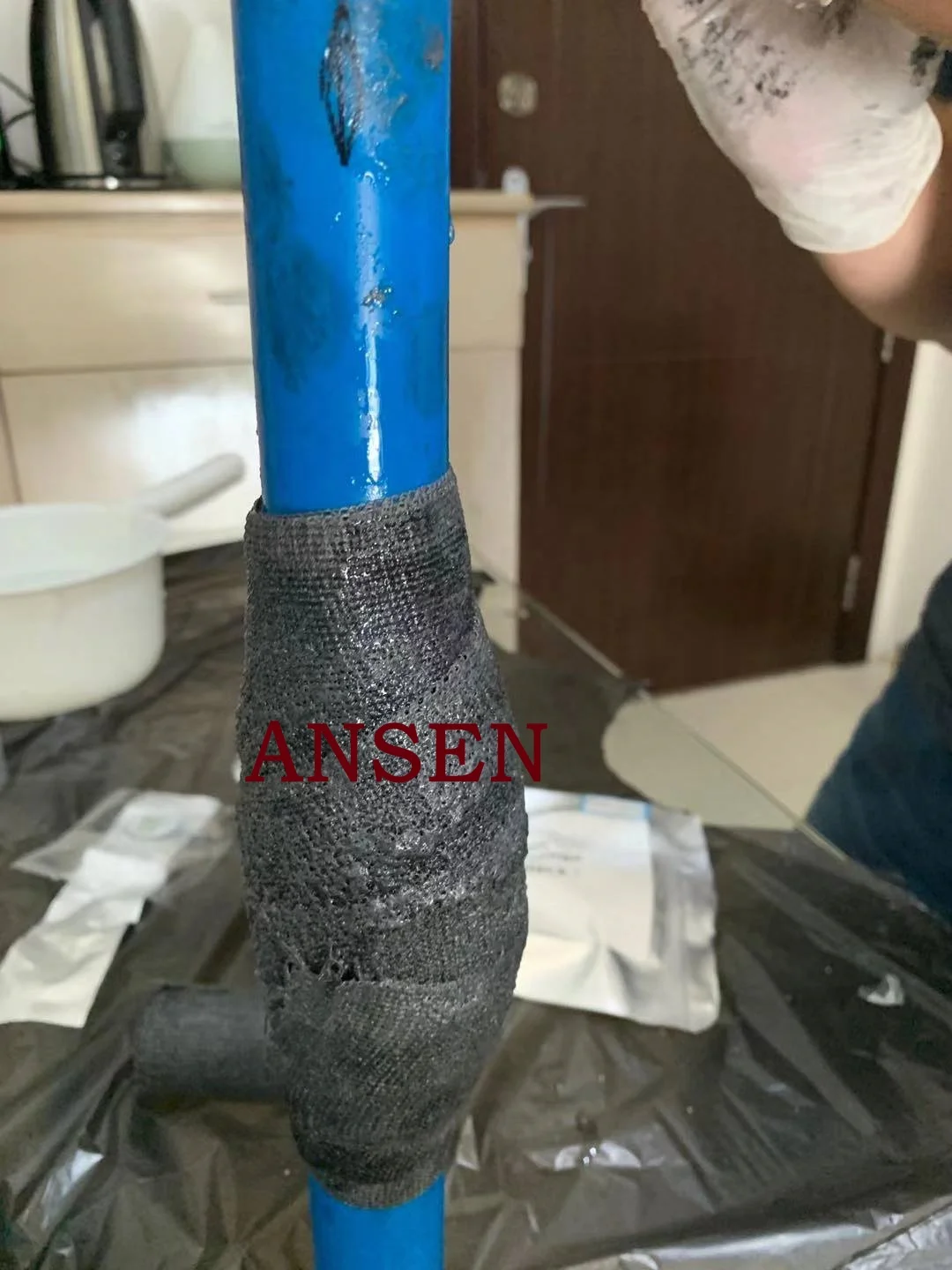

pipes,around difficult shapes including straight lengths, tee and elbow joints.ttles in all shapes.
polyurethane resin.
Our repair bandage is mainly used to repair, reinforce and protect oil, gas, water etc pipeline. It adheres to metal, plaster,
pvc, copper, rubber, concrete, wood, ceramic etc. It can be applied on cracked, fractured, corroded, damaged and leaking
pipes,around difficult shapes including straight lengths, tee and elbow joints.ttles in all shapes.
Advantages
* Easy Operation
* Apply on various working field
* Ideal material for fixing emergency leaking
* High pressure
* Waterproof
* Anti-Corrosive Wrap Leakage Stop
* High temperature resistance
* Fast Emergency Repairs
* Strengthening, protecting, reinforcing and increasing the lifespan of pipes
* Helps with securing leaking water oil gas waste and chemical pipes
* Apply on various working field
* Ideal material for fixing emergency leaking
* High pressure
* Waterproof
* Anti-Corrosive Wrap Leakage Stop
* High temperature resistance
* Fast Emergency Repairs
* Strengthening, protecting, reinforcing and increasing the lifespan of pipes
* Helps with securing leaking water oil gas waste and chemical pipes
Specification
Product name | P/N | Size | Packing |
Pipe repair bandage | PR002(2in x 4yards) | 5cm x 360cm | 10bags x 12 boxes/ctn |
PR002(3in x 4yards) | 7.5cm x 360cm | 10bags x 12 boxes/ctn | |
PR002(4in x 4yards) | 10cm x 360cm | 10bags x 10 boxes/ctn | |
PR002(5in x 4yards) | 12.5cm x 360cm | 10bags x 10 boxes/ctn | |
PR002(6in x 4yards) | 15cm x 360cm | 10bags x 10 boxes/ctn |
Steps
1. Shut off the pressure and isolate leak. Clean, degrease and abrade substratearound leak site.
2. Knead the putty until a uniform mixture completely.
3. Apply mixed putty immediately tofill in leak area and firmly press putty into defect. It’s better to do next step after 24
hours because it takes 24 hours for the putty to fully cure.
4. Put on gloves supplied with the b Immerse bandage intowater for 10 secs.

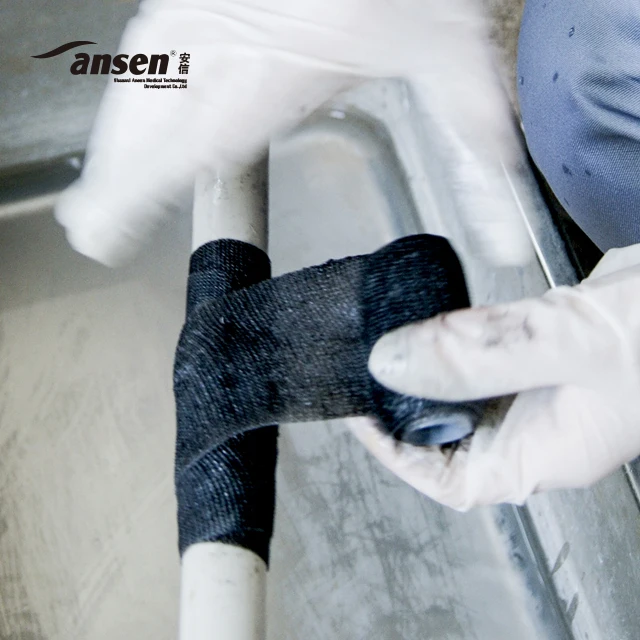

5. Wrap the bandage tautly around the leak area,extending 50mm on each side of the damaged area. The whole operation should be
finished in 3-5 minutes, otherwise the bandage will be harden.
6. After wrapping bandage, spray water on the surface and smooth the surface to achieve good adhesion.
2. Knead the putty until a uniform mixture completely.
3. Apply mixed putty immediately tofill in leak area and firmly press putty into defect. It’s better to do next step after 24
hours because it takes 24 hours for the putty to fully cure.
4. Put on gloves supplied with the b Immerse bandage intowater for 10 secs.
5. Wrap the bandage tautly around the leak area,extending 50mm on each side of the damaged area. The whole operation should be
finished in 3-5 minutes, otherwise the bandage will be harden.
6. After wrapping bandage, spray water on the surface and smooth the surface to achieve good adhesion.
Data
♦ The impact toughness >=30KJ/M2
♦ Initial cure time: 7-10 minutes
♦ Full cure time: 30-45 minutes
♦ Coefficient of thermal expansion: approx 1.9*10.3 per ℃
♦ The layers' peel strength >=20N/25mm
♦ Working life: 3-5minutes, depending on temperature of water and pipework Service conditions:
Max service temperature: 150 ℃
♦ Pressure resistance: 15-30 bar (1.5-3MPa), depending on size of pipe and leak
♦ Initial cure time: 7-10 minutes
♦ Full cure time: 30-45 minutes
♦ Coefficient of thermal expansion: approx 1.9*10.3 per ℃
♦ The layers' peel strength >=20N/25mm
♦ Working life: 3-5minutes, depending on temperature of water and pipework Service conditions:
Max service temperature: 150 ℃
♦ Pressure resistance: 15-30 bar (1.5-3MPa), depending on size of pipe and leak
Packing & Delivery

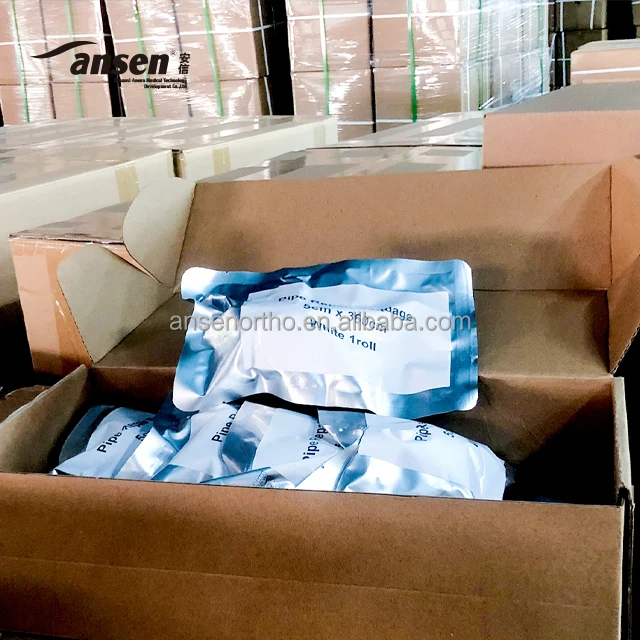

Each bandage is wrapped individually in a bag with outer package Packing information for Orthopedic casting tape as below:
Aluminium foil bag Hard Inner Box
Outside Corrugated Carton 10bags/box, 10boxes/ctn
Aluminium foil bag Hard Inner Box
Outside Corrugated Carton 10bags/box, 10boxes/ctn
Company Profile
Ansen Medical Technology Development Co., Ltd, a professional manufacturer and exporter, devotes in the scientific research and exploitation of orthopedic disposable products.
The main business of the company is medical polymer splint and bandage series products. With the advanced scientific idea,potential technique practice and academical industrious strength, The products have passed the CE certification and are exported to more than 50 countries overseas.
The main business of the company is medical polymer splint and bandage series products. With the advanced scientific idea,potential technique practice and academical industrious strength, The products have passed the CE certification and are exported to more than 50 countries overseas.
FAQ
1.why should you buy from us not from other suppliers?
Ansen is well known around the country as a leading manufacturer of fiberglass casting tape & splint, high strength pipe
repairbandage. Ansen established in 2003 with rich experience in doing OEM for international brands.
2. Can I have a sample for testing?
Yes,free sample can be provided, but you need pay for the freight cost.
3.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
Ansen is well known around the country as a leading manufacturer of fiberglass casting tape & splint, high strength pipe
repairbandage. Ansen established in 2003 with rich experience in doing OEM for international brands.
2. Can I have a sample for testing?
Yes,free sample can be provided, but you need pay for the freight cost.
3.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
