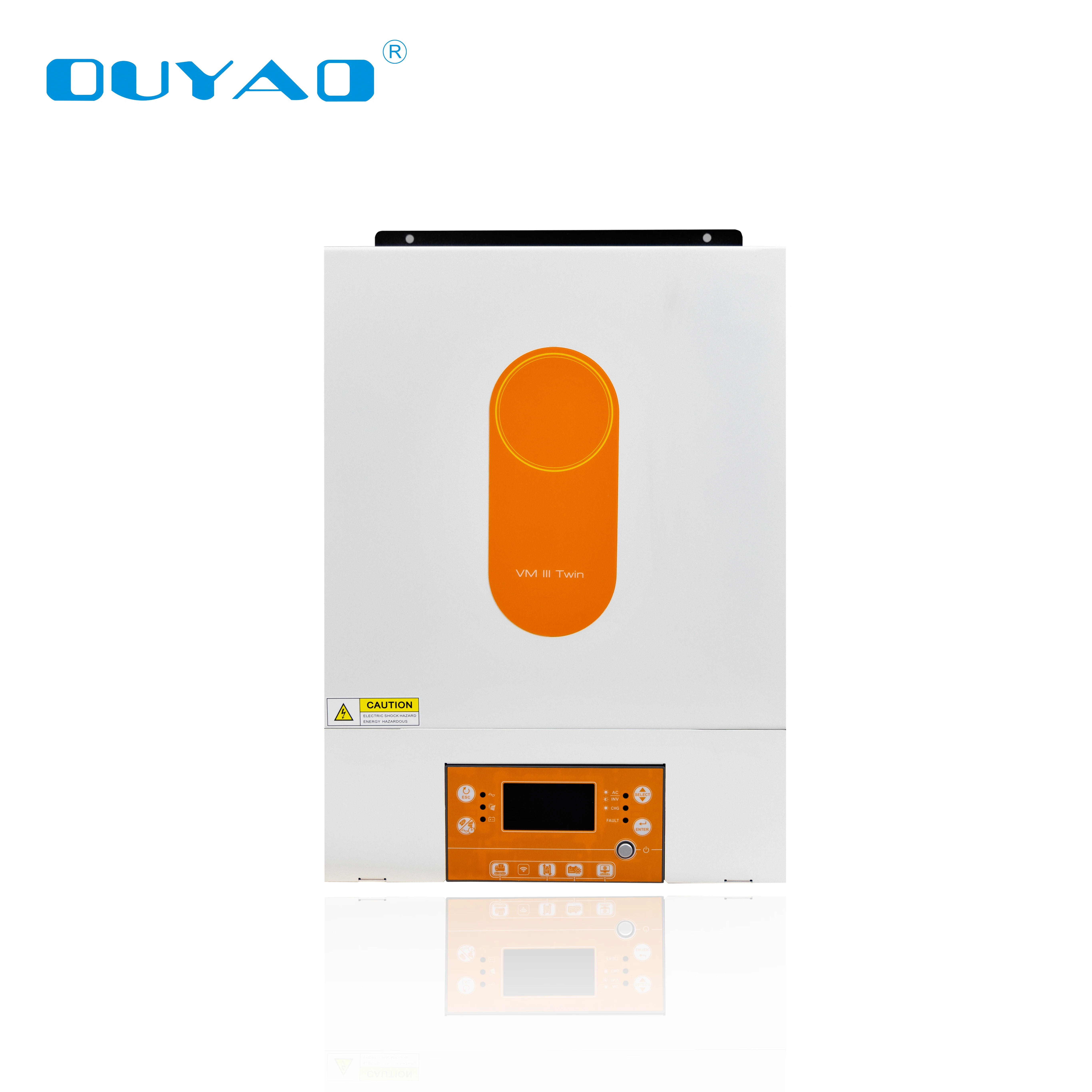

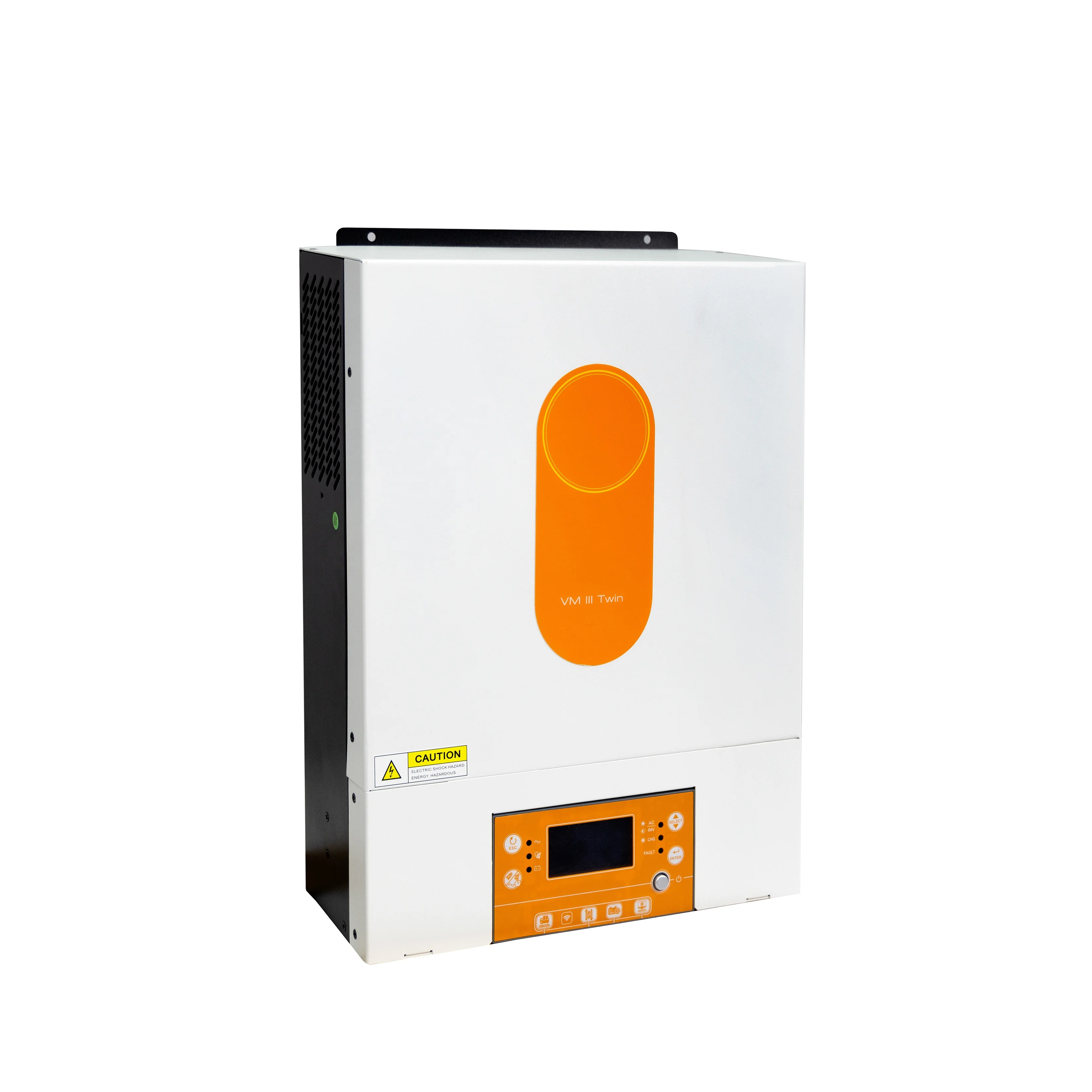

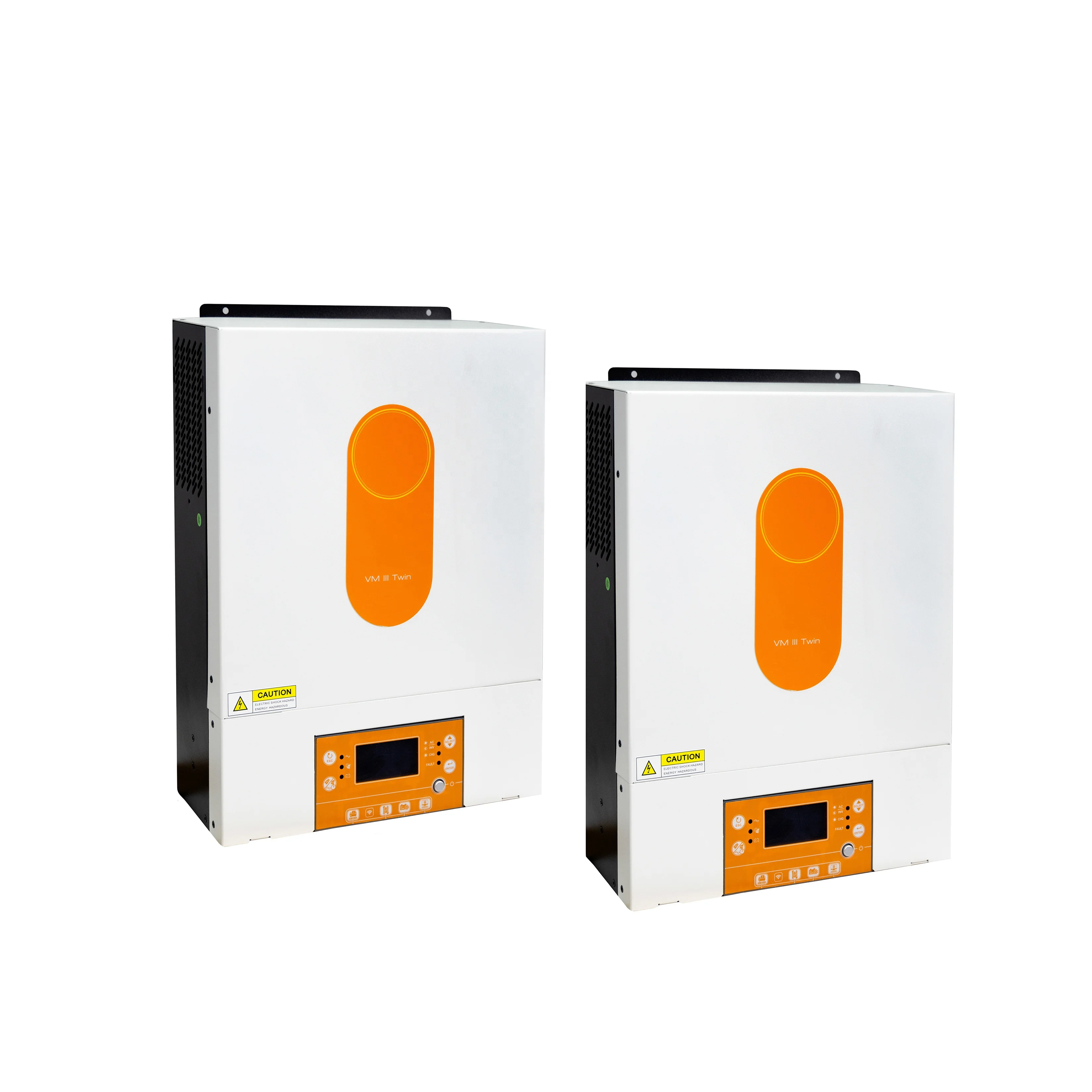

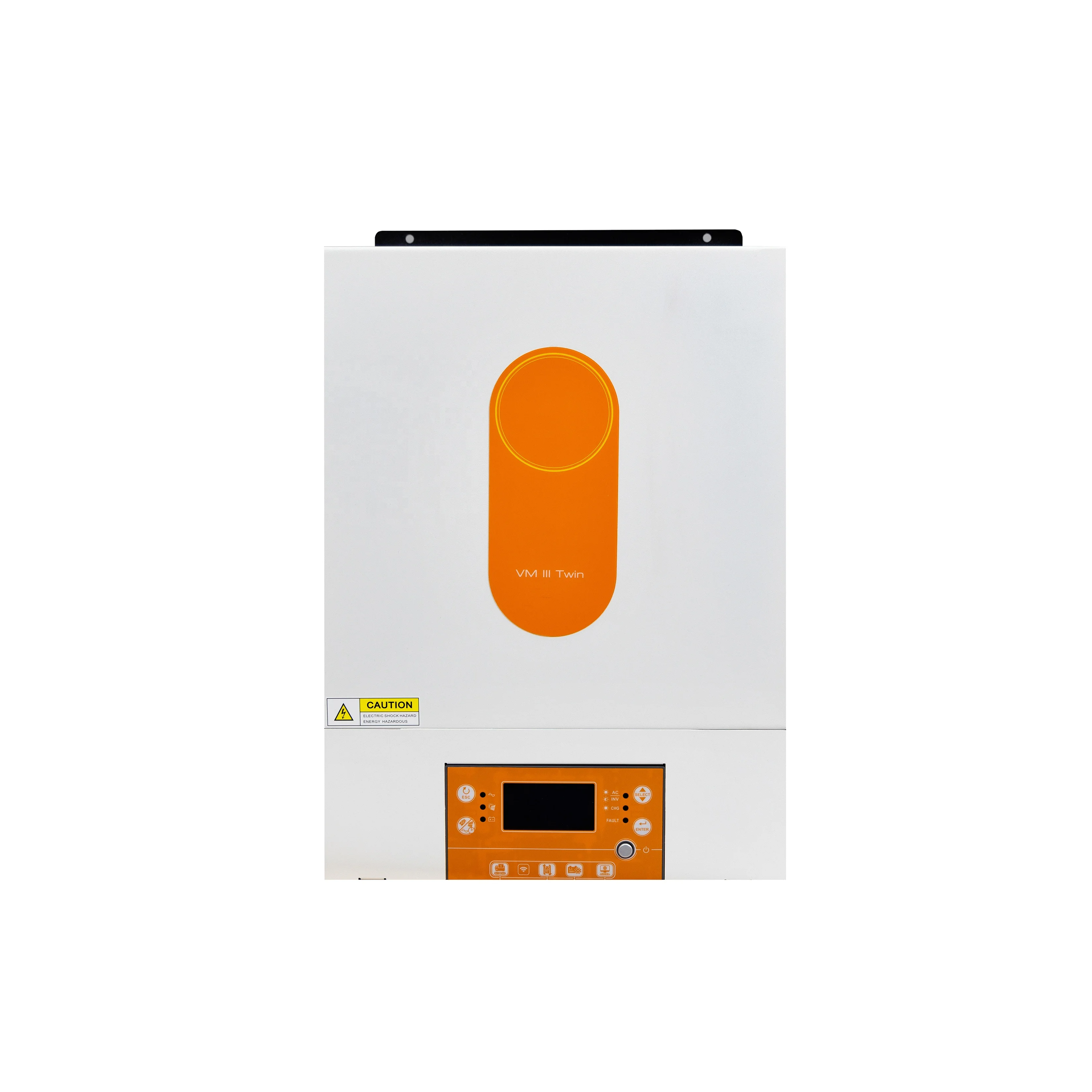

OUYAD VM III TWIN 4K High frequency Dual output Pure sine wave solar inverter Off Grid 4000W Battery independent design
- Category: >>>
- Supplier: Foshan Ouyad Electronic Co. Ltd.
Share on (1601025676458):
Product Overview
Description
Products Description
HY VMlll TWIN -4k
This is an upgraded multi functional inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support in portable size.Support Bluetooth for mobie monitoring, and its detachable LCD display module offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main Features
1.Dual outputs for smart load management.
2.Maximum PV input current 27A.
3.Wide PV input voltage range 60VDC ~ 450VDC.
4.Detachable LCD control module with various communications.
5.Integrated WiFi interface with Mobile App.
6.Supports USB On-the-Go function.
7.Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS.
8.Battery equalization extends lifecycle.
2.Maximum PV input current 27A.
3.Wide PV input voltage range 60VDC ~ 450VDC.
4.Detachable LCD control module with various communications.
5.Integrated WiFi interface with Mobile App.
6.Supports USB On-the-Go function.
7.Reserved communication port (RS-485, CAN-BUS or RS-232) for BMS.
8.Battery equalization extends lifecycle.
9.Battery independency.
10.User-friendly LCD operation.
11.Replaceable fan design.
Model | VMIII TWIN 4K | VMIII TWIN 6K | ||
Rated Power | 4000VA/4000W | 6000VA/6000W | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances) | |||
Frequency | 50Hz/60Hz(Auto Sensing) | |||
OUTPUT | ||||
AC Voltage Regulation(Batt.Mode) | 230VAC ± 10% | |||
Surge Power | 8000VA | 12000VA | ||
Efficiency(Peak) | 90%-93% | |||
Transfer Time | 10 ms (For Personal Computers) 20 ms (For Home Appliances) | |||
Waveform | Pure sine wave | |||
BATTERY | ||||
Battery Voltage | 24 VDC | 48 VDC | ||
Floating Charge Voltage | 27 VDC | 54 VDC | ||
Overcharge Protection | 33 VDC | 63 VDC | ||
SOLAR CHARGER & AC CHARGER | ||||
Solar Charger Type | MPPT | |||
Maximum PV Array Power | 5000W | 6000W | ||
MPPT Range @operating Voltage | 60-450VDC | |||
Max. PV Array Open Circuit Voltage | 500VDC | |||
Max. Solar Charge Current | 120A | |||
Max AC Charge Current | 100A | |||
Max Charge Current | 120A | |||
PHYSICAL | ||||
Dimension, D x W x H(mm) | 115 x 300 x 435 | |||
Net Weight(kgs) | 9 KG | 10 KG | ||
Communication Interface | USB/RS232/RS485/WiFi/Dry-contact | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidty(Non-condensing) | |||
Operating Temperature | -10°C to 50°C | |||
Storage Temperature | -15°C-60°C | |||
