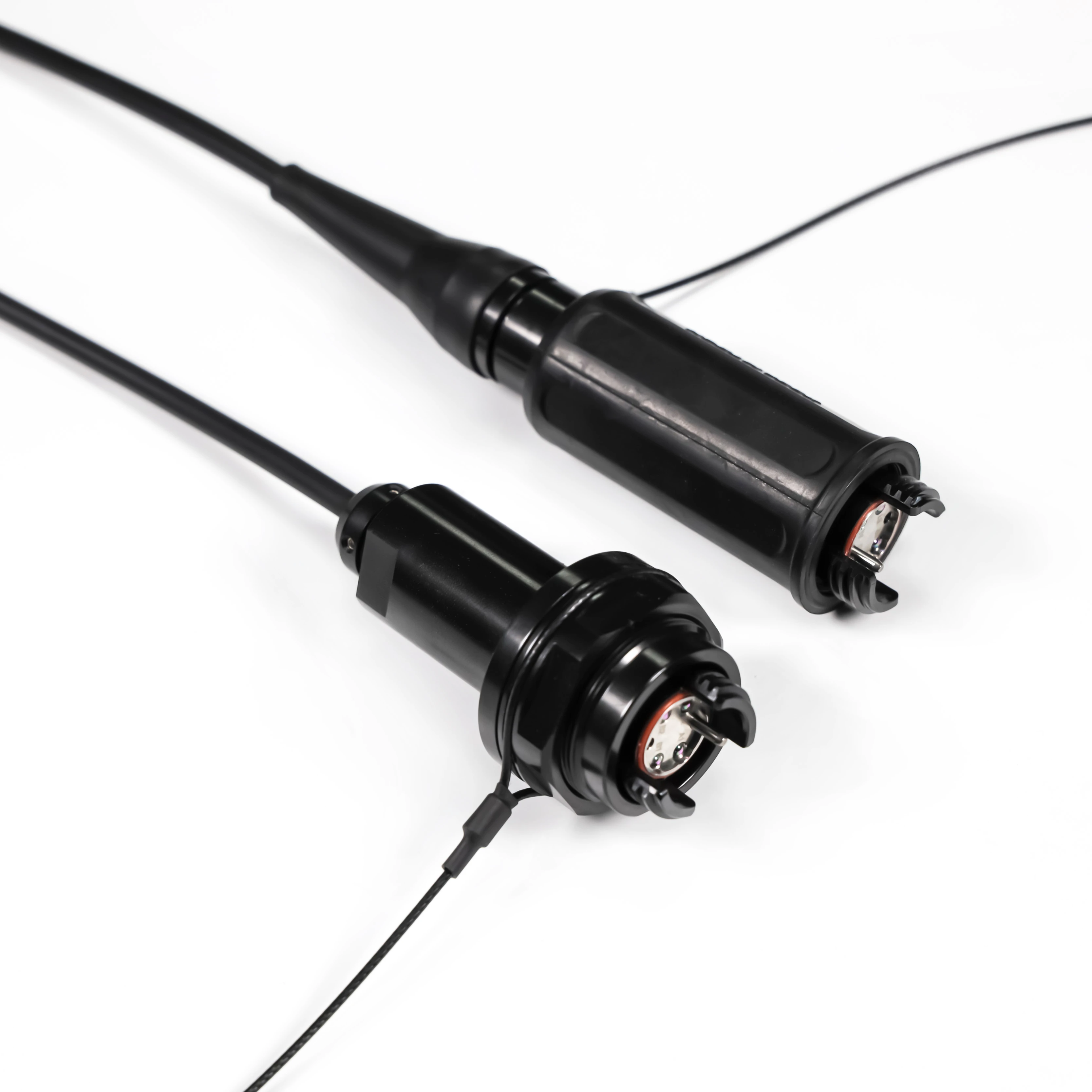

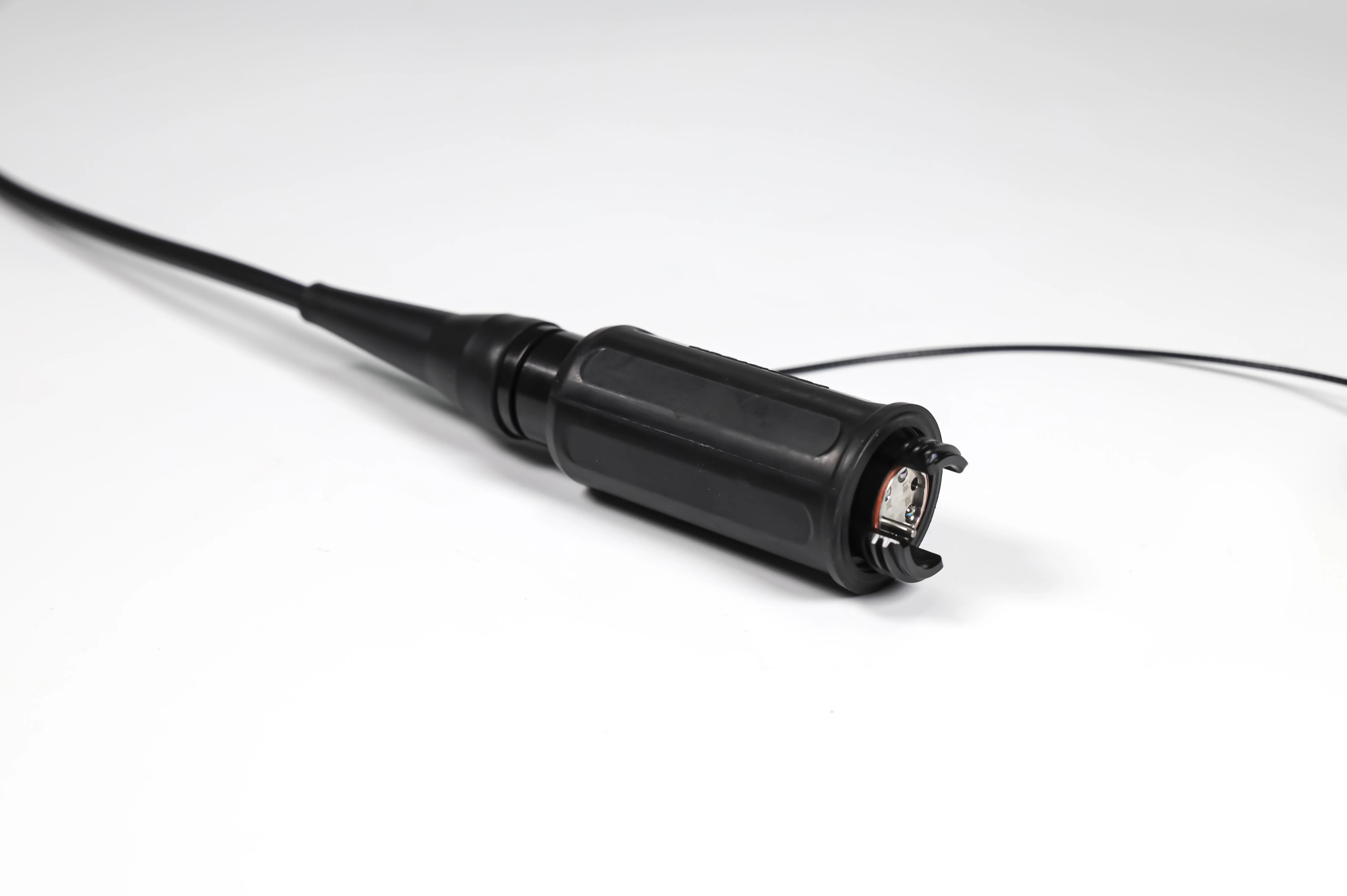

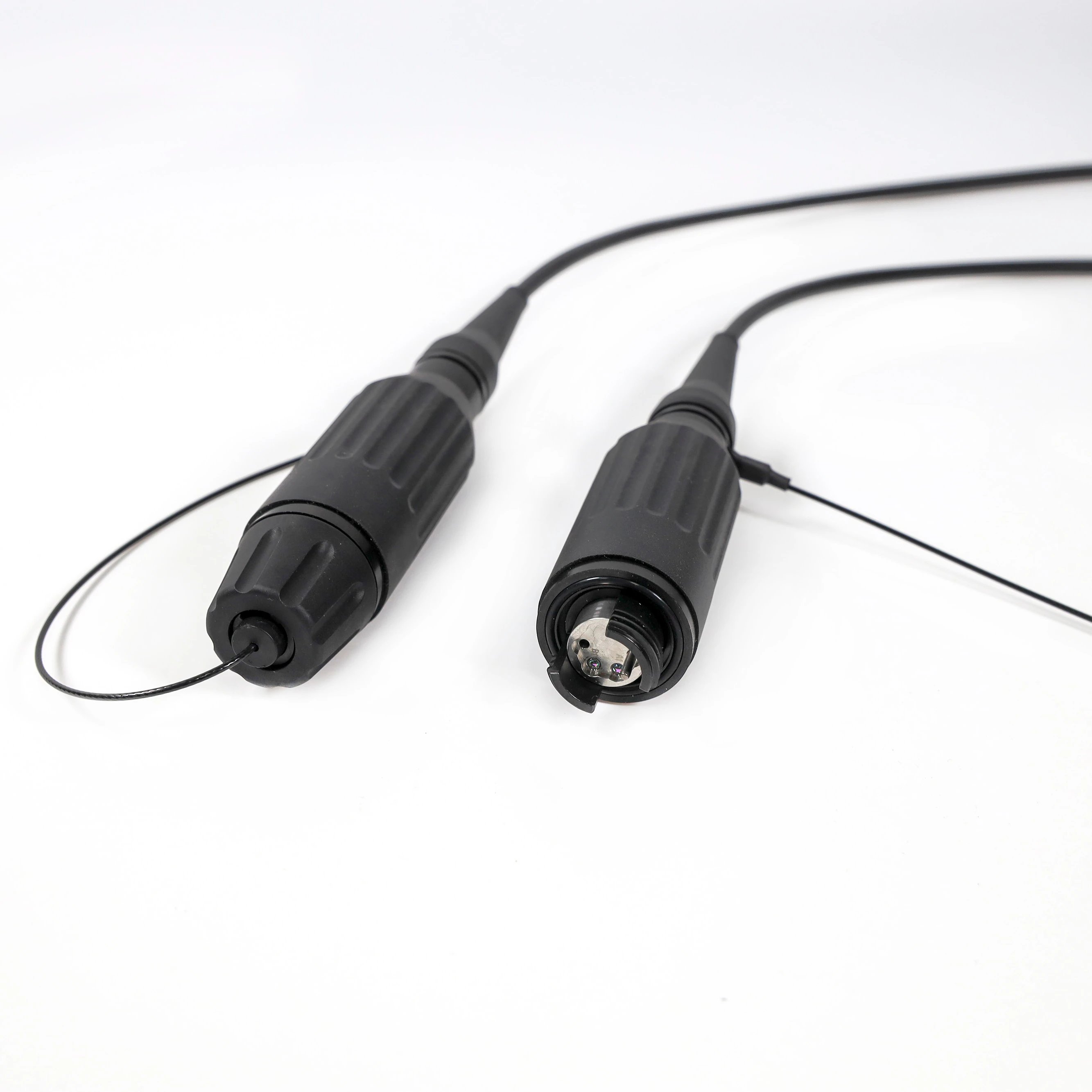

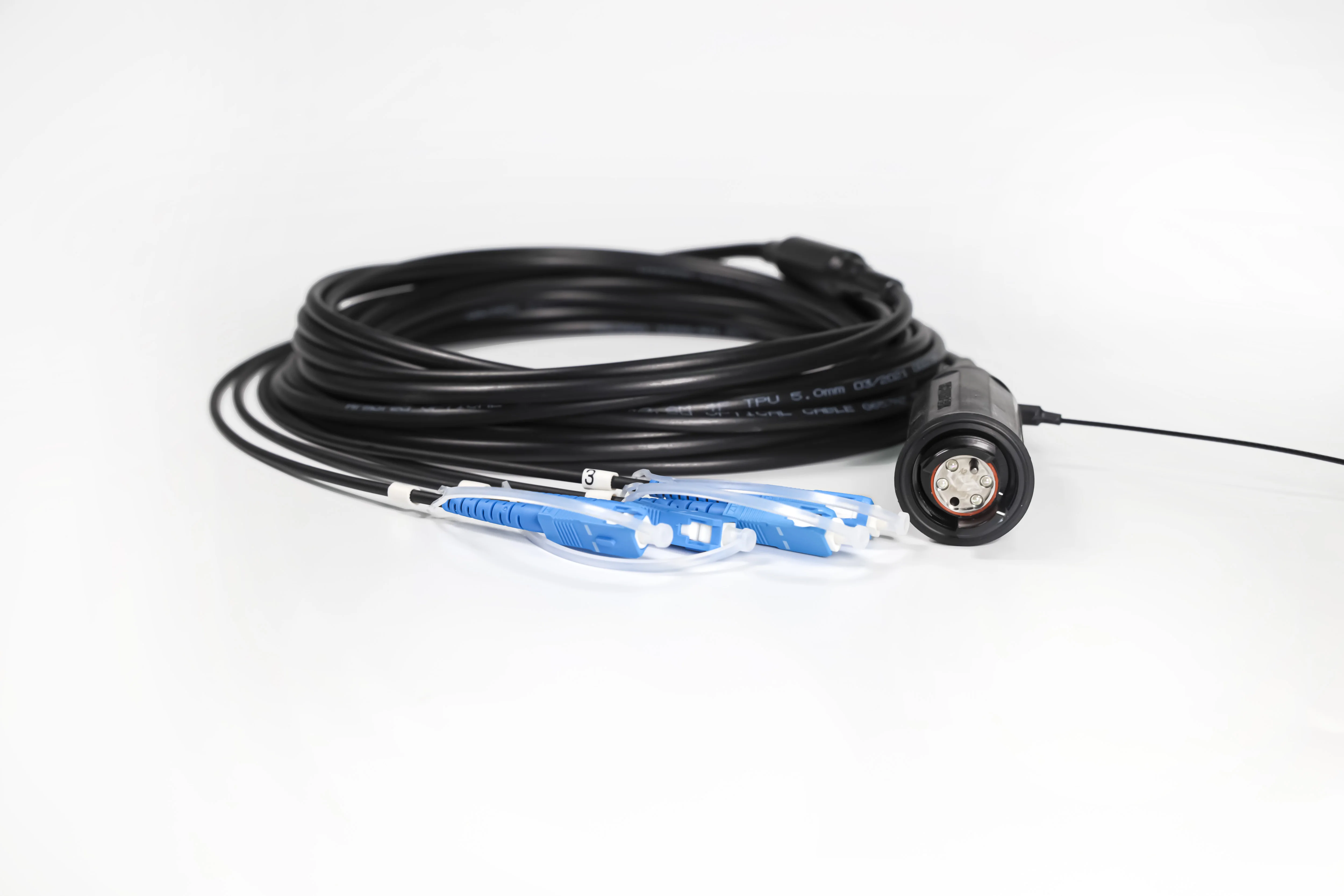

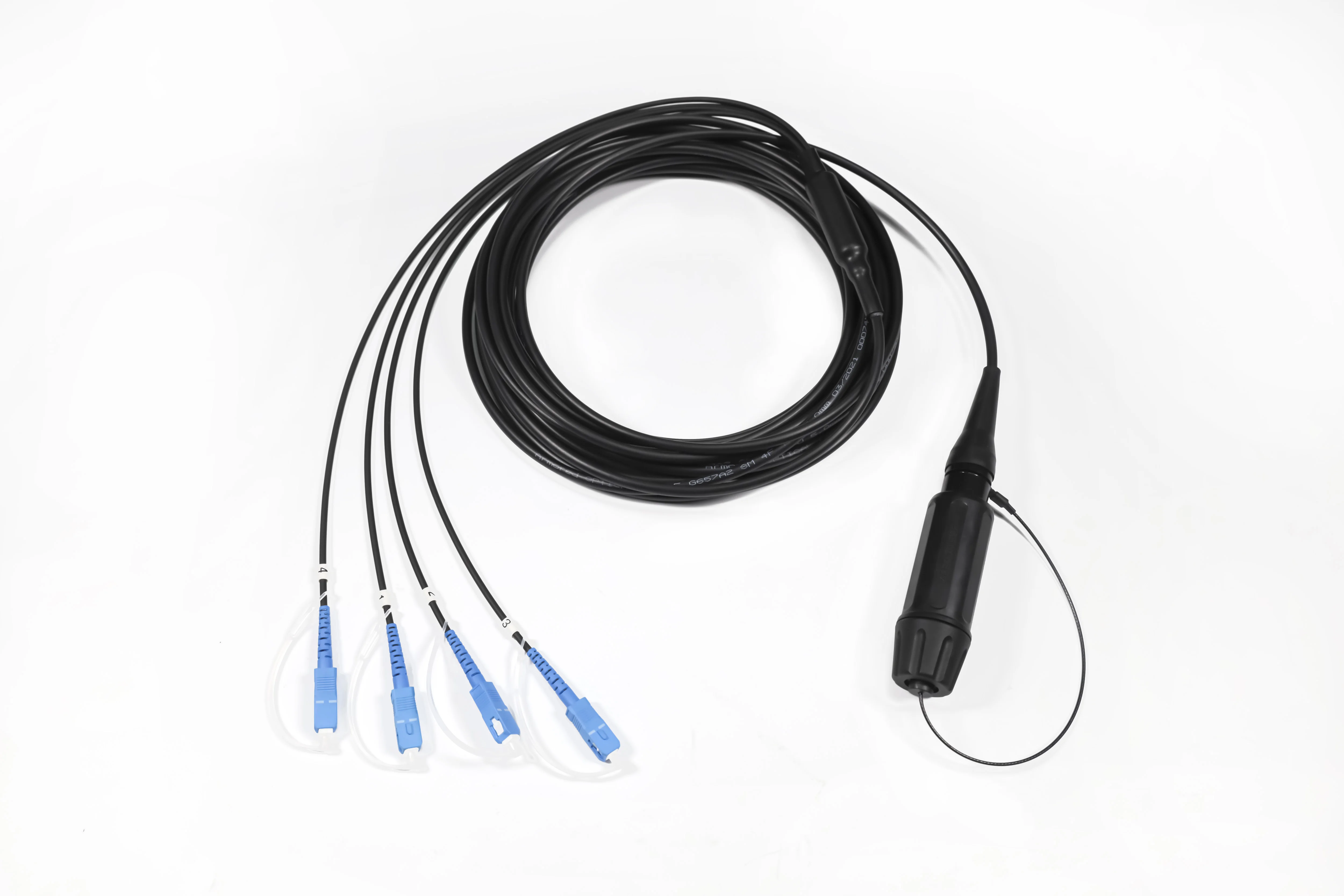

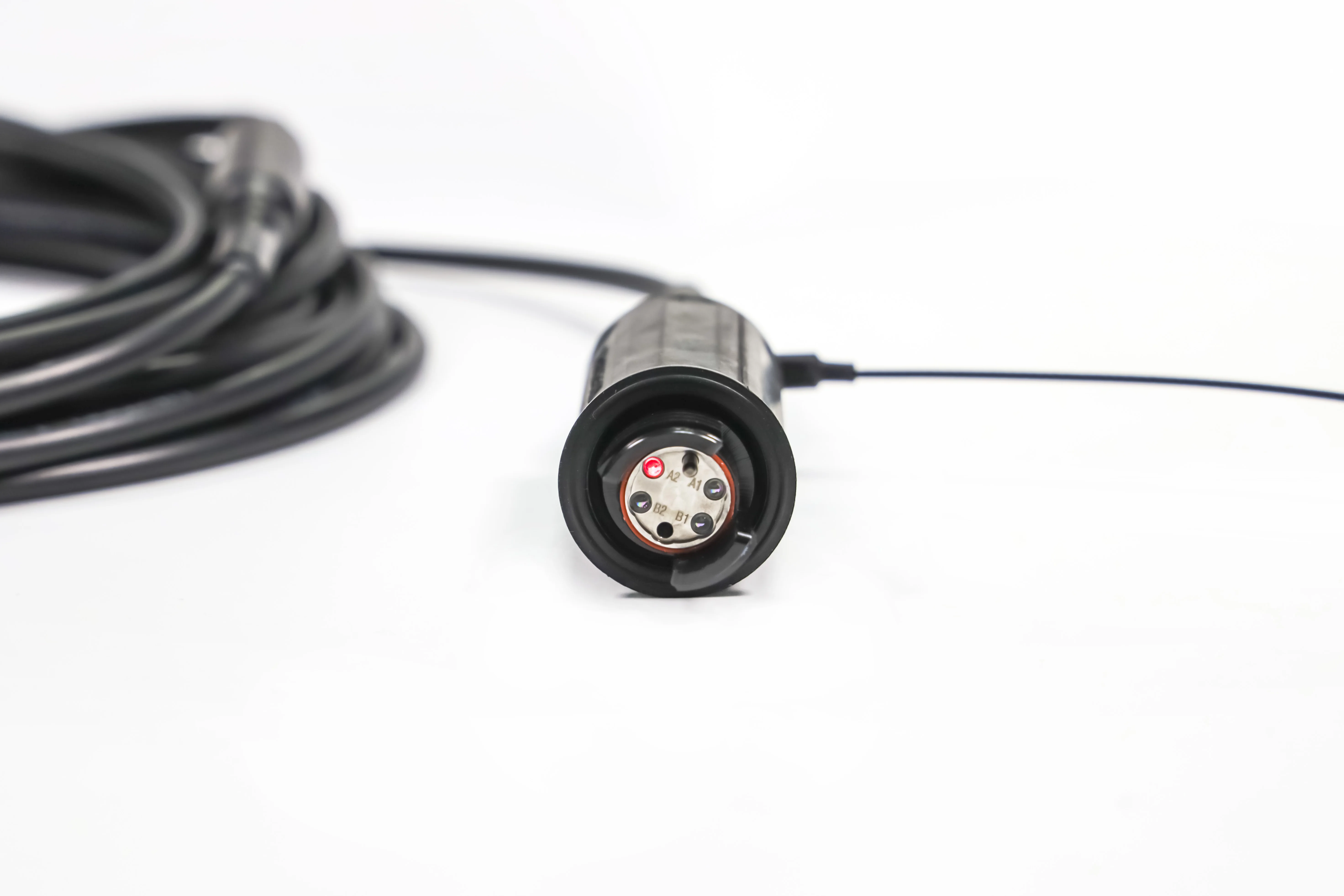

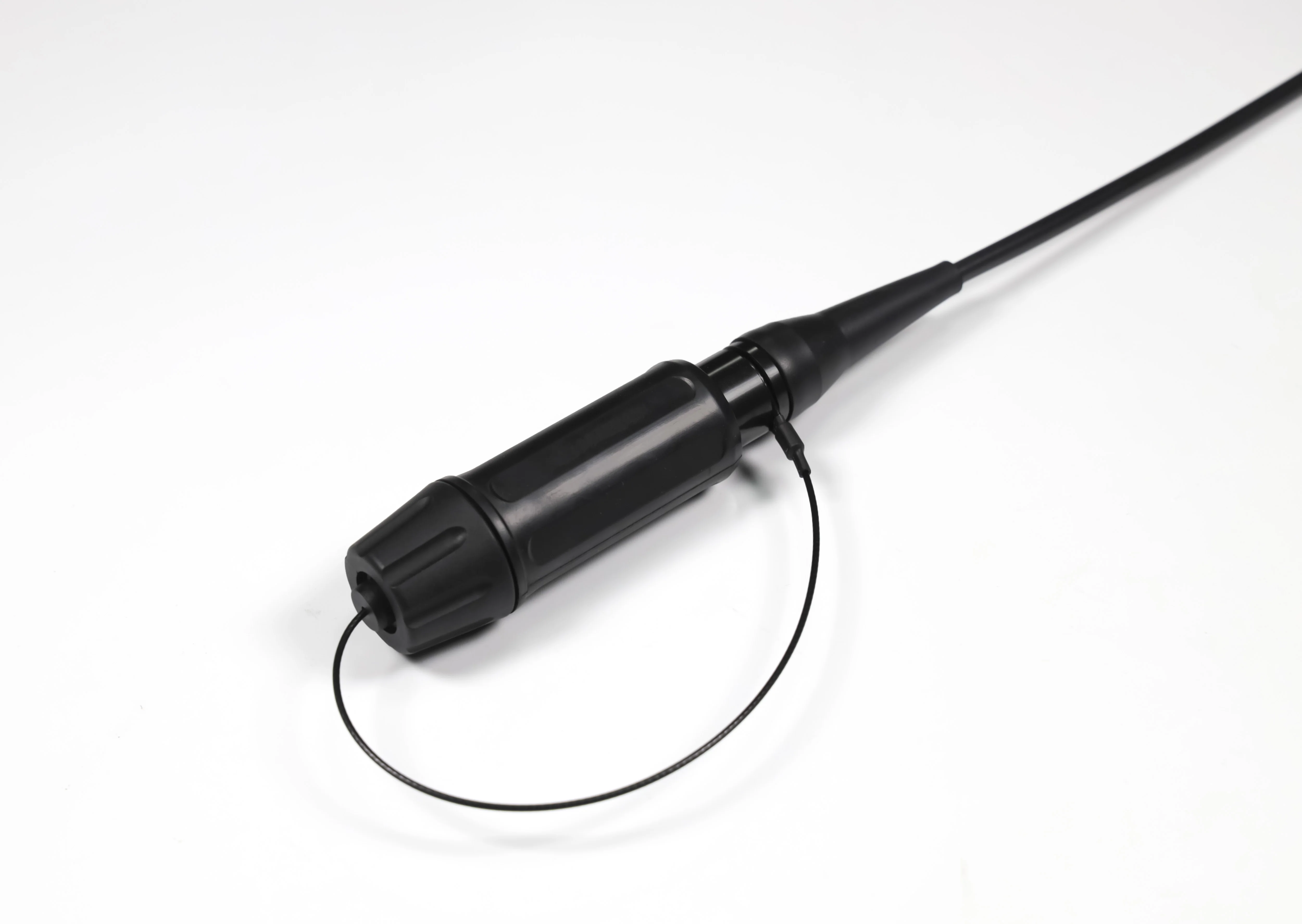

Expanded Beam lens 2Core 4 cores TPU 5.5mm Patch Cord IP68 Field Deployment Outdoor Fiber Optic Connector
- Category: >>>
- Supplier: Shenzhen Ih Optics Co. Ltd.
Share on (1601025743282):
Product Overview
Description
Products Description
The EXPANDED BEAM Connectors, featuring expanded beam technology, hermaphroditic connection, rugged construction for field deployment and hybrid configurability, have been designed for harsh environment applications such as tactical communications, avionics, offshore systems,outside broadcast,mining and plant.
The EXPANDED BEAM Connectors uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to presence of damage or contamination at the fiber end.
Hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. The EXPANDED BEAM connectors also enable transfer of electrical signal or power using hybrid insert configuration.
Feature
- Advanced Expanded Beam Technology;- Rugged Field deployable fiber optic connector;
- Hermaphroditic Interconnection;
- 2 to 6 optical Channels for singlemode or multimode;
- Custom firguration avaliable;
- Environmental Sealing (IP68);
- Very high resistance to vibration,shock,environmental effects,dust and debris.
The EXPANDED BEAM Connectors uses expanded and collimated beams to couple optical fibers without any contact. It could allow for optics to be used in areas that have been quite restrictive due to presence of damage or contamination at the fiber end.
Hermaphroditic connector design enables fast deployment by daisy-chaining multiple cable segments. The EXPANDED BEAM connectors also enable transfer of electrical signal or power using hybrid insert configuration.
Feature
- Advanced Expanded Beam Technology;- Rugged Field deployable fiber optic connector;
- Hermaphroditic Interconnection;
- 2 to 6 optical Channels for singlemode or multimode;
- Custom firguration avaliable;
- Environmental Sealing (IP68);
- Very high resistance to vibration,shock,environmental effects,dust and debris.
Specification
Name | Parameters | Name | Parameters |
IL（SM） | ≤0.8dB | Cable OD. | 5.0mm or 4.0mm |
IL（MM） | ≤0.5dB | Outer Sheath | TPU |
RL（SM） | ≥50dB | Anti-push Unit | KEVLAR |
Plug | ≤500N（Main Cable） | Fiber Type | 9/125, 50/125, 62.5/125 |
Socket | ≤100N（Branch Cable） | Fiber Outer | 900um fiber |
Operation Tem. | -40℃～85℃ | Tensile Strength | Short term：120N/ Long term：600N |
IP Class | IP67 | ||
RHoS | Comply with RHoS |
