Product Overview
Description
Products Description

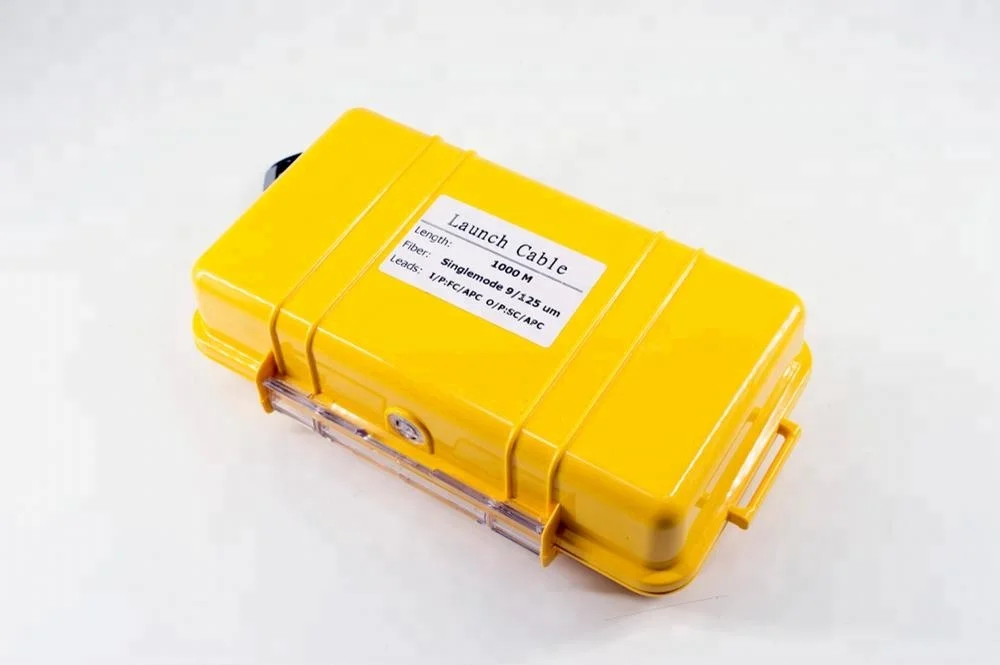

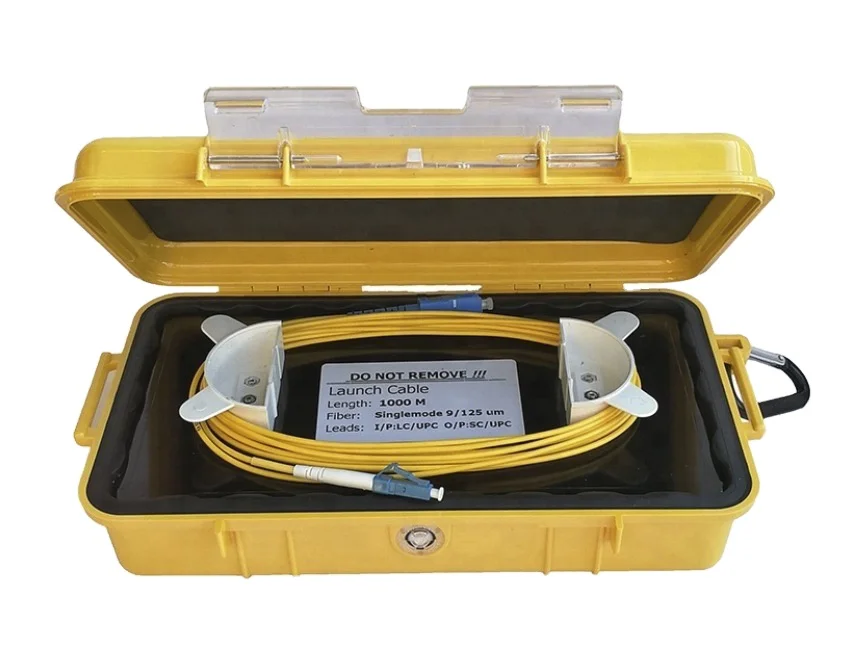

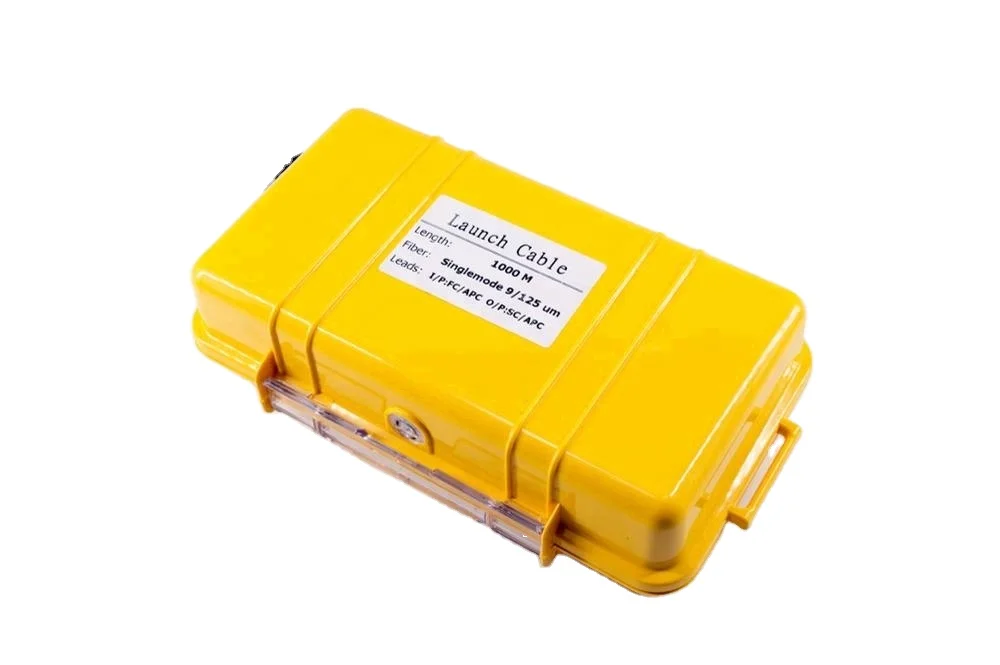

An OTDR dummy fiber, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection.A fiber ring serves as both a launch cable and a receive cable. OTDR Dummy fiber is used in conjunction with an OTDR to measure complete link loss of a fiber.They are also known as pulse suppressor cables, launch cords, launch leads, receive cables or fiber rings.

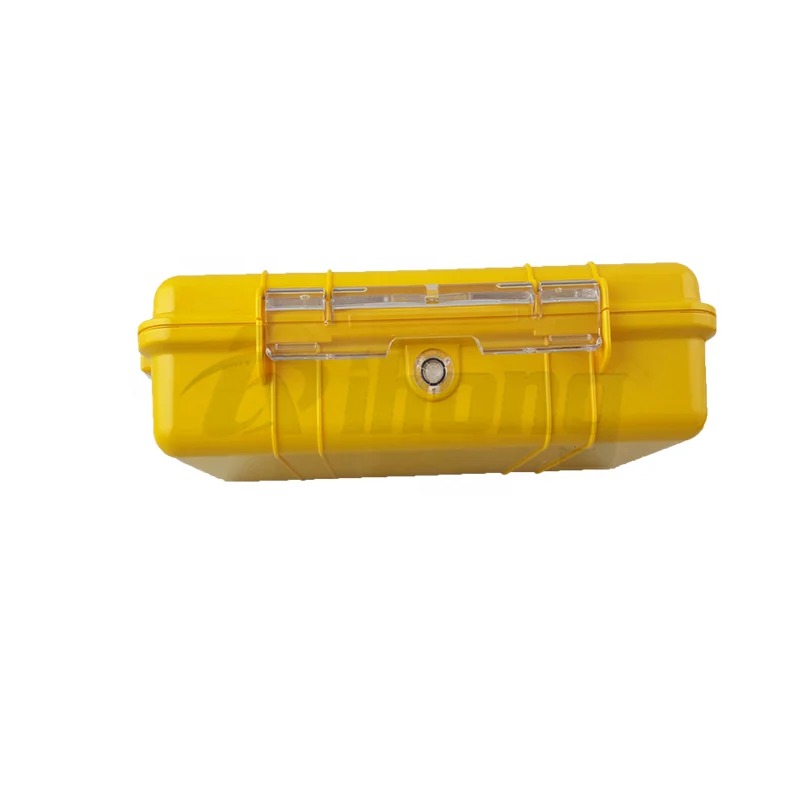

-Compound Latch for positive seal and easy opening with locking feature;
-Non¬metal construction will not dent, corrode, or conduce electricity;
-Water and dust prove allowing the unit to be taken into almost any environment;

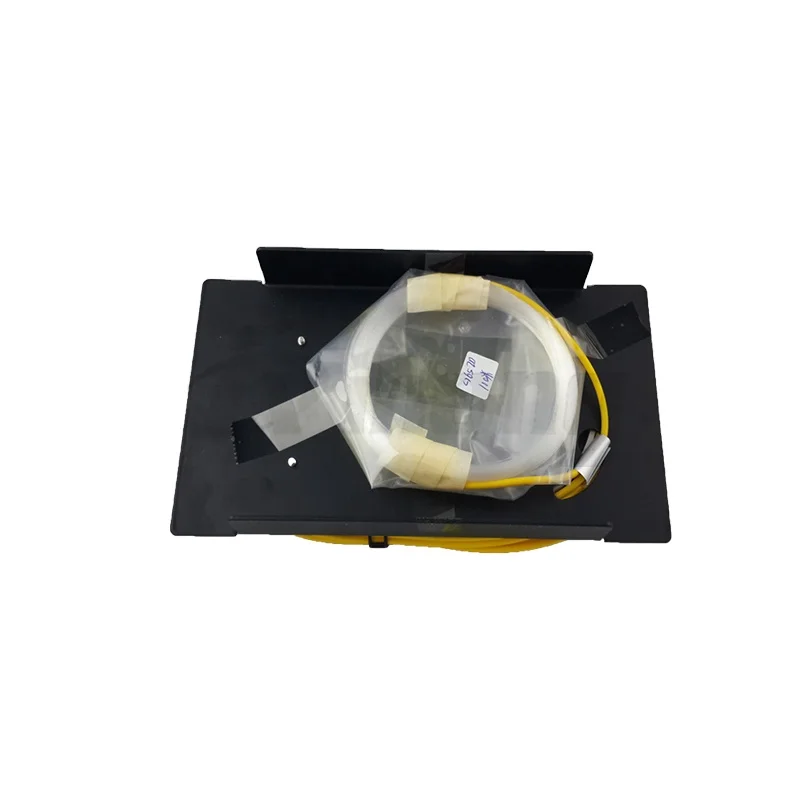

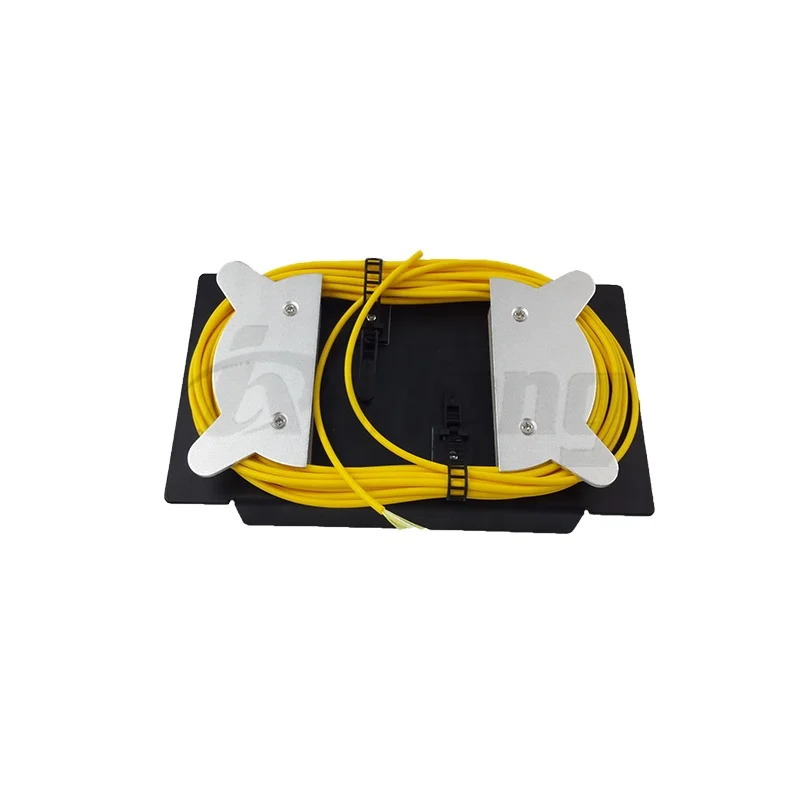

-Case can house up to 2,000 meters of fiber;
-Auto Purge Valve for changes in altitude and temperature.
Application
-SM(G652D) SM(G655C) OM1,OM2,OM3,OM4, OM5.250um bare fiber;
-Connectors can be added as per your request, SC/LC/FC/ST etc;
-Max Capacity: 1km/ (as per clients requirements);
-Connectors can be added as per your request.
Feature
-Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration; -Compound Latch for positive seal and easy opening with locking feature;
-Non¬metal construction will not dent, corrode, or conduce electricity;
-Water and dust prove allowing the unit to be taken into almost any environment;
-Case can house up to 2,000 meters of fiber;
-Auto Purge Valve for changes in altitude and temperature.
Application
-SM(G652D) SM(G655C) OM1,OM2,OM3,OM4, OM5.250um bare fiber;
-Connectors can be added as per your request, SC/LC/FC/ST etc;
-Max Capacity: 1km/ (as per clients requirements);
-Connectors can be added as per your request.
Specification
Item | PARAMETER |
Connector type | LC/UPC, SC/UPC, FC/UPC, ST/UPC. Optional |
Fiber type | Single mode 1310/1550 or multimode 850/1300 |
Inertion loss | SM ≤0.2dB MM ≤0.2dB |
Returen loss | SM ≥50dB MM ≥35dB |
Repeatability | ≤0.1 |
Interchangeability | ≤0.2dB |
Durability | ≤0.2dB |
Fiber Length | 1m ,2m,3m .....any length for optional |
Length and tolerance | +10cm |
Operating Temperature | -45~85℃ |
Storage Temperature | -45~85℃ |
Details
