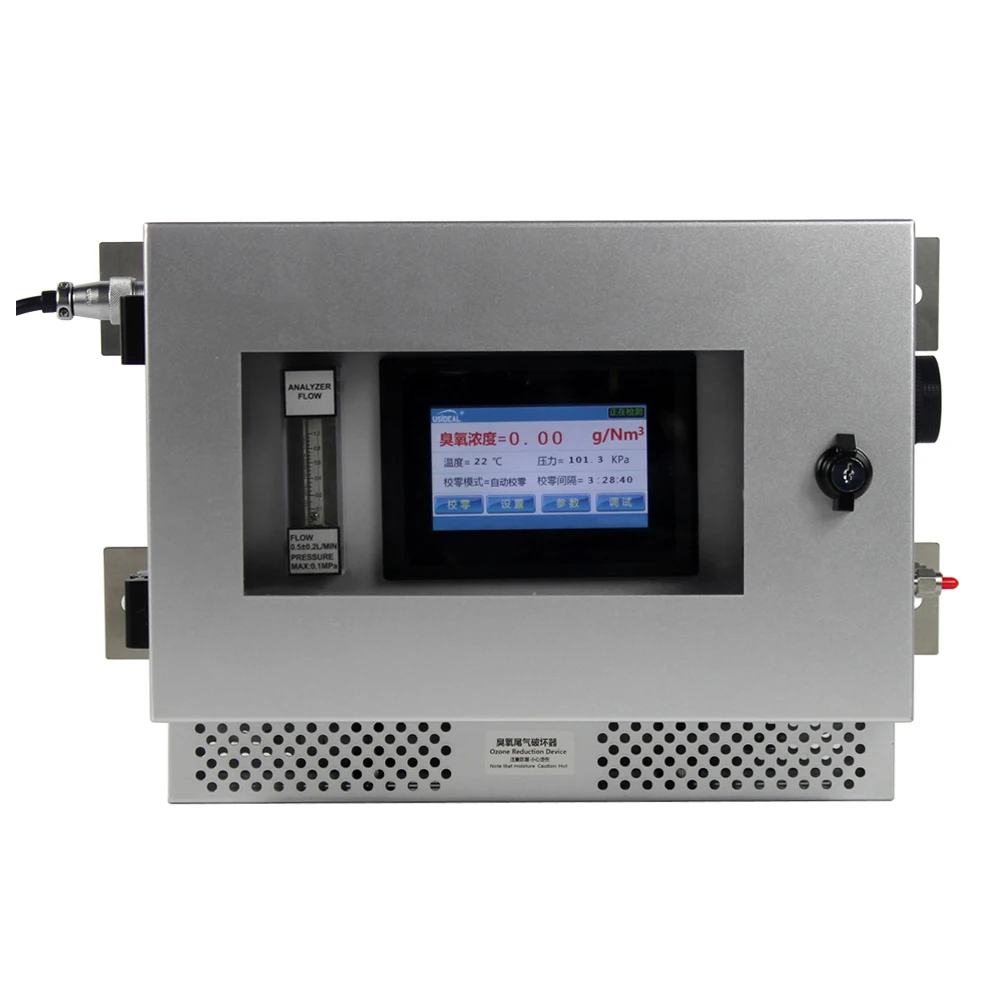

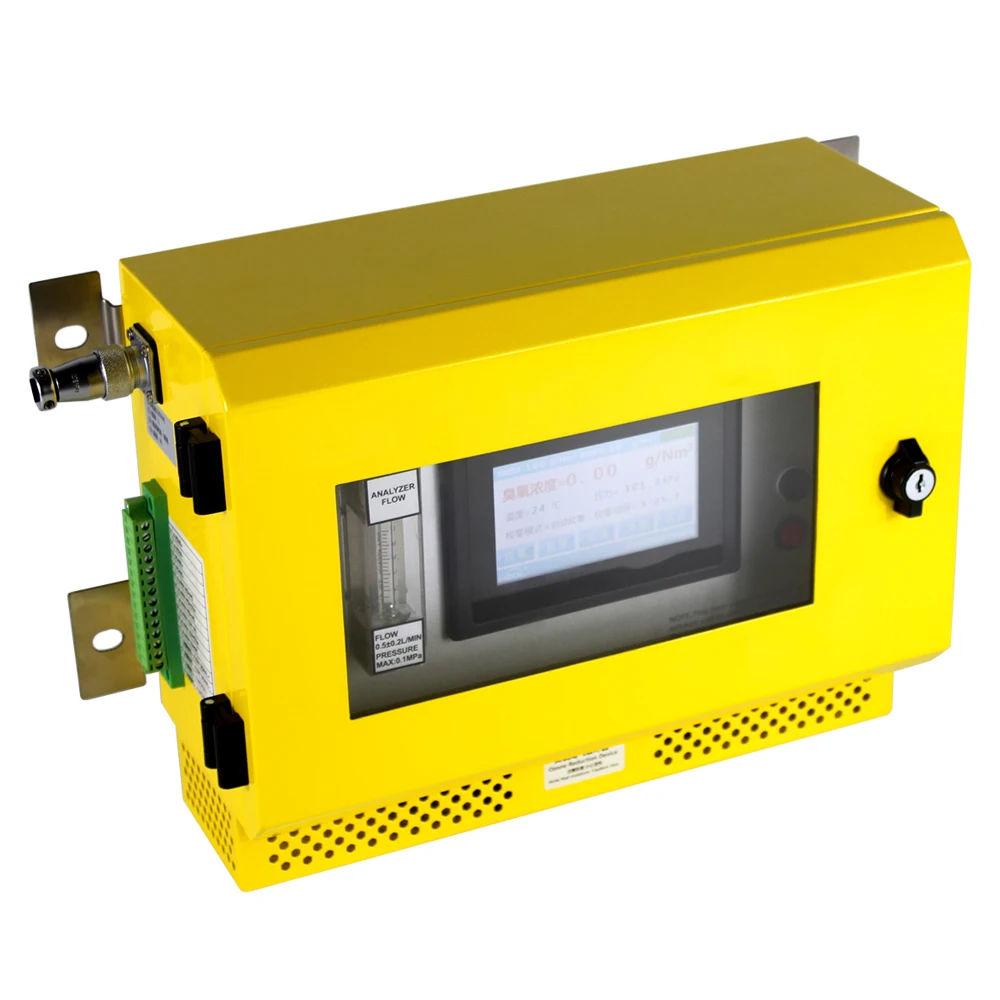

Flygoo UVOZ Portable Type Fast Response 0-50mg/L O3 Ozone Gas Detector Dissolved Ozone Analyzer for Ozone Output


Product Description


FGUV-300 is high-precision ozone analyzer, It efficiently measures ozone, and we can offer it at a lower price because of its compacted size.It has variety of measurement range options:0-300g/Nm3 (0-200g/Nm3，0-100g/Nm3, 0-50g/Nm3), high accuracy, stable data, good repeatability, suitable for ozone generator company, medical ozone concentration analyzer, laboratories, ozone online detection.




24/7 Working
Accuracy
Low Price


Signal Output
Data Storage
Compacted


Specification


Installation

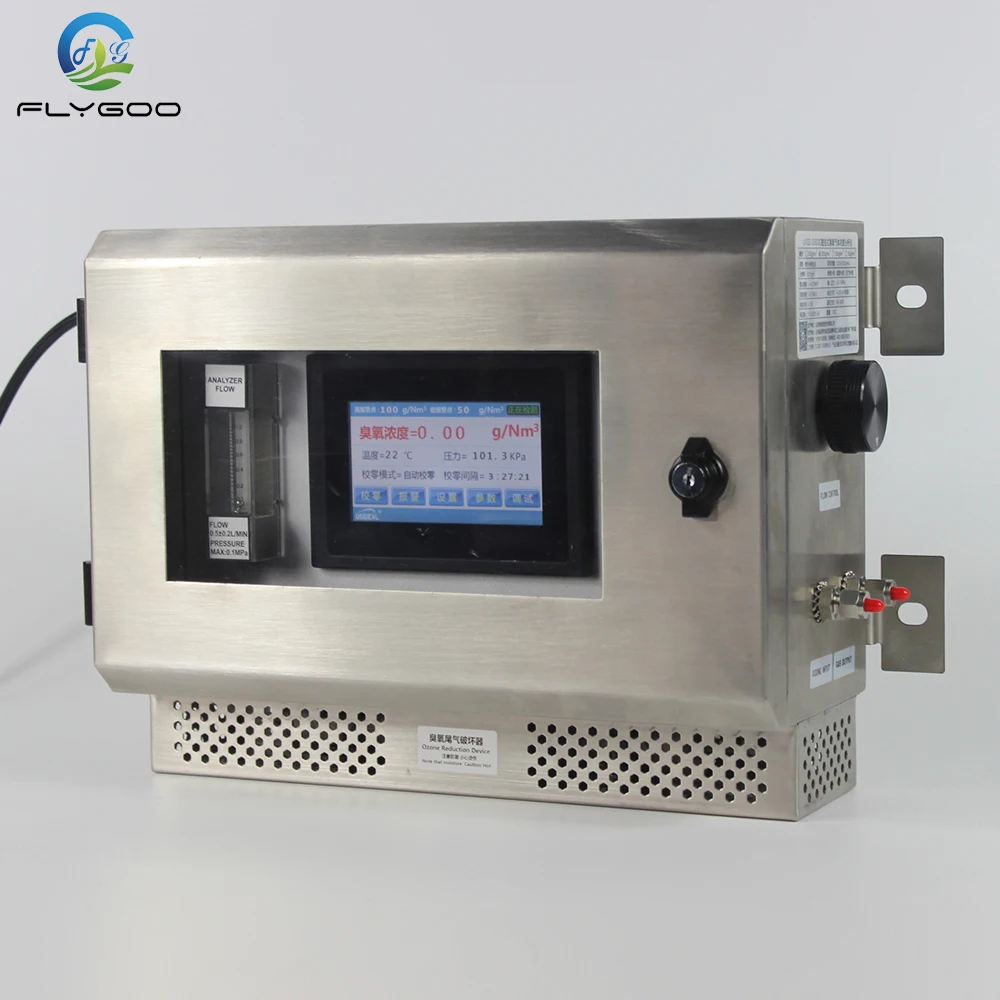

Wall Mounted
Detection Range
0-300mg/L ;  0-200mg/L ; 0-100mg/L ; 0-50mg/L
Measurement method
UV light double optical receiver with high precision measurement
Ozone Concentration Unit
mg/L ,  g/Nm3, %wt, PPM
Resolution
0.01 mg/L
Precision
0.5%
Input gas flow
0.5L±0.2L/min
Input pressure
<0.1Mpa
Concentration Error
Max. 0.5％
Line Deviation
Max. 0.2％
Zero Shift
<±0.3%.FS
Voltage
110V-240V / 50Hz,60Hz
Response Time
signal 0.03s, display 0.3s
Gas Input and Output Diameter
Φ6 (6mm*4mm)
Dimension
230x330x150mm
External Case
Stainless Steel 304 / Painted Chassis Steel
Net Weight
9.0kgs
Warranty
12 months
Communication mode
RS485
Output Signal
4-20mA (double way alarm of low and high concentration)；printer interface;
Relay Signal
High alarm point relay signal; Low alarm point relay signal
Remarks
1mg/L=1g/Nm3=467PPM
Packing List
01* ozone analyzer
01* ozone destructor

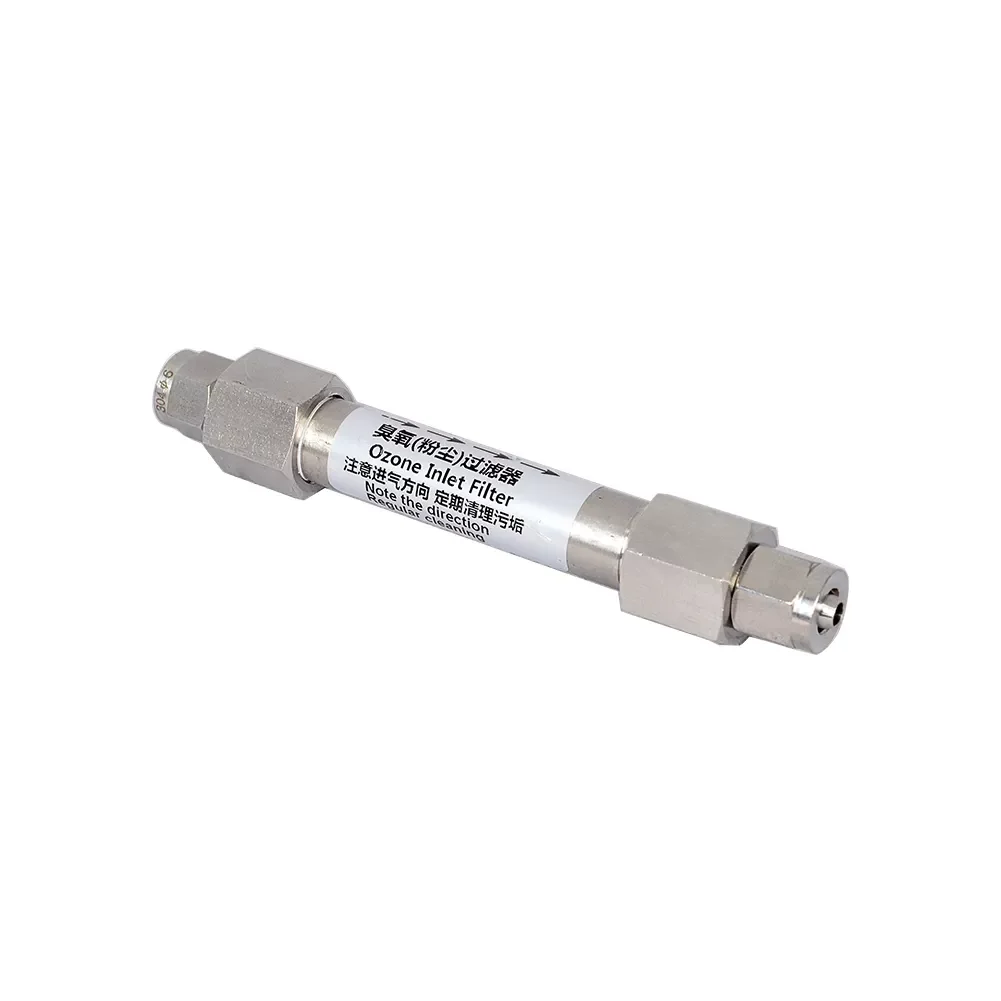

01* gas filter


Touch Screen Display




Multiple Output Wiring




Feature

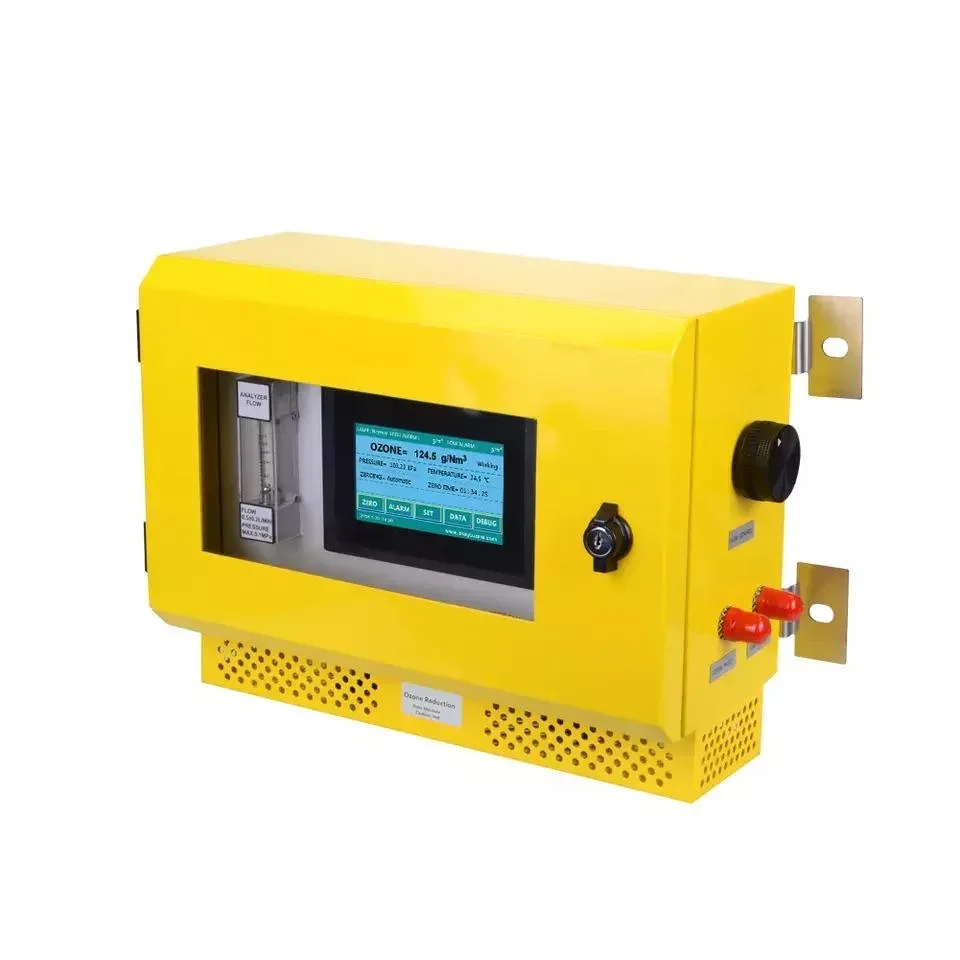

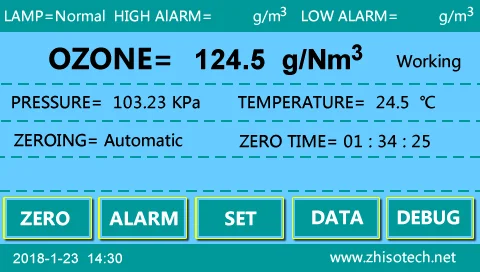

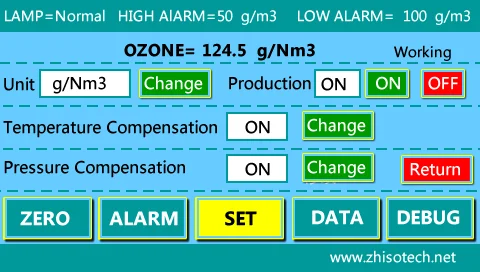

DISPLAY AND TOUCH SCREEN
● Fast response speed
● Import German long-life ultraviolet lamp (253.7 nm wavelength)
● High measurement accuracy
● Simple operation
● UV light double optical receiver with high precision measurement
● Compacted Design
● Online ozone concentration detection
● Intelligent Compensation：built in temperature and pressure compensation and display
● Provide customized Logo service
● English version

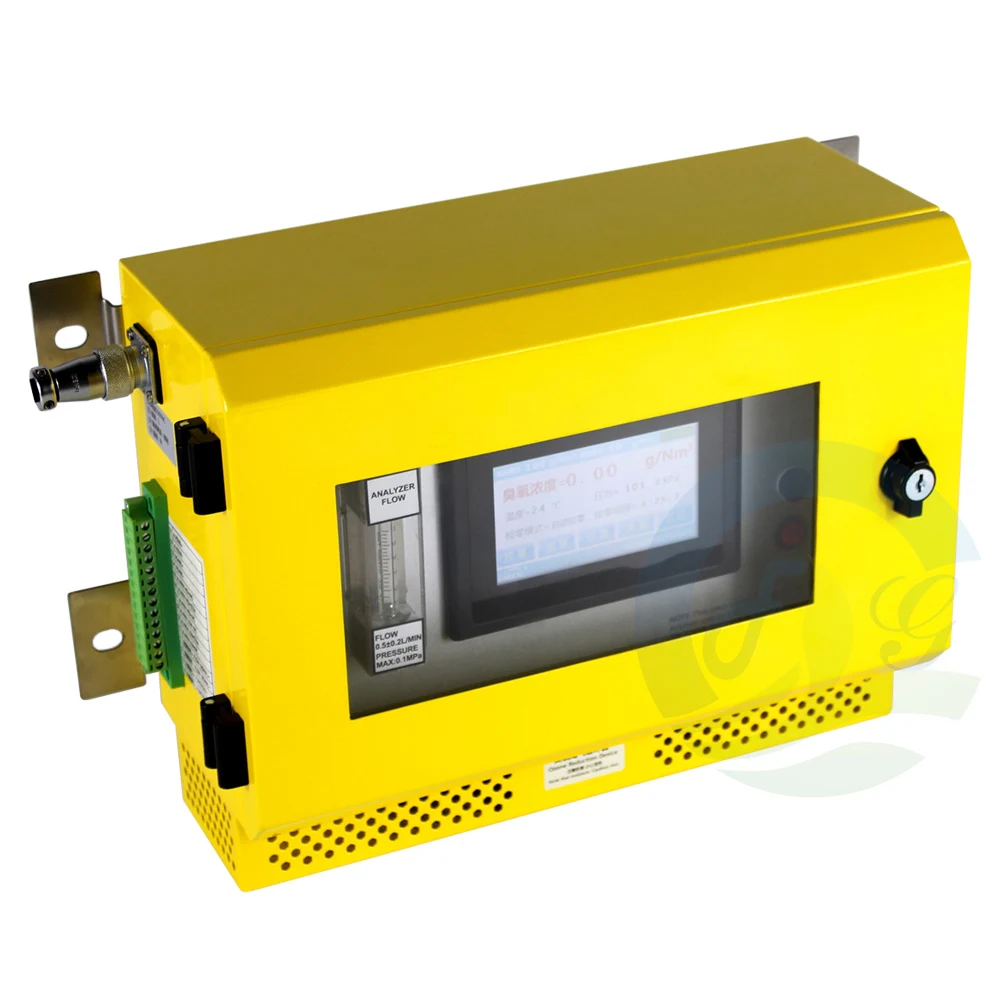

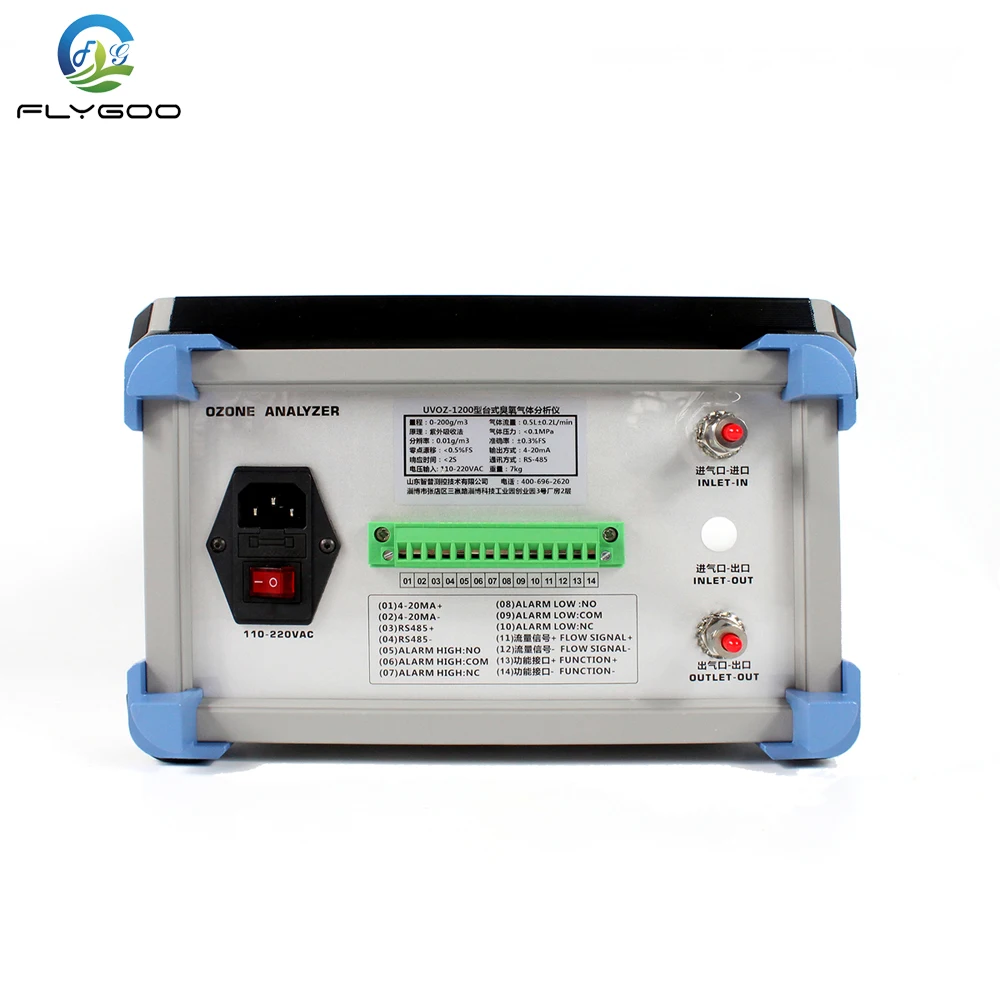

MULTIPLE OUTPUT WIRING
● 1) 4-20MA+  Current signal output
● 2) 4-20MA-   Current signal output
● 3) RS485+communication interface
● 4) RS485-communication interface
● 5) ALARM HIGH: NO
● 6) ALARM HIGH: COM
● 7) ALARM HIGH: NC
● 8) ALARM LOW : NO
● 9) ALARM LOW: COM
● 10) ALARM LOW: NC
● 11) + FLOW SIGNAL+
● 12) - FLOW SIGNAL-
● 13) + FUNCTION +
● 14) - FUNCTION -

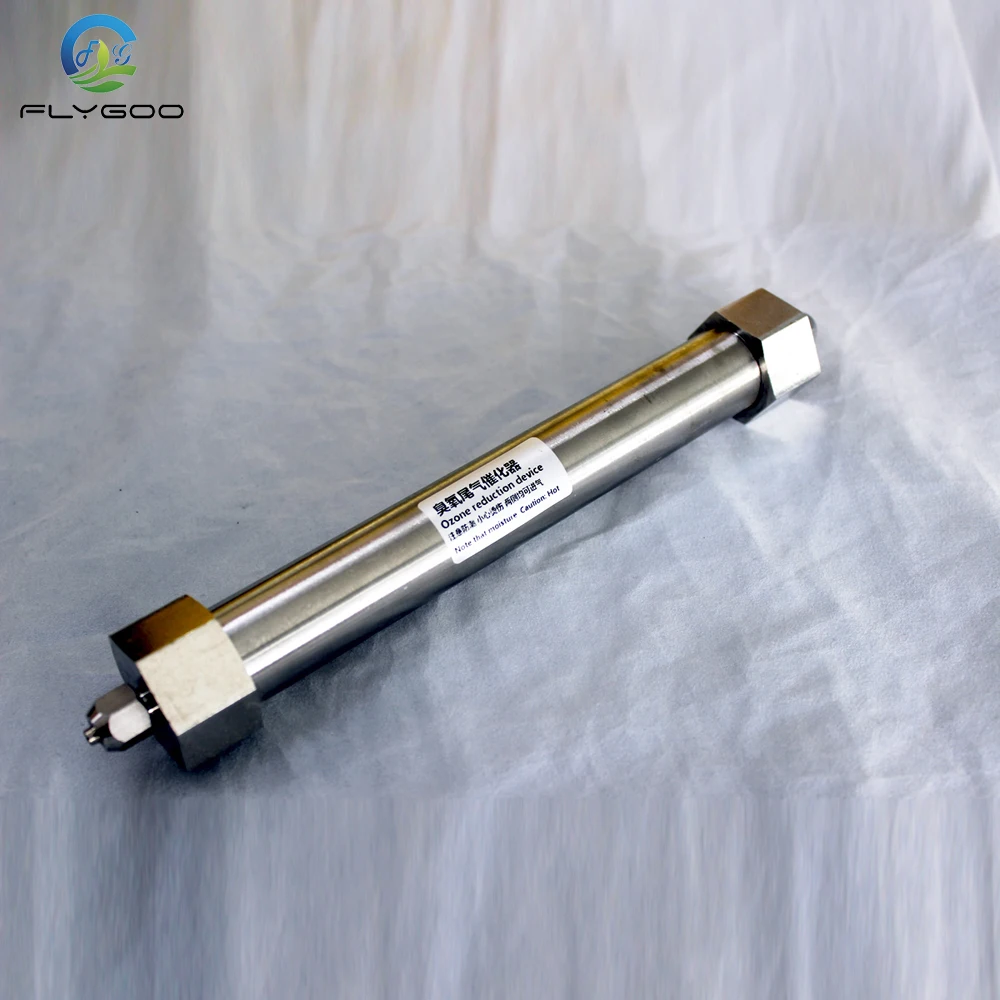

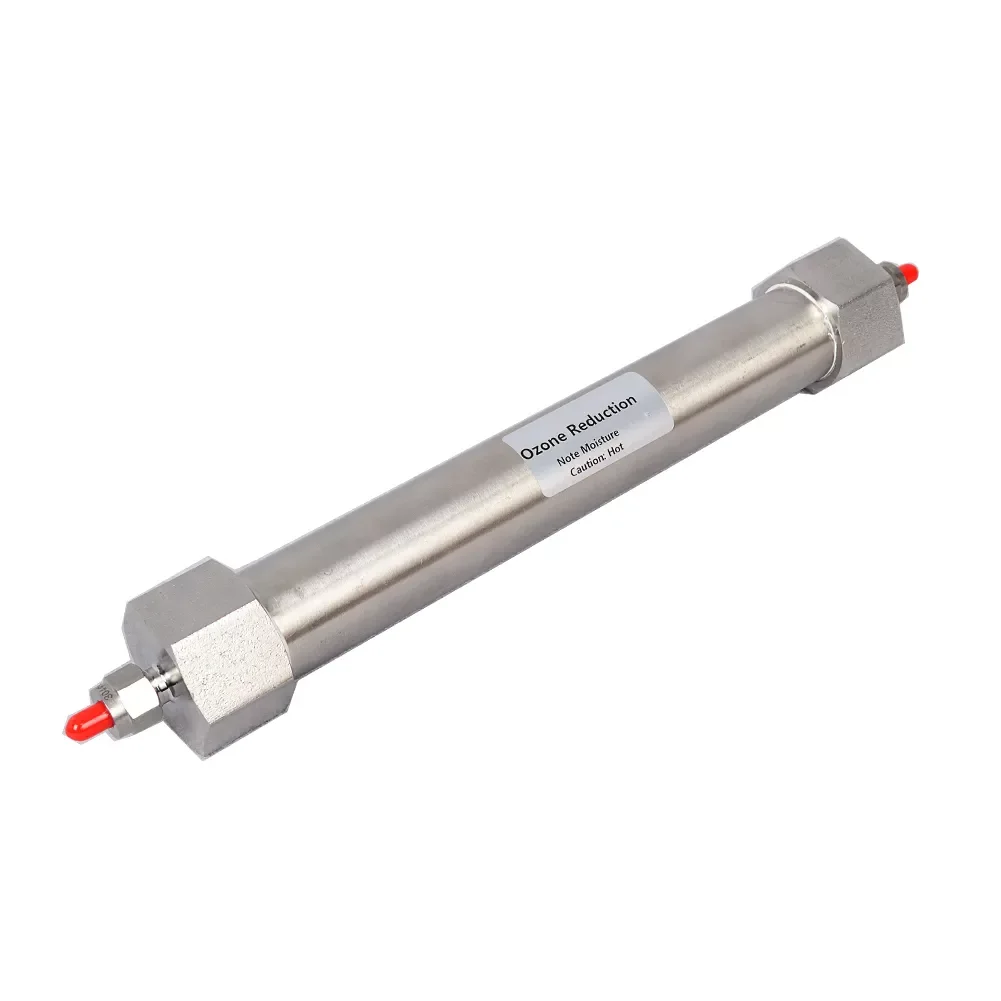

QUALITY OZONE DESTRUCTOR
● The ozone catalytic is imported from Russia, which is super good quality and reliable.
● External case: Stainless steel 316L
● It coverts ozone into oxygen rapidly without emitting any toxic gas.
● Lifespan: 3-5 years (Testing in our factory)

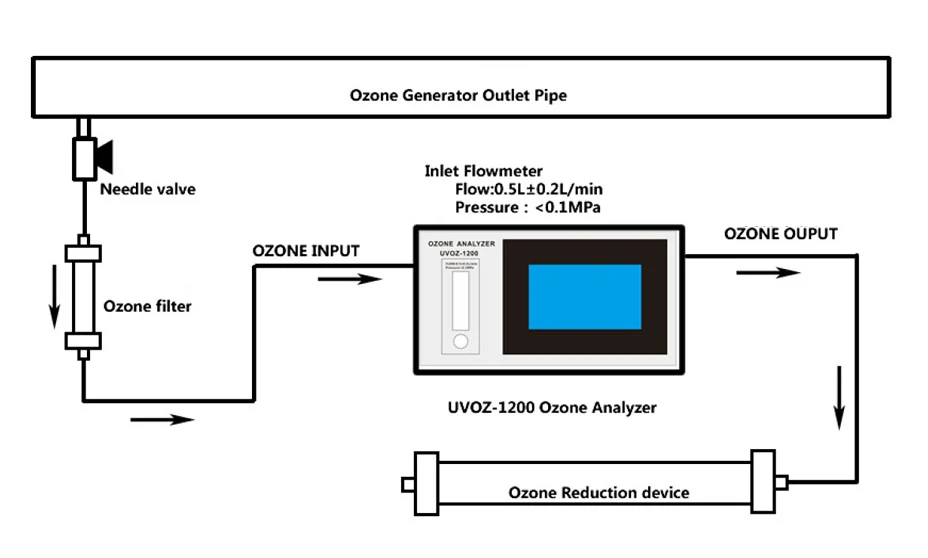

Installation Instructions
