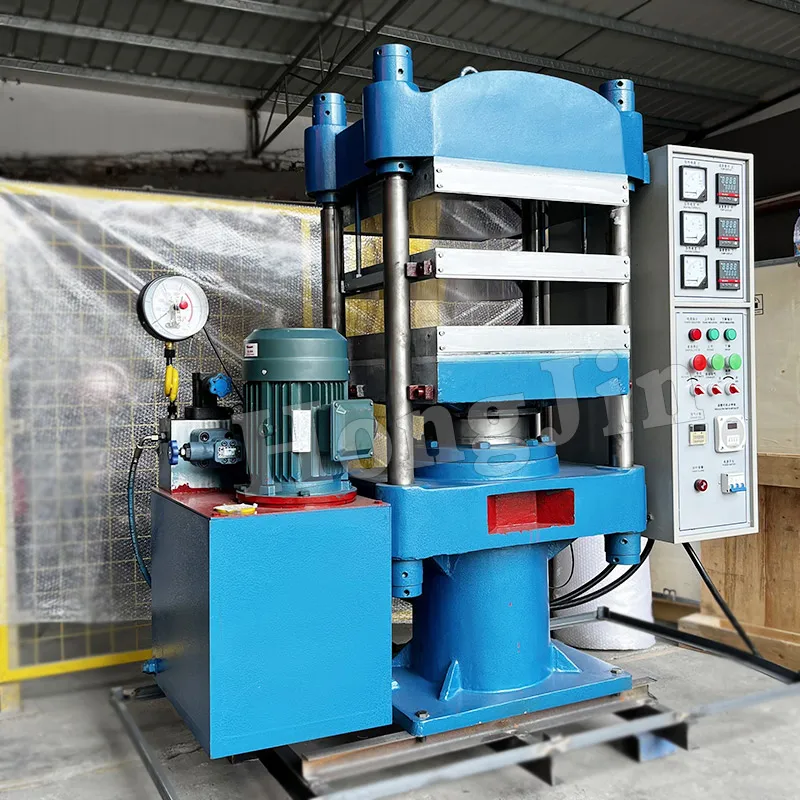

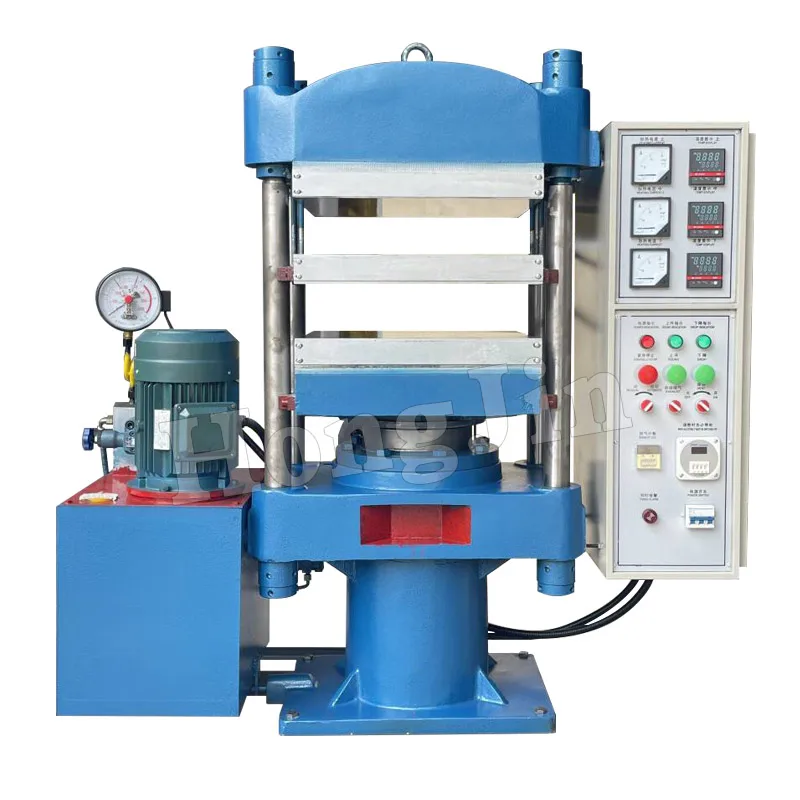

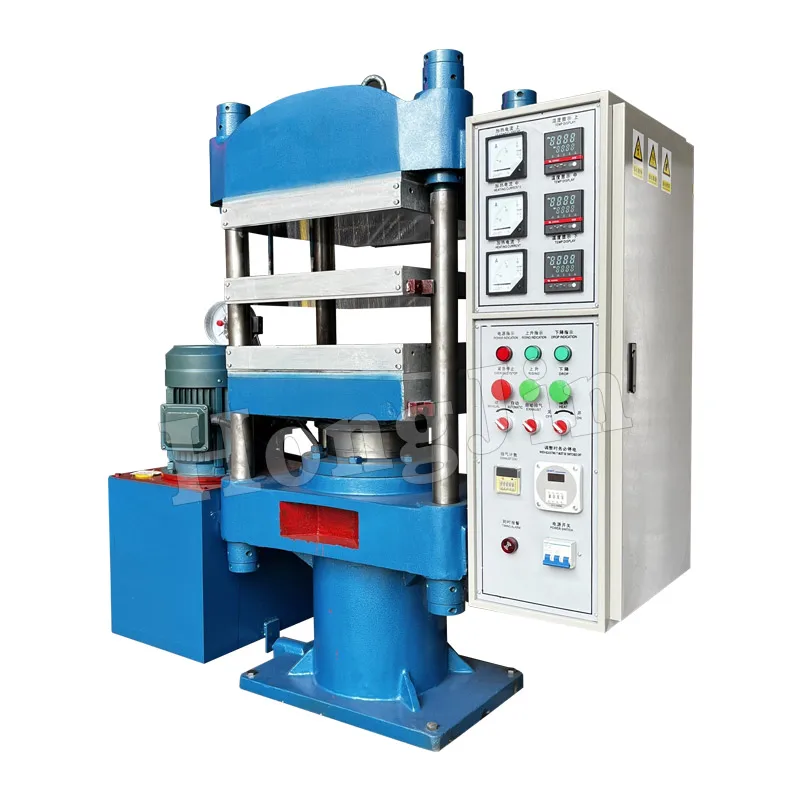

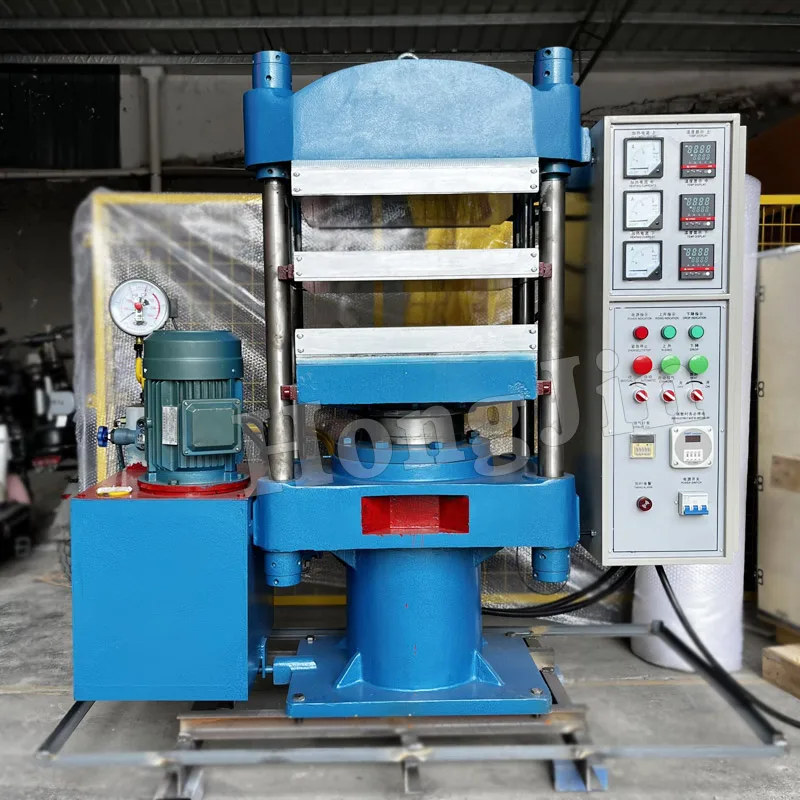

Rubber Flat Vulcanizer Skeleton Oil Seal Hot Press Voltage Hydraulic Rheometer Plastic Vulcanization Equipment
- Category: >>>
- Supplier: Dongguan Hongjin Test Instrument Co. Ltd.
Share on (1601025899787):
Product Overview
Description
Product Paramenters
Scope of application：
1. Rubber industry: Plate vulcanizer is one of the necessary equipment for manufacturing rubber products. It can be used to vulcanize rubber products of various shapes, such as tires, sealing rings, rubber tubes, etc. In this industry, flat vulcanizing machines are mainly used to process various types of rubber sheets, such as rubber floor mats, rubber gaskets, rubber mats, etc.
2. Plastic industry: Flat vulcanizer can also be used to process various types of plastic products, such as plastic pallets, plastic sheets, plastic barrels, etc. It can achieve different types of curing and thermoforming processing by adjusting pressure and temperature.
3. Chemical industry: Flat plate vulcanizer can also be used to solidify the processing of various chemical raw materials. It can be used in processes such as granulation, tableting, stretching and thermoforming.
2. Plastic industry: Flat vulcanizer can also be used to process various types of plastic products, such as plastic pallets, plastic sheets, plastic barrels, etc. It can achieve different types of curing and thermoforming processing by adjusting pressure and temperature.
3. Chemical industry: Flat plate vulcanizer can also be used to solidify the processing of various chemical raw materials. It can be used in processes such as granulation, tableting, stretching and thermoforming.
Purpose and characteristics:
The flat plate vulcanizing machine is a new type of hydraulic flat plate vulcanizing machine. Compared with the old model pressure forming machine, it can significantly improve the quality of pressed parts. This model is suitable for the vulcanization of various rubber products. It is an essential equipment for the molding and processing of plastics, rubber cannons, bakelite products, and various thermosetting materials.
This model has the following features:
1. This model is a combination of mechanical, electrical and hydraulic technologies, with high automatic performance.
2. The main machine adopts two structures: column type and frame plate type. The main body is clear, clean and rigid. The upper beam of the hydraulic cylinder and the movable platform are made of ductile iron. The main machine has stable performance and durability.
3. The electrical appliances adopt domestic famous brand products, with reliable quality and more accurate temperature control. The heating connection part is connected with high temperature resistant wire, which has good reliability.
4. The electric heating system uses a tubular resistance heater installed in the hot plate to provide heating for the hot plate (customers without a boiler). It saves electricity, does not form glue, has a uniform temperature on the hot plate and has good insulation properties, making it an ideal heating method.
5. The whole machine has excellent material selection, wide processing range, all indicators can meet the standard requirements of GB/T25155, and has a good price-performance ratio.
6. The electric control box of the flat plate vulcanizing machine structure is separately installed on the right side of the main machine. Each electric heating plate of the electric heating type has 6 electric heating tubes, and the power of each section of each electric heating tube is different, thus ensuring uniform temperature of the hot plate, automatic control of the hot plate temperature, high temperature control accuracy, and good processing quality. No pressure loss, no oil leakage, low noise, high precision and flexible operation.
2. The main machine adopts two structures: column type and frame plate type. The main body is clear, clean and rigid. The upper beam of the hydraulic cylinder and the movable platform are made of ductile iron. The main machine has stable performance and durability.
3. The electrical appliances adopt domestic famous brand products, with reliable quality and more accurate temperature control. The heating connection part is connected with high temperature resistant wire, which has good reliability.
4. The electric heating system uses a tubular resistance heater installed in the hot plate to provide heating for the hot plate (customers without a boiler). It saves electricity, does not form glue, has a uniform temperature on the hot plate and has good insulation properties, making it an ideal heating method.
5. The whole machine has excellent material selection, wide processing range, all indicators can meet the standard requirements of GB/T25155, and has a good price-performance ratio.
6. The electric control box of the flat plate vulcanizing machine structure is separately installed on the right side of the main machine. Each electric heating plate of the electric heating type has 6 electric heating tubes, and the power of each section of each electric heating tube is different, thus ensuring uniform temperature of the hot plate, automatic control of the hot plate temperature, high temperature control accuracy, and good processing quality. No pressure loss, no oil leakage, low noise, high precision and flexible operation.
Advantages:
1. Under a certain center distance, larger diameter hydraulic cylinders are allowed to be installed, thereby reducing the number of hydraulic cylinders.
It also has a simple structure and requires less maintenance;
2. The stress on the upper beam is reasonable, and the required section modulus is much smaller than that of the column type, which can reduce the weight;
3. The installation is simple, the pipeline configuration is concealed, and the appearance of the whole machine is neat and beautiful.
4. Complete functions, compact structure, with timing mold locking, automatic pressure compensation, automatic temperature control, and automatic timing.
The surface temperature of the hot plate is uniform, the temperature control is precise and intuitive, the pressure maintaining is stable and reliable, and the operation is safe and convenient.
5. The flat plate part of the machine is equipped with an aluminum alloy thermal insulation cover and a tempered glass observation window to ensure the temperature of the heating plate.
No loss of temperature and uniformity of hot plate temperature.
6. Photoelectric sensors are installed on the upper and lower parts of the hot plate. When the mold is held or an operator’s hand is on the plate, the machine cannot
Start mold clamping.
7. PLC voltage regulation module controls temperature and automatically compensates temperature.
8. The operation panel has a humanized design and the operation process is clear at a glance.
It also has a simple structure and requires less maintenance;
2. The stress on the upper beam is reasonable, and the required section modulus is much smaller than that of the column type, which can reduce the weight;
3. The installation is simple, the pipeline configuration is concealed, and the appearance of the whole machine is neat and beautiful.
4. Complete functions, compact structure, with timing mold locking, automatic pressure compensation, automatic temperature control, and automatic timing.
The surface temperature of the hot plate is uniform, the temperature control is precise and intuitive, the pressure maintaining is stable and reliable, and the operation is safe and convenient.
5. The flat plate part of the machine is equipped with an aluminum alloy thermal insulation cover and a tempered glass observation window to ensure the temperature of the heating plate.
No loss of temperature and uniformity of hot plate temperature.
6. Photoelectric sensors are installed on the upper and lower parts of the hot plate. When the mold is held or an operator’s hand is on the plate, the machine cannot
Start mold clamping.
7. PLC voltage regulation module controls temperature and automatically compensates temperature.
8. The operation panel has a humanized design and the operation process is clear at a glance.
Maximum clamping force | 0.5MN | Hydraulic system pressure | 16.0MPa | ||||||||||
plunger stroke | 250MM | Plunger rising speed | 14mm/s | ||||||||||
plunger falling speed | 12mm/s | Hot plate size | 400*400mm/mm | ||||||||||
Number of hot plates | 3 | Hot plate spacing | 125mm | ||||||||||
Single heating plate power | 3kw | Total heating plate power | 9KW | ||||||||||
Maximum operating temperature | Electric heating 250℃, temperature control temperature ±0.5 degrees, hot plate temperature uniformity within ±2 degrees | ||||||||||||
control method | Preferred PLC LCD touch screen (intelligent temperature controller) | ||||||||||||
46# anti-wear hydraulic oil | About 40L | Motor Power | 2.2kw | ||||||||||
Dimensions | 1600*400*1440 (length×width×height) | ||||||||||||
