1500W 17inch Electric Wheel Hub Motor Complete ebike Kits For Electric Motorcycle Moped
- Category: >>>
- Supplier: Jiaxing Wat Technology Co. Ltd.
Share on (1601025967674):
Product Overview
Description
Product Description
QS260 17inch 1500W Hub Motor with Controller Kits
Combo
1pcs x QS260 1.6*17inch 1500W V1 Hub Motor
1pcs x Far-driver Controller ND72260
1pcs x DKD speedometer
1pcs x Twist Throttle
1pcs x QS260 1.6*17inch 1500W V1 Hub Motor
1pcs x Far-driver Controller ND72260
1pcs x DKD speedometer
1pcs x Twist Throttle
1pcs x Disc brake kits
Specification

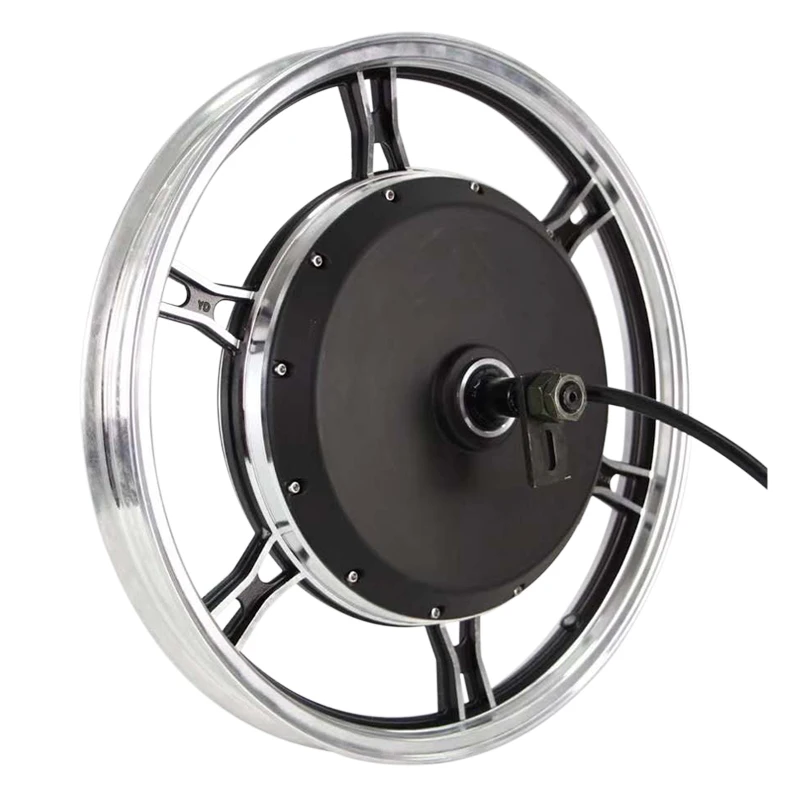

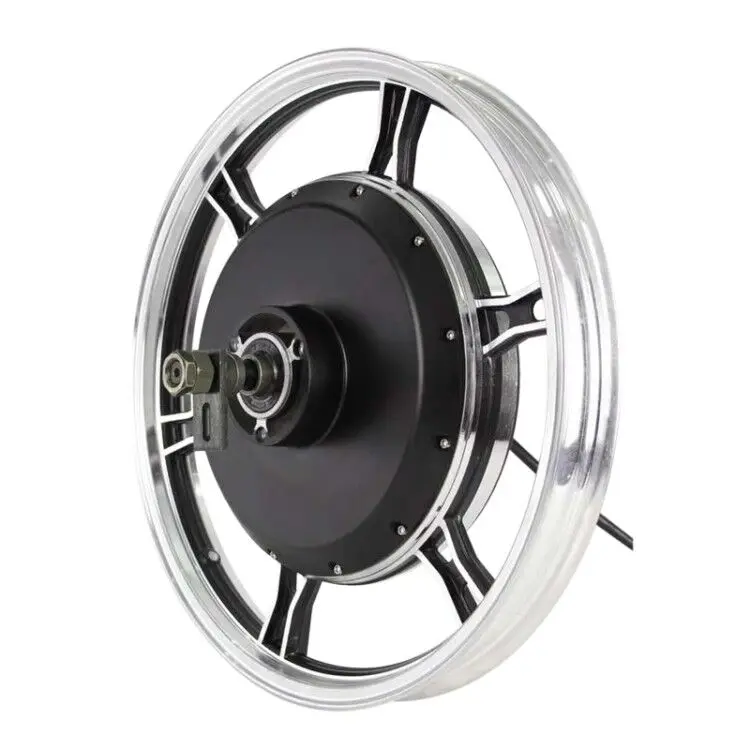

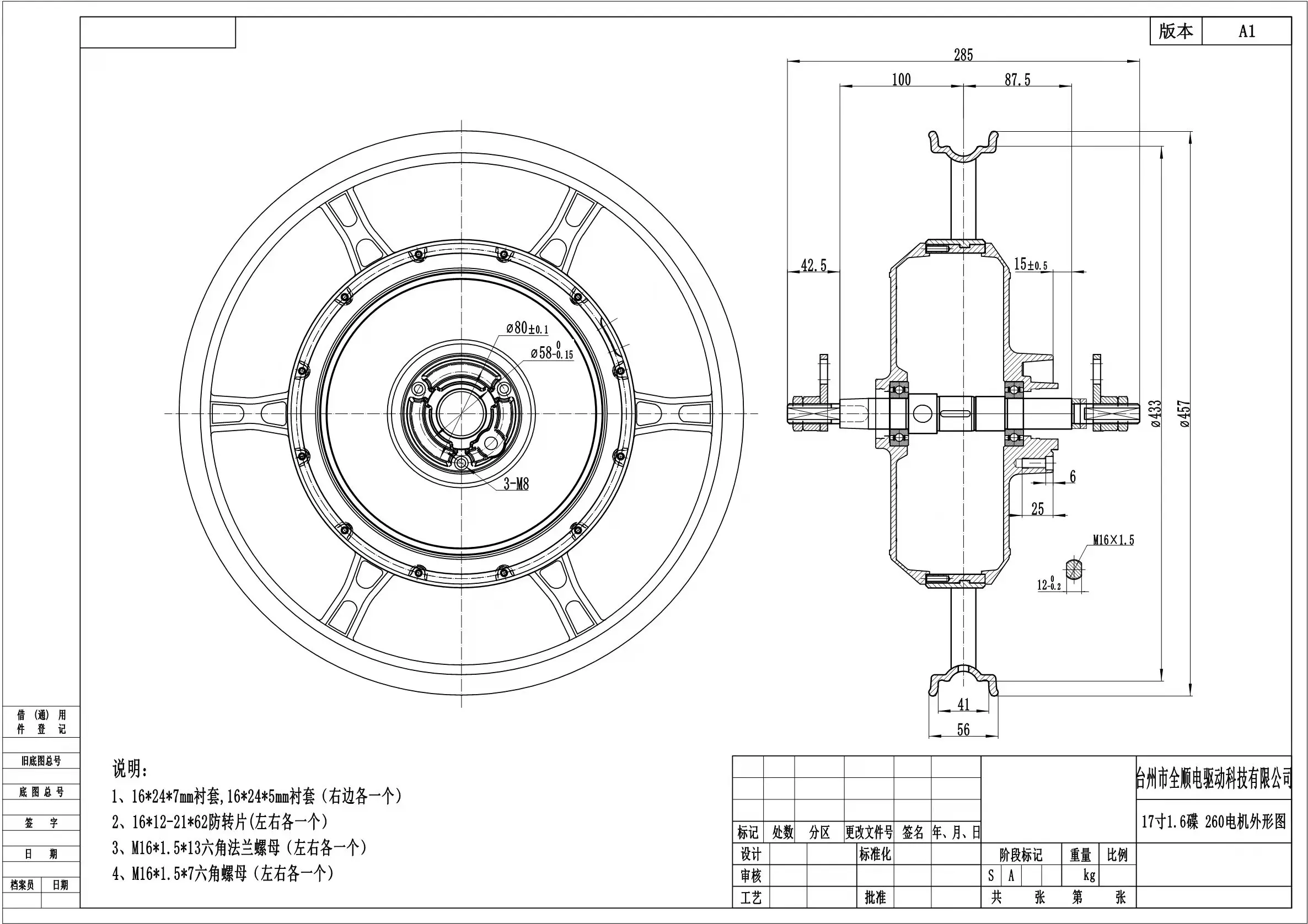

1. QS260 17inch 1500W 30H V1 Hub Motor
Motor type | BLDC Hub Motor with Permanent Magnets |
Motor design | Double axle out with 1.6*17inch rim |
Matching Tire | 70/80-17 Tubeless tire |
Pole pairs | 24 Pairs |
Rated Power | 1500W |
Peak Power | 1500W |
Rated Voltage | 48V/60V/72V |
Max. Speed | 55KPH |
Max. Torque | 100N.M |
Max. Effieciency | 89% |
Max. Current | 50A |
Brake type | Disc brake |
Croess Section of phase cable | 6MM2 |
Tem. Sensor | NONE |
Water proof Grade | IP67 |

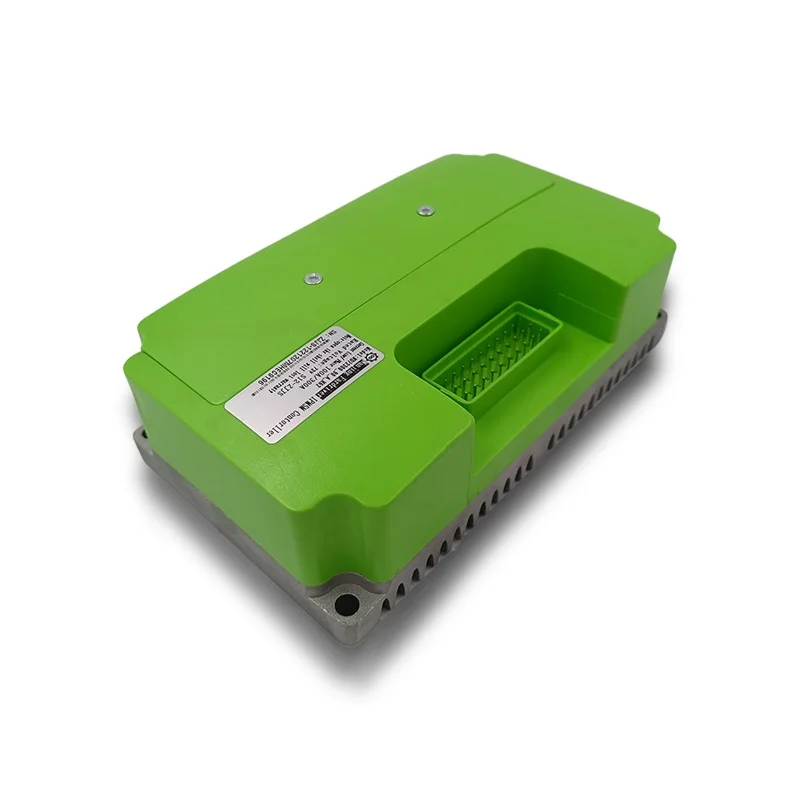

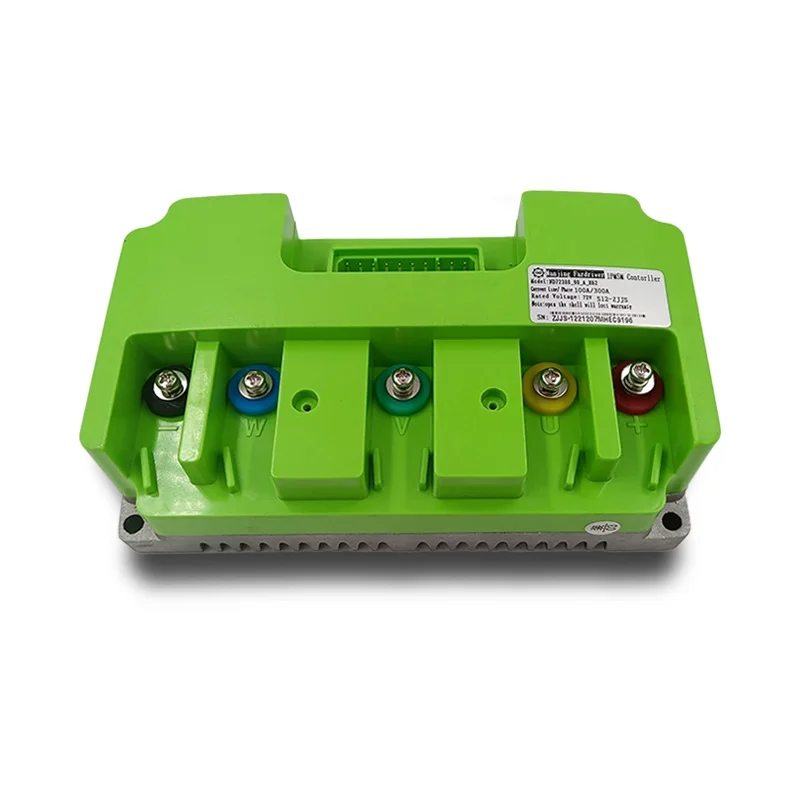

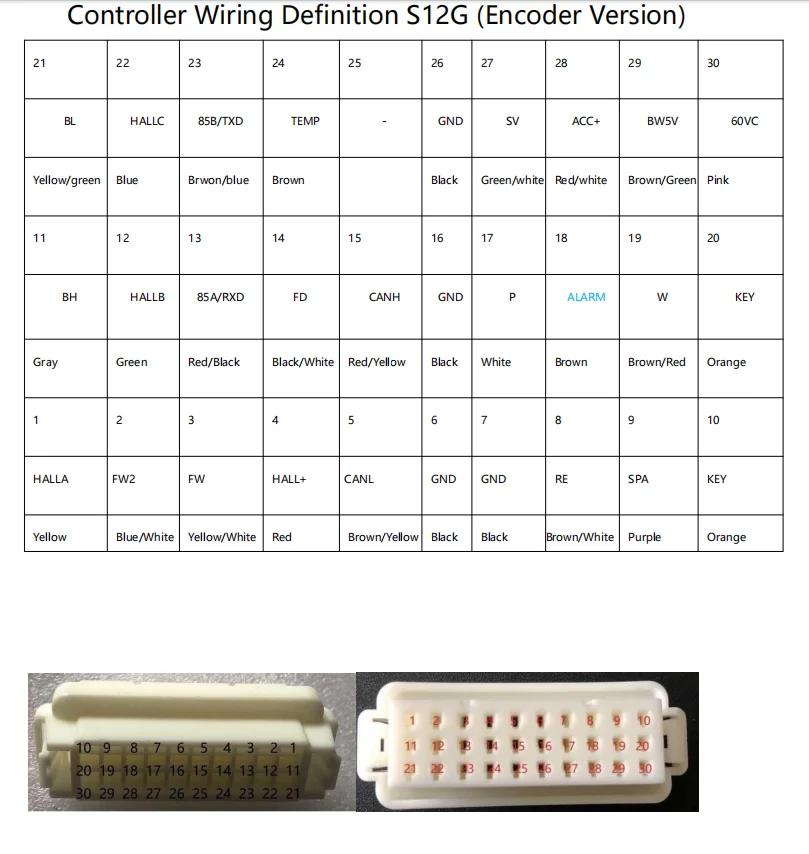

2. Fardriver Controller ND72260(The color will be shipped as randomly)
Model Number | Max. Line Current | Max. Phase Current | Norminal Voltage | Max. Voltage | Dimension | Efficiency | Working Temperature |
ND72260 | 80A | 260A | 48V-72V | 88.7V | 174*102*52mm | 98% | -40 ~ 85 Degree |

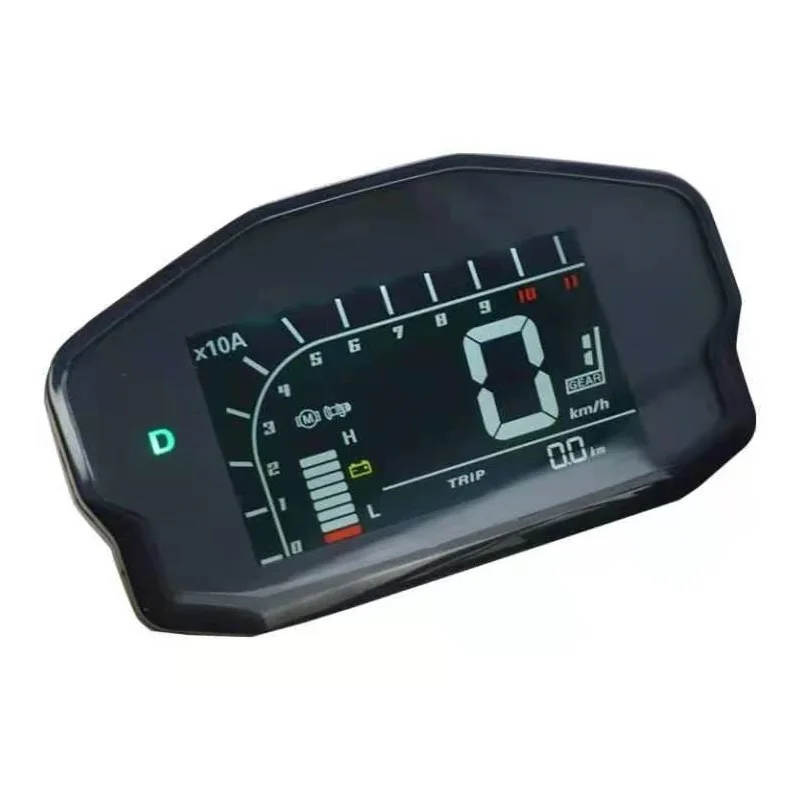

3. DKD-061 Speedometer
Model: 061 Speedometer
Voltage: 48V-84V
Screen: LCD 4.3inch
Protection: IP67
Signal: ONE-LIN,CAN,RS485(Customs)
Voltage: 48V-84V
Screen: LCD 4.3inch
Protection: IP67
Signal: ONE-LIN,CAN,RS485(Customs)

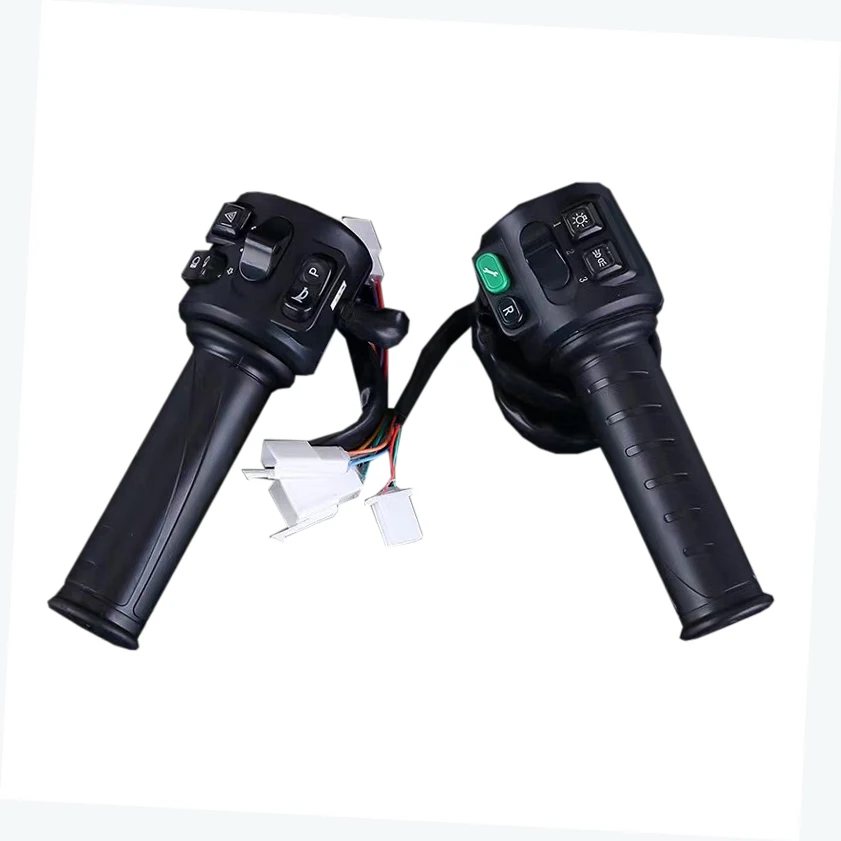

4.Twist throttle

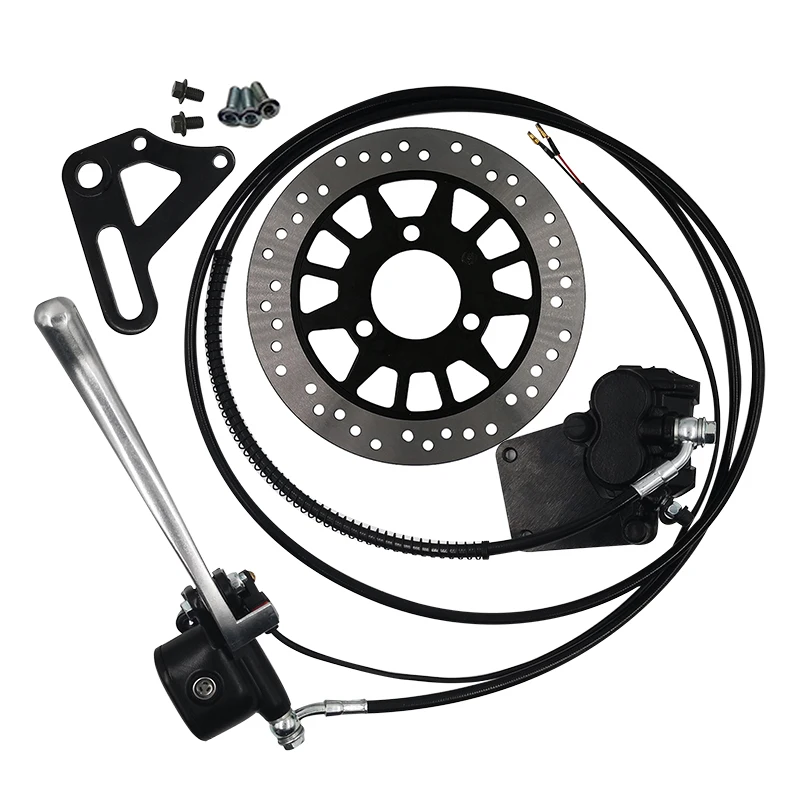

5. Complete Oil-pressure Disc brake system with Caliper
Caliper type:Double Cylinder Cylinder diameter:25mm
Friction coefficient of Brake pad:0.42μ
Disc Size: 220mm
Disc Thickness:4mm
Oil Pipe length:1.5M
Friction coefficient of Brake pad:0.42μ
Disc Size: 220mm
Disc Thickness:4mm
Oil Pipe length:1.5M
Packing & Delivery
Foam and Carton package
Company Profile
We are specialized in manufacturing and sales of High level quality and performance Brush-less Hub motor,Controller and other spare parts for electric bike,electric scooters or electric motorcycles.
Our product lines as follows,
In-Wheel Hub Motor for electric vehicles
Mid-drive Motor
Motor Controller
Extensive selection of other Electric bike parts
We have a specialist knowledge sales and after service team to provide professional electric bike assemble and converting solution. We have the factory with many years production and research experience in the hub motor and controller field and ensure the hub motor and controller with high performance and quality.
Our products are widely exported to South America, Europe and Asia.etc.
Our mission is to promote for your green driving life!
Our product lines as follows,
In-Wheel Hub Motor for electric vehicles
Mid-drive Motor
Motor Controller
Extensive selection of other Electric bike parts
We have a specialist knowledge sales and after service team to provide professional electric bike assemble and converting solution. We have the factory with many years production and research experience in the hub motor and controller field and ensure the hub motor and controller with high performance and quality.
Our products are widely exported to South America, Europe and Asia.etc.
Our mission is to promote for your green driving life!
FAQ
Q1: . Why us?
As a professional supplier of electric drive and control systems, we can provide you with professional and high-quality electric
vehicle drive solutions and electric vehicle accessory products.
Q2.What can you buy from us?
Electric Hub Motor and PMSM Motor
Electric Control system
Complete Power-train Solution
Battery
Other parts for EV
Q3. Can you provide any customs service?
Yes, we accept the customs items and ODM
Q4. How long is your production time?
Some of general motor and controller model ready in stock,any special models production time about 12-15days. Mass production time
usually in 25-30days
For any customs motors depends on the design and moulding time
Andy development of CAN-BUS,RS485 or other program on controllers about 15days
Q4: What is your Minimum Order Quantity?
M.O.Q from 1 pc
Q5: What about your warranty?
We provide generally 15 months for any motor and controller power kits.
If you have any confuse during use, just contact us for after-service
Any damage caused by the user's illegal use (Disassembly self without proof from seller, over loading, over current, over
voltage, wading, Refit, running off-road conditions, etc.) is not covered in the warranty.
As a professional supplier of electric drive and control systems, we can provide you with professional and high-quality electric
vehicle drive solutions and electric vehicle accessory products.
Q2.What can you buy from us?
Electric Hub Motor and PMSM Motor
Electric Control system
Complete Power-train Solution
Battery
Other parts for EV
Q3. Can you provide any customs service?
Yes, we accept the customs items and ODM
Q4. How long is your production time?
Some of general motor and controller model ready in stock,any special models production time about 12-15days. Mass production time
usually in 25-30days
For any customs motors depends on the design and moulding time
Andy development of CAN-BUS,RS485 or other program on controllers about 15days
Q4: What is your Minimum Order Quantity?
M.O.Q from 1 pc
Q5: What about your warranty?
We provide generally 15 months for any motor and controller power kits.
If you have any confuse during use, just contact us for after-service
Any damage caused by the user's illegal use (Disassembly self without proof from seller, over loading, over current, over
voltage, wading, Refit, running off-road conditions, etc.) is not covered in the warranty.
