Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment
Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment
Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment
Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment
Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment

Tigerrig high pressure hydraulic quintuplex QWS1000S 1000 psi cementing fracturing plunger pump for fracturing equipment

Share on (1601025990997):


Price:

Quantity:


Product Overview

Description



Company Information


Zhonghang (avic) Machinery Group Co., Ltd.. (brand: Tiger Rig) is a professional mud pump manufacturer factory in china, our factory covered 80,000 square meters, have 200 workers. Headquartered in the energy capital of the China, Chengdu city, Sichuan, we can design and manufacture SPM, Halliburton, SJ, Jerry (made in China) products. Such as HT400, TWS600, QWS1000, TWS2000, QTW2500, QTW3000, QTW3500 fracturing pump. And we also can manufacture these pump with truck or trainer. The diesel engine is caterpillar or Cummins or the American brand you requested. Besides, these pumps can also be connected to the Allison or caterpillar transmission gear box.
We can provide wellhead products, such as oil and gas production wellhead devices, casing heads, blowout preventer, drilling spool, and various gate valves and butterfly valves. We also provide diesel generator and engine for CAT, Commins, MTU. Besides, we have drilling motor, air compressor, gear box transmission and son on. Welcome to ask for more information about your favorite products, we are always waiting for your arrival!

Our plunger pump meets the rigorous industry standards established by the American Petroleum Institute (API) and the International Standards Organization (ISO).


Product Specifications


Plunger
diameter
Output
per rev
Displacement at pump strokes per minute / pinion rpm
50/231
100/461
119/548
mm
(in)
gal/re
(liter/rev)
gpm
(lpm)
kg/cm2
(psi)
gpm
(lpm)
kg/cm2
(psi)
gpm
(lpm)
kg/cm2
(psi)
63.5
(21/2)
2.4
(0.64)
121
(32)
1,436
(20372)
241
(64)
1,436
(20372)
287
(76)
1,435
(20368)
69.9
(23/4)
2.9
(0.77)
146
(39)
1,186
(16836)
292
(77)
1,186
(16836)
347
(92)
1,186
(16836)
76.2
(3)
3.5
(0.92)
174
(46)
997
(14147)
347
(92)
997
(14147)
413
(109)
997
(14147)
88.9
(31/2)
4.7
(1.25)
236
(62)
732
(10394)
473
(125)
732
(10394)
562
(148)
732
(10394)
101.6
(4)
6.2
(1.63)
309
(82)
561
(7958)
618
(163)
561
(7958)
734
(194)
561
(7958)
114.3
(41/2)
7.8
(2.07)
391
(103)
443
(6288)
782
(207)
443
(6288)
929
(245)
443
(6288)
Input power: bhp (kw)
314(421)
628(842)
746(1,000)


Plunger
diameter
Output
per rev
Displacement at pump strokes per minute / pinion rpm
200/922
300/1383
450/2075
mm
(in)
gal/re
(liter/rev)
gpm
(lpm)
kg/cm2
(psi)
gpm
(lpm)
kg/cm2
(psi)
gpm
(lpm)
kg/cm2
(psi)
63.5
(21/2)
2.4
(0.64)
483
(127)
853
(12009)
724
(191)
568
(8066)
1,086
(287)
379
(5377)
69.9
(23/4)
2.9
(0.77)
584
(154)
705
(9999)
876
(231)
470
(6666)
1,314
(347)
313
(4444)
76.2
(3)
3.5
(0.92)
695
(184)
592
(8402)
1,042
(275)
395
(5601)
1,564
(413)
263
(3734)
88.9
(31/2)
4.7
(1.25)
946
(250)
435
(6173)
1,419
(375)
290
(4115)
2,128
(562)
193
(2744)
101.6
(4)
6.2
(1.63)
1,235
(326)
333
(4726)
1,853
(490)
222
(3151)
2,780
(734)
148
(2100)
114.3
(41/2)
7.8
(2.07)
1,564
(413)
263
(3734)
2,345
(620)
175
(2489)
3,518
(929)
117
(1660)
Input power: bhp (kw)
746(1,000)
746(1000)
746(1,000)


Products Description

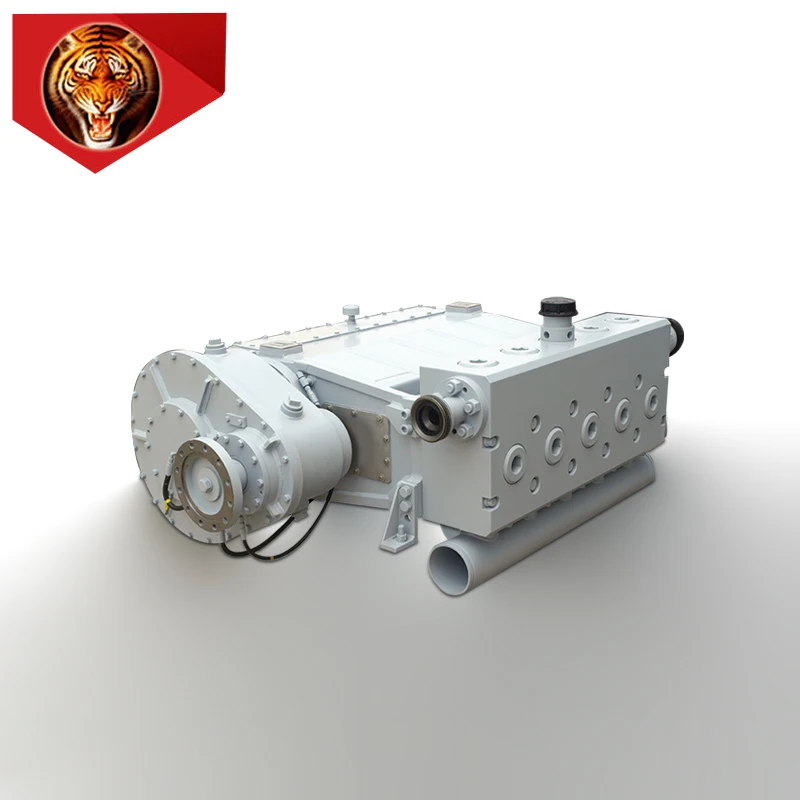

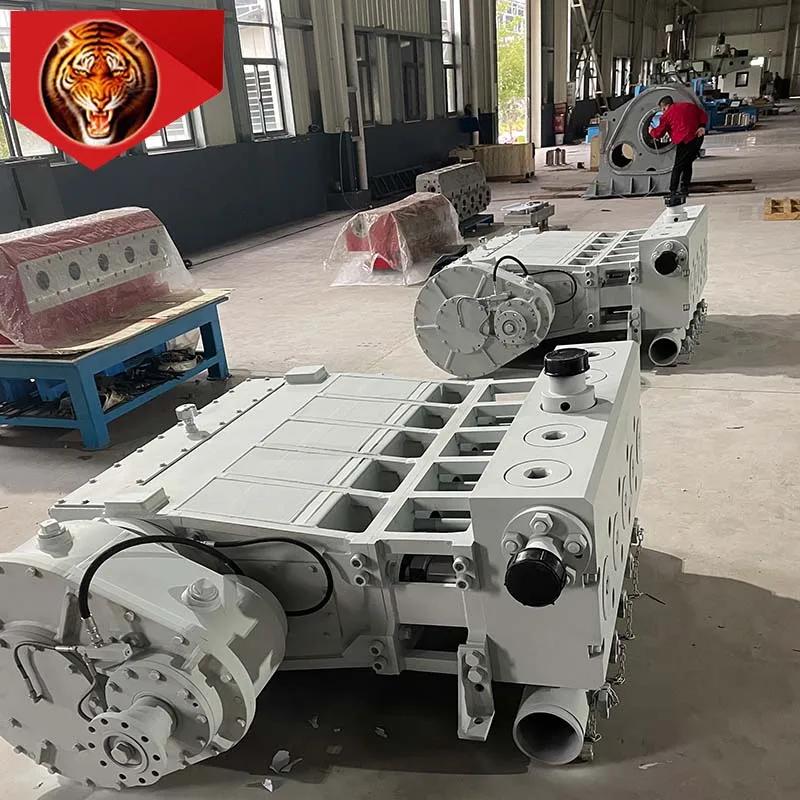

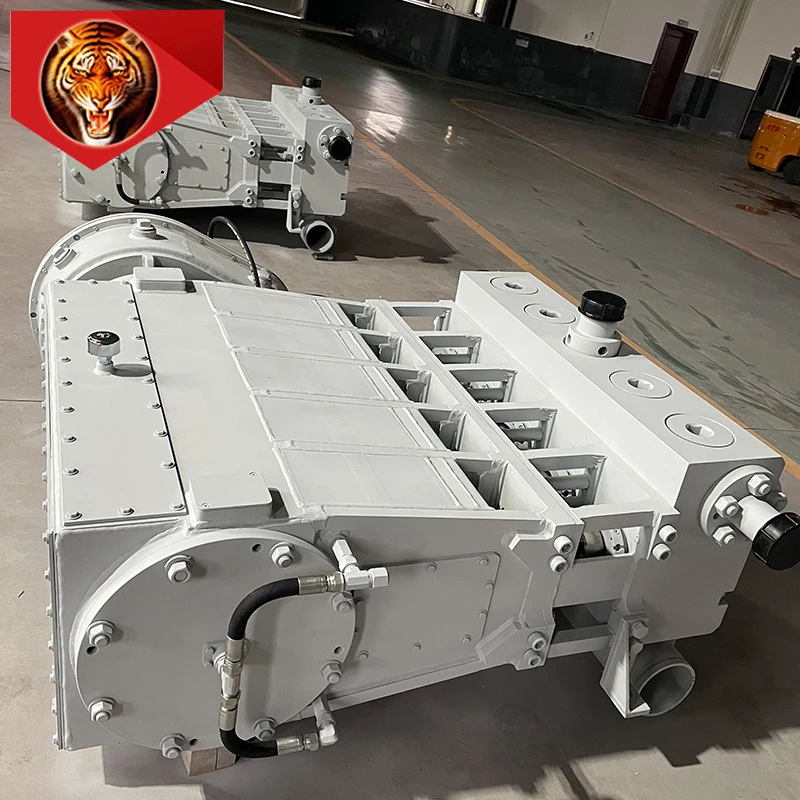

QWS 1000S is a versatile quintuplex pump featuring an efficient design that can be utilized in a back-to-back configuration.
Similar in design to the TWS 600S, the QWS 1000S offers a more powerful pump, capable of handling higher loads while still maintaining a compact design. Unique design features allow the QWS 1000S to be mounted in a back-to-back configuration on a single unit.
The QWS 1000S can be utilized in acidizing, cementing, gravel packing and snubbing operations.
Application: fracturing

QWS 1000S Performance Specs
Max Brake Horsepower:1,000BHP(746kw)
Max Rod Load Capacity:100,000Lbs(45,359kg)
Stroke Length: 6”(152.4 mm)
Gear Ratio: 4.61:1 Approx.
Approx. Length:50”(1,270mm)
Approx. Length:50”(1,270mm)
Approx. Length:50”(1,270mm)
Weight(Dry):7,040lbs(3,193kg)




Recommend Products




Company Profile










Packing & Delivery




FAQ


1.How long is the delivery time?
Some parts are available from stock. The delivery time is within 3 days after you pay on alibaba.com.
2.How is your workflow?
We can confirm the specification and specification first, and then sign the sales contract and the drawings. Once the drawings are confirmed, we will take photos for you to confirm that the goods are new and in shipment before shipment. Please pay the balance before the machine leaves the factory, and then we will ship the machine to Shanghai.
3.How to contact us?
Company Website: www.tigerrig.com.cn
WECHAT: drillingrig
Email: terry@tigerrig.com
