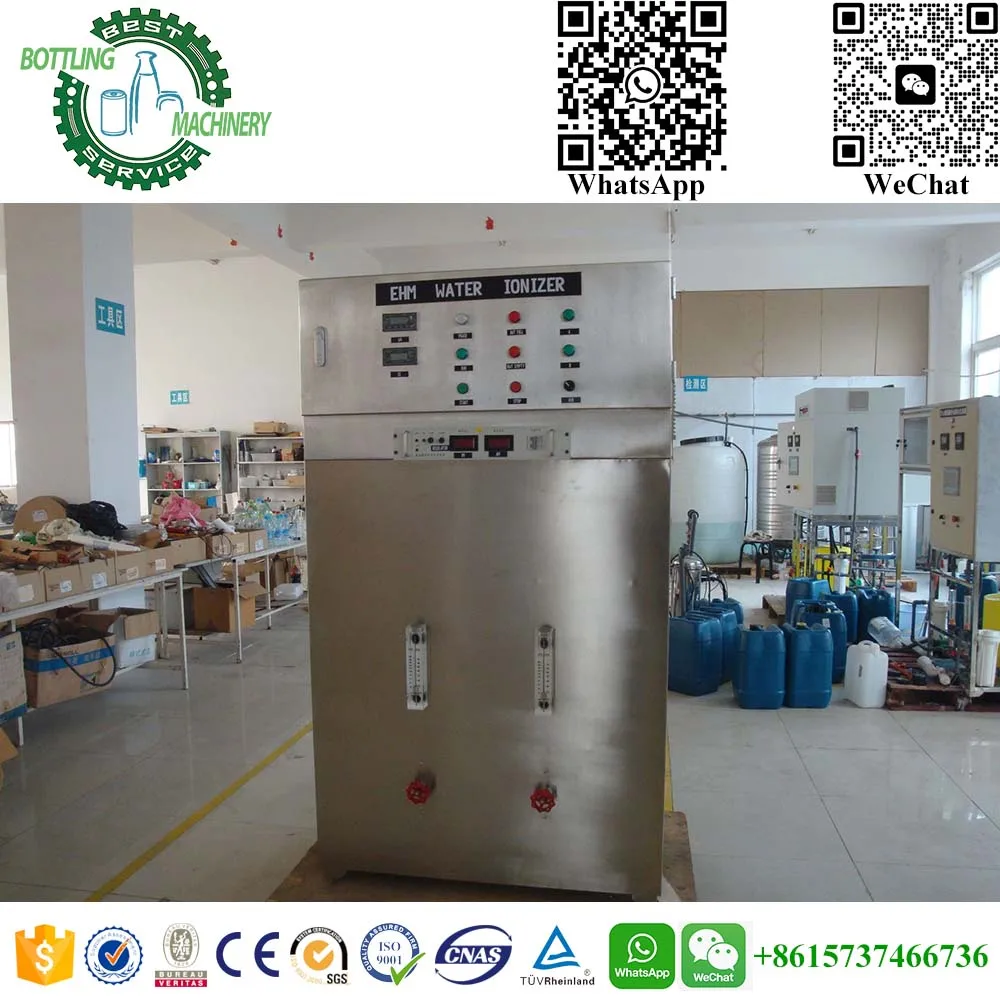

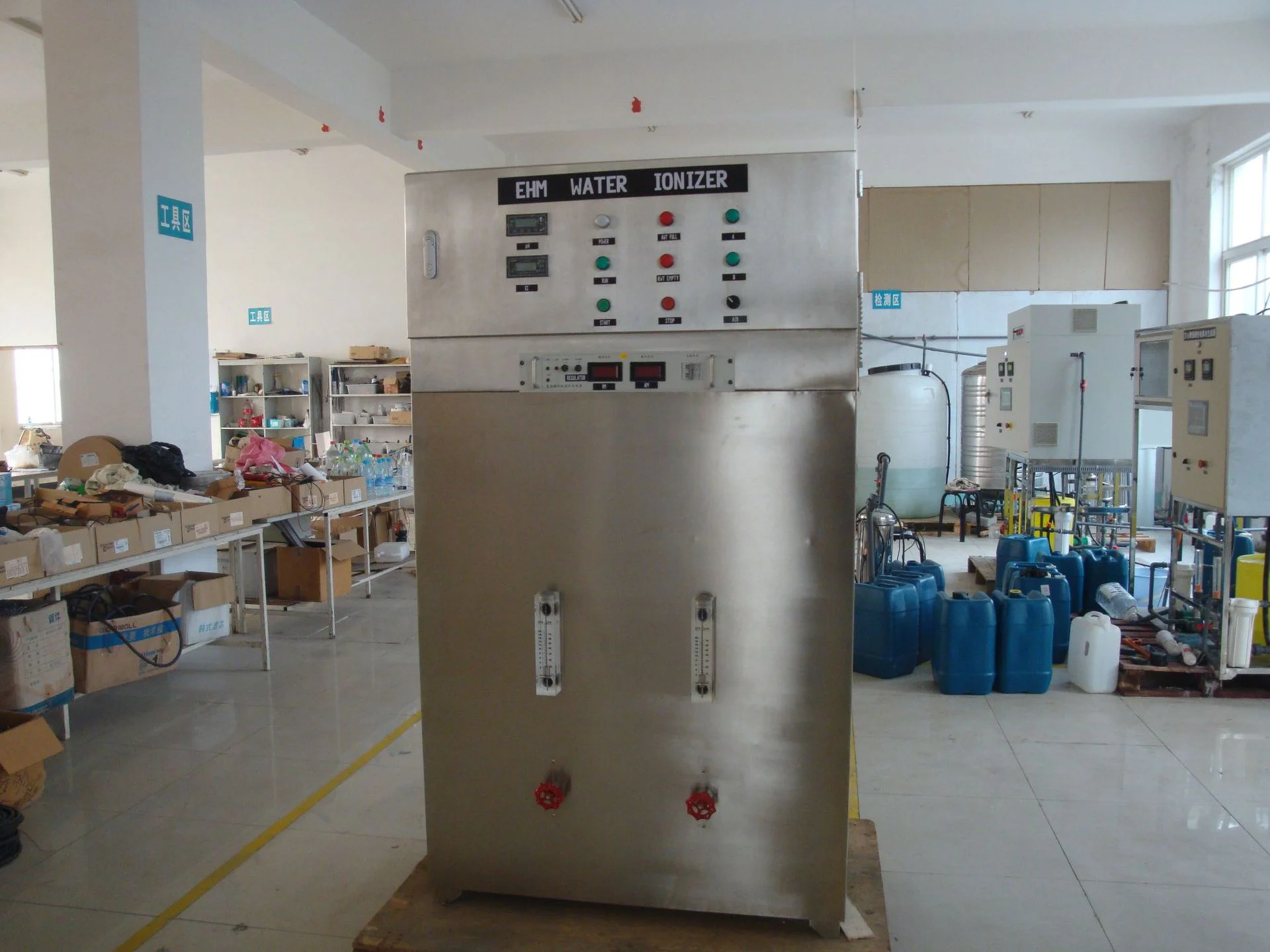

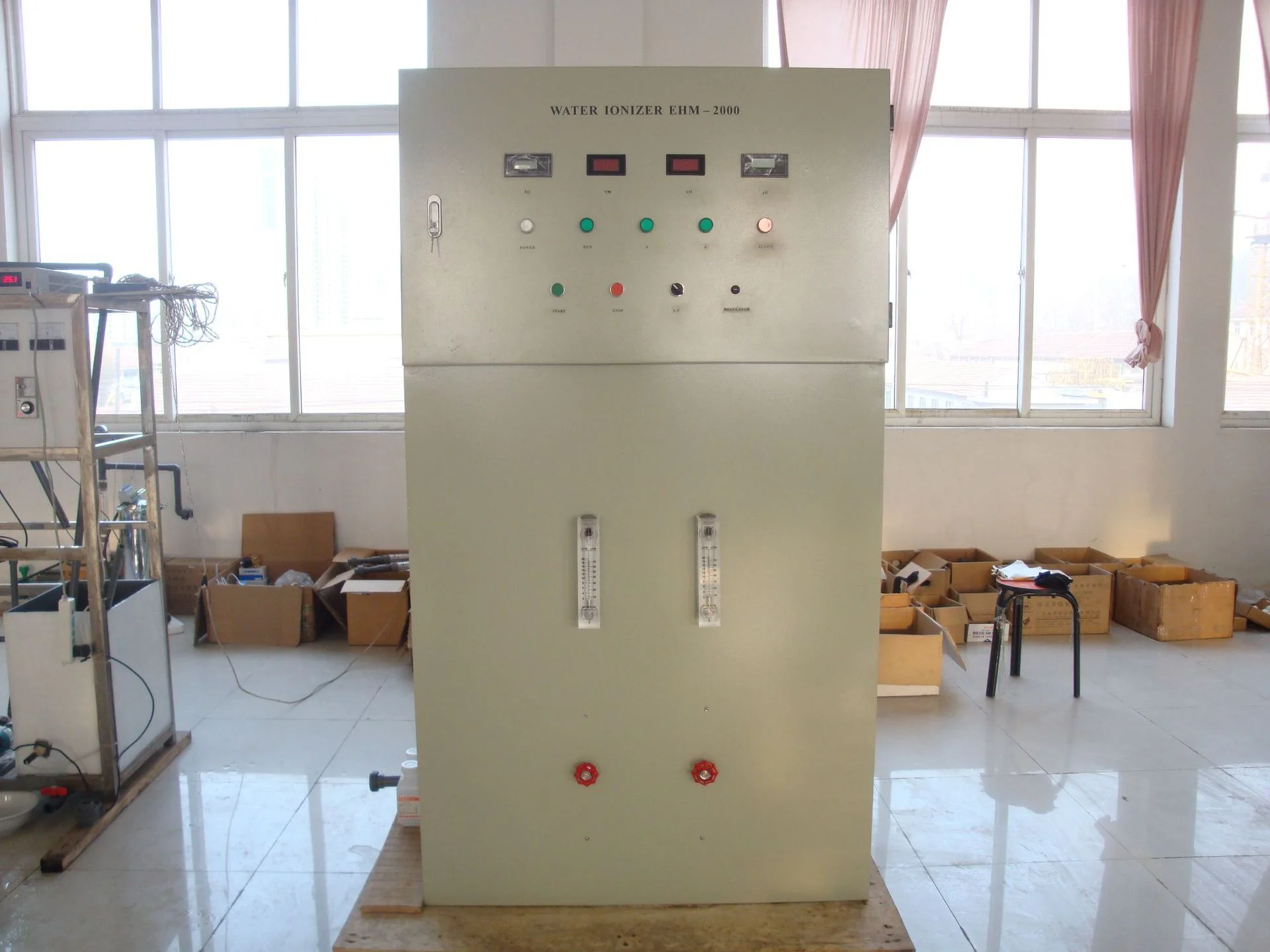

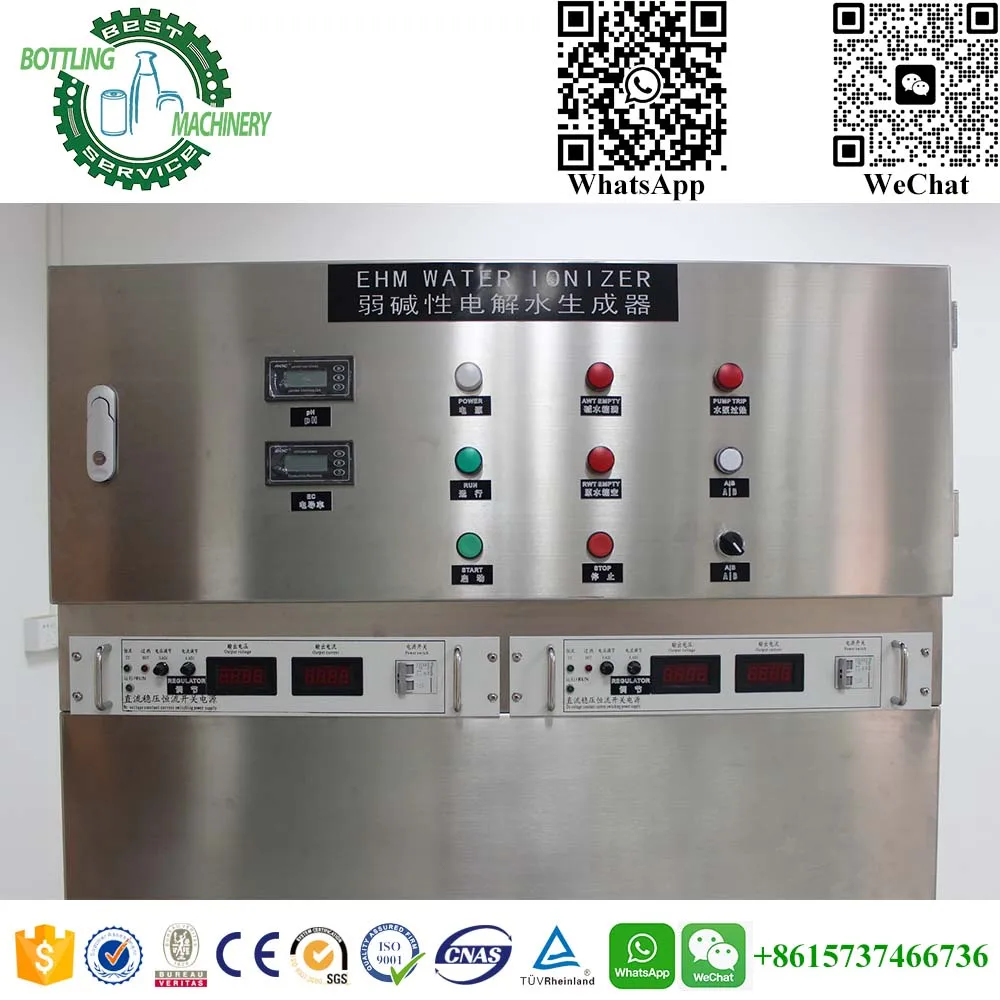

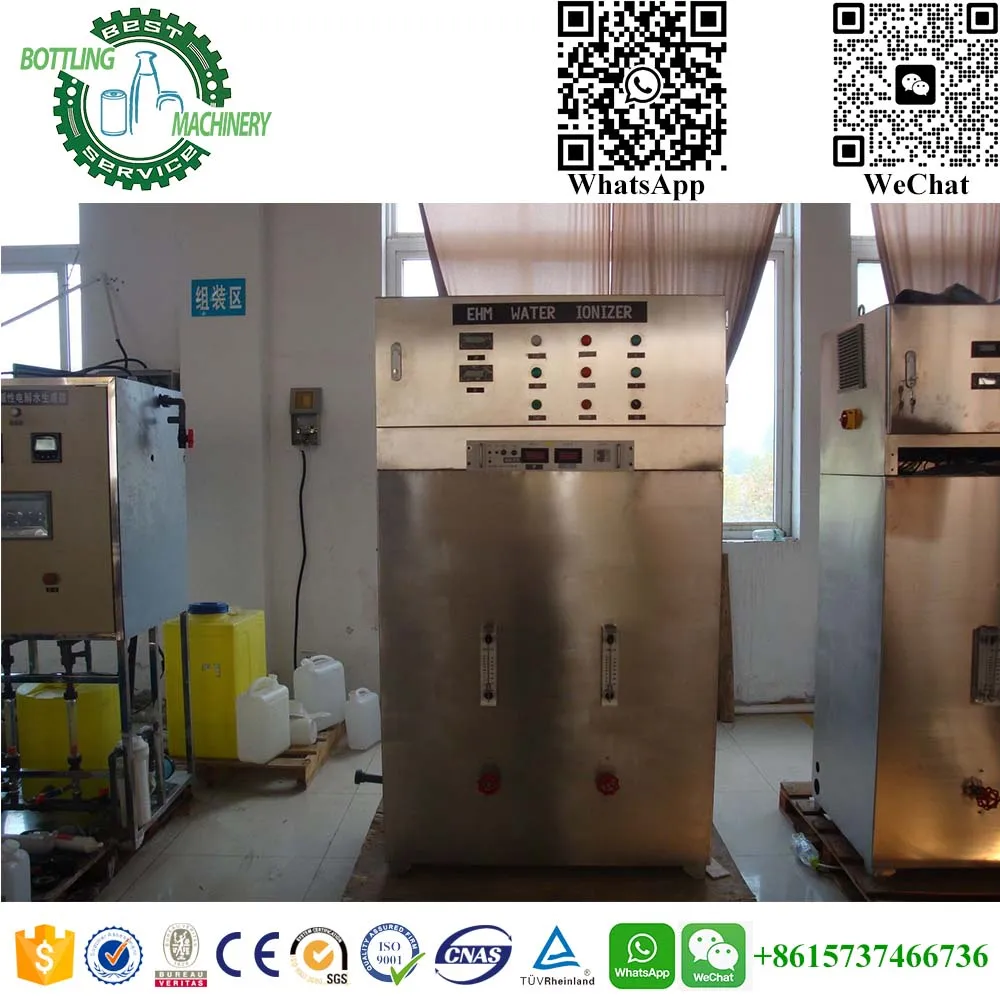

Industrial 1T/H~200T/H pH 7.0~9.5 (Customized) electrolyzed Hydrogen Rich Weak alkaline Water Ionizer
- Category: >>>
- Supplier: Zhangjiagang City Bottling Machinery Co. Ltd.
Share on (1601025995899):
Product Overview
Description
Products Description

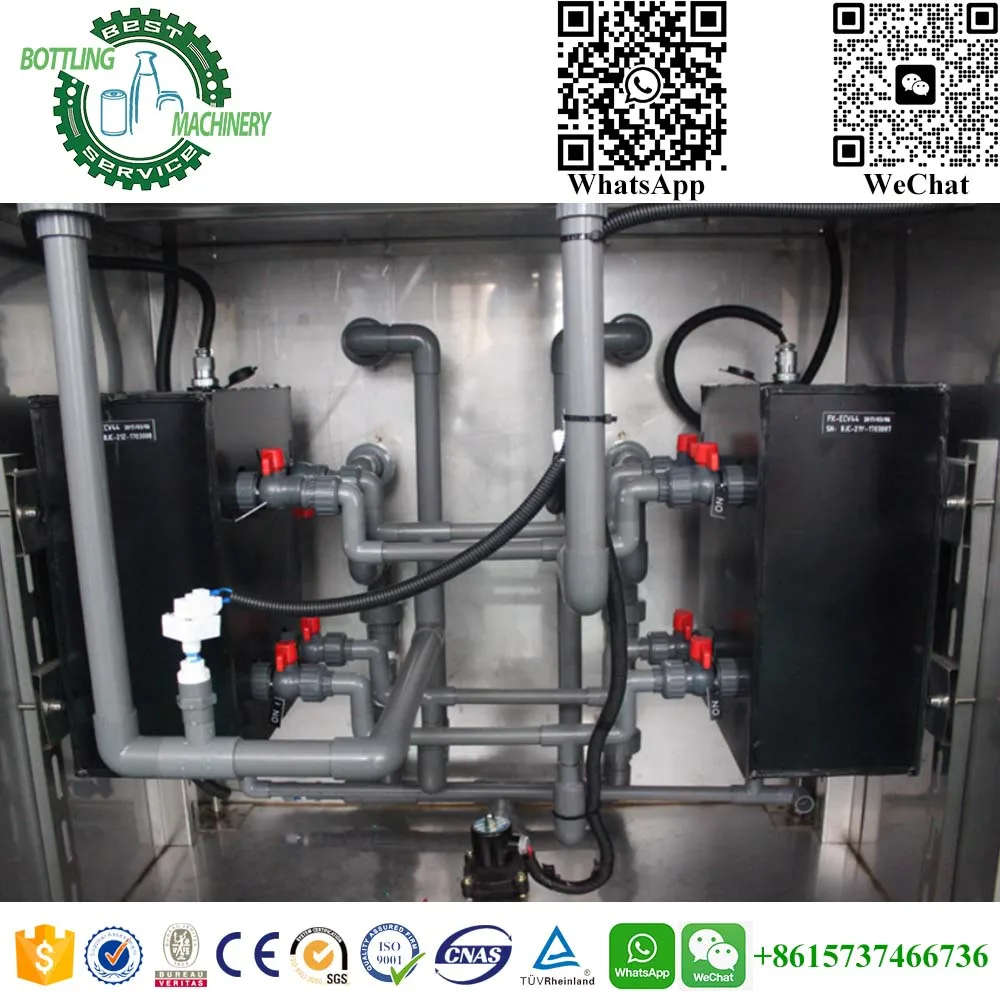

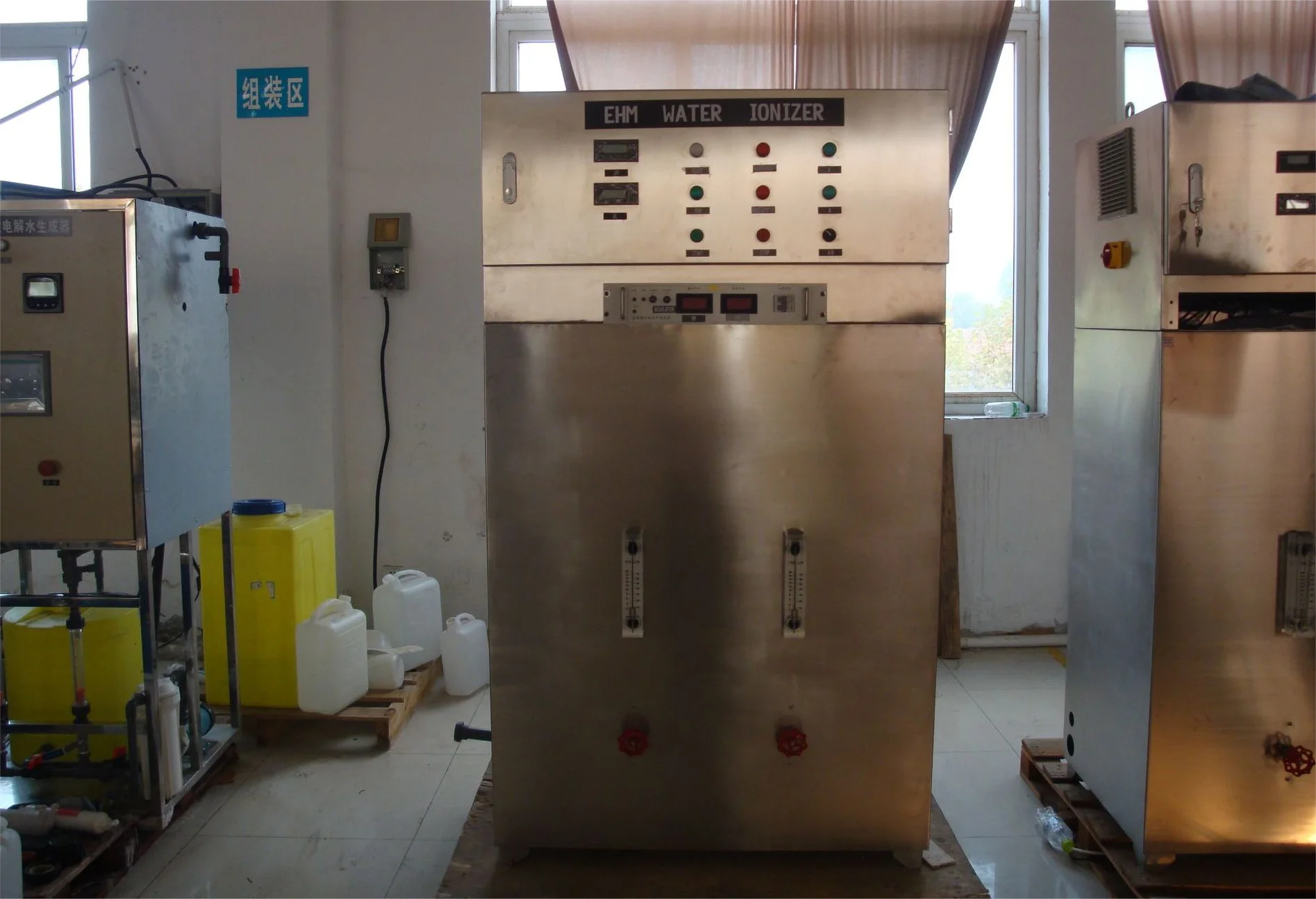

Alkaline Water Electrolysis System

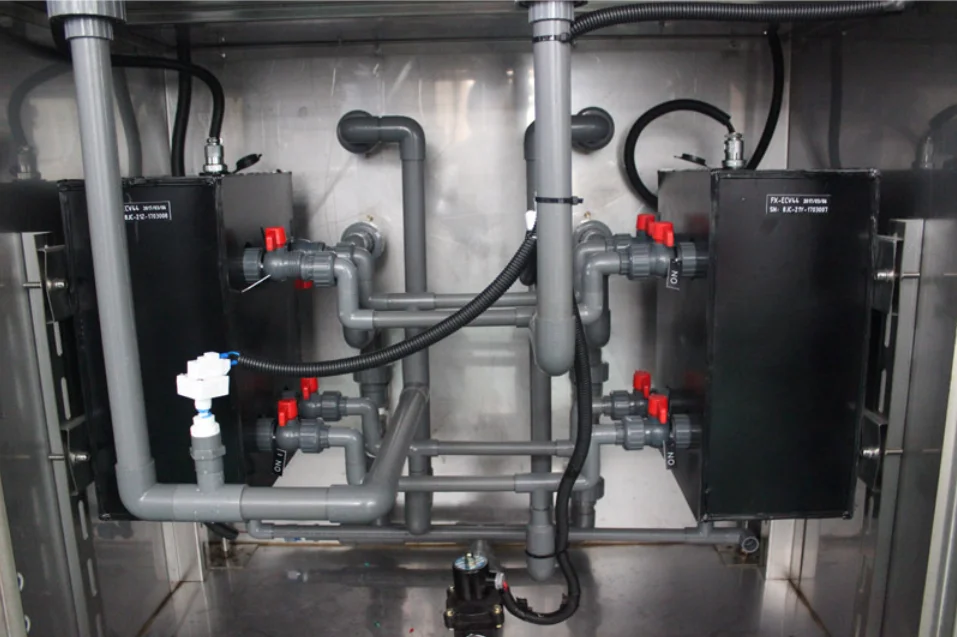

This equipment adopts the electro generated electrolysis membrane separation technology, and the main control equipment consists of an electromagnetic device, an electrolysis activation tank, control appliances, and other parts. The raw water is treated and electrolyzed into alkaline drinking water and acidic disinfectant water through a magnetization device and activation tank.
The equipment integrates waterway and electrical control, making it easy to use and occupying a small area. The device displays parameters such as pH value, conductivity value, electrolysis, and current online. In the water production process, water with different pH values (7.0-10.0) can be produced by adjusting the current to meet the needs of different customers. Electrolytic water manufacturing process: Electric separation combination technology ensures the treatment of water quality. The system is fully configured and has sufficient margin, operates automatically, and the effluent quality is stable
The equipment integrates waterway and electrical control, making it easy to use and occupying a small area. The device displays parameters such as pH value, conductivity value, electrolysis, and current online. In the water production process, water with different pH values (7.0-10.0) can be produced by adjusting the current to meet the needs of different customers. Electrolytic water manufacturing process: Electric separation combination technology ensures the treatment of water quality. The system is fully configured and has sufficient margin, operates automatically, and the effluent quality is stable
Product Name | Alkaline Water Electrolysis System |
Rated voltage | AC 220V/380V |
Rated power | MAX-1500W |
heating power | 2000w |
PH value | PH4.0-10.0 |
O. R.P value | +450mv一 -550mv(MAX) |
Applicable TDS scope | 80-800PPM |
Operating environment humidity | ≤90% |
Electrolytic lifespan | ≥25000hour |
Electrolytic cell material | Japanese high-tech precision sintered titanium dioxide alloy electrolytic cell with imported ion membrane |
Cleaning method of electrolytic cell | Automatic cleaning mode |
control mode | Programmable Logic Controller (PLC) * * * 3 tons/hour and above models |

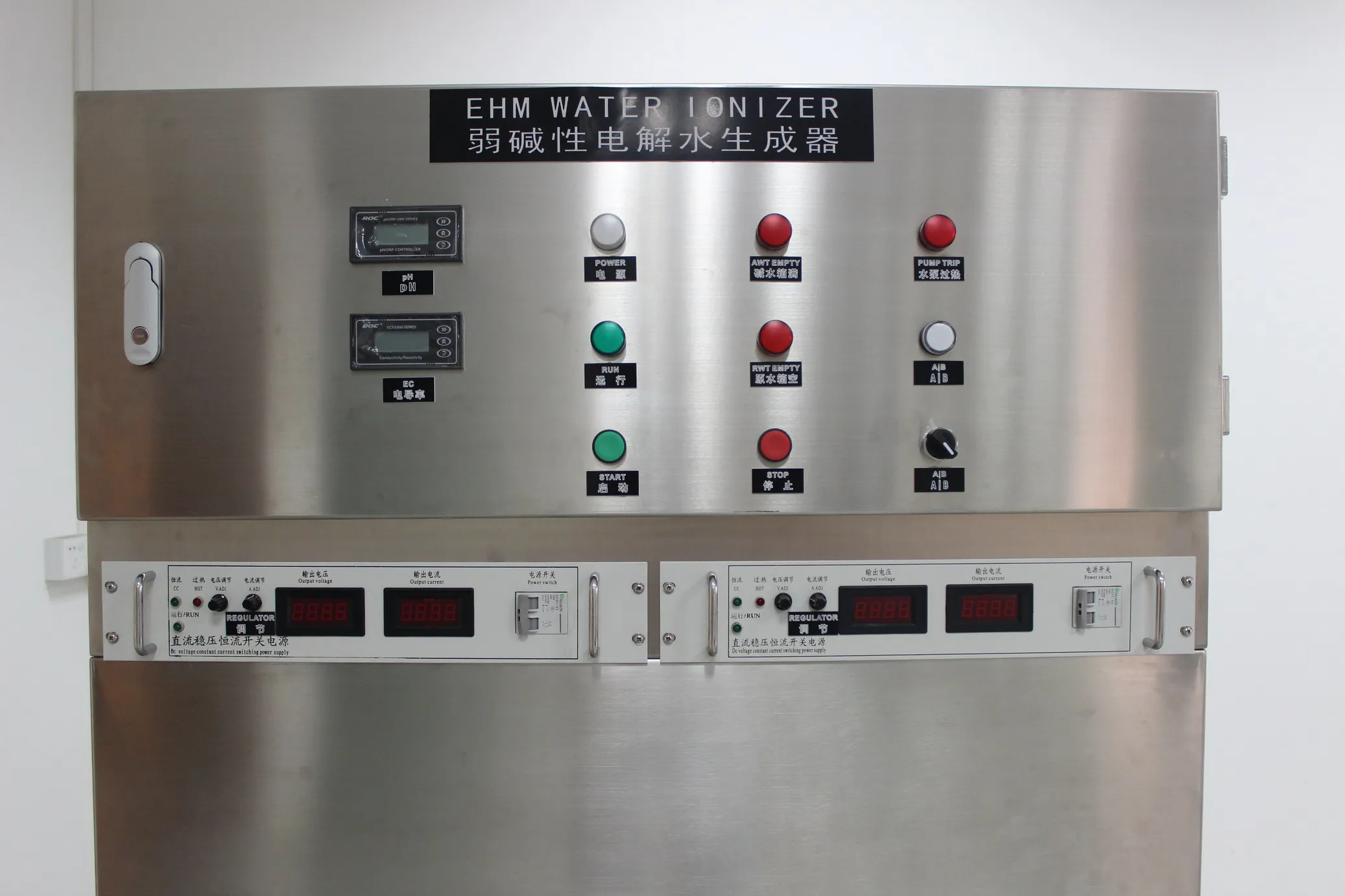

show contents | PH value, ORP value, flow rate, conductivity, working current, working voltage |
Raw water quality requirements | Municipal tap water or well water (requires purification and filtration) |
heating system | After electrolysis, heat at a constant temperature to 5 ℃~58 ℃ |
Shell material | 304 stainless steel |
Packaging method | Wooden frame packaging |
Safety protection devices | Low/high water pressure protection, overheat protection, overcurrent protection |
Continuous electrolysis time | 8-24 hours |
Material of pre filter element | Quartz sand filter element |
Packaging size and weight: | 155*75*185cm 350KG |

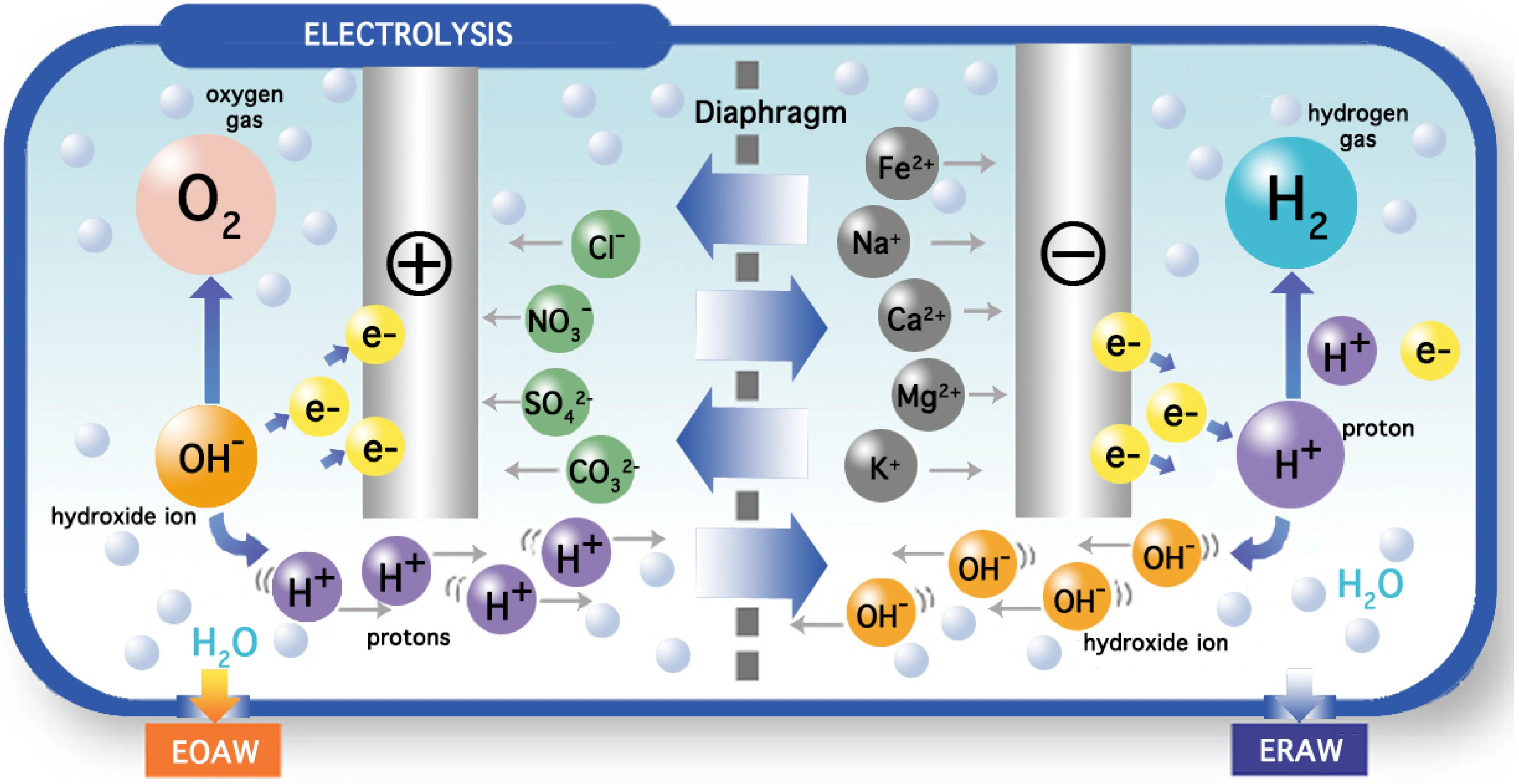

Principle of electrolytic water machine:
1. Pure physical decomposition method, without adding any minerals (such as various mineralized stones, alkaline spheres, tourmalines, etc.) to water
2. By passing purified tap water through an electrolytic separation device with direct current (based on the principle of isotropic repulsion and anisotropic attraction), the positively charged calcium, potassium, magnesium, sodium in the water will be Wait for cations to gather at the cathode to form alkaline electrolytic reducing water with negative potential; And chlorine, trihalomethane, phosphoric acid, sulfuric acid, nitric acid with negative potential Wait for anions to gather at the anode to form acidic oxidizing water with a (+) potential
3. During electrogenerated ion exchange, due to the action of an electric field, free cations such as calcium, magnesium, potassium, and sodium in the water move to the negative electrode side, increasing the content of beneficial trace elements for the human body in alkaline water on the negative electrode side. These beneficial elements exist in the form of ions, which are more suitable for human absorption. The harmful substances in the raw water have been discharged along with the acidic water.
2. By passing purified tap water through an electrolytic separation device with direct current (based on the principle of isotropic repulsion and anisotropic attraction), the positively charged calcium, potassium, magnesium, sodium in the water will be Wait for cations to gather at the cathode to form alkaline electrolytic reducing water with negative potential; And chlorine, trihalomethane, phosphoric acid, sulfuric acid, nitric acid with negative potential Wait for anions to gather at the anode to form acidic oxidizing water with a (+) potential
3. During electrogenerated ion exchange, due to the action of an electric field, free cations such as calcium, magnesium, potassium, and sodium in the water move to the negative electrode side, increasing the content of beneficial trace elements for the human body in alkaline water on the negative electrode side. These beneficial elements exist in the form of ions, which are more suitable for human absorption. The harmful substances in the raw water have been discharged along with the acidic water.
Process flow
Alkaline water process: (from incoming water tank - water supply pump - multimedia filter - activated carbon filter - softener - security filter - hollow ultrafiltration - ultraviolet sterilizer 1- middle water tank) - middle water pump - electrolysis device - ultraviolet sterilizer 2- (ozone sterilization) - electrolysis water tank
Explanation: Public equipment in parentheses
Explanation: Public equipment in parentheses
Functional characteristics
1. By using electrogenerated electrolysis membrane separation technology, tap water can be made into alkaline water.
2. This equipment uses titanium platinum electrode material to prevent oxidation of the electrode plate during the electrolysis process, improving the lifespan of the electrode and the entire equipment.
3. During the electrolysis process, it can effectively kill bacteria and improve water safety.
4. In the water production process, water with different pH values can be produced by adjusting the current to meet the needs of different customers.
5. The equipment has a forward and reverse reverse polarity design, which enables timely cleaning and extends the service life of the equipment.
2. This equipment uses titanium platinum electrode material to prevent oxidation of the electrode plate during the electrolysis process, improving the lifespan of the electrode and the entire equipment.
3. During the electrolysis process, it can effectively kill bacteria and improve water safety.
4. In the water production process, water with different pH values can be produced by adjusting the current to meet the needs of different customers.
5. The equipment has a forward and reverse reverse polarity design, which enables timely cleaning and extends the service life of the equipment.
Characteristics of weakly alkaline water
1. Weakly alkaline
The body fluid of the human body is between 7.35 and 7.45, while the pH value of alkaline water is between 7.0 and 10.0, which meets the needs of a weakly alkaline environment in the human body. Neutralize acidic toxins in the body and maintain acid-base balance in the body.
2. There is a negative potential
The general potential value of tap water and mountain spring water is+200mv~+500mv. The redox potential of alkaline reducing water is reversed from+500mv to -150~-350mv, which is a negative potential value,. Due to the high content of cations with positive potential in water, they can quickly capture acidic substances with negative potential after entering the body, and combine with water to be discharged from the body. It plays a role in clearing waste from the body and helps to reduce excess free radicals.
3. Small molecule clusters
After electrolysis of tap water, the original 15 large molecular clusters in the water are opened during the process of electrogenerated ion exchange, forming small molecular clusters of 3-6. This type of water has a similar number of water molecules inside and outside human cells, making it easy for the human body to absorb and exchange water inside and outside human cells. During the water exchange process, harmful elements hidden within cells are combined and eliminated from the body with the water, enhancing solubility and permeability, and promoting metabolism in the human body.
4. Active mineralization
Water contains an appropriate amount of minerals and trace elements, which exist in the form of ions, suitable for human absorption and beneficial to human health.
5. Rich in oxygen (5mg/L)
The body fluid of the human body is between 7.35 and 7.45, while the pH value of alkaline water is between 7.0 and 10.0, which meets the needs of a weakly alkaline environment in the human body. Neutralize acidic toxins in the body and maintain acid-base balance in the body.
2. There is a negative potential
The general potential value of tap water and mountain spring water is+200mv~+500mv. The redox potential of alkaline reducing water is reversed from+500mv to -150~-350mv, which is a negative potential value,. Due to the high content of cations with positive potential in water, they can quickly capture acidic substances with negative potential after entering the body, and combine with water to be discharged from the body. It plays a role in clearing waste from the body and helps to reduce excess free radicals.
3. Small molecule clusters
After electrolysis of tap water, the original 15 large molecular clusters in the water are opened during the process of electrogenerated ion exchange, forming small molecular clusters of 3-6. This type of water has a similar number of water molecules inside and outside human cells, making it easy for the human body to absorb and exchange water inside and outside human cells. During the water exchange process, harmful elements hidden within cells are combined and eliminated from the body with the water, enhancing solubility and permeability, and promoting metabolism in the human body.
4. Active mineralization
Water contains an appropriate amount of minerals and trace elements, which exist in the form of ions, suitable for human absorption and beneficial to human health.
5. Rich in oxygen (5mg/L)
company profile
ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. is located in Zhangjiagang city which is core of beverage machinery producer collection in China. Integrated the industry advantages and its own development in R&D, production, sales, after sales service.
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
BOTTLING MACHINERY is ready to serve more and more customers with our full range products and best service.BOTTLING MACHINERY is very critical in the choice of raw materials and spare parts. Korea 304 /316 stainless steel plate, ABB, SEW motors, Siemens, Mitsubishi, OMRON electrical control components, FESTO CAMOZZ the control valve, as well as international precision machining center for the fine quality of the machine foundation.
We are the supplier who can design and manufacture for all kinds beverage production plant (pure drinking water, mineral water,carbonated drinks, juice, tea and beer, etc.)
Customer's service:
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
1. ZhangJiaGang City BOTTLING MACHINERY Co.,Ltd. can provide turn-key project for you, we can design the beverage factory plan according to your idea.
2. BOTTLING MACHINERY company have professional design team, our engineers can draw bottle samples and flow chart of workshop for you .
3. BOTTLING MACHINERY company can give you the best quotation for all kinds of beverage production, as long as you tell us which kind of drink you want to produce, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass bottle or can, etc.
After service:
1. We send our engineers to your factory to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the goods shipping to you:
a. Machines layout drawing.
b. Electricity diagram.
c. Machine certificate.
d. General manual book/maintenance book.
3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.
Packing&Delivery of BOTTLING
1. Our machines are packed by wooden case.
2. The delivery date of this machine is within 10-25 days after payment.
2. The delivery date of this machine is within 10-25 days after payment.
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
A:We are a manufacturer in beverage bottling machine field more than 10 years, located at Leyu town, ZhangJiaGang, 2 hours from Shanghai, We will pick you up from Shanghai Pudong Airport to visit our factory.
Q:Do you have any certification?
A:SGS,ISO,CE etc
Q:What about the delivery time?
A:Usually 20-30 Working days for most kinds of machines
Q:What about the machine’s capacity?
A:1000 - 20000 bottles per hour based on 500ml bottle.
Q:The after-sale service
A:12 months warranty.
We can solve basic questions by telephone, email, whatsapp, wechat and video call.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
Engineer will go to buyer's factory to install, test machines, and train buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machines or by email.
We also have overseas service center
Q:If our bottle size changes, can we just do some adjustment on machine according to our new bottle?
A:Yes. Maybe you just need some spare little parts to change.
Q: If I want to purchase the machine, what information do I need to tell you?
A:a. What kind beverage you want to produce?
b. bottle volume? 250ml, 330ml, 500ml, 750ml, etc.?
c. Producing capacity requirement? How many bottles per hour?
d.Raw water analysis report .
e.Voltage and altitude.
Q:What kinds of product you supply?
A: Drink water/juice/carbonated drink filling line for bottle or can.
5 gallon/20L bottle water filling line.
Water treatment system.
Bottle blowing molding machine.
After packing system(label machine, PE film shrink packing machine, carton machine)
Sachet water packing line
