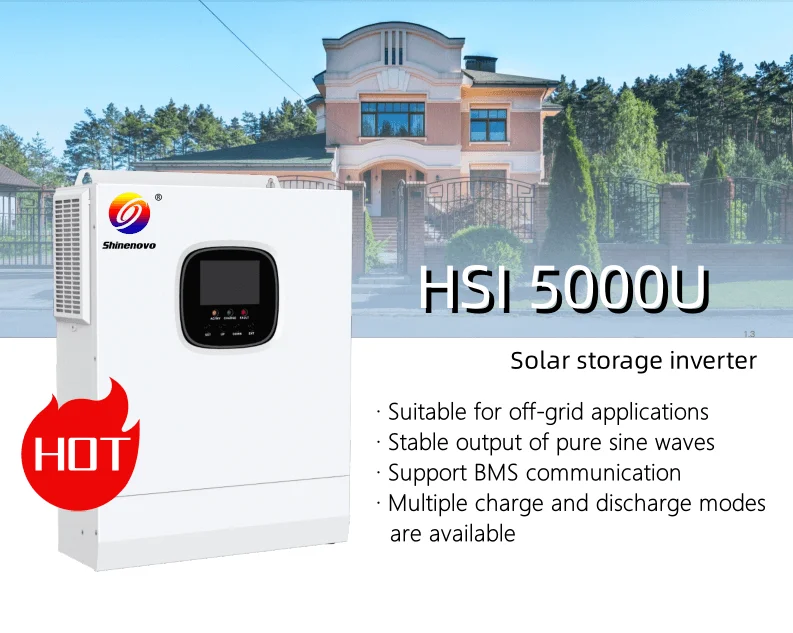

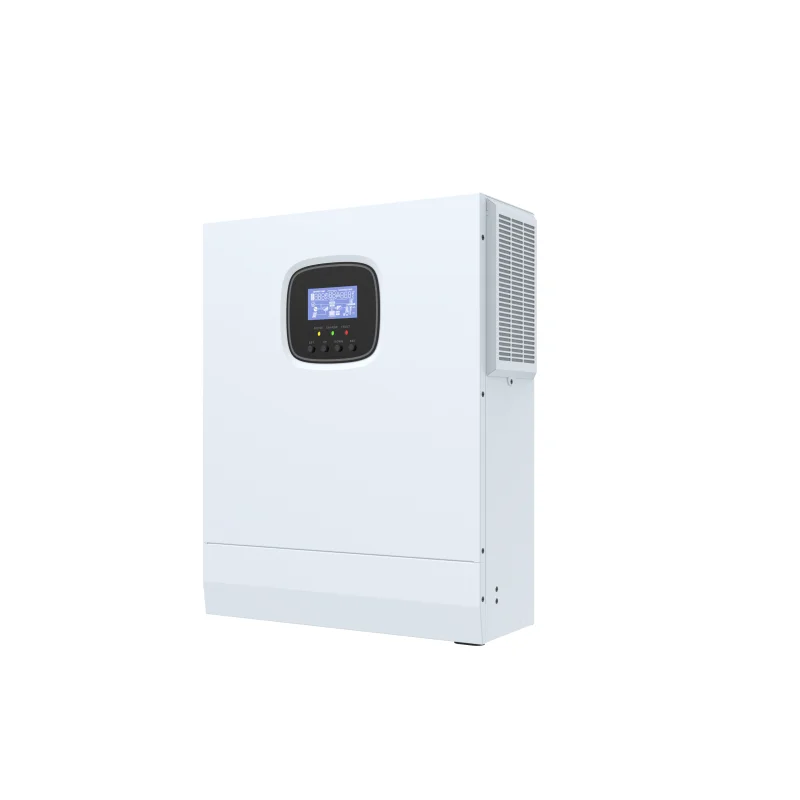

Wholesale 5KW 48v 80A Single Phase Solar Power Inverter For Solar Energy System
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1601026025591):
Product Overview
Description
Wholesale 5KW 48v 80A Single Phase Solar Power Inverter For Solar Energy System
Products Features
1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply.

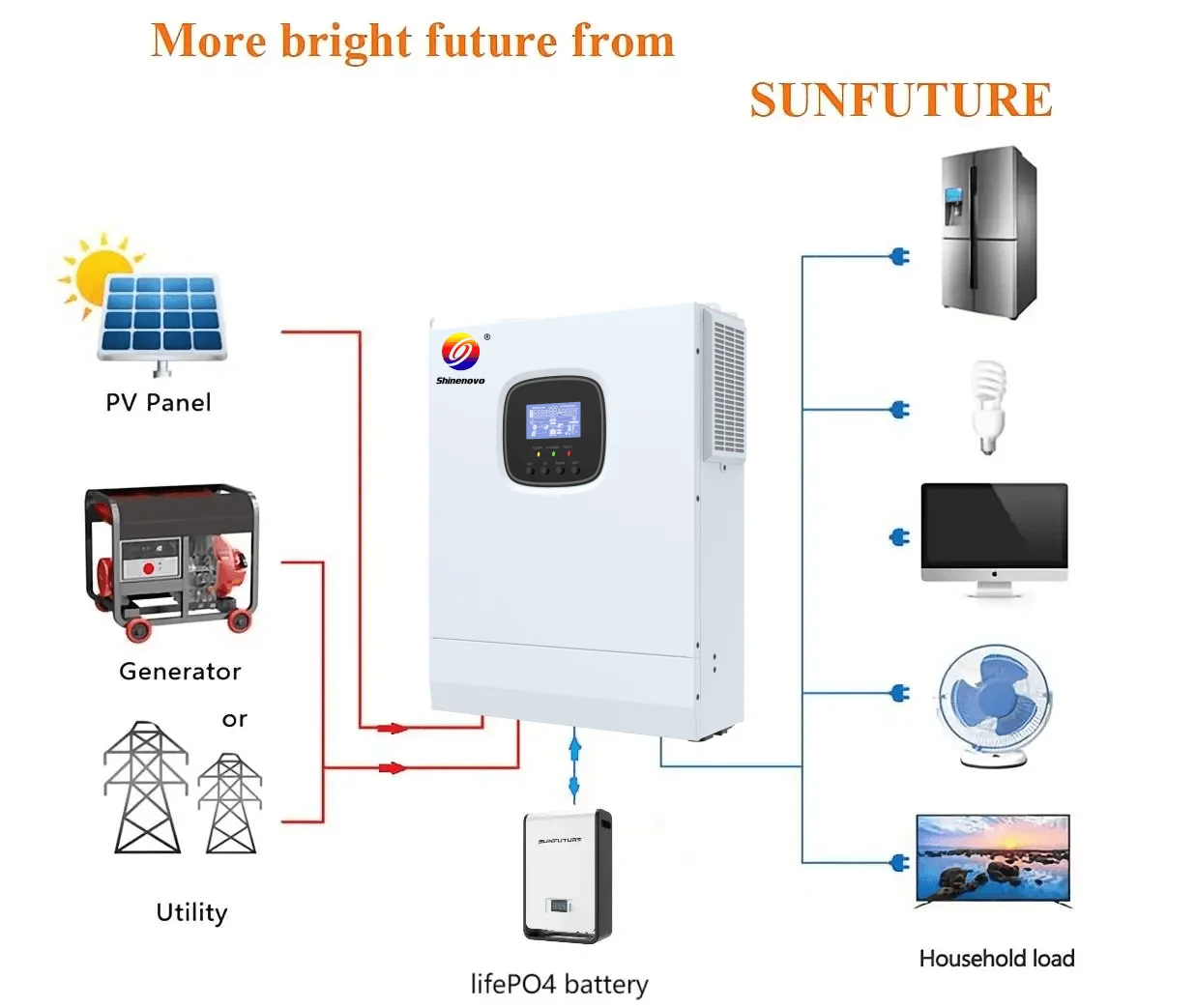

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6. ON/OFF rocker switch for AC output control.
7. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply.
3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
4. Advanced MPPT technology with an efficiency of 99.9%.
5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6. ON/OFF rocker switch for AC output control.
7. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
Details Images
LCD panel Instant viewing of operation, displays data and settings

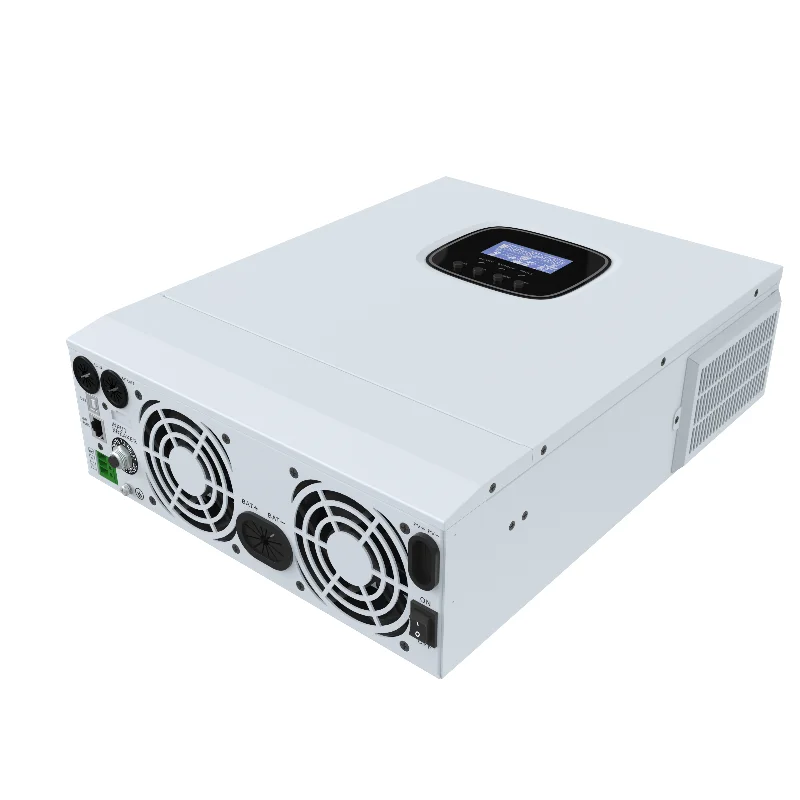

Efficient heat dissipation，via intelligent adjustable speed fans
Wholesale 5KW 48v 80A Single Phase Solar Power Inverter For Solar Energy System
Specfication
Model | HSI 5000U | CAN BE SET | ||
INVERTER OUTPUT | ||||
Rated Output Power | 5,000W | |||
Max. Peak Power | 11,000VA | |||
Rated Output Voltage | 120Vac | ✓ | ||
Load Capacity of Motors | 4HP | |||
Rated AC Frequency | 50Hz/60Hz | ✓ | ||
Waveform | Pure Sine Wave | |||
Switch Time | 10ms（typical） | |||
BATTERY | ||||
Battery Type | Lead-acid / Li-ion / User defined | ✓ | ||

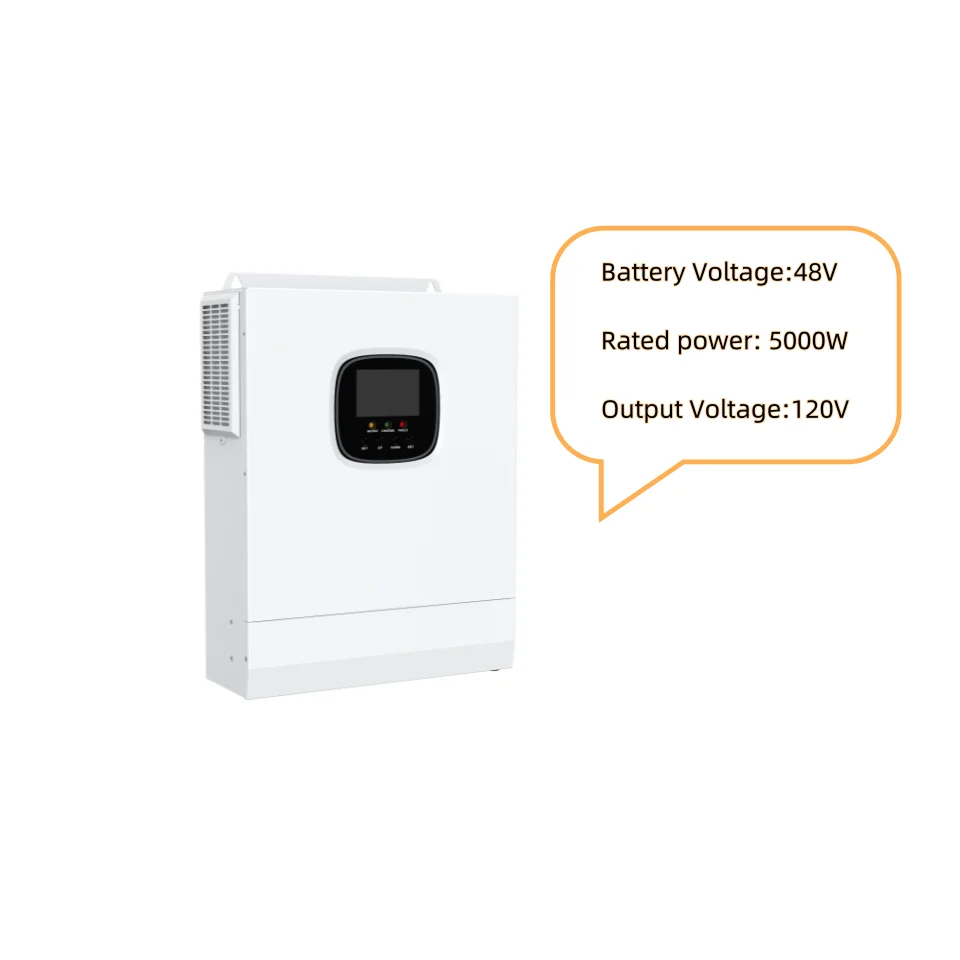

Rated Battery Voltage | 48V | |||
Voltage Range | 40～60Vdc | ✓ | ||
Max. MPPT Charging Current | 80A | ✓ | ||
Max. Mains/Generator Charging Current | 40A | ✓ | ||
Max. Hybrid Charging Current | 80A | ✓ | ||
PV INPUT | ||||
Num. of MPPT Trackers | 1 | |||
Max.PV Array Power | 6000w | |||
Max.Input Current | 22A | |||
Max.Voltage of Open Circuit | 500Vdc | |||
MPPT Voltage Range | 120-450Vdc | |||
UTILITY/ GENERATOR INPUT | ||||
Input Voltage Range | 90~140Vac | ✓ | ||
Frequency Range | 50/60Hz | |||
Bypass Overload Current | 63A | |||
EFFICIENCY | ||||
MPPT Tracking Efficiency | 99.9% | |||
Max. Battery Inverter Efficiency | 92% | |||
GENERAL | ||||
Dimensions | 426*322*126mm (1.40*1.06*0.41ft) | |||
Weight | 11.6kg (25.57lb) | |||
Protection Degree | IP20, indoor onIy | |||
Operating Temperature Range | -10℃~55℃ | |||
Noise | ≤60dB | |||
Cooling Method | Forced air cooling with adjustable air speed | |||
Warranty | 18 Months | |||
COMMUNICATION | ||||
Embedded Interfaces | RS485 / USB / Dry contact | ✓ | ||
External Modules（Optional） | Wi-Fi / GPRS | ✓ | ||
CERTIFICATION | ||||
Safety | CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA | |||
EMC | EN61000 | |||
RoHS | Yes | |||
Wholesale 5KW 48v 80A Single Phase Solar Power Inverter For Solar Energy System
Product Details
Wholesale 5KW 48v 80A Single Phase Solar Power Inverter For Solar Energy System
