Hot sales 1.2Ghz 1.2G 8CH 1500mw FPV Drone Wireless AV Audio Video Transmitter & Receiver UAV Video Lnk Data Link UAV Parts
- Category: >>>
- Supplier: Shenzhen Xingkai Technology Co. Ltd.
Share on (1601026035193):
Product Overview
Description
Product Description
Product Name | 1.2 GHZ UAV Transmitter |
Function | Drone Transmitter and Receiver |
Package | Packed in a Professional Shipping Box |
1. Product Description

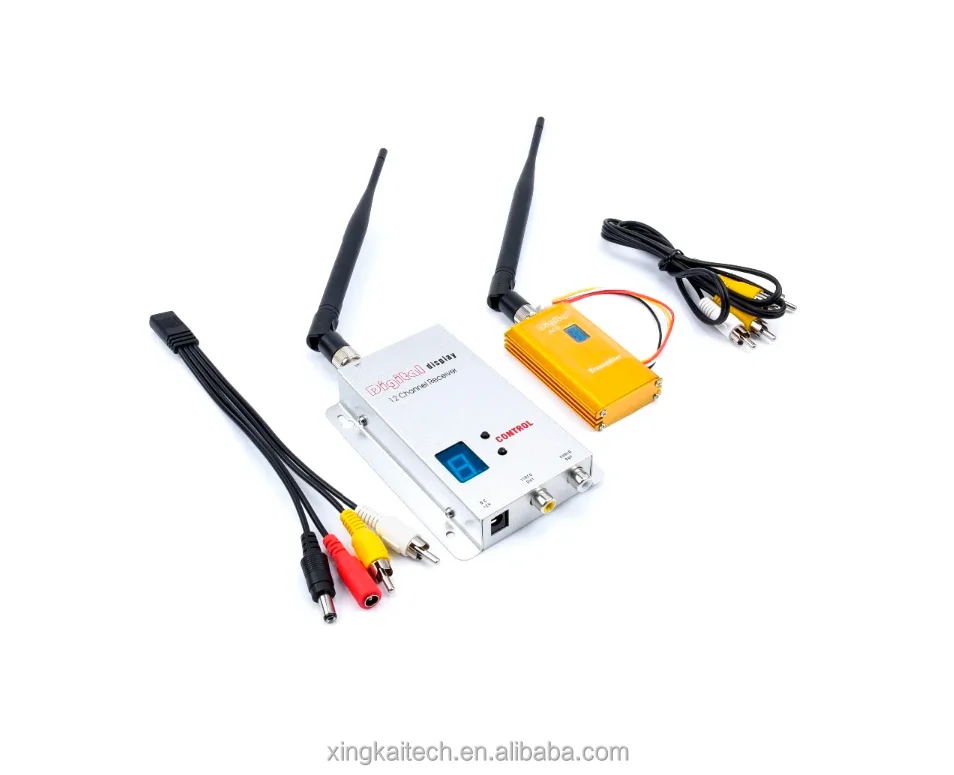

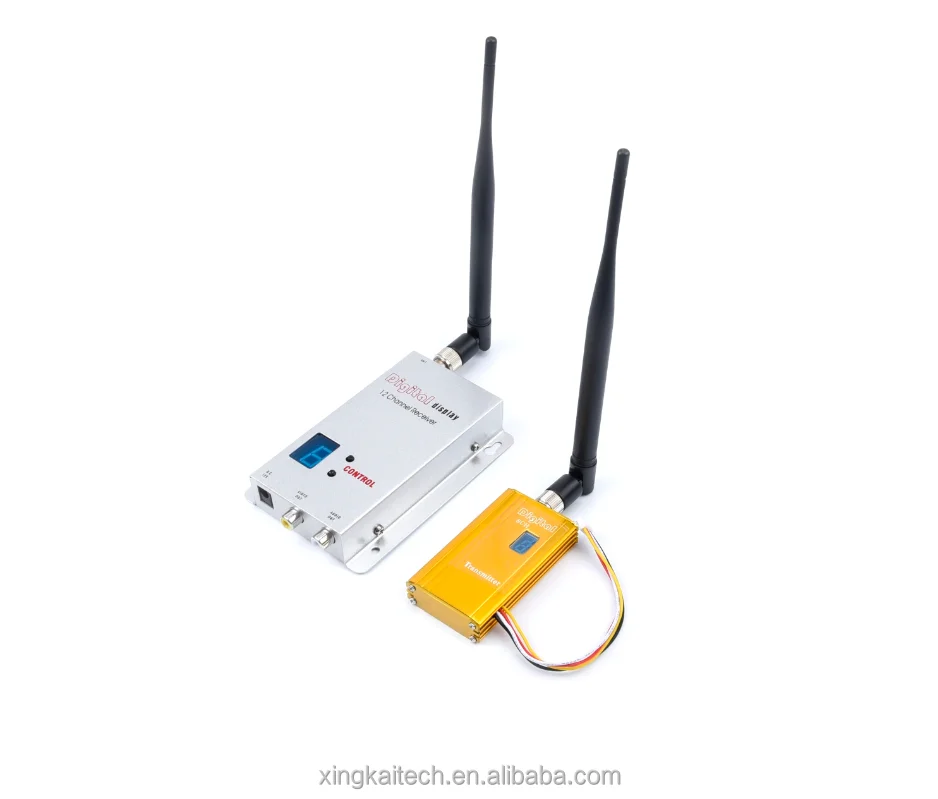

FPV 1.2Ghz 1.2G 8CH 1500mw Wireless AV Audio Video Transmitter And Receiver For QAV250 250 FPV Quadcopter

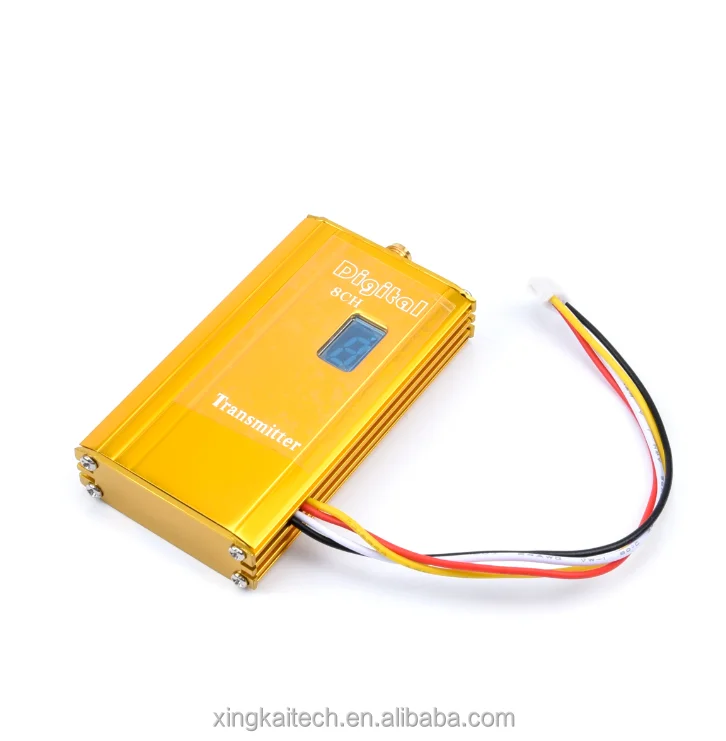

Transmitter Parameter:
Weight: 80g
Dimension: 73*41*14mm
Working Voltage: DC12V
Working Current: ≤400mA
Working Frequency: 1.2G-1.3G
Working Channels: 8CH
Connector: transmitter module side RP-SMA jack, antenna SMA plug
Frequency: CH0:910 CH1:980 CH2:1010 CH3:1040 CH4:1080 CH5:1120 CH6:1160 HC7:1200 HC8:1240 CH9:1280 CHH:1320 CHC12:1360 CHD:1258
CHE:1100 CHF:1140 (MHz)
Working Power: 1500mW
Transmitting Range: 1000m~2000m (In Open Fields)
Transmitter accessories: transmitter,antenna,Tx cable,1.25A adapter.

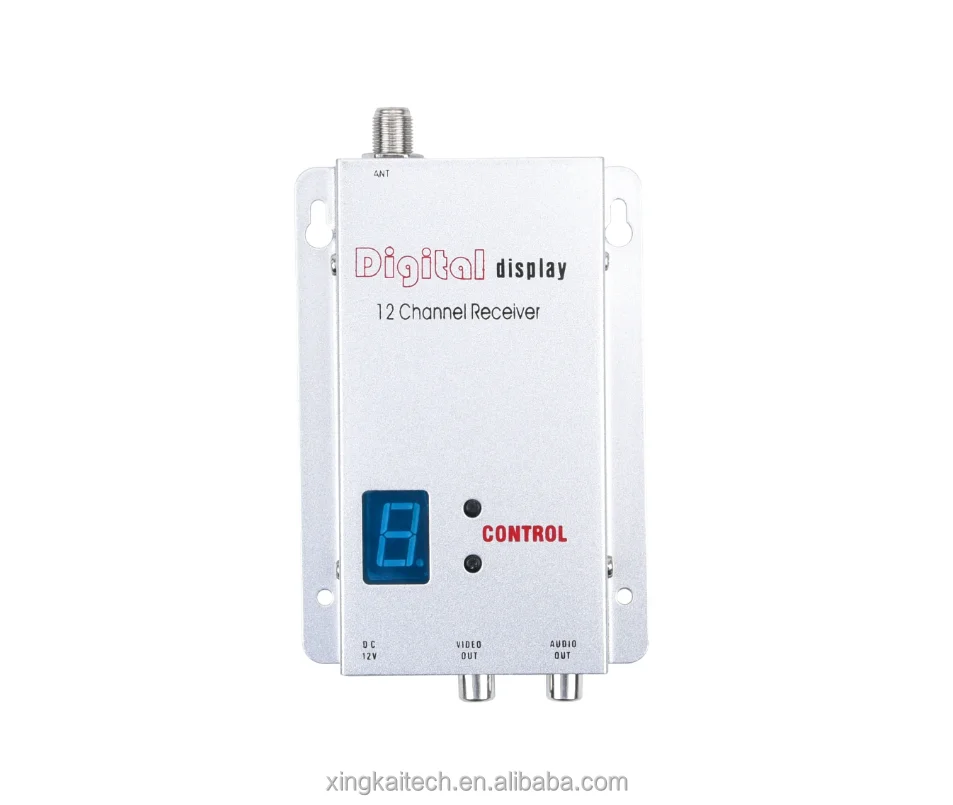

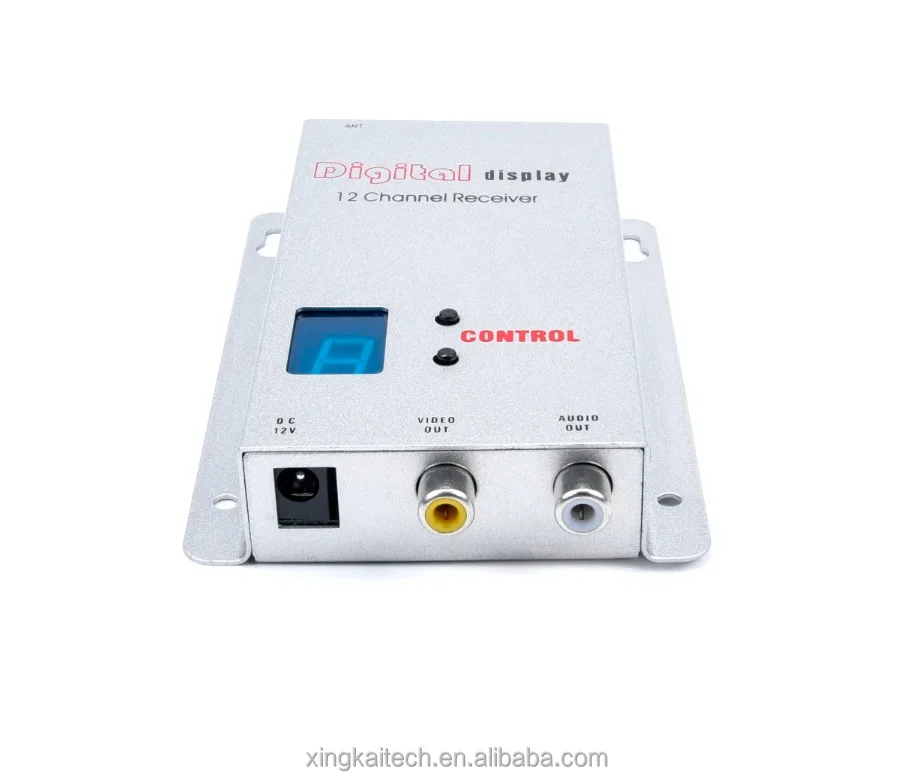

Receiver Parameter:
Weight: 115g
Dimension: 115*80*21mm
Working Voltage: DC12V
Working Current: ≤260mA
Working Frequency: 1.2G
Working Channels: 12CH
Connector: receiver module side RP-SMA jack, antenna SMA plug
Receiving frequency: 1.2GHz - HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320
HC12:1360(MHz)
Receiver Accessories:Receiver,antenna,AV cable.(We don't offer adatper for receiver,please use DC 12V 1A adapter.)
The whole set is about 585g.
Weight: 80g
Dimension: 73*41*14mm
Working Voltage: DC12V
Working Current: ≤400mA
Working Frequency: 1.2G-1.3G
Working Channels: 8CH
Connector: transmitter module side RP-SMA jack, antenna SMA plug
Frequency: CH0:910 CH1:980 CH2:1010 CH3:1040 CH4:1080 CH5:1120 CH6:1160 HC7:1200 HC8:1240 CH9:1280 CHH:1320 CHC12:1360 CHD:1258
CHE:1100 CHF:1140 (MHz)
Working Power: 1500mW
Transmitting Range: 1000m~2000m (In Open Fields)
Transmitter accessories: transmitter,antenna,Tx cable,1.25A adapter.
Receiver Parameter:
Weight: 115g
Dimension: 115*80*21mm
Working Voltage: DC12V
Working Current: ≤260mA
Working Frequency: 1.2G
Working Channels: 12CH
Connector: receiver module side RP-SMA jack, antenna SMA plug
Receiving frequency: 1.2GHz - HC1:910 HC2:980 HC3:1010 HC4:1040 HC5:1080 HC6:1120 HC7:1160 HC8:1200 HC9:1240 HC10:1280 HC11:1320
HC12:1360(MHz)
Receiver Accessories:Receiver,antenna,AV cable.(We don't offer adatper for receiver,please use DC 12V 1A adapter.)
The whole set is about 585g.
