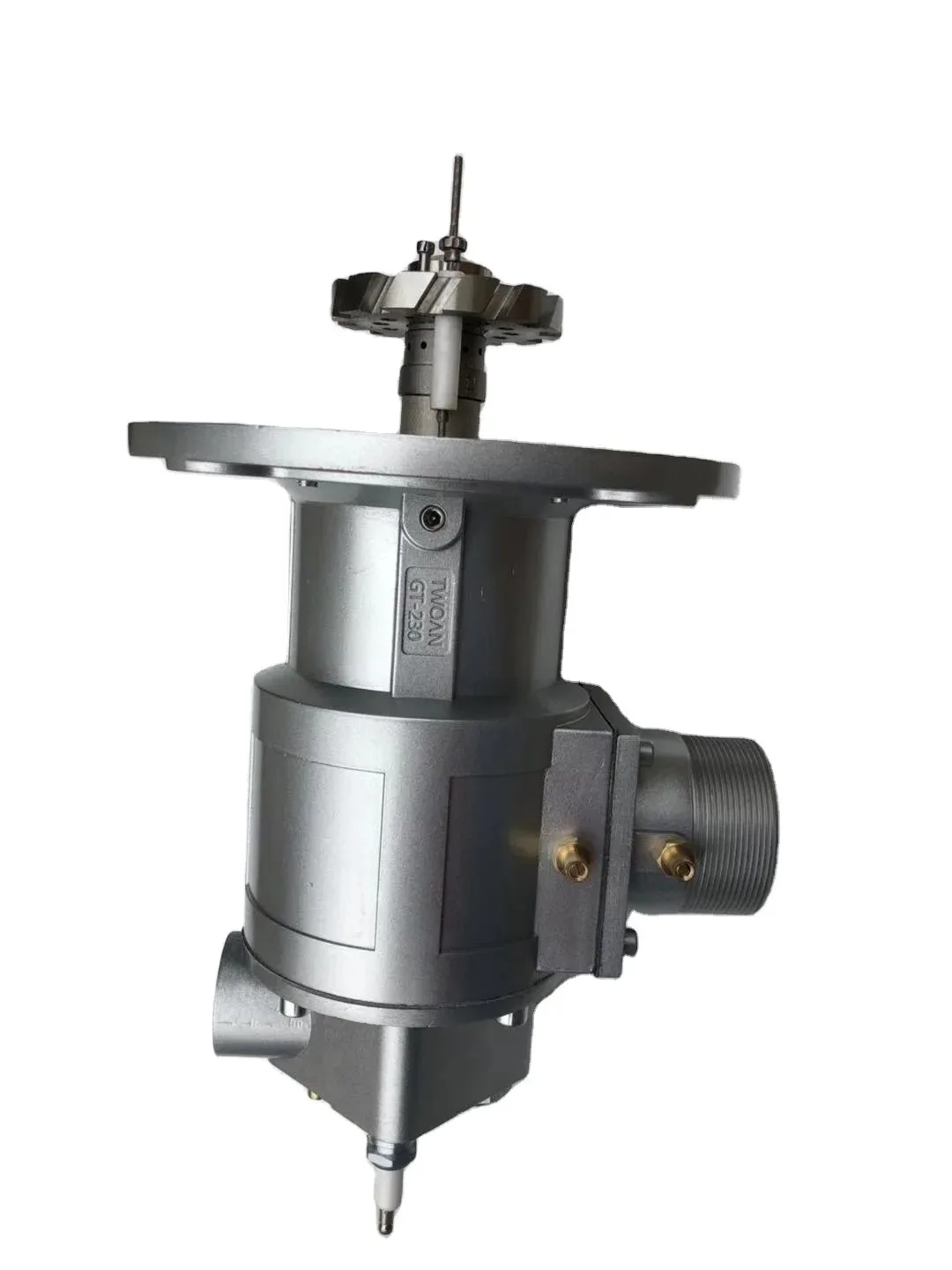

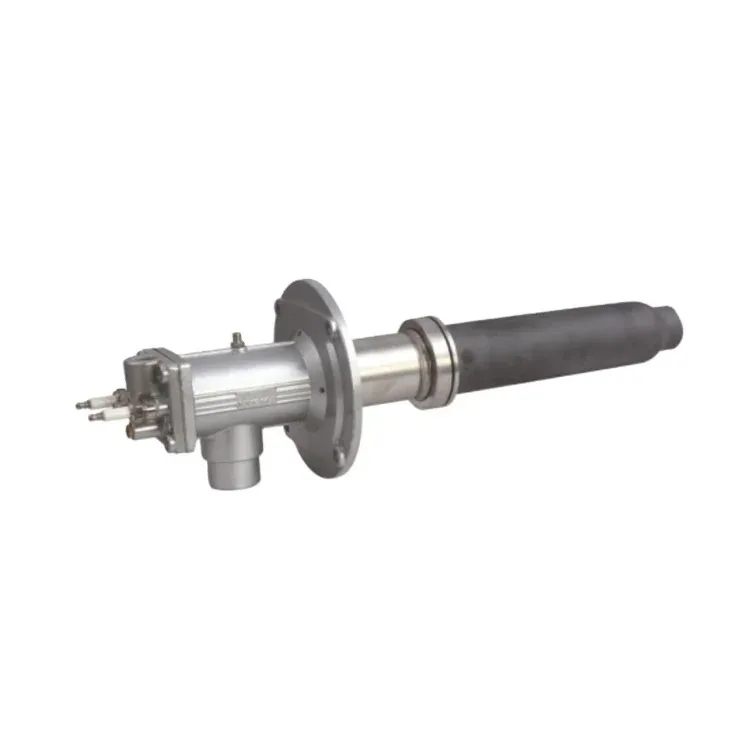

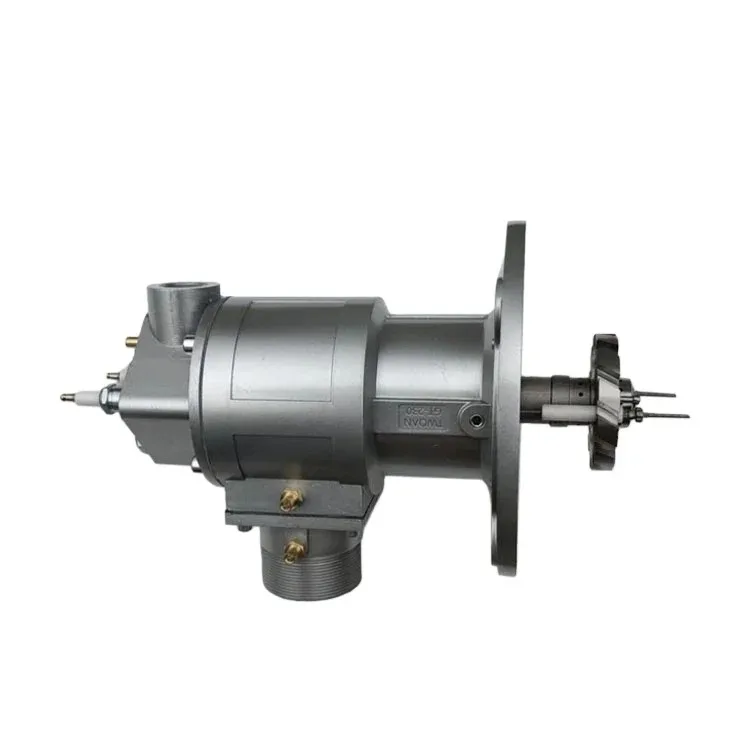

furnace burner nozzle, China factory industrial furnace oil burner, boiler burner melting and casting ceramic kiln gas burners

Product Overview

Description





-





Feature

*Burner Steel nozzle can be equipped with :

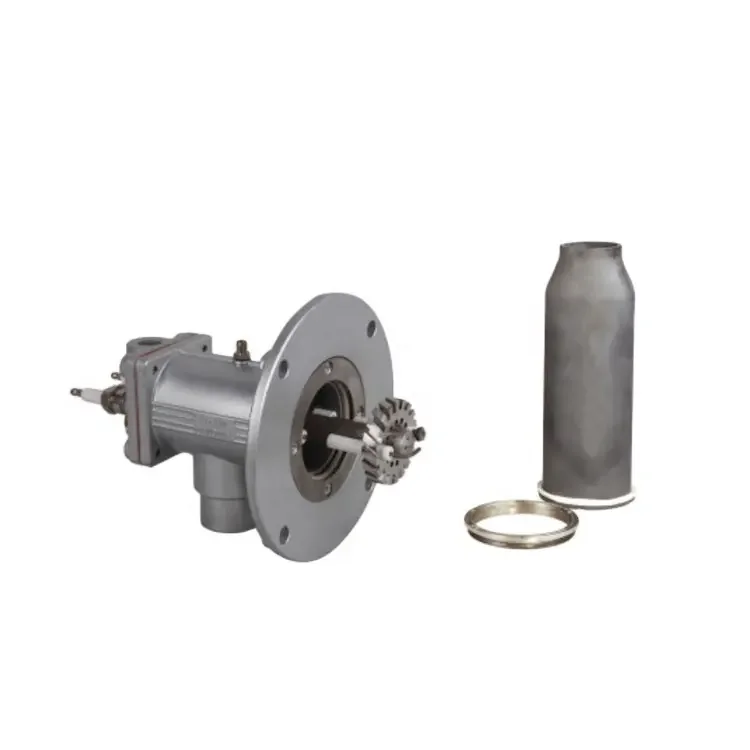

1.Steel nozzle tube that combined with burner block.

2.Silicon carbide SIC ceramic sleeve ,burner block is not required.

*Power range:1.5-3000kw

*Squirting velocity:Low/medium/high velocity,up to150m/s

*Direct ignition and control

*In the best case of combustion ,the level of pollutant emissions is extremly low.

*The nozzle is suitable of various of combustion heating device and various gas type.

Application:

*Application for various of industrial furnace and gas heating device.

*Steel industries.

*Precious metals,non-ferrous metals and light alloy industries.

*Glass,refractory,ceramic,enamel industries.

*Ore,geology,etc.

*Plastic chemical,paper industry.

*For re-burning devices

*For drying equipment,air furnace,aluminum melting and casting.

*For various of heating treatment furnaces such as cap cover furnace,car-type furnace,roller-hearth furnace and step furnace.

Technical parameters:

*Heating Method:Direct or indirect

*Control Method:Interminttent(on/off,high fire/low fire)

continuous(fixed air excess coefficient or fixed air flow)

*Hot air temperature:450°C

*Flame shape: H:medium flame,LH:high flame,K:flat flame,R:shot flame.

*Combustion air temperature:20°C-450°C
