EDUP EP RTL8852CE 2402Mbps WiFi 11ax BT5.3 Module High Performance PCI Express Network Card
- Category: >>>
- Supplier: Shenzhen EDUP Electronics Technology Co. Ltd.
Share on (1601026107030):
Product Overview
Description
Related Products
Product Description
Description

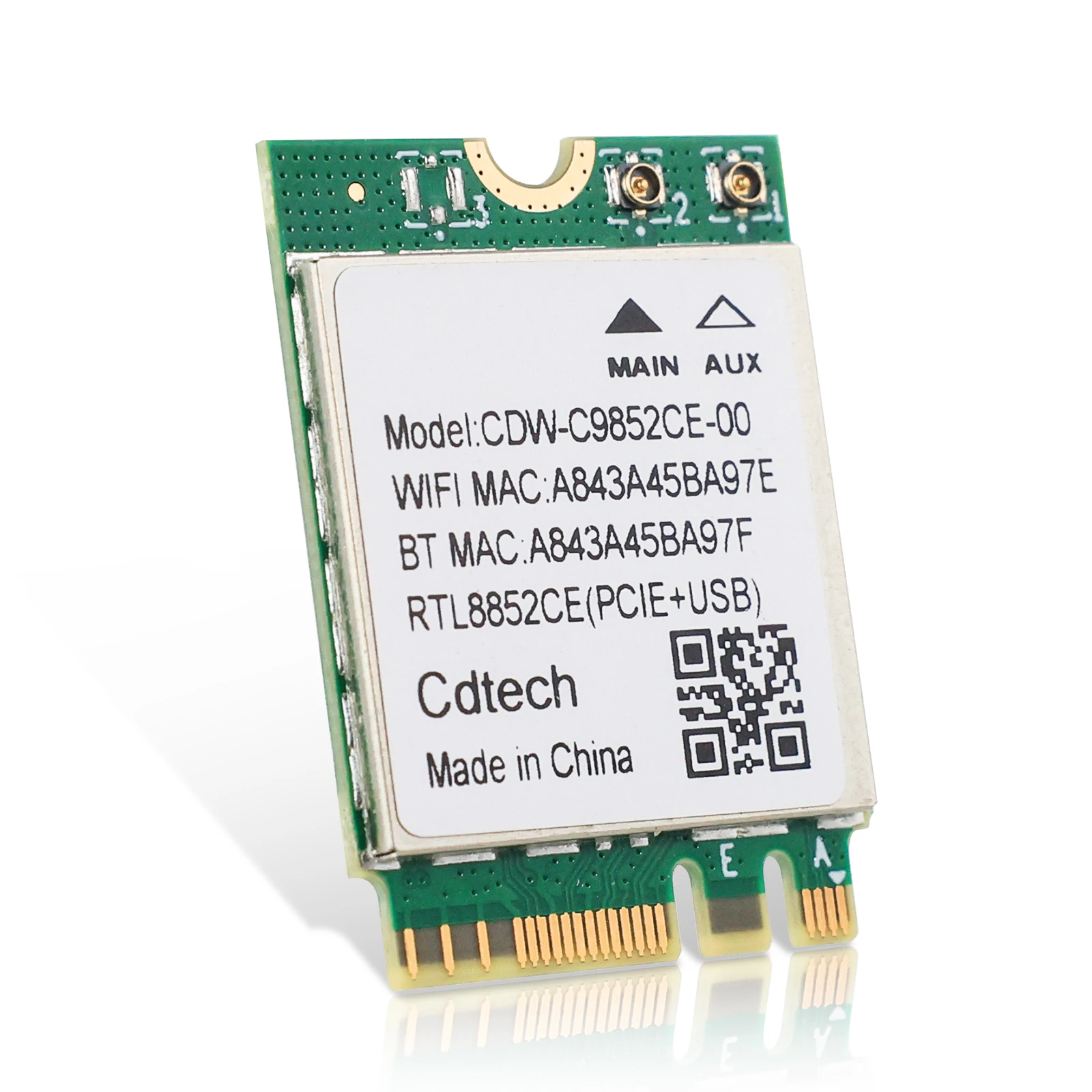

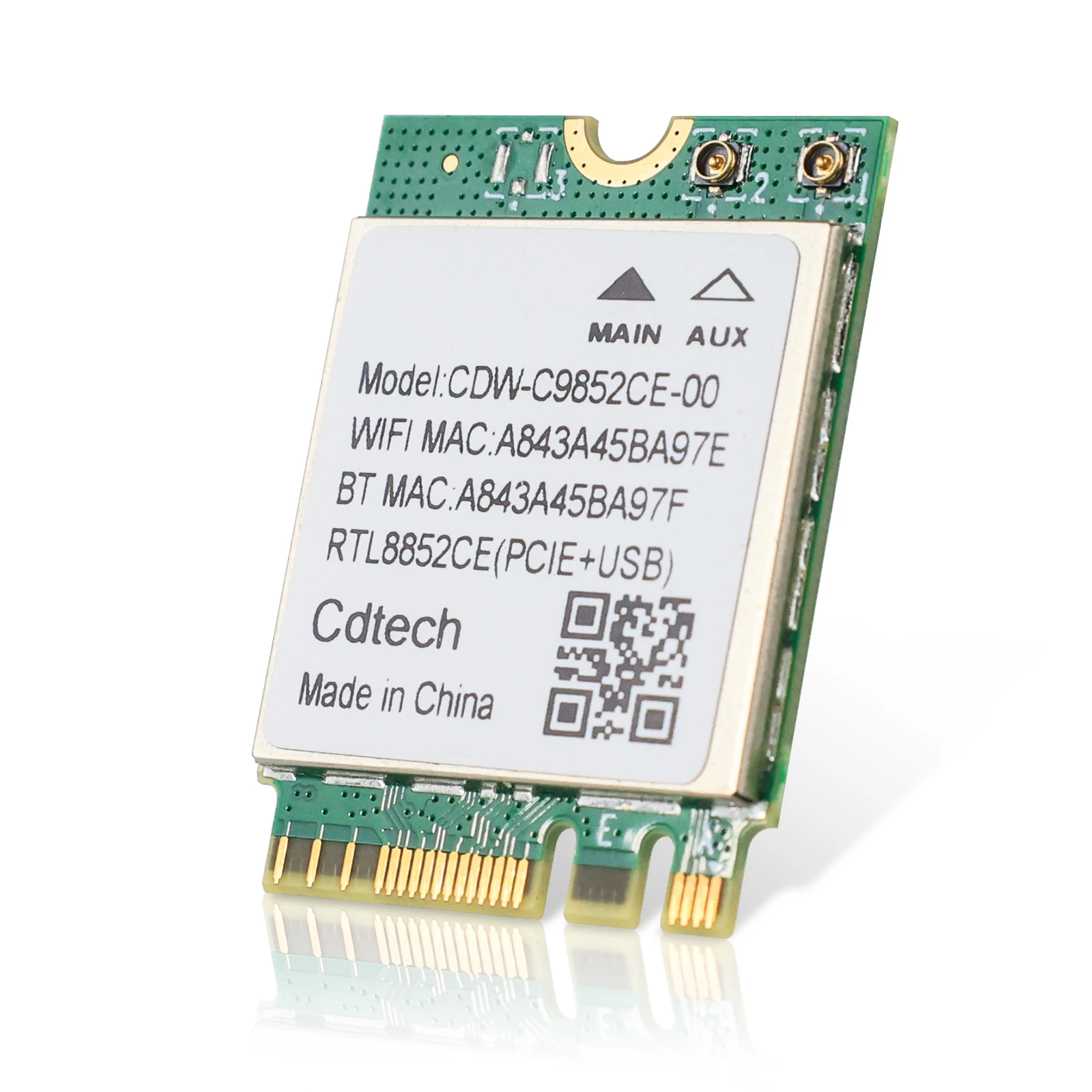

The EP-RTL8852CE is a M.2 module that support 2-stream 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN) PCI Express network interface controller with integrated Bluetooth 5 USB interface controller. It combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. The CDW-C9852CE-00 provides a complete solution for a high-performance integrated wireless and Bluetooth device.
Features
■ IEEE 802.11a/b/g/n/ac/ax compliant WLAN
■ 20MHz / 40MHz / 80M / 160MHzbandwidth transmission
■ Complies with PCI Express Base Specification Revision 2.1
■ Dual-band 2T2R mode with data rate up to 2402Mbps
■ Supports 802.11ac/ax 2*2 Wave-2 compliant with MU-MIMO
■ DSSS with DBPSK and DQPSK, CCK modulation with long and short
preamble, OFDM with BPSK, QPSK, 16QAM,64QAM，256QAM and 1024QAM
modulation.Convolutional Coding Rate: 1/2, 2/3, 3/4,and 5/6
■ Maximum data rate 54Mbps in 802.11g,300Mbps in 802.11n and 866.7Mbps in 802.11ac,2402Mbps in 802.11ax
Bluetooth
■ Supports Bluetooth 5 system(BT5.3 Logo Compliant)
■ Compatible with Bluetooth v2.1+EDR
■ Integrated MCU to execute Bluetooth protocol stack
■ Enhanced BT/WIFI Coexistence Control to improve transmission quality in different Profiles
■ Dual Mode support: Simultaneous LE and BR/ED
■ Supports multiple Low Energy states
■ Supports Enhanced Power Control
■ Supports all packet types in basic rate and enhanced data rate
■ Supports Secure Simple Pairing
Model | EP-RTL8852CE |
Product Name | WIFi 11a/b/g/n/ac/ax 2T2R and BT 5.3 Module |
Major Chipset | Realtek RTL8852CE-CG |
Standard | IEEE802.11a/b/g/n/ac/ax, BTV2.1+EDR/ 4.2 /5.2 |
Data Transfer Rate | Max:2402 Mbps |
Modulation Method | DSSS/DBPSK/DQPSK/16-QAM/ 64-QAM/256QAM/1024QAM |
Frequency Band | 2.4~2.4835GHz , 4.9~5.845 GHz，5.925~7.125G |
SpreadSpectrum | IEEE802.11b: DSSS(Direct SequenceSpreadSpectrum) IEEE802.11a/g/n/ac/ax: OFDM (Orthogonalrthogonal Frequency Division Multiplexing) |
Operation Mode | Ad hoc, Infrastructure |
Security | WEP, TKIP,AES, WPA, WPA2 |
Interface | Wi-Fi : PCI-E, Bluetooth : USB2.0 |
Operating Temperature | -10~ +70° C ambient temperature |
Storage Temperature | -40 ~+90°C ambient temperature |
Humidity | 5 to 90 % maximum (non-condensing) |
Dimension | 22mm x30mm x 2.33mm (LxWxH)±0.2mm |
