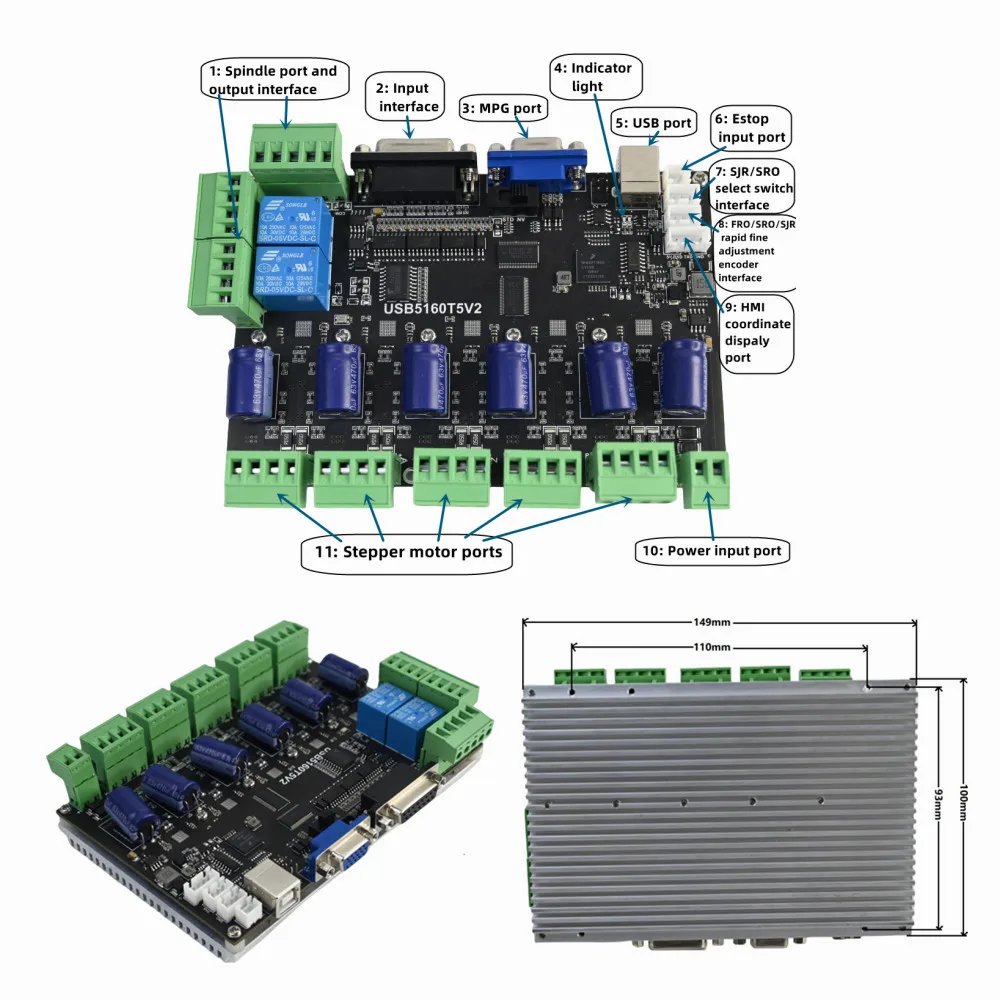

MACH3 USB Controller Board & Stepper Driver 2 In 1 Integrated Controller Kit 3/4/5/6Axis For CNC Milling Router 100W24VDC
- Category: >>>
- Supplier: Shenzhen Digital Dream Numerical Technology Co. Ltd.
Share on (1601026207186):
Product Overview
Description
Products Description

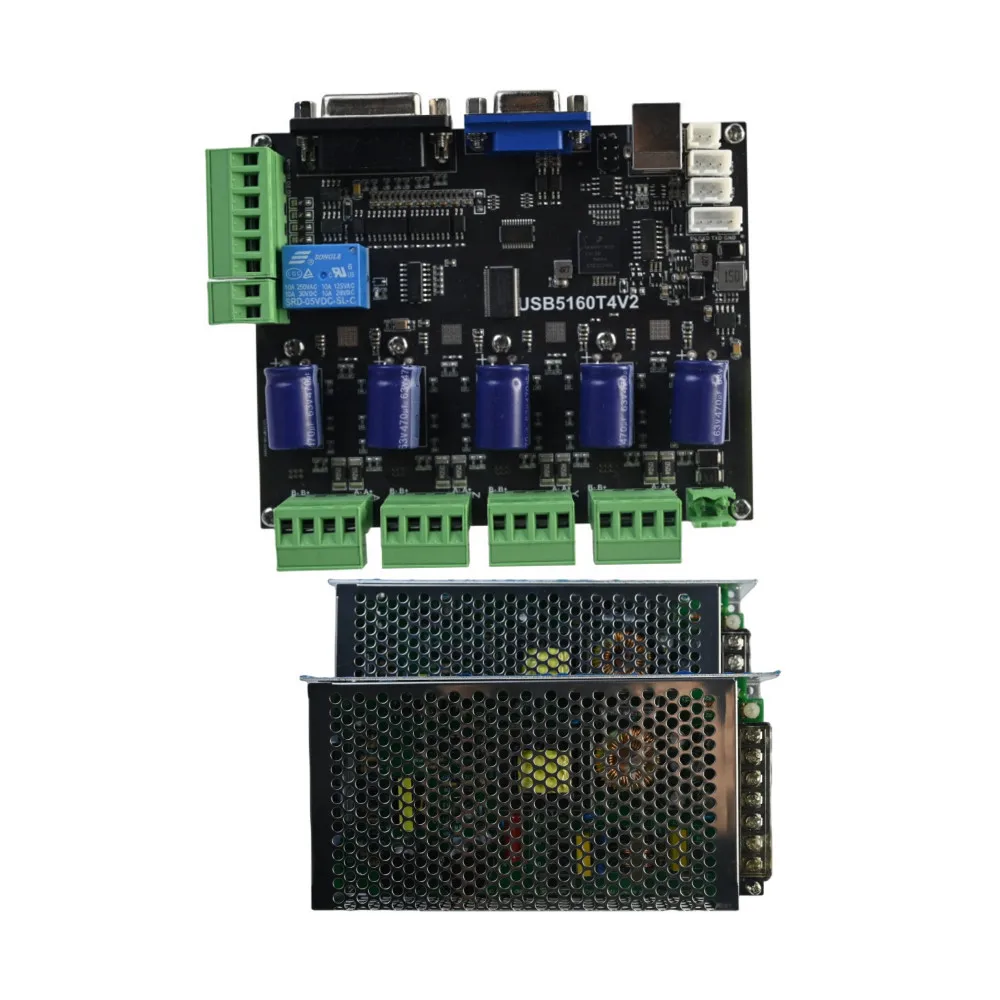

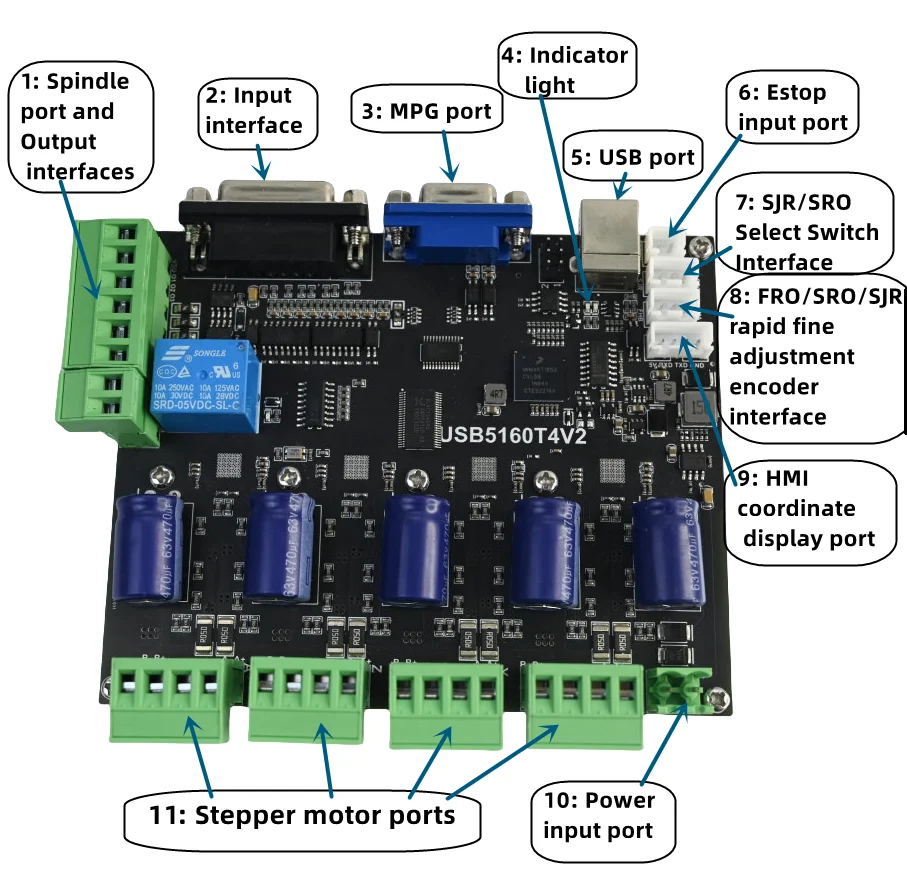

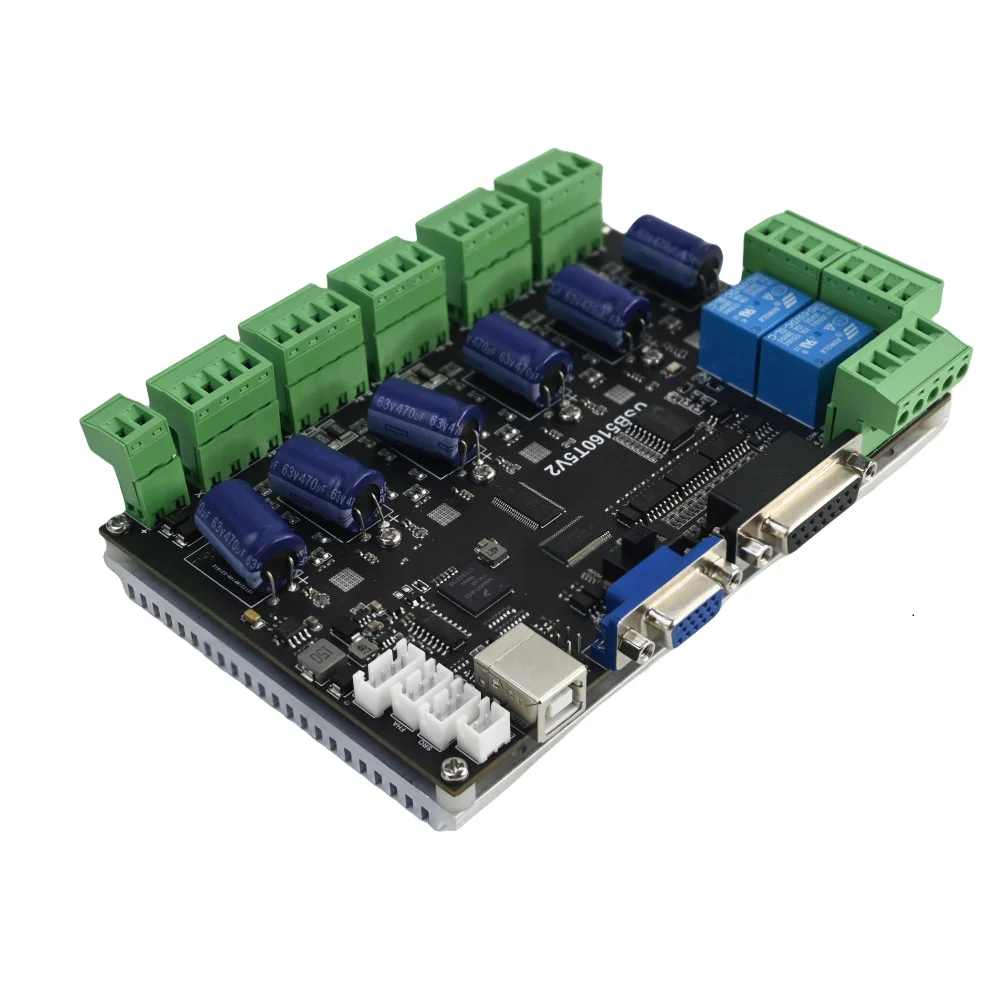

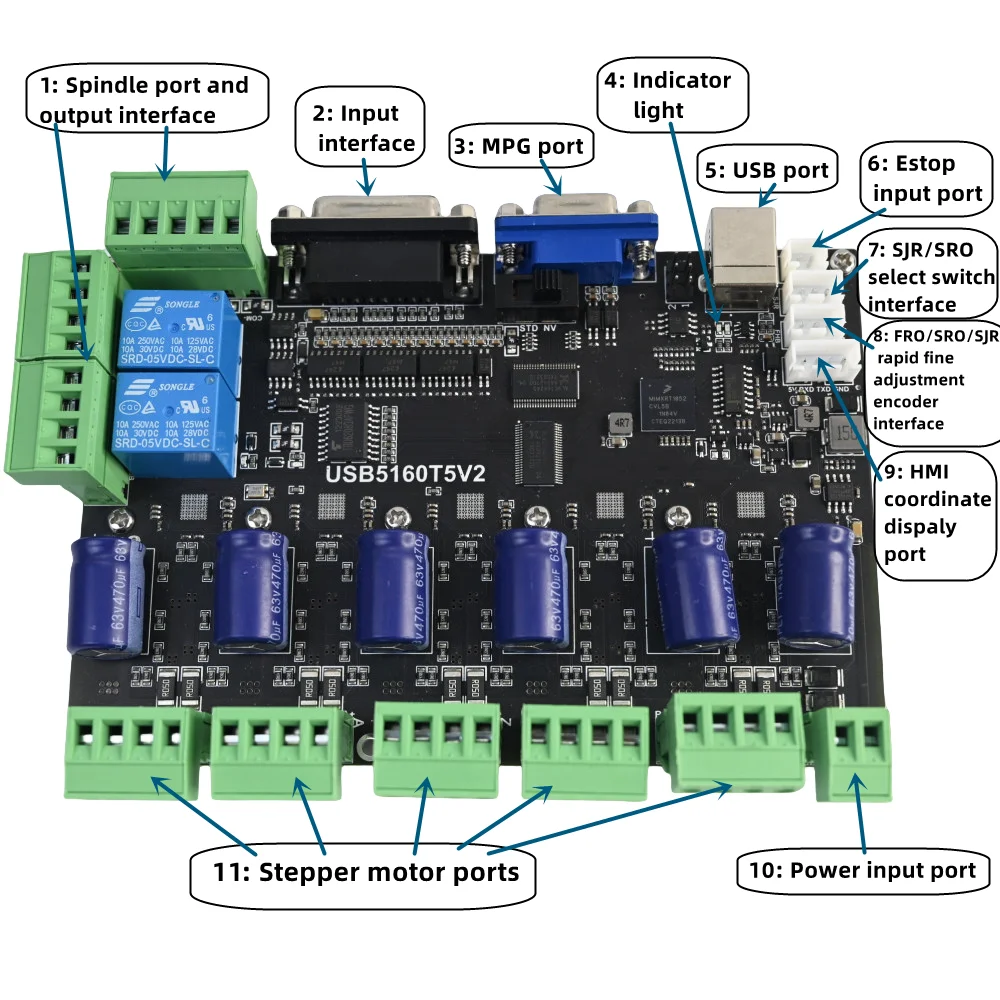

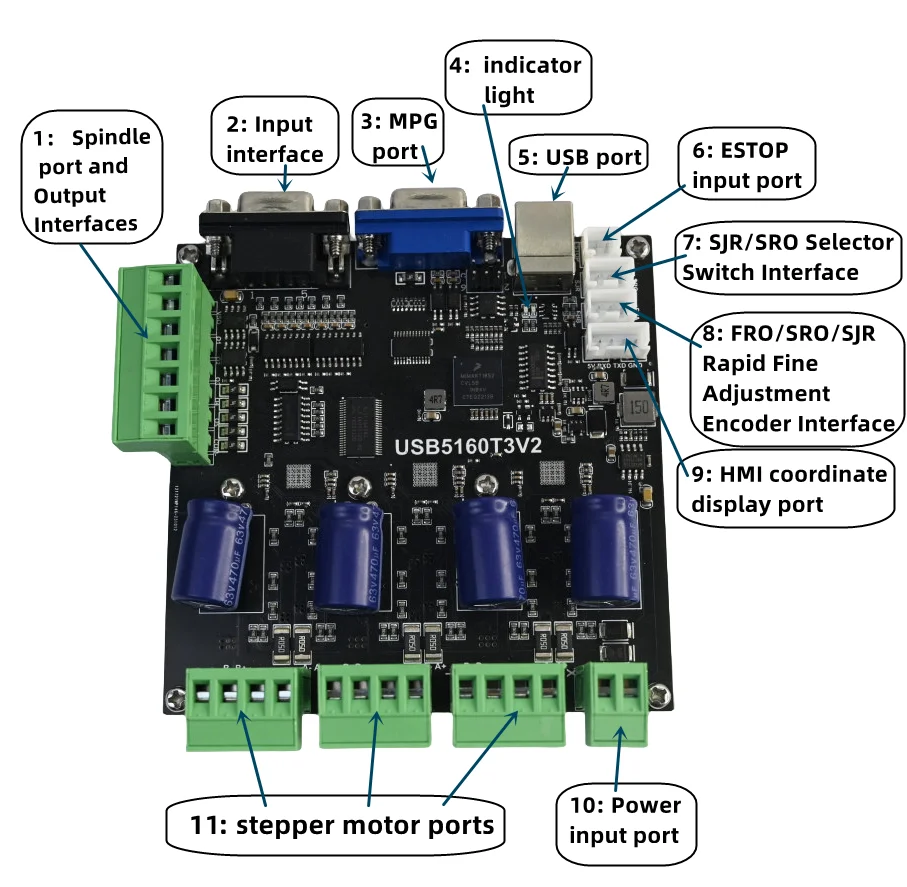

USB5160--- is a Mach3 USB Motion Control card integrated with stepper drivers(With 3/4/5/6 axis options):
This integrated (all-in-one) board combines the Mach3 controller board and 3/4/5/6 stepper drivers into a compact and unified control system. The integration simplifies installation and ensures seamless compatibility with various stepper motors, offering a space-saving solution as the Mach3 control card and 3/4/5/6 stepper drivers are compactly integrated into one board.
Brand: | Digital Dream | Warranty: | 1Year | ||
Model: | USB5160V2+Power Supply | Axis Optional: | 3Axis / 4Axis / 5Axis/6Axis | ||
MOQ: | 1pc | Stock: | Rich | ||
Package Includes: | *1 x USB5160V2 (3 / 4 / 5 /6 Axis Optional) * 2 x Switching Power Supply (100W 24VDC) (The User manual and DLL file will be provided, or also can download from our official website: www.ddcnc.com ) | ||||
USB5160 Brief Technical Features
1, Supports Mach3 software, communicates with the computer through USB;
2, 300Khz pulse output for each axis;

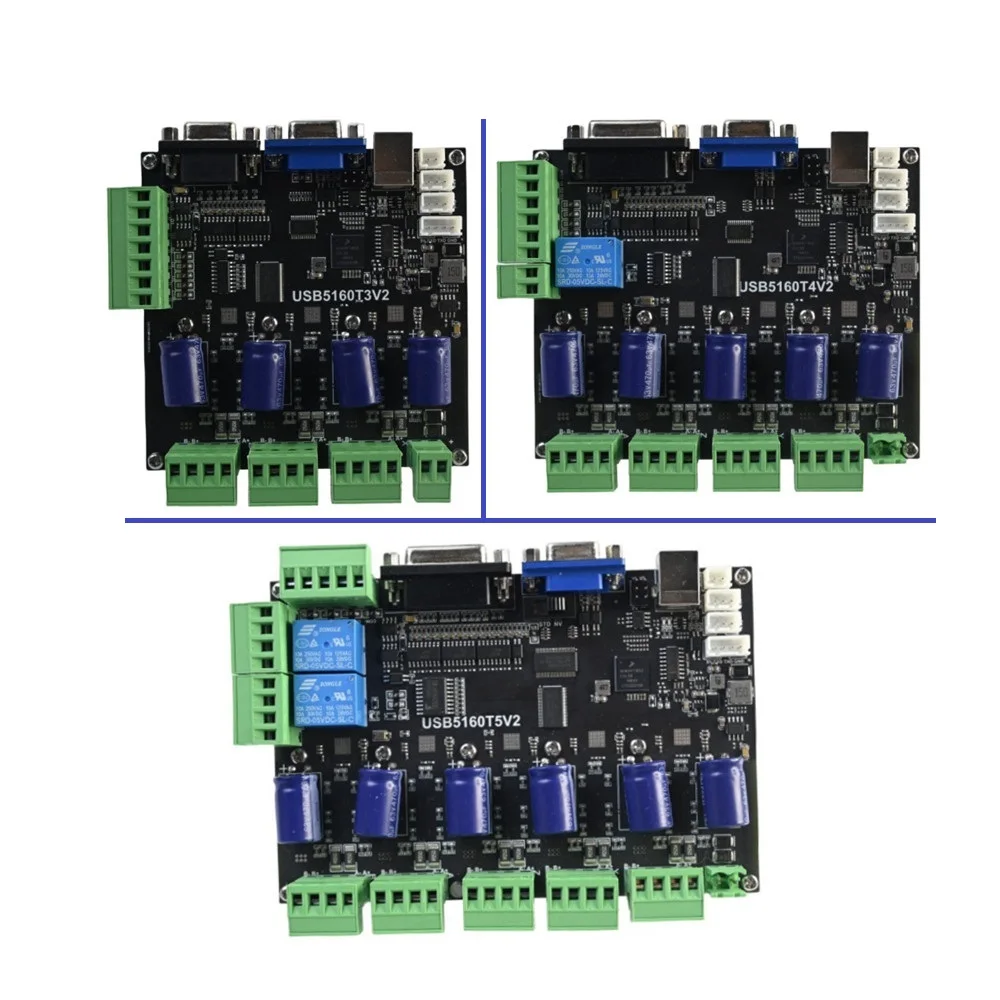

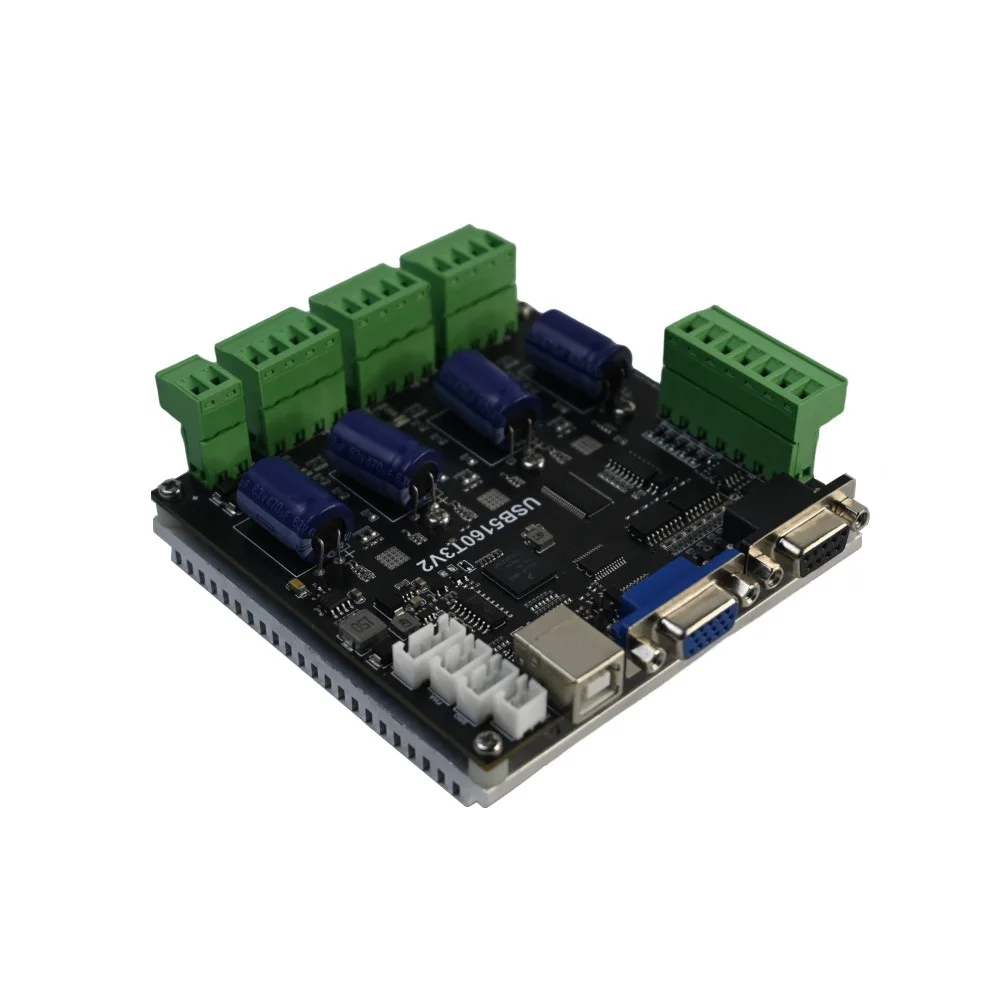

3, USB5160T3: supports 3-axis stepper systems, has 8 input ports and 5 output ports for ordinary digital data;

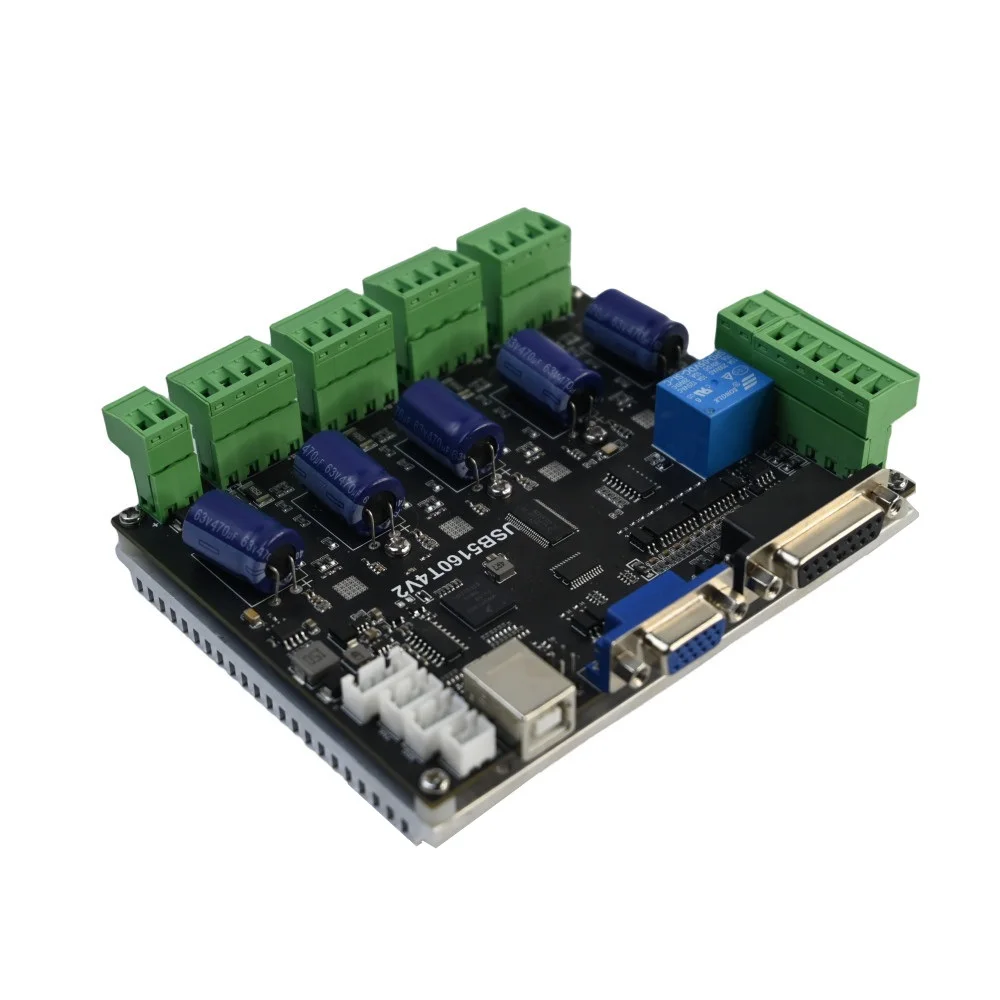

USB5160T4: supports 4-axis stepper systems, has 10 input ports and 5 output ports for ordinary digital data;

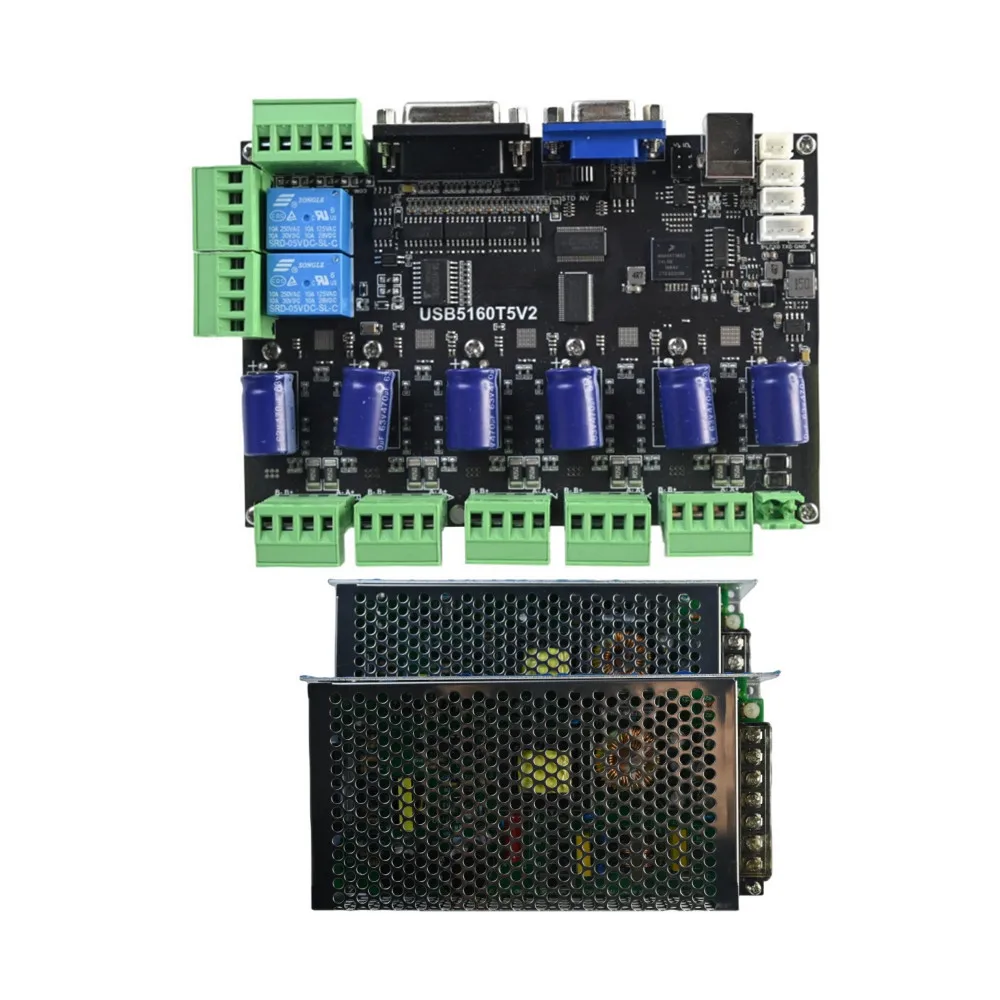

USB5160T5: supports 5-axis stepper systems, has 14 input ports and 8 output ports for ordinary digital data;
4, 1 port PWM spindle speed Control output;
5, ARM motion control chip;
6, The Power supply for the controller is 24VDC, minimum current is 1A;
7, Compatible with MPG input, support standard MPG & the digital display MPG of our company;
8, Each axis driver supports 256 subdivisions at most;
9, Each axis driver supports 6A current;
10, The static current, running current and subdivision of the driver can be adjusted.The adjustment position is on the plug-in page of mach3.
2, 300Khz pulse output for each axis;
3, USB5160T3: supports 3-axis stepper systems, has 8 input ports and 5 output ports for ordinary digital data;
USB5160T4: supports 4-axis stepper systems, has 10 input ports and 5 output ports for ordinary digital data;
USB5160T5: supports 5-axis stepper systems, has 14 input ports and 8 output ports for ordinary digital data;
4, 1 port PWM spindle speed Control output;
5, ARM motion control chip;
6, The Power supply for the controller is 24VDC, minimum current is 1A;
7, Compatible with MPG input, support standard MPG & the digital display MPG of our company;
8, Each axis driver supports 256 subdivisions at most;
9, Each axis driver supports 6A current;
10, The static current, running current and subdivision of the driver can be adjusted.The adjustment position is on the plug-in page of mach3.
Warm Notice: Our Mach3 controllers do not support update for the moment, so please do not press " update" when you are using it.Or not, your controller may work not properly . Also, we do not support Mach 4 software.
Company Profile
China Manufacturer----Digital Dream has a 10 years history in the numerical control industry, specializing in the research,
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
development and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.
Packaging & Shipping
Packaging----Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping---A. : Normally it takes 3-5 business days worldwide shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.) without delay.
If you are in the long distance area, it might be a little longer. If your country has special import policy, please contact us in
advance before confirming an order. In that case, we could negotiate a best shipping method for you.
B.: We can arrange shipment by sea. Minimum CBM requirements to be 1 CBM.
C.: .You can inform of us to use your own carrier account No., if it is convenient for you.
Shipping---A. : Normally it takes 3-5 business days worldwide shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.) without delay.
If you are in the long distance area, it might be a little longer. If your country has special import policy, please contact us in
advance before confirming an order. In that case, we could negotiate a best shipping method for you.
B.: We can arrange shipment by sea. Minimum CBM requirements to be 1 CBM.
C.: .You can inform of us to use your own carrier account No., if it is convenient for you.
Our Service
1.The friendly English Version manual is provided for free.
2. We offer 24 hours technical support on-line or you can send us your specific problem directly by email.
3.Warranty: 1 year limited and professional long-term technical support.
4.Free training to make sure you master the operating of our products.
5. We accept OEM/ODM, but the MOQ of OEM/ODM is 100 sets.
