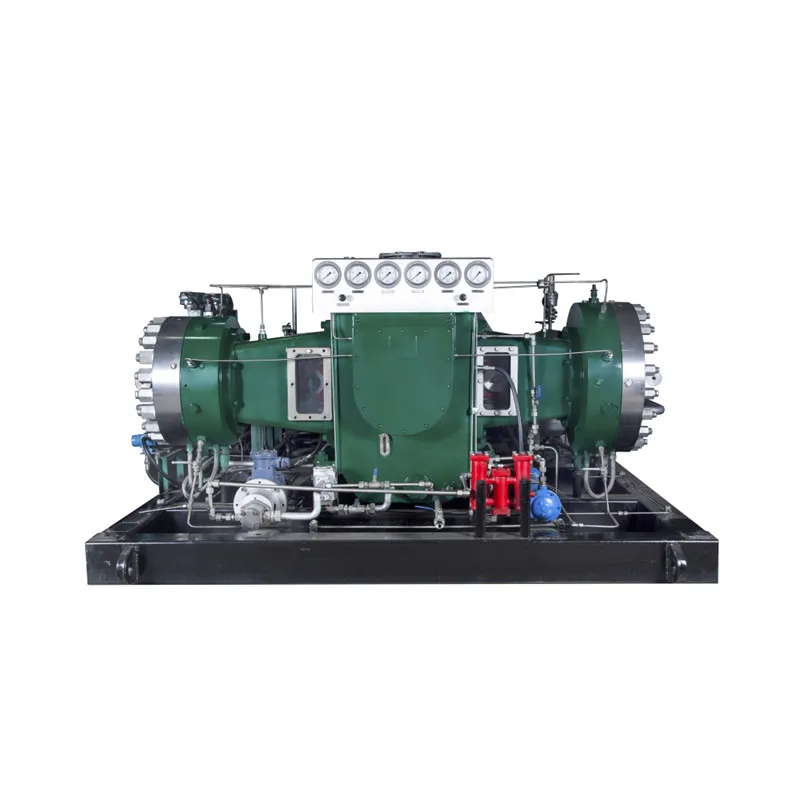

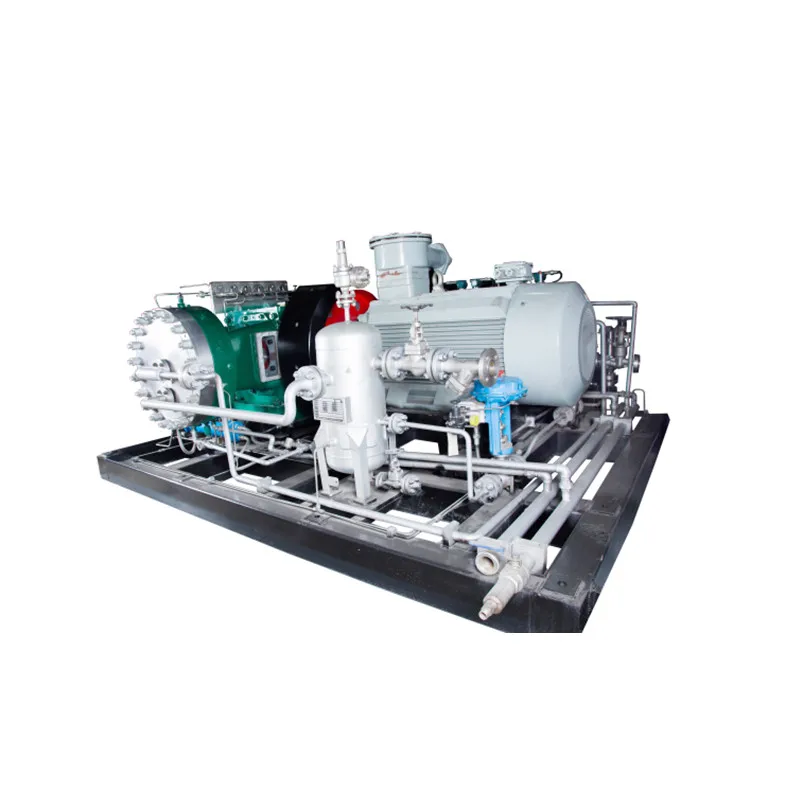

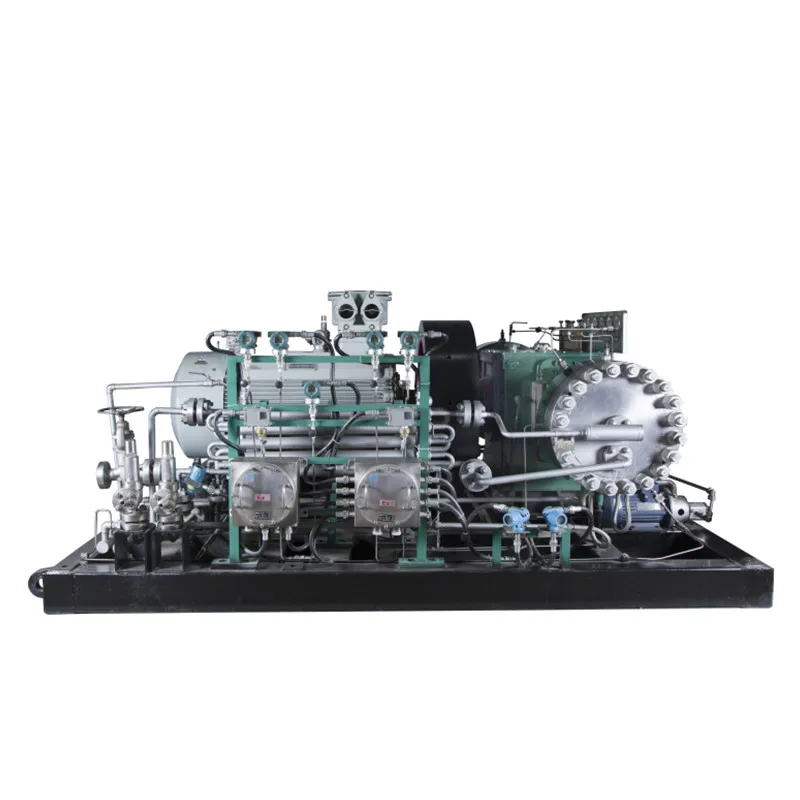

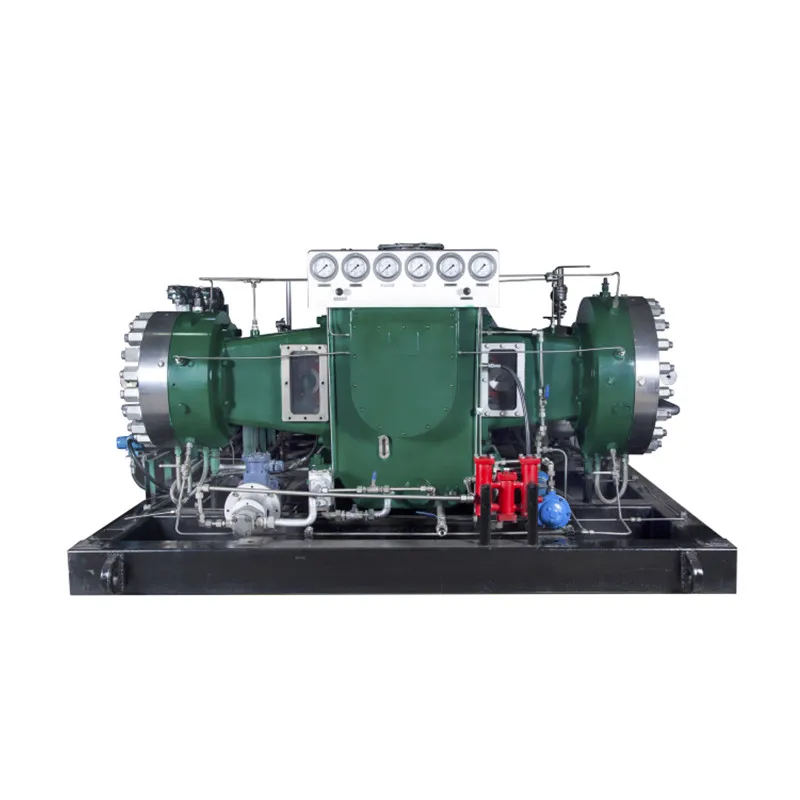

Large Compression 350Bar High Pressure Oil Free Helium Nitrogen Diaphragm Compressor Price
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1601026219944):
Product Overview
Description
Product Description
GD type 200Bar 300Bar 450Bar Piston Air Compressor 1000 psi Large Compression 350Bar High Pressure Oil Free Helium Nitrogen Diaphragm Compressor Price
Our company specialize in making various kinds of compressors, such as:Diaphragm compressor,Piston compressor, Air compressors,Nitrogen generator,Oxygen generator ,Gas cylinder,etc. All products can be customized according to your parameters and other requirements.
Process principle
Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GD Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm GD series diaphragm compressor :
Structure type : D type
Piston Travel : 130-210mm
Max Piston force : 40KN-160KN
Max discharge Pressure : 100MPa
Flow Rate Range :30-2000Nm3/h
Motor Power : 22KW-200KW ompressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Process principle
Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Gas Media type
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc.(Nitrogen diaphragm compressor,bottle filling compressor,oxygen diaphragm compressor)
GD Model Simple Description
GV diaphragm compressor is a special structure of the volumetric compressor, is the highest level of compression in the field of gas compression, this compression method Without secondary pollution, it can ensure the purity of gas is more than 5, and it has very good protection against compressed gas. It has the characteristics of large compression ratio, good sealing performance, and the compressed gas is not polluted by lubricating oil and other solid impurities. Therefore, it is suitable for compressing high-purity, rare and precious, flammable, explosive, toxic, harmful, corrosive and high-pressure gases. The compression method is generally specified in the world for compressing high-purity gas, flammable and explosive gas, toxic gas and oxygen. Etc. (such as nitrogen diaphragm compressor, oxygen diaphragm GD series diaphragm compressor :
Structure type : D type
Piston Travel : 130-210mm
Max Piston force : 40KN-160KN
Max discharge Pressure : 100MPa
Flow Rate Range :30-2000Nm3/h
Motor Power : 22KW-200KW ompressor, hydrogen sulfide diaphragm compressor, argon diaphragm compressor, etc.).
Advantages of Nitrogen diaphragm compressor
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
No leakage: the compressor membrane head is sealed by static "O" ring. The O "ring is made of elastic material, with long service life and no dynamic seal to ensure no leakage during gas compression.
Corrosion resistance: the compressor membrane head can be made of 316L stainless steel, the diaphragm is made of 301 stainless steel.
Small tightening torque: "O" ring seal, can reduce flange bolt tightening torque, reduce shutdown maintenance time.
The diaphragm compressor is mainly composed of motor, base, crankshaft box, crankshaft connecting movement mechanism, cylinder component, oil and gas pipeline, electronic control system, and some assessories .
GV series diaphragm compressor parameter table | ||||||||||||||||
No. | Model | Cooling water(L/h) | Flow (Nm³/h) | inlet pressure (MPa) | outlet pressure (MPa) | Dimensions L×W×H (mm) | Weight (Kg) | Motor Power (kW) | ||||||||
1 | GD-120/4-80 | 3.0 | 120 | 0.4 | 8.0 | 3000×1600×1400 | 4.0 | 30 | ||||||||
2 | GD-130/0.98-11 | 3.0 | 130 | 0.098 | 1.1 | 3000×1800×1600 | 4.0 | 30 | ||||||||
3 | GD-150/2-20 | 3.0 | 150 | 0.2 | 2.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
4 | GD-100/0.1-5 | 4.0 | 100 | 0.01 | 0.5 | 2800×1500×1500 | 3.0 | 18.5 | ||||||||
5 | GD-100/5.5-200 | 5.0 | 100 | 0.55 | 20 | 3200×2000×1600 | 4.5 | 45 | ||||||||
6 | GD-80/0.12-4 | 5.0 | 80 | 0.012 | 0.4 | 2800×1600× 1500 | 3.8 | 15 | ||||||||
7 | GD-60/0.3-6 | 4.0 | 60 | 0.03 | 0.6 | 2800×1600×1500 | 4.0 | 15 | ||||||||
8 | GD-70/0.1-8 | 3.8 | 70 | 0.01 | 0.8 | 3000×1600×1250 | 5.0 | 18.5 | ||||||||
9 | GD-40/0.02-160 | 5.0 | 40 | 0.02 | 16 | 2800×1460×1530 | 3.0 | 22 | ||||||||
10 | GD-100/0.5-6 | 2.0 | 100 | 0.05 | 0.6 | 3000×2000×1560 | 6.0 | 18.5 | ||||||||
11 | GD-36/1-150 | 4.0 | 36 | 0.1 | 15 | 3000×1500×1500 | 4.0 | 45 | ||||||||
12 | GD-35/0.7-300 | 4.0 | 35 | 0.07 | 30 | 3000×1600×1500 | 4.0 | 22 | ||||||||
13 | GD-500/15-35 | 4.5 | 500 | 1.5 | 3.5 | 3000×2000×1700 | 4.0 | 45 | ||||||||
14 | GD-150/15-210 | 4.5 | 150 | 1.5 | 21 | 3200×1700×1600 | 4.0 | 45 | ||||||||
15 | GD-120/8-220 | 4.5 | 120 | 0.8 | 22 | 3200×1700×1600 | 3.8 | 45 | ||||||||
16 | GD-100/9 | 4.5 | 100 | 0.0 | 0.9 | 3200×1700×1800 | 4.5 | 22 | ||||||||
17 | GD-100/1.5-150 | 4.5 | 100 | 0.15 | 15 | 3200×1700×1800 | 4.5 | 45 | ||||||||
18 | GD-40/30 | 4.5 | 40 | 0.0 | 3.0 | 3200×1700×1800 | 4.0 | 18.5 | ||||||||
19 | GD-200/10-15-90 | 4.5 | 200 | 1.0-1.5 | 9.0 | 3200×1800×1600 | 4.0 | 37 | ||||||||
20 | GD-100/7-150 | 4.0 | 100 | 0.7 | 15 | 3000×1800× 1600 | 4.0 | 55 | ||||||||
21 | GD-25/-0.1-47 | 4.0 | 25 | -0.01 | 4.7 | 3000×1800×1600 | 4.0 | 15 | ||||||||
22 | GD-45/0.5-100 | 4.0 | 45 | 0.05 | 10 | 3000×1800×1600 | 4.0 | 30 | ||||||||
23 | GD-30/0.1-160 | 4.0 | 30 | 0.01 | 16 | 3000×1800×1600 | 4.0 | 18.5 | ||||||||
24 | GD-120/2.5-70 | 4.0 | 120 | 0.25 | 7.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
25 | GD-135/10-210 | 4.0 | 135 | 1.0 | 21 | 3000×1600×1400 | 4.0 | 37 | ||||||||
26 | GD-60/40-350 | 4.5 | 60 | 4.0 | 35 | 3000×1800×1600 | 4.0 | 30 | ||||||||
27 | GD-95/10-350 | 4.0 | 95 | 1.0 | 35 | 3000×1600×1400 | 4.0 | 37 | ||||||||
28 | GD-220/11-90 | 4.0 | 220 | 1.1 | 9.0 | 3000×1800×1600 | 4.0 | 37 | ||||||||
29 | GD-300/15-220 | 4.5 | 300 | 1.5 | 22 | 3600×2200×1700 | 5.0 | 75 | ||||||||
30 | GD-300/13-210 | 5.0 | 300 | 1.3 | 21 | 3500×2300×1800 | 6.0 | 75 | ||||||||
31 | GD-120/12-350 | 6.5 | 120 | 1.2 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
32 | GD-165/10-250 | 8.0 | 165 | 1.0 | 25 | 3500×2300×1500 | 8.5 | 55 | ||||||||
33 | GD-120/8-350 | 6.5 | 120 | 0.8 | 35 | 3500×2300×1600 | 8.5 | 45 | ||||||||
34 | GD-800/210-320 | 8.0 | 800 | 21 | 32 | 3500×2300×1500 | 8.5 | 37 | ||||||||
35 | GD-420/8-39 | 6.5 | 420 | 0.8 | 3.9 | 3600×2500×1700 | 6.0 | 75 | ||||||||
36 | GD-370/20-200 | 4.5 | 370 | 2.0 | 20 | 3600×2200×1700 | 5.0 | 75 | ||||||||
OUR COMPANY
Company Introduction
Xuzhou Huayan Gas Equipment Co., Ltd. is a leading supplier of gas compressors in China. Located in the Economic Development Zone of Xuzhou City, China, covers an area of 92,000m2, including 15,000m2 office building, 18,000m2 workshop, 3,000m2 staff canteen, and more than 50% green area. Create a beautiful and comfortable working environment for 90 employees.
Since the production of gas compressors in 1965, the company has accumulated rich experience. The factory has a comprehensive
skilled staff and more than 70 sets of processing and testing equipment, which can complete the whole production process from raw
material inspection, feeding, processing, assembly, testing, packaging, storage, shipping, etc., forming an annual output of 500
sets of all kinds of gas compressors.
skilled staff and more than 70 sets of processing and testing equipment, which can complete the whole production process from raw
material inspection, feeding, processing, assembly, testing, packaging, storage, shipping, etc., forming an annual output of 500
sets of all kinds of gas compressors.
We sincerely invite friends from all over the world to visit our factory and exchange ideas.
VR
Our packaging boxes are all standard export wooden boxes.
Suitable for sea and truck shipping .
Our company will participate in domestic and foreign large-scale petrochemical exhibition every year
FAQ
1: How long is your delivery time?
A: It varies depending on the specific situation. For our standard configuration compressors, the delivery time is around 30 days. For customized compressors, it usually takes about 30-45 days.
2: What technical support do you offer?
A: We offer comprehensive technical support to our clients, including remote assistance for installation and commissioning processes. Additionally, we have a team of seasoned engineers ready to be deployed to international client locations for meticulous on-site debugging, installation, and post-installation services.
3: What is your warranty period?
A:Our warranty policy is valid for a period of 18 months from the date of commissioning at the end customer's site .
4 : How do you pack the compressors?
A : For smaller compressors, we utilize robust plywood boxes that conform to export specifications.
For the larger units, we strategically place them in freight containers, implementing secure fastening methods to safeguard against any potential damage during the shipping process.
5:What are your payment terms?
A:Usually, the payment is made by T/T with 50% advanced payment upon confirmation of the Proforma Invoice (PI), and the balance to be paid after inspection and before shipment. TT and L/C at sight is accepted .
A: It varies depending on the specific situation. For our standard configuration compressors, the delivery time is around 30 days. For customized compressors, it usually takes about 30-45 days.
2: What technical support do you offer?
A: We offer comprehensive technical support to our clients, including remote assistance for installation and commissioning processes. Additionally, we have a team of seasoned engineers ready to be deployed to international client locations for meticulous on-site debugging, installation, and post-installation services.
3: What is your warranty period?
A:Our warranty policy is valid for a period of 18 months from the date of commissioning at the end customer's site .
4 : How do you pack the compressors?
A : For smaller compressors, we utilize robust plywood boxes that conform to export specifications.
For the larger units, we strategically place them in freight containers, implementing secure fastening methods to safeguard against any potential damage during the shipping process.
5:What are your payment terms?
A:Usually, the payment is made by T/T with 50% advanced payment upon confirmation of the Proforma Invoice (PI), and the balance to be paid after inspection and before shipment. TT and L/C at sight is accepted .
