Price:$10,000.00 - $15,000.00

Quantity:


Product Overview

Description



Product Description

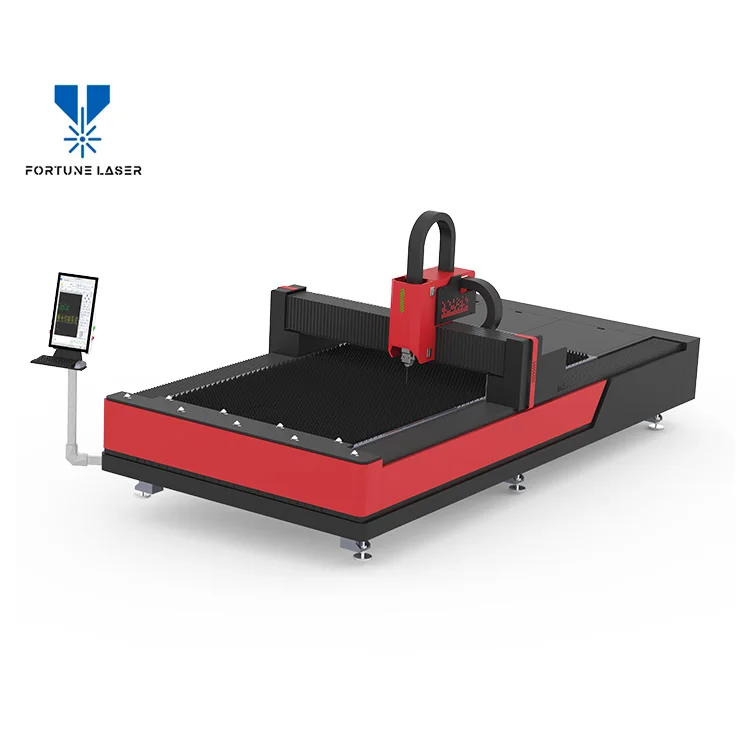

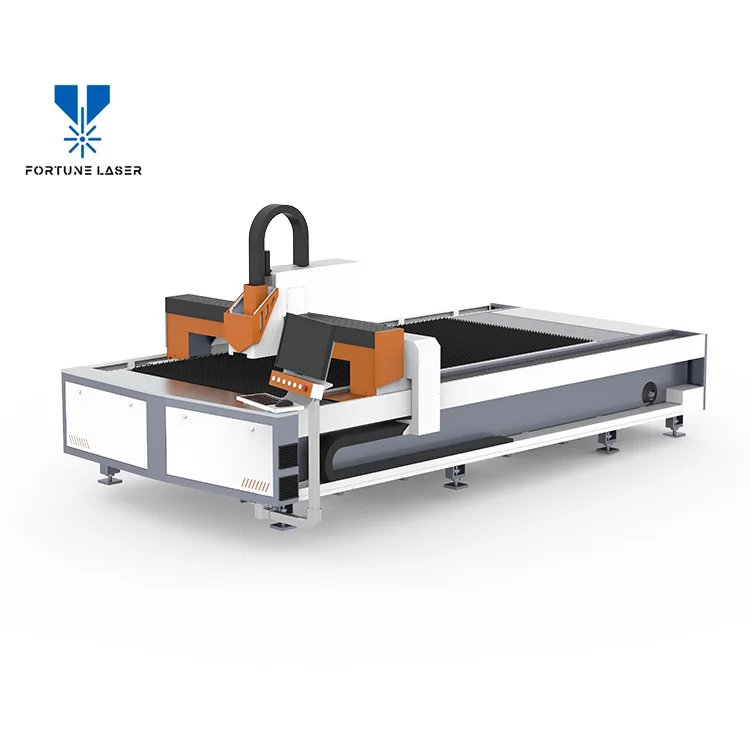

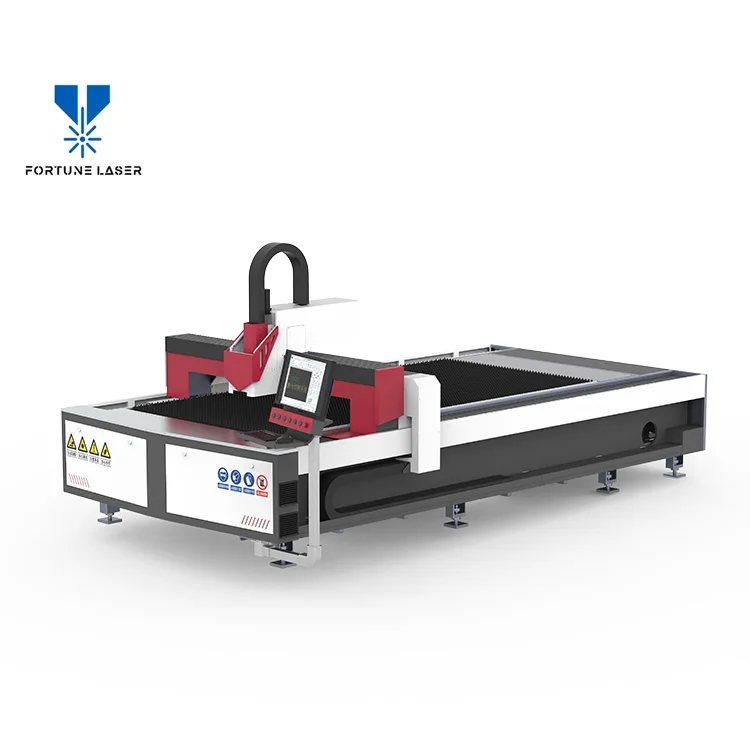

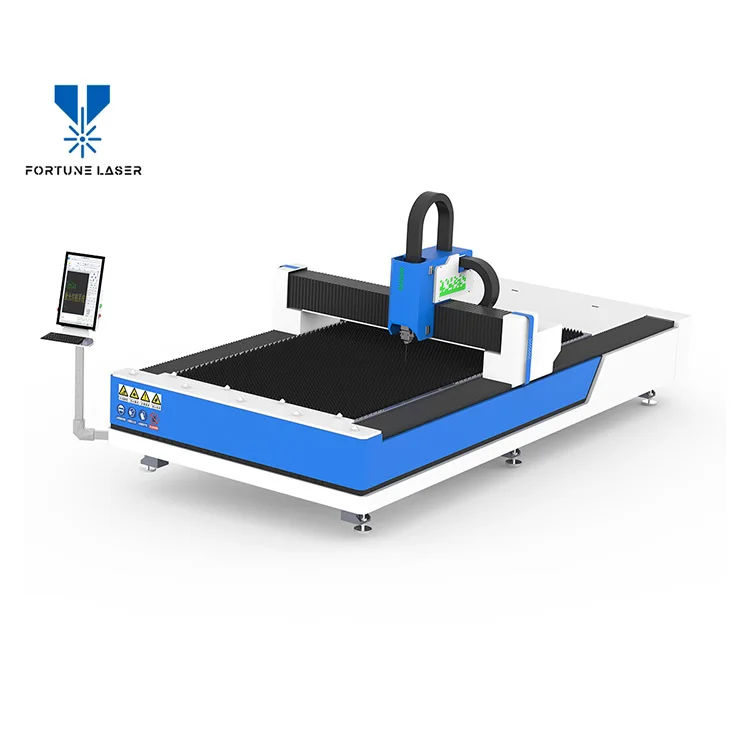

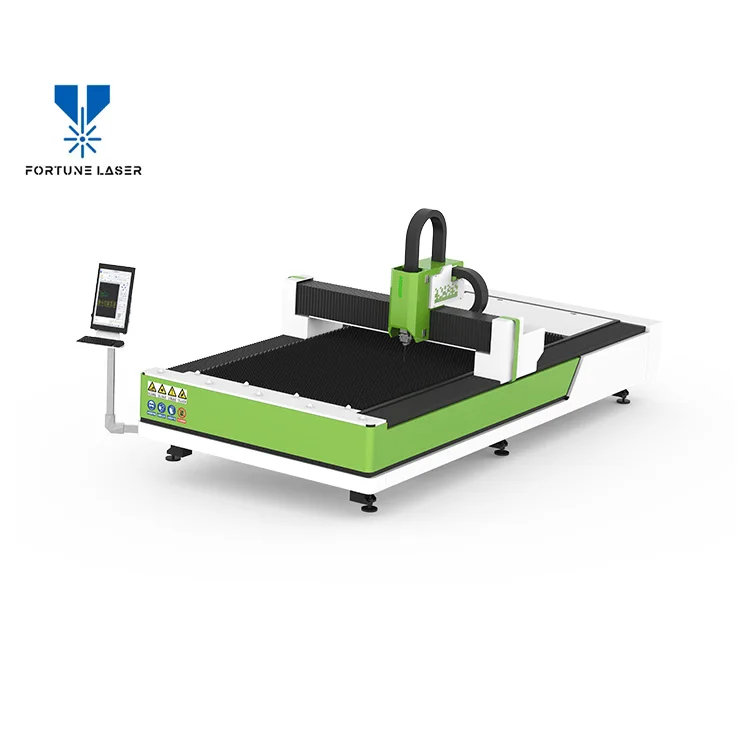

Fortune Laser 1000W 1500W 2000W 3000W 3015 Sheet Metal Fiber Laser Cutting Machine

Machine Characters

Servo dual-drive gantry structure: Bridge gantry structure, rack rail drive, the use of centralized lubrication device, easy maintenance;

Stable and practical: Reinforced welding bed, high-temperature tempering treatment vibration to eliminate stress, machine tool deformation can be controlled at ± 0.02mm;

Industrial aesthetics design: Export standards in Europe and America, the appearance of aesthetic design, simple atmosphere;

The operation is simple and easy to use: More than 20000 users, global technology-leading CNC laser cutting system, the flexible operation is simple, has the function of laser power adjustment, to ensure the quality of cutting, the operation is simple and convenient;

High-quality cutting: High-precision anti-collision professional laser cutting head, to ensure the best cutting effect;

Efficient material: Used in the standard specifications of metal sheet cutting, saving time and material;

Fiber laser: Use Maxphotonics laser(Other brands laser are optional), stable and reliable power in the domestic top brand, performance guaranteed;




Note:
1. This machine configuration is only for your reference, many other brands for each part of the machines are optional based on your requirements and your budget.

2. We provide the whole set laser machines and also the parts for the laser machines, including the Laser source, laser head, water chiller, CNC controller, etc. Please contact us for more details today!


Machine configuration
Model
Fiber Laser Cutting Machine FL-S Series
Working Area
3000mm*1500mm
Laser source
Raycus/Max/IPG for option
CNC Cutting System
Cypcut
Laser head
Raytools/OSPRI/WSX for option
Machine bed
Fortune Laser
X/Y axis gear rack
YYC/Fortune Laser
Precision linear guide
HIWIN/ROUST
Motor Drive
Japan Yaskawa Servo motor
Electronic components
France Schnei-der
Reducer system
MOTOREDUCER/PHILANDE
Pneumatic components
Japan SMC
Machine bed accessories
Fortune Laser
Water chiller
Hanli/S&A
Waste recycling equipment
Fortune Laser




Machine Parameters
Model
FL-S2015
FL-S3015
FL-S4020
FL-S6020
Working Area (L*W)
2000*1500mm
3000*1500mm
4000*2000mm
6000*2000mm
X/Y Axis Position Accuracy
±0.03mm/1000mm
±0.03mm/1000mm
±0.03mm/1000mm
±0.03mm/1000mm
X/Y Axis Repeat Position Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Max Moving Speed
80000mm/min
80000mm/min
80000mm/min
80000mm/min
Max Acceleration
1.2g
1.2g
1.2g
1.2g
Max Loading Weight
600kg
800kg
1200kg
1500kg
Power Supply
AC380V/50Hz
AC380V/50Hz
AC380V/50Hz
AC380V/50Hz
Laser Source Power(Optional)
1kW/1.5kW/2kW/2.5kW/3kW/4kW/6kW/8kW/10kW/12kW/15kW/20kW
