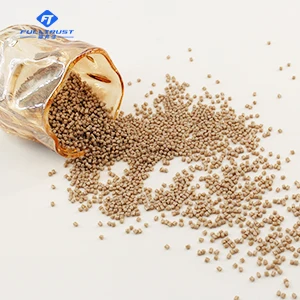

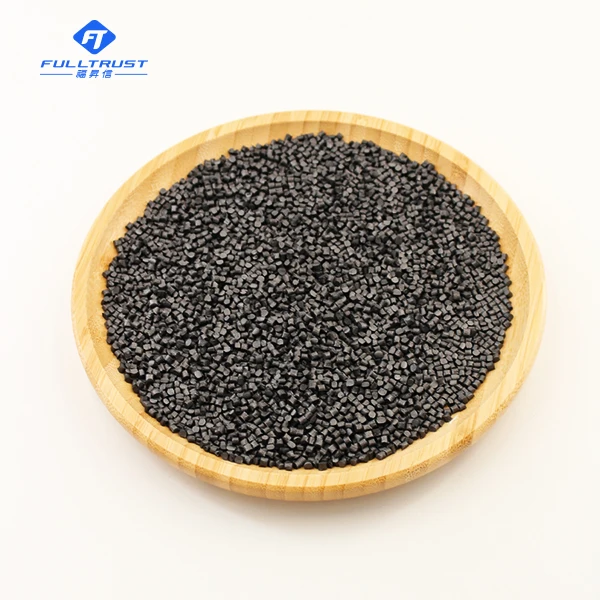

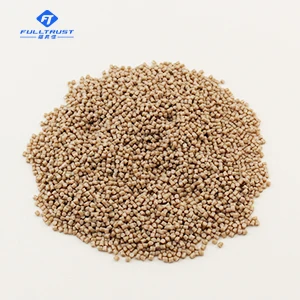

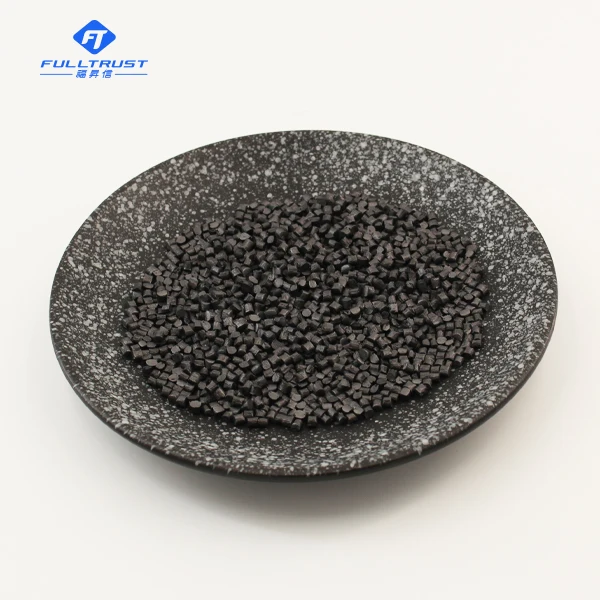

Solvay PPS Ryton R 4 230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets
Solvay PPS Ryton R-4-230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets

Solvay PPS Ryton R 4 230BL PPS GF40 Polyphenylene Sulfide Granules Plastic raw material PPS pellets

Share on (1601026318617):


Price:$2.00 - $3.50

Quantity:


Product Overview

Description









Physical Properties
Metric
English
Comments
Density
1.68 g/cc
0.0607 lb/in³
ASTM D792
Water Absorption
0.020 %
@Time 86400 sec
0.020 %
@Time 24.0 hour
ASTM D570
Linear Mold Shrinkage, Flow
0.0020 cm/cm
@Thickness 3.20 mm
0.0020 in/in
@Thickness 0.126 in
ASTM D955
Linear Mold Shrinkage, Transverse
0.0050 cm/cm
@Thickness 3.20 mm
0.0050 in/in
@Thickness 0.126 in
ASTM D955
Mechanical Properties
Metric
English
Comments
Hardness, Rockwell M
103
103
ASTM D785
Hardness, Rockwell R
122
122
ASTM D785
Tensile Strength
172 MPa
24900 psi
ASTM D638
Tensile Stress
175 MPa
25400 psi
ISO 527-2
Elongation at Break
1.5 %
1.5 %
ASTM D638
1.5 %
1.5 %
ISO 527-2
Flexural Strength
248 MPa
36000 psi
ASTM D790
250 MPa
36300 psi
ISO 178
Flexural Modulus
14.0 GPa
2030 ksi
ISO 178
14.5 GPa
2100 ksi
ASTM D790
Compressive Strength
275 MPa
39900 psi
ASTM D695
Poissons Ratio
0.37
0.37
ASTM E132
Izod Impact, Notched
0.800 J/cm
@Thickness 3.18 mm
1.50 ft-lb/in
@Thickness 0.125 in
ASTM D256
Izod Impact, Unnotched
4.80 J/cm
@Thickness 3.18 mm
8.99 ft-lb/in
@Thickness 0.125 in
ASTM D256
Izod Impact, Notched (ISO)
8.00 kJ/m²
3.81 ft-lb/in²
Notch A; ISO 180
Izod Impact, Unnotched (ISO)
30.0 kJ/m²
14.3 ft-lb/in²
ISO 180
Electrical Properties
Metric
English
Comments
Volume Resistivity
1.00e+16 ohm-cm
1.00e+16 ohm-cm
ASTM D257
Surface Resistance
1.00e+16 ohm
1.00e+16 ohm
ASTM D257
Dielectric Constant
3.8
@Frequency 1000 Hz
3.8
@Frequency 1000 Hz
ASTM D150
3.8
@Frequency 1.00e+6 Hz
3.8
@Frequency 1.00e+6 Hz
ASTM D150
Dielectric Strength
22.0 kV/mm
559 kV/in
ASTM D149
Dissipation Factor
0.0020
@Frequency 1000 Hz
0.0020
@Frequency 1000 Hz
ASTM D150
0.0030
@Frequency 1.00e+6 Hz
0.0030
@Frequency 1.00e+6 Hz
ASTM D150
Arc Resistance
125 sec
125 sec
ASTM D495
Comparative Tracking Index
150 - 175 V
150 - 175 V
UL 746
