Products Description

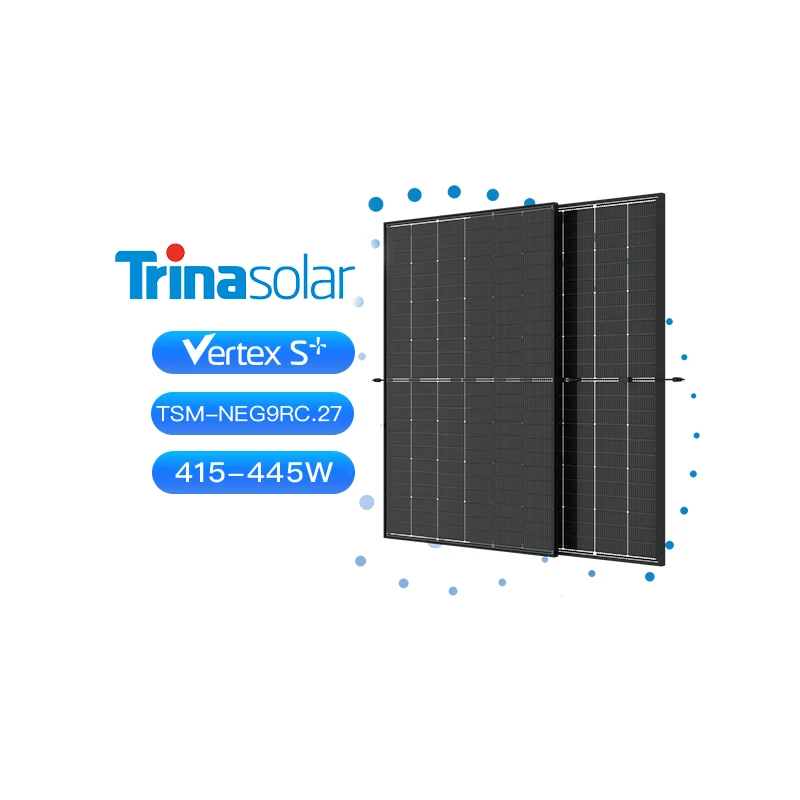

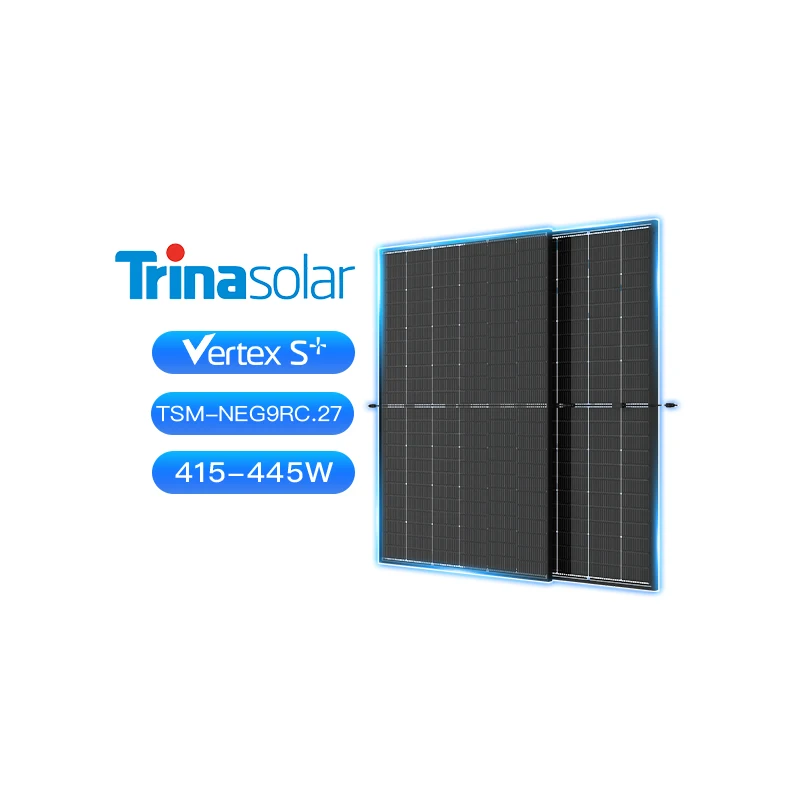

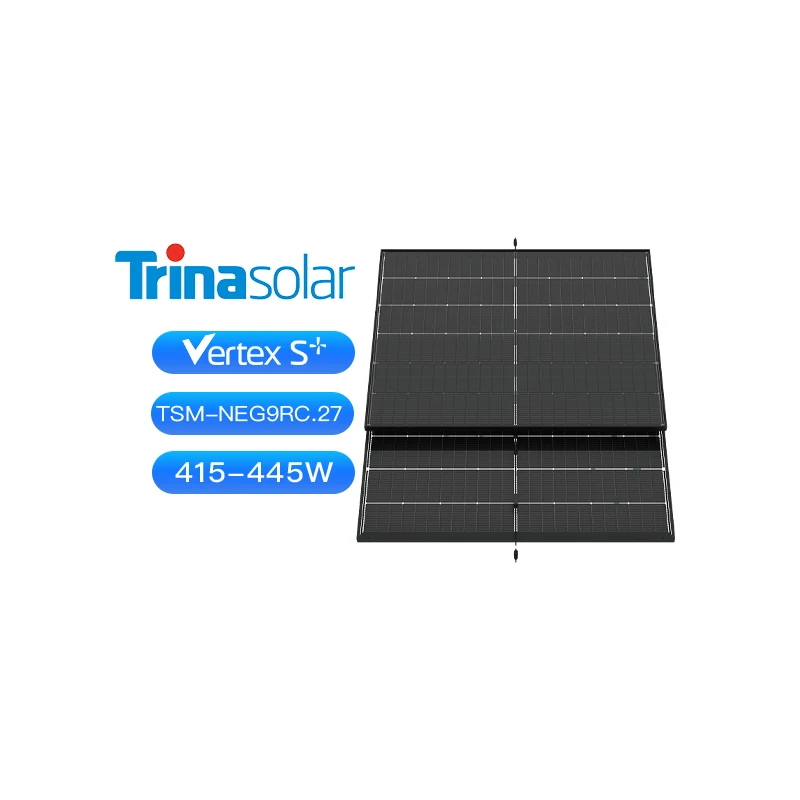

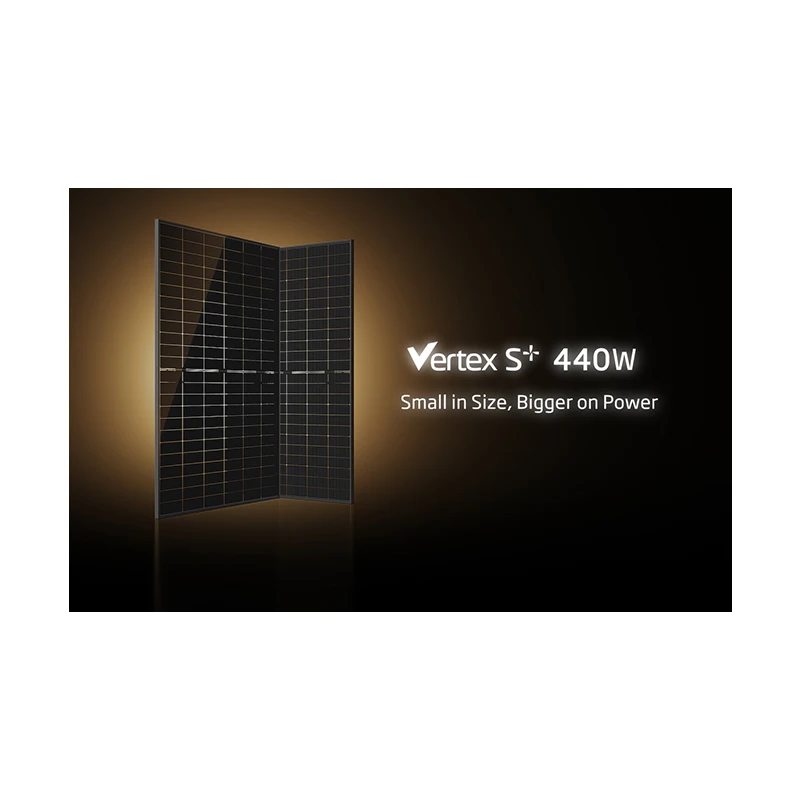

Trina Vertex S + TSM-NEG9RC.27
To meet the needs of mid-to-high-end market users,Trina launches this 80% bifaciality black-cell, black-frame, black-panel bifacial double glass solar panel, with N-type TOPCON half-cut cell technology and translucent appearance. Products warranty can last for 25 years!
This PV module has wide range of peak power, from 415W to 445W, with dual-glass design, efficiency up to 22.3%, which makes it low degradation, longer warranty, higher output.
Can be used in different types of residential or commercial solar storage system, off grid systems, floating system, UPS,etc.

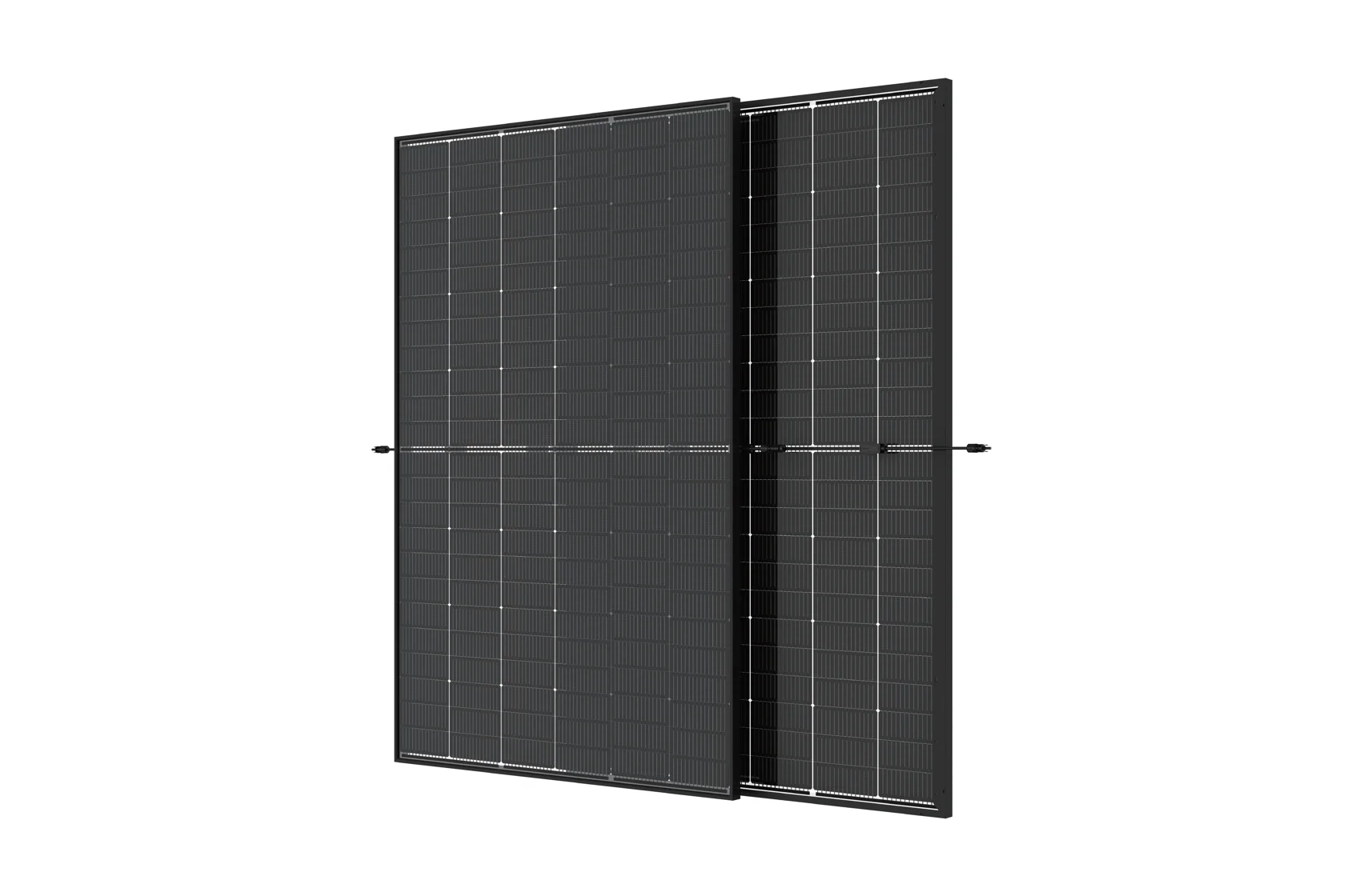

Physical Picture
Quick Data
Peak Power Watts-PMAX (Wp)* | 415 | 420 | 430 | 440 | |||
Bifaciality | 80% | 20.9% | 21.1% | 21.3% | |||
Maximum Power Voltage-VMPP(V) | 42.1 | 42.5 | 43.2 | 44.0 | |||
Maximum Power Current-IMPP(A) | 9.86 | 9.89 | 9.96 | 10.01 | |||
Open Circuit Voltage-VOC (V) | 50.1 | 50.5 | 51.4 | 52.2 | |||
Short Circuit Current-ISC (A) | 10.50 | 10.53 | 10.59 | 10.67 | |||
Module Efficiency | 20.8% | 21.0% | 21.5% | 22.0% | |||

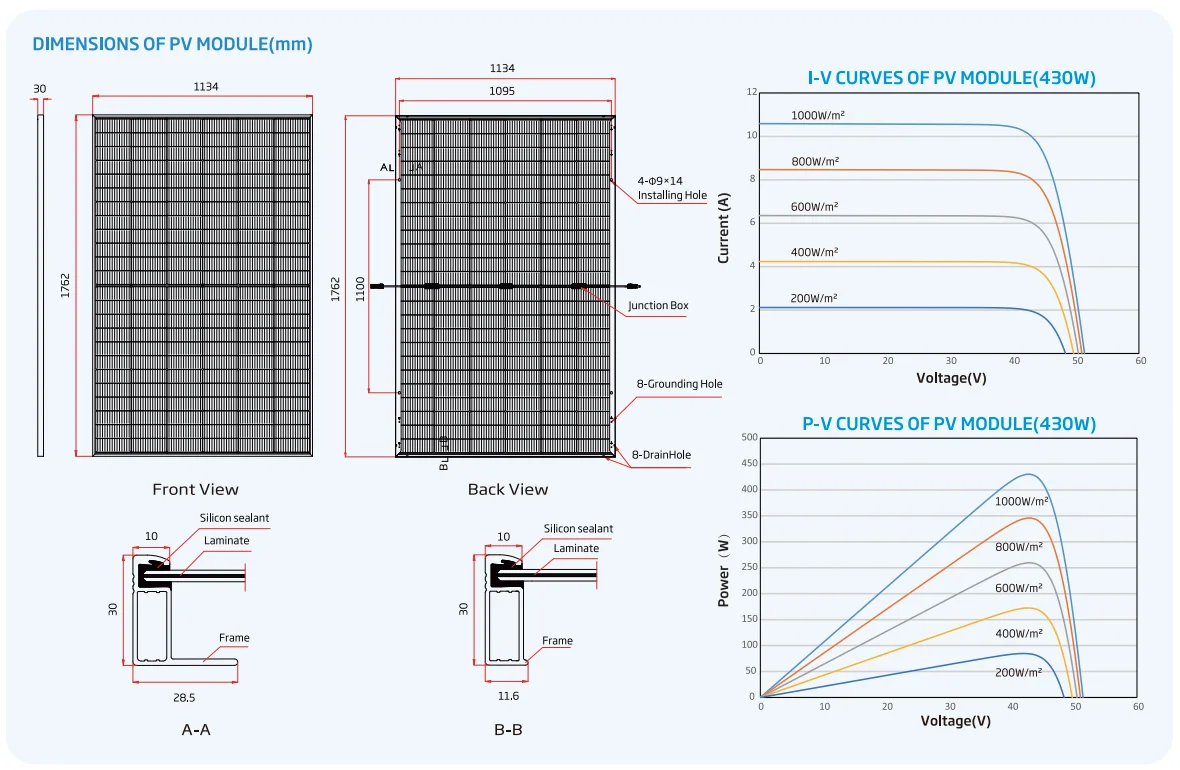

Size | 1762×1134×30 mm | ||||||
Weight | 21.0kg | ||||||
MAX Backside Power Gain | 25% | 25% | 25% | 25% | |||
Key Features
Small in size, bigger on power

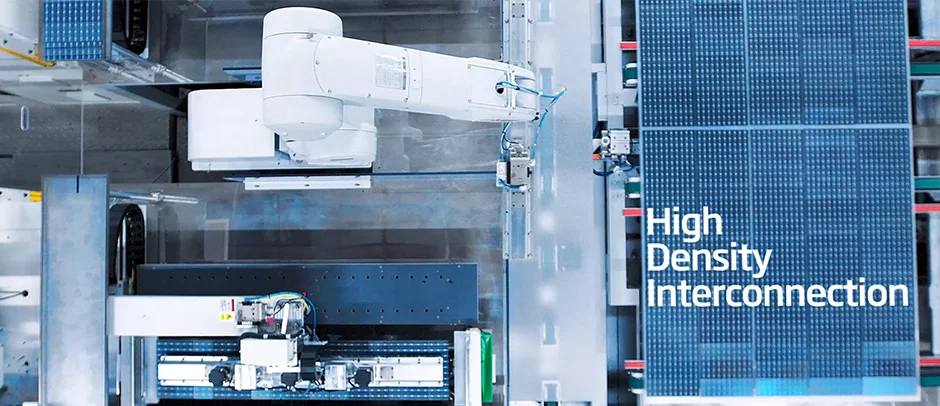

• Up to 445W, 22.3% module efficiency with high density interconnect technology
• Reduce installation cost with higher power bin and efficiency
• Boost performance in warm weather with low temperature coefficient and operating temperature
• Reduce installation cost with higher power bin and efficiency
• Boost performance in warm weather with low temperature coefficient and operating temperature

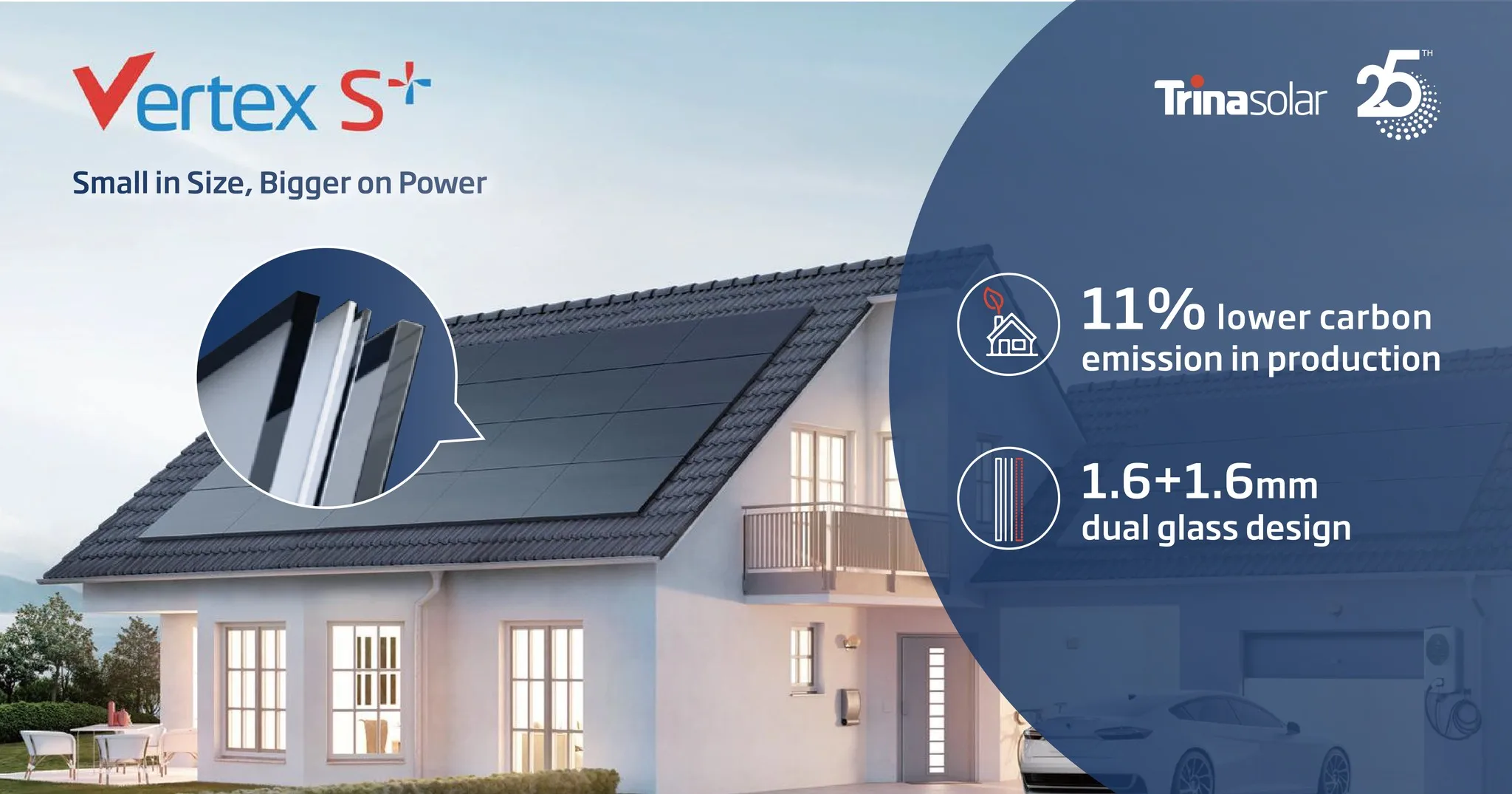

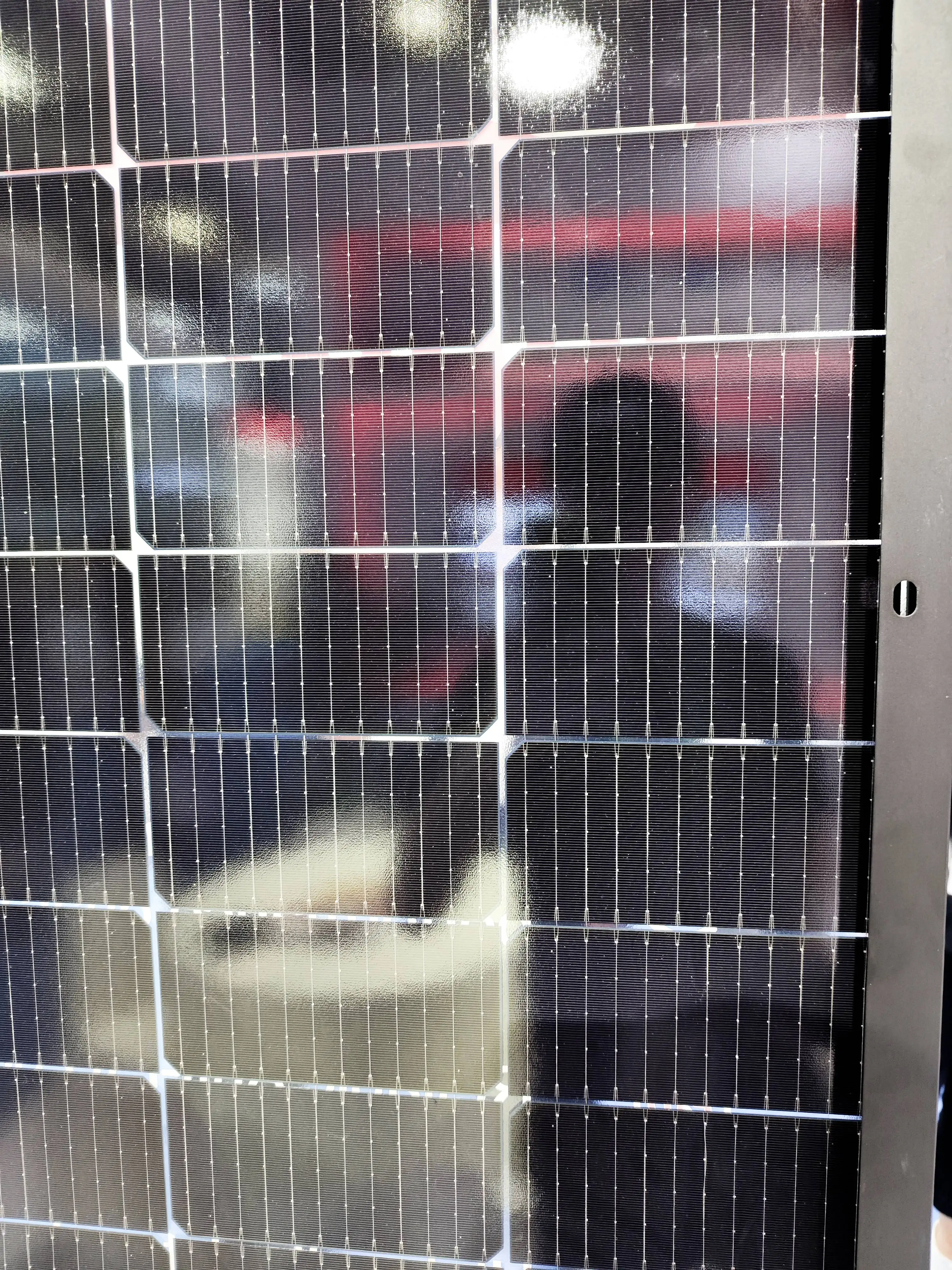

Transparent Dual-glass Design
· Transparent design with aesthetics appearance,3.2% transparency
• Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
• Excellent fire rating, weather resistance,salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature,humidity area and harsh environment
• Excellent fire rating, weather resistance,salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature,humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
• First-year degradation 1 % and annual degradation at 0.4%
• Up to 25 years product warranty and 30 years power warranty
• Up to 25 years product warranty and 30 years power warranty

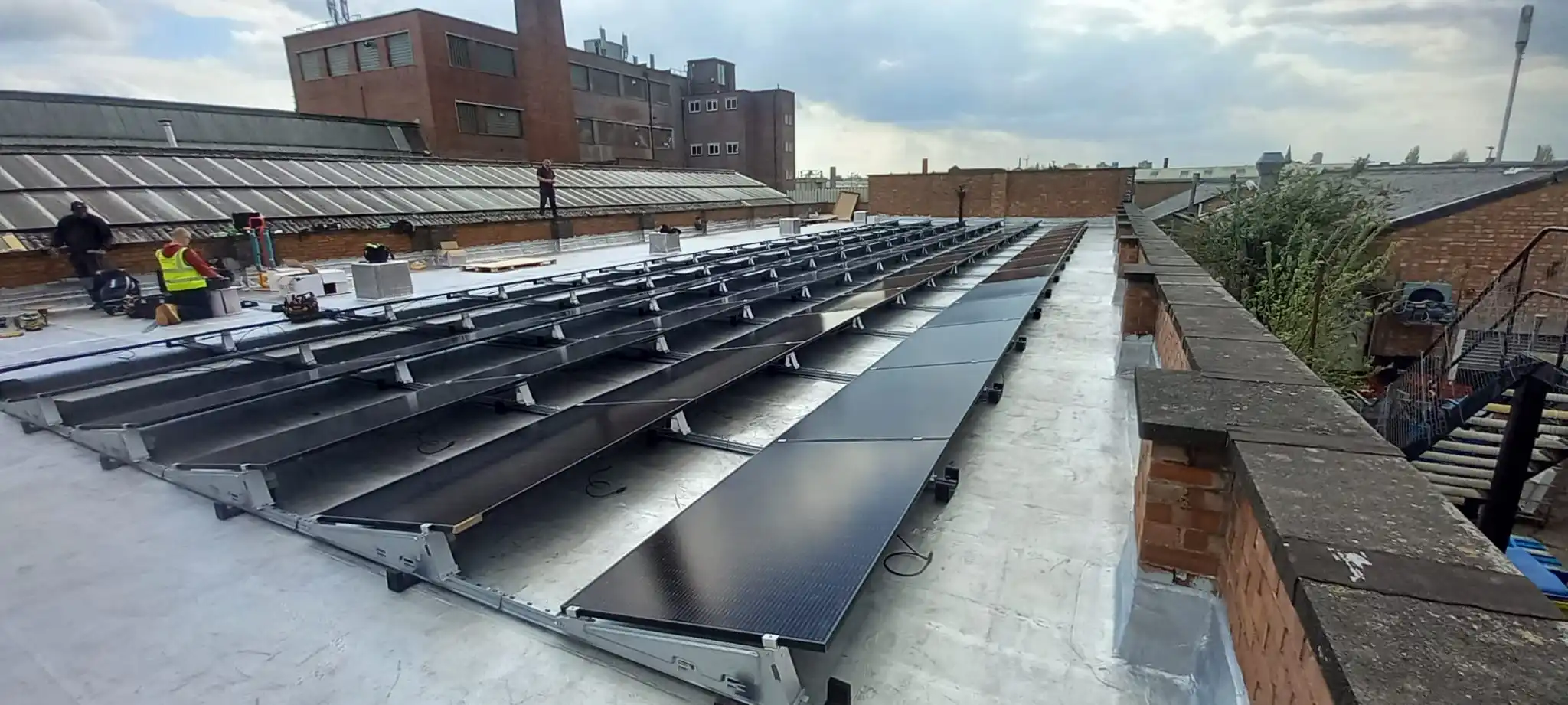

Universal solution for residential and C&I rooftops
• Easy for integration,designed for compatibility with existing mainstream inverters and diverse mounting systems
• Perfect size and low weight for handling and installation
• Most valuable solution on low load capacity rooftops (weight similar to backsheet version)
• Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load
• Perfect size and low weight for handling and installation
• Most valuable solution on low load capacity rooftops (weight similar to backsheet version)
• Mechanical performance up to 5400 Pa positive load and 4000 Pa negative load

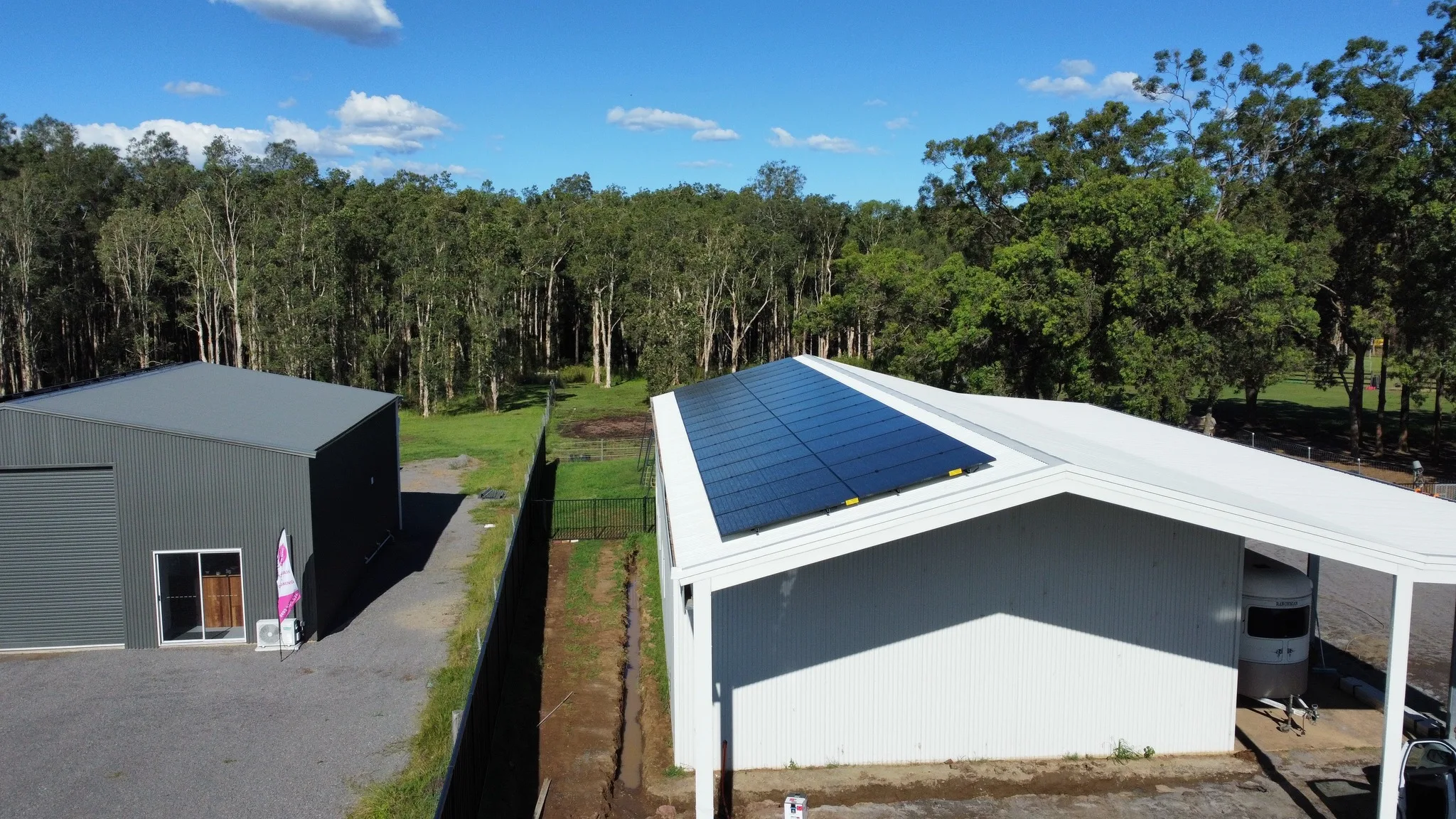

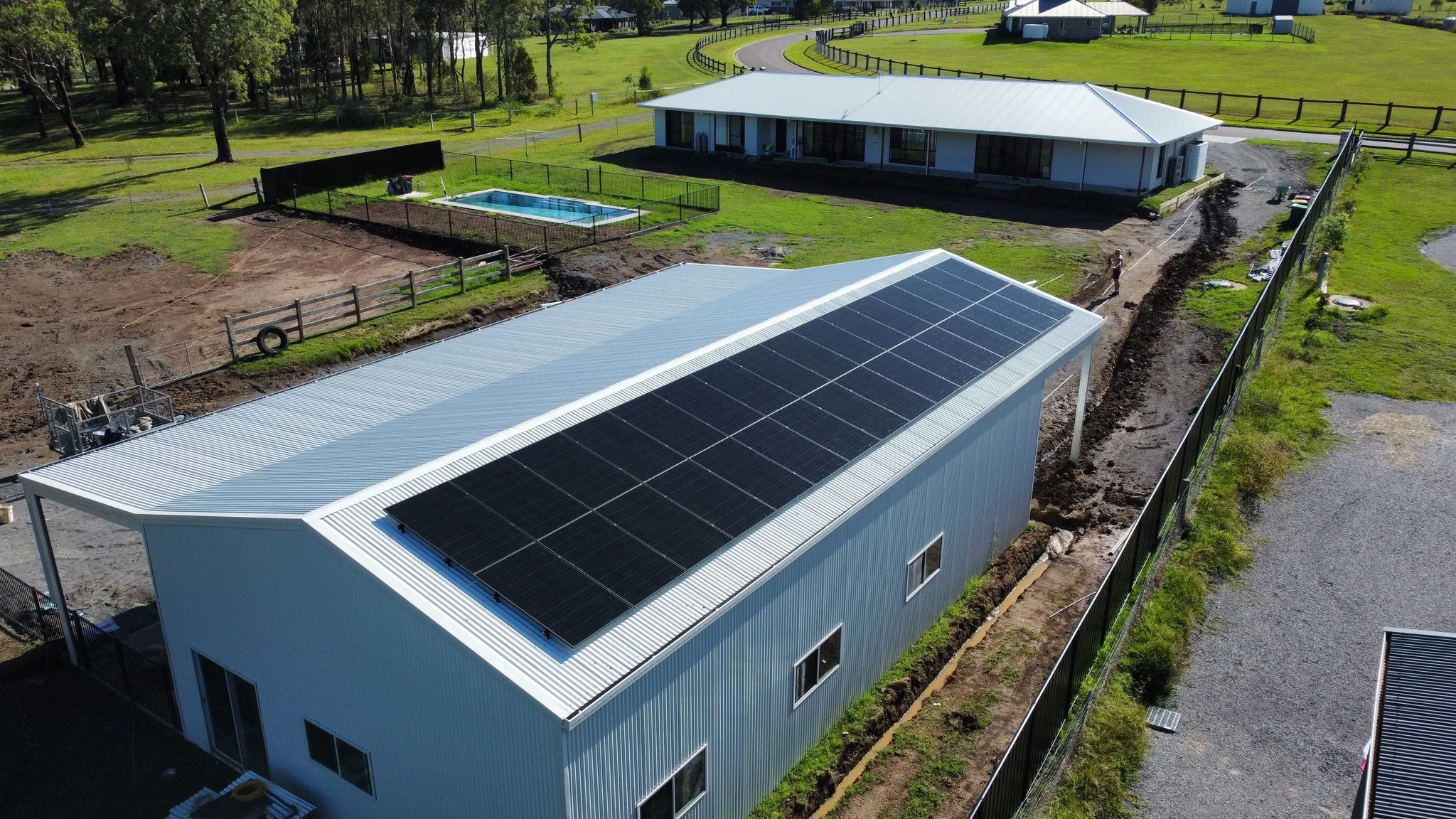

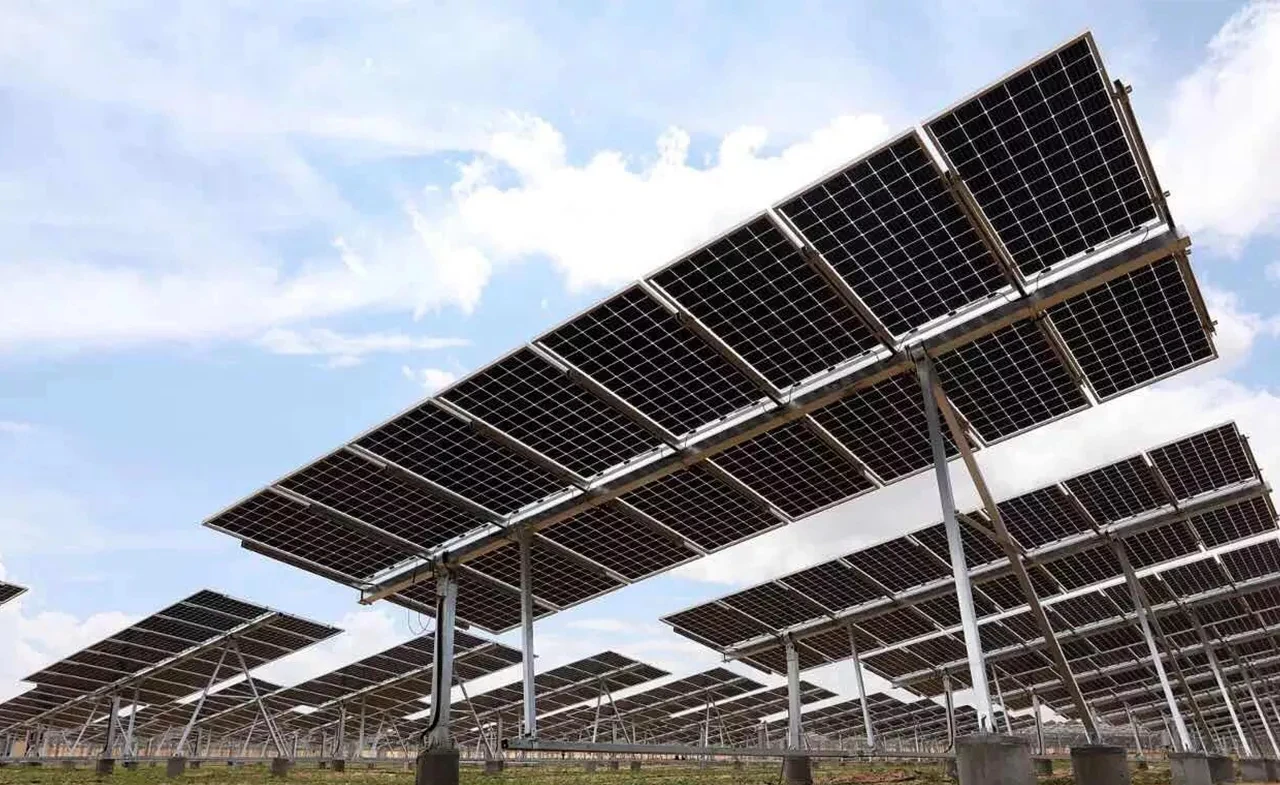

Application Areas
Details
Why Choose Trina Vertex S+
Smaller panels, bigger power generation for residential solar. The first ultra-high power module type specifically designed for residential applications, the Vertex S+ module series provides unparalleled value, aesthetics, and reliability for homeowners while offering layout flexibility, several mounting options, and widespread component compatibility for installers.
Trina Technology
The latest panel in the Trina lineup is the new Vertex S+ which is by far the most advanced and most efficient panel produced by the company. The panels feature a maximum power rating of 450W and a maximum efficiency of 22.5%, which is on par with some of the most efficient solar panels available. To achieve such high power and efficiency in a compact-sized panel, Trina used their latest N-Type TOPCon cell technology (named PACO) along with high-density cells and multi-busbars. Surprisingly, Trina packaged the Vertex S+ panels in a new dual-glass design to increase lifespan.
The Vertex S+ is also the first panel from Trina Solar to be backed by a 15-year product warranty and a 30-year performance warranty, thanks to the lower degradation rate of the high-purity N-type cell substrate. The first-year degradation is 1%, followed by a minimal 0.4% degradation every other year until year 30. This guarantees at least 87.4% power output after 30 years of use.

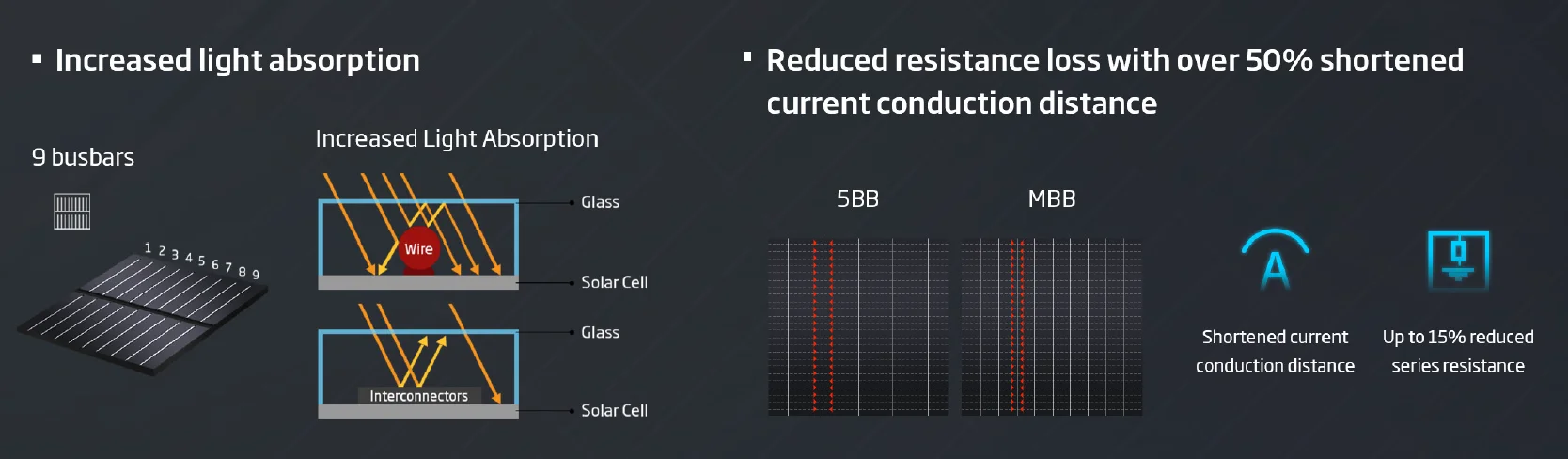

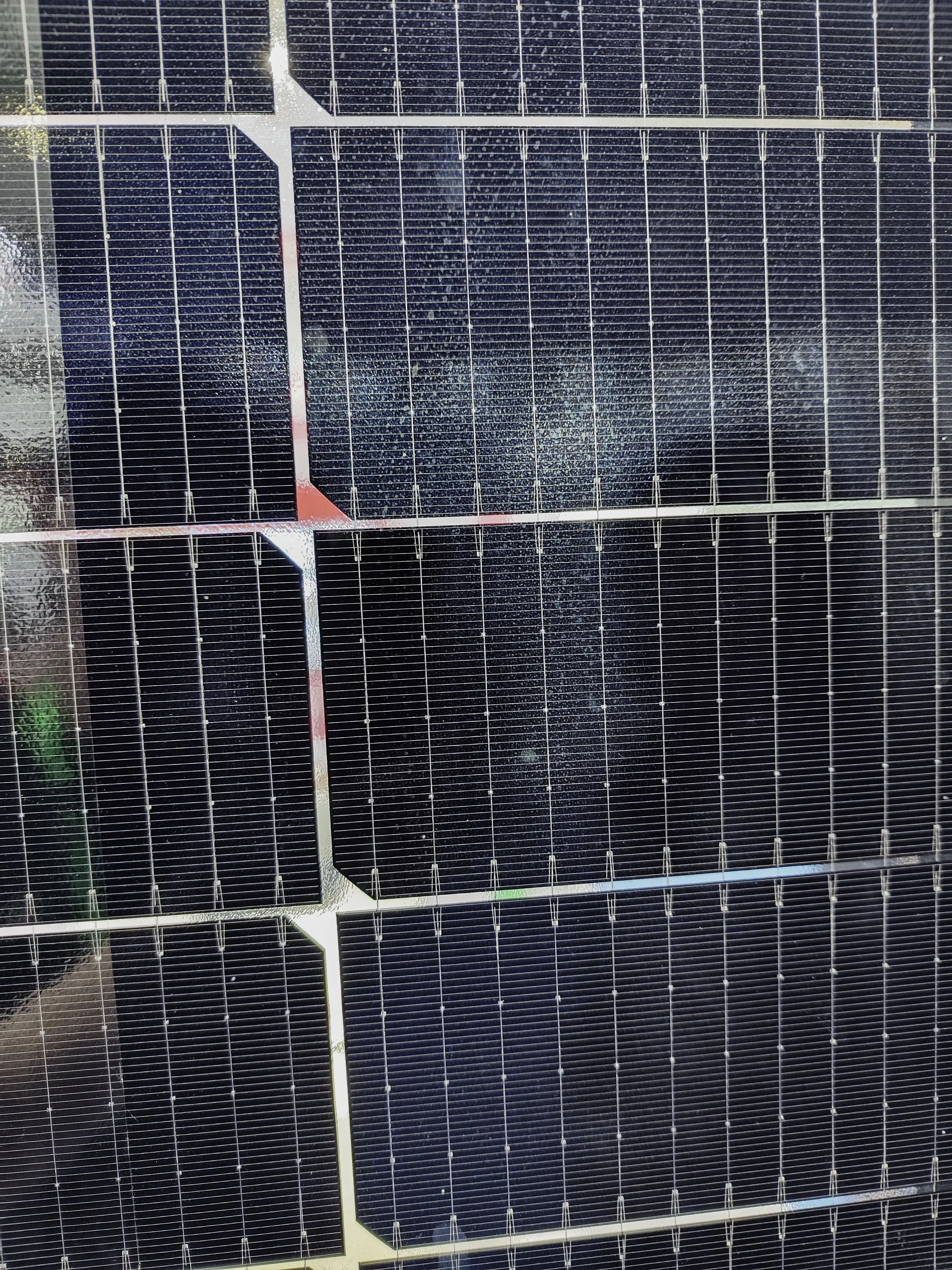

Trina's Multi-busbar Technology
In comparison with the conventional 5 busbar design, the innovative multi-busbar design on the cell can shorten the current collection transverse path by 50% and thereby reduce remarkably the cell internal resistance, which contributes a 1% - 1.5% increase in the power output compared with 5 busbar design.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
The MBB design can also mitigate the performance loss caused by blocked electrical pathways in case of cell microcracks and finger electrode erosion due to external factors.
If you want to know more information including detailed STC&NOCT electrical data, warranty, after-sale service, payment terms, discount, shipping cost, etc. Please feel free to send us an inquiry！
Certificate
Certiticate of Conformity
Declaration of Conformity
SGS
TUV
TUV
ISO

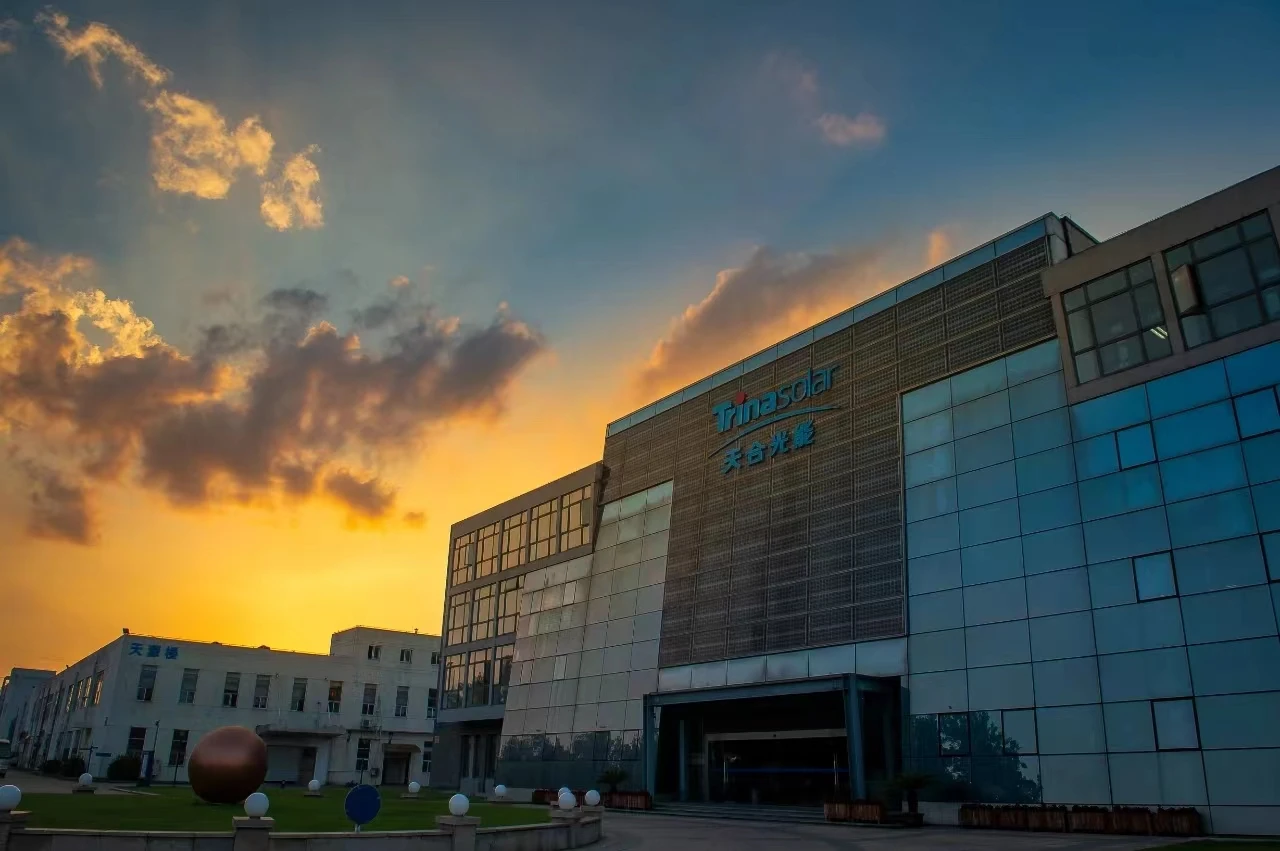

Company Profile
Trina Super Factory
Trina Solar has recently built three Vertex Super Factories in Yiwu, Zhejiang, as well as Suqian and Yancheng in Jiangsu, China. By the end of 2020, Trina Solar will see its 210mm Vertex module production capacity exceeding 22GW, and will further shoot over 50GW in 2021 across the global.
Super Factory
Super Technologies Low voltage, high-string-power design Multi-busbar technology with precision in millimeters.

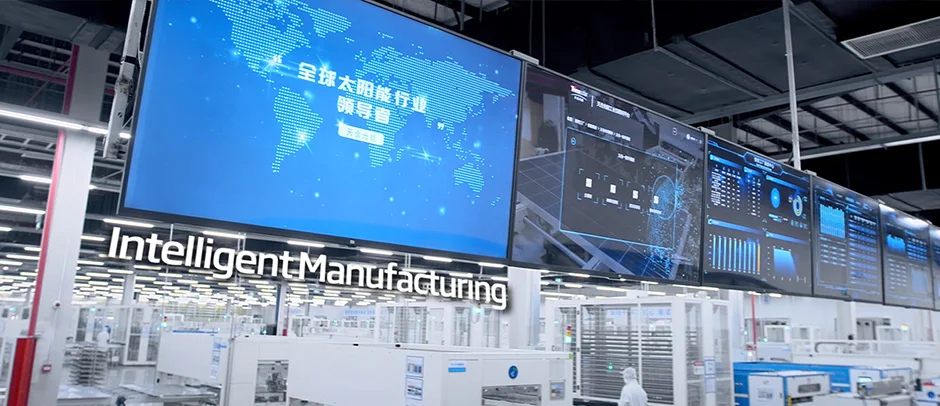

Super Factory, Super Intelligence, High Level of Automation and Highly Efficient Productivity
Sharing Data with Customers for Smart Manufacture in the 600W+ era
Sharing Data with Customers for Smart Manufacture in the 600W+ era
HOCHEY-Trina's Distributor
We catch products for customers directly from Trina original factories. No fakes, no fraud. We make sure everything provided with customers is 100% guaranteed genuine, original, authentic and traceable.

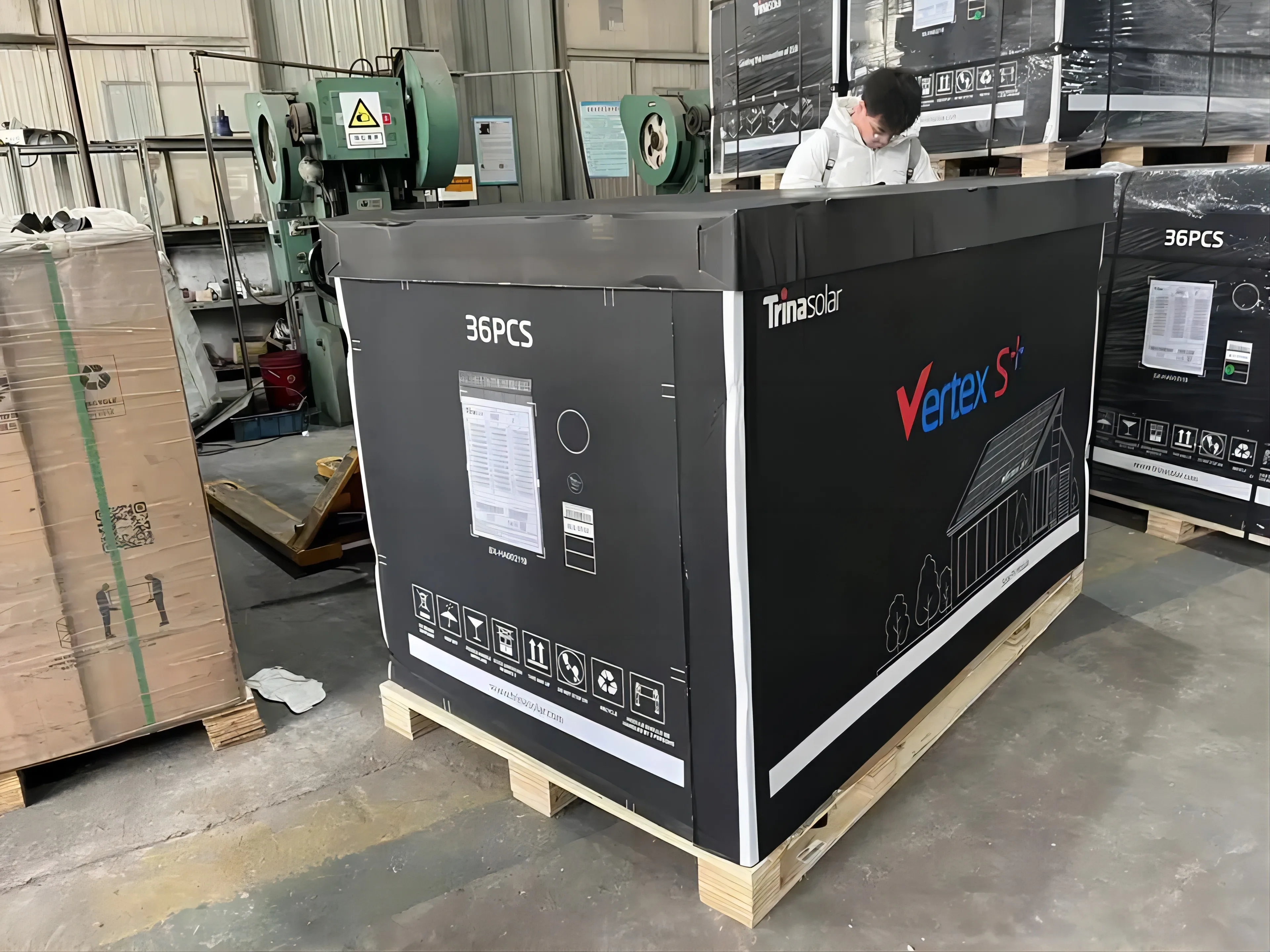

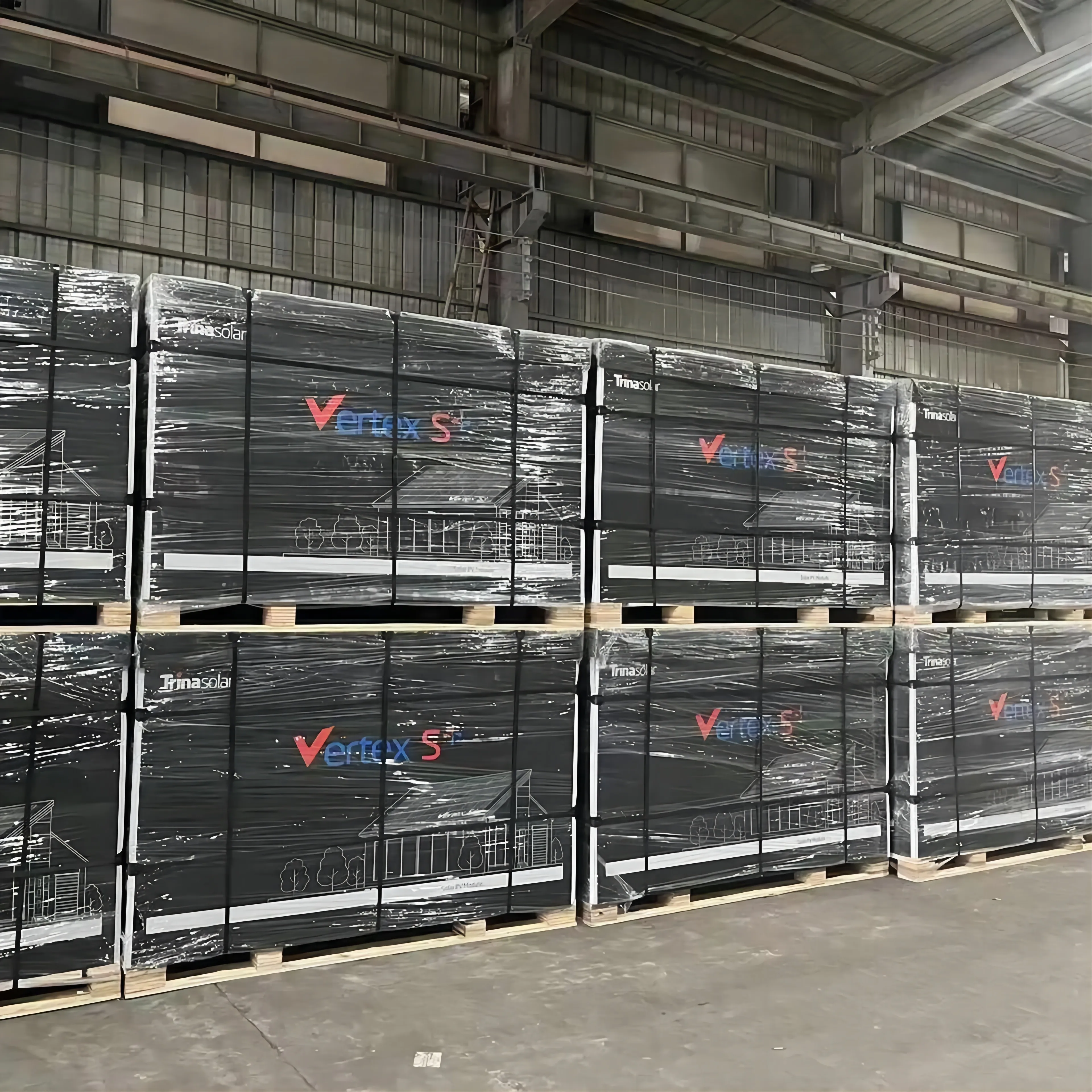

Packing&Shipping
FAQ
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,TUV, ROHS,ISO?
A: Yes,our products are approved by CE, TUV, ROHS,ISO
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carefully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 working days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depends on the quantity of order.
Q: What is your Minimum order?
A: There's no minimum quantity
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,TUV, ROHS,ISO?
A: Yes,our products are approved by CE, TUV, ROHS,ISO
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carefully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 working days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 10-30 days,It depends on the quantity of order.
Q: What is your Minimum order?
A: There's no minimum quantity
Q:Why choose us?
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing and service available in 24 hours
A: 1. Ready To Ship 2. Sample Available
3. One-Stop Service 4. Online customization
5. Many years' experiences of manufacturing and service available in 24 hours
