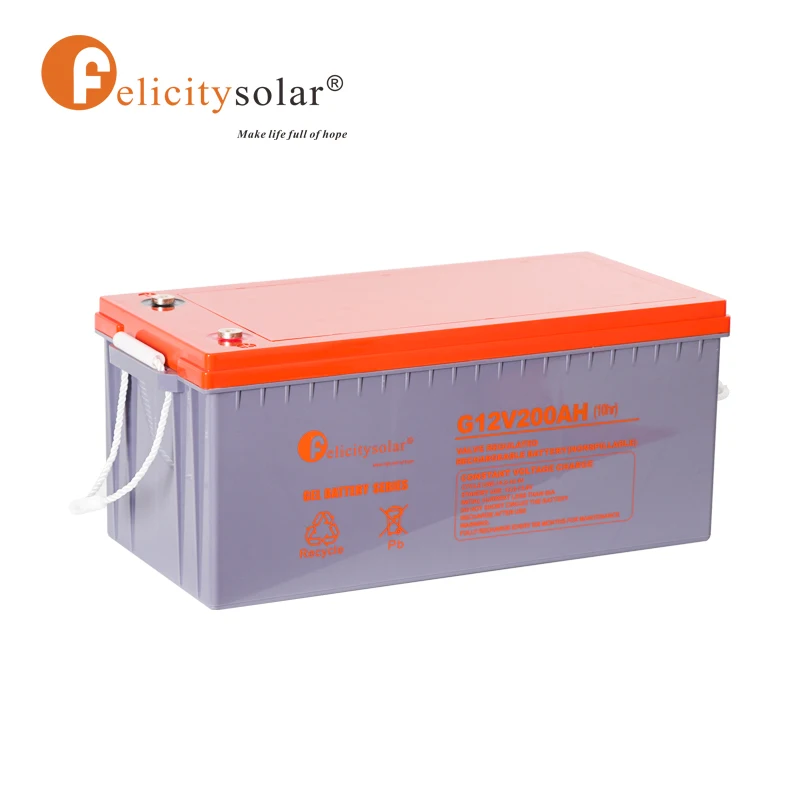

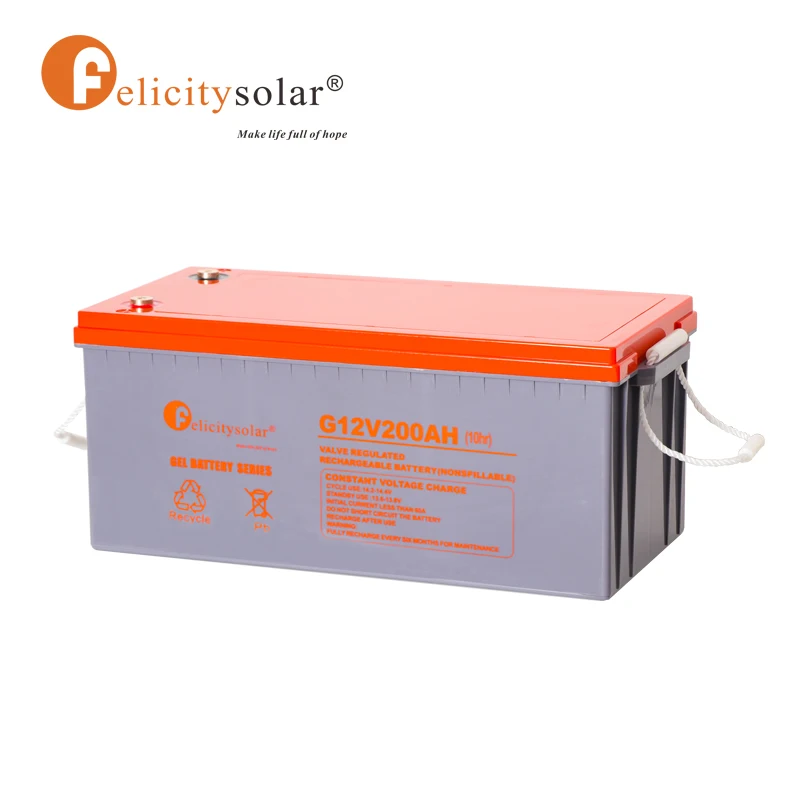

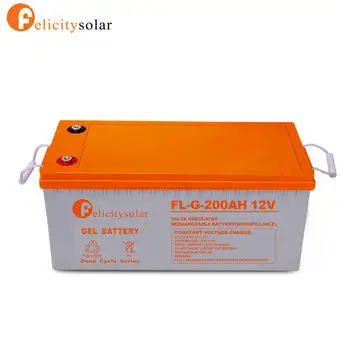

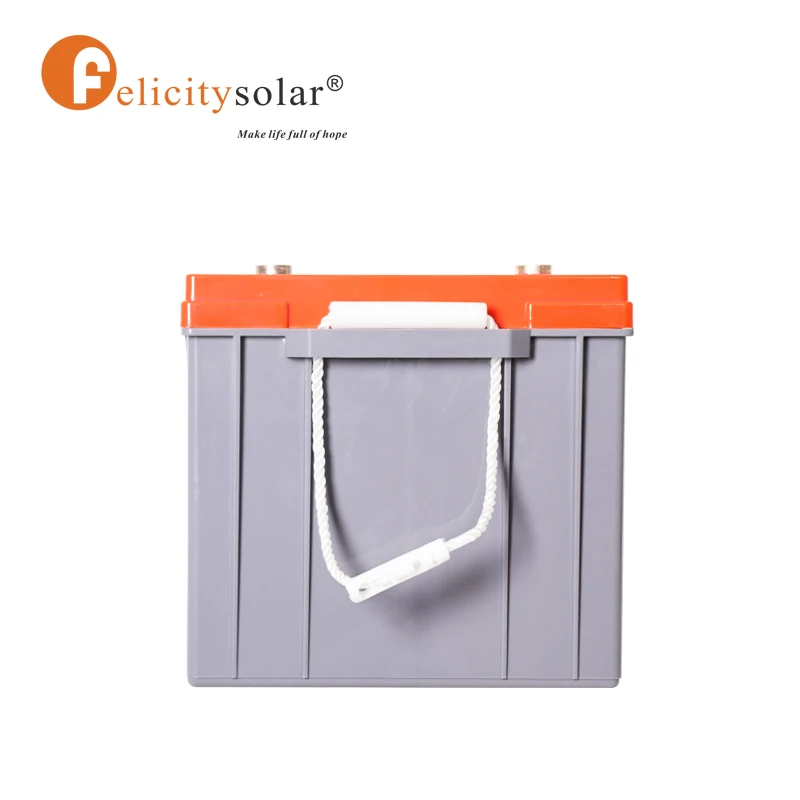

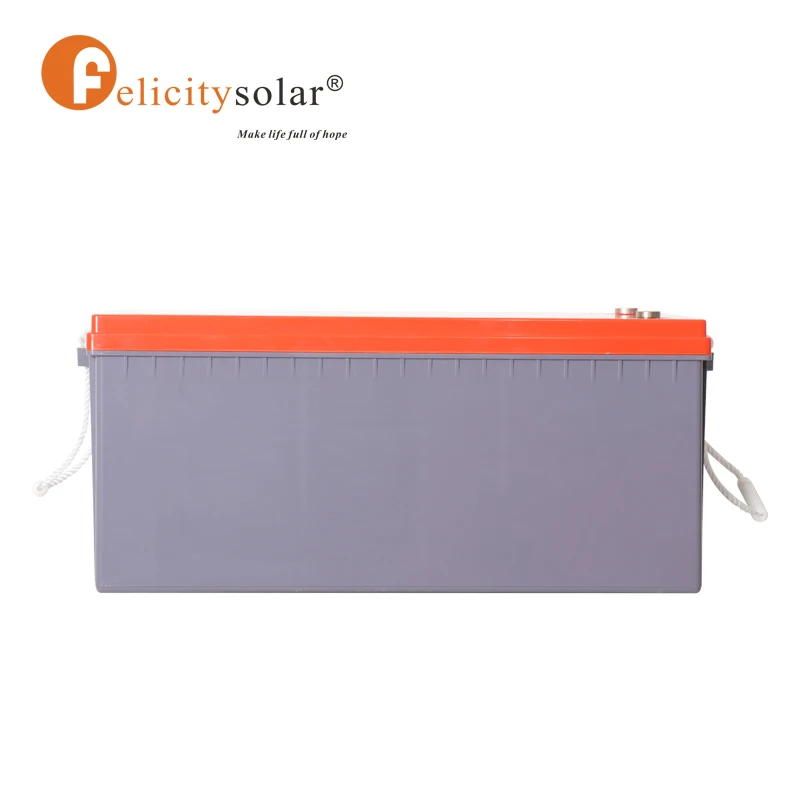

Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications
Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications

Deep Cycle Agm Gel Cell Battery 12V 100Ah 150Ah 200Ah Batteries Specifications

Share on (1601026344381):


Price:$80.00

Quantity:


Product Overview

Description





Model
G-12V 70AH
G-12V 100AH
G-12V 150AH
G-12V 200AH
G-12V 250AH
Cels Per Unit
6
Voltage Per Unit
12
Capacity
70Ah@10hr-rate to
1.80V per cell@25℃
100Ah@10hr-rate to
1.80V per cell@25℃
150Ah@10hr-rate to
1.80V per cell@25℃
200Ah@10hr-rate to
1.80V per cell@25℃
250Ah@10hr-rate to
1.80V per cell@25℃
Weight
21.5KG
32.8KG
44KG
61.5KG
72.5KG
Max.Discharge Current
700A(5 sec)
1000A(5 sec)
1500A(5 sec)
2000A(5 sec)
2500A(5 sec)
Intemal Resistance
Approx.5.8m
Approx.5m
Approx.4.2m
Approx.4 m
Approx.3.8m
Recommended
Maximum Charging
21A
30A
45A
60A
75A
Operating Temperature
Range
Discharge:-20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating
Temperature Range
25℃±5℃
Float charging Voltage
13.6 to 13.8V DC/unit Average at 25℃
Equalization and
Cycle Service
14.4to 14.6V DC/unit Average at 25C
Self Discharge
GEL batteries can be stored for more than 6 months at 25℃.
Self-discharge ratio less than 3%per month at 25'C.Please
charge batteries before using.
Size
260x169x210MM
330x171x218MM
484x241x170MM
522x219x240MM
520x268x220MM


Features
1. Solve electrolyte stratification,sulfuric acid evenly distributed.
2. Deeper discharge of the silica gel electrolyte lead-acid batteries extends the cycle life of the battery greatly
3. Smaller charging current (about 1/3 of AGM battery) leads to lower energy consumption and less warming.
4. Lower self-discharge rate


To become a distributor or agent of Felicitysolar, please contact us！！！
We can ship from over 25 overseas warehouses in the United States, the European Union, Nigeria, South Africa, the Philippines,Myanmar, Dubai, Mali... and provide fast transportation services. If you need it, please click here to contact us directly.









Felicitysolar guarantee TOP quaity for you！

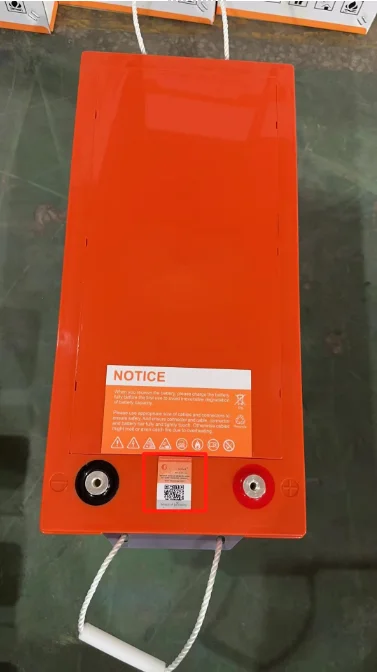

100% genuine high quality A-grade Lifepo4 battery with factory QR code on it. Not fake or used or bad quality battery!!!



We will test the voltage, internal resistance, and capacity of all batteries before delivery, and provide you with real-time updates through pictures or videos. This service does not require additional fees.






The headquarters has gathered over 100 senior experts and professional technical talents in the field of new energy,Responsible for product technical architecture design, development framework construction, performance analysis and optimization, etc To ensure timely provision of technologically innovative and forward-looking products, please rest assured to cooperate with Felicity Solar!!!

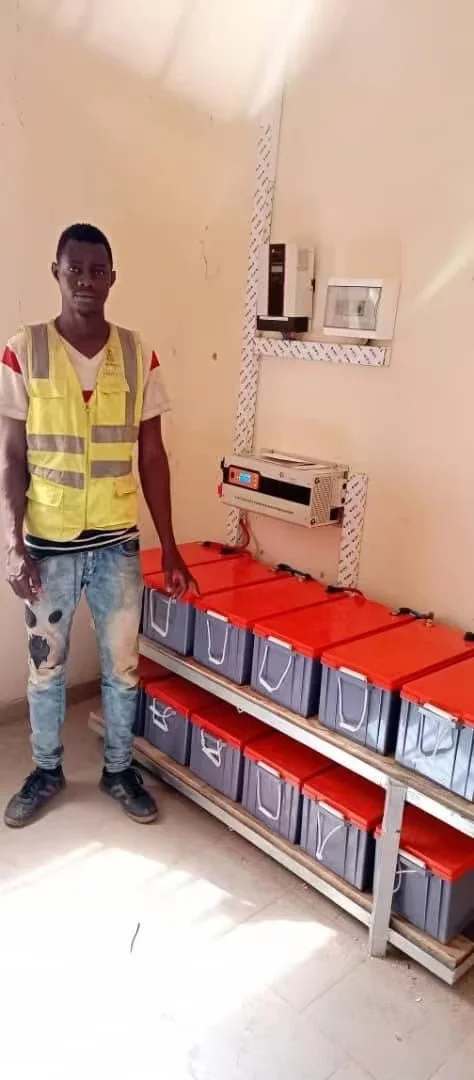

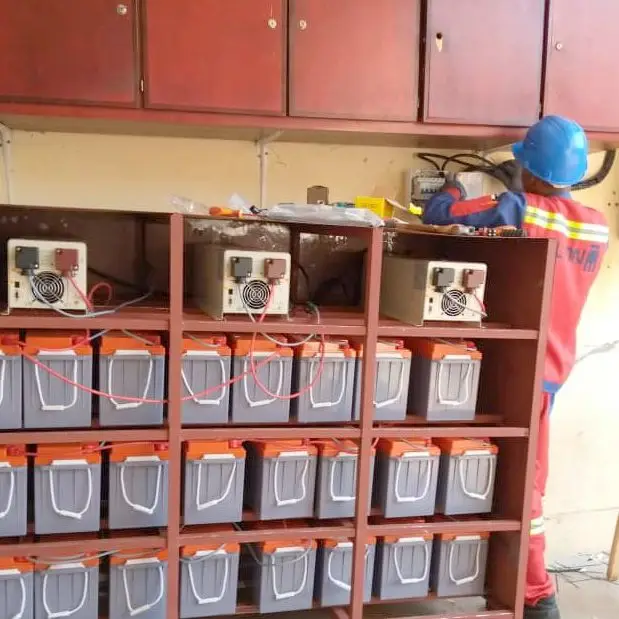

Many customers have used Felicitysolar batteries and received good feedback:







Felicitysolar can provide a complete set of testing reports from the National Quality Supervision and Inspection Center for the renewable energy industry: UN38.3, MSDC, CE, CB, VDE, G99, EMC, ROHS, hazardous packaging certificate... Please rest assured to purchase!








Felicity solar lithium battery can be matched with multiple brands of inverters through 485 and CAN communication, providing you with more options. Regarding connection, please contact us if you have any questions.






Felicitysolar have participated in over 100 exhibitions in different countries:RE+ Mid-Atlantic exhibition、AGS International in Syria、The Future Energy Show in Vietnam、Green Energy Fair n Myanmar、Smart Electronics Expo in Germany、SNEC Exhibition in Shanghai、Green Power Expo in Poland、Canton Fair in guangzhou、Flanders Expo in Belgium,You can directly contact us regarding exhibition issues.







Felicity solar is the best supplier for you:
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.

*OEM/ODM services are acceptable. We can customize products according to your requirements, ensuring 100% of the quality you expect.

*Provide fast transportation services. There are over 25 warehouses in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.

*High quality local after-sales service. If there is a problem with the product, we have professional after-sales technical engineers in 25 countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.

*Alibaba TUV Verified Supplier. Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009

If you are interested in our products or services, please come to contact us immediately！
