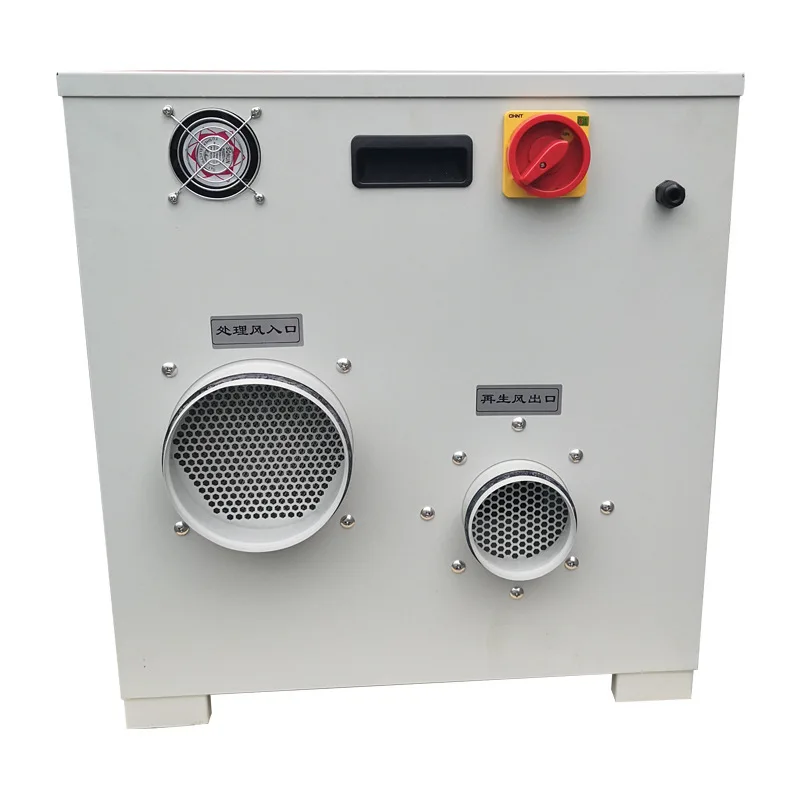

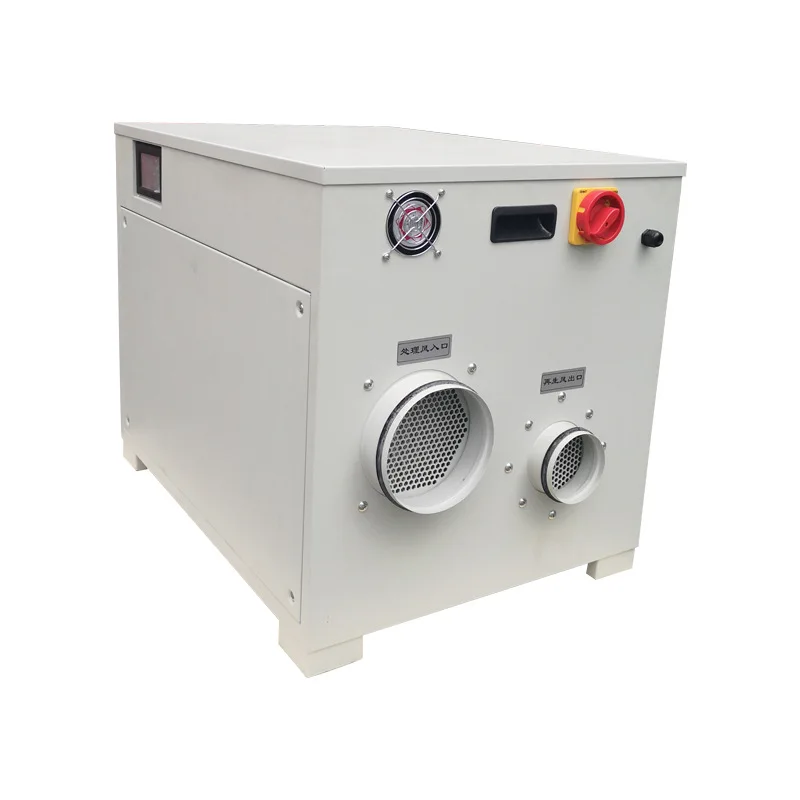

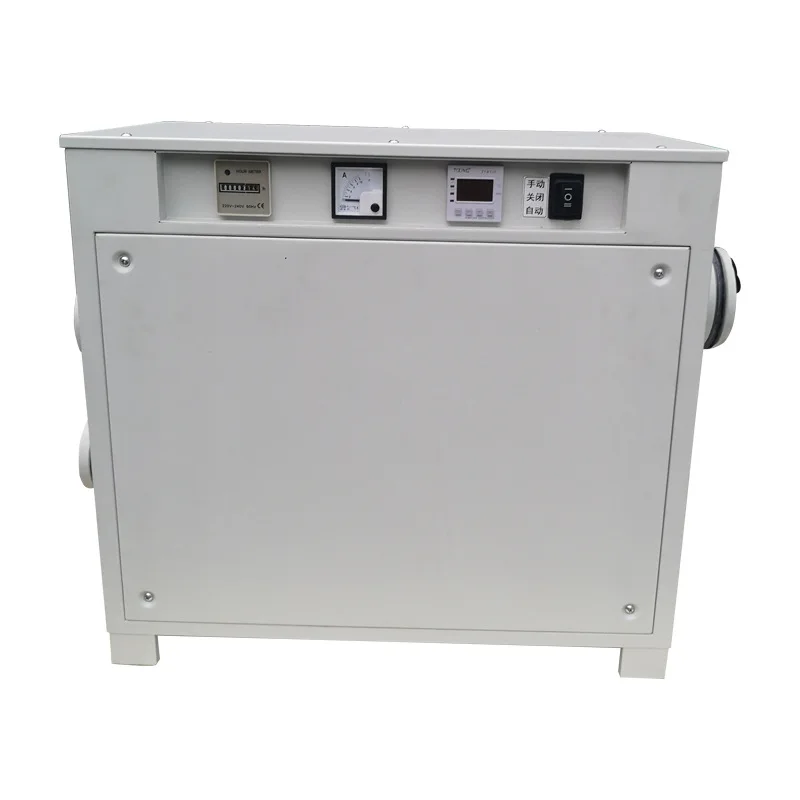

power distribution room Small desiccant dehumidifier
power distribution room Small desiccant dehumidifier
power distribution room Small desiccant dehumidifier
power distribution room Small desiccant dehumidifier
power distribution room Small desiccant dehumidifier
power distribution room Small desiccant dehumidifier

power distribution room Small desiccant dehumidifier

Share on (1601026532156):


Price:$1,300.00 - $1,500.00

Quantity:


Product Overview

Description

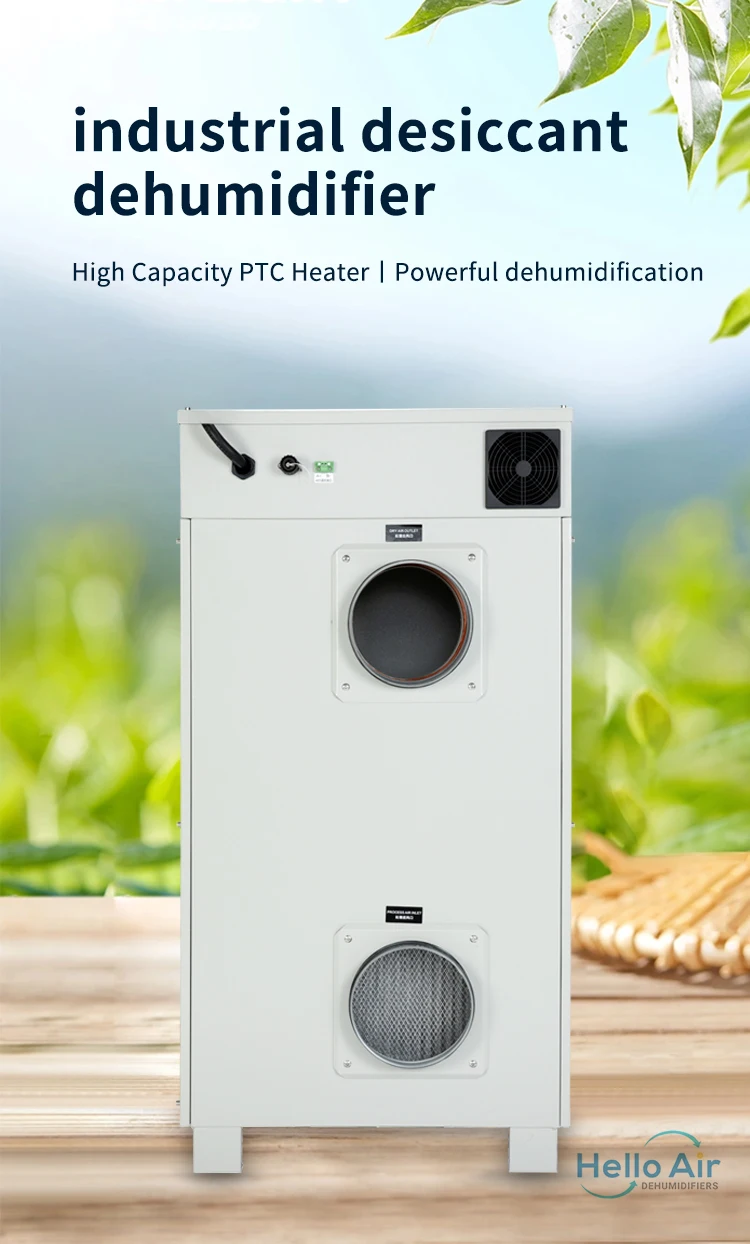

desiccant dehumidifier.jpg_02.jpg_03.jpg_04.jpg_05.jpg_06.jpg_19.jpg_07.jpg_08.jpg_09.jpg_10.jpg_11.jpg_12.jpg_13.jpg_14.jpg









The dehumidification equipment is suitable for:


• Places full of corrosive gas


• HVAC system


• Humidity of less than 35%RH


• Low dew point conditions


• Low temperatures, especially combined with low humidity


• Single pass air flow applications


• Pharmaceutical production, packaging, storage, testing and research


• Process air systems


• Photographic/film archive stores


• Pneumatic conveying of powders


• Pumping stations


• Confectionary production and packing


• Food production


• Clean rooms


• Electronic manufacture


• Cold stores


• Seed storage


• Drying & corrosion prevention inside power station turbines








































































































































Model



KCDD-2.5



KCDD-3



KCDD-3.5



Dehumidify Capacity(20°C,60%)



2.5kg/h



3kg/h



3.5kg/hr



Power supply



220-240V/60HZ



3N 220V/60HZ



3N 220V/60HZ



Process air flow



420m3/hr



600m3/hr



700m3/hr



Inlet size mm



100



125



125



Reactivation air flow



130m3/hr



200m3/hr



250m3/hr



Outlet size mm



80



80



80



Applied Temperature



 -20°C~60°C



 -20°C~60°C



 -20°C~60°C



Regeneration energy consumption



Steam KG/H



/



/



/



0.4Mpa



/



/



/



ELec.



ELec.



ELec.



ELec.



Max power



Steam



/



/



/



ELec. KW



2.3KW



4.5KW



6.4KW



Power rating



2.0KW



3.8



6



Current



10A



13



21



Application Area



40-70m2



40-80m2



90-120



Dimension



540*780*1070



540*780*1070



540*780*1070



Packing size



580*820*1130mm



580*820*1130mm



580*820*1130mm



Net weight



60kg



78kg



85KG



Gross weight



67kg



86kg



94KG



Primary Filter



G4 efficiency

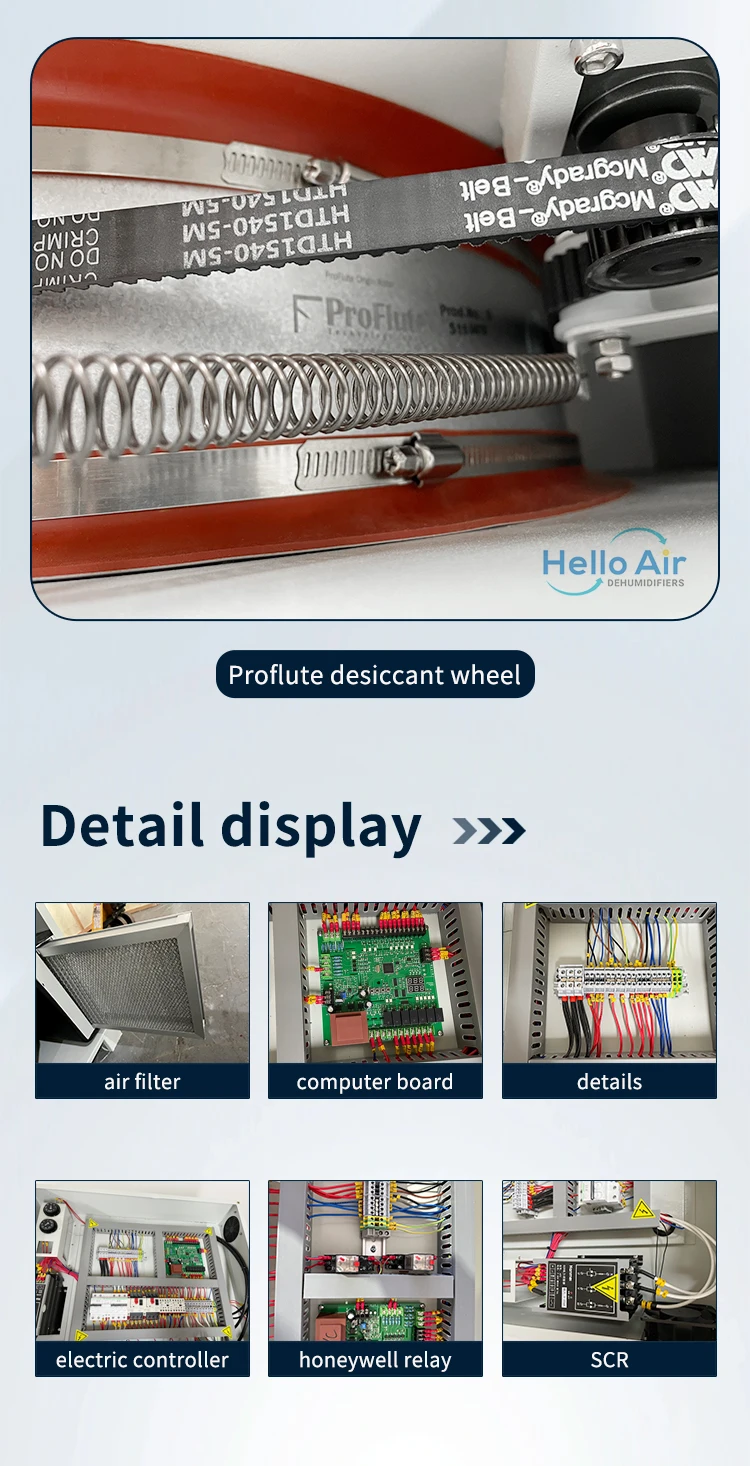

Desiccant Rotor Brand



Sweden Proflute
