UHD 4K Floor Stand Digital Signage Display Advertise LCD Android 43 55 65 Inch Wifi Software CMS Touch Screen Kiosk Totem Price
- Category: >>>
- Supplier: Shenzhen Dragonworth Technology Co. Ltd.
Share on (1601026547217):
Product Overview
Description
Products Description
UHD 4K Floor Stand Digital Signage Display Advertise LCD Android 43 55 65 Inch Wifi Software CMS Touch Screen Kiosk Totem Price
UHD 4K Floor Stand Digital Signage Display Advertise LCD Android 43 55 65 Inch Wifi Software CMS Touch Screen Kiosk Totem Price
Specification
Support OEM / ODM Infrared Touch ( Optional ),

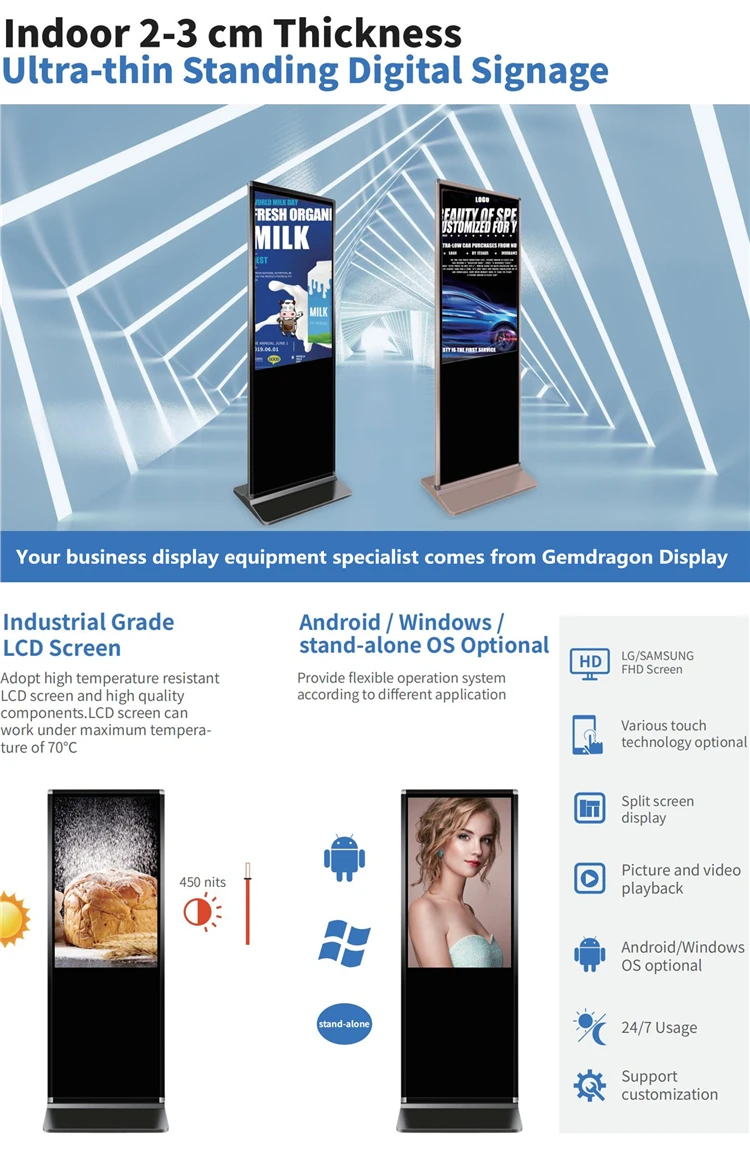

Thickness :3cm(or 2cm)

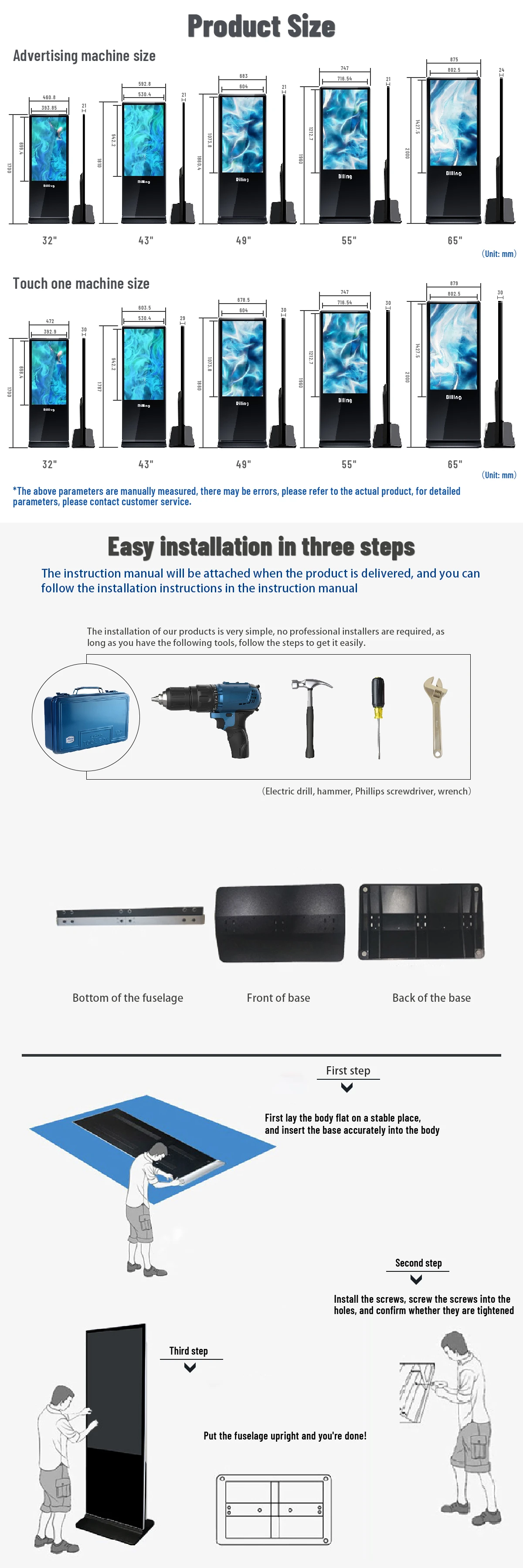

32 / 43 / 49 / 55 / 75 Inch Screen Can Support
Stand-alone / Android / Windows Version Optional

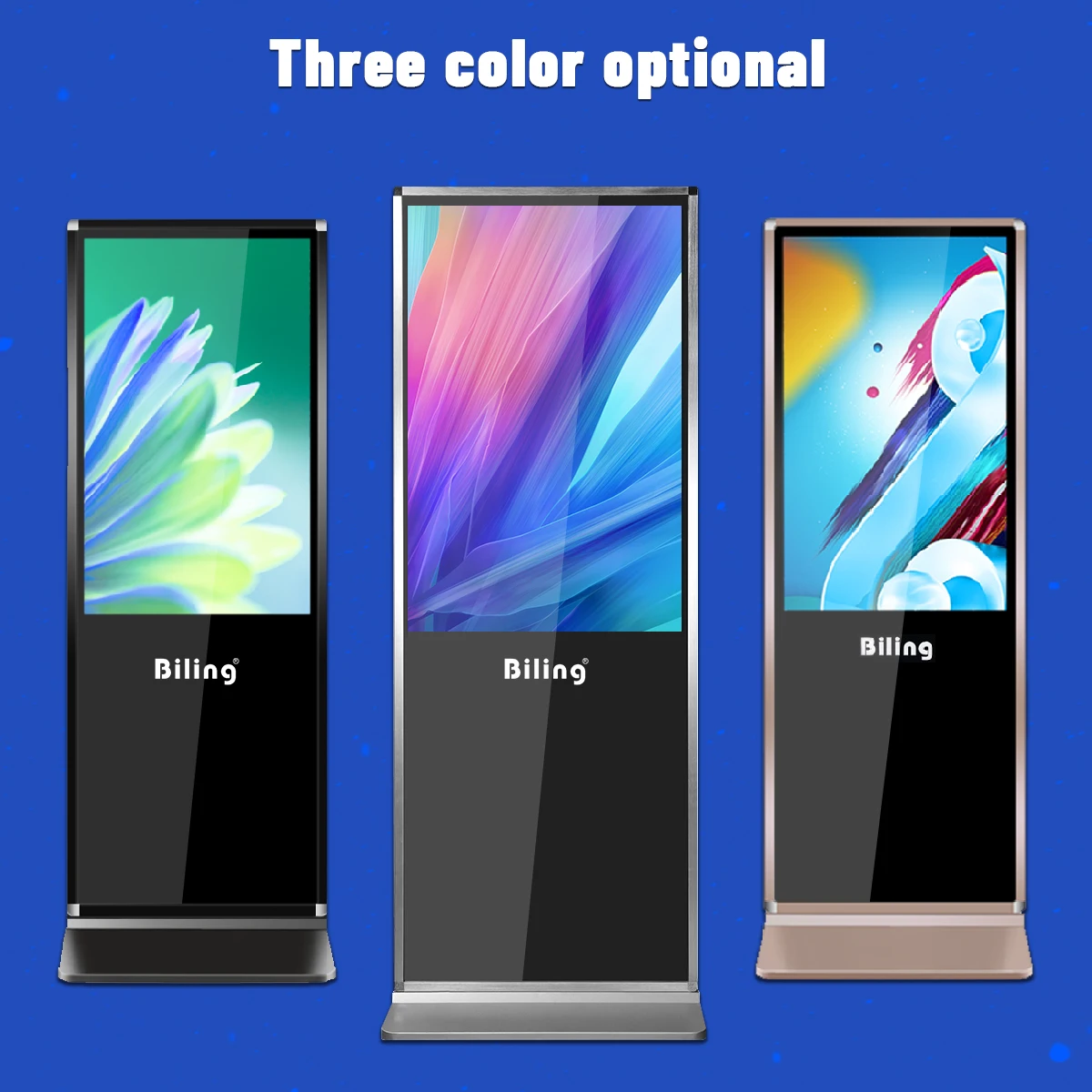

black , gold , silver ( optional )
Tips: The price of this link is the price of 32 inch super thin floor standing kiosk ( with IR touch screen )
Eg:
32 Inch super thin floor standing kiosk+ IR touch screen+New PE material Case: 253 usd/pcs
32 Inch super thin floor standing kiosk+ IR touch screen+Metal Case: 269 usd/pcs
Digital signage Material: (*New PE material Case / Metal Case Optional )
1.Hardware shell, strong and stable equipment
2. Toughened glass protective screen, explosion-proof, clear light transmittance.
3. Optional to add moving wheel, convenient machine movement.
Wifi function no touch:
interface : usb*2 + RJ45 + power switch

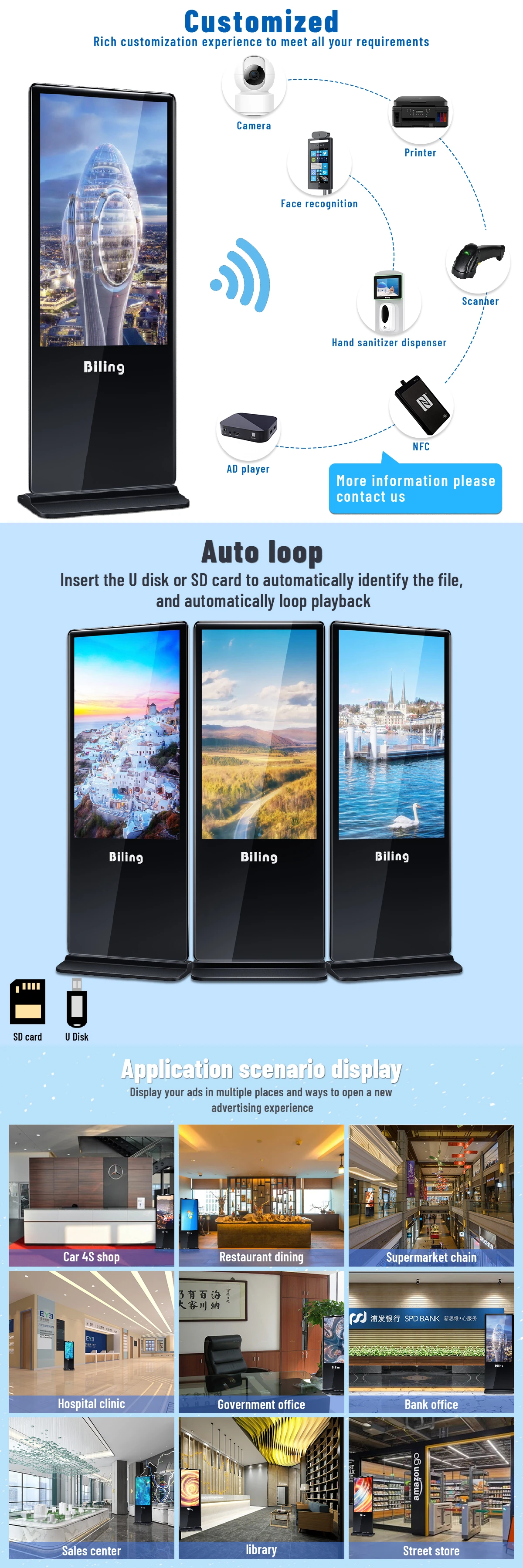

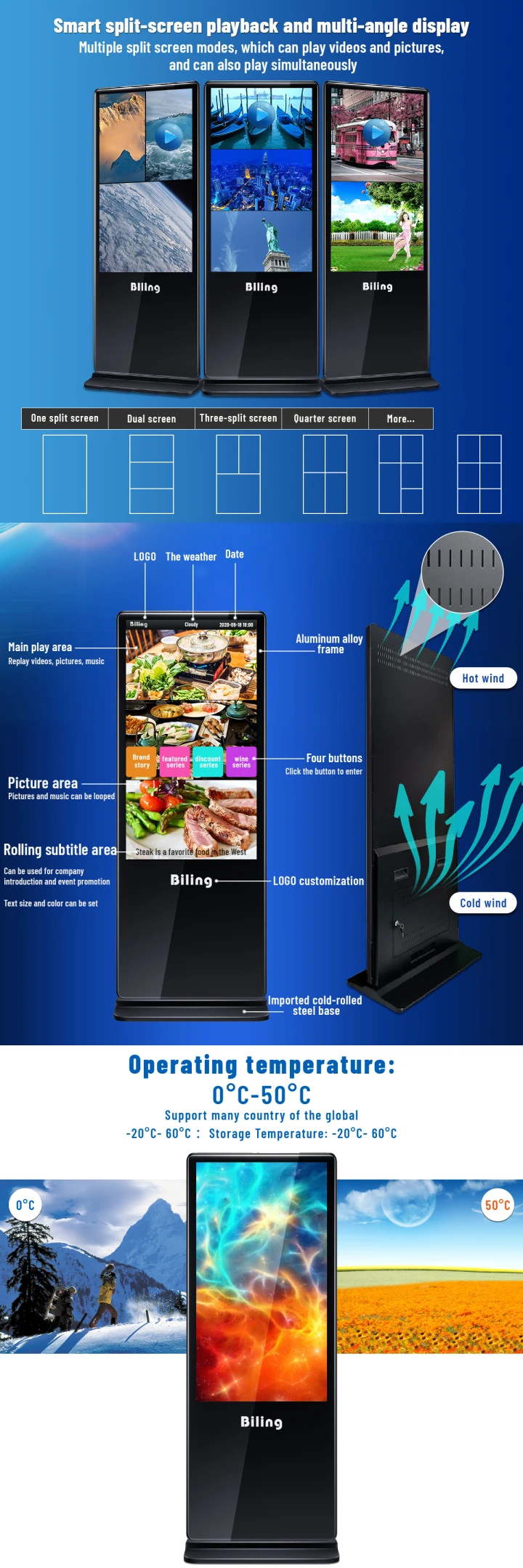

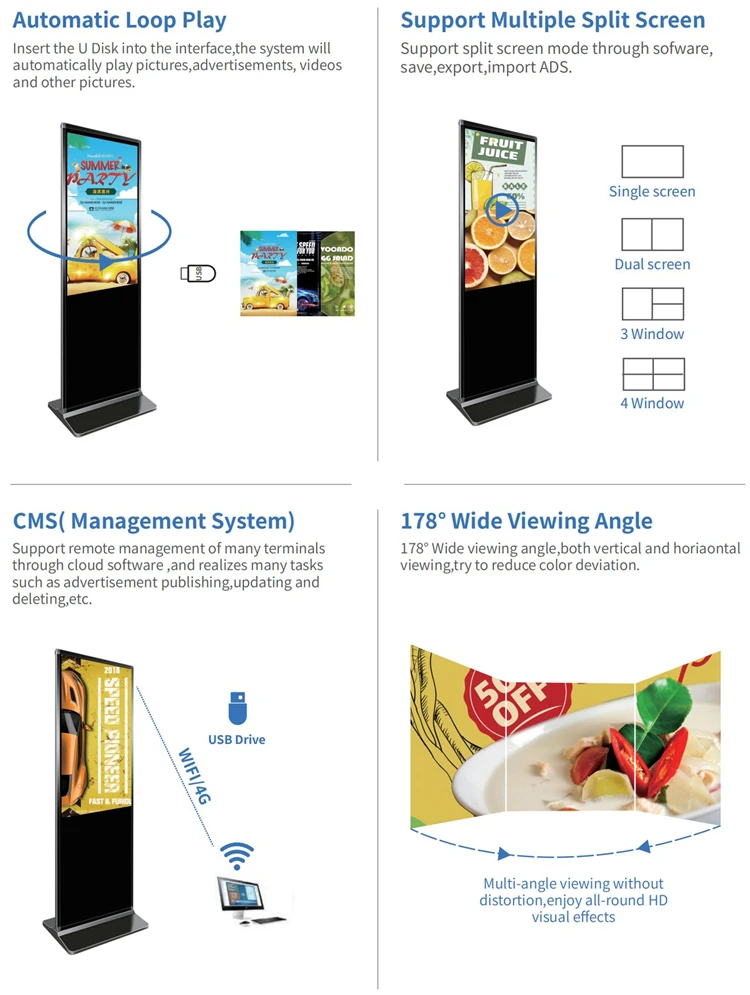

1. Support U disk playback, play pictures, videos, text scrolling, split screen playback
2.The device supports network cable connection, WiFi connection, or 4G/5G connection,

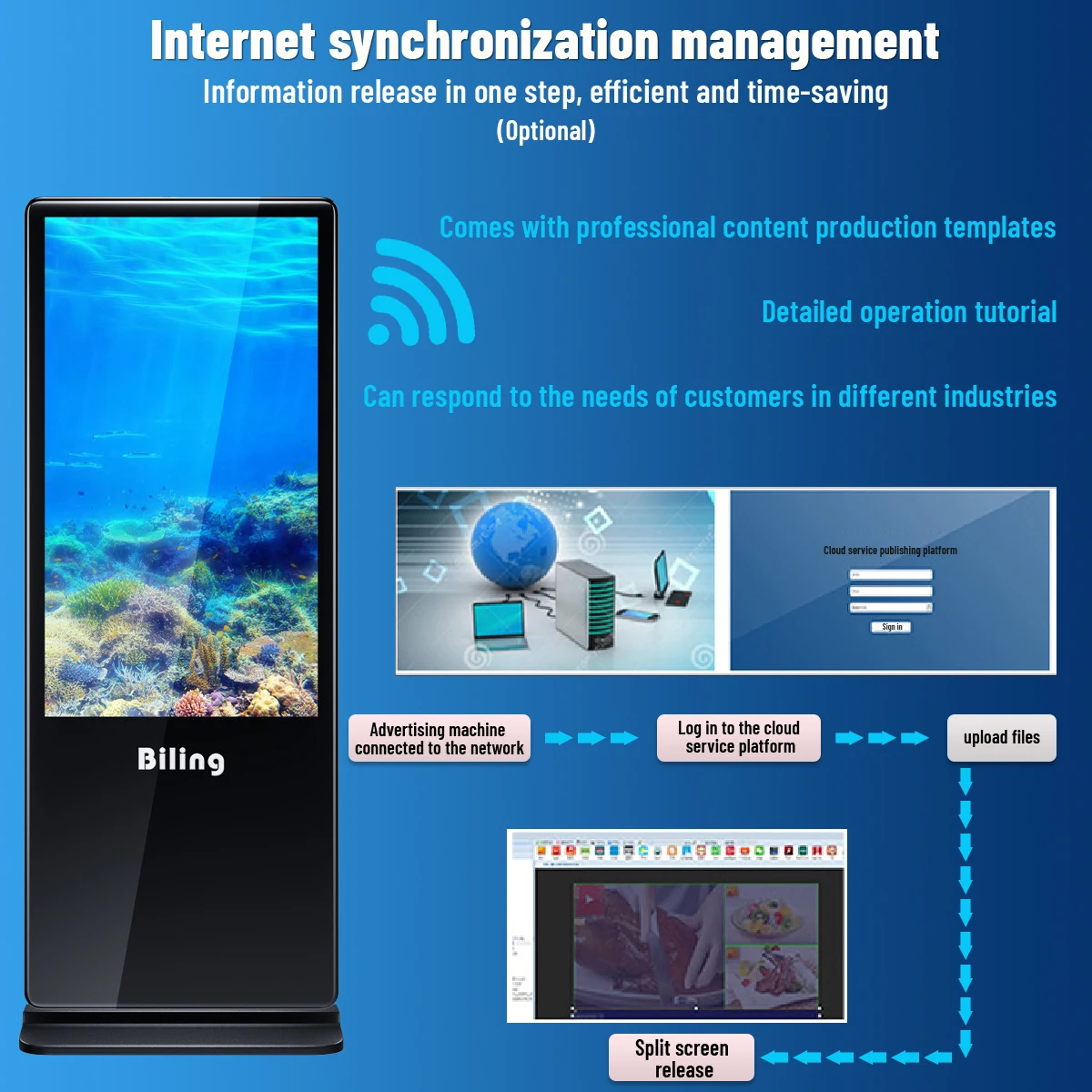

3. Remote release picture, video , website...for mobile phone/computer
4. Supports multiple periods of time automatic switching on/off function in a day.

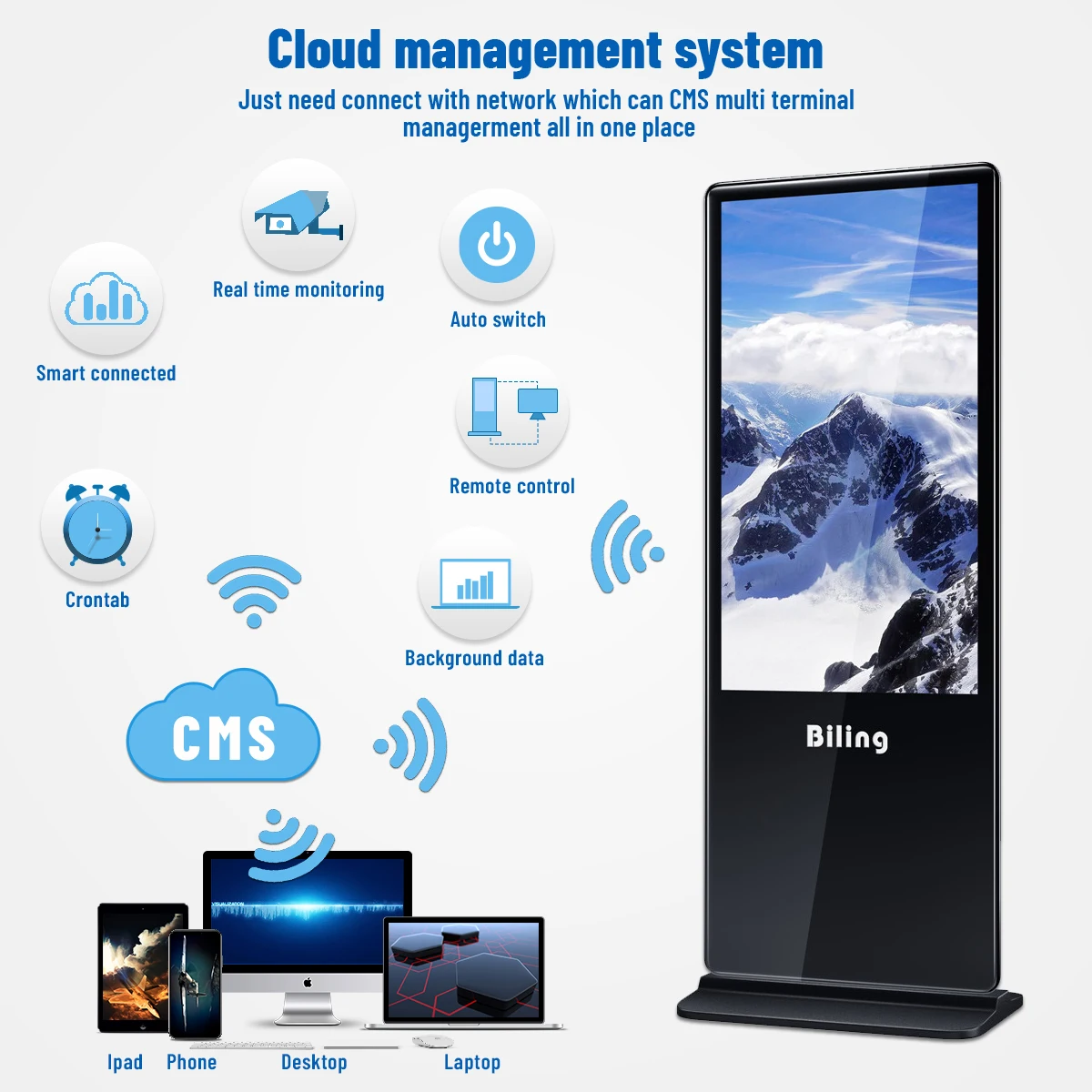

5. Provide CMS software
6.Support multi-language, and different countries of the socket
Android Touch:

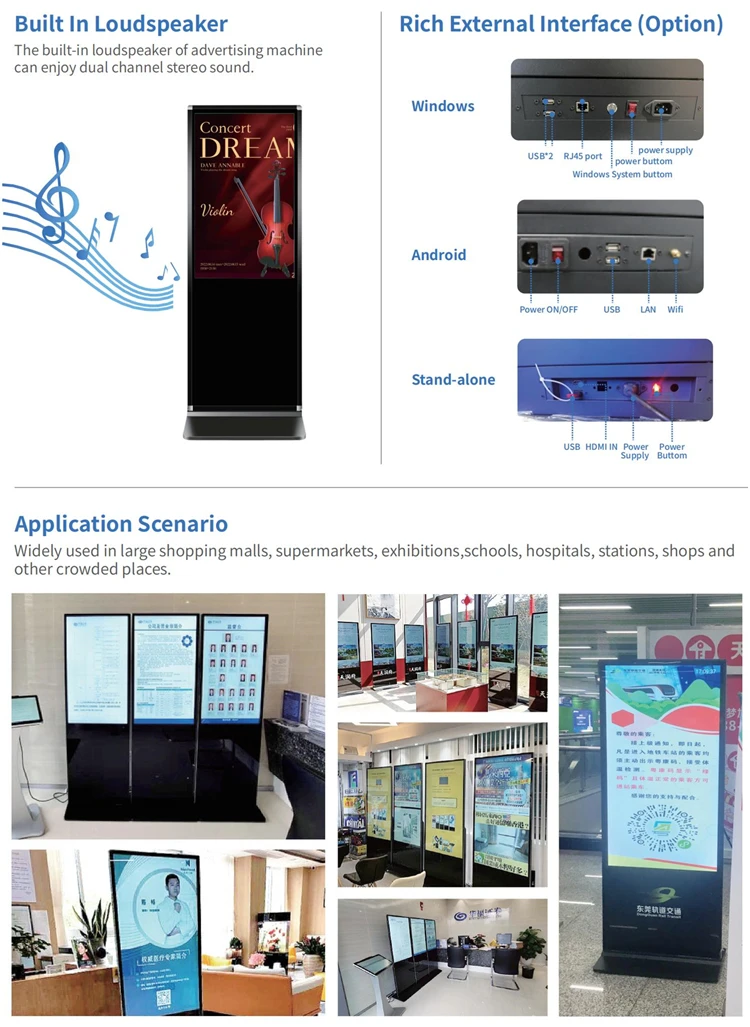

interface: usb*2 + RJ45 + power switch+DC12V+hdmi+TF+Ear phone
1. Support multi-point, ten-point touch.Can be installed App
2. Support touch to turn pictures, click to play videos, interactive touch query
3. support remote release of touch query programs and custom touch query programs
4. Supports multiple periods of time automatic switching on/off function in a day.
5. Provide CMS software ,
Windows touch:
Optional configuration N2940+4(running memory)+64(storage)
interface:usb*4 + RJ45 + power switch+DC12V+hdmi(out)*2+Audio out*1; 6.Audio in(Mic)*1
i3+4(running memory)+128(storage)
i5+4(running memory)+128(storage)
i3+8(running memory)+128(storage)
i5+8(running memory)+128(storage)
i3+8(running memory)+256(storage)
i5+8(running memory)+256(storage)
i3+8(running memory)+500(storage)
i5+8(running memory)+500(storage)

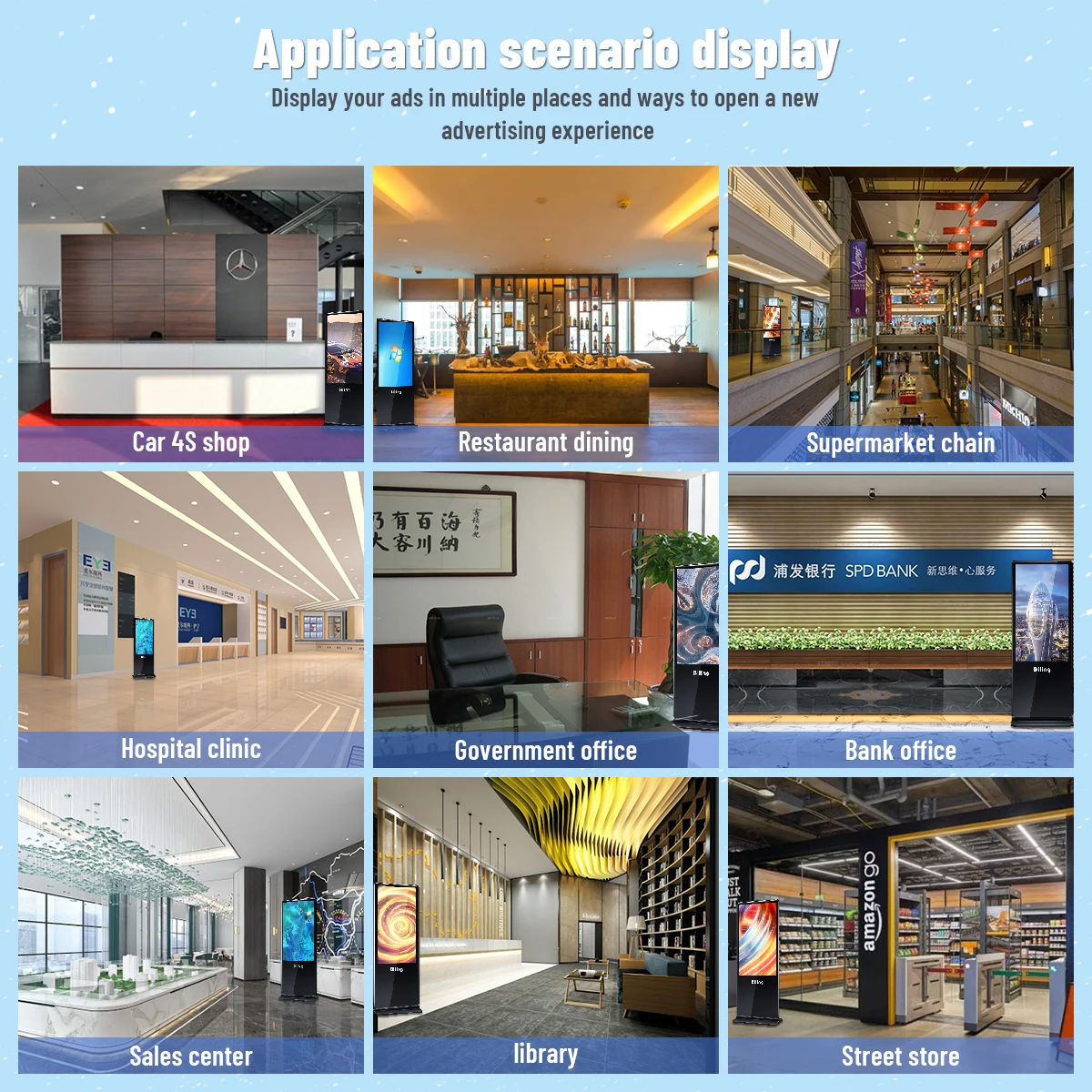

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket,
exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway,hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show,chain-store and etc.
Product Paramenters
Screen configuration | ||
Screen size | 32" (43 / 49 / 55 / 65 / 75 / 86 / 98 / 100 inch Screen can support) | |
Resolution | 1920 (RGB) × 1080 [FHD] / 2K / 4K UHD | |
Display size | 941.184 × 529.416 mm (H × V) | |
Visual size | 945.18 × 533.42 mm (H × V) | |
Brightness (cd/m2) | 300 - 450 (Typ.) (Please contact us for higher brightness requirements) | |
Best angle | full view | |
Viewing angle | 89/89/89/89 (Min.) (CR ≥ 10) | |
Pitch | 0.227mm (H) x 0.227mm (W) | |
Number of colors | 16.7M/1.07B, 95% [CIE1931] | |
Screen weight | 6.30Kgs (Typ./Max.) | |
Refresh rate | 60Hz | |
Signal system | LVDS (2 ch, 10-bit), terminal, 51 pins | |
Supply voltage | 12.0V (Typ.) | |
Maximum rating | Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C | |
Screen type | LCD module, a-Si TFT-LCD. | |
Pixel configuration | RGB vertical strip | |
Appearance size | 975.5 × 582.2 × 10.5 (H × V × D) | |
Surface treatment | matte (Haze 3%), Hard coating (1H) | |
Contrast ratio | 1100 : 1 (Typ.) [Transmission] | |
Optical mode | IPS, normally black display, transmissive | |
Response speed | 6 (Typ.) (G to G) ms | |
Backlight type | WLED, 30K hours, no drive | |
Motherboard configuration(Android) | ||
CPU | RK3568, Quad-core, the main frequency up to 2.0GHz, Android11 | |
GPU | Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1 | |
Internal storage | Standard with 2GB, optional 4GB | |
Built-in storage capacity | The eMMC is standard with 16GB optional 32GB TF Card Extension (available for extension SSD) | |
Network | Support RJ45 R / A 100 trillion Ethernet, support Ethernet; Support the 2.4GHz Wi-Fi; support the Wi-Fi 802.11b/g/n protocol; .2Support Bluetooth 4, mobile phone Bluetooth send program. | |
Picture orientation | Support 0 degrees, 90 degrees, 180 degrees, 270 degrees, manual rotation; optional gravity sensing sensor, support automatic rotation | |
Displays the interface | 1 * LVDS interface (single / dual, 6 bit / 8 bit), support 3.3V / 5V / 12V power supply 1 EDP interface, 1 HDMI 1-way V-By-One interface and supports 1080P output Reserve a 1-channel HDMI IN interface, which can be equipped with a small board The onboard backlight control supports the 12V backlight power supply | |
Touch screen | Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nanomembrane touch, multi-point sound wave Touch, multipoint optical touch, etc... | |
RTC | Built-in real-time clock function | |
USB | 1 USB-3.0 HOST, 1 USB 3.0 OTG, 5 extended USB port | |
Infrared | Infrared receiving seat, support for infrared remote control function | |
LED | 1 * Power Status LED (green), 1 * System LED (green, default flashing) | |
Operating system | Android 11 | |
Audio frequency | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3 GPP and other formats | |
Video frequency | Support H.265,H.264,VP8, MAV , WMV , AVS , H.263, MPEG4 and other video formats | |
Picture | Support JPG, BMP, PNG and other picture formats | |
System management | Original ecological Android system, open root permission, can be customized product development | |
Infrared touch | ||
Material | Glass thickness | |
Surface abrasion strength | strong, determined by the glass surface | |
Homogeneity | good | |
Touch the parameter | ||
The number of times the theory is determined by the degree of glass wear | ||
Design life | more than 5 years | |
Touch the fastest response speed | 6ms | |
Touch the average reaction speed | 8ms | |
Electrical parameters | ||
Working voltage | 4.5 ~ 5.5Vdc | |
Working current | ≤120mA | |
Power | ≤ 900mW | |

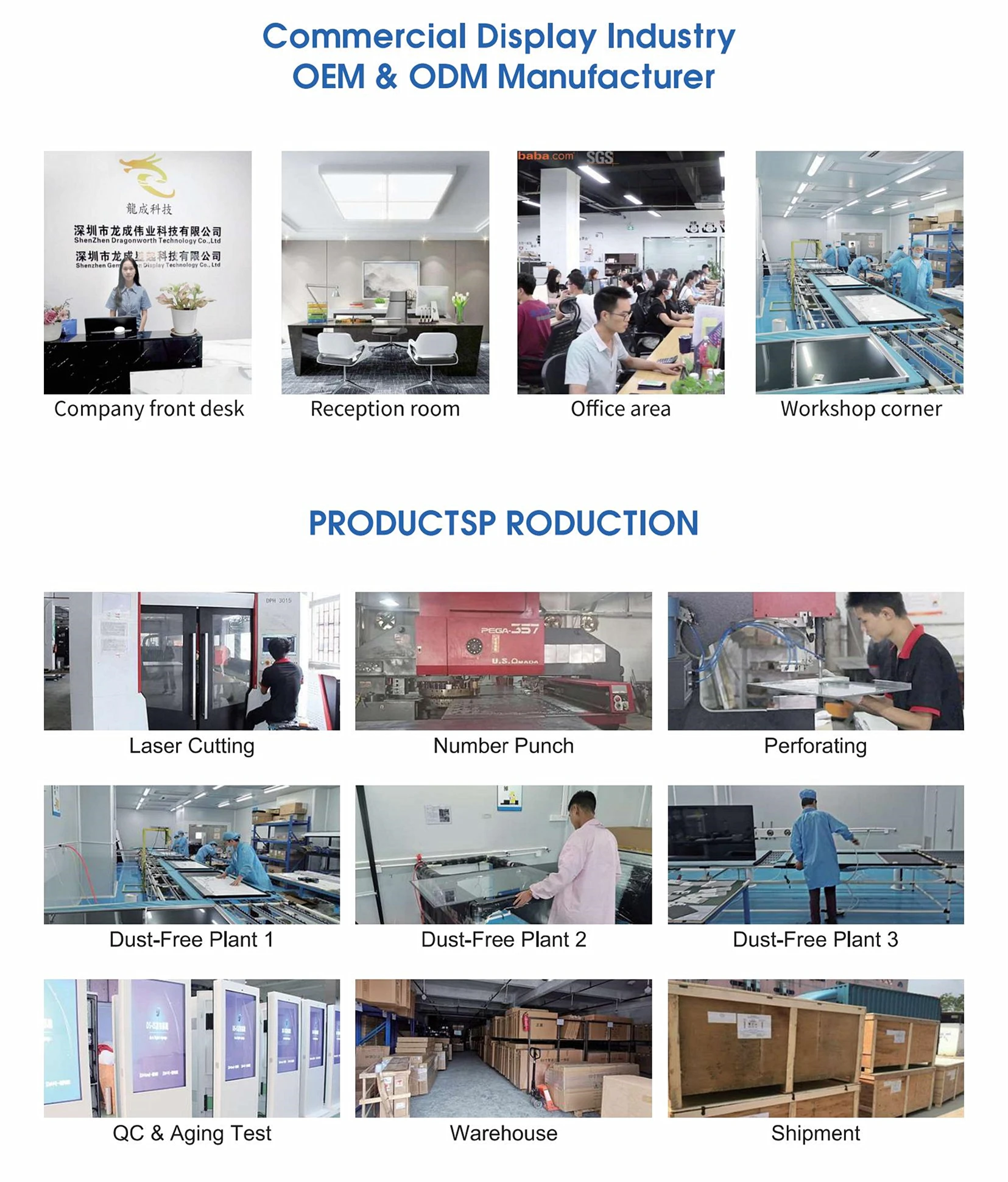

Company Profile
We are a manufacturer of Digital Signage with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
OEM & ODM
Why Choose Us

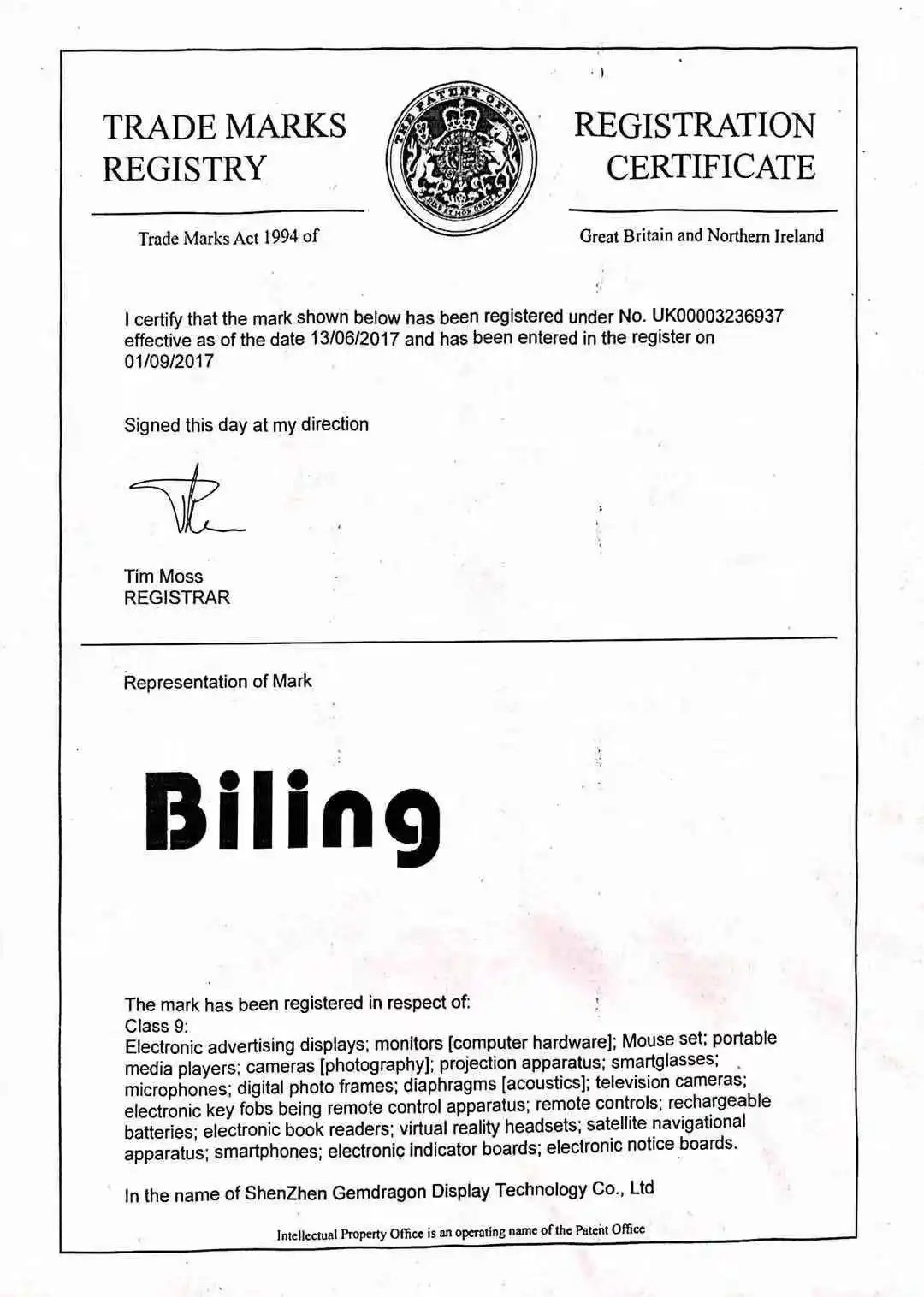

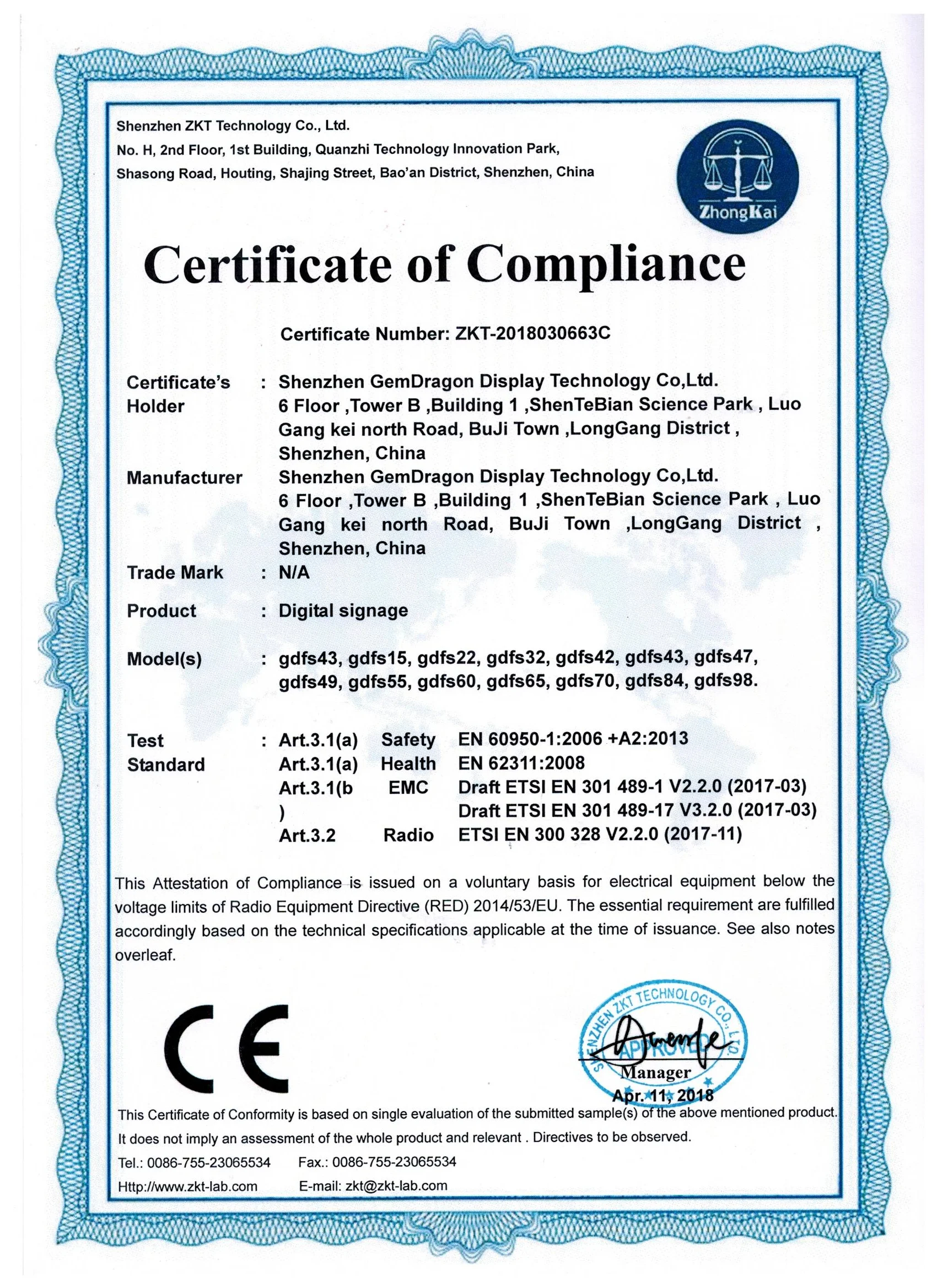

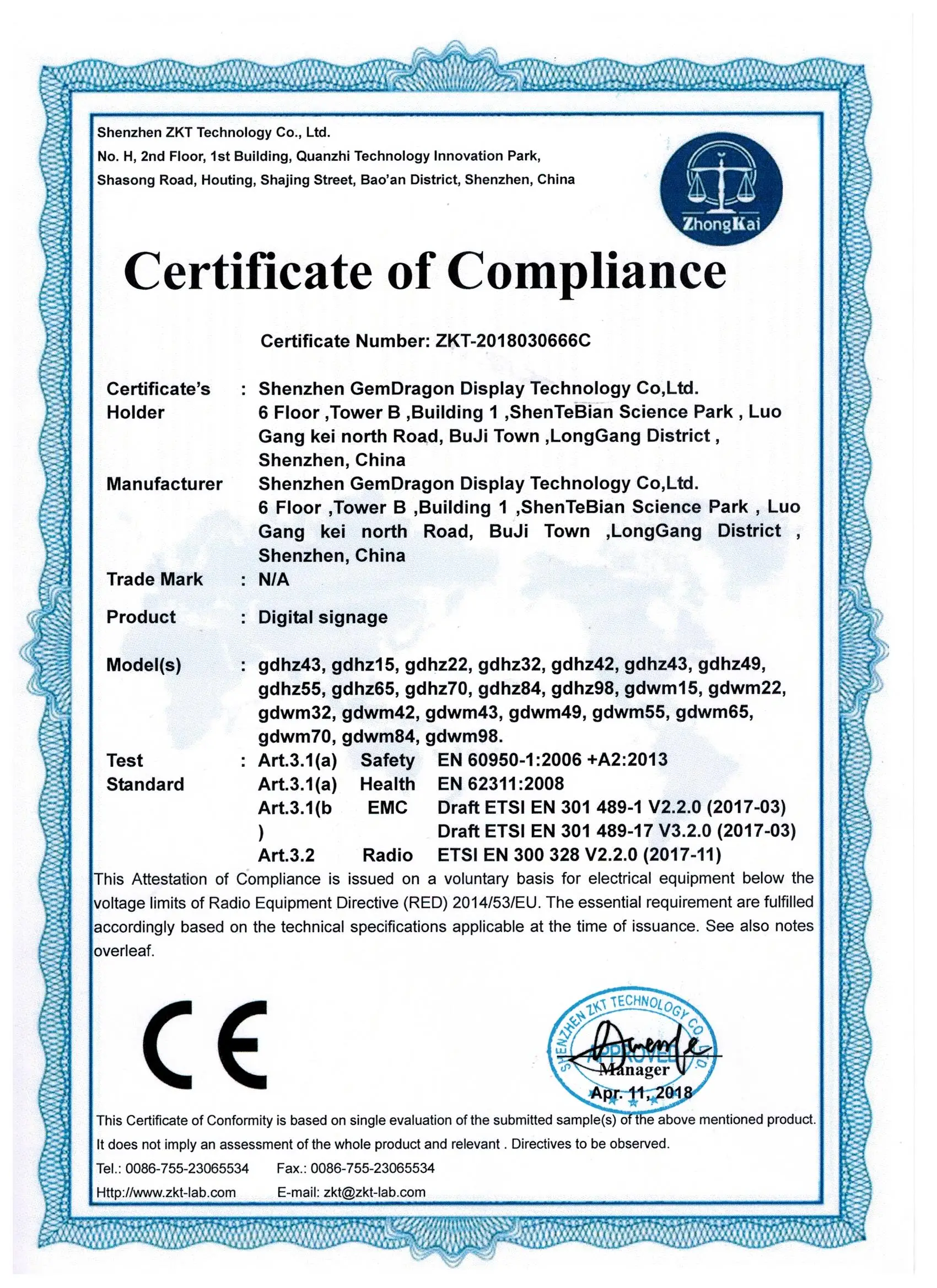

Certifications

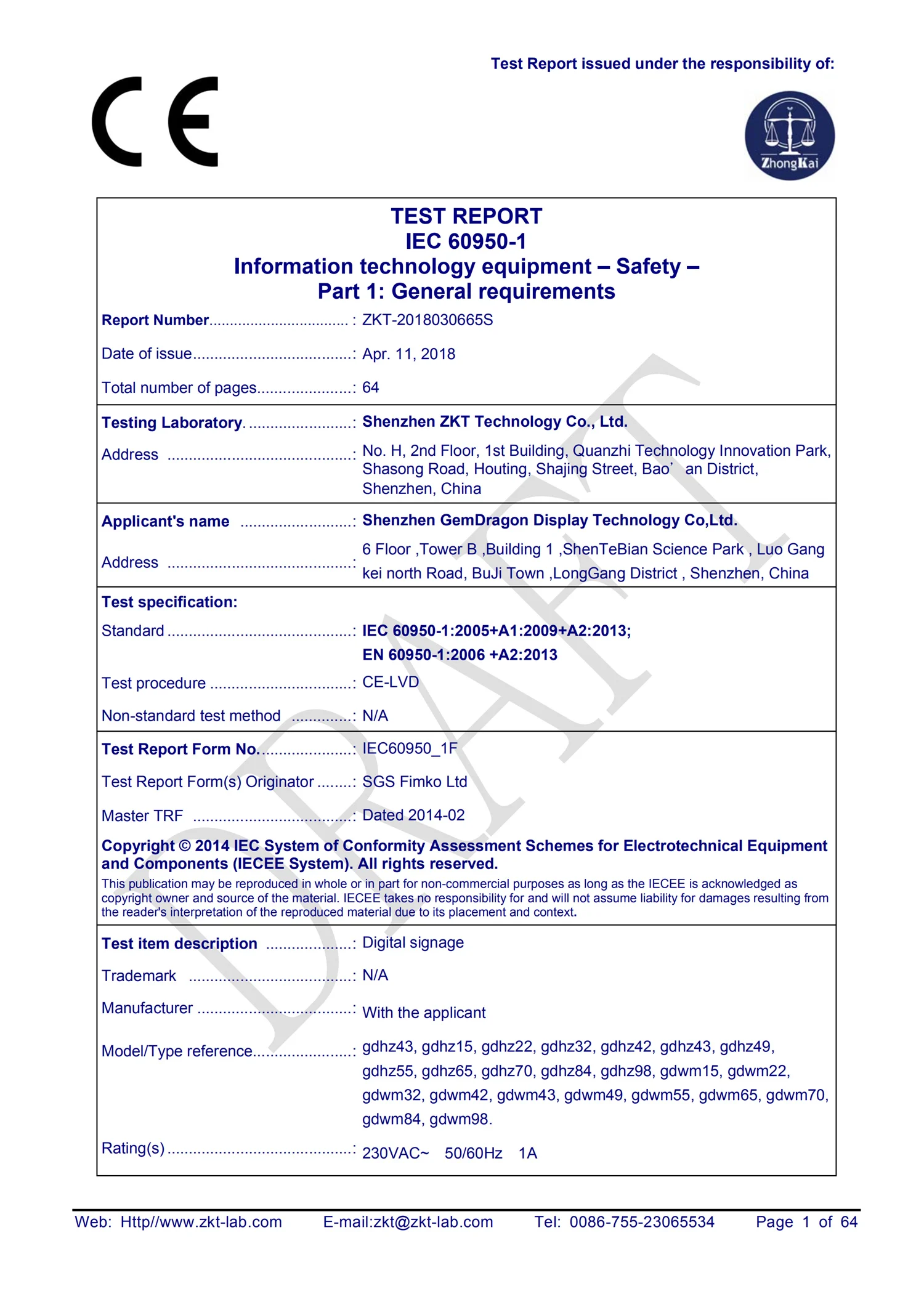

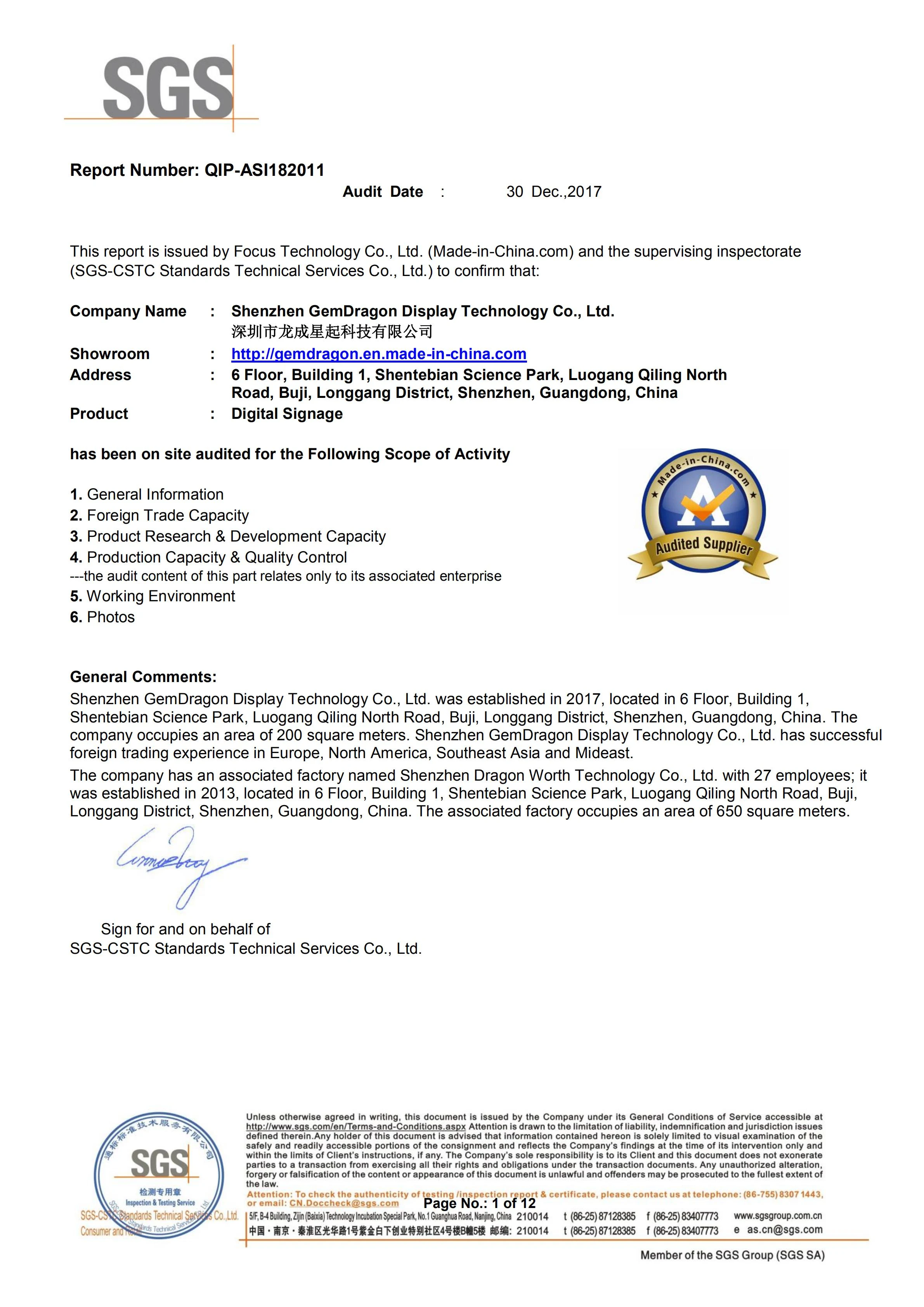

HD SCAN FILE

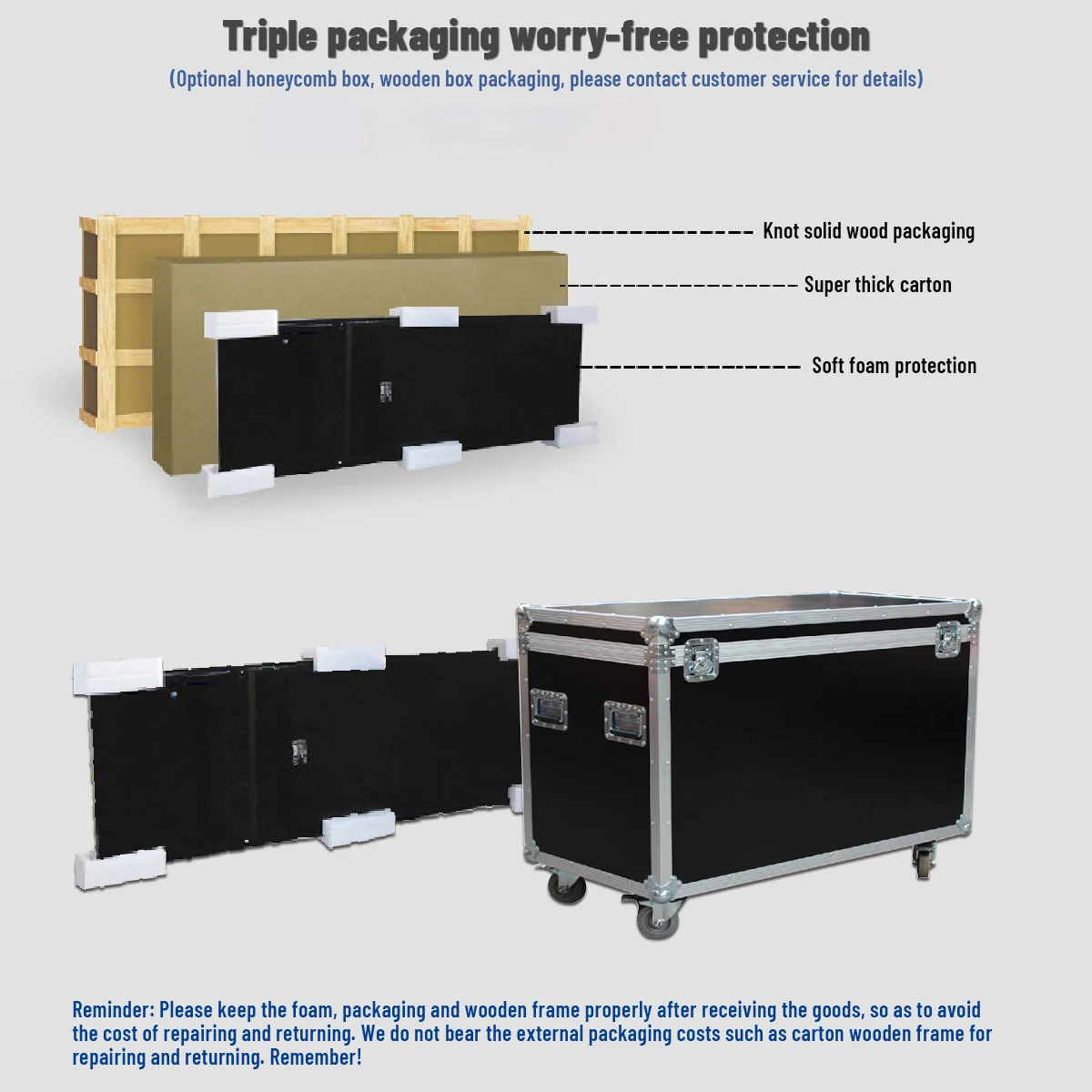

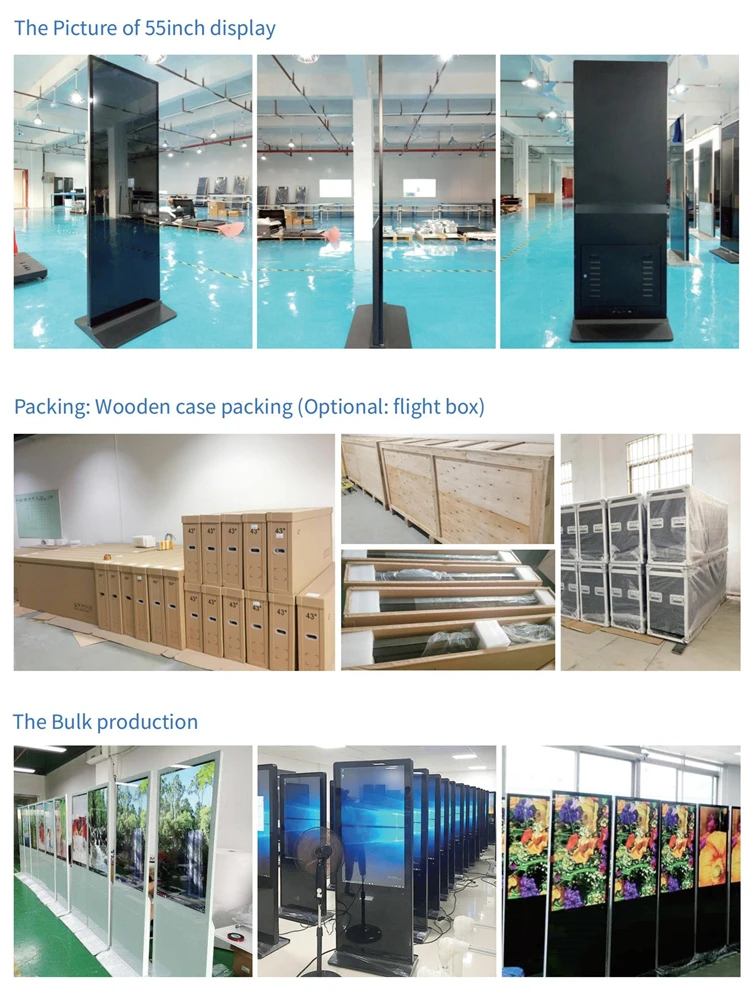

Shipping
DELIVERY TIME:
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
FAQ
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: I haven't done business with you guys before,how can i trust your company?
Our company has been in China for almost 8 years,which is longer than most of our fellow suppliers,we've been golden suppliers for 10 years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV onsite check certificate.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $1500000, and it is still going up.
Q4: what's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
Q5: what brand of screen are you using?
100% A+ Grade Brand Panel(LG/BOE/Samsung) are normally used for the digital signages and video walls, while customized screen is also supported.
Q6: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Q7: What is the minimum order?
Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames, like 7 inch.
