Professional Manufacturer Mining Machine Quartz Silica Sand Attrition Scrubber
- Category: >>>
- Supplier: Ganzhou Eastman Technology Co. LtdGanzhou Ltd
Share on (1601026655866):
Product Overview
Description
Product Introduction
Descrption

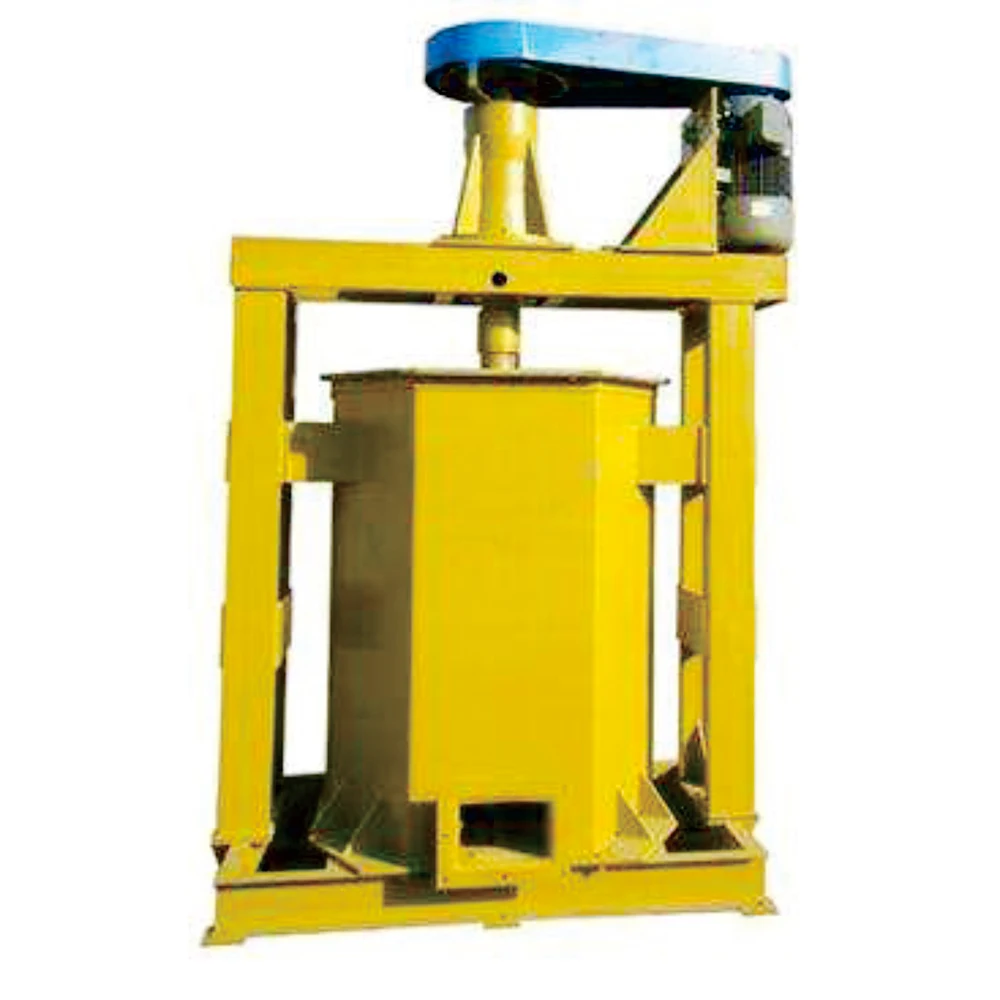

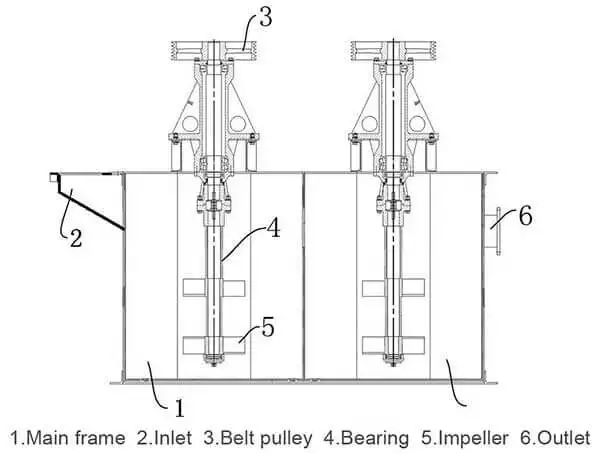

Attrition scrubber washer is the process where a mineral is scrubbed primarily by the action of the slurry particles impacting one another. Attrition scrubbers, also known as Attrition Cells, are relatively simple devices. They consist of a tank, impeller system and drive system. Generally, the tank is PE lined and can be either square or octagonal. The impeller system is PE coated and normally consists of two sets of impellers with opposing pitches. The v-belt drive system is designed to effectively transmit the power to spin the shaft and impellers. The most important function of the attrition machine is the scrubbing of particle scrubbing of particle surfaces to remove film or coating.
Working Principle
After Silica sand, quartz sand slurry (density of 60% ~ 75%) into the scrubbing machine, By agitation of stirring blade, Material would rolling up and down and make circle movement in the mixer .Collision and friction between material s ,So that the impurity and iron oxide which stick to the surface would drop.the edges and corner of material become smooth and pure .Finally, the purity of the material will be increased.
Applications
Cleaning of silica sand for glass making;
Liberation of mineral from slime coatings;
Disintegration of clay agglomerates;
Separation of sand grains from cement minerals;
High intensity conditioning;
Efficient lime slaking.
Liberation of mineral from slime coatings;
Disintegration of clay agglomerates;
Separation of sand grains from cement minerals;
High intensity conditioning;
Efficient lime slaking.
Features
1. Low power consumption, strong scrubbing ability.
2. Ease of operation, lower operating and maintenance cost.
3. Simple structure, large effective volume and small occupation area .
4. Minimal wear, longer life.

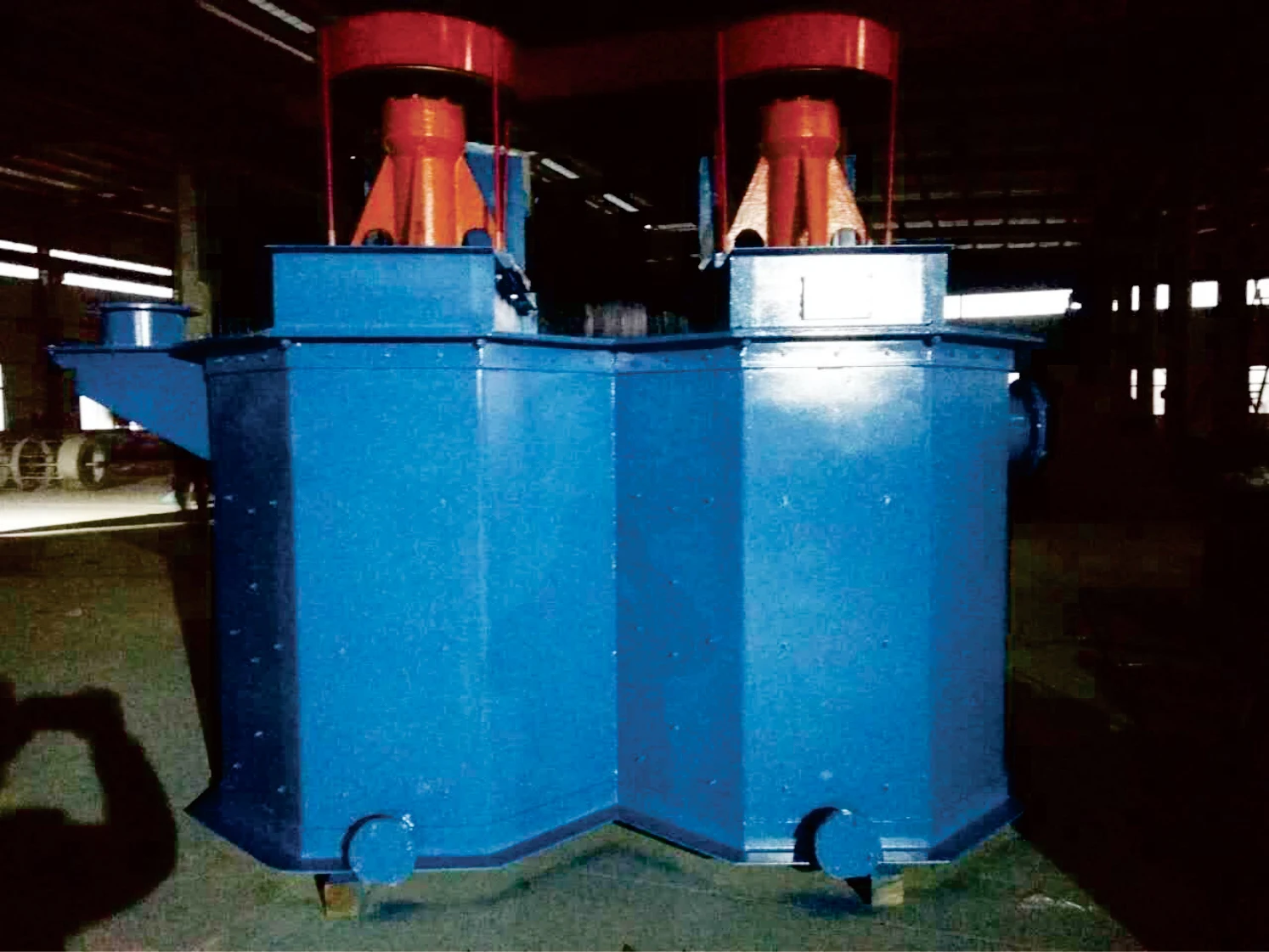

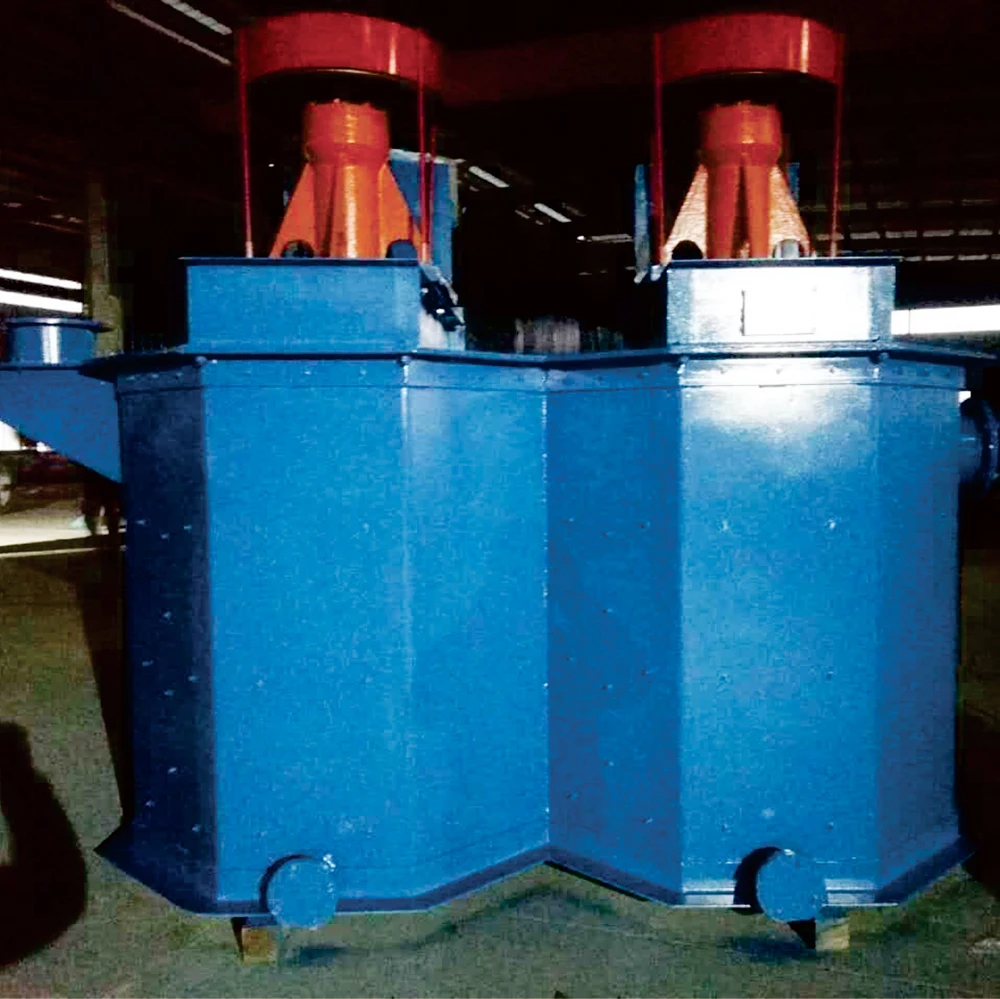

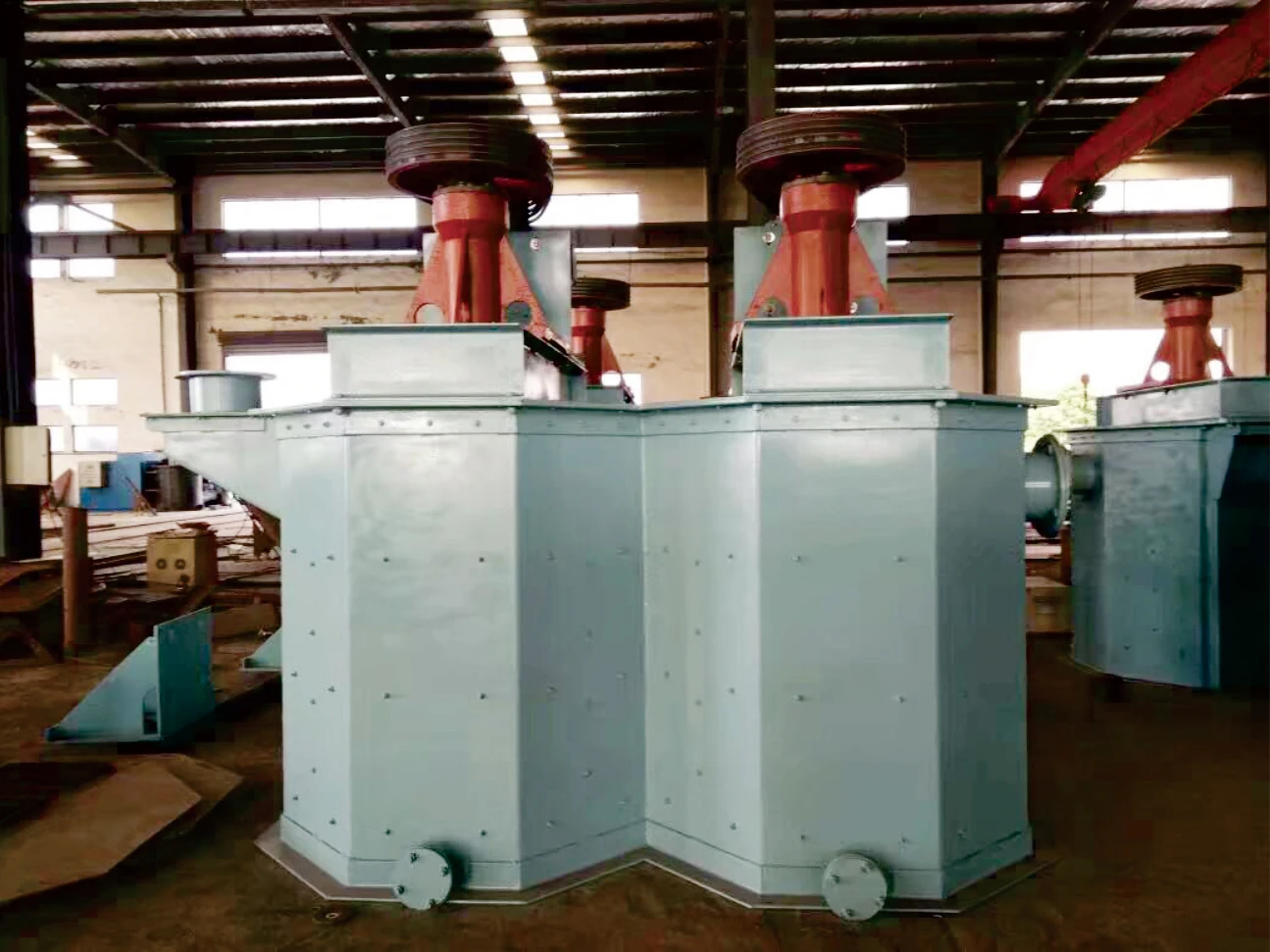

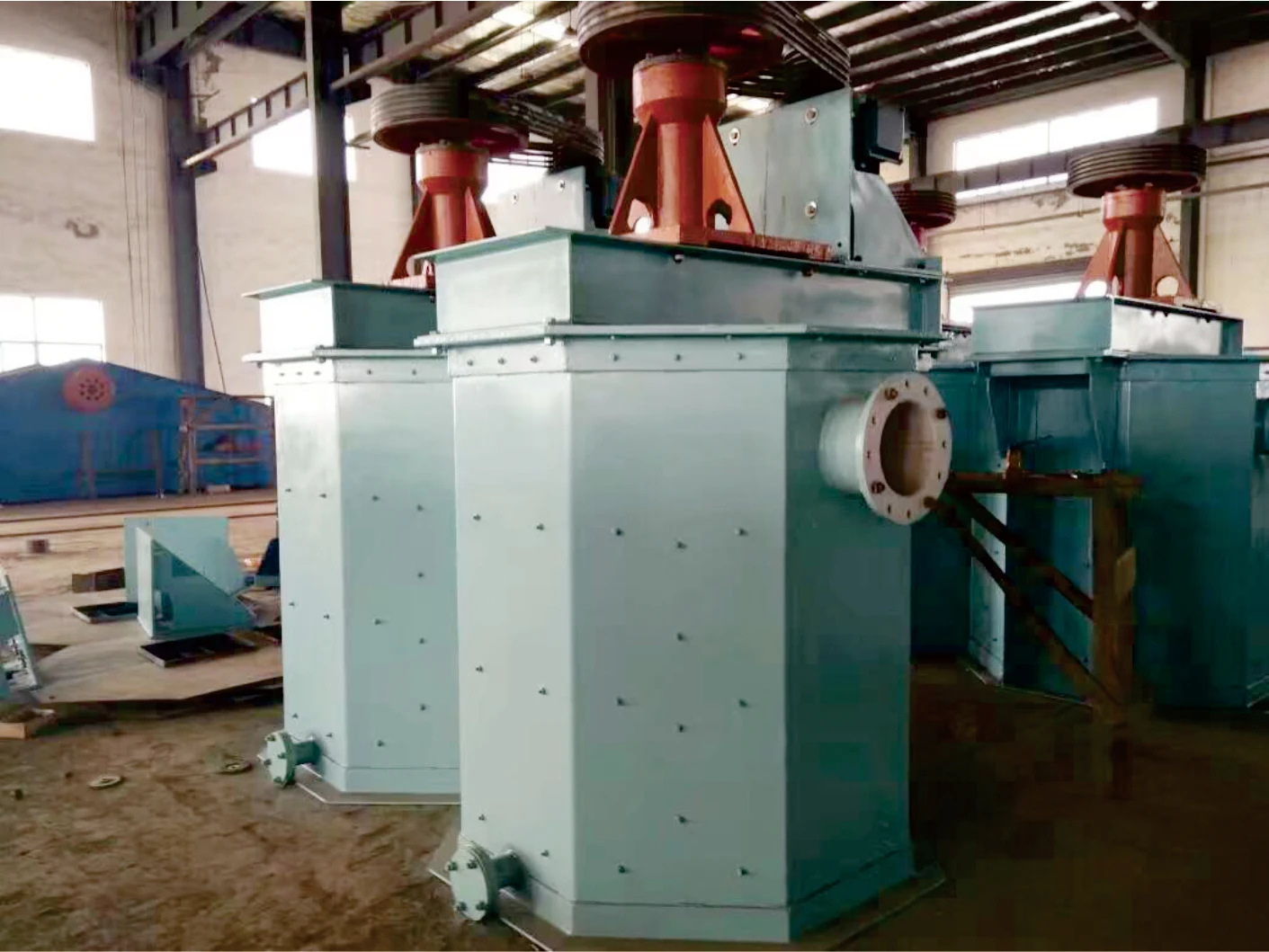

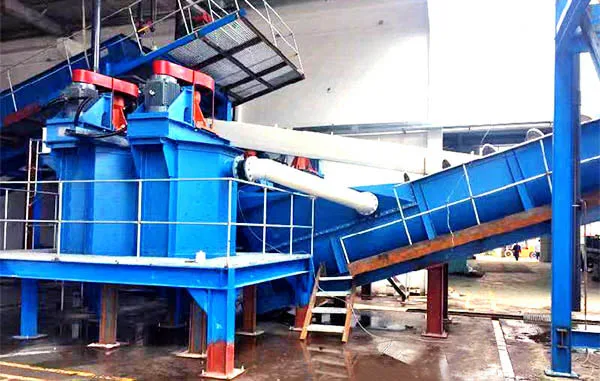

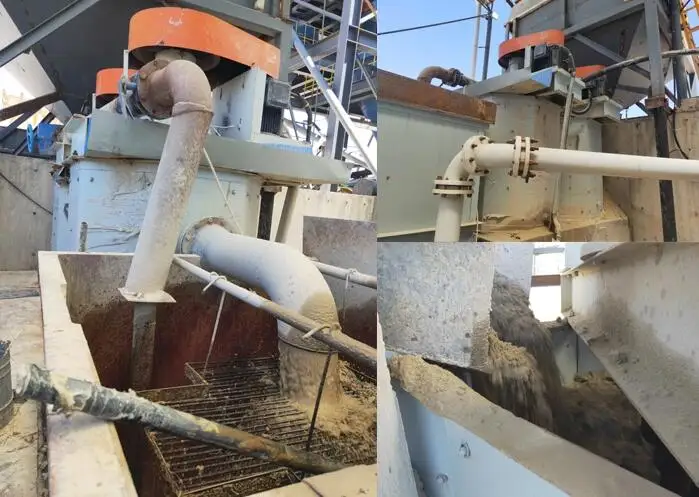

Product Display
Product Paramenters
Model | Capacity(t/h) | Cylinder Volume | Power(kw) | Weight(T) |
GCX-I-1000 | 10-15 | 1000L | 15 | 2.8 |
GCX-I-1500 | 15-20 | 1500L | 22 | 3.5 |
GCX-I-2000 | 20-25 | 2000L | 37.5 | 4.2 |

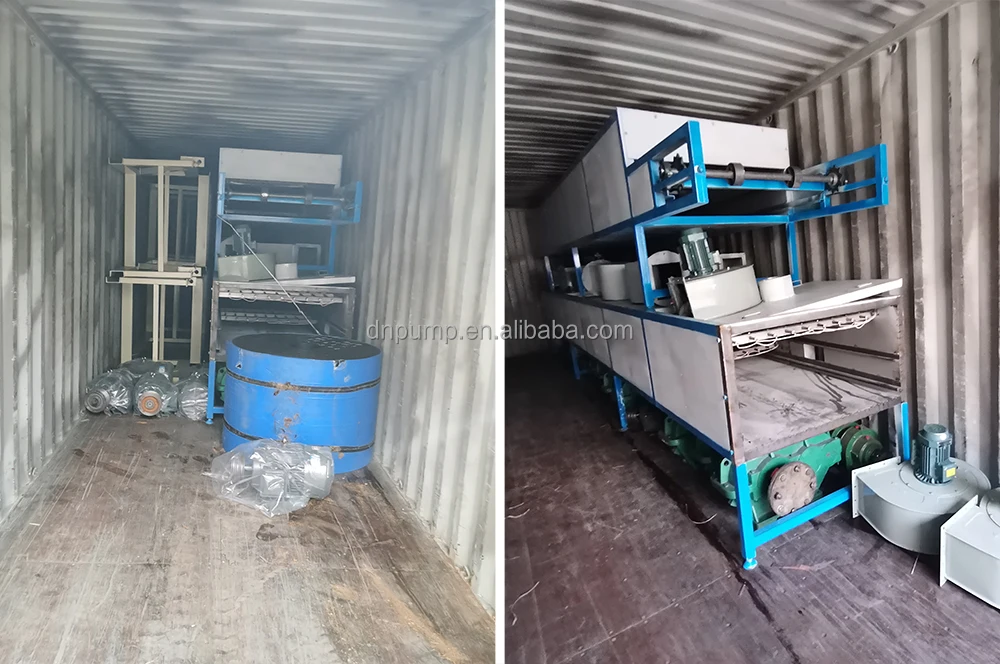

Product packaging
●Ways Of Packing
1.Small parts packed in the wooden cases.
2.Big parts packed by plastic membrane.

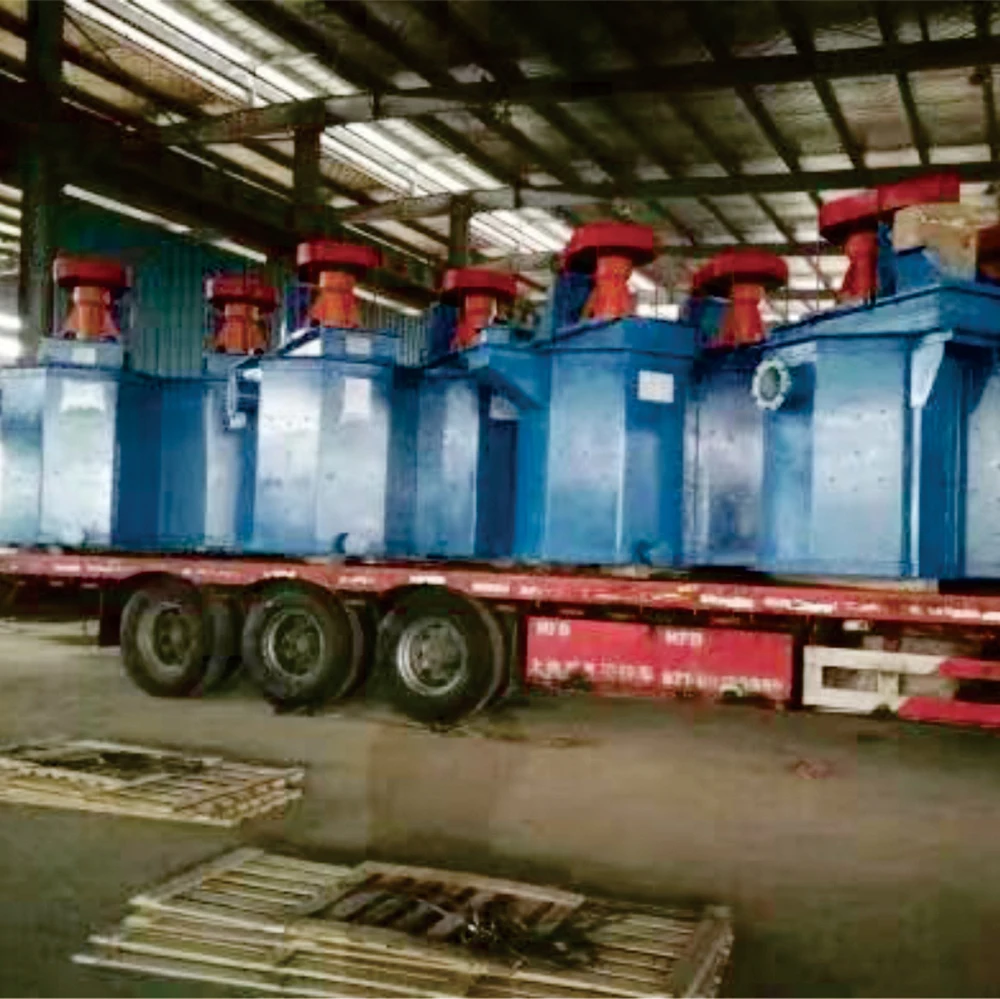

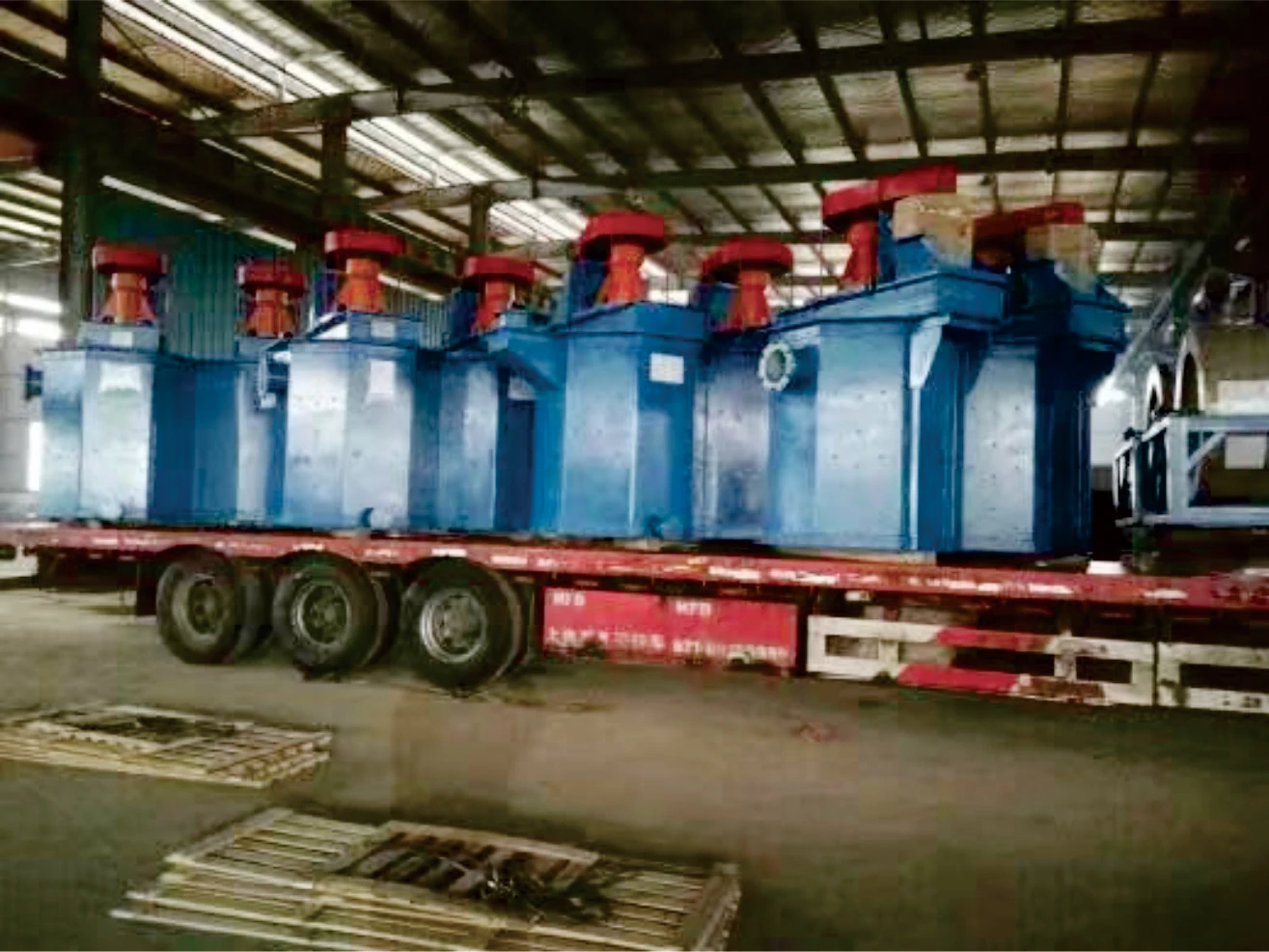

3.The whole big machine is loaded in the container.
● Shiping by sea/air freight
or any way the customer requires.
Our Company
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
