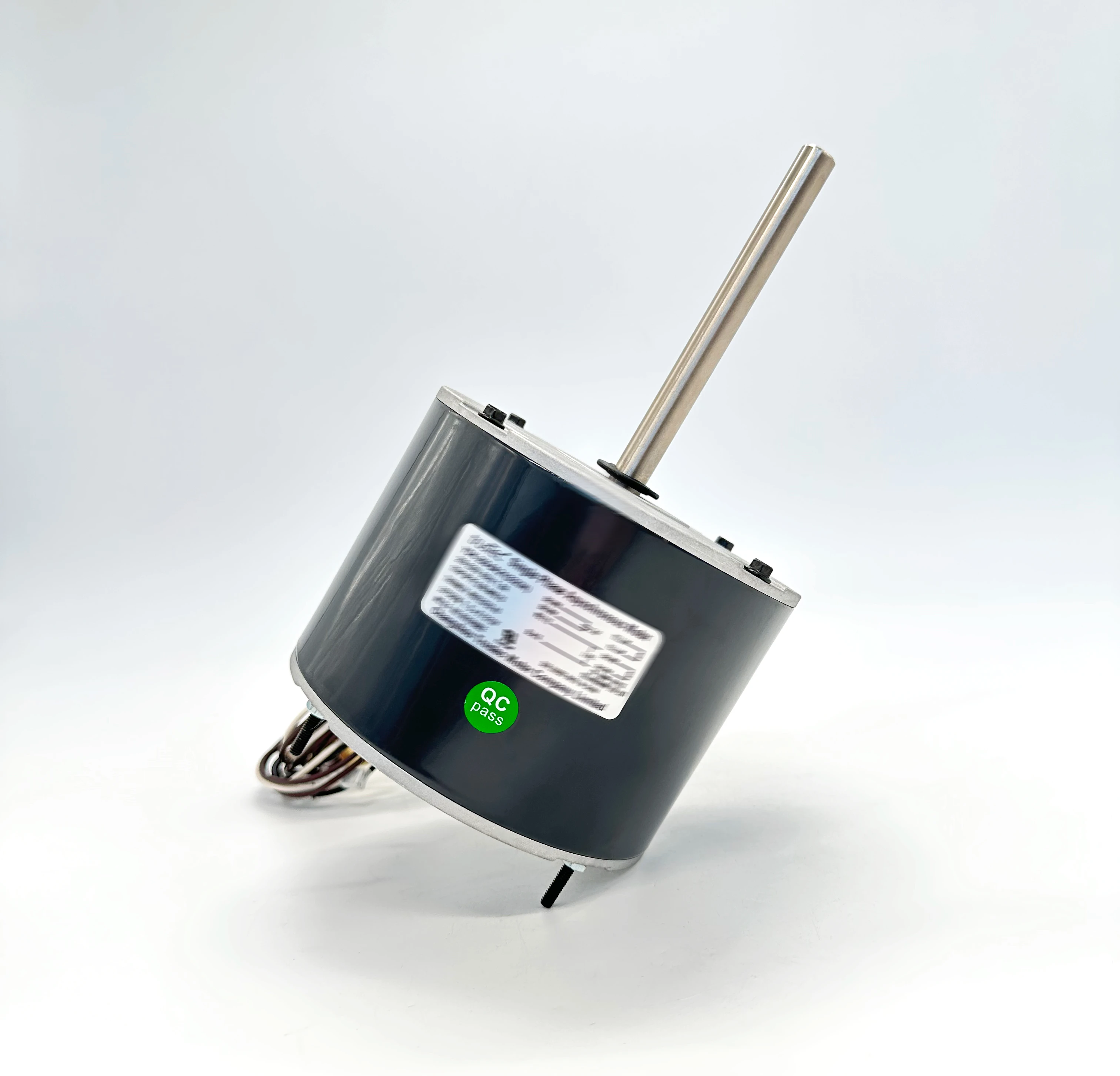

1/3 1/5hp multi hp condenser fan motor 1phase 1075rpm motor
- Category: >>>
- Supplier: Changzhou Trustec Company Limited
Share on (1601026716152):
Product Overview
Description
Product Details
This motor is designed to operate with dual horsepower ratings of 1/3 and 1/5 HP, providing versatility for various applications. It features a rotational speed of 1075 revolutions per minute (RPM), ensuring consistent performance for devices that require this speed level. The motor operates on an electrical input of 208-230 volts (V) within the standard frequency of 60 hertz (HZ), which is common in North American electrical systems. Additionally, it has a frame size designated as 48Y, which specifies the physical dimensions and mounting interface of the motor according to industry standards.
Features:
● 5.6” Diameter ，
Totally Enclosed Air Over TEAO
● Extended Studs
● 36" Leads
● Shaft Size 1/2 Inch Diameter x 5 Inch Length
● Hubless Lead End
● Drain Holes Both Ends
● Reversible Rotation
● Continuous Duty
● Automatic Reset Thermal Overload Protector
● Bearings have All Angle Thrust System
● 36" Leads
● Shaft Size 1/2 Inch Diameter x 5 Inch Length
● Hubless Lead End
● Drain Holes Both Ends
● Reversible Rotation
● Continuous Duty
● Automatic Reset Thermal Overload Protector
● Bearings have All Angle Thrust System
● Single Phase, 60 HZ
● Number of Speeds 2
● 60°C (140°F) Ambient
● Class B Insulation
● 48 NEMA Frame
● Number of Speeds 2
● 60°C (140°F) Ambient
● Class B Insulation
● 48 NEMA Frame
Specifications:
Motor Type | PSC (Permanent Split Capacitor) |
Voltage | 208-230v |
Frequency | 60hz |
Horse Power | 1/3-1/5hp |
RPM | 1075 |
Phase | 1 |
Diameter (Inches) | 5.6" |
Amperage | 3.0/1.3A |
Rotation | Reversible |
Enclosure Type | Totally Enclosed Air Over (TEAO) |
Frame | 48Y |
Listed are representative motors, technical parameter and mounting dimension can be customized according to customer's requirement.
Applications:
Commercial and Residential Condensing Units. Can replace a range of horsepower application and a variety of mounting styles.
Our Service
ODM
1. Depending on trusTec team's powerful designing and manufacturing ability, customers' special needs of the motors and fans, including performance parameters and mounting dimensions, will be perfectly fulfilled.
2. The beneficial ODM co-operative relation will be warmly established with trust and loyalty.
2. The beneficial ODM co-operative relation will be warmly established with trust and loyalty.
Quality Guarantee
1. All motors from trusTec are manufactured by strictly following the ISO9001 quality management system.
2. All motors enjoy at least 2 full years warranty since leaving the factory.
3. 100% replacement is guaranteed for any defect among the warranty period.
2. All motors enjoy at least 2 full years warranty since leaving the factory.
3. 100% replacement is guaranteed for any defect among the warranty period.
One-stop service
1. Trustec company is not only a quality and competitive products manufacturing & sales enterprise, but also a reliable solution supplier for customers around the world.
2. From quick demand response, professional and high efficient following up, to helping optimize shipping & save cost, offering overseas technical support, trusTec will ensure customers the best matched motors and fans, as well as the best service.
3. Customers and partners will win the market without any worries behind, depending on trusTec team's after-sale service as a warm and powerful support.
2. From quick demand response, professional and high efficient following up, to helping optimize shipping & save cost, offering overseas technical support, trusTec will ensure customers the best matched motors and fans, as well as the best service.
3. Customers and partners will win the market without any worries behind, depending on trusTec team's after-sale service as a warm and powerful support.
What is a trusTec® Motor?
●Universal Replacement Motor for Condenser Fan and Direct Drive Blower Applications
●Multi-Horsepower PSC Motors
●Flexible Mounting Options
●Multi-Horsepower PSC Motors
●Flexible Mounting Options
Tips
What happens when a condenser fan motor fails?
When a condenser fan motor fails, it can have several significant consequences for your HVAC (Heating, Ventilation, and Air Conditioning) system and your indoor comfort. Here’s what typically happens when a condenser fan motor fails:
1. Reduced Cooling Capacity: The primary function of the condenser fan motor is to dissipate heat from the refrigerant in the system. When the fan motor fails, heat cannot be effectively released from the system. As a result, your HVAC system’s cooling capacity diminishes. This means your air conditioner will struggle to keep your home cool, and you may experience rising indoor temperatures.
2. Overheating: A failing or non-operational condenser fan motor can cause the entire outdoor unit (condensing unit) to
overheat.This can lead to safety features like thermal overload protection and shutting down the compressor to prevent damage. An overheated system can result in erratic cooling or no cooling at all.
3. Increased Energy Consumption: To compensate for the lack of heat dissipation, your HVAC system may run continuously or for extended periods. This leads to higher energy consumption, which is reflected in increased utility bills.
4. Potential Damage: The strain on the compressor caused by overheating can damage the compressor over time. Compressor replacement is a costly repair, and it might be necessary if the condenser fan motor issue isn’t addressed promptly.
5. Compressor Failure: In severe cases, a failing condenser fan motor can lead to compressor failure. The compressor is one of the most expensive components in your HVAC system, and its replacement is a substantial expense.
6. Reduced System Lifespan: Continuous operation under stressful conditions can significantly shorten the lifespan of your HVAC system. Regularly running the system with a failed condenser fan motor can lead to premature wear and tear on various components.
7. Inefficient Operation: Even if the system continues to operate, it does so less efficiently. Reduced efficiency means not only higher energy bills but also a less environmentally friendly system, as it consumes more electricity.
8. Noisy Operation: A malfunctioning fan motor may produce unusual noises, such as grinding or squealing sounds, which can be disruptive and annoying.Given these potential consequences, it’s crucial to address a failing or failed condenser fan motor promptly. Ignoring the issue can lead to more extensive and costly repairs or replacements down the road.
1. Reduced Cooling Capacity: The primary function of the condenser fan motor is to dissipate heat from the refrigerant in the system. When the fan motor fails, heat cannot be effectively released from the system. As a result, your HVAC system’s cooling capacity diminishes. This means your air conditioner will struggle to keep your home cool, and you may experience rising indoor temperatures.
2. Overheating: A failing or non-operational condenser fan motor can cause the entire outdoor unit (condensing unit) to
overheat.This can lead to safety features like thermal overload protection and shutting down the compressor to prevent damage. An overheated system can result in erratic cooling or no cooling at all.
3. Increased Energy Consumption: To compensate for the lack of heat dissipation, your HVAC system may run continuously or for extended periods. This leads to higher energy consumption, which is reflected in increased utility bills.
4. Potential Damage: The strain on the compressor caused by overheating can damage the compressor over time. Compressor replacement is a costly repair, and it might be necessary if the condenser fan motor issue isn’t addressed promptly.
5. Compressor Failure: In severe cases, a failing condenser fan motor can lead to compressor failure. The compressor is one of the most expensive components in your HVAC system, and its replacement is a substantial expense.
6. Reduced System Lifespan: Continuous operation under stressful conditions can significantly shorten the lifespan of your HVAC system. Regularly running the system with a failed condenser fan motor can lead to premature wear and tear on various components.
7. Inefficient Operation: Even if the system continues to operate, it does so less efficiently. Reduced efficiency means not only higher energy bills but also a less environmentally friendly system, as it consumes more electricity.
8. Noisy Operation: A malfunctioning fan motor may produce unusual noises, such as grinding or squealing sounds, which can be disruptive and annoying.Given these potential consequences, it’s crucial to address a failing or failed condenser fan motor promptly. Ignoring the issue can lead to more extensive and costly repairs or replacements down the road.
FAQ
Q: Do you have the certificates?
A: All trusTec motors and fans have been approved by CE & ROHS, some have UL certification.
Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume, our professional manager is able to provide you accurate purchase guide.
Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; our inspectors check the dynamic balance repeatedly.
Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; multiple inspections ensure no carelessness exist; professional application guidance.
Q: Do you attend exhibitions?
A: Every year we attend 4-5 HVAC&R fairs held in Asia, Europe, Mid east and America. When you want to approve us, you can visit the exhibition nearby or directly visit us in China.
A: All trusTec motors and fans have been approved by CE & ROHS, some have UL certification.
Q: How can you ensure the motor can drive the machine?
A: Our factory elaborately choose 100% pure copper wire and capacitor with appropriate volume, our professional manager is able to provide you accurate purchase guide.
Q: How can you control the noise?
A: Our producers carefully check the drawing and process the shaft and end cover; our inspectors check the dynamic balance repeatedly.
Q: How can you decrease the heat production?
A: Totally copper line lead to less heat production; multiple inspections ensure no carelessness exist; professional application guidance.
Q: Do you attend exhibitions?
A: Every year we attend 4-5 HVAC&R fairs held in Asia, Europe, Mid east and America. When you want to approve us, you can visit the exhibition nearby or directly visit us in China.
