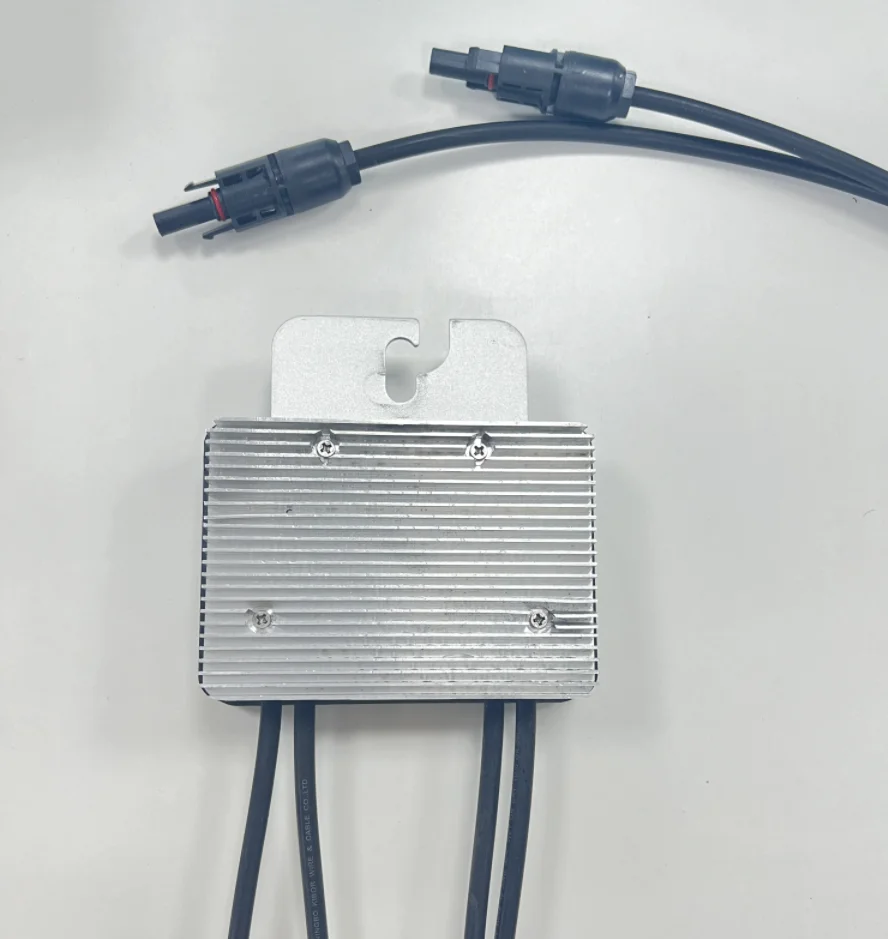

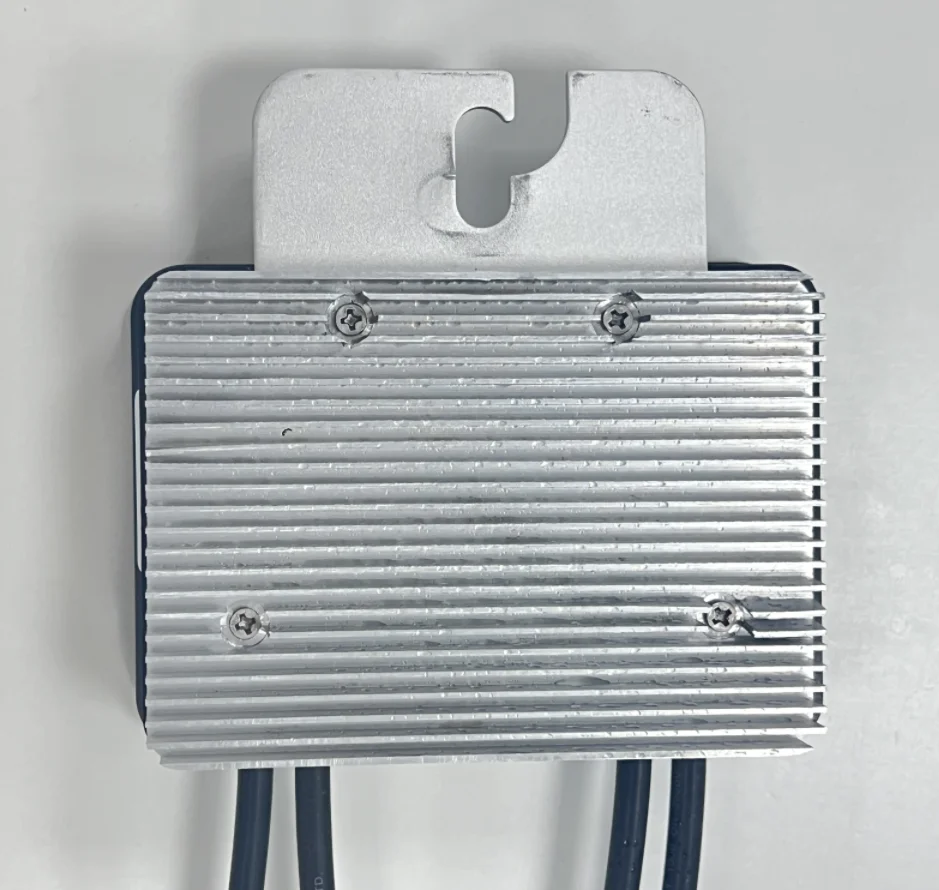

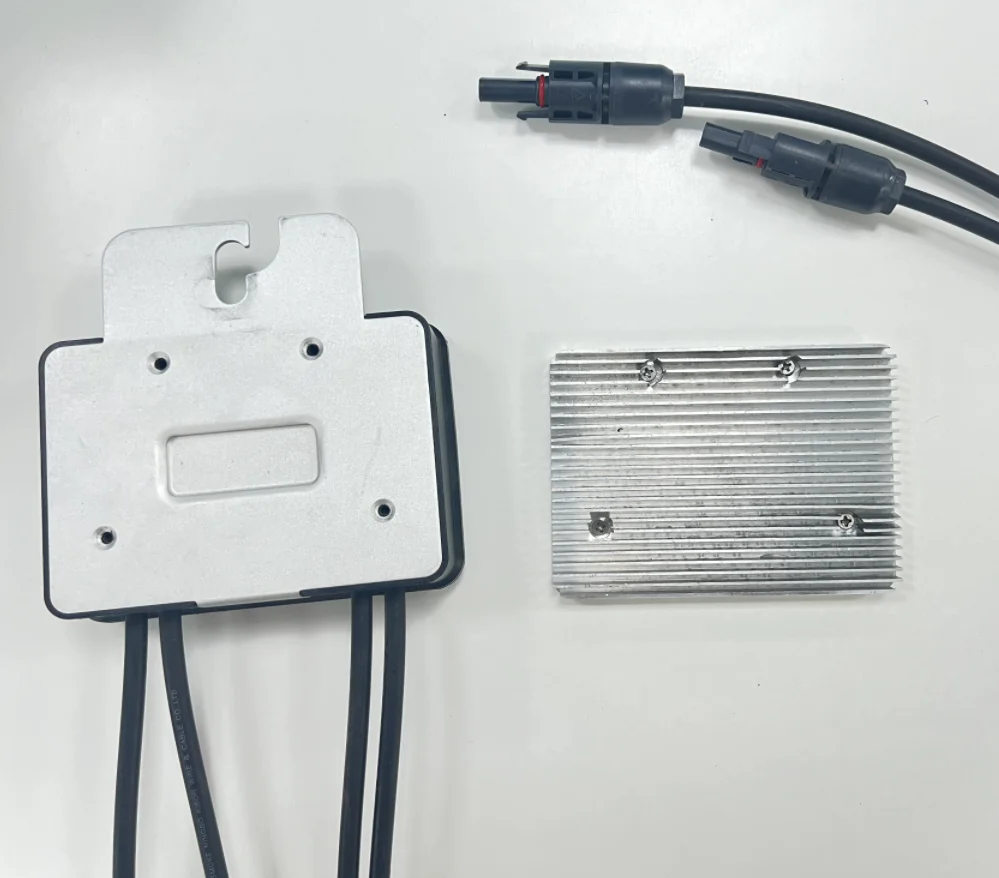

Long Design Life Time DC Data Monitoring FR PVMB C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud
Long Design Life Time DC Data Monitoring FR-PVMB-C130D Smart Solar Panel Power Optimizer With Fonrich Cloud

Long Design Life Time DC Data Monitoring FR PVMB C130D Smart Solar Panel Power Optimizer With Fonrich Cloud

Share on (1601026774844):


Price:$46.50 - $53.60

Quantity:


Product Overview

Description



Product Description


Smart PV Power Optimizer
FR-PVMB-CxxD




Specification


Item
Models
Unit
Comment

FR-PVMB-C100D
FR-PVMB-C130D

Electrical Data
Rated input power
1000
1300
W

Max input power
1100
1400
W
Ambient temperature
≤25℃
Max input voltage
130
Vdc

Max continuous input current
16
Adc

Range of input MPPT voltage
23~130

Vdc

Max output operating voltage
80
Vdc

Max continuous output current
16
Adc

Minimum starting voltage
25
Adc

Max power temperature system
-0.3
%/℃

Max system voltage (dc)
1500
Vdc

Maximum conversion efficiency
99.5
%

Weighted conversion efficiency
99.2
%

Mechanical Data



Dimensions (without bracket, cable & connectors)
120.4 x 117.1 x 25.3

mm
Installation Port
Dual ports



Cable length
Input 2600/300
output 2600/200

mm
Customize
Connector
MC4 compatible


Customize
Weight (with bracket, cable & connectors)
600 ± 20
g
Way to install
Photovoltaic rail
Environmental data
Pollution degree
PD3
Operating ambient temperature range
-30~70
Relative humidity range
0~100
Ingress protection
IP67
Anti-lightning protection
YES
Altitude
2000
m
PLC Communication Performance Data
Communication
Power Line Carrier Communication
Maximum cable loop length
1600
m
Compliance
Communication Compliance
PLC
Satisfying compliance
IEC62109-1; IEC61000-6-1;
IEC61000-6-3; NB/T 42143
Safety standards
 NEC 2017 & 2020 (690.12); UL1741;
CSA C22.2 No. 330-17; IEC/EN62109-1
EMC
EN IEC 61000-6-1:2019;
 EN IEC 61000-6-3:2021;
EN IEC 61000-6-8:2020


Main Features:
① PV module rapid shutdown meeting NEC 2017, 2020 & 2023 (690.12) standard requirements
② Integrated the PV module level MPPT
③ High operating voltage support up to 130V
④ Support decreasing working mode
⑤ Up to 25 years designed lifetime
⑥ Bidirectional PLC communication
⑦ Suitable for the PV modules with STC 1300W and below
⑧ Rapid shutdown: Initiated within 30 seconds after the monitor loses power or the control switch manually turns off
⑨ Module level data monitoring: five big data including voltage, current, power generation, power generation operating point, temperature, and in the way of snapshot collection

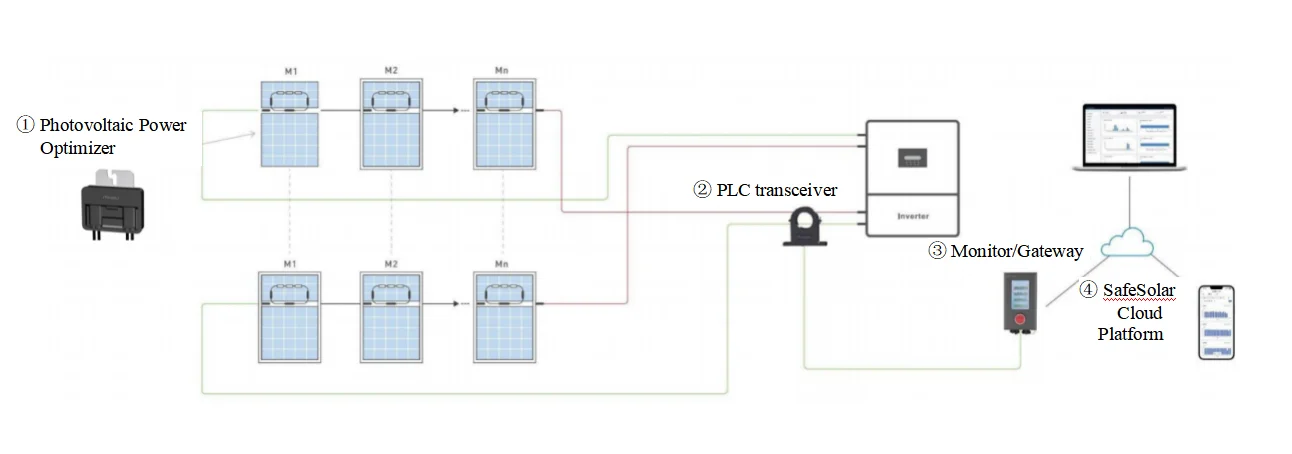

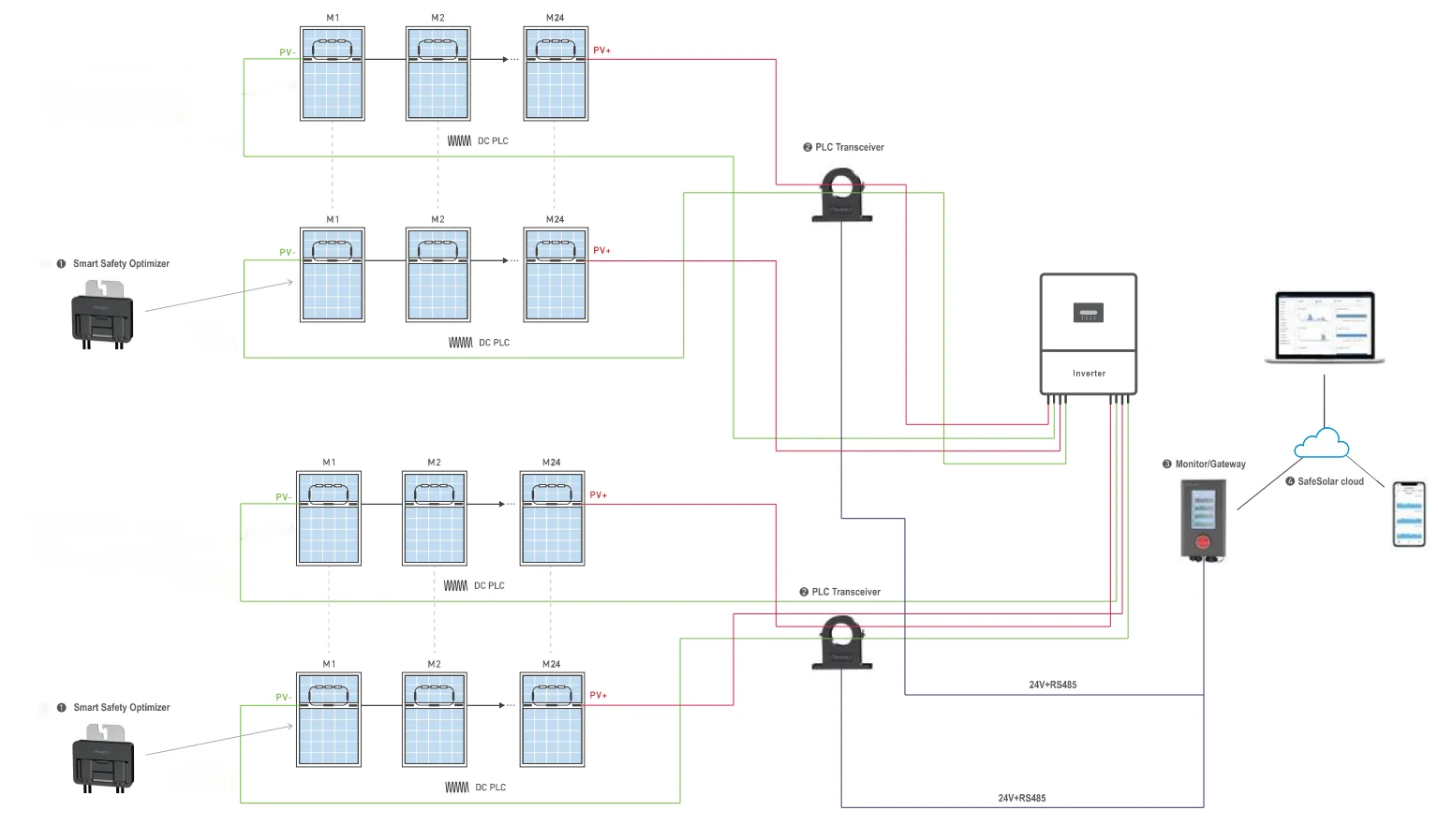

Typical Wiring Diagram




About us




Fonrich (Shanghai) New Energy Technology Co., Ltd. was founded in 2011, with a technology-oriented focus on PV new energy field, our products cover PV Smart Module Level Safety Protection Systems, PV Module Smart Optimization Systems, DC Arc Fault Detector, PV Smart Combiner box Monitoring,dedicated to providing corresponding products and solutions for PV New Energy Revenue Optimization, PV Power Station Safety, Smart Operation & Maintenance Management. Fonrich has the entire processes team including R&D, supply chain, production, sales, engineering, quality inspection and after-sales service. As one of the first batch companies in China to develop and apply Arc Fault Detection technology, Fonrich has more than 6 years of experience in DC Arc Fault Detection technology and is the first company in the industry who get UL1699B certificate approval, over 6GW sales in cumulation. Meanwhile, Combiner Box Monitoring annual sales of more than 3GW, with a total sales of more than 40GW.


Our Company
Fonrich (Shanghai) New Energy Technology Co., Ltd. was established in 2011.
Our Team
A research and development, supply chain, production, sales, engineering, quality assurance, after-sales service of the entire process team.
Quality Assurance
Our products have passed UL, TÜV, CGC, CE and other well-known domestic and international certifications.

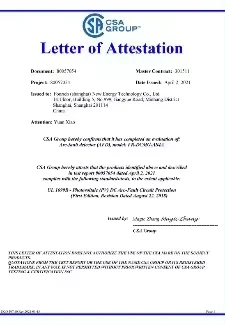

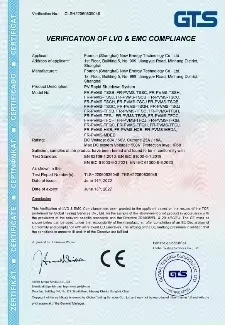

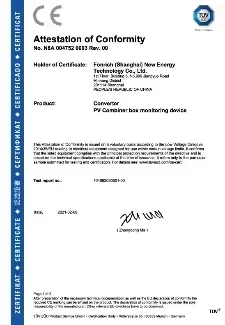

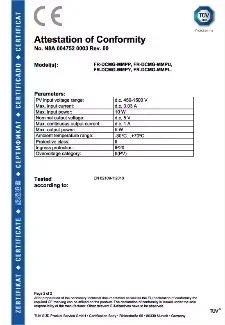

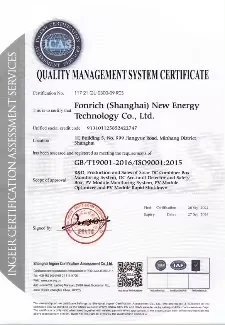

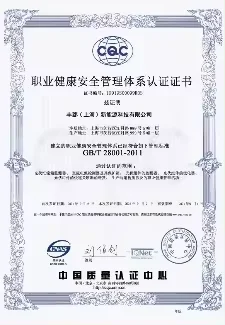

Certifications






Exhibition

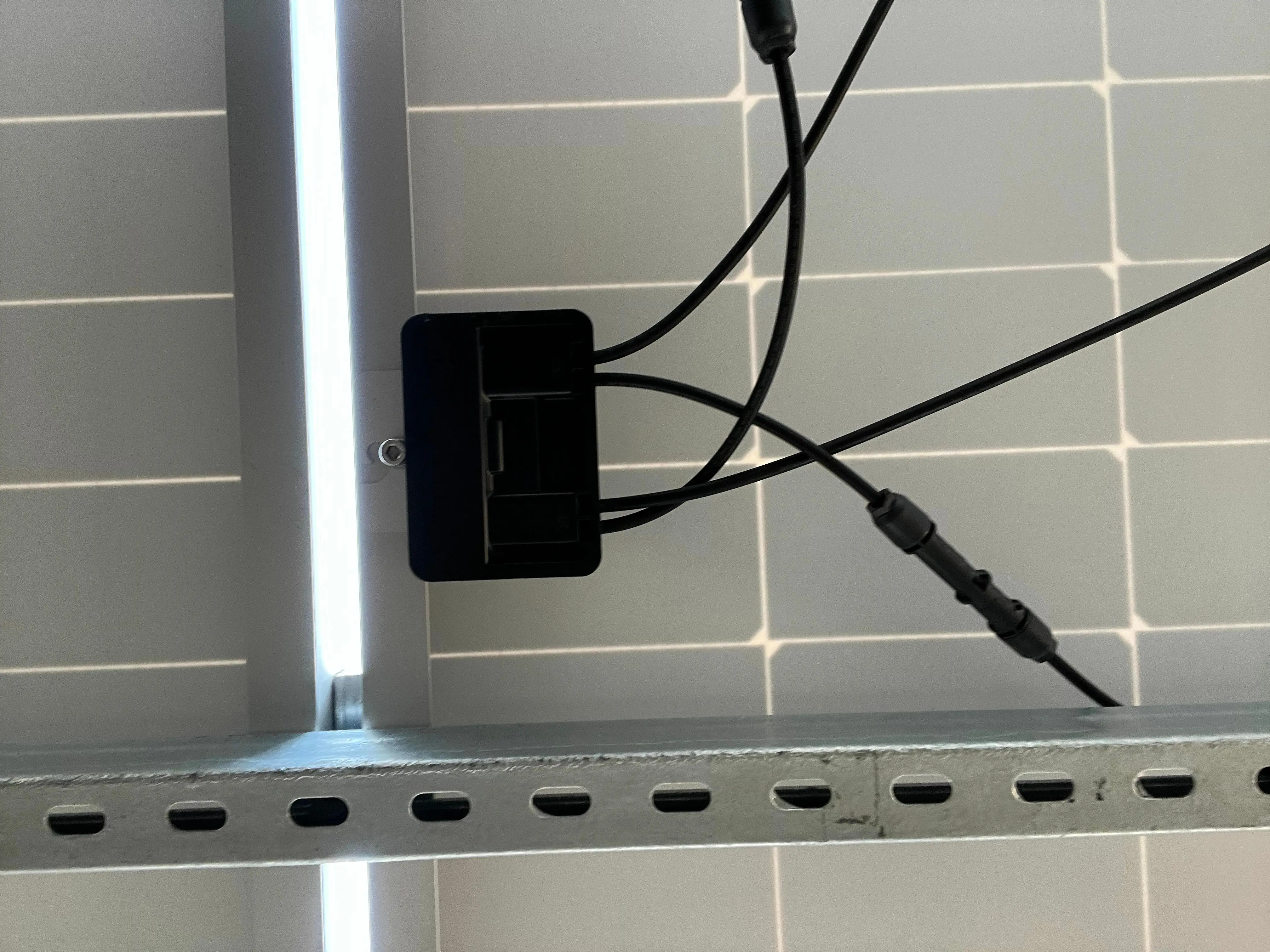

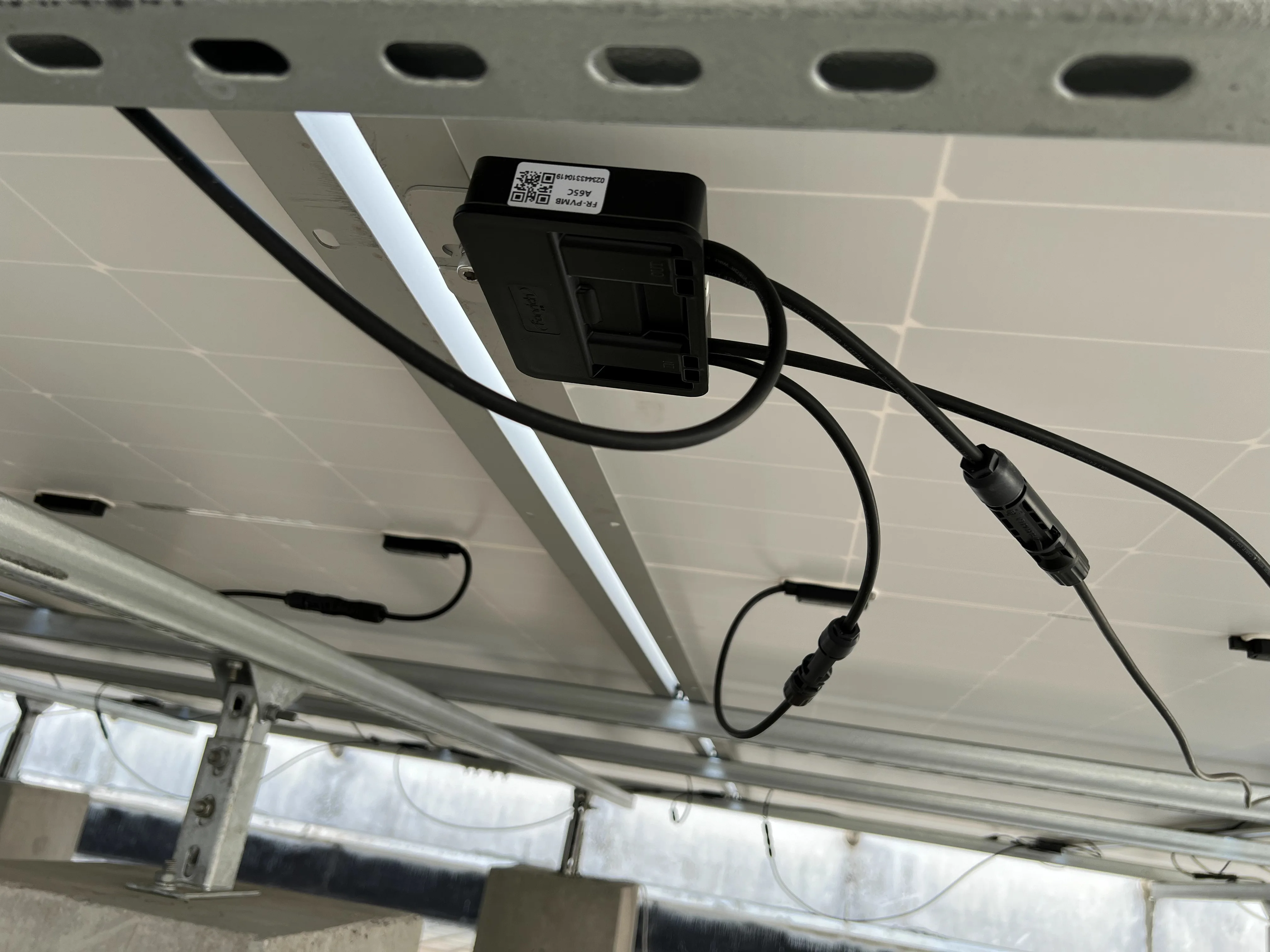

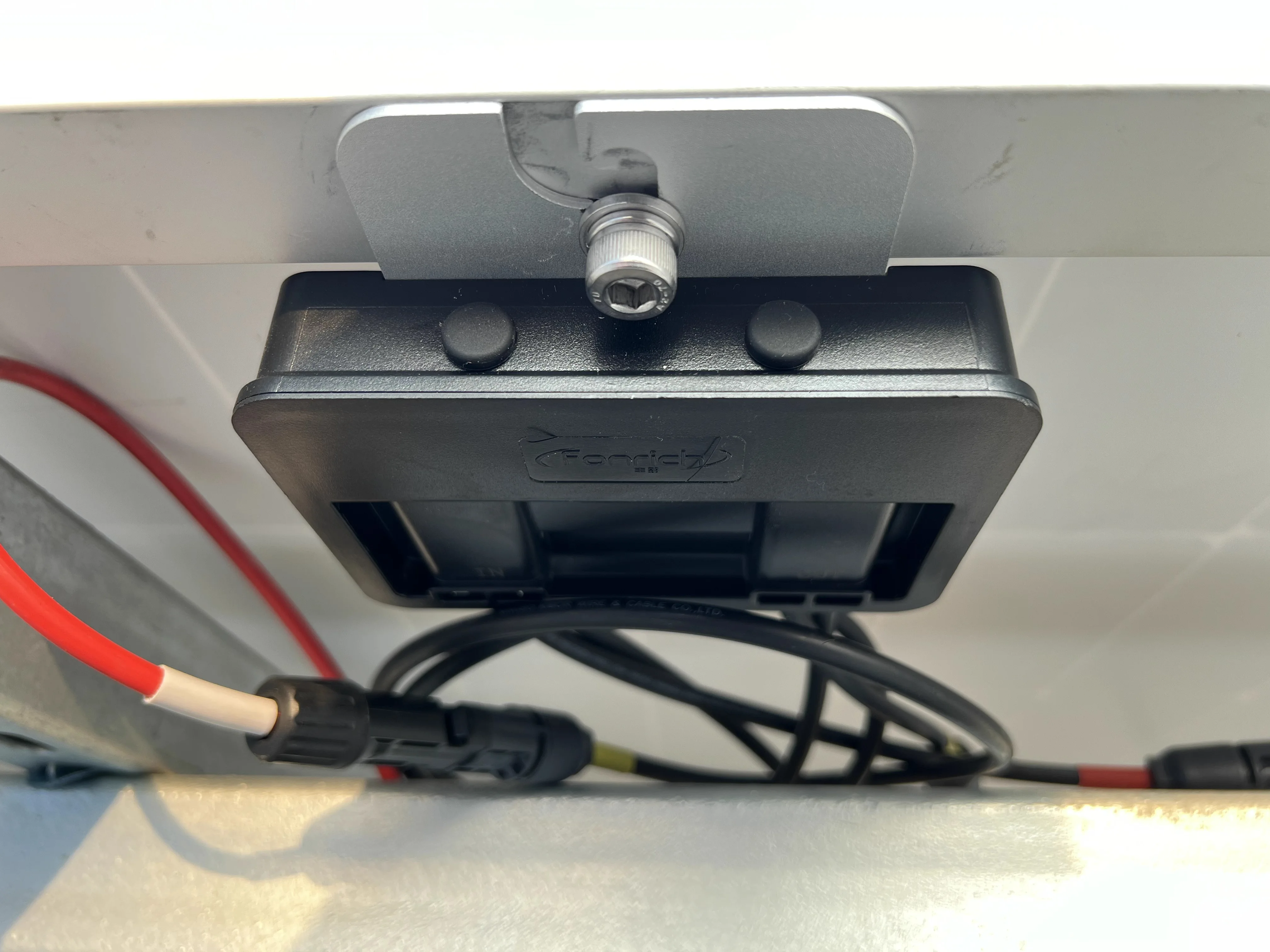

Installation
