FAR CREATIVE Automatic Drainage Extruding PVC Pipe extrusion Making Machine Extruder Line
- Category: >>>
- Supplier: Zhangjiagang City Far Creative Plastic Machinery Co. Ltd.
Share on (1601026799381):
Product Overview
Description
Product Description
PE/HDPE Pipe Extrusion Line
This series of pipe machine is mainly used for producing drainage pipe, agricultural irrigation pipe, gas pipe, water supplying
pipe, cable conduit pipe and etc.
This pipe has some excellent features such as heating and aging resistant, high mechanical strength, environmental stress cracks
resistant, good creep resistant and etc. our extrusion line is designed with high efficiency extruder and equipped with reducer
which is high speed and low noise.

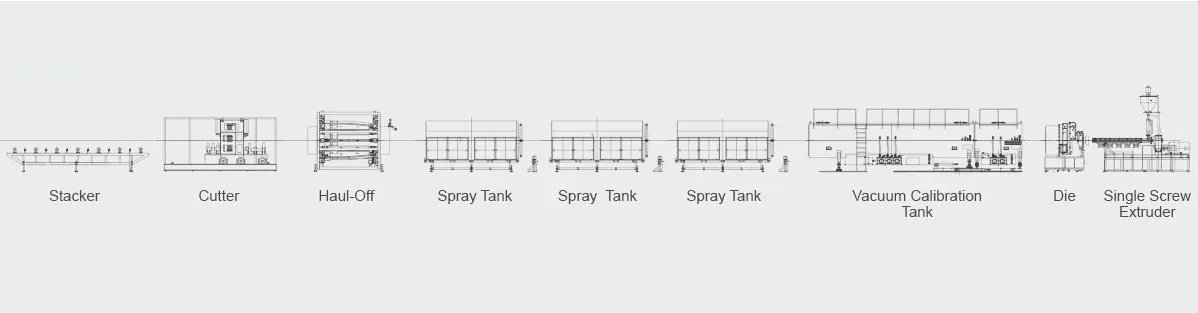

Process Flow
Raw material(Recycled or New material)+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder
→Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Tank → Haul-off machine→ None Dust
Cutting Machine→ Stacker → Final Product
This series of pipe machine is mainly used for producing drainage pipe, agricultural irrigation pipe, gas pipe, water supplying
pipe, cable conduit pipe and etc.
This pipe has some excellent features such as heating and aging resistant, high mechanical strength, environmental stress cracks
resistant, good creep resistant and etc. our extrusion line is designed with high efficiency extruder and equipped with reducer
which is high speed and low noise.
Process Flow
Raw material(Recycled or New material)+ Master Batches → Mixing → Vacuum Feeder →Plastic Hopper Drier→ Single screw extruder
→Co-extruder for color string & Multi Layers → Mould → Vacuum Calibration Tank → Spray Cooling Tank → Haul-off machine→ None Dust
Cutting Machine→ Stacker → Final Product
Specification
item | value |
Condition | New |
Plastic Processed | PE, PP, PVC, HDPE, PPR, HDPE/PP, PE/PP |
Application | PIPE |
Screw Design | Single-screw |
Screw Material | 38CrMoALA |
Screw diameter (mm) | 75 |
Screw L/D Ratio | 38:1 |
Screw Speed (rpm) | 50rpm |
Showroom Location | Egypt, United Kingdom, Viet Nam, Saudi Arabia, Russia, Thailand |
Place of Origin | China |
Jiangsu | |
Brand Name | FAR CREATIVE |
Voltage | 380V50HZ3Phase or Customized |
Dimension(L*W*H) | 25000x5000x6000mm |
Power (kW) | 120 |
Weight | 35000KG |
Warranty | 1 Year |
Key Selling Points | Competitive Price |
Applicable Industries | Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Restaurant, Home Use, Printing Shops |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, PLC, Gearbox, Screw |
Machinery Test Report | Provided |
Air Switch | Schneider |
Contactor | Schneider |
Motor | SIEMENS |
Control System | SIEMENS PLC+Touch Screen |
Details Images

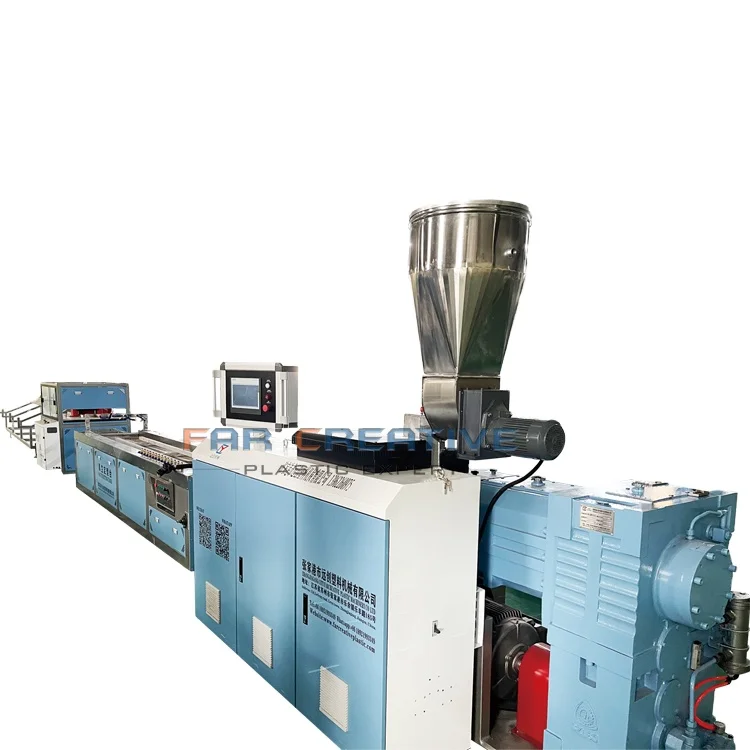

1.Single Screw Extruder
The extruder of HDPE pipe line adopts high efficiency screw &barrel, which greatly improves its transmission capacity and
guarantees high-efficiency extrusion.
The gearbox from the extruder with self-lubrication system. The motor which we use is SIEMENS and speed controlled by ABB
inverter. The control system adopts SIEMENS PLC control.

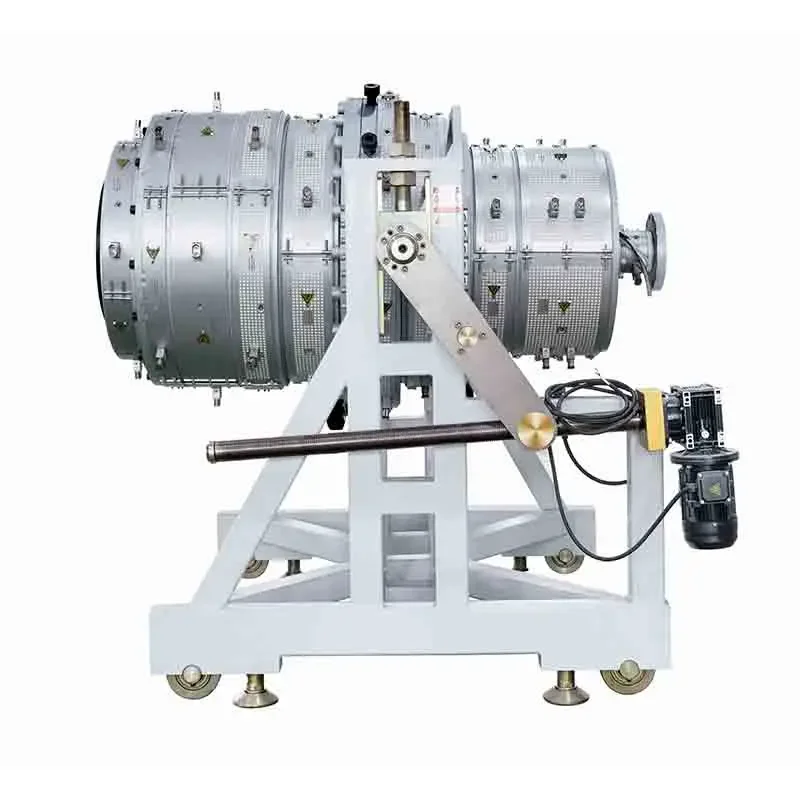

2.Die Mould
Suitable for HDPE/PE/PVC/PPR/MPP pipe production Line
>>Diameter range from Ø16 to Ø1600 mm
>>High melt homogenity
>>Low pressure built up even with high outputs
>>Melt channel distribution system
>>Equipped with seramic heaters
>>Pipe head carriage for easy movement
>>Pipe heads are designed according to application requirements.
>>Easy maintenance thanks to the optimized and proven designed construction.

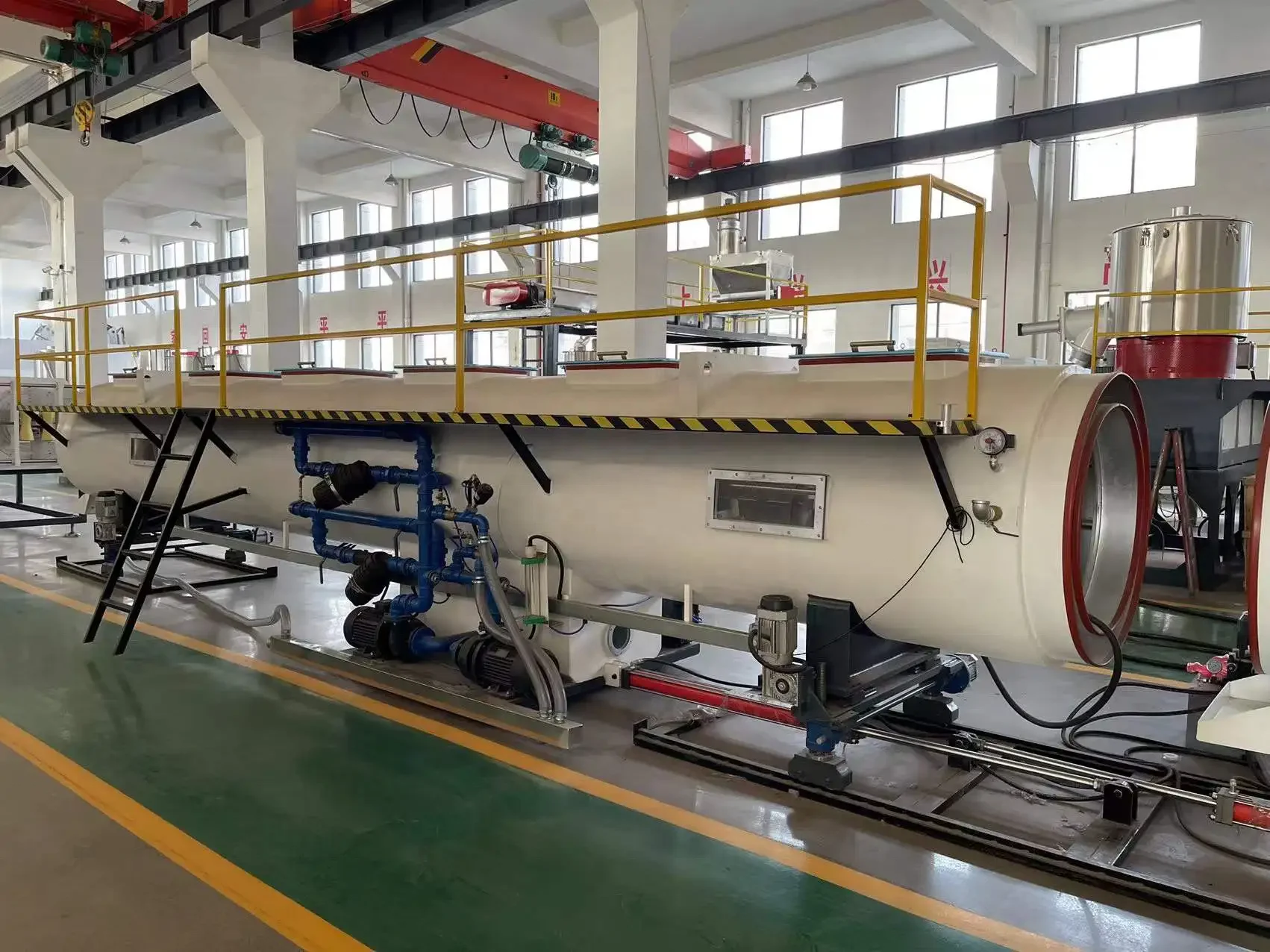

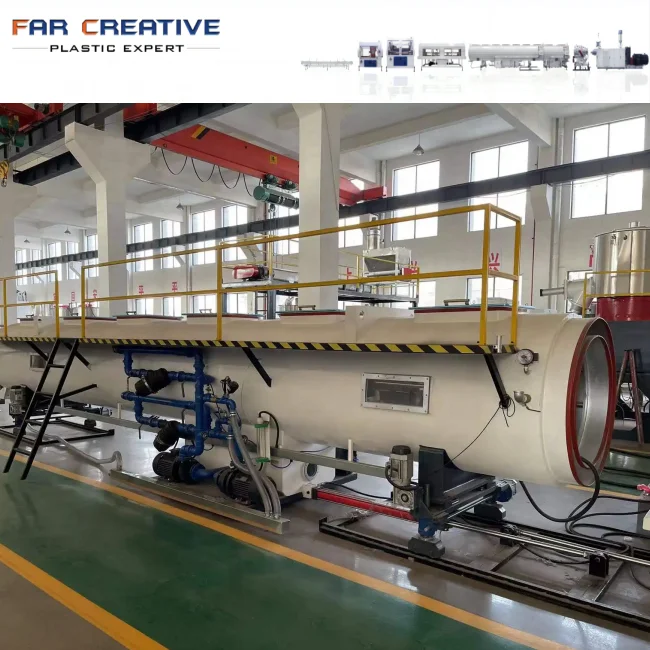

3. Vacuum calibration tank
>>Suitable for PE/HDPE/PVC/PPR pipe production
>>Diameter range from Ø16 to Ø1600 mm
>>Length up to 12000mm
>>304 stainless steel with painted outer surface
>>Special water sprays are located on the best position for cooling the pipe efficiently
>>Special and easy adjusted pipe supports for each pipe diameter
>>Installed vacuum and water pumps can work without any maintenance for long times
>>Special cooling baths can be designed for specific extrusion production

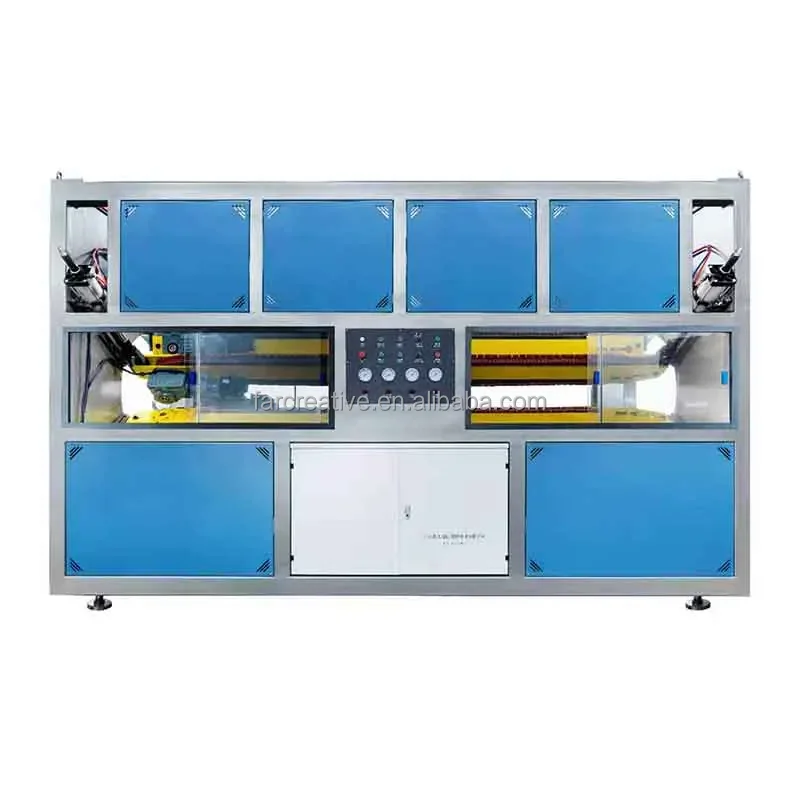

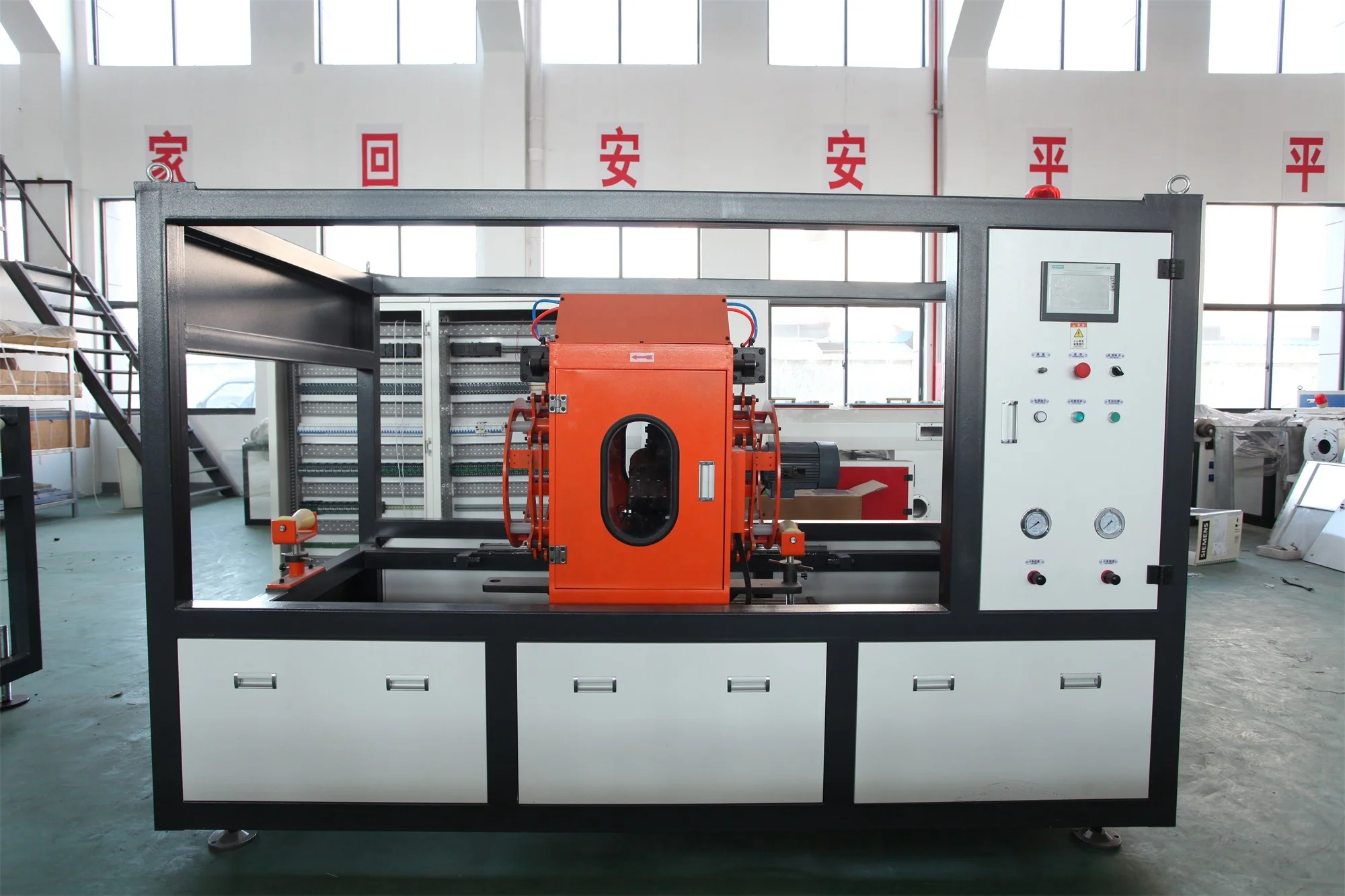

4.Haul-off Machine
>>Pipe range from Ø16 to Ø1600 mm
>>High pulling force without lose the shape of the pipes
>>Equipped with 2, 3, 4, 6, 8,10 or 12 caterpillars according to the application
>>Servo motor driving for providing stable torque and running
>>Motorized positioning of the lower caterpillars
>>Simple operation
>>Completely closed protection for maximum safety
>>Chain conveyors with special rubber pads on chains which do no mark on the pipe.
>>Synchronization with the extruder screw speed allows stable production during changing the production speed

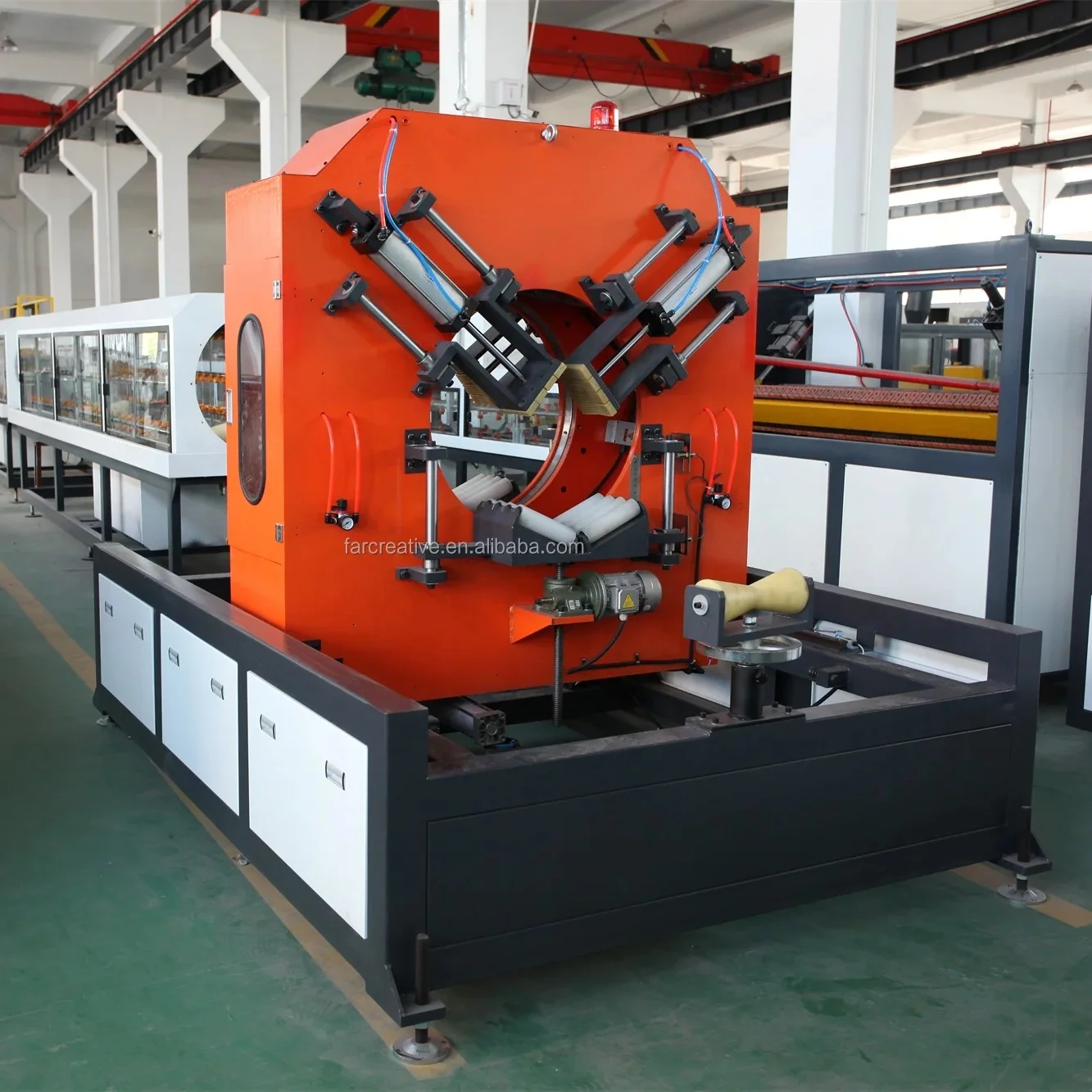

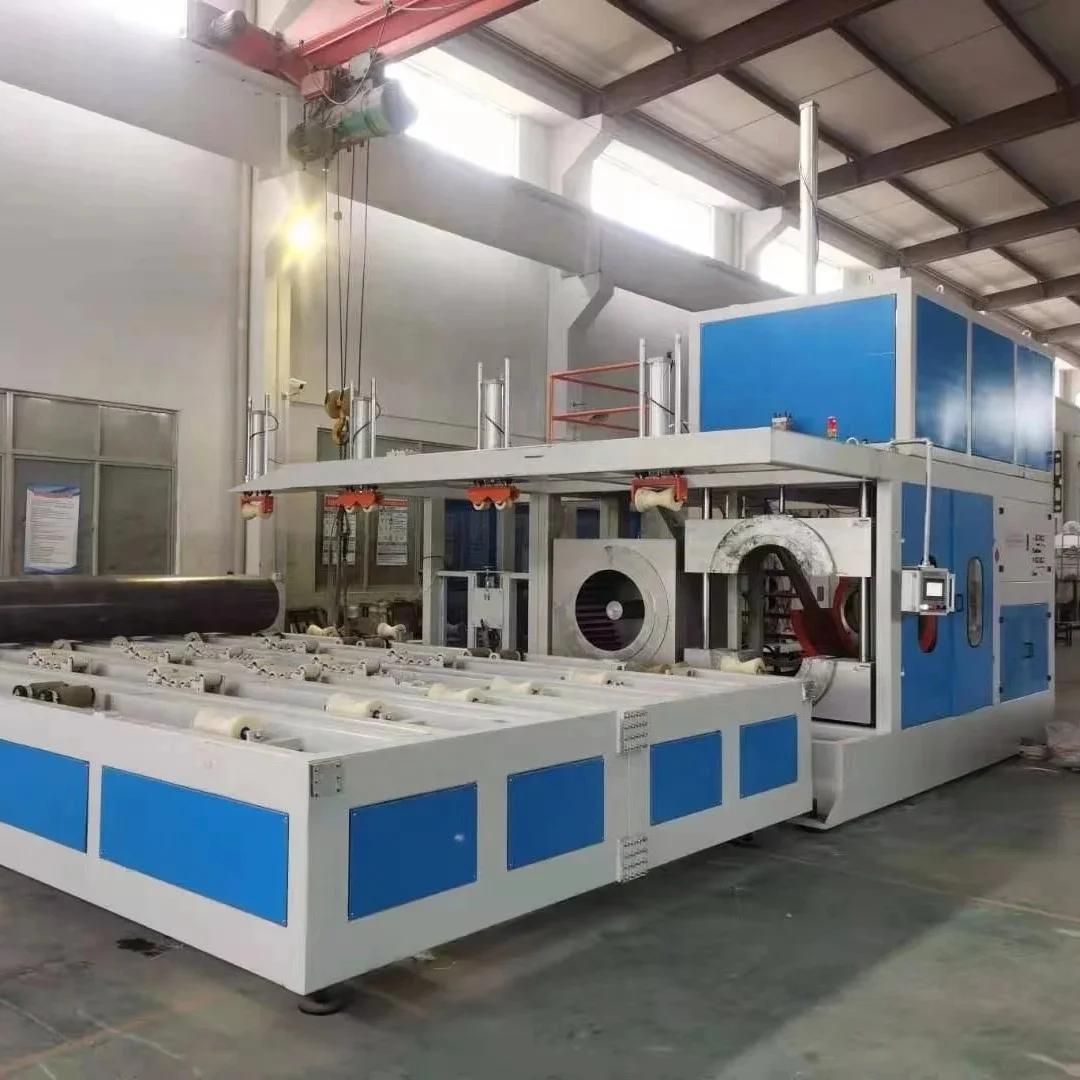

5.Dust-free Cutter
>>Automatic synchronisation with extrusion speed
>>Planetary equipped with disk and milling cutter for cut and chamfering
>>Dust-free equipped with disk blade to ensuring soomth cutting surface without any dust
>>SIMENS PLC touch screen control panel
>>All movements are motorised and controlled by control panel
>>Pipe blocking with using universal clamping for easy operation
>>Type of the cutting unit is chose depend on pipe
>>Less maintenance needs
>>Completely closed and secured machine for maximum safety

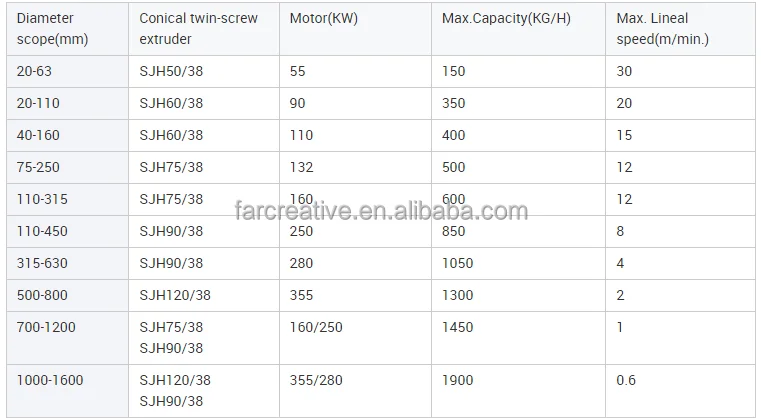

Technical Data
Company Information
Zhangjiagang Far Creative Machinery is a R&D manufacturing enterprise,specializing in plastic extrusion machinery. Our company owns the most professional Extrusion technical team and the most advanced technology , our aim is to bring the most competitive extrusions machines with top quality to all of our customers from home and abroad. Our company has more than 20 years rich production experience in this area. Our Products have been exported to Southeast Asia, Middle East, Central Asia, Russia, Europe, South America, North America, Africa and etc.,
Why Choose Us

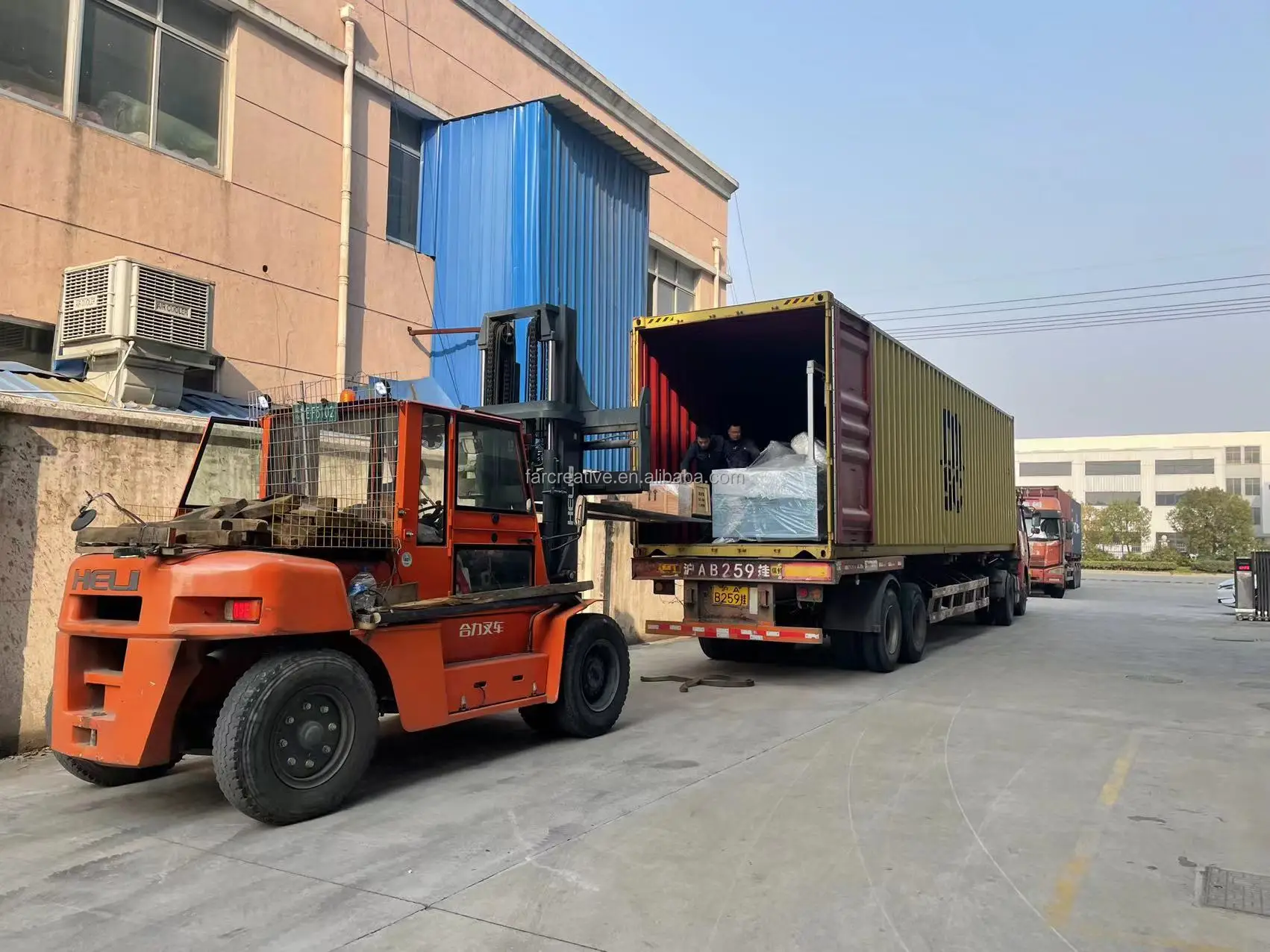

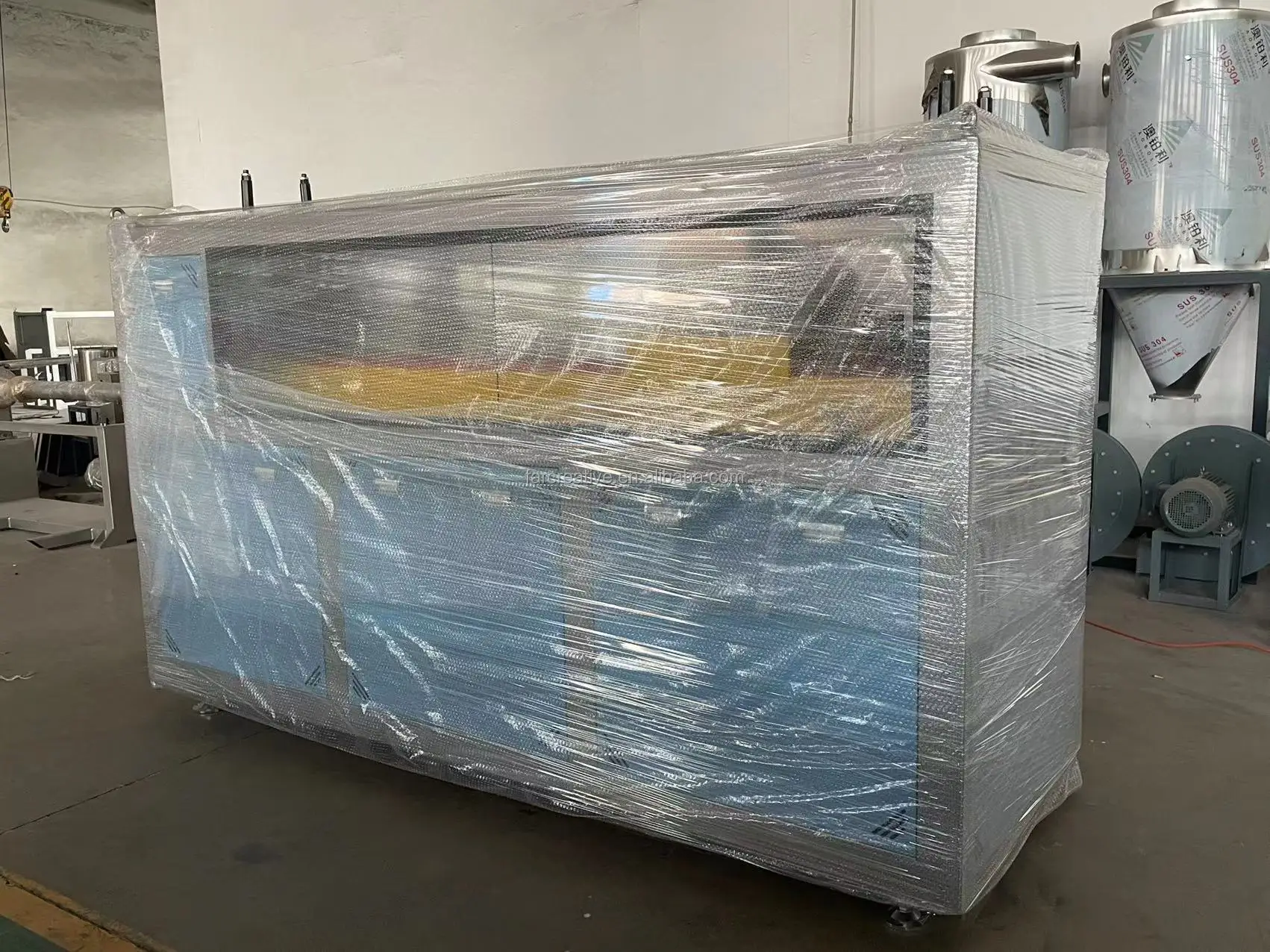

Packing & Delivery
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business since Year 2010.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: Normally we accept 30% T/T as deposit and 70% T/T as balance payment before shipping, The payment way that we accept are T/T, L/C,Western Union and etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
A: we are factory, we are engaged in this business since Year 2010.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: Normally we accept 30% T/T as deposit and 70% T/T as balance payment before shipping, The payment way that we accept are T/T, L/C,Western Union and etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Shanghai International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
If you are interested in our machine, and would like to know more information, please do not hesitate to contact with me.Will give you the most competitive price with TOP machine quality.
