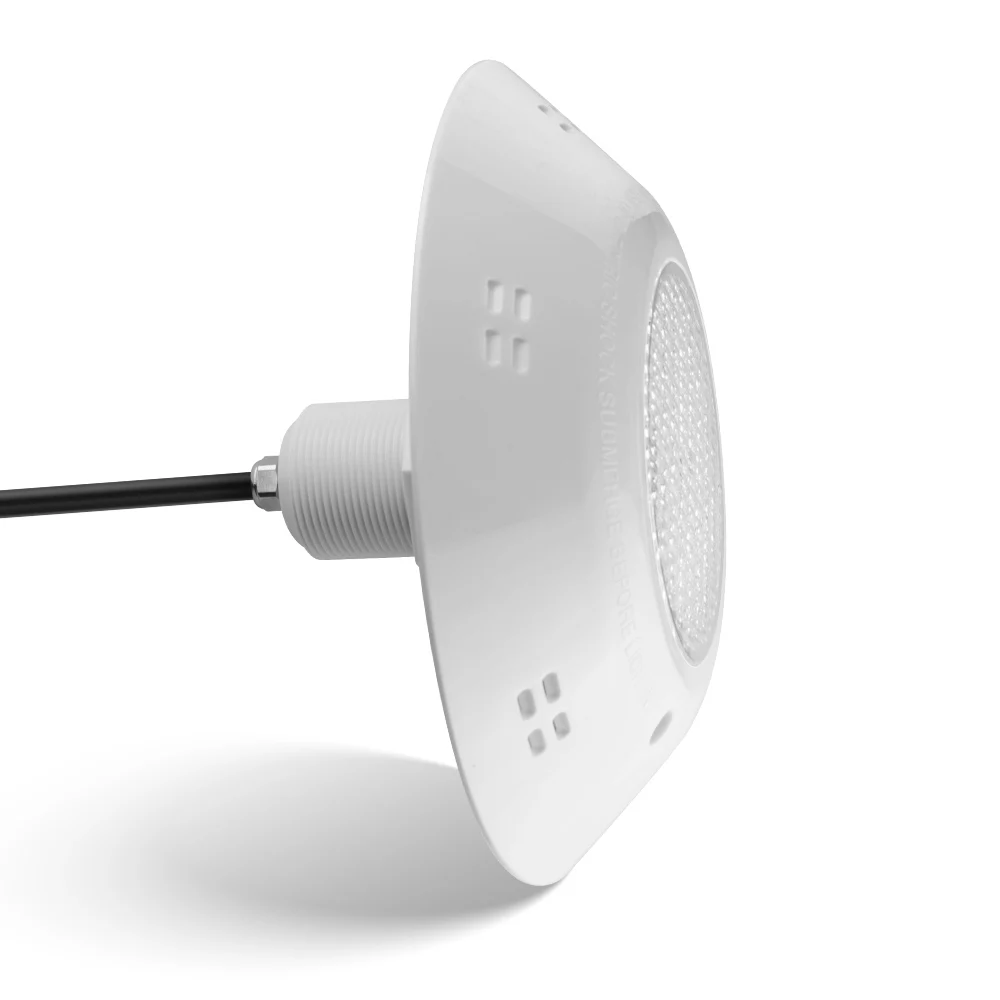

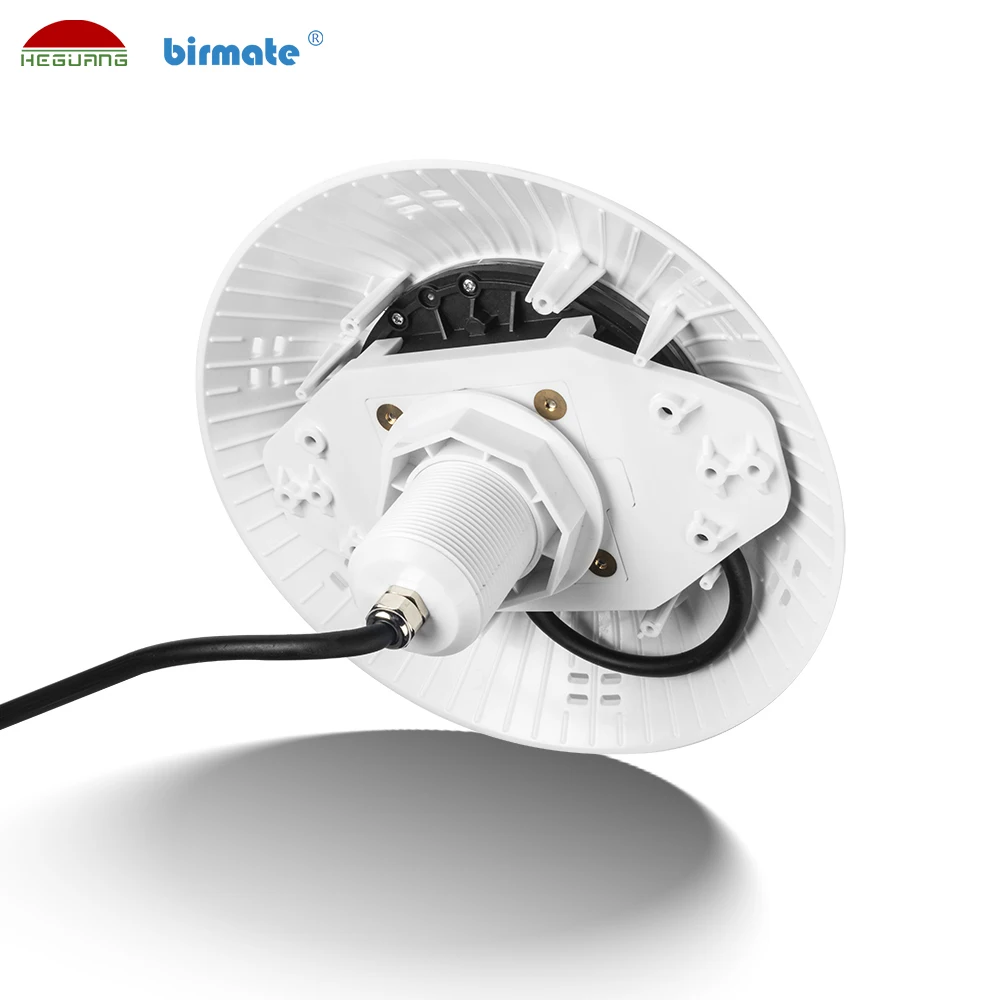

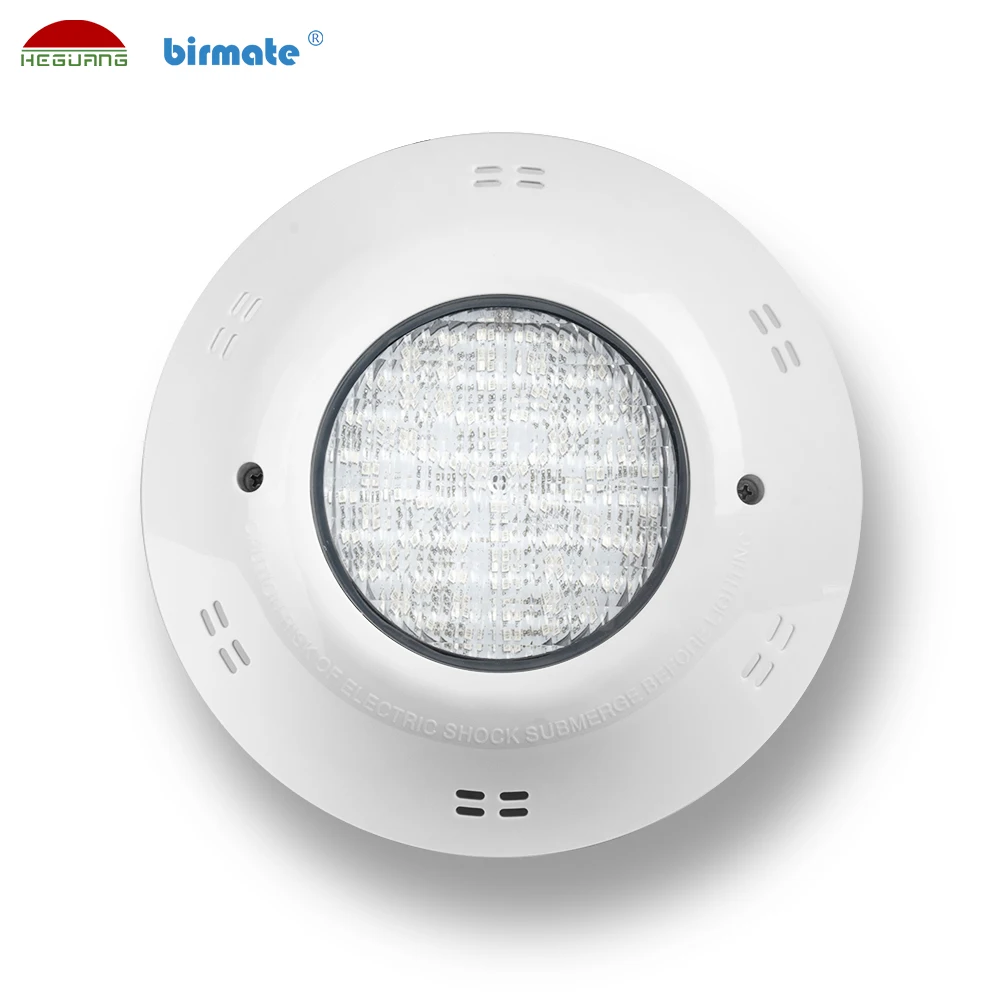

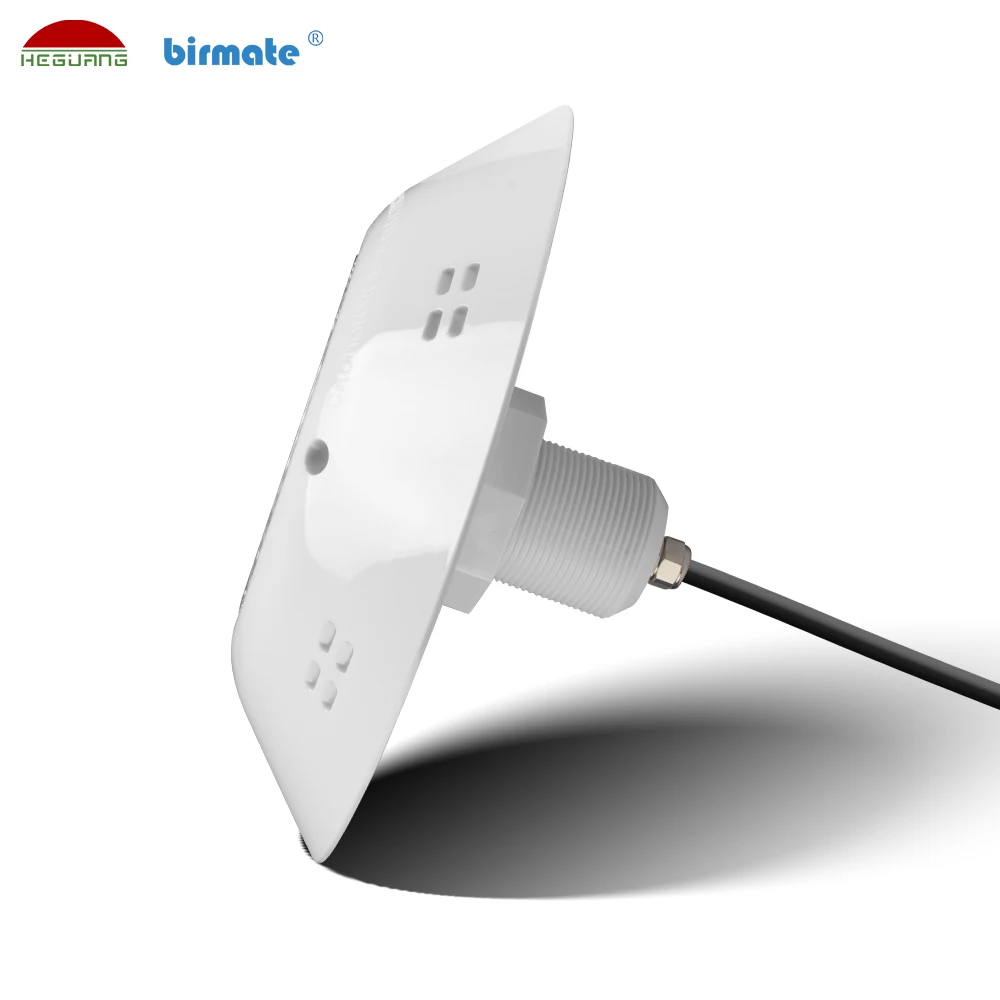

12W Waterproof Connector IP68 Underwater 12 volt swimming pool light
- Category: >>>
- Supplier: Shenzhen Heguang Lighting Co. Ltd.
Share on (1601026817508):
Product Overview
Description
12V IP68 Waterproof Connector IP68 Underwater LED Concrete vinyl fiberglass Swimming Pool Light
Product Size :
Product Parameter
| HG-PL-12W-V | ||||||||
| Lamp paramater | Material | ABS + Transparent PC cover | ||||||
| Light dimension | Φ250×135.5mm | |||||||
| Input voltage | AC12 | |||||||
| Wattage | 13W±10% | |||||||
| Light lumen | 1100LM±10% | |||||||
| Halogen replacement | 100W | |||||||
| Beam angle | 120° | |||||||
| BASE | wire out | |||||||
| CCT | Pure White: 6500±10% Warm White:3000K±10% costomized | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, ROHS,FCC, IP68,VDE | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 70 | 71 | ||||||
Advantages
1. Highlight LED Chips, low light degradation and long lifespan, CRI>80
2. Anti-UV PC cover, excellent yellowing resistance, and durable
3. Environmental ABS material shell
4. IP68 Structure waterproof, without resin-filled.
5. Patented 4-layers waterproof structure, more stable than resin-filled pool lights
6. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
7. All products succeeded in 10m deep water testing before delivery.
8. 8 hours aging testing, 30 steps quality inspections, assure the great quality pool light.
9. Constant current driver, comply with CE & EMC standard.
10. 2-3MM aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
underwater led swimming pool light compared to others :
Application
HG-PL-12W-Vunderwater led swimming pool light use in vinyl pool ,underwater IP68.
How to install the underwater led swimming pool light:
underwater led swimming pool light application :Vinyl pool ,Outdoor Swimming Pool ,family pool,hotel pool ,underwater etc
Packaging & Shipping
Item | HG-PL-12W-V underwater led swimming pool light |
Product weight | 1750g |
color box size | 260×260×180mm |
Carton/pcs | 6pcs/Carton |
Carton size | 540x285x560mm |
Carton weight | 10.2kg |
About Company
In 2006, we began working in LED Underwater product development and production. factory area of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is listed
in UL certificate in Led Swimming pool light industry.
MAIN PRODUCTS
1.UL Certificated pool light
2.LED PAR56 pool light
3. LED Surface Mount LED Pool light
4. LED Fiberglass pool lights
5. LED Vinyl pool lights
6. LED Underwater Spot light
7. LED Fountain Light
8. LED Ground lights
9. IP68 Led Strip light
10.RGB Led Controller
11. IP68 par56 housing/Niche/fixture
CERTIFICATION AND GLORY
1.UL Certification (PAR56 Pool lights), CE, ROHS, FCC, EMC, LVD, IP68 , IK10.VDE
2.ISO9001 certification
3.Private model products
4.Structure waterproof technology
5.Customer satisfaction rate >98%
Heguang always adheres to the quality first, constantly develops new products to adapt to the development of the market,and provides customers with comprehensive and intimate product solutions to ensure worry-free after-sales!
The factory is located in Baoan, Shenzhen, close to Hong Kong and Shenzhen Airport. Welcome to visit factory.
Heguang LED pool lighting Certification :
Heguang exhibition :
Recommed
Heguang other products :IP68 underwater pool lights ,led fountain lights ,wall mounted led pool lights ,IP68 led strip lights ,led pool lighting accessories :
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices, please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,DMX512 control,etc.
