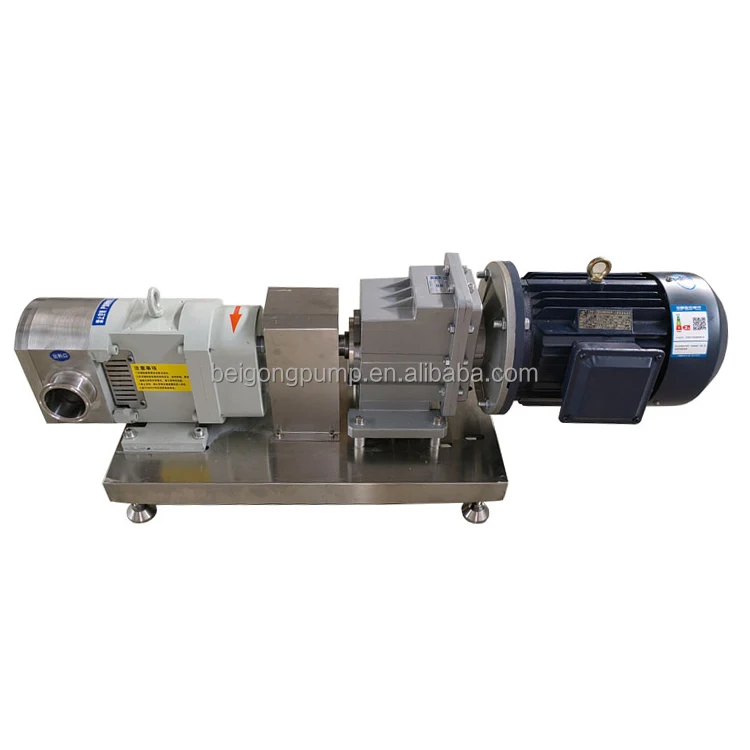

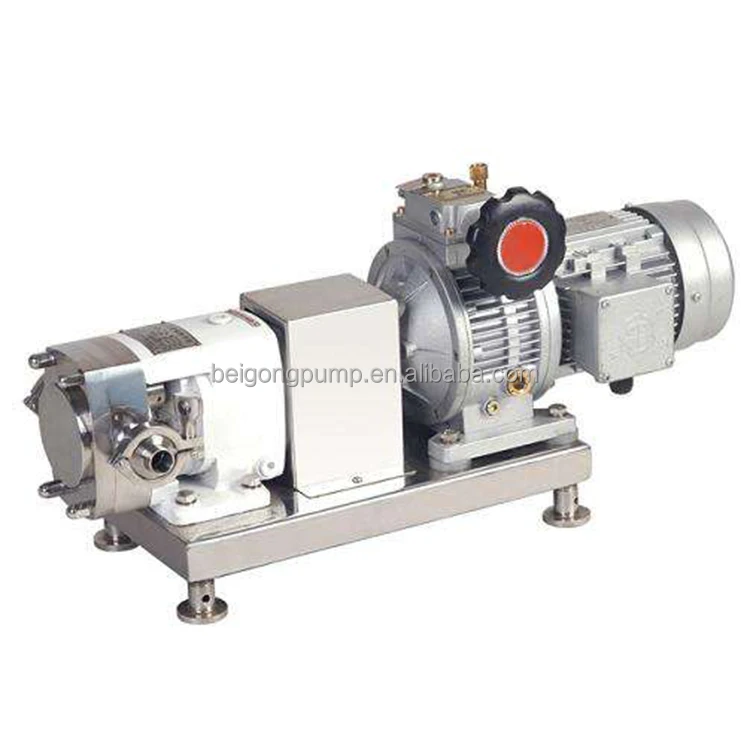

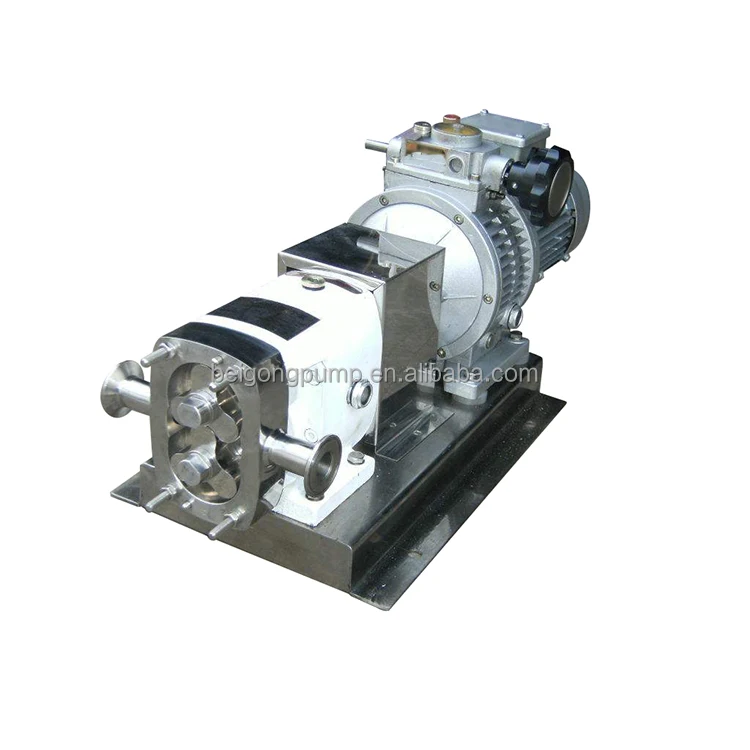

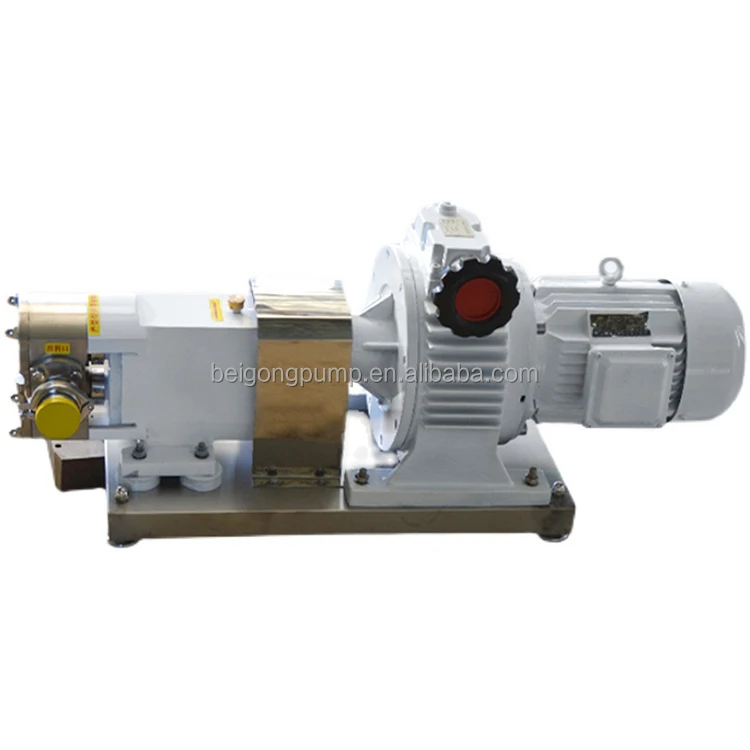

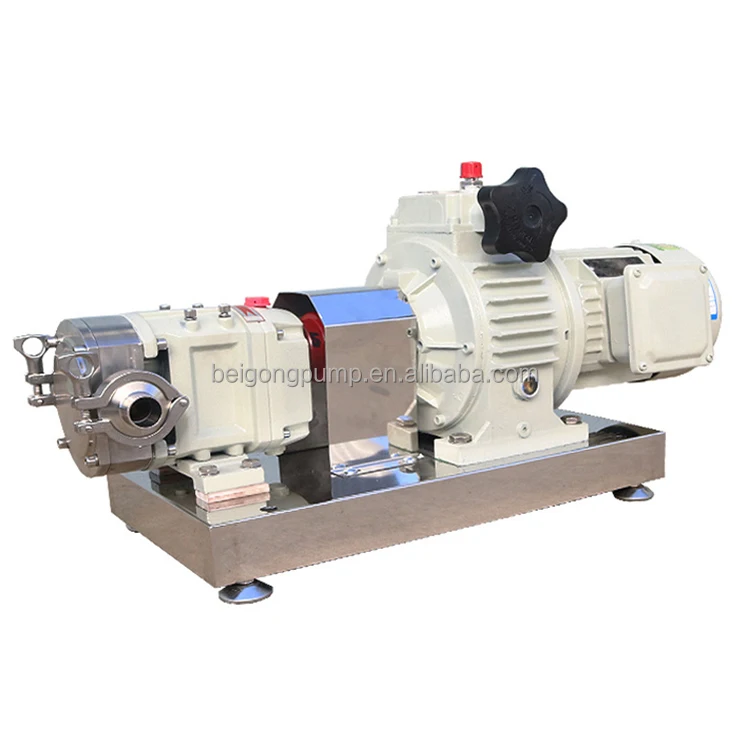

Stainless Steel 2 3 Lobe Cam Rotary Pump Motor Powered Transfer Gear Type Pump for Water Edible Oil Juice Jam Sauce
- Category: >>>
- Supplier: Hebei Beigong Pump Co. Ltd.
Share on (1601026900784):
Product Overview
Description
Categories
Product Introduction
Overview：

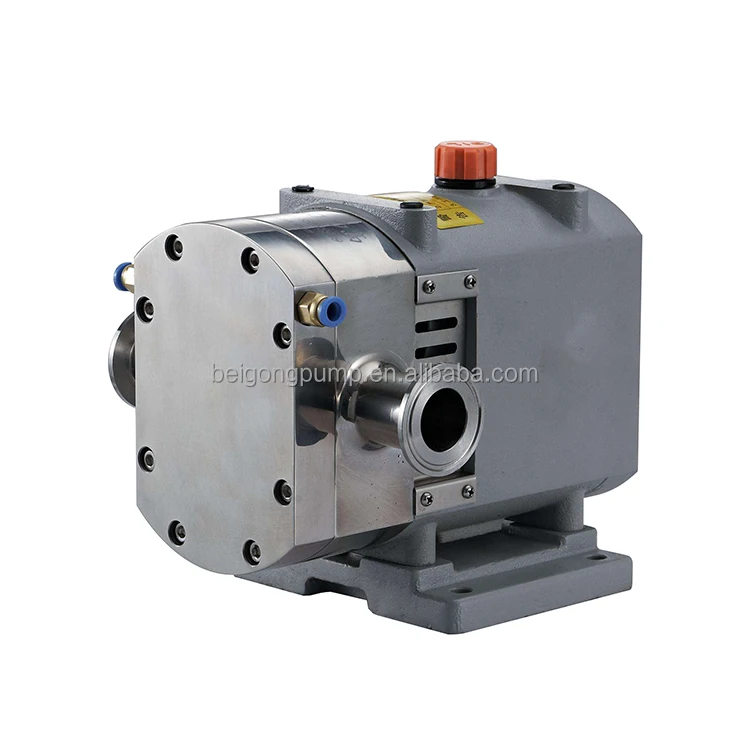

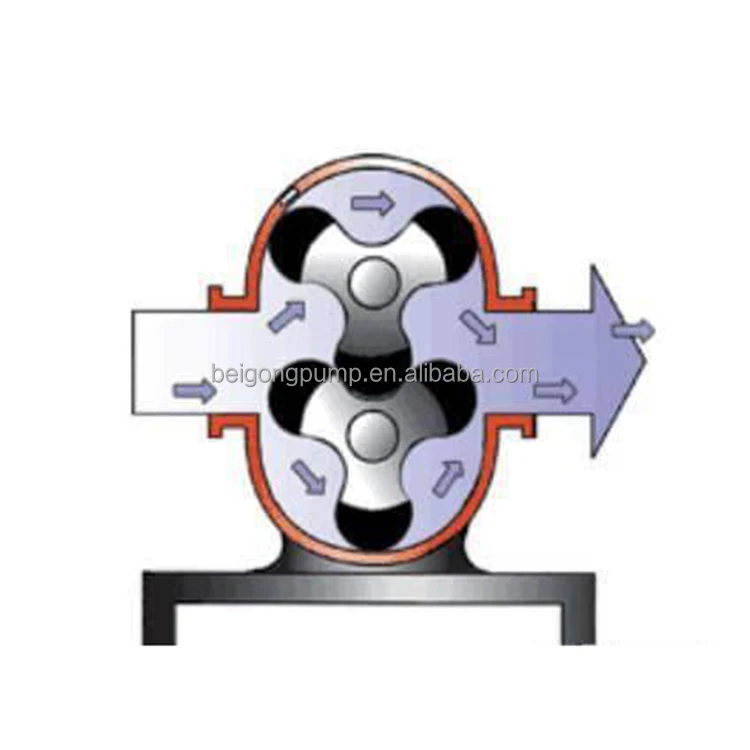

Lobe Pump The cam type double rotor pump is a multi-purpose two-way positive displacement pump produced by our company. This product uses two rotors running synchronously. The cam rotor pump adopts gear transmission, and the main shaft and the auxiliary shaft drive the rotor to rotate synchronously and reversely, so that the volume of the pump changes, forming a higher vacuum degree and discharge pressure, especially suitable for sanitary media and highly corrosive high viscosity medium.
Maximum flow: 300~63000 L/h
Maximum pressure： 0.2~1.5Mpa
Suitable for: sanitary medium,high viscosity medium
Use high-quality food grade stainless steel material,
Corrosion resistant, no rust.

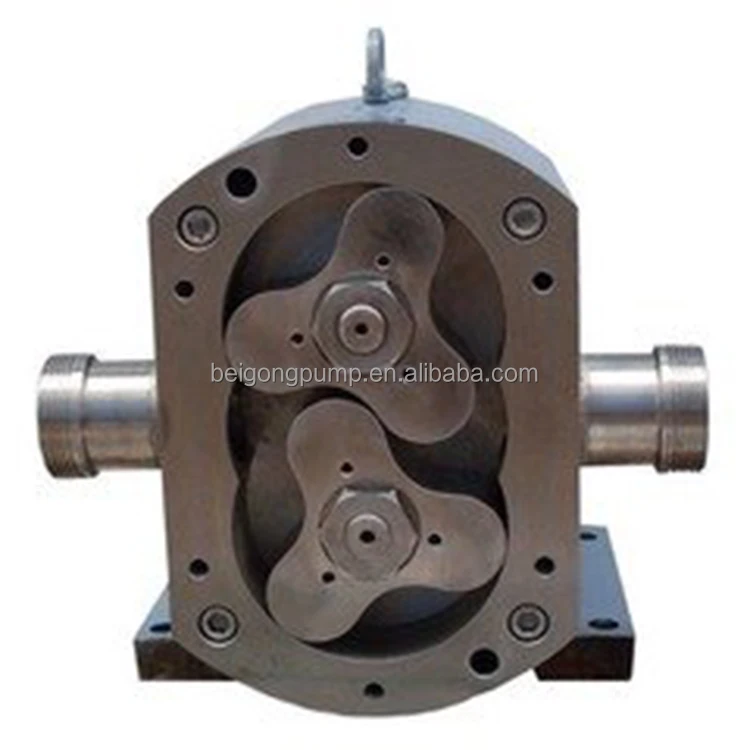

Double rotor:
There is a certain gap between the rotor and the rotor, no friction coefficient, and long service life.

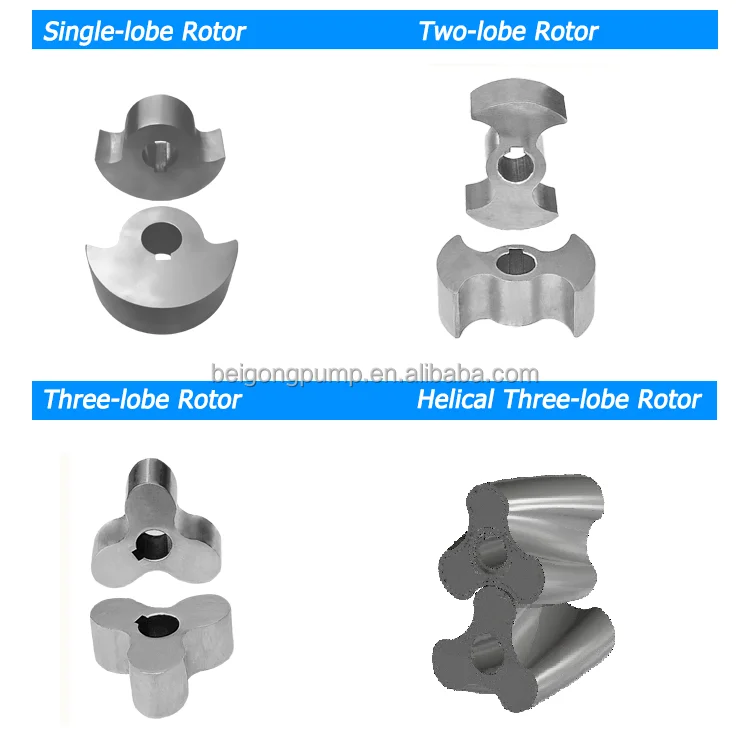

Rotor optional:
Single lobe rotor
Two lobe rotor,Butterfly type rotor
Three lobe rotor,Helical three lobe rotor
Multi lobe rotor
Product parameter table
Model | Caliber | Discharge Capacity | Speed Range | Flow | Motor Power |
(mm) | L/100r | (rpm) | (L/h) | (kW) | |
BGRP-3-3 | 25/DN20 | 3 | 200-500 | 300-800 | 0.55 |
BGRP-3-6 | 25/DN20 | 6 | 200-500 | 650-1600 | 0.75 |
BGRP-3-8 | 38/DN40 | 8 | 200-500 | 850-2160 | 1.5 |
BGRP-3-12 | 38/DN40 | 12 | 200-500 | 1300-3200 | 2.2 |
BGRP-3-20 | 51/DN50 | 20 | 200-500 | 2100-5400 | 3 |
BGRP-3-30 | 51/DN50 | 30 | 200-500 | 3200-6400 | 4 |
BGRP-3-36 | 63/DN65 | 36 | 200-400 | 3800-7600 | 4 |
BGRP-3-52 | 76/DN80 | 52 | 200-400 | 5600-11000 | 5.5 |
BGRP-3-66 | 63/DN65 | 66 | 200-400 | 7100-14000 | 7.5 |
BGRP-3-78 | 76/DN80 | 78 | 200-400 | 9000-18000 | 7.5 |
BGRP-3-100 | 89/DN80 | 100 | 200-400 | 11000-22000 | 11 |
BGRP-3-135 | 89/DN80 | 135 | 200-400 | 15000-30000 | 15 |
BGRP-3-160 | 89/DN80 | 160 | 200-400 | 17000-34000 | 18.5 |
BGRP-3-200 | 89/DN80 | 200 | 200-400 | 21600-43000 | 22 |
BGRP-3-300 | 102/DN100 | 300 | 200-400 | 31600-63000 | 30 |
* The performance parameter table only shows part of the products. For details, please consult our professional account managers to better select your model. *
Product application range:
Lobe pumps are widely used in petrochemical, fine chemical, daily chemical, pharmaceutical, food, environmental protection, paper, paint, metallurgy and other industries.APPLICATION
Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager https://beigongpump.en.alibaba.com/contactinfo.html

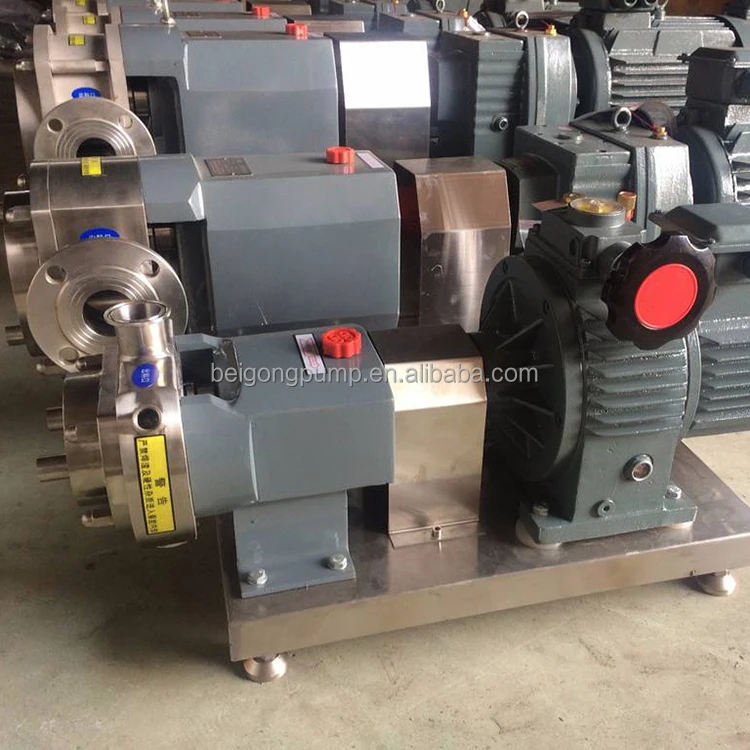

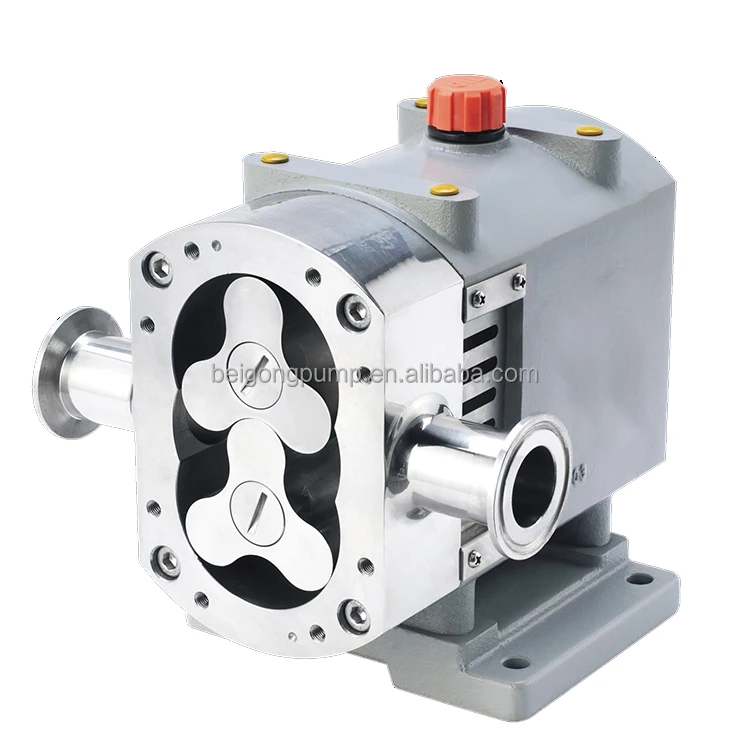

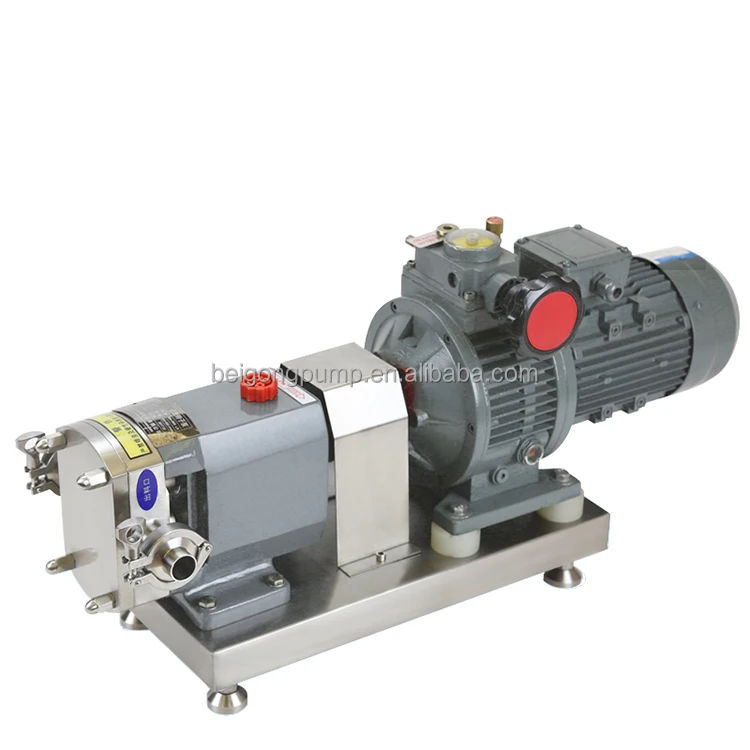

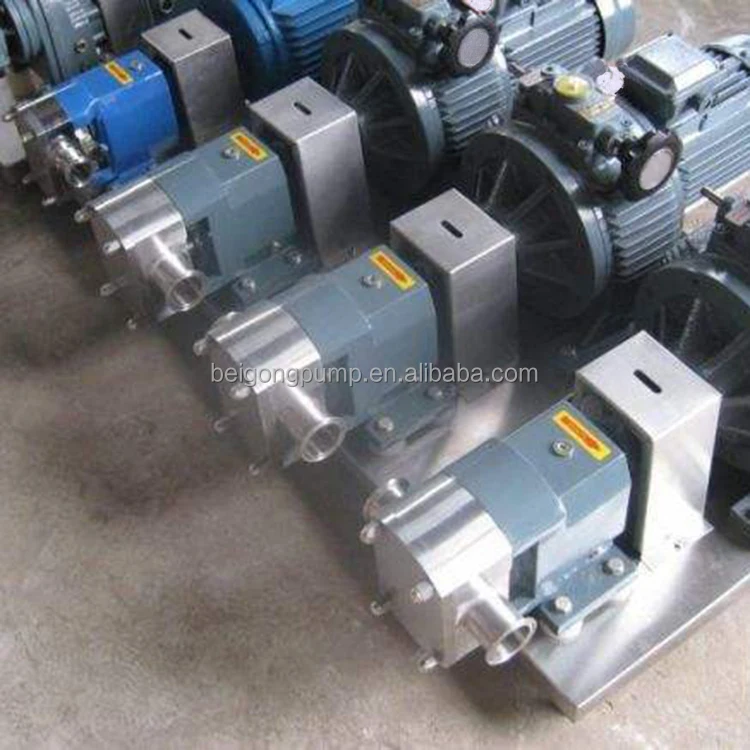

Product physical map
You May Like
Our Company
Company office area
Integrated CNC machine tool
Heavy processing machine tools
CNC Castings
Product assembly
Quality inspection station
workshop corner

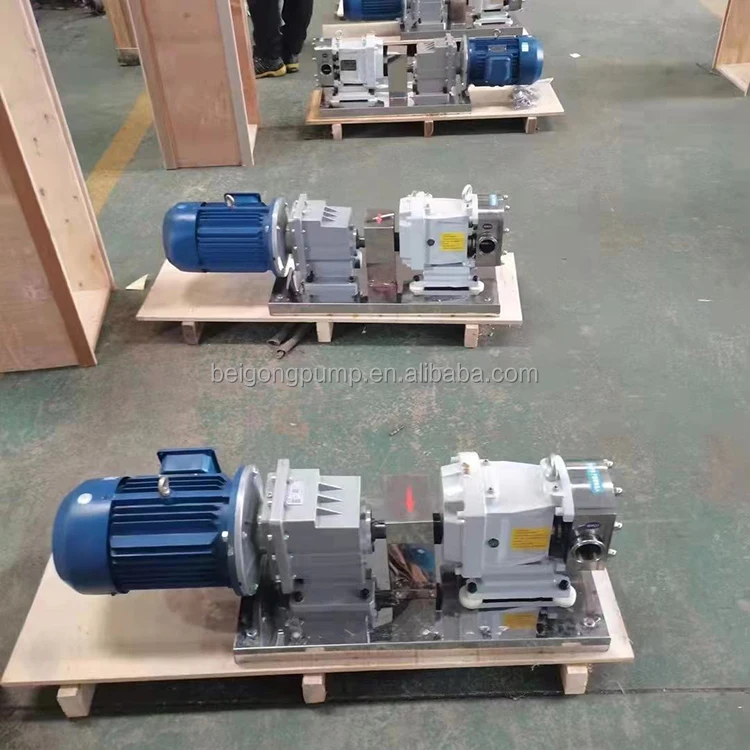

Product packing display
Factory Picture
Logistics transportation
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air,express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
