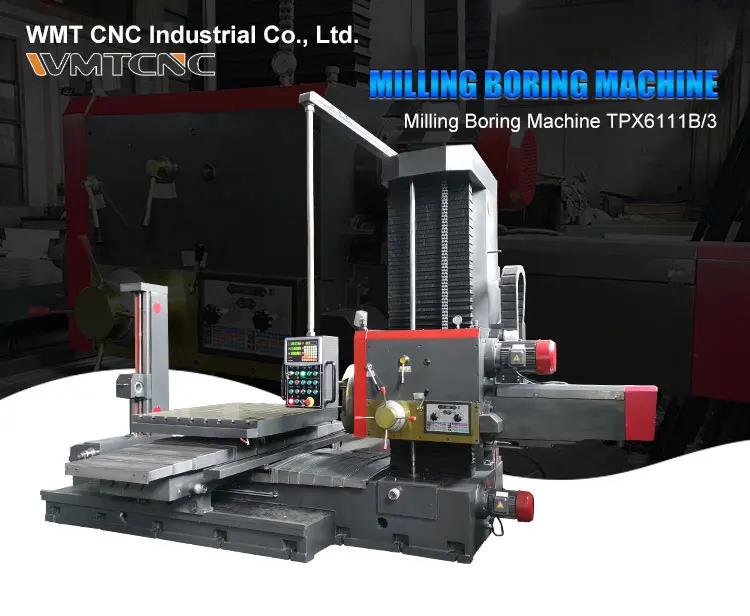

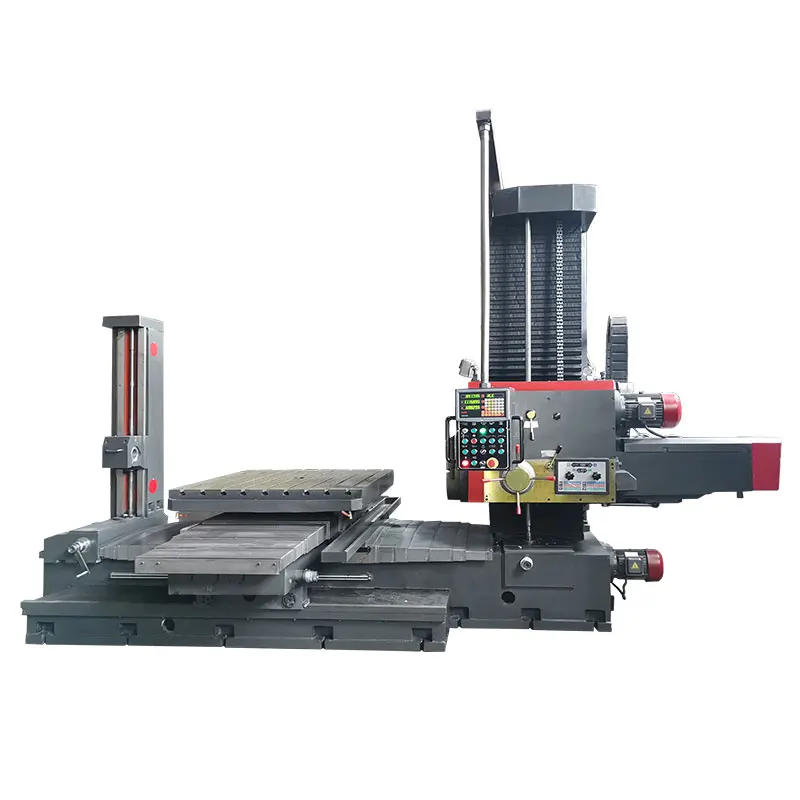

Guaranteed quality TPK6111B/3 low price boring and milling machine horizontal boring mill
- Category: >>>
- Supplier: WMT CNC Industrial Co. Ltd.
Share on (1601026907898):
Product Overview
Description

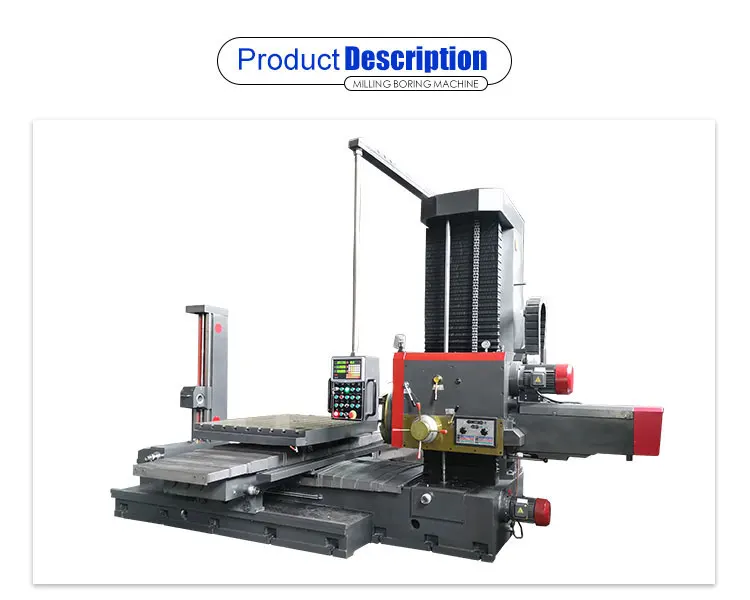

Product Description
Features:
1. X, Y, Z axis controlled by CNC system, could realize simultaneous motion. 2. Boring axis’ flexible and axis of facing head are controlled by servo motor, can realize automatic processing.
3. X, Y, Z axis with rectangular sliding guide. Teflon plastic paste process, shock absorption, and high precision.

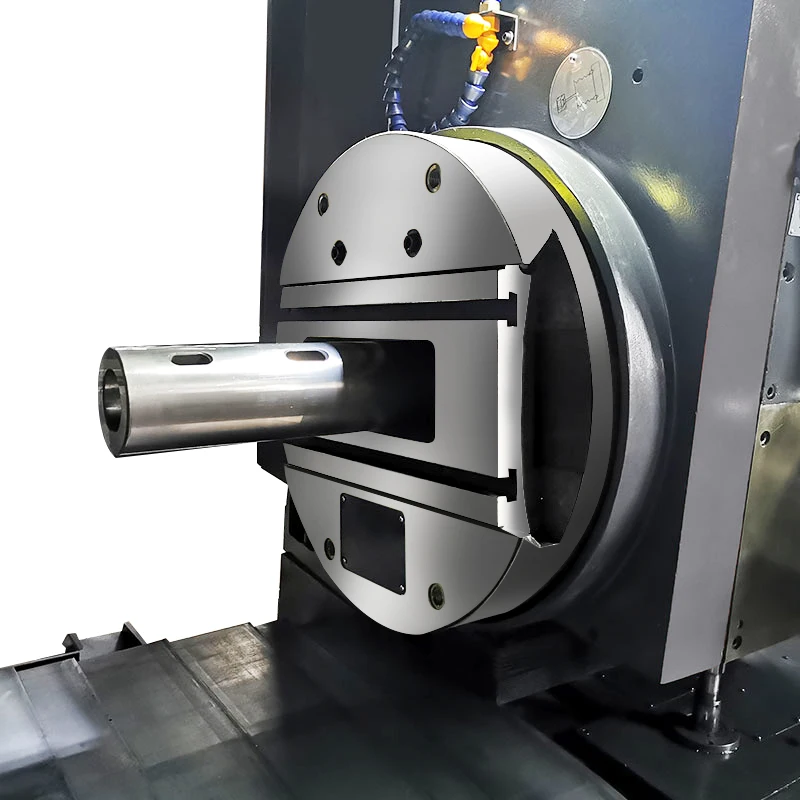

4. The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.
Specification | TPX6111B | TPX6111B/2 | TPX6111B/3 | ||||
Diameter of spindle（mm） | 110 | ||||||
Max.torque of spindle（N.m） | 1225 | ||||||
Max.torque of facing slide（N.m） | 1960 | ||||||
Max.axial thrust of spindle（N） | 12250 | ||||||
Spindle taper | morse 6（7:24、50#）ISO50 7:24 | ||||||
Worktable travel (mm) | Longitudinal（z） | 900 | 1400 | ||||
Cross（x） | 900 | 1250 | 1600 | ||||
Distance from spindle center line to worktable surface(mm) | Max.（y） | 900 | 1200 | ||||
Min. | 0 | ||||||
Max.travel of spindle（mm） | 600 | ||||||
Max.travel of radial facing slide（mm） | 180 | ||||||
Max. load of table（kg） | 2500 | 3000 | |||||
Speed number of spindle | 22 steps | ||||||
Speed range of spindle | 8-1000r/min | ||||||
Speed number of radial facing slide | 18 steps | ||||||
Speed range of radial facing slide | 4-200r/min | ||||||
Rapid traverse speed of spindle, headstock, cross & longitudinal saddles | 2500mm/min | ||||||

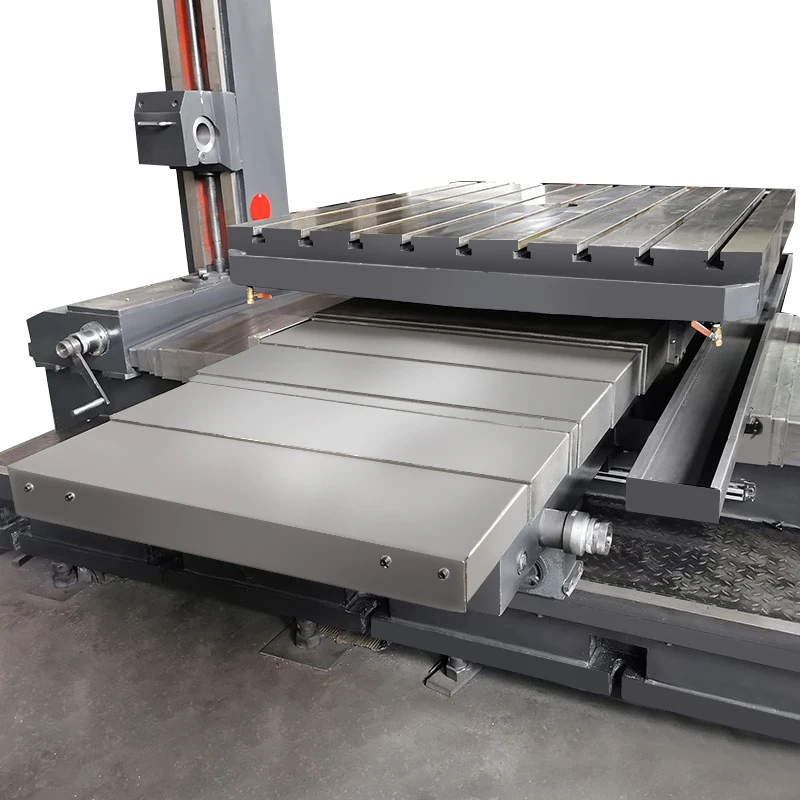

Worktable working surface (mm) | 1100*960 | 1600*1300 | |||||
Rapid speed of rotary table | 1r/min | ||||||
Feed number of spindle, headstock and table per spindle revolution | 18 steps both in the low and high spindle speed | ||||||
Feed number of radial slide on facing head, headstock, cross & longitudinal saddles per facing head rotation | 18 steps | ||||||
Feed range of radial slide on facing head, headstock, cross & longitudinal saddles per facing head revolution | 0.08-12mm | ||||||
Feed range of spindle, headstock, cross & longitudinal saddles per spindle revolution | When spindle speed is within 8-400r/min | 0.04-6mm(0.0016-0.2362") | |||||
When spindle speed is within 500-1000r/min | 0.01-1.88mm(0.0004-0.074") | ||||||
Reading accuracy of measuring system | Metric | 0.005mm | |||||
Inch | 0.0005" | ||||||
Boring accuracy | IT7 | ||||||
Roughness of boring hole | 3.2-1.6 | ||||||
Overall dimension(L*W*H mm) | 4910*2454*2750 | 4930*2870*2750 (4930*3359*2750) | 5117*3359*3079 | ||||
Machine weight (Kg) | 13000 | 14500 | 17000 | ||||
Data | 50Hz 380V | 60Hz 220V | ||||
Power(KW) | Rotation(r/min) | Power(KW) | Rotation(r/min) | |||

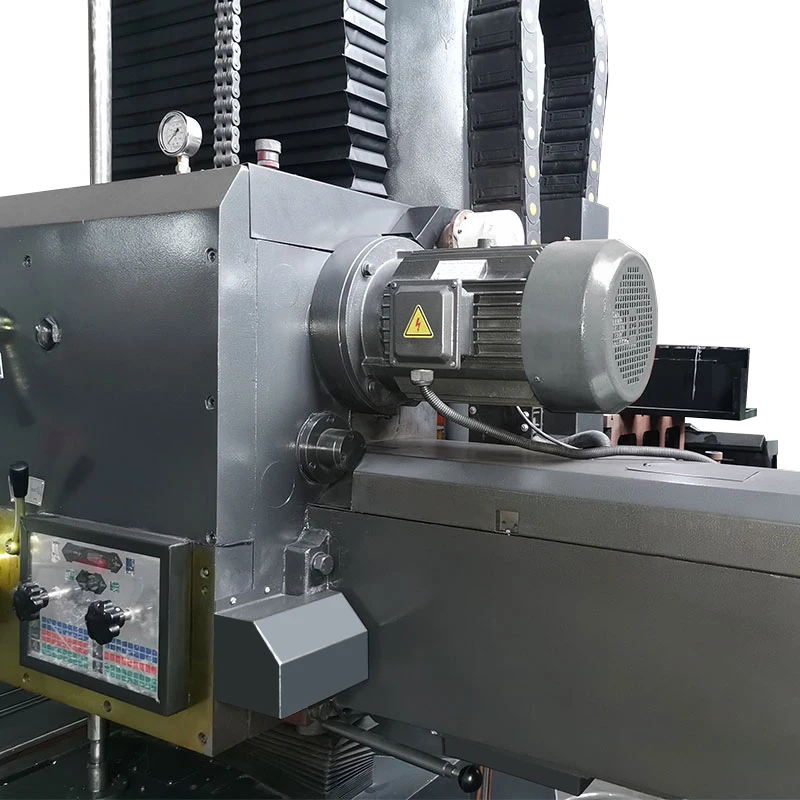

Main drive motor | 7.5 | 1450 | 7.5 | 1740 | ||
Rapid motor | 3 | 1430 | 3 | 1700 | ||
Hydraulic oil pump motor for headstock | 0.37 | 1400 | ||||
Hydraulic oil pump motor for worktable | 0.75 | 1400 | 0.75 | 1200 | ||

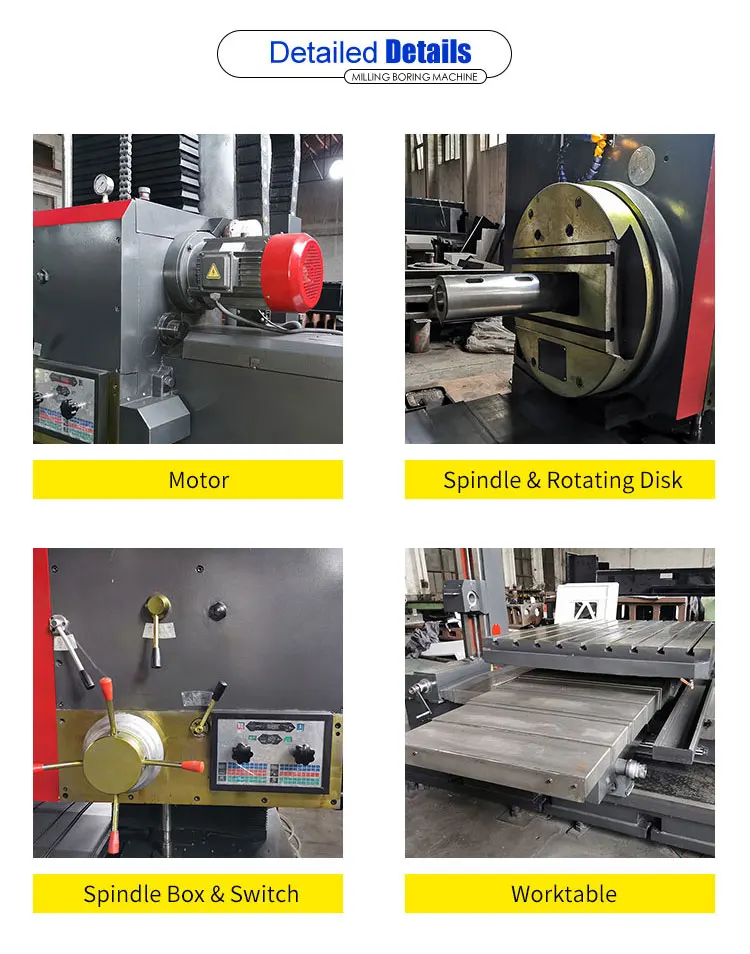

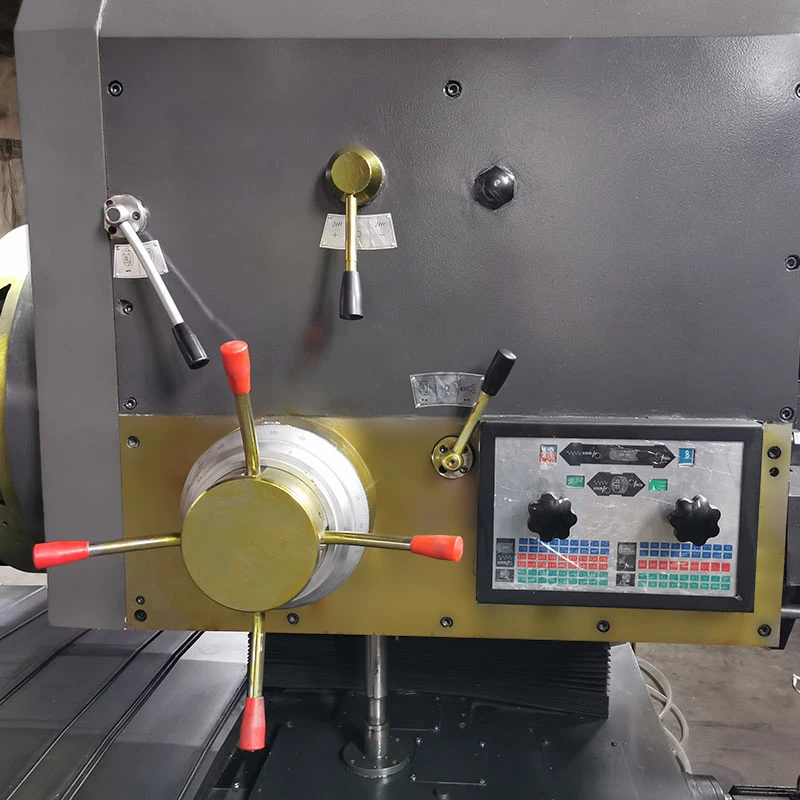

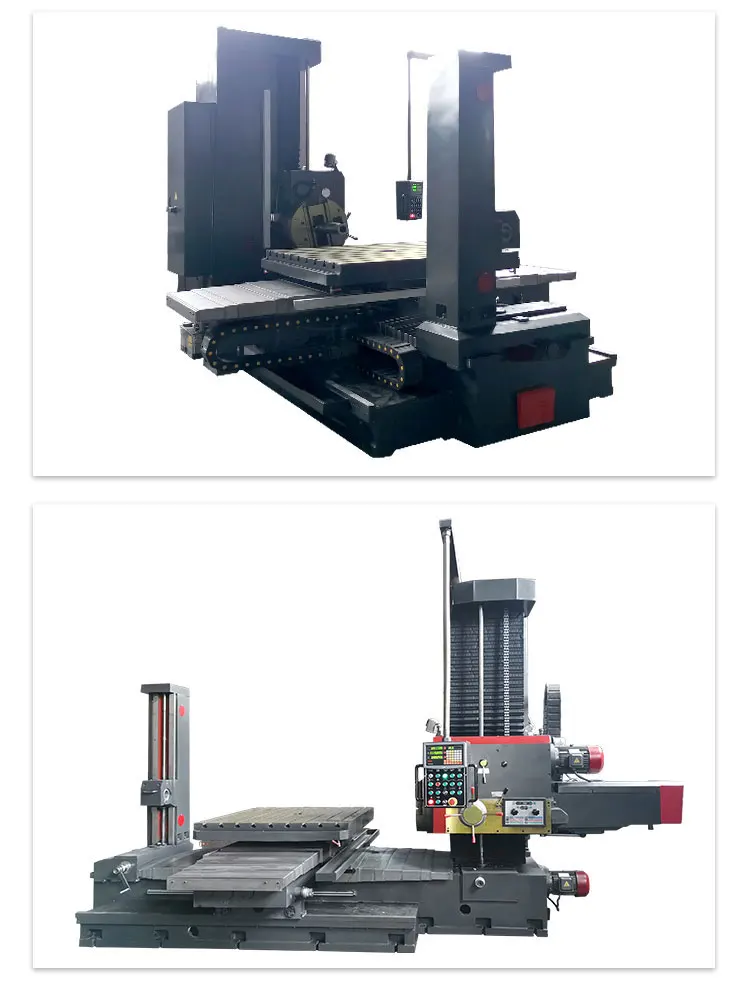

Details Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What’s the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
