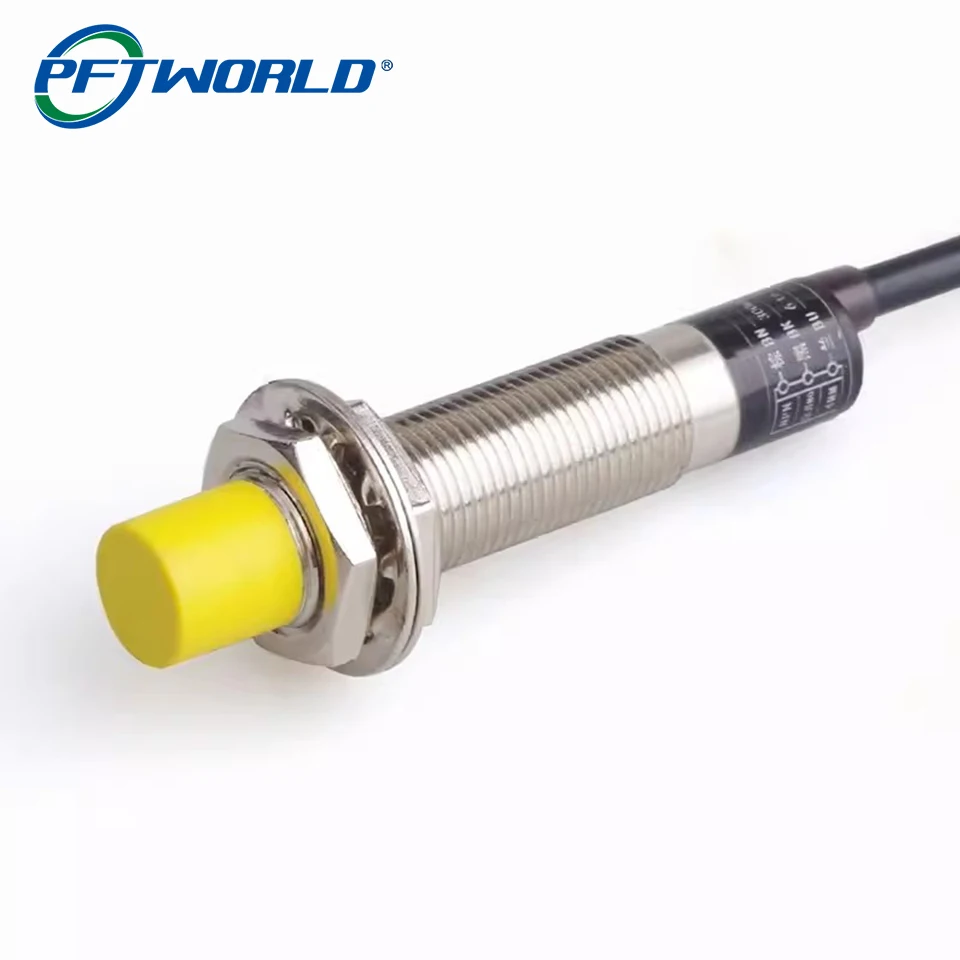

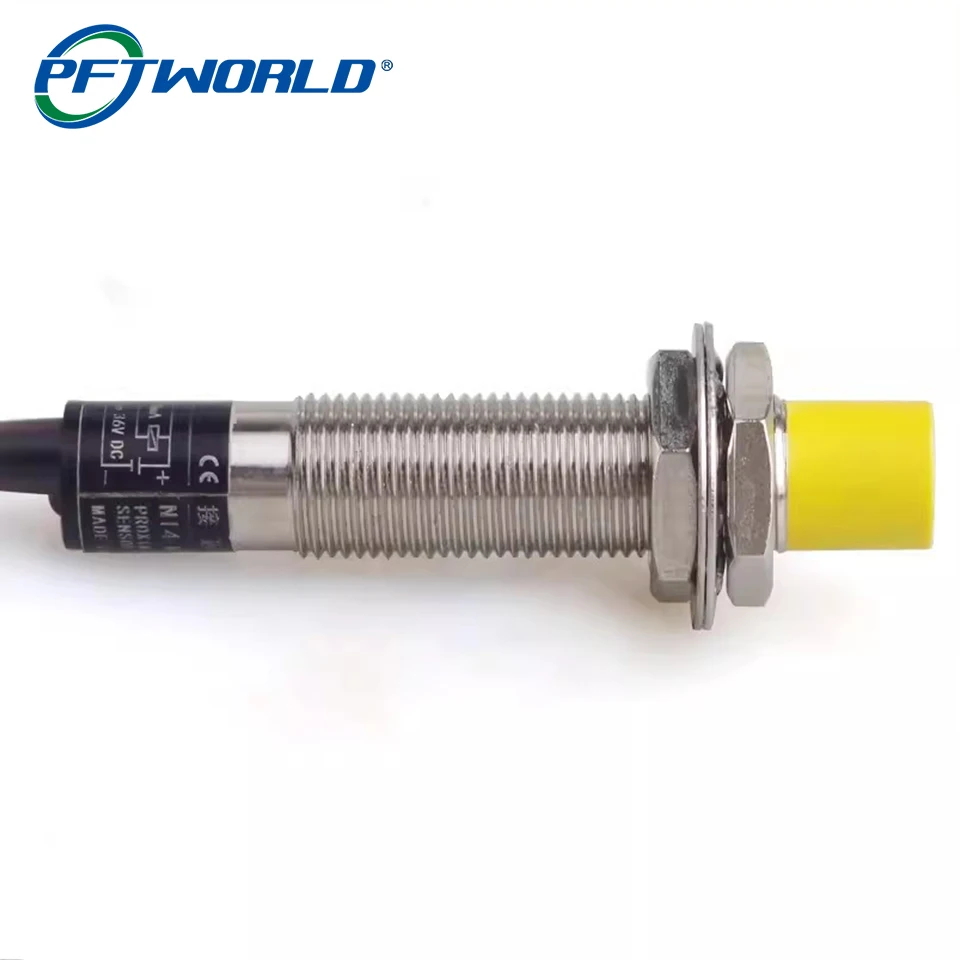

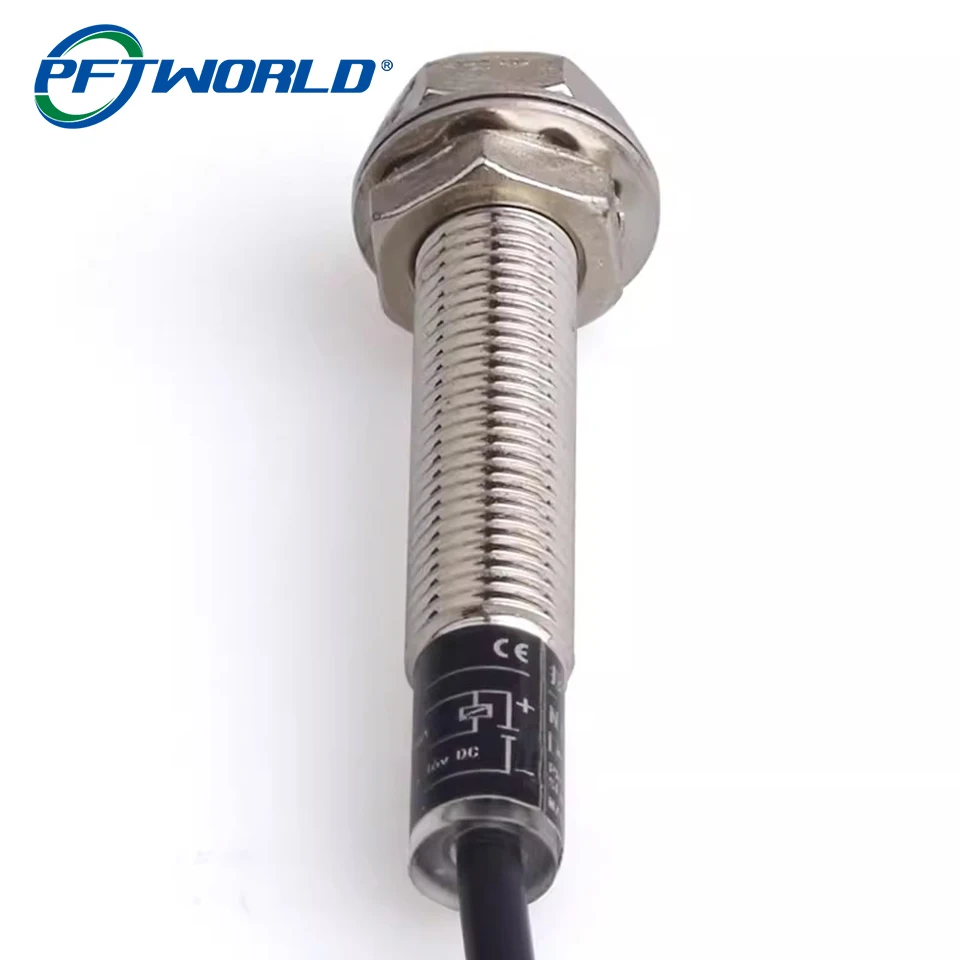

NI4 M12 AN6X LJA12M 2N1 Heat resistant NO/NC Non flush Mounted Metal M12 Inductive Proximity Switch Sensors
- Category: >>>
- Supplier: Shenzhen Perfect Precision Product Co. Ltd.
Share on (1601026976417):
Product Overview
Description
High quality inner core
LJ Series Inductive Proximity Sensor Series
STANDRAD DISTANCE TYPE | Types | Sizes | Detection Distance | NPN | PNP | Output Action |
Bury | M8 | 1MM | LJ8A3-1-Z/BX | LJ8A3-1-Z/BY | NO | |
LJ8A3-1-Z/AX | LJ8A3-1-Z/AY | NC | ||||
Unburied | M8 | 2MM | LJ8A3-2-Z/BX | LJ8A3-2-Z/BY | NO | |
LJ8A3-2-Z/AX | LJ8A3-2-Z/AY | NC | ||||
Bury | M12 | 2MM | LJ12A3-2-Z/BX | LJ12A3-2-Z/BY | NO | |
LJ12A3-2-Z/AX | LJ12A3-2-Z/AY | NC | ||||
Unburied | M12 | 5MM | LJ12A3-4-Z/BX | LJ12A3-4-Z/BY | NO | |
LJ12A3-4-Z/AX | LJ12A3-4-Z/AY | NC | ||||
Bury | M18 | 5MM | LJ18A3-5-Z/BX | LJ18A3-5-Z/BY | NO | |
LJ18A3-5-Z/AX | LJ18A3-5-Z/AY | NC | ||||
Unburied | M18 | 10MM | LJ18A3-8-Z/BX | LJ18A3-8-Z/BY | NO | |
LJ18A3-8-Z/AX | LJ18A3-8-Z/AY | NC | ||||
Bury | M30 | 10MM | LJ30A3-10-Z/BX | LJ30A3-10-Z/BY | NO | |
LJ30A3-10-Z/AX | LJ30A3-10-Z/AY | NC | ||||
Unburied | M30 | 15MM | LJ30A3-15-Z/BX | LJ30A3-15-Z/BY | NO | |
LJ30A3-15-Z/AX | LJ30A3-15-Z/AY | NC |
Bury | LJ8A3-1-Z/BX | LJ12A3-2-Z/BX | LJ18A3-5-Z/BX | LJ30A3-10-Z/BX | |||||
Unbury | LJ8A3-1-Z/AX | LJ12A3-2-Z/AX | LJ18A3-5-Z/AX | LJ30A3-10-Z/AX | |||||
Inductive Object | Iron (effects may vary depending on the material used for monitoring) | ||||||||
Induction Form | inductive | ||||||||
Lineament | DC 3-wire (brown positive, blue negative, black signal wire) | ||||||||
Supply Voltage | DC6-36V | ||||||||
Current Consumption | Less than 1.5W | ||||||||
Circuit Protection | Reverse connection protection Short circuit protection Surge protection | ||||||||
Service Life | 2 million times | ||||||||
Ambient Temperature | Operating: -25°C `~ 140°C Storage: -40°C ~ 140°C | ||||||||
Ambient Humidity | Operating: 35% ~ 80% Storage: 35% ~ 95% | ||||||||
Insulation Resistance | More than 20MΩ | ||||||||
Strongly Affect | 10~55HZ Dual amplitude 1.5MM X,Y,Z, each side 2H | ||||||||
Protective Structure | IEP Specifications IP65 | ||||||||
Thread Length | Wire lead type (wire length 1.2M) | ||||||||
Material | Housings | Copper Nickel Plating | |||||||
Cable | PVC | ||||||||
Application
Printing
Chemical industry
Logistics transportation
Automobile maintenance
Factory Information
Shenzhen Perfect Precision Products Co., Ltd. is precision engineering manufacturer located in South China Shenzhen, specializing in the supply of high quality sensor, We are a group company setting R&D, manufacture, sales and service as one.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
We have rich experience in many industries and we are proud to work closely with our customers to enhance their products.
We feature an experienced engineering team with IATF16949& ISO 9001:2015 quality system that is adaptable enough to cater for one-off prototypes through to production in volume. Our dedicated “Planning and Estimating Team' can evaluate and price all your requirements in a timely fashion. Always based on perfect quality and good service, we are highly praised by foreign investors.
We sincerely welcome you and look forward to cooperating with you for a bright future.
Certifications
Product Wiring Diagram
Normally open
When metal objects are not sensed, the contact points are always in a disconnected state
When sensing a metal object, the contact is always in a closed state
Normally closed
When metal objects are not sensed, the closed contacts are always in a closed state
When sensing a metal object, the contact is often closed and always in a disconnected state
Attention
1.Detection of objects of different materials with different detection distances, as follows
2.Installation: vary depending on the size, color and surface of the detected object, generally installed within 90% of the detection distance
3.The testing surface should be regularly cleaned of buildup to avoid affecting performance
4.Operating ambient temperature: -25°~+65°; relative humidity: 35~95%HR
5.Vibration: Endurance: 10~55Hz reamplitude 1.5mm, X,Y 2 hours each
6.Impact: Endurance: 500 m / s (50 g each), 10 times each in X, Y, Z direction
7.For use in strong magnetic field environments, shielded conductors are recommended
2.Installation: vary depending on the size, color and surface of the detected object, generally installed within 90% of the detection distance
3.The testing surface should be regularly cleaned of buildup to avoid affecting performance
4.Operating ambient temperature: -25°~+65°; relative humidity: 35~95%HR
5.Vibration: Endurance: 10~55Hz reamplitude 1.5mm, X,Y 2 hours each
6.Impact: Endurance: 500 m / s (50 g each), 10 times each in X, Y, Z direction
7.For use in strong magnetic field environments, shielded conductors are recommended
