Product Overview
Description
Product Description
MODEL | C16L |
Module type | Compatible with indoor and outdoor full color and single color module Support conventional chip and mainstream PWM chip |
Scan Mode | Static to 1/64 scan mode |

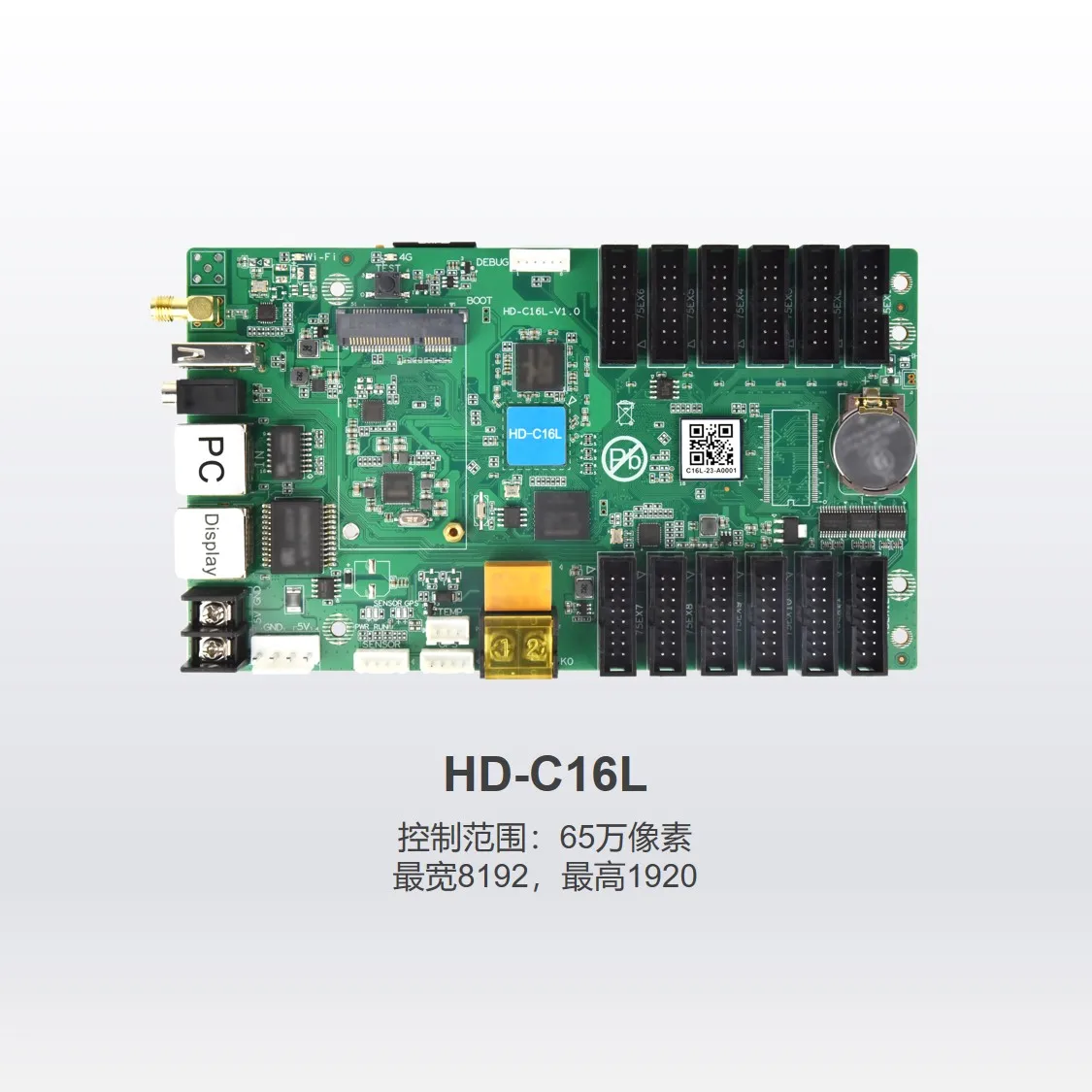

Control Range | 640*320, widest 8192, highest 1920 |
Gray Scale | 256-65536 |
Basic functions | Video, Pictures, Gif, Text, office, Clocks, Timing etc. Remote, Temperature, Humidity, Brightness etc. |
Video format | Support 1080P HD video hardware decoding, direct transmission, without transcoding waiting. 60Hz frame frequency output； AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
Image Format | Support BMP, GIF, JPG, PNG, PBM, PGM, PPM, XPM, XBM etc. |
Text | Text editing, Image, Word, Txt, Rtf, Html etc. |
Document | DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document format. |
Time | Classic Analog clock, digital clock and of clock with image background. |
Audio output | Double track stereo audio output. |
Memory | 4GB Flash memory; Indefinite expanding of U-disk memory. |
Communication | Ethernet LAN port, 4G network (optional), Wi-Fi, USB. |
Working Temperature | -20℃-80℃ |
Port | INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test button*1, sensor port*1, GPS port*1. OUT:1Gbps RJ45*1, AUDIO*1 |
Power | 8W |
HuiDu HD-C16L LED display asynchronous control system Features：
enter:
1. Supports 1 100M communication network port, used for debugging parameters, sending programs and accessing the Internet;
2. Supports 1 USB communication interface, which can be used to update programs and expand capacity;
3. Supports 1 dedicated interface for temperature sensor, 1 dedicated interface for GPS sensor and 1 universal sensor input interface.
enter:
1. Supports 1 100M communication network port, used for debugging parameters, sending programs and accessing the Internet;
2. Supports 1 USB communication interface, which can be used to update programs and expand capacity;
3. Supports 1 dedicated interface for temperature sensor, 1 dedicated interface for GPS sensor and 1 universal sensor input interface.
Output:
1. The maximum control range is 650,000 pixels, a single card can load 20W pixels, and a cascade can load 65W pixels; the widest discount supports 8192 pixels
1. The maximum control range is 650,000 pixels, a single card can load 20W pixels, and a cascade can load 65W pixels; the widest discount supports 8192 pixels
Pixels (width>1920 triggers discount), supports up to 1920 pixels;
2. Equipped with 1 Gigabit output network port as standard, which can be directly cascaded to the HD-R series receiving card to control the display;

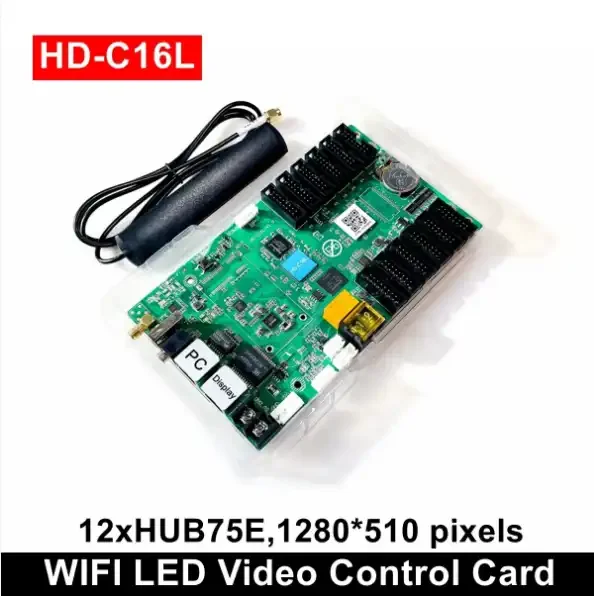

3. Onboard 12 HUB75E interfaces;
4. 1 channel TRS 3.5mm standard two-channel audio output.
2. Equipped with 1 Gigabit output network port as standard, which can be directly cascaded to the HD-R series receiving card to control the display;
3. Onboard 12 HUB75E interfaces;
4. 1 channel TRS 3.5mm standard two-channel audio output.
Function:
1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode);
2. Onboard 1-way relay can remotely control the power supply;
3. Supports 2-channel video window playback (up to 2-channel 1080P);
4. Support 4G access to Xiaohui Cloud platform to realize remote machine management on the Internet (optional);
5. Support UART communication;
6. Supports 1 channel RS-232 or RS-485 communication (optional).
1. Comes standard with 2.4GHz Wi-Fi and supports mobile APP wireless control (supports Wi-Fi-AP, Wi-Fi-STA mode);
2. Onboard 1-way relay can remotely control the power supply;
3. Supports 2-channel video window playback (up to 2-channel 1080P);
4. Support 4G access to Xiaohui Cloud platform to realize remote machine management on the Internet (optional);
5. Support UART communication;
6. Supports 1 channel RS-232 or RS-485 communication (optional).

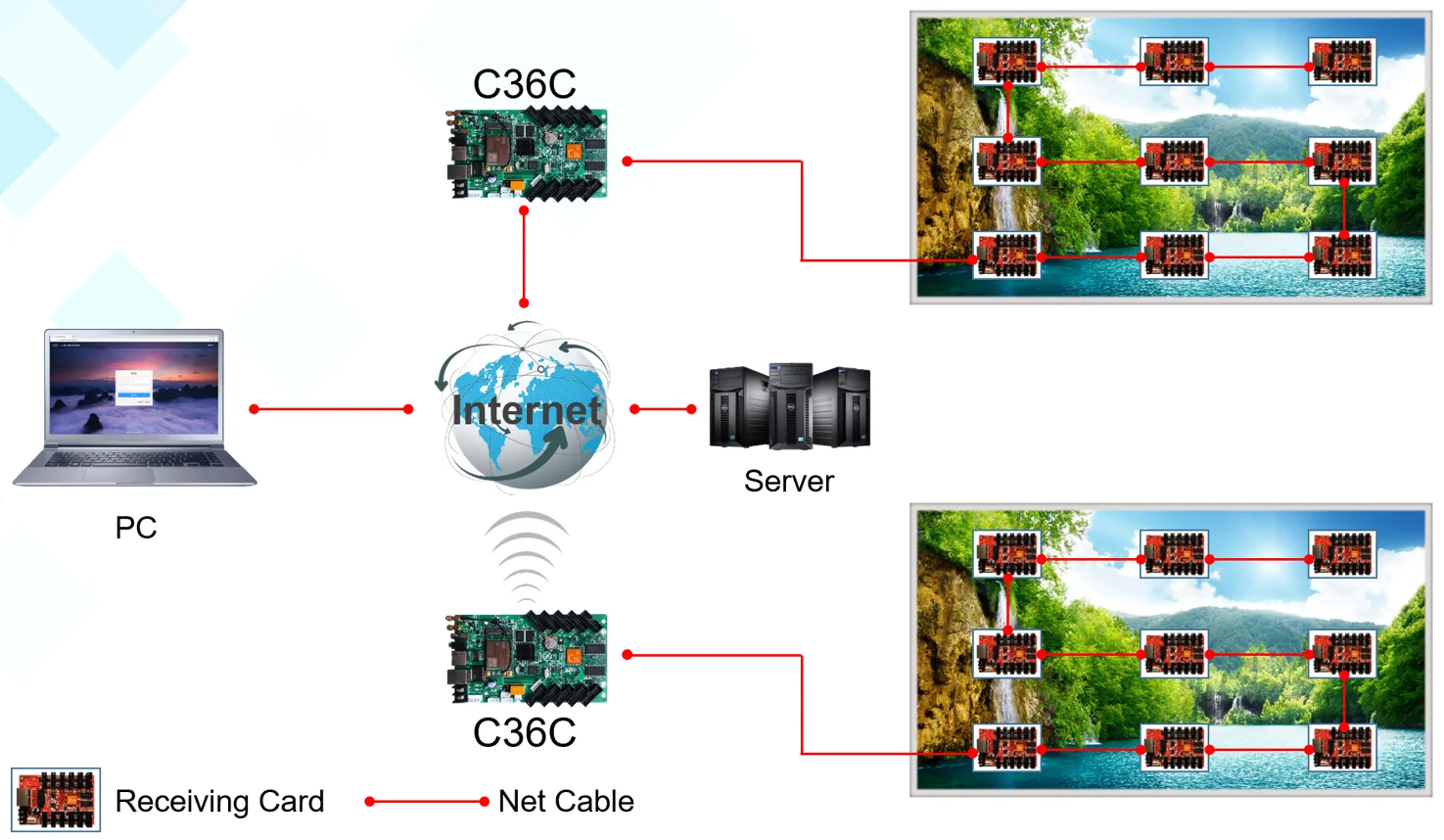

1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.

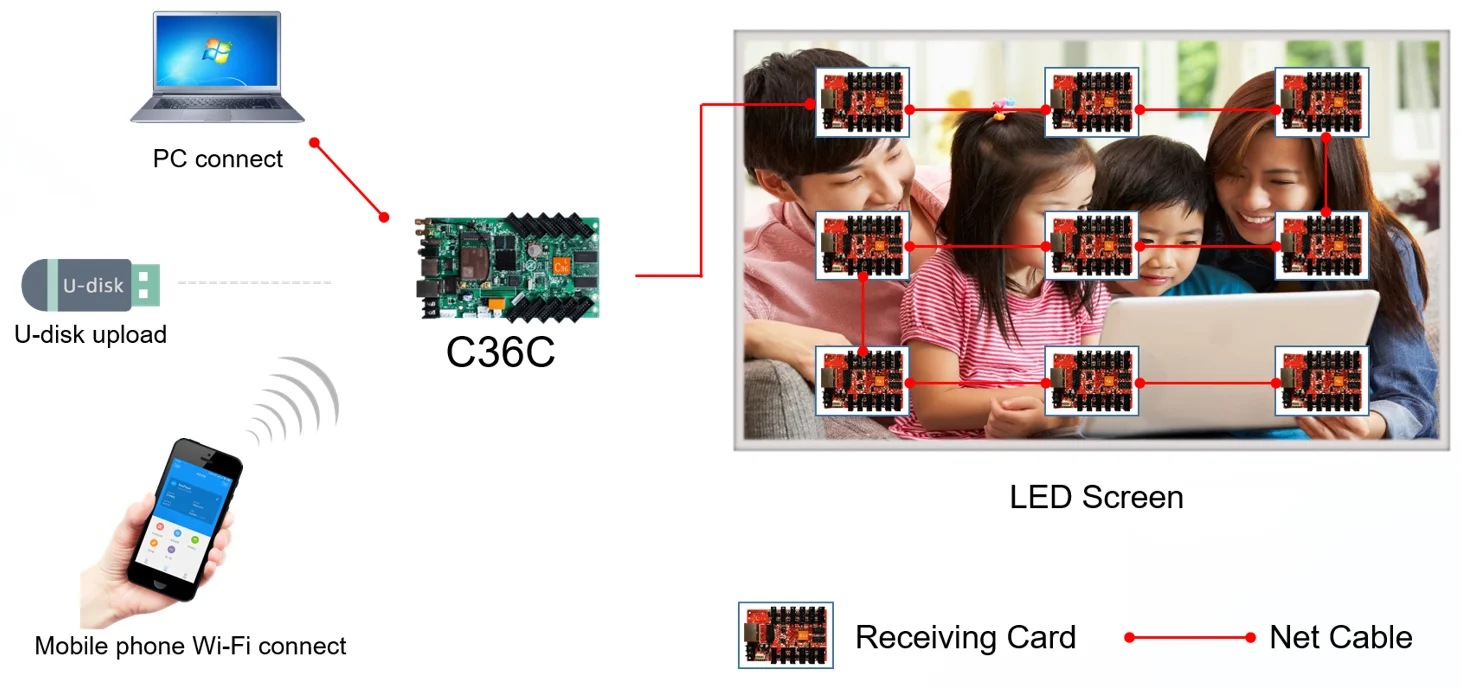

2. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN(cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.
