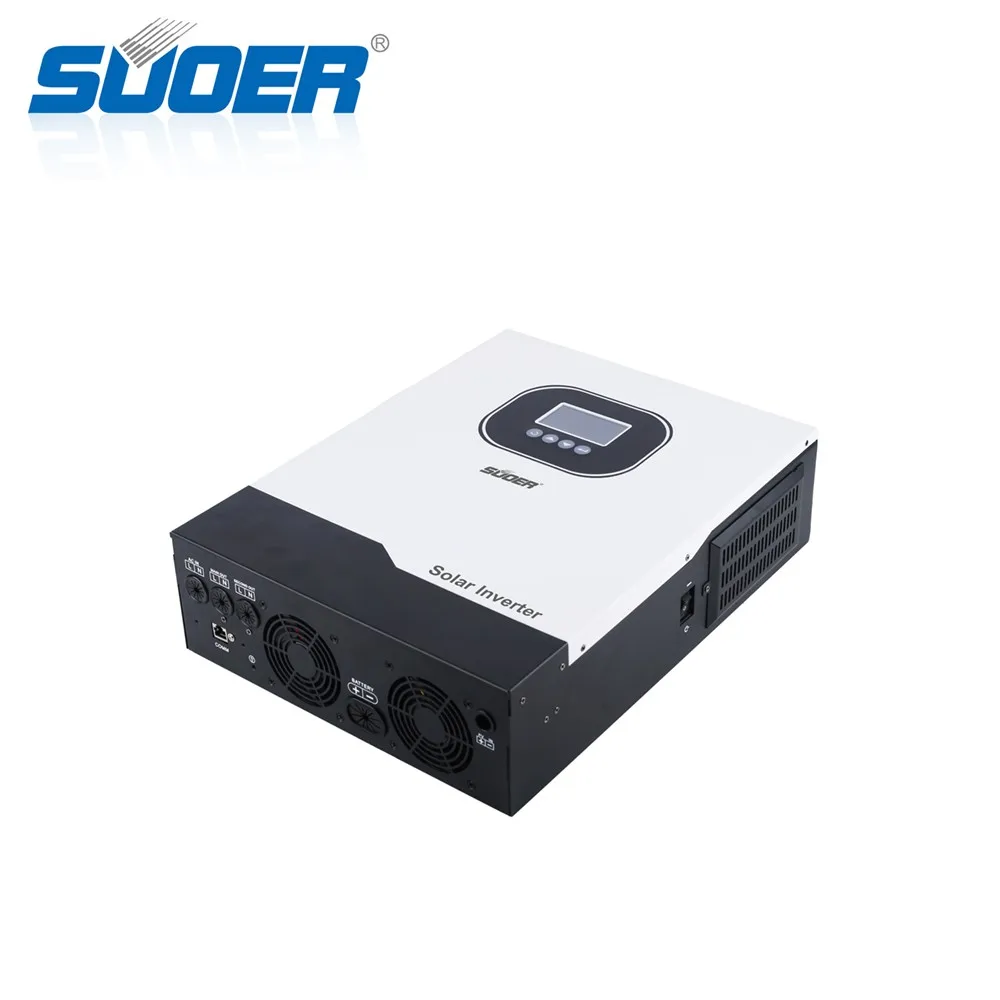

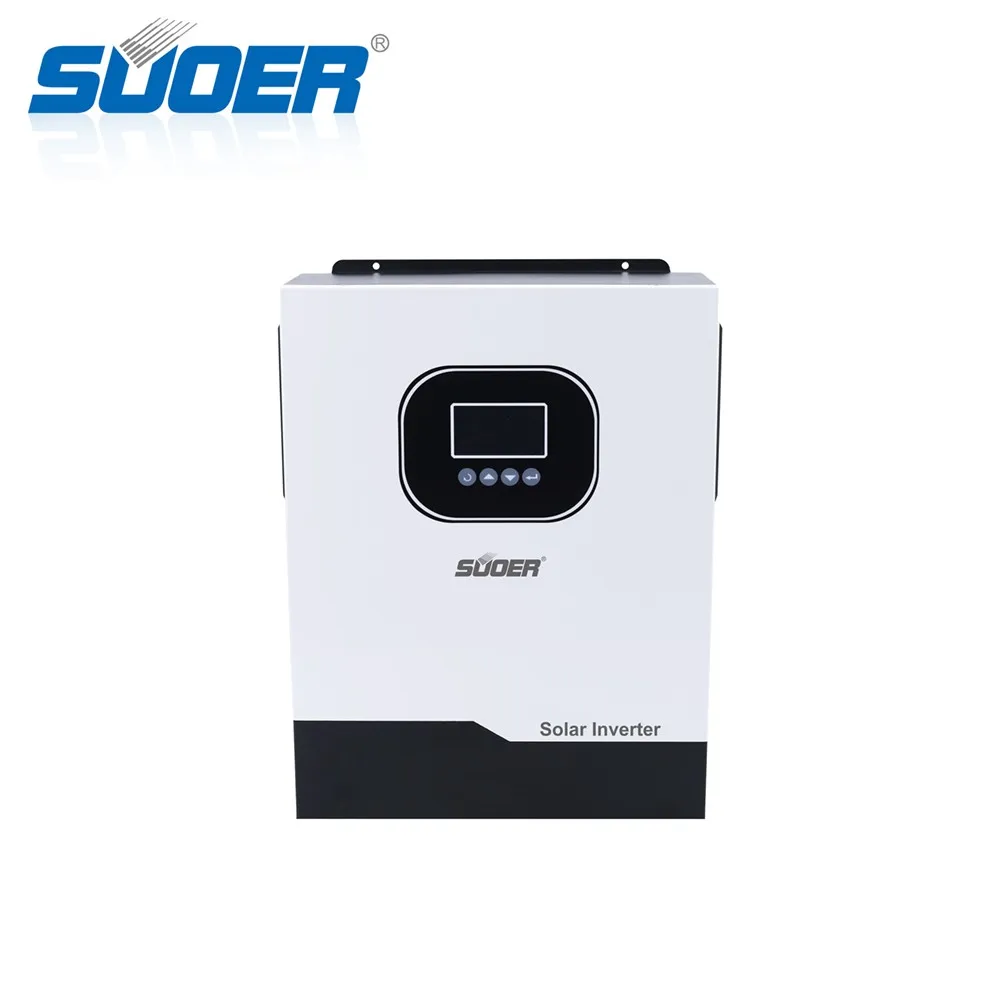

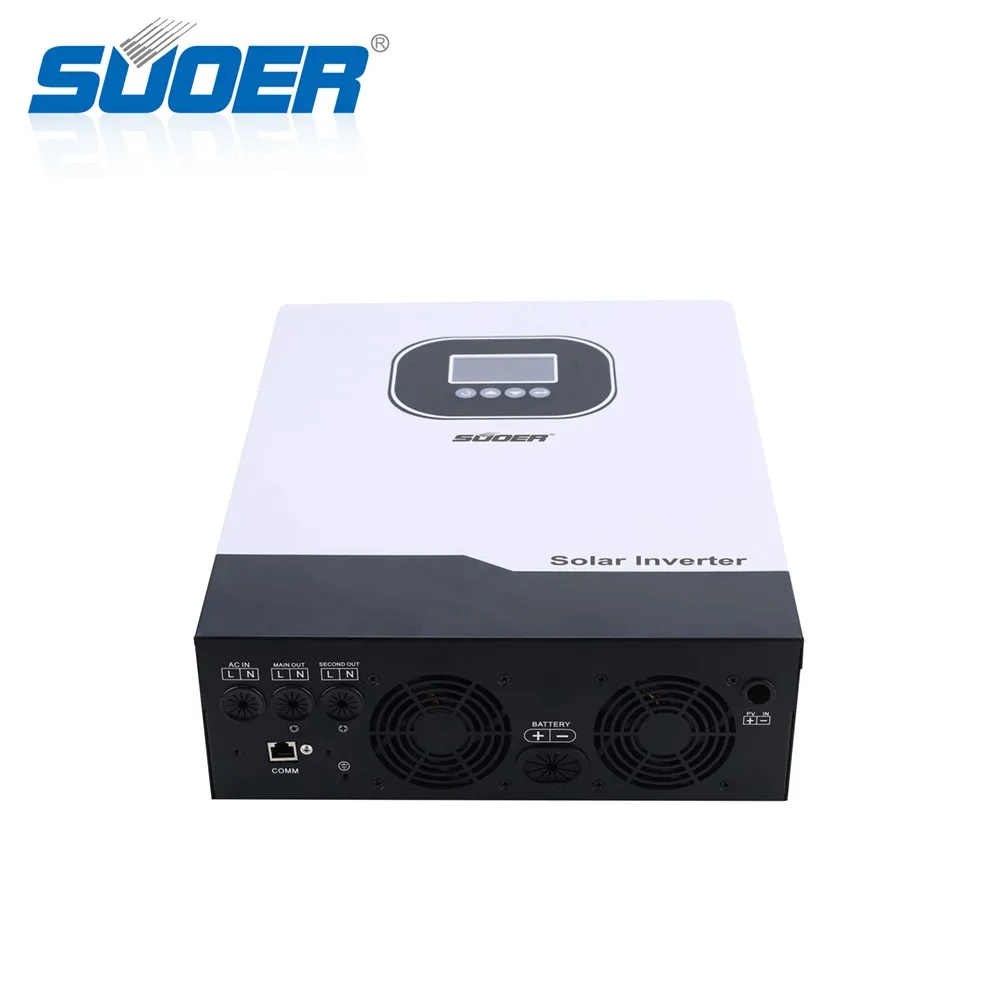

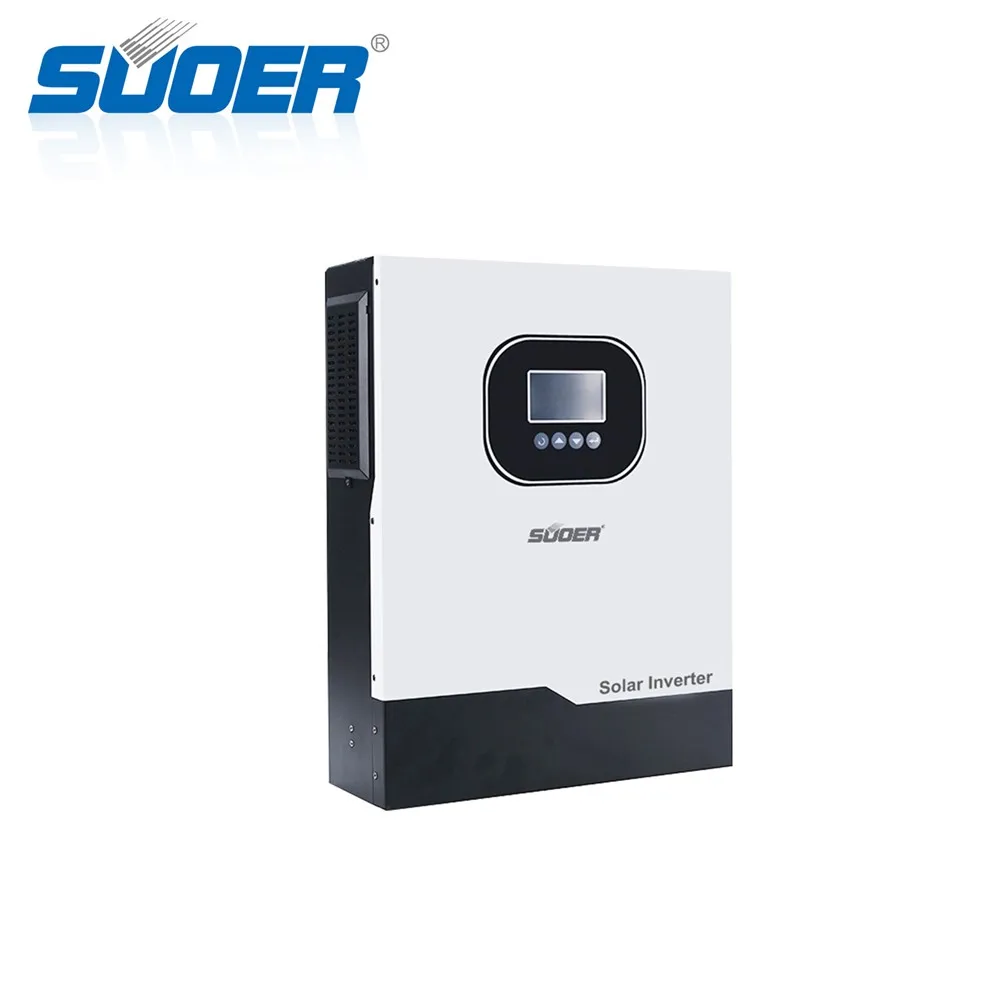

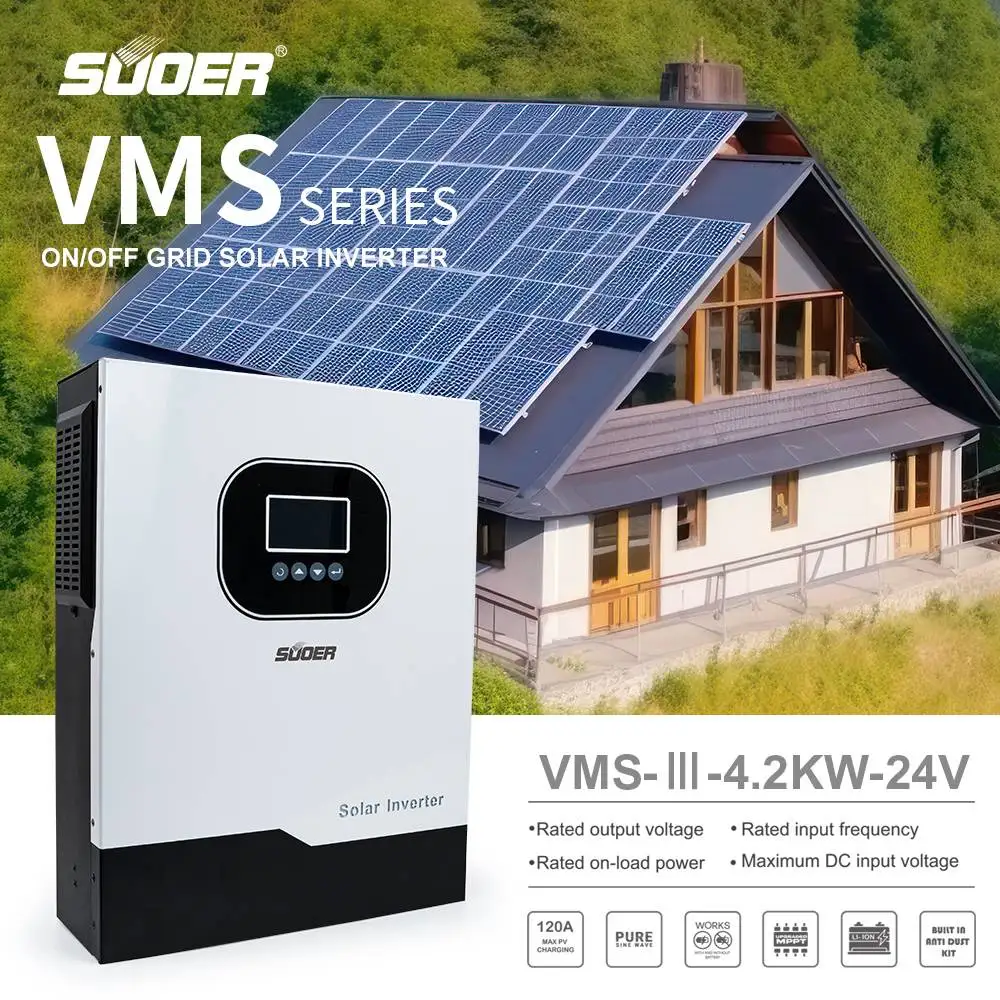

SUOER 4.2KW Hybrid Solar Inverter | ||
INVERTER CHARGER | ||
MODEL NAME: | 4.2KW Hybrid Solar Inverter | |
MODEL NUMBER: | VMS-III-4.2KW-24V | |
Color: | White and Black | |
Operating Temperature: | Range-10-50°C | |
PV INPUT: | ||
Nominal operating voltage: | 240Vdc | |
Vmax PV: | 500Vdc | |
PV input voltage range: | 90-450Vdc | |
lmax PV: | 27A | |
Full load MPPT range: | 240~450Vdc | |
Rated Power: | 6500W | |
Maximum Solar Charging Current: | 120A | |
GRIDIAC OUTPUT: | ||
Nominal Output Voltage: | 220/230/240Vac | |
Feed-in Grid Voltage Range: | 195~253Vac | |
Feed-in Grid Frequency Range: | 49~51+1HZ | |
Nominal Output Current: | 27A | |
Power Factor Range: | >0.99 | |
Maximum Conversion Efficiency(DClAC): | 97% | |
Nominal Operating Frequency: | 50/60Hz | |
TWO LOAD OUTPUT POWER: | ||
Full Load: | 4200w | |
Maximum Main Load: | 4200w | |
Maximum Second Load: | 1400W | |
Main Load Cut Off Voltage: | 22VDC | |
Main Load Return Voltage: | 26VDC | |
AC INPUT: | ||
Nominal operating voltage: | 230Vac | |
Maximum input current: | 30A | |
Nominal operating frequency: | 50/60Hz | |
Surge power: | 8400VA | |
Maximum Ac charging Current: | 100A | |
BATTERY: | ||
Battery voltage range: | 20~33VDC | |
Maximum battery current: | 200A | |
