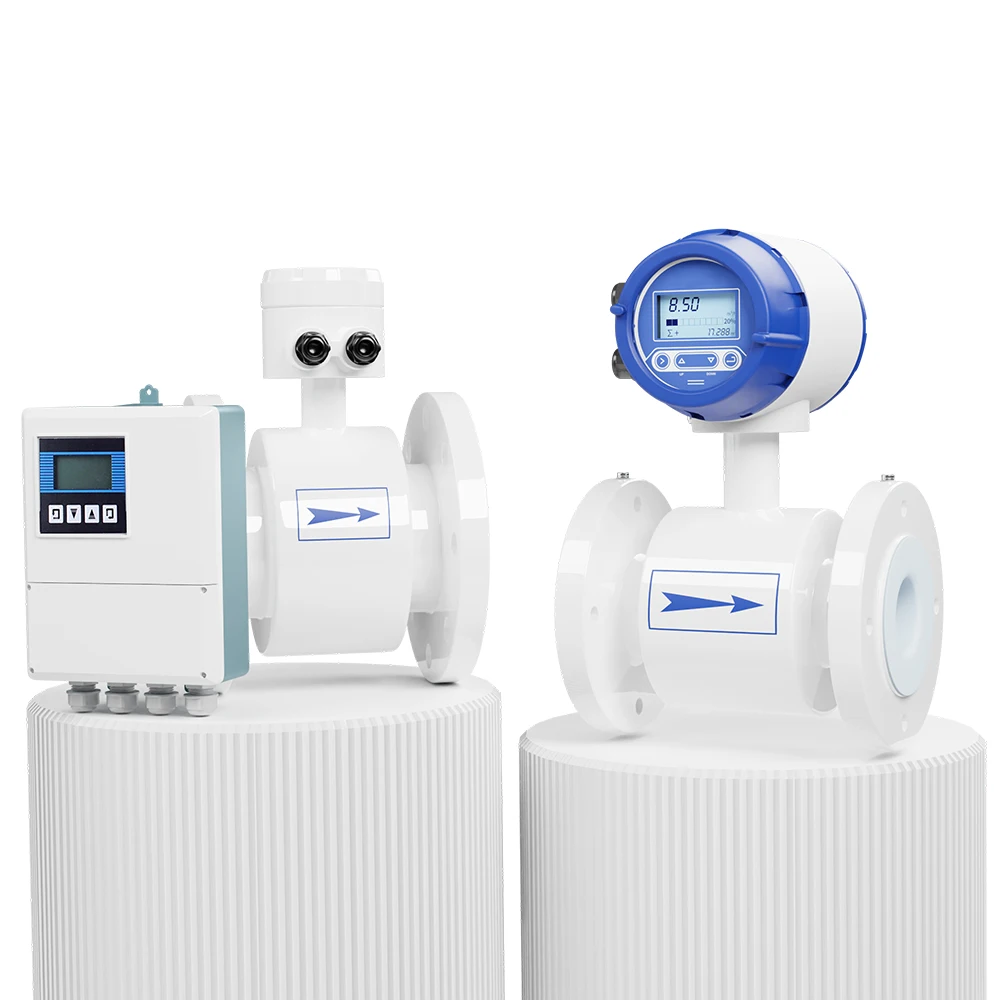

Industrial RS485 modbus water stainless steel remote type electromagnetic flow meters for acid
- Category: >>>
- Supplier: Hangzhou Sinomeasure Automation Technology Co. Ltd.
Share on (1601027318706):
Product Overview
Description
Our service
Function | Real-time flow rate, flow velocity, mass flow (when the density is constant), real-time measurement and flow accumulation | ||
Compact Type | IP65 | ||
Remote Type | IP65(IP68 optional) | ||
Nominal Diameter | DN10-2000 | ||
Flange | In line with GB/T9119-2000 standard carbon steel (Optional stainless steel flanges), other standard flange can be customized | ||
(High pressure can be customized) | DN10 - DN250, PN<1.6MPa | ||
DN300-DN1000, PN<1.0MPa | |||
DN1200-DN2000,PN<0.6MPa | |||
Temperature | -10 – 55℃(-10 – 60℃) | -10 – 80℃ | |
Serial communications | RS-485 | ||
Output | Current (4-20 mA) , pulse , frequency , state switch | ||
Maximum measurement error | ±0.1℃(Within the measuring range of temperature sensor) | ||
Sensor housing | Carbon steel | ||
Power supply | 100-240VAC | ||
How to choose lining material?
Chloroprene rubber (CR), | Water,sewage and slurry,mineral serosity of low abrasion. |
Polytetrafluoroethylene (PTFE/F4), | Strong corrosive mediums such as strong acid and alkali |
Fluorinated ethylene propylene (FEP/F46), | 1.The same as PTFE. 2.Applicable in mediums of low abrasion. |
Teflon(PFA) | Applicable in state of load pressure A pplicable in mineral serosity,slurry and coal slurry of high abrasion. |
How to choose electrode material?
Molybdenum-containing stainless steel (0Cr18N12Mo2Ti) | Applicable: Domestic/industrial water, sewage, weak acid and alkali saline as well as concentrated nitric acid at room temperature. |
Not Applicable : Hydrofluoric acid, hydrochloric acid, chlorine, bromine, iodine and other media. | |
Hastelloy B | Applicable: Non-oxidizing acid, such as hydrochloric acid and hydrofluoric acid of certain concentration and other alkali liquor with a concentration of no less than 70% sodium hydroxide |
Not Applicable: Nitric acid and other oxidizing acids | |
Hastelloy C | Applicable: corrosion by oxidizing acids such as Nitric acid, acid mixtures and sulfuric acid and environmental corrosion by oxidation resistant salt or that contains other oxidants. For example, Hypochlorite solution higher than room temperature is strongly corrosion resistant to sea water. |
Not Applicable: Reducing acid and chloride such as hydrochloric acid | |
Ti | Applicable: chloride, hypochlorite, sea water, oxidizing acid. Not applicable: reducing acid such as hydrochloric acid, sulphuric acid |
Ta | Applicable: most acids like concentrated hydrochloric acid, nitric acid and sulfuric acid including hydrochloric acid and nitric acid at the boiling point as well as sulfuric acid under 175 ℃. |
Not applicable: alkali, hydrofluoric acid and smoke sulfuric acid. | |
Pt | Various acids, bases and salts, excluding aqua regia. |
Product Description
Our Aim :
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Service engineer team, Sale engineer team, R&D team, Logistics team, Manufacturing team.
Customer centric, striving for this.
Our Vision :
To make the world use China's top instruments.
Our Team :
Service engineer team, Sale engineer team, R&D team, Logistics team, Manufacturing team.
Related products
Company Profile
FAQ
Q: Is there any stock?
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
A: Yes,we have materials in stock to help you to get the samples as soon as we can
Q: How to track my Order?
A: After shipped, we will email you the tracking number.You can check the shipping status of your order on the website.
Q: How about warranty ?
A: Warranty: 12 months, Lifetime maintenance
Q: How about after-sales service?
A : We are 24 hours online, if you have any problem,pls contact us directly.
Q: Any discount?
A : For bulk purchase or distribution agents, we will apply the best price for you,If we have any promotions, we will post in store and send you an email to inform you.
