Product Overview
Description
Product Information
■Product description

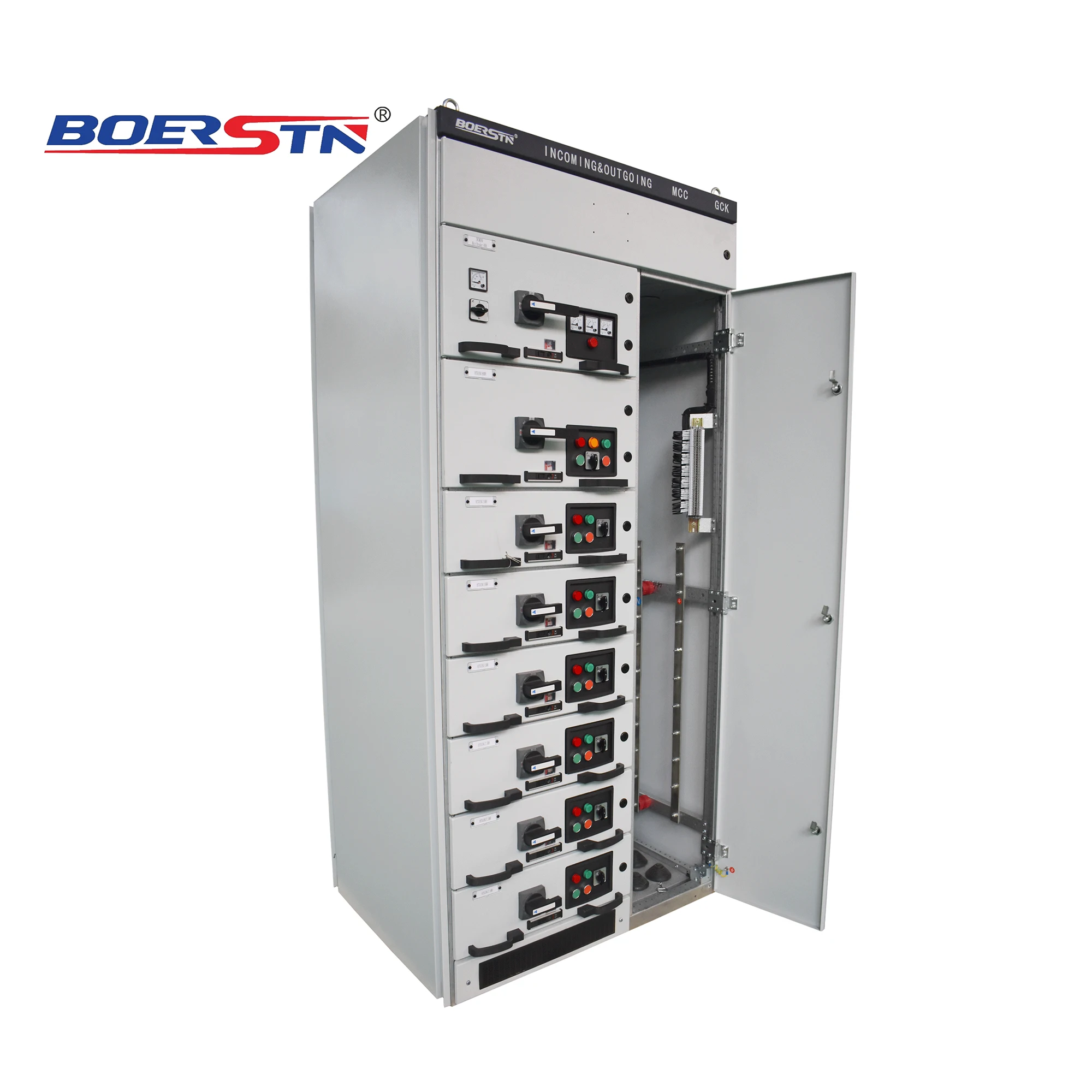

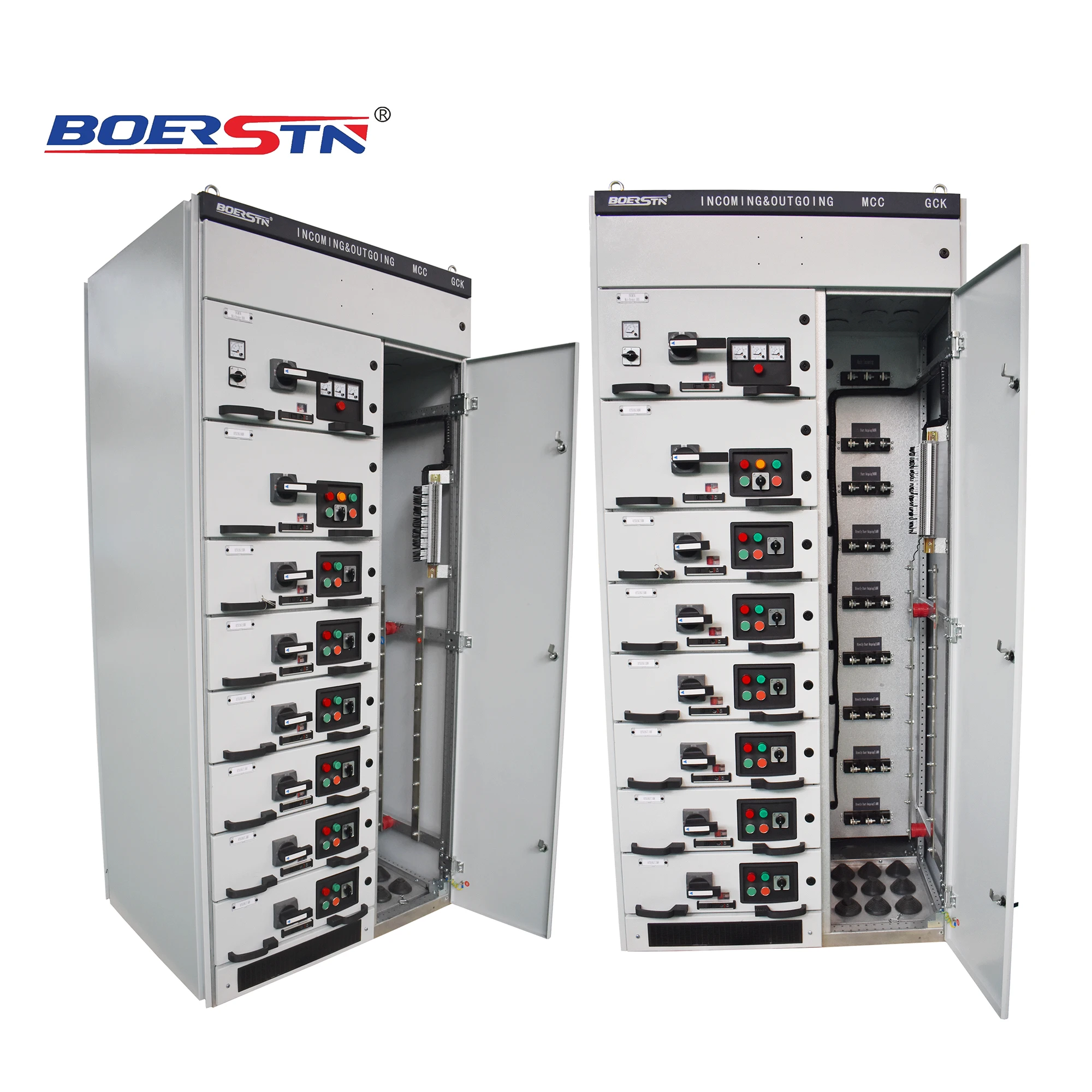

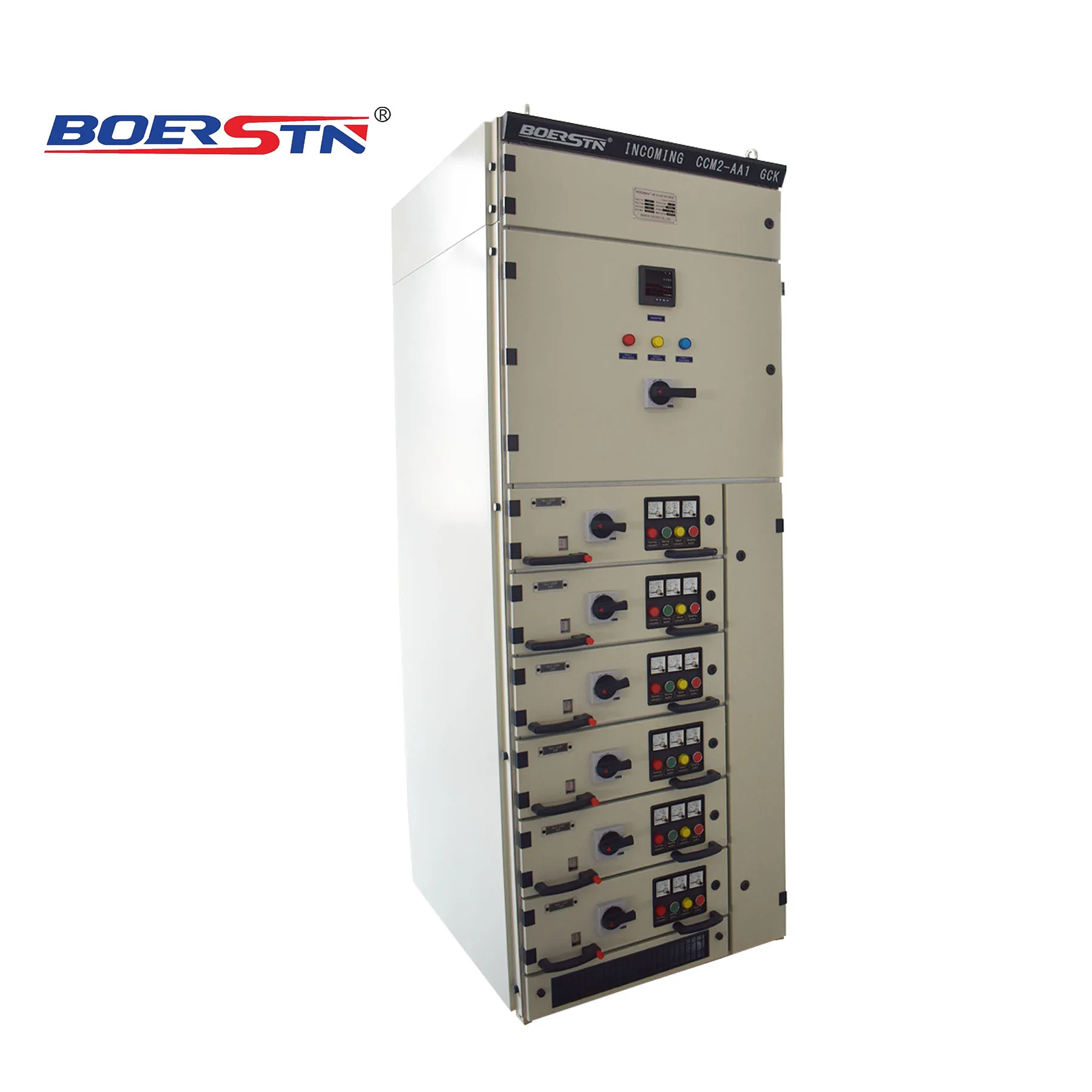

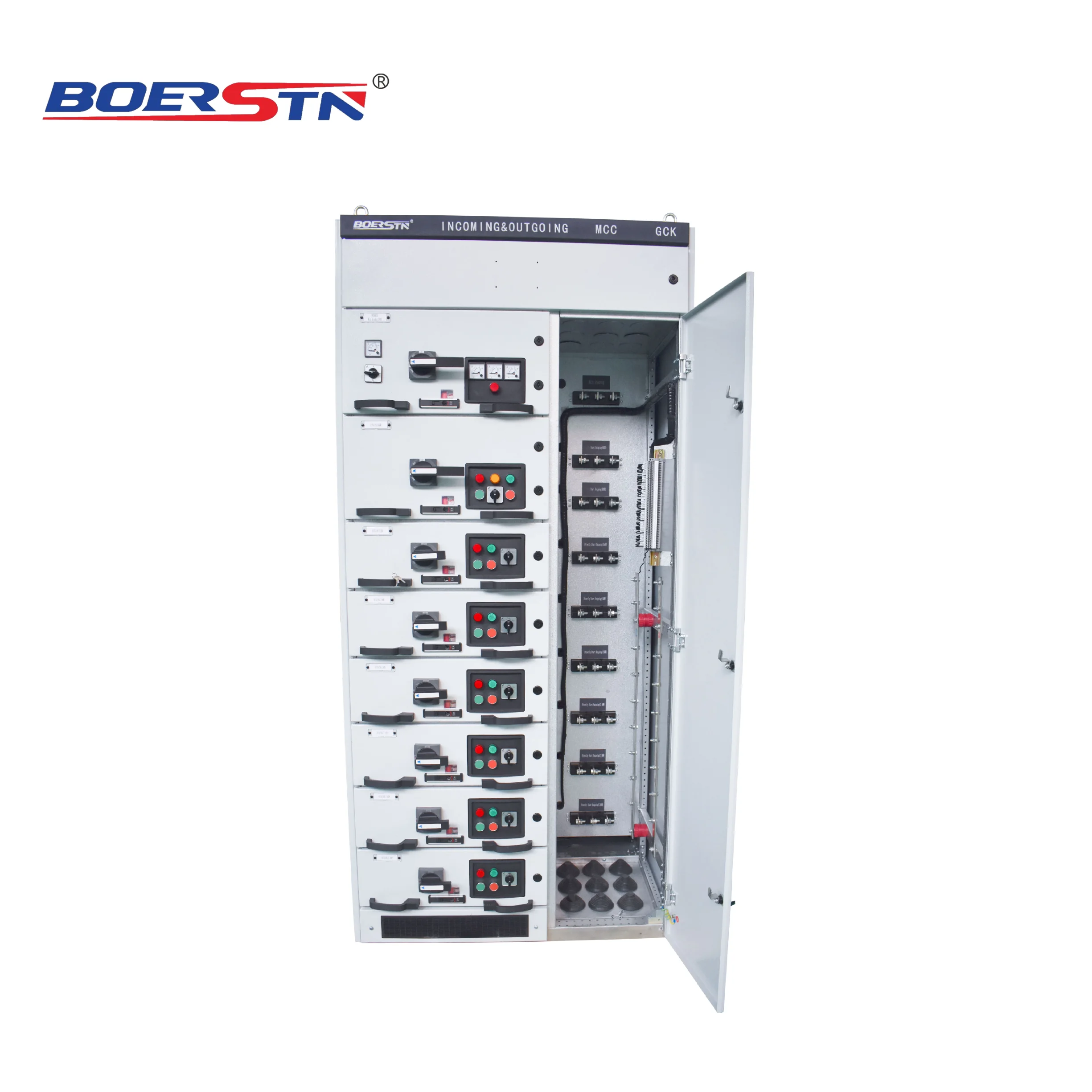

MCC series of low voltage withdrawable motor switchgear is a kind of combination type motor panel,its technology reaches
international levels. It is suitable for control motor starting ,transformer station, electric power plant, petrochemical
industry, metallurgical steel rolling ,traffic energy,light and textile industry ,and residence community, high building ..etc. As
electric power energy conversation ,distribution & controlling for power distribution equipments of AC 50/60Hz rated service
voltage 690V or less .It complies with IEC60439 standard 《Low Voltage withdrawable switchgear》.
■ Service Conditions
1. Ambient temperature：-30℃ ~ +50℃，and measuring average RH within 24 hours ≤+50℃；
2. Altitude: Not exceed 2000m above sea level；
3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%
4. Earthquake intensity: ≤ Degree 8
5. Water vapor pressure:Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa;
6. Ambient environment: no fire, explosion danger, serious pollution, chemical corrosion and severe vibration place ■ Cabinet structure
Its basic structure is an assembly of C type profiles which made from plate bending with E=25 module installation hole. The whole
cabinet and inner compartments are purification treatment of zinc plating. The door panels and side panels are electrostatic
sprayed.The cabinet basic structure is as picture.1 and basic size as picture.2 (table 1 and 2)
■ Cabinet type
1.Power Distribution Center switchgear (PC): can adopt Emax,MT,3WN,AH,ME series circuit breakers.

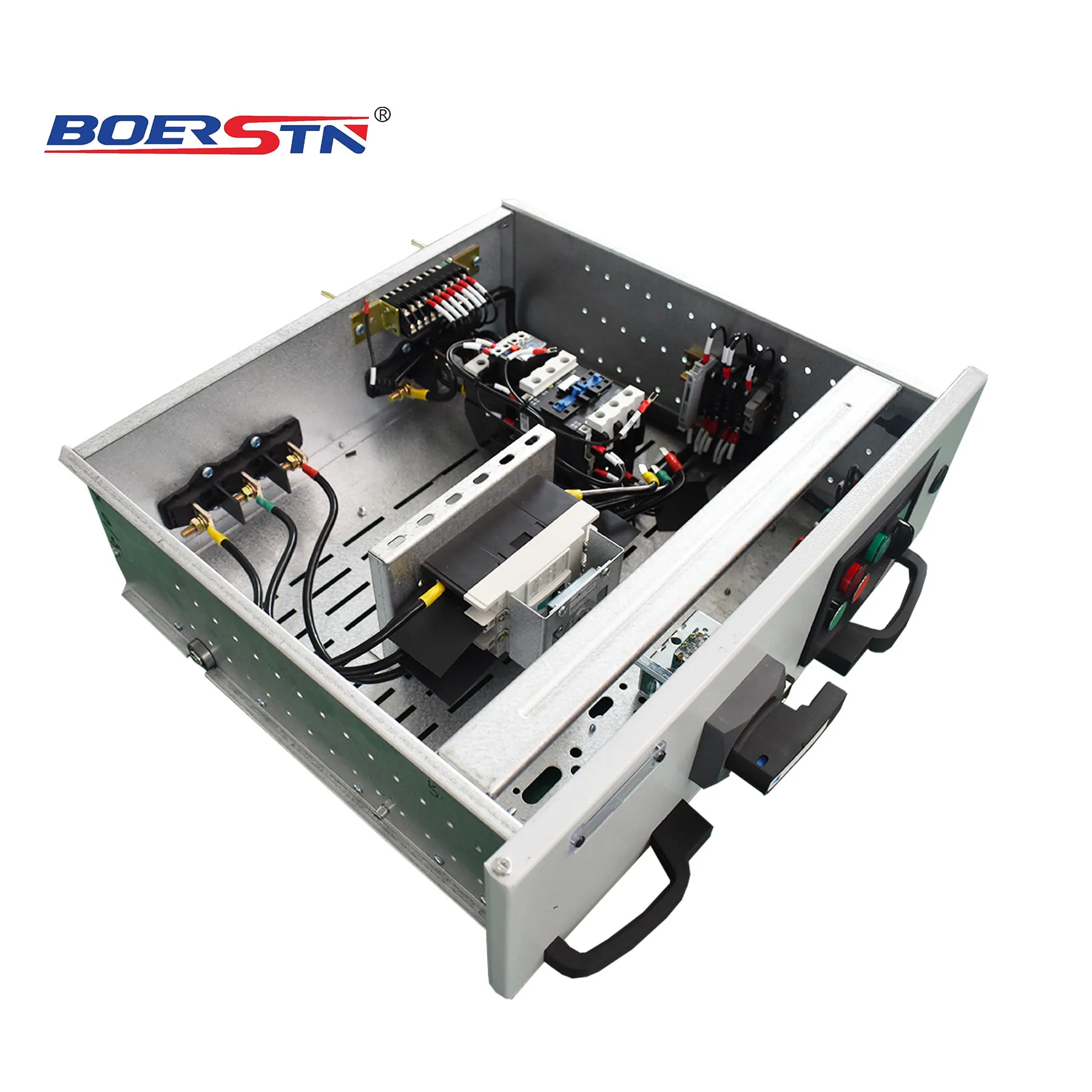

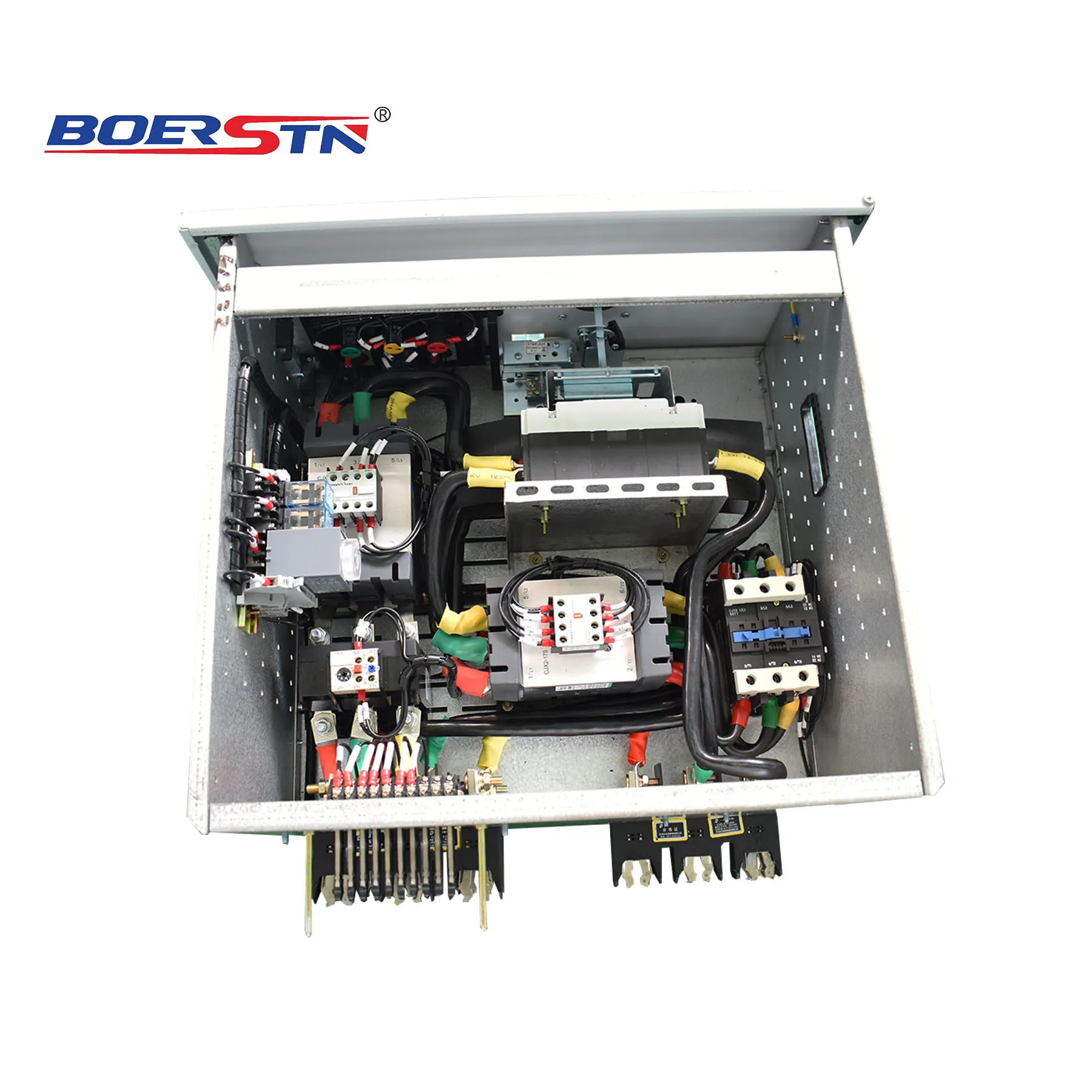

2.Motor control center switchgear (MCC) : it is the assembly of big & small drawer, every circuit main switch is high breaking
moulded case circuit breaker or rotation type load break switch with fuse. Power factor automatic compensation cabinet is with
manual or automatic and remote power factor compensation device.
MCC series of low voltage withdrawable motor switchgear is a kind of combination type motor panel,its technology reaches
international levels. It is suitable for control motor starting ,transformer station, electric power plant, petrochemical
industry, metallurgical steel rolling ,traffic energy,light and textile industry ,and residence community, high building ..etc. As
electric power energy conversation ,distribution & controlling for power distribution equipments of AC 50/60Hz rated service
voltage 690V or less .It complies with IEC60439 standard 《Low Voltage withdrawable switchgear》.
■ Service Conditions
1. Ambient temperature：-30℃ ~ +50℃，and measuring average RH within 24 hours ≤+50℃；
2. Altitude: Not exceed 2000m above sea level；
3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%
4. Earthquake intensity: ≤ Degree 8
5. Water vapor pressure:Daily average RH ≤ 2.2kPa; Monthly average RH ≤ 1.8kPa;
6. Ambient environment: no fire, explosion danger, serious pollution, chemical corrosion and severe vibration place ■ Cabinet structure
Its basic structure is an assembly of C type profiles which made from plate bending with E=25 module installation hole. The whole
cabinet and inner compartments are purification treatment of zinc plating. The door panels and side panels are electrostatic
sprayed.The cabinet basic structure is as picture.1 and basic size as picture.2 (table 1 and 2)
■ Cabinet type
1.Power Distribution Center switchgear (PC): can adopt Emax,MT,3WN,AH,ME series circuit breakers.
2.Motor control center switchgear (MCC) : it is the assembly of big & small drawer, every circuit main switch is high breaking
moulded case circuit breaker or rotation type load break switch with fuse. Power factor automatic compensation cabinet is with
manual or automatic and remote power factor compensation device.
Product Details

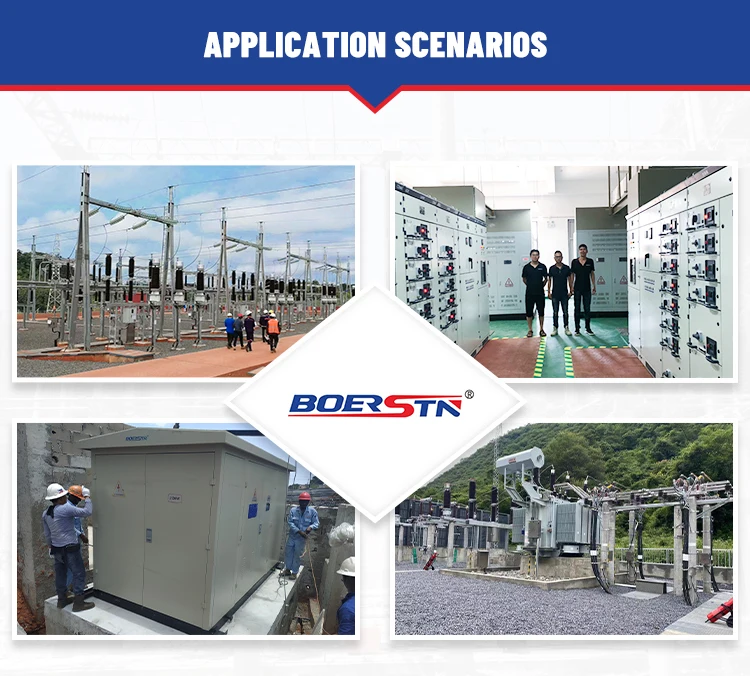

Application Scenarios
Company Profile
Certificate
Exhibition
Product packaging
FAQ
1.Are you a manufacturer? If yes, where is your factory ?
Yes, we are a manufacturer. Our factory & head office is located at Yueqing Economic Development zone, Yueqing Wenzhou, Zhejiang province. China. About 40 minutes far from Wenzhou Airport , and 20 minutes from from Yueqing train station. The nearest international seaport to us is Ningbo sea port or Shanghai Sea port.
2.How can I place the order to you ?
You should supply us the detailed technical specifications or SLD (single line diagram) or relative drawings firstly via email ,wechat,whatsapp,skype,telephone..etc . You can contact any of our sales persons in any time for quotation & further communication.
3.Do you accept OEM & ODM ?
Yes.
4.What is your payment terms?
We accept any flexible and quick payment method .
Irrevocable L/C at sight
T/T 30% in advance as deposit + the balanced 70% by T/T after goods ready
Western Union, Moneygram, Wechat..etc
5.Where is your main market? How many percentage for your international business in your annual sales?
Our main market is South-east Aisa, Middle East，West Asia，Africa & America and Eruopean countries. Exports accounted for over 60%.
6.What is your guarantee period ? How to go it?
Usually ,our quality guarantee period is 12 monthes after the goods enter the buyer’s warehouse. We have certificates ISO9001,ISO14001,ISO45001,IEC, Soncap..etc. For our equipments,we use China or world top brand parts and production & testing strictly complies with international standards, like IEC, ANSI..etc
7.Do you have any oversea technical team?
Yes, our technical team can go to the site to guide the installation, testing , commission ,maintenance..etc
8.If we want to visit your factory, can you book a good hotel near to your factory and pick up us from airport or train station?
Sure, no problem.
