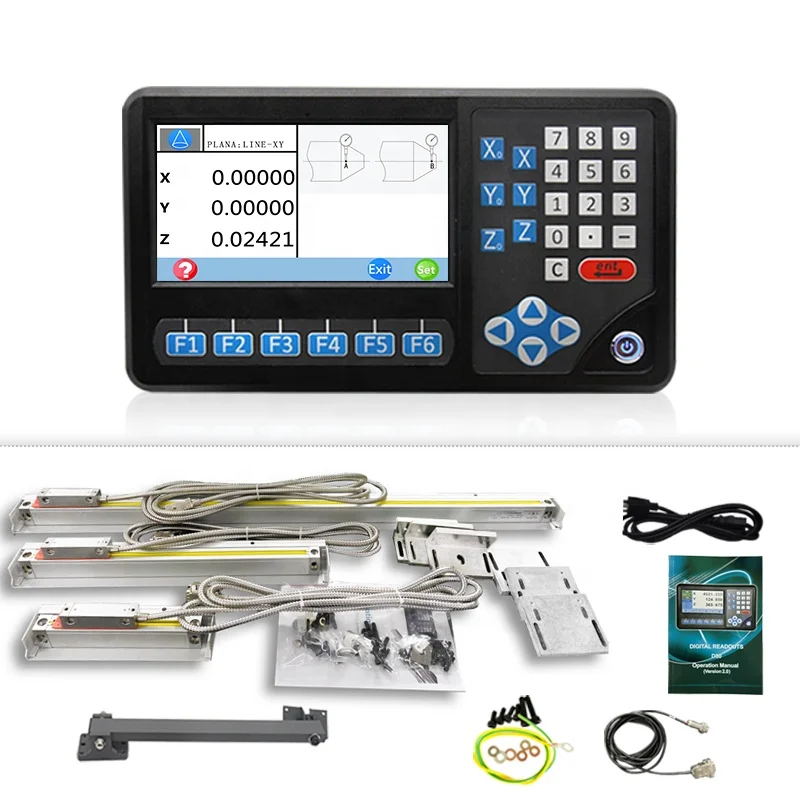

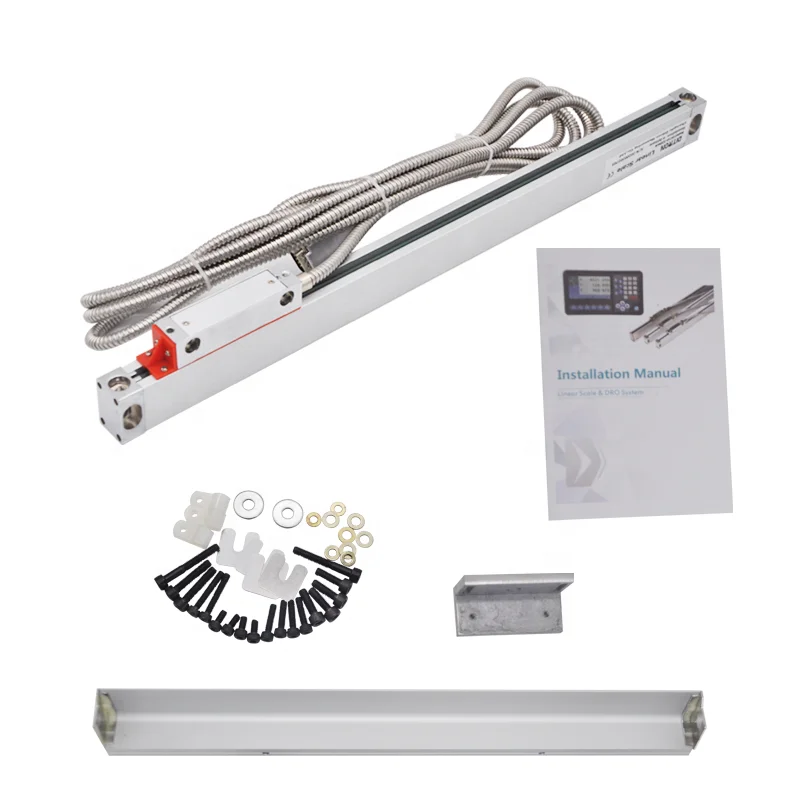

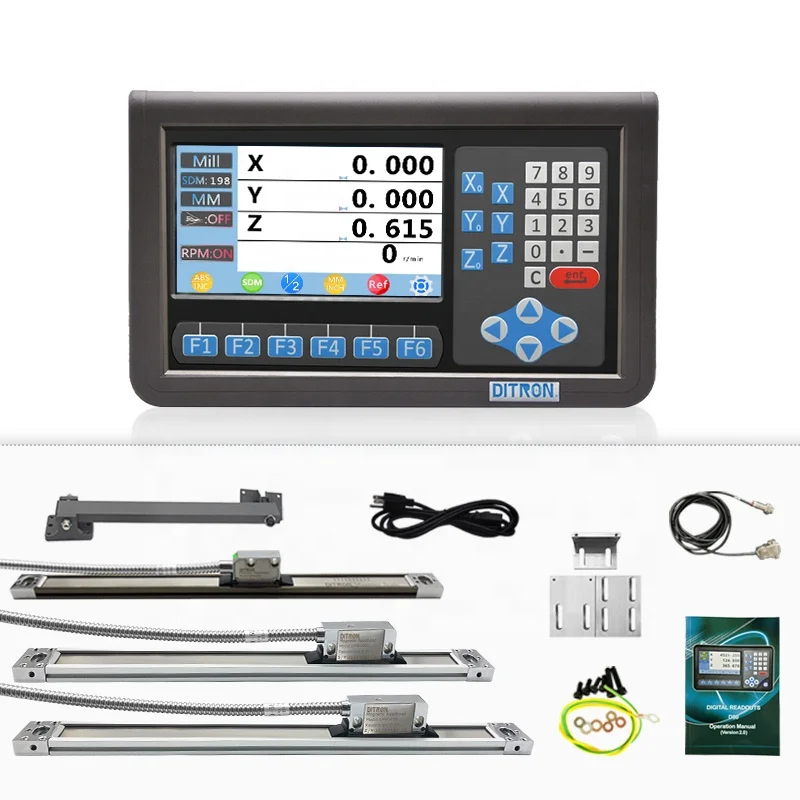

DITRON Sino DRO 2 Axis 3 Axis LCD Screen Metal Case Digital Readout Optical Linear Scale Magnetic Scale

The technical parameter of DRO-D80M

Feature:

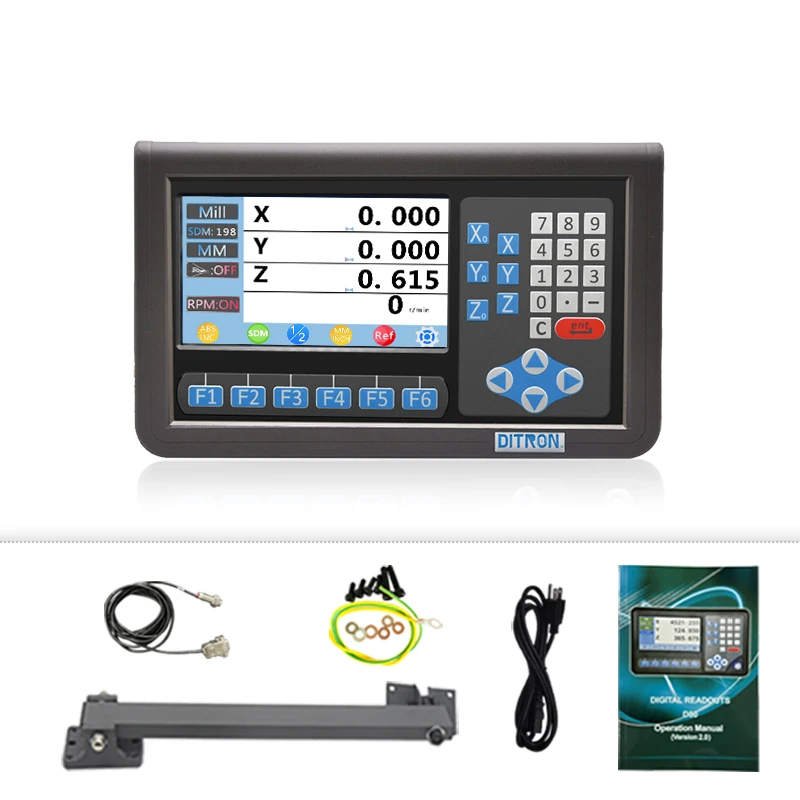

1. 7" color LCD screen, easy to recognize.
2. Up to 5 axis input to work for high precision tool machines.

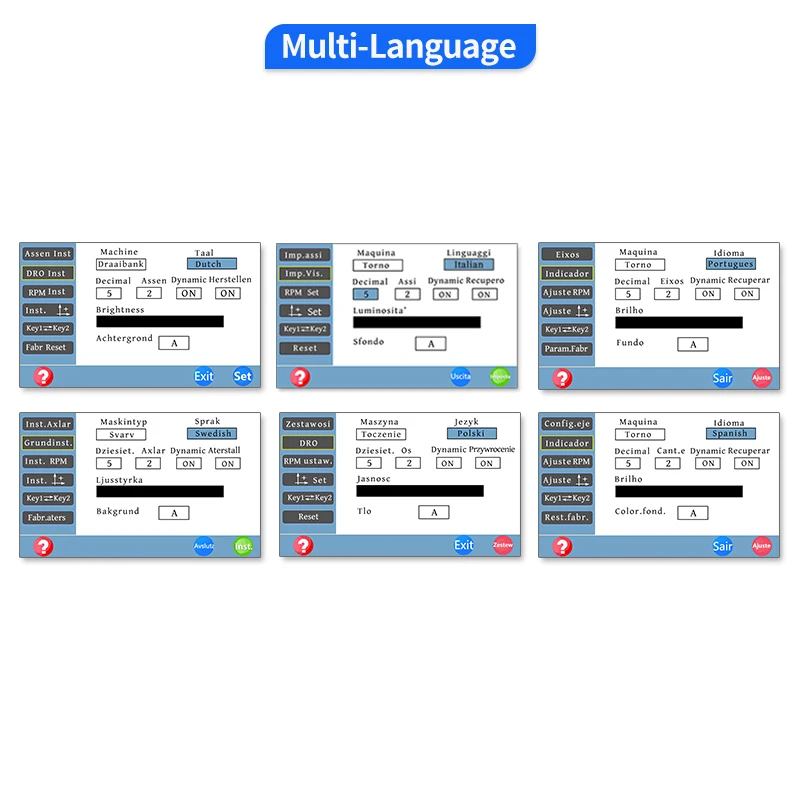

3. Multi-language: Operator can choose their native language for operating.
4. Special previewing the drawing function, after setting well the parameter, the Dro will display the machined well effect which makes the operating be more visual.
5. Custom setting for the shortcut keys, operator can set the shortcut keys according to his operating habit.

Basic functions:

1)Zeroing and data recovery

2)Value Inputting

3)Metric and Imperial Switching

4)Power off memory

5)Ref ruler storage function

6)200 sets of auxiliary zero function

7)Linear Compensation

8)Non-linear Compensation

9)Calculator Function

10)Digital Flitering Function

Processing functions:

1)    PCD and PLD Function (for milling, EDM)

2)    Simple R and Smooth R Function

3)    Rectangle Chambering Function

4)    Toper Measuring Function

5)    Radius/diameter Conversion Function

6)    Vectoring function (for milling machine);

7)    Tool Storeroom

8)    EDM functions (for EDM, ordered separately)

9)    RS-232 communication (ordered separately)
