Product Overview
Description
10G 4 SFP+ port L2/L3 Managed Industrial Switch 16 POE port Fiber Optic Switch

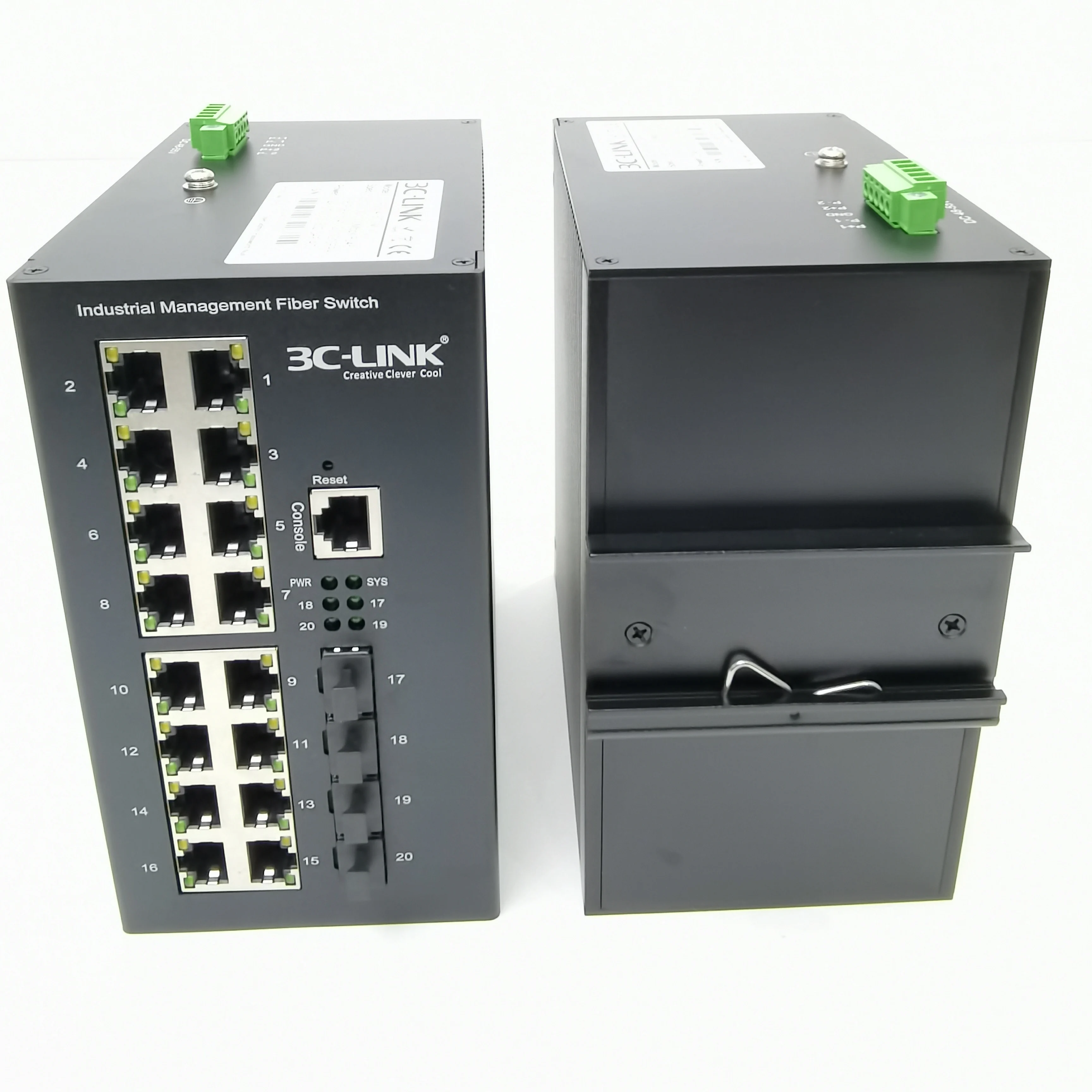

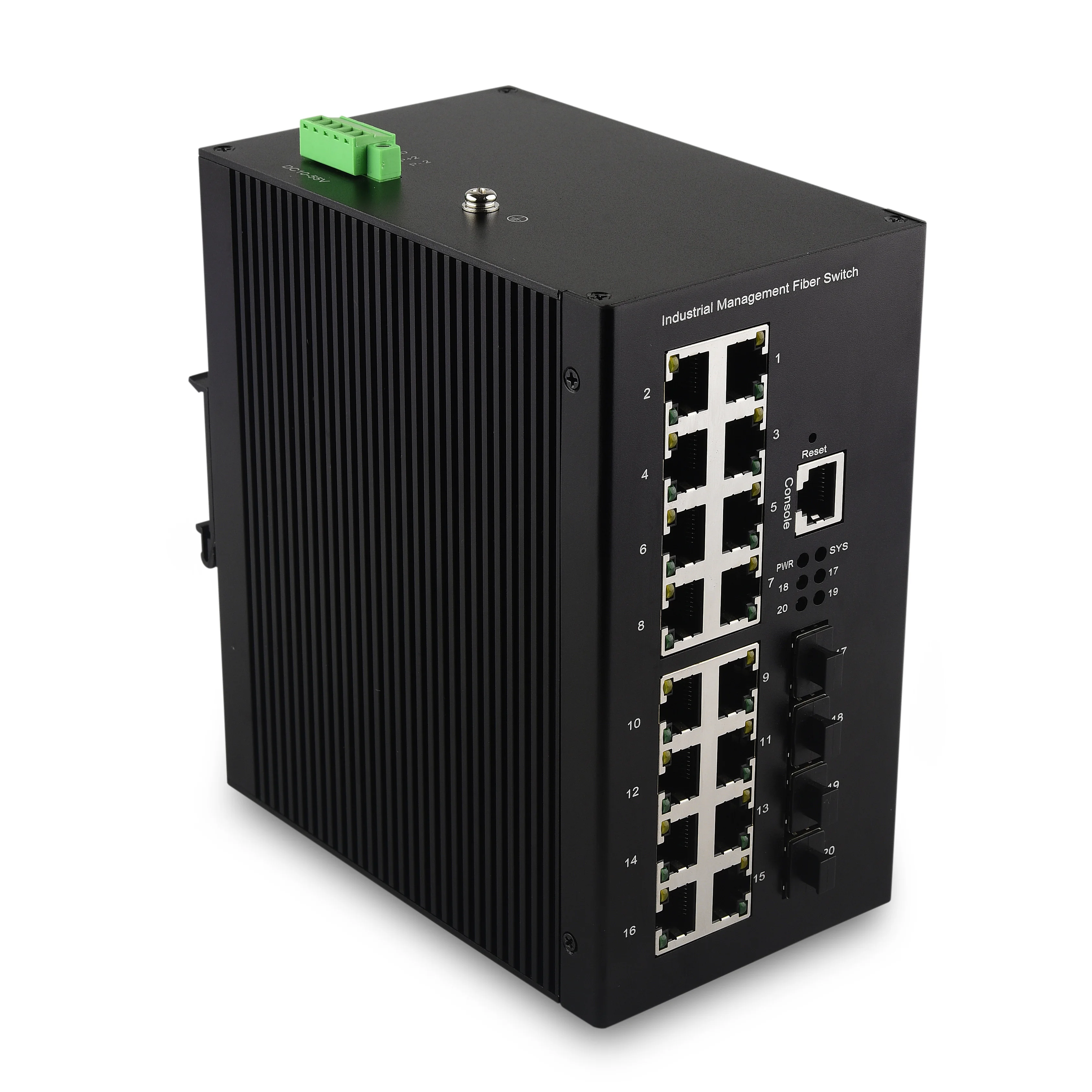

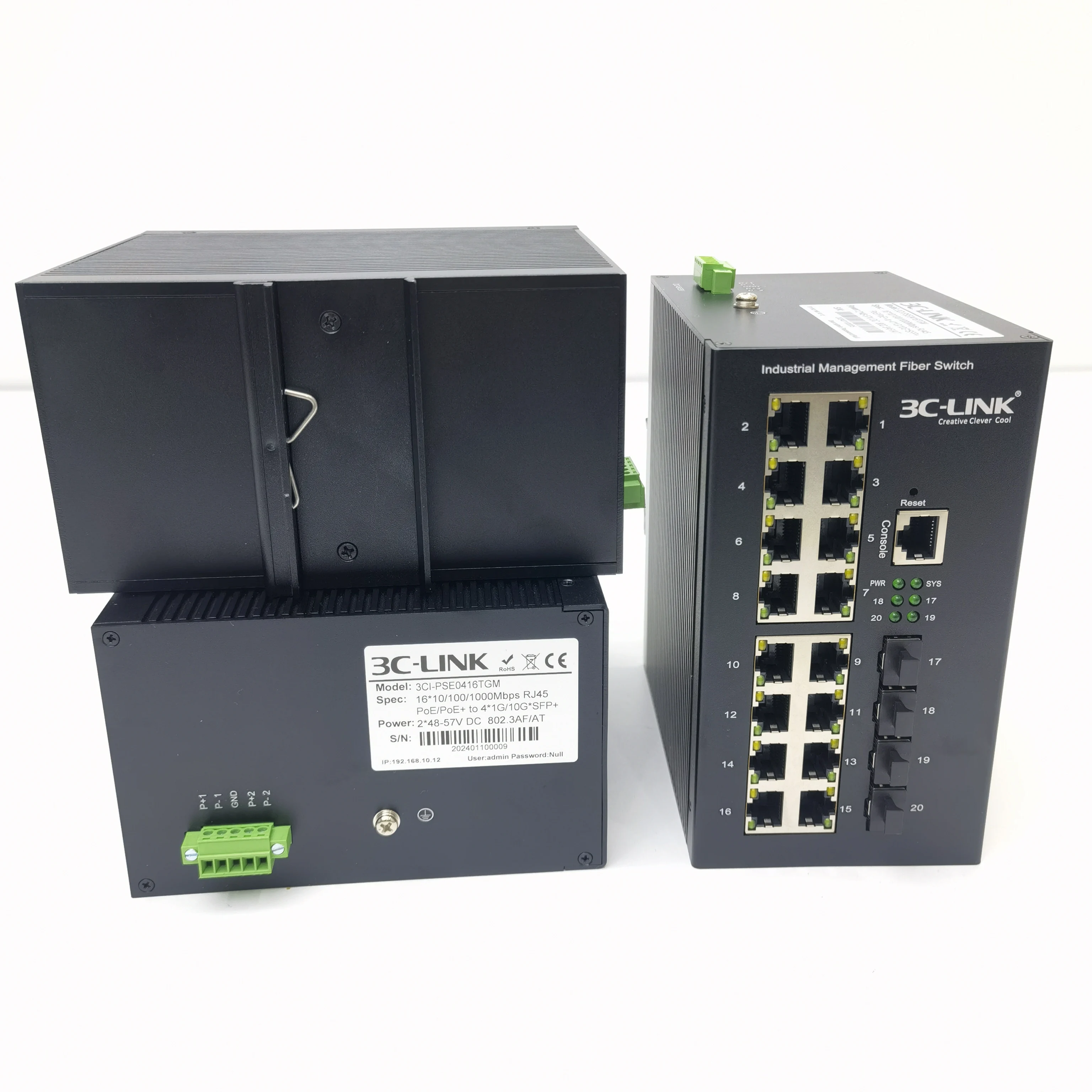

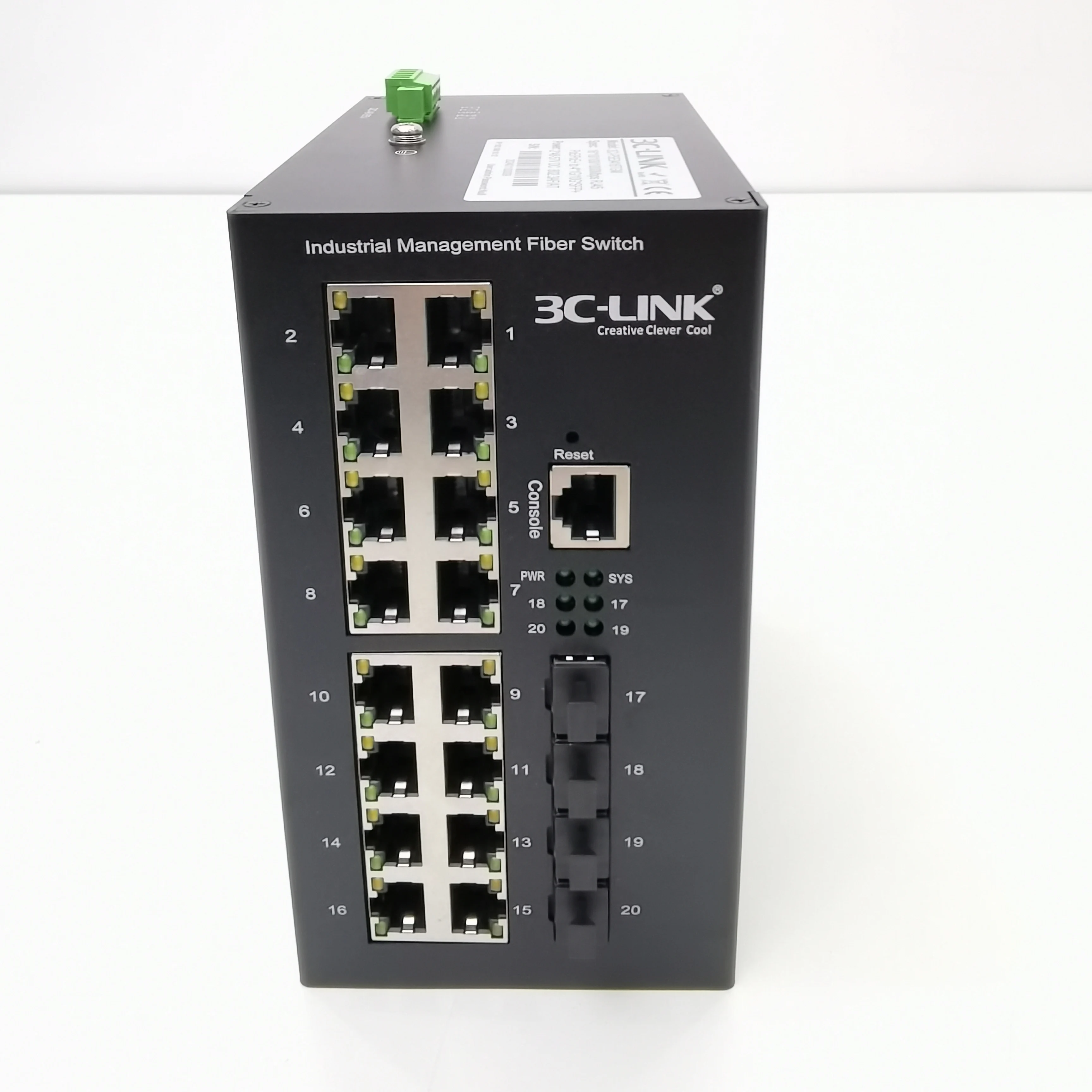

The 3CI-PSE0416TGM series is a high performance 20 port, industrial, managed gigabit Ethernet switch with sixteen 10/100/1000M PoE ports and four 10G SFP+ ports. The sixteen PoE ports support IEEE802.3af/at standard. The switch supports Ethernet Ring Protection Switching (ERPS) as well as STP/RSTP/MSTP. It also supports Web-based network management, VLAN, QoS, SNMP, IGMP snooping and other network functions. LED indicators provide the connection status when using SFP option. Rugged design with IP40 enclosure and industrial level 3 ESD protection makes it suitable for many applications such as Intelligent Transportation Systems, IP surveillance and industrial networks. The product is available in either DIN rail or wall-mount configurations.
16* 10/100/1000Base-T Ethernet ports (PoE)
4* 10G SFP+ ports
EPRS (typical recovery time \\< 30ms with 250 connected units)
STP / RSTP / MSTP redundancy protocols and standards
SNMPv1/v2c/v3 & RMON & Port base/802.1Q VLAN network management
IGMP Snooping multicast function
WEB, Telnet, SSH, Console (CLI)
open and close port, binding MAC and port
802.1x network access control
802.1Q protocol, Isolate network flow
Radius Centralized password management
IEEE802.3af/at standard
Overload current protection and reverse polarity protection
IP40 enclosure protection

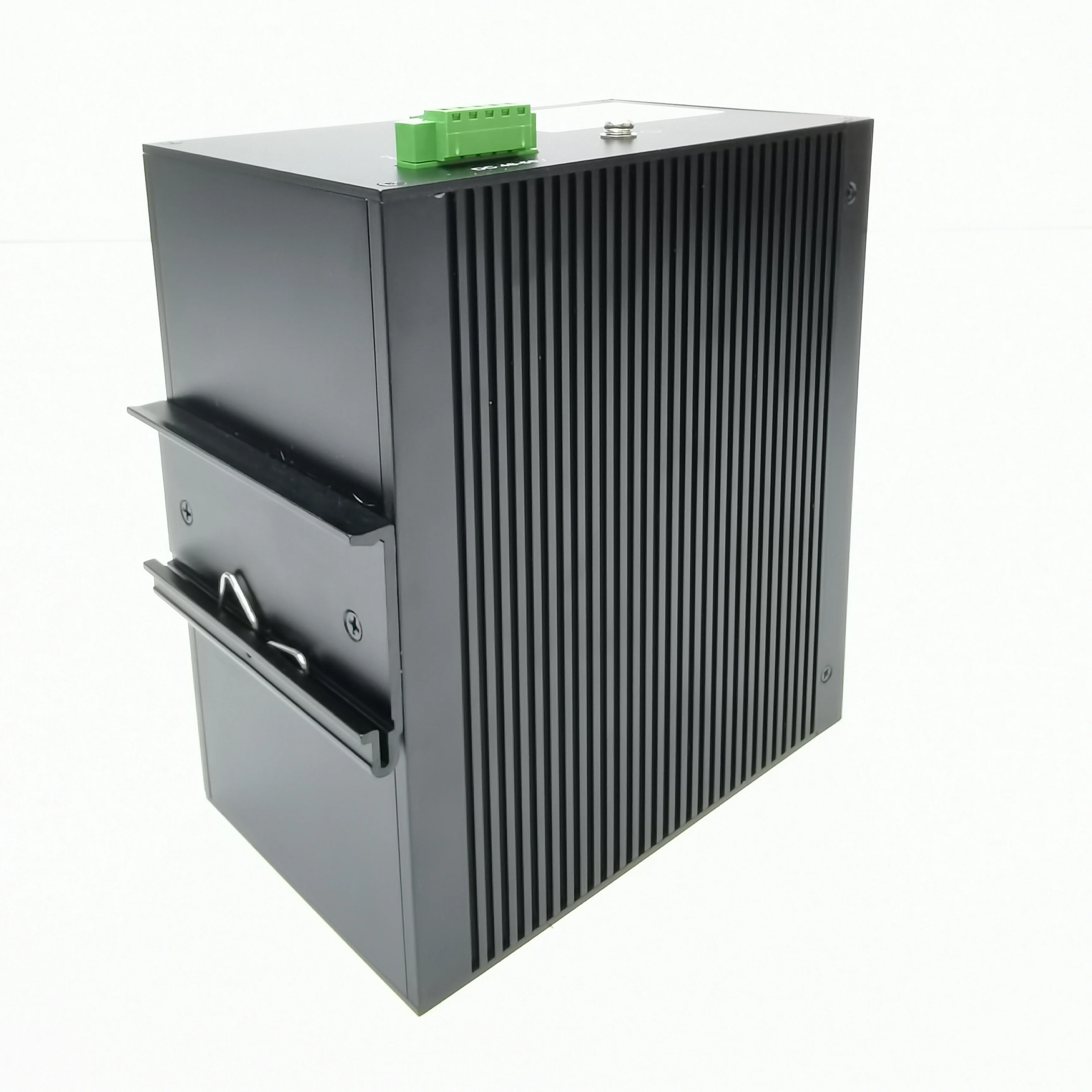

Unique DIN mount design makes mounting and removal simple
Both PoE and Non-PoE models are available
Standards
IEEE Ethernet Standards
IEEE802.3, IEEE802.3u, IEEE 802.1ab,
IEEE802.3z, IEEE 802.3x, IEEE 802.3ad
IEEE 802.1d, IEEE 802.1p, IEEE 802.1q
IEEE 802.1w, IEEE 802.1s, IEEE 802.1x
IEEE 802.1ab
Ports
10/100/1000MBase-T 16
10GBase-X SFP+ (1) 4
Switch Performance
Architecture Store-and-forward
Bandwidth 120Gbps
Buffer 8Mbps
Mac Address Table 8192
PoE
Standard IEEE802.3af/at
PSE Type End-span
Power Pin Assignment 1 / 2 (+), 3 / 6 (-)
Power Output (2) Each port up to 30W
Management
Port configuration Port enable/disable; Port rate settings
Full-duplex mode; Flow control;
VLAN 4K VLAN; Port-based VLAN;
802.1Q VLAN protocol;
Multicasting SNMP V1/V2/V3 protocols;
IGMP Snooping;
IGMP multicast group:1024
Console Port RJ45
Mechanical
Enclosure Ip40
Dimension (W*L*H) 88mm * 142mm * 160mm
Weight 1.25KG
PoE Management
Total Power Consumption Control;
PoE ON/OFF; Port Output Priority;
Security Feature
Enable/disable ports
MAC based port security
Port based network access control
VLAN (802.1Q)
Radius centralized password management
SNMP v1/v2c/v3 encrypted authentication
and access security
Protocols
ERPS/STP/RSTP/MSTP, SNTP, 1588 PTP
DHCP Server/Client, MVR, IGMP v1/v2
GMRP, GVRP, SNMP v1/v2c/v3, TFTP,
SMTP,RMON, RARP, HTTP, HTTPS, Telnet,
SSH, Syslog
LLDP, IPv6, NTP Server/Client
Warning & Monitoring
Relay output for fault event alarming
Syslog to record and view events
Event selection support
Relay Output 1A@24VDC NC or NO

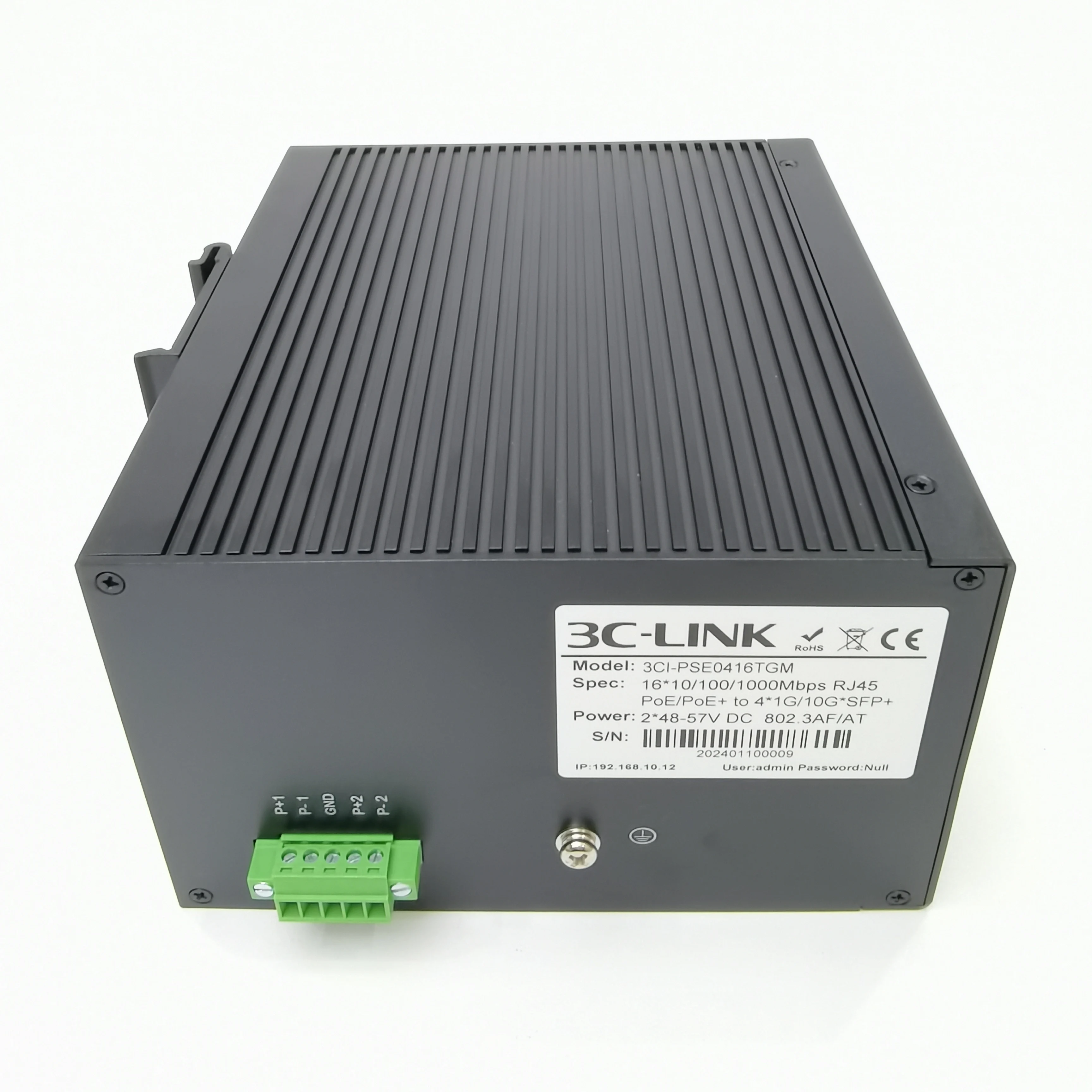

Power (3)
POE Power Input 48 ~ 57Vdc
Power Input 12~57VDC
Power Consumption < 12W (without PoE output)
POE Budget 240W
Overload Current Protection Yes
Reverse polarity protection Yes
Environmental
Operating Temperature -40 ~ +75Degree
Storage Temperature -40 ~ +85Degree
Operating humidity 5%~95% non-condensing
Order Information
1. SFP+ module sold separately.
2. Each port supports maximum 30W output. Output can be managed via Web software.
3. Power supply sold separately.
Protection
Surge 6KV, IEC61000-4-5
ESD ESD Level 4: IEC61000-4-2
RS Level 3: IEC61000-4-3
EFT Level 4: IEC61000-4-4
CS Level 3: IEC61000-4-6
3CI-SFP0416TGM | Managed, 16*10/100/1000 Base-T Industrial type, 4 *10G SFP+ |
3CI-PSE0416TGM | Managed, 16*10/100/1000 Base-T PoE/PoE+, 4* 10G SFP+ |
