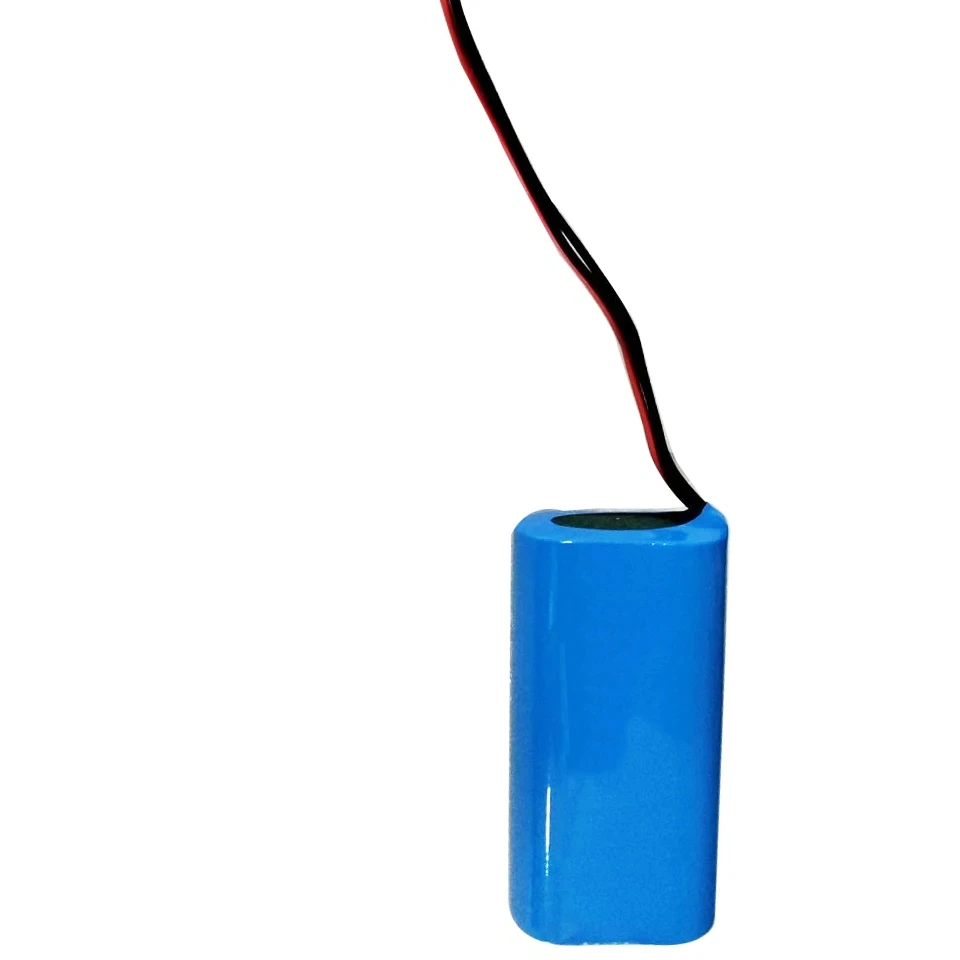

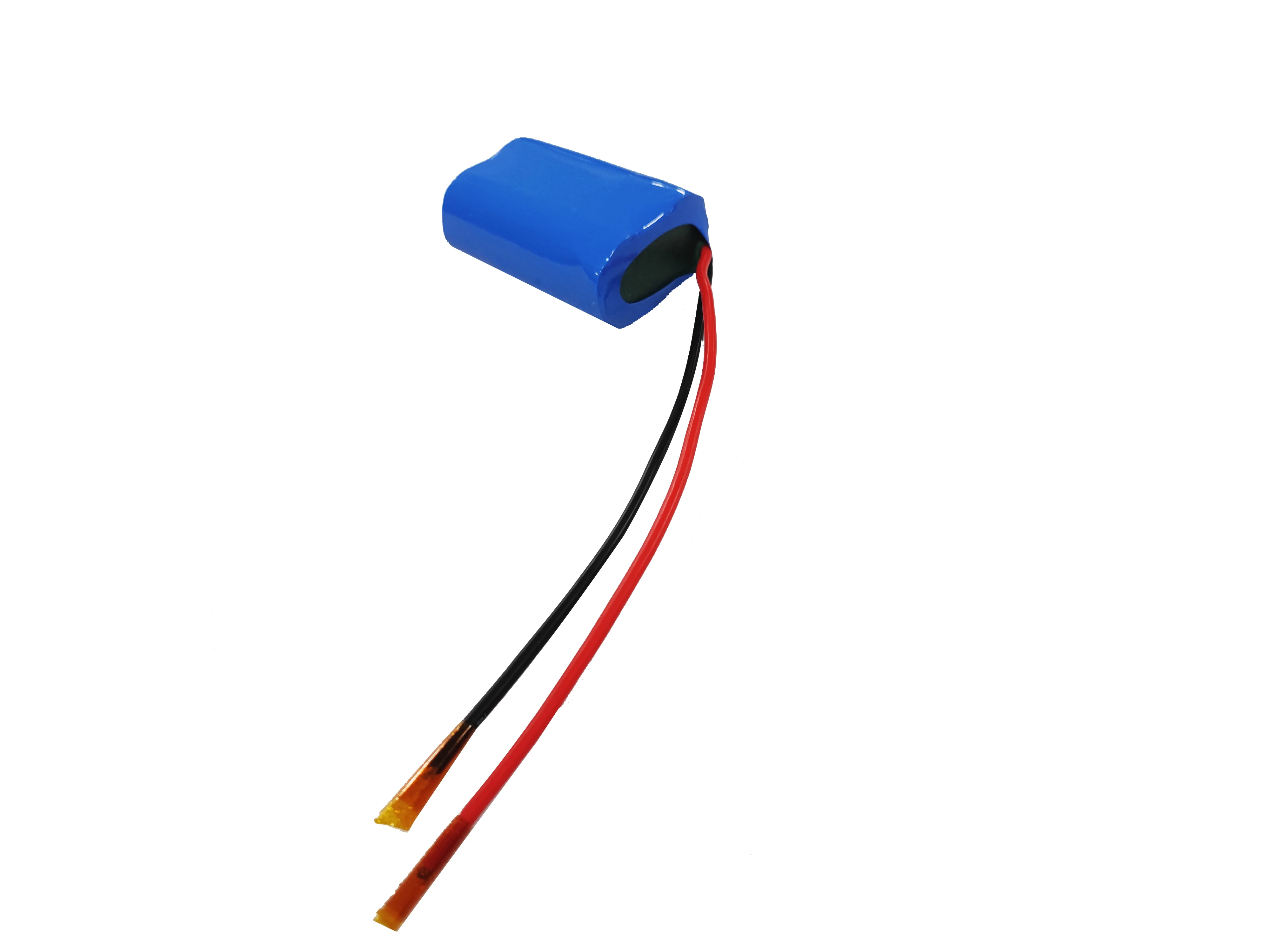

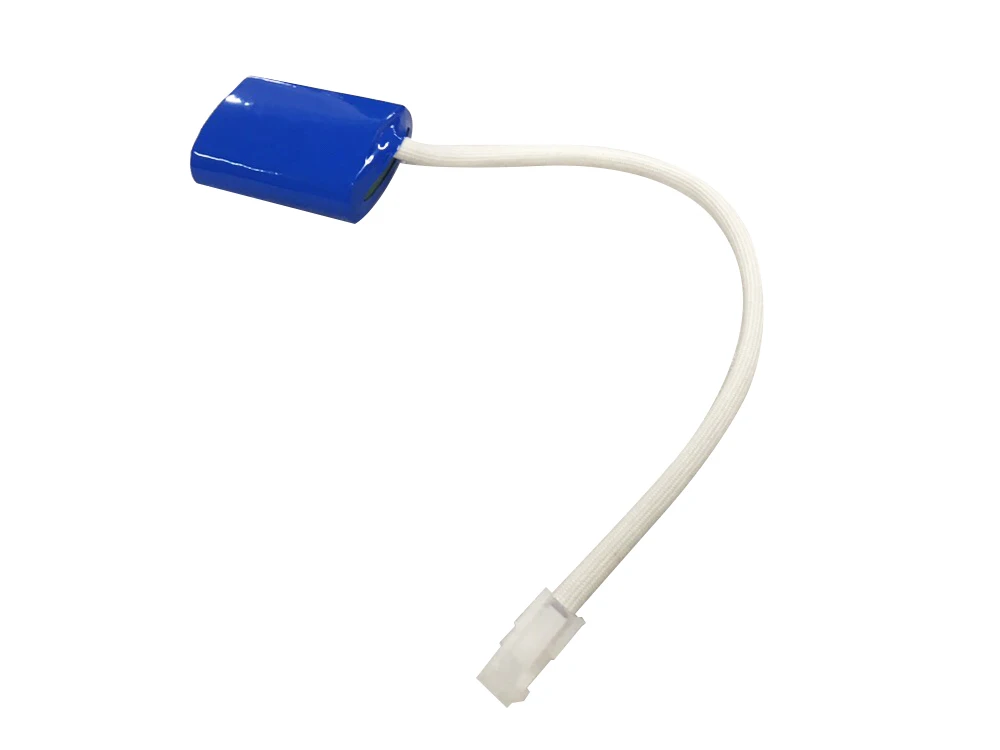

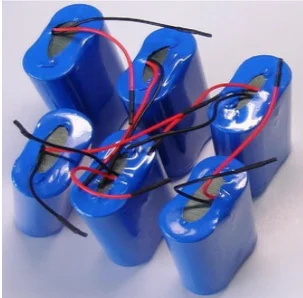

OEM rechargeable lifepo4 small battery 9.6V 1500mAh 18650 light weight emergency light battery pack
- Category: >>>
- Supplier: Shandong Tian Han New Energy Technology Co. Ltd.
Share on (1601027419952):
Product Overview
Description
Product Parameters
Item-10.8V lithium battery pack | Parameter | ||||||
Nominal Voltage | 9.6V | ||||||
Typical Voltage | 1500mAh | ||||||
Discharge | Normal Current | 1.5A | |||||
Cut-off Voltage | 7.5V | ||||||
Charge | Charging Voltage | 10.8v | |||||
Charging Current | 0.3A | ||||||
Charging Method | CC/CV | ||||||
Cut-off Current | 0.03A | ||||||
Inner Resistance | Discharging Inner Resistance | <=85mΩ | |||||
Operation temperature/humidity range | Charge | 0℃～+45℃ | |||||
Discharge | -20℃～+60℃ | ||||||
When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection | |||||||
Humidity | RH<85%, when the environment humdity is higher than 85%, please pay attention to protect | ||||||
Storage temperature/ humidity range | Temperature | 0℃～+40℃ (capacity 80%) recommended long-term storage temperature is 15-25℃ | |||||
Humidity | RH<50%, easily oxidized components note sealed | ||||||
Protection function | Overcharge protection, over discharge protection, temperature protection, balanced function | ||||||
Material of battery case | PVC | ||||||
Size | （70±2）mm *（57±2）mm *（20±2）mm | ||||||
Cycle | Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut off voltage, rest 0.5-1h, repeat the above steps until 1500 cycles. (capacity retention rate >80%) | ||||||

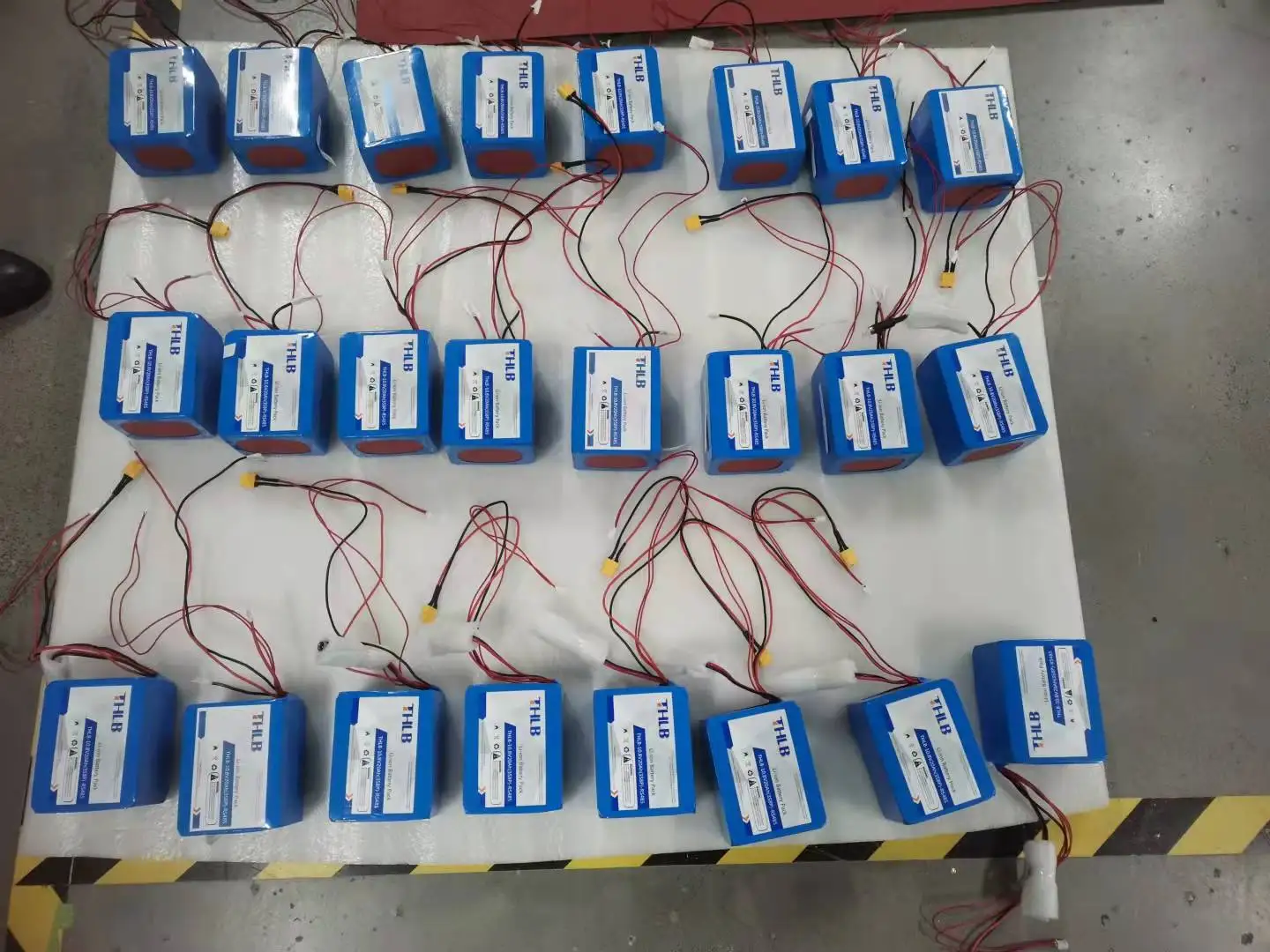

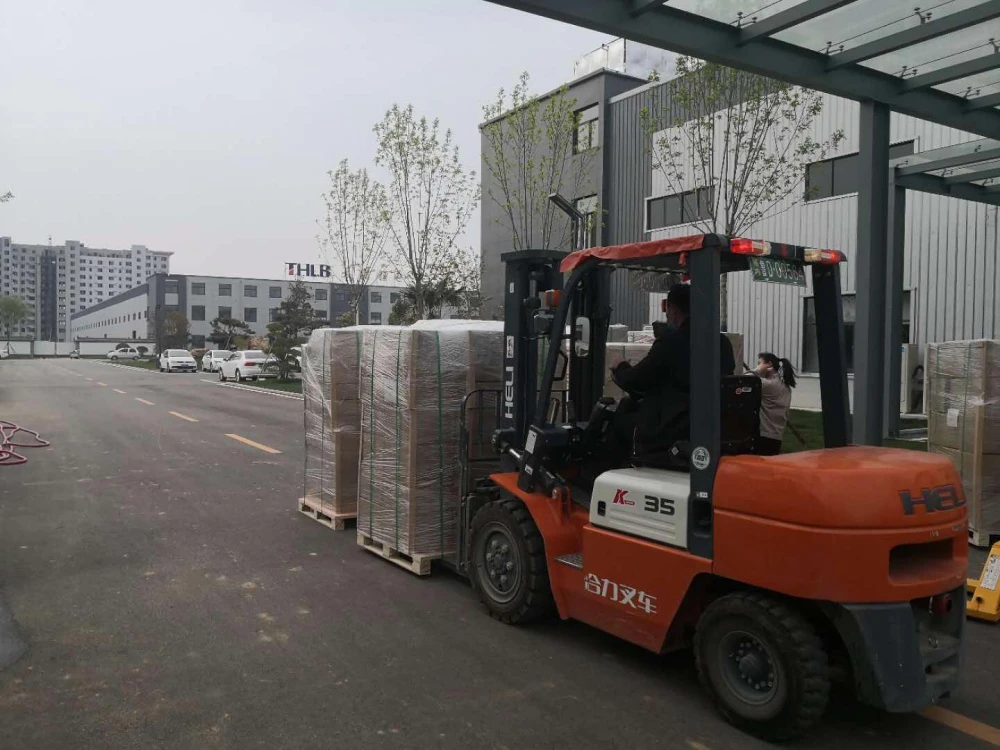

Packing & Delivery

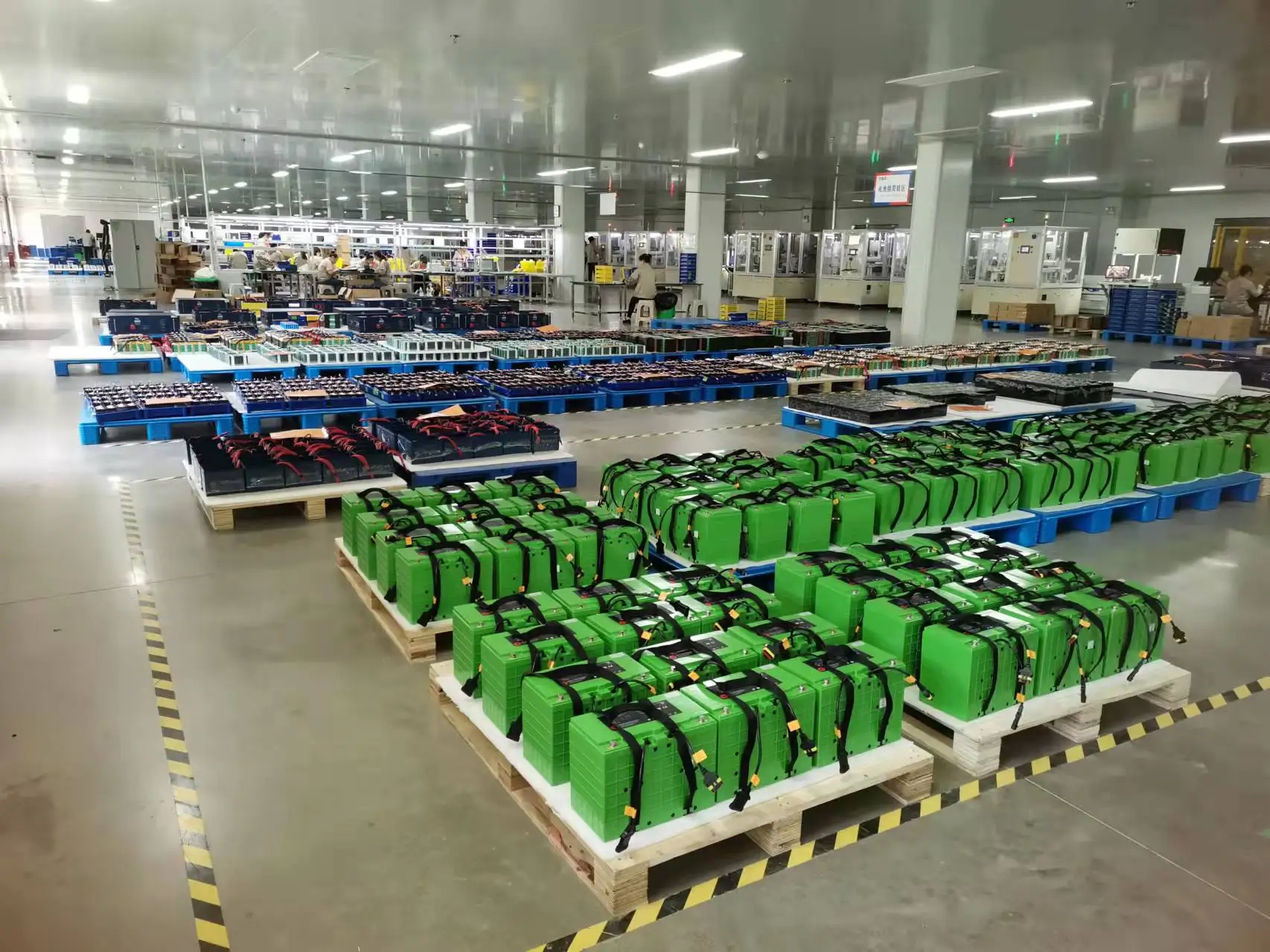

Our Company
Shandong TianHan New Energy Technology Co., Ltd is specialized in R&D, manufacturing, sales and service of lithium battery, power lithium battery and battery pack, BMS, products are widely used in intelligent manufacturing, new energy electric vehicles, starting-up batteries, communication station battery, e-bike, solar-wind energy storage system and houme-use energy storage system solutions.
