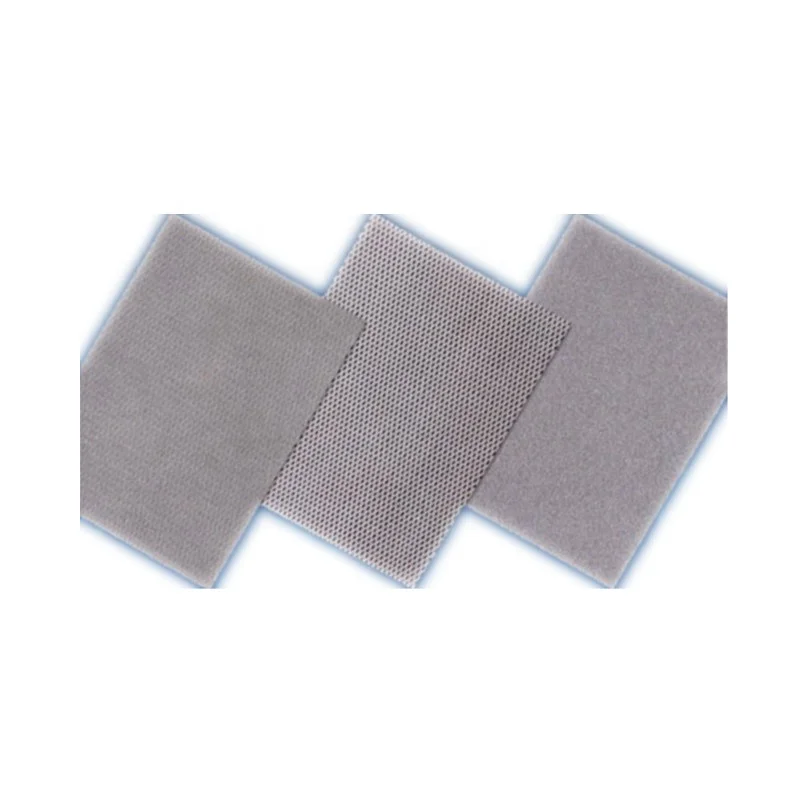

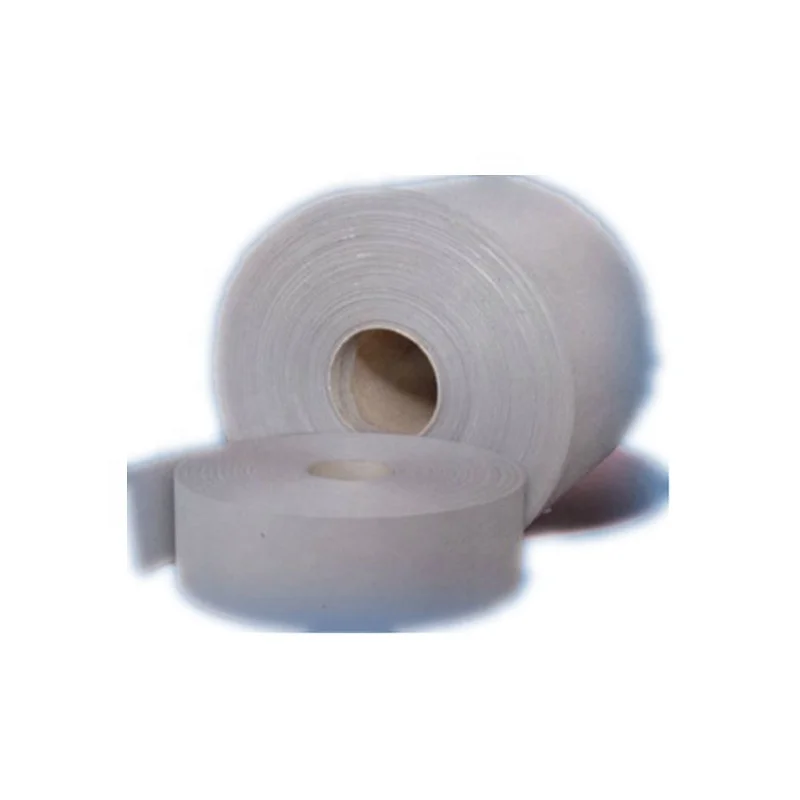

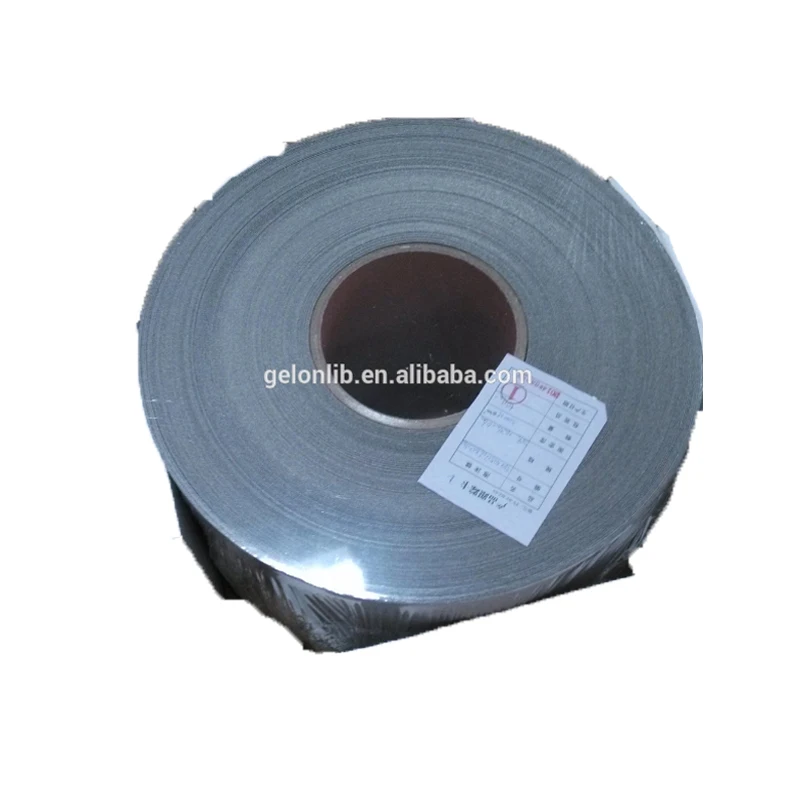

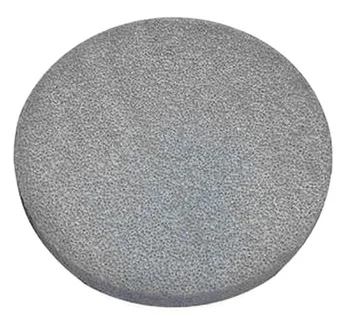

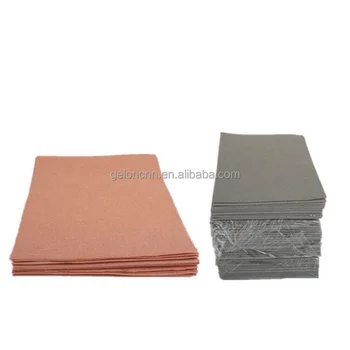

Factory Price Supercapacitor Catalyst Carrier Metal Nickel Foam 15mm Thick Battery Raw Material

GN-NF

Hole Number(PPI)

110

Actural Hole No.(PPI)

100-120

Density(g/m2)

≥250

Thickness(mm)

≤1.7

Width(mm)

≤1000

Appearance

Silver gray

Tensile strength(N/20mm )

Longitudinal≥30
Transversal≥20

Elongation(%)

Longitudinal≥5
Transversal≥12

Resistance(mΩ/100mm*10mm)

Longitudinal≤65
Transversal≤85

Composition(wt%)

Cu

C

Si

Fe

S

≤0.010

≤0.050

≤0.005

≤0.030

≤0.008

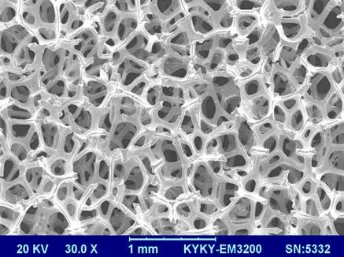

SEM pic
(30X)

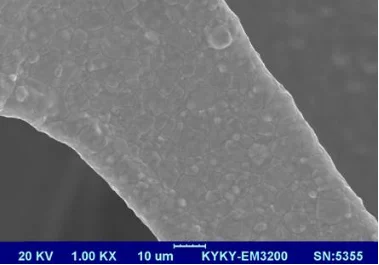

SEM pic
(1000X)
