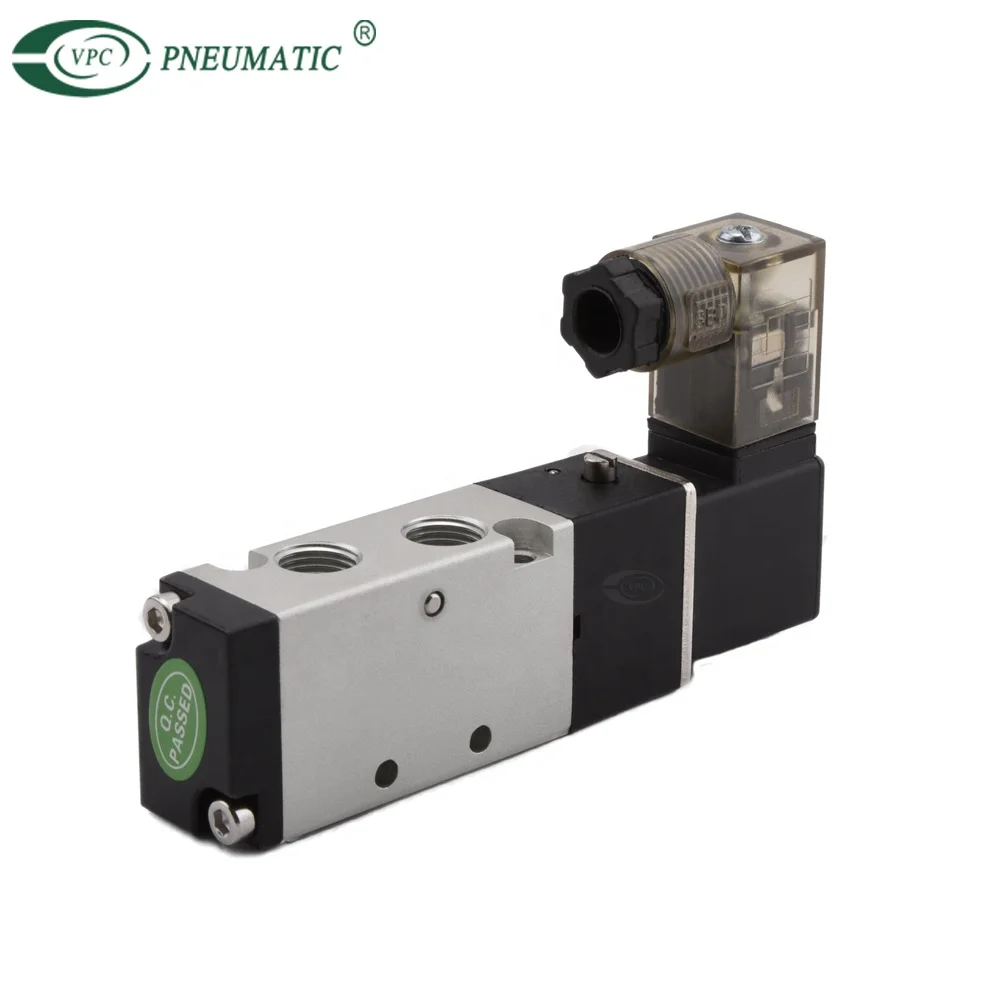

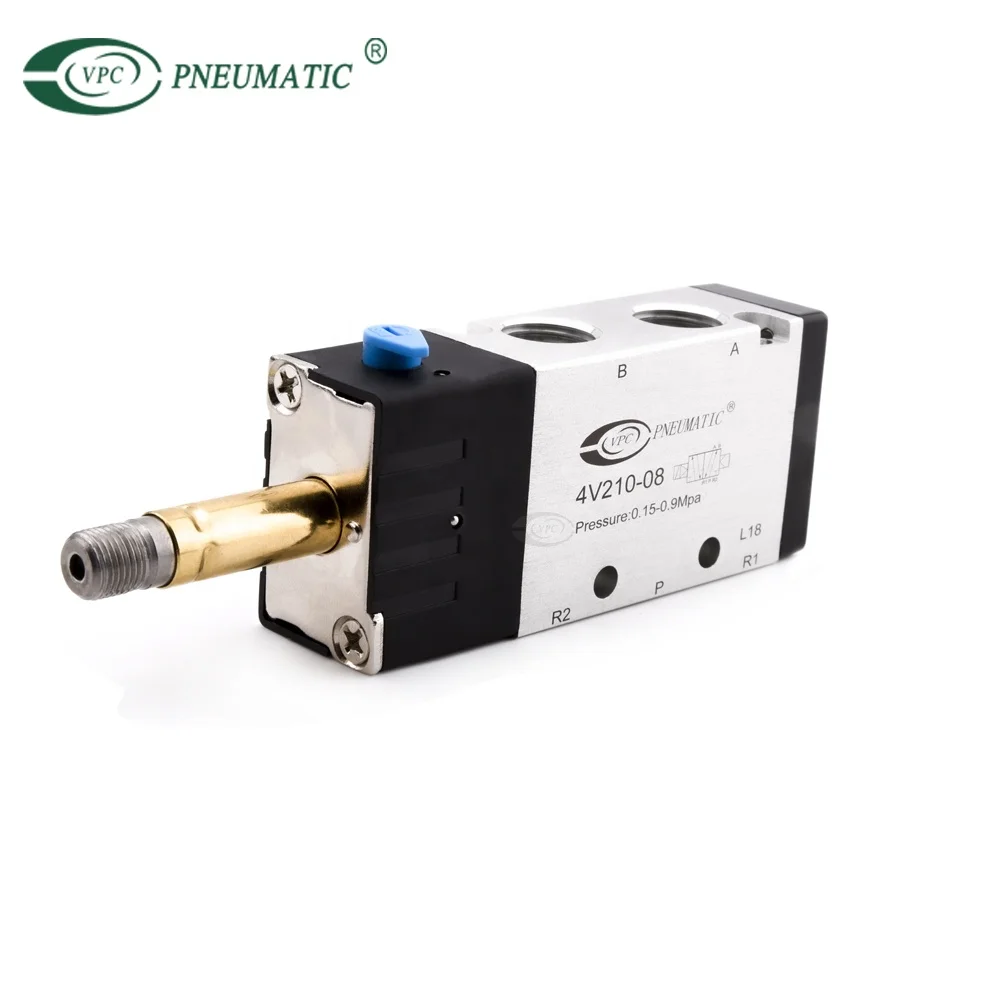

Airtac 4V210 08 Aluminum Internal guide Single coil 5/2 way Pneumatic solenoid valve
- Category: >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (1601027433728):
Product Overview
Description
PRODUCT DESCRIPTION

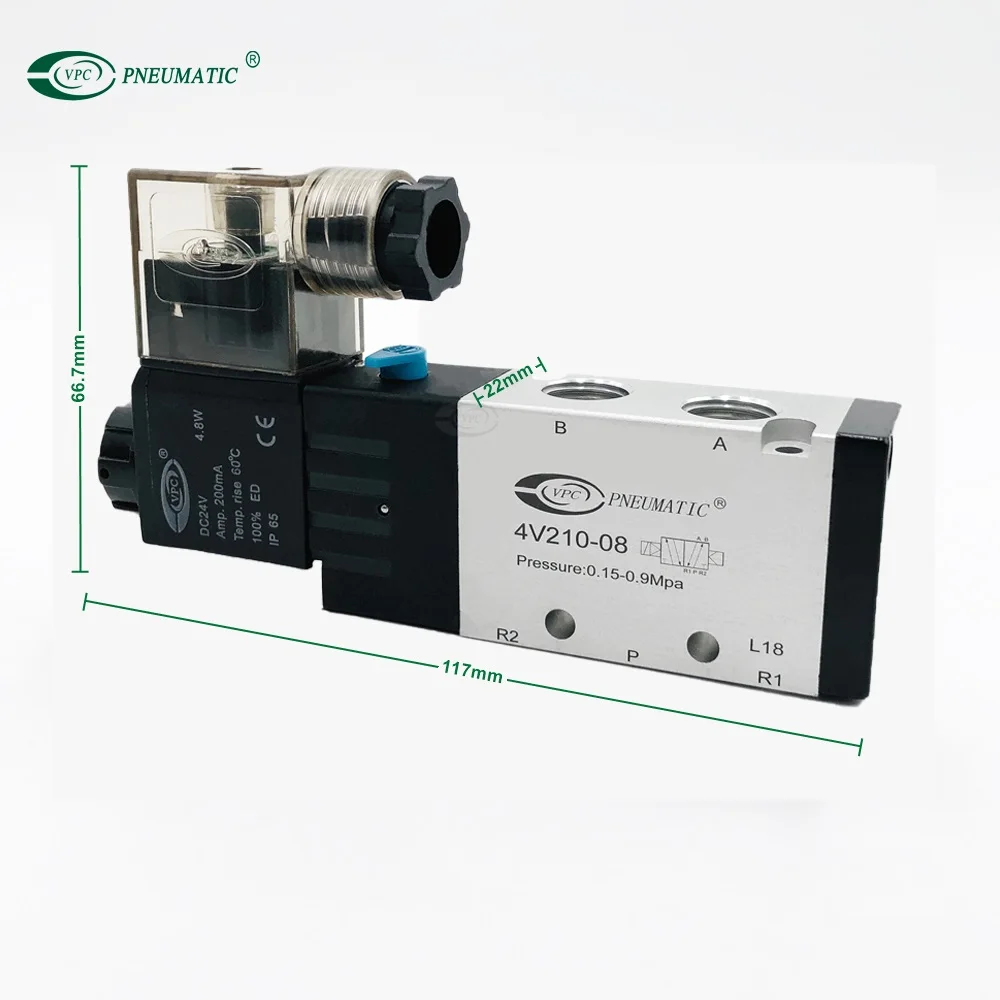

Airtac 4V210-08 Aluminum Internal Guide Single coil 5/2 Way Pneumatic solenoid valve
Product features
* Stable life cycle guaranteed 10,000,0000 times.
* Various voltage and working style are available.
* Different surface treatment, thread types.
(G、NPT、PT、BSPP、BSPT) are available.
Model | 4V110-M5 | 4V110-06 | 4V210-06 | 4V210-08 | 4V310-08 | 4V310-10 | 4V410-15 | ||||||
Working medium | Clean air | ||||||||||||
Acting type | Internal guide | ||||||||||||
Working pressure | 0.15-0.9Mpa | ||||||||||||
Max pressure | 1.2Mpa | ||||||||||||
Working temperature | -5~60℃ | ||||||||||||
Voltage range | -15%~10% | ||||||||||||
Heat Resistant Grade | B | ||||||||||||
Protective class | IP65(DIN40050) | ||||||||||||
Coil type | Din type/Flying leads | ||||||||||||
Joint size | Import=M5 | Import=1/8 | Import=1/8 | Import=1/4 | Import=1/4 | Import=3/8 | Import=1/2 | ||||||
Export=M5 | Export=1/8 | Export=1/8 | Export=1/4 | Export=1/4 | Export=3/8 | Export=1/2 | |||||||
Exhaust=M5 | Exhaust=1/8 | Exhaust=1/8 | Exhaust=1/4 | Exhaust=1/8 | Exhaust=1/4 | Exhaust=1/2 | |||||||
Sectional Area | 5.5mm² (cv=0.31) | 12mm² (cv=0.67) | 14mm² (cv=0.78) | 16mm² (cv=0.89) | 25mm² (cv=1.39) | 30mm² (cv=1.67) | 50mm² (cv=2.79) | ||||||
Max acting frequency | 5Times/s | 4Times/s | 3Times/s | ||||||||||
T6 Level of Aeronautical Aluminum Alloy
micro-hole forming,straightening,grinding,multi-process
superior quality injection molding equipment and ultra-precision mold imported from Germany
Internal discharge structure,free pollution for the environment
Full Turn Coil
Using 0.06mm enameled wires imported from Germany
guaranteed temperature260°,high safety performance,Built-in protection circuit against surge
Directly connected to PLC without additional intermediate relay
Sensitive Pilot Head
Armature adopts Northeast special steel imported from Japan
High-frequency pilot head 5s/times, high sensitivity, no stuck
Special customized Mitsubishi seals with working life of more than 100 million times
HOW TO ORDER
Ordering Code 4V Series Solenoid Valve
4V 2 10 - 08 - □ - AC220V
4V→ Type Code | 4V: 5Port, 2Position | ||
2→ Series Code | 1: 100 Series | 2: 200 Series | |
3: 300 Series | 4: 400 Series | ||
10: Single control | 20: Doule control | ||

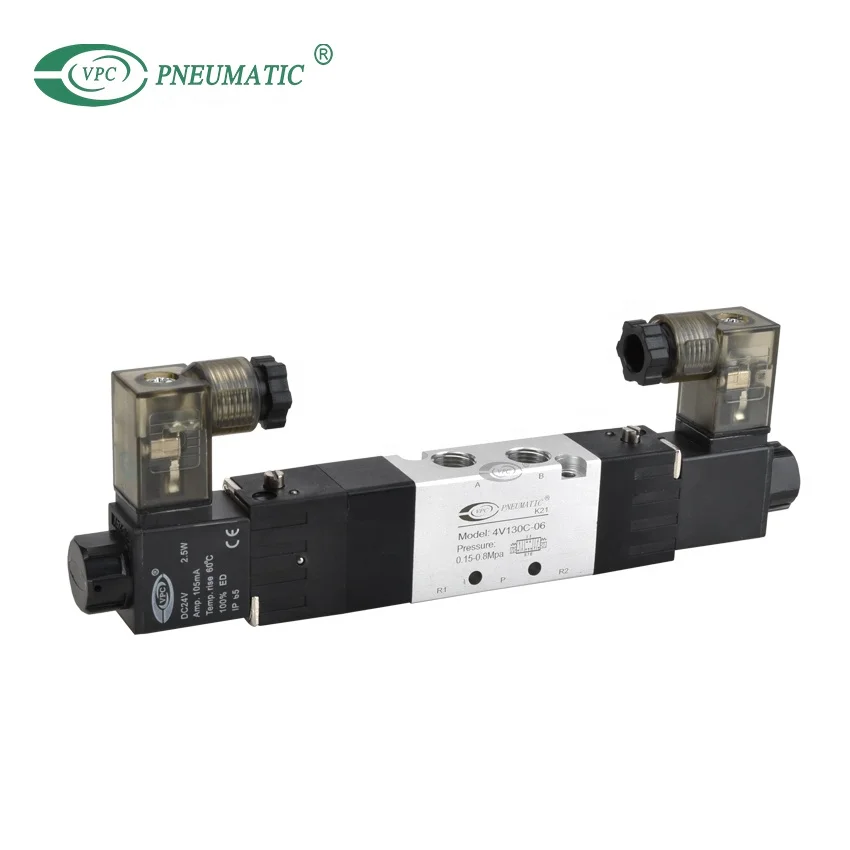

30C: Double control 3Position Center Close | |||
30E: Double control 3Position Center Exhaust | |||
30P: Double control 3Position Center Pressure | |||
M5: M5 | 06: G1/8" | ||
08: G1/4" | 10: G3/8" | ||
15: G1/2" | |||
□→ Coil Type | Blank: Din Type | I: Fly leads | |
DC12V | DC24V | ||
AC24V 50/60Hz | AC110V 50/60Hz | ||
AC220V 50/60Hz | AC380V 50/60Hz | ||
