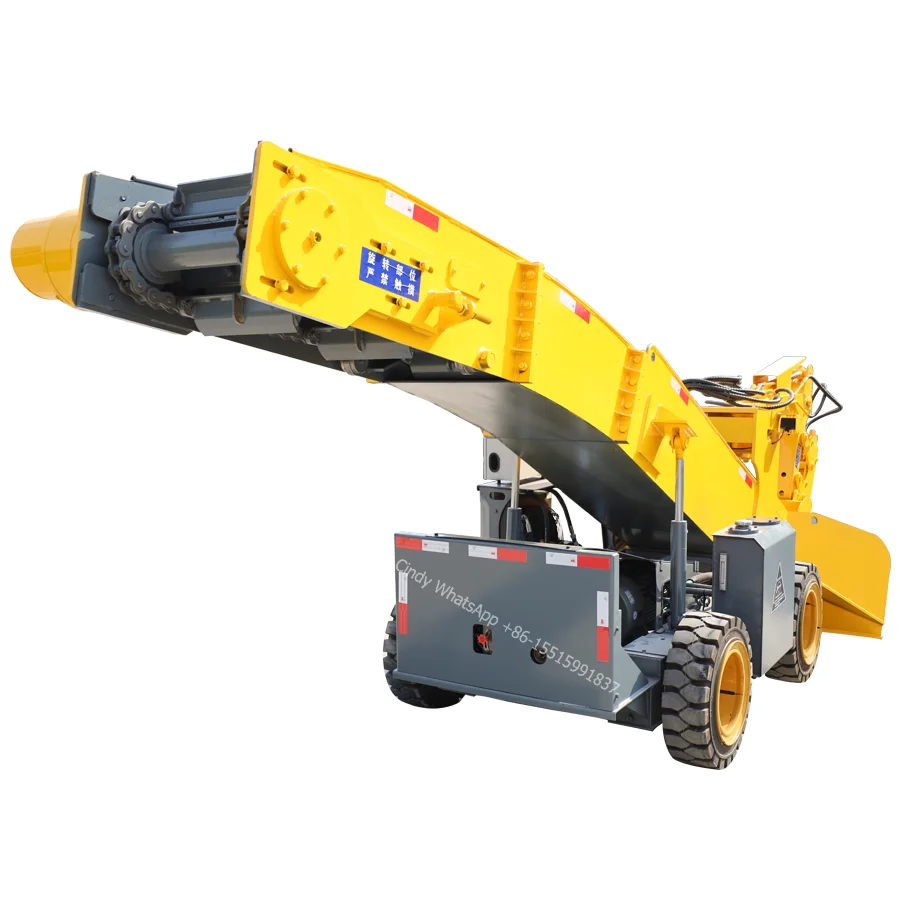

Brand new diesel dumper work with ZWY 80H unloader/mini excavator boat/tunnel mucking loader
- Category: >>>
- Supplier: Henan Pssroh Trading Co. Ltd.
Share on (1601027490764):
Product Overview
Description
Company Introduction

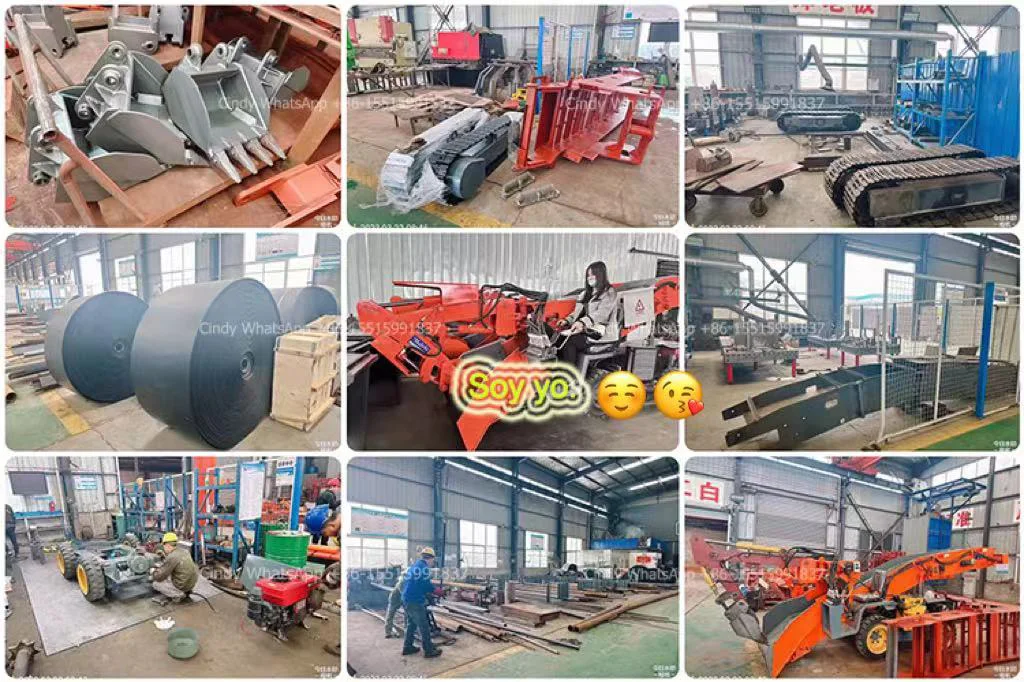

Our factory
Zhengzhou Lianke Machinery factory is a specialized manufacturer and trade of mucking loader machine and electric/diesel dumper truck, integrating development and production. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The mucking loader all parts quality assurance period for 15 months. In normal use circumstances, there is any quality problem, during warranty period, we will send the accessories freely to customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
Product Overview

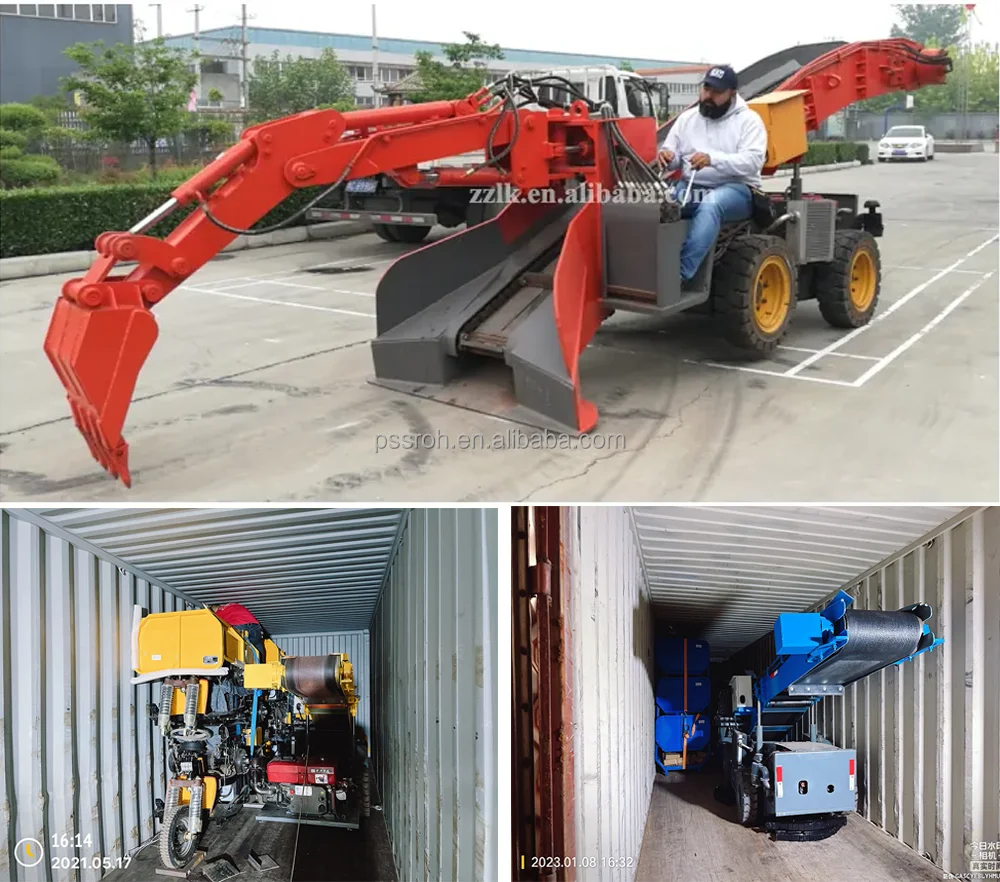

Mucking loader work with dump trucks

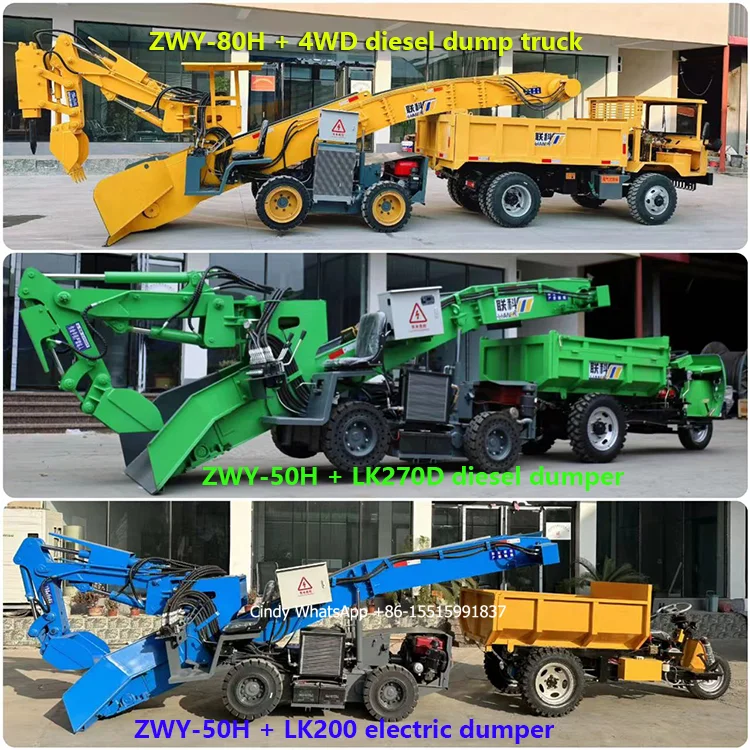

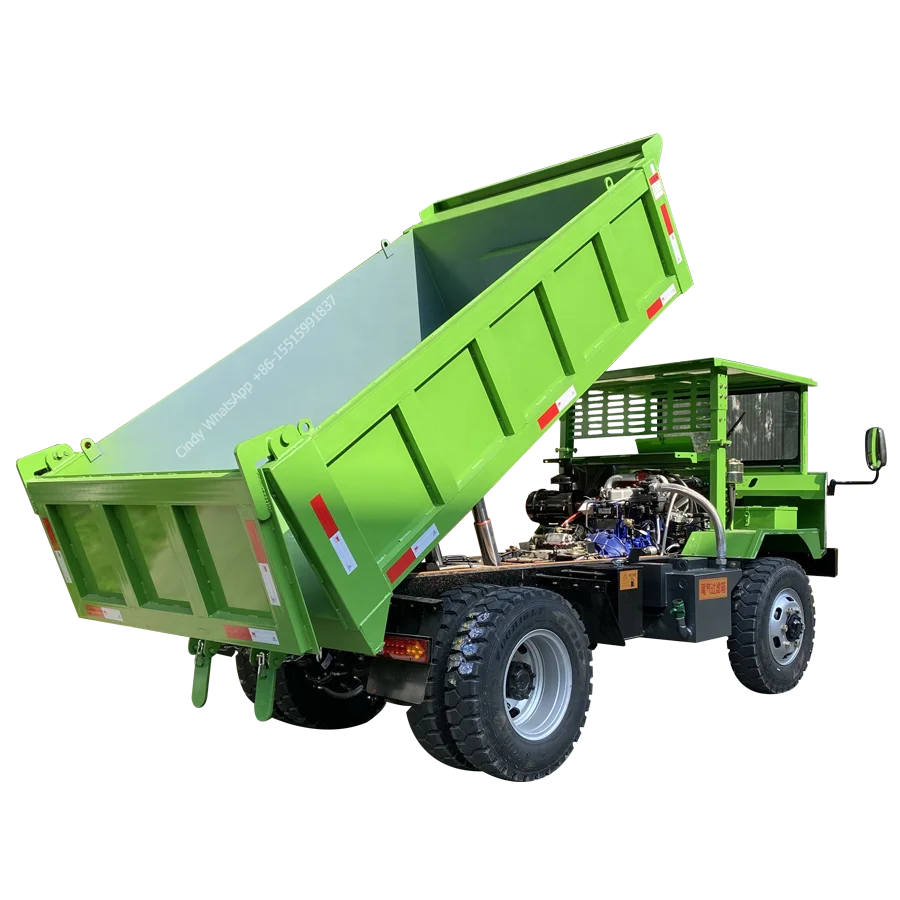

ZWY-80H mucking loader work with LK-6T diesel dump truck 4wd with a load of 6000kg,
ZWY-50H mucking loader work with LK270D diesel dumper with a load of 2500kg,
ZWY-50H mucking loader work with LK200 electric dumper with a load of 2000kg.
This working method greatly improve working efficiency and save labor cost in mines and construction site.

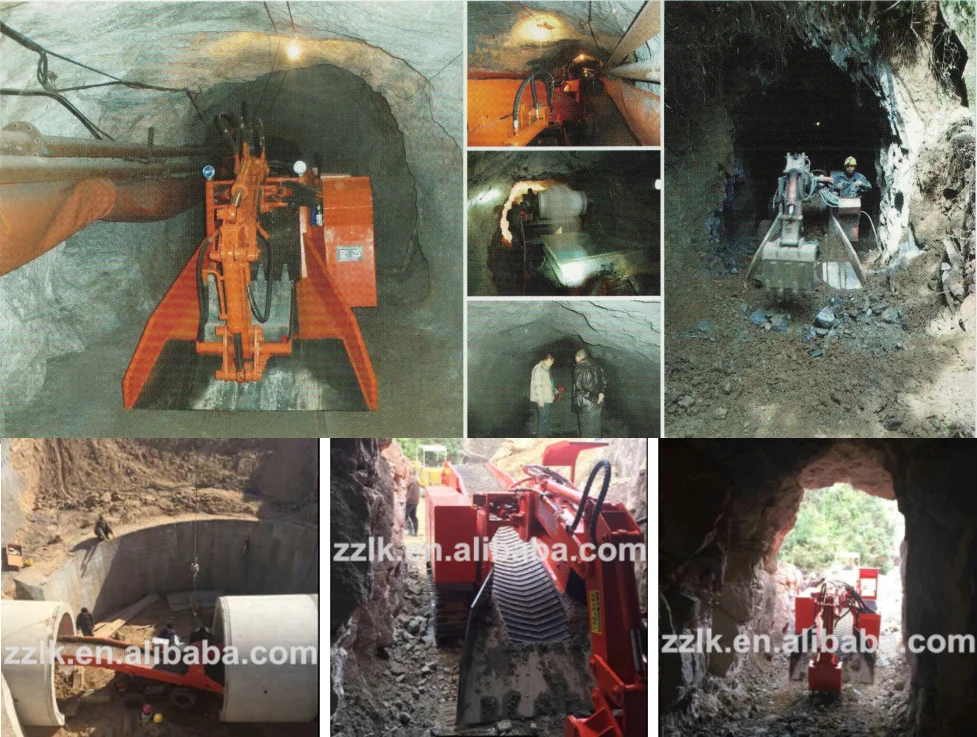

Application
ZWY-80H model mine tunnel mucking loader is suitable for construction machinery and small-section diversion tunnels for tunnel excavation, mining engineering, hydraulic engineering, water conservancy projects etc., and mine slag (mine) machinery. This machine is mainly used for some production operations with narrow space, small scale phosphate rock and metal. Gravel soil material collection and transportation loading construction for non-explosive dangerous mines such as non-metallic mines.
The mucking loader haggloader produced by our company can be designed and customized according to the needs and details of customers.
The mucking loader haggloader produced by our company can be designed and customized according to the needs and details of customers.
The same model(80m³/h)is divided into sliding type and bridge type according to the different chassis systems:

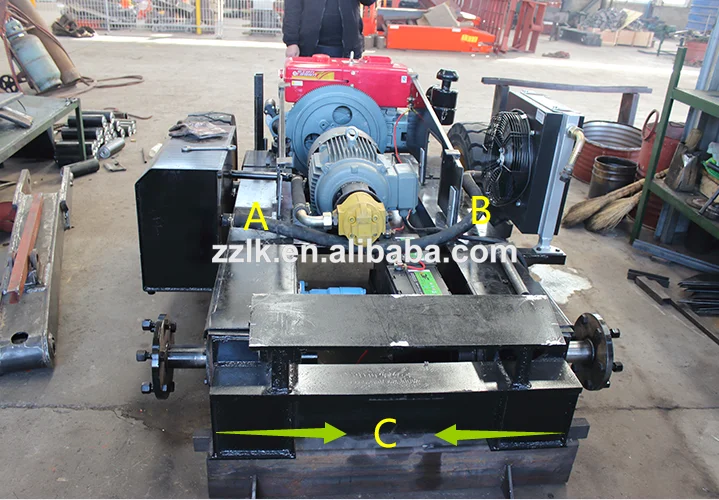

ZWY-80H means sliding type of chassis structure can be turning around at original place, no need turning radius.
Number "80" means working capacity 80m³/h, "H" means sliding chassis structure.
Sliding chassis structure has two hydraulic motors to drive this mucking loader, one hydraulic motor in each side(A and B), to drive 2 wheels.
Due to this sliding chassis structure is produced by our factory so the machine width C can be customized to 1.2m at least when it enter into a narrower place we called it ZWY-50H.
Sliding chassis structure has two hydraulic motors to drive this mucking loader, one hydraulic motor in each side(A and B), to drive 2 wheels.
Due to this sliding chassis structure is produced by our factory so the machine width C can be customized to 1.2m at least when it enter into a narrower place we called it ZWY-50H.
Youtube video links for more details:
(Also you can search Cindy-Zhengzhou Lianke on Youtube)
ZWY-60L Crawler type mucking loader testing in factory: https://youtu.be/XoxEZXfuEdY
Peru customer feedback drive haggloader in his country: https://youtu.be/yfqfqGNxGsM
20230210 Ecuador feedback ZWY-50H mucking loader: https://youtu.be/mglJ66NSAZ8
Customer feedback ZWY-80H model mucking loader in Peru: https://youtu.be/u7V9OSqLXTU
Zhengzhou Lianke ZWY-50H mucking loader operation process: https://youtu.be/lScSfxdbkTE
Peru customer feedback drive haggloader in his country: https://youtu.be/yfqfqGNxGsM
20230210 Ecuador feedback ZWY-50H mucking loader: https://youtu.be/mglJ66NSAZ8
Customer feedback ZWY-80H model mucking loader in Peru: https://youtu.be/u7V9OSqLXTU
Zhengzhou Lianke ZWY-50H mucking loader operation process: https://youtu.be/lScSfxdbkTE
This video has been processed at twice the speed, Please watch it carefully.
(Range price: $10500-$15500, this is for reference only, and the actual price is subject to the specific configuration of the order)
PRODUCT SPECIFICATIONS
ZWY-80H mucking loader technical parameters | Item | Data | ||||||
Technical Data | Power | 37.5KW | Functional Parameters | |||||
Dimension | 5800*1700*1650mm | 2.8 M3 | Loading Ability | ≥80 m³/h | ||||
Minimum turning radius | ≥4.5m | 125Ton | General power | 22 KW | ||||
Ground clearance | ≥210 mm | 96kN | Weight | 3700 kg | ||||
Wheel Base | 1700 mm | 96kN | Traveling Speed | 2 km/h | ||||
Digging width | 2400 mm | 60kN | Conveyor Speed | 0.63 m/s | ||||
Digging height | 2900 mm | 6750ml | Adaptive Tunnel Slope | ≤ 15° | ||||
Digging depth | 700 mm | 500N.m | Grade ability | ≤ 10° | ||||
Digging Distance | 1600 mm | Rated Working Pressure | 16 Mpa | |||||
Dumping height | ≥1700 mm (variable) | Working climbing | ≤ 8° | |||||
Transport form | Electric drum/hydraulic roller | Transporting Way | Belt conveyor or Scraper conveyor | |||||
Belt Width | 700 mm | Moving Way | Solid Tire | |||||
Operating Mode | Multiway valve | Max. Big Arm Angle | ±73° | |||||
Adaptive tunnel dimension (Width*Height) | ≥2.2*2.2 m | |||||||

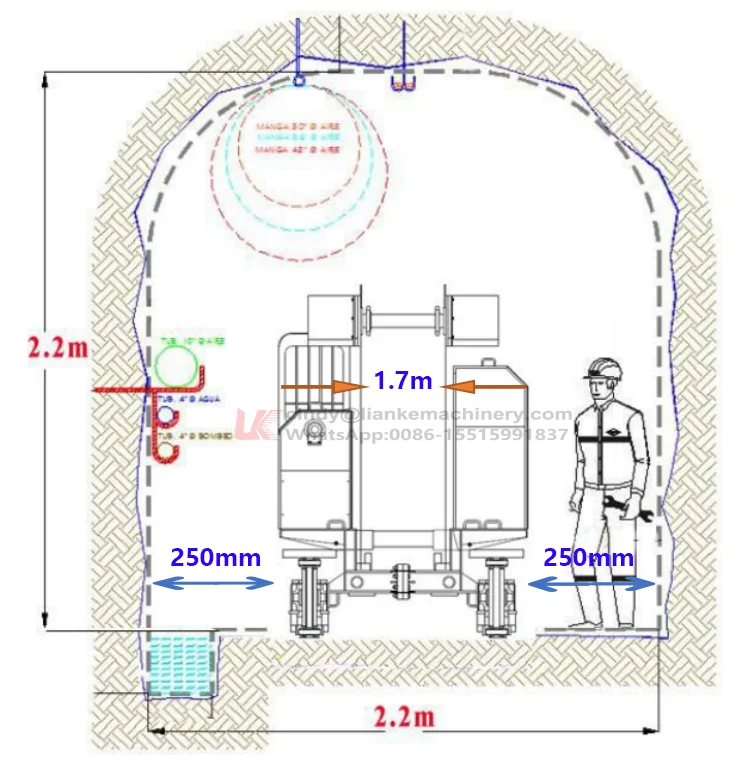

When your mine width is more than 1.7M, height is more than 2.2M, then our ZWY-80H model machine can go inside your mine.
Can be seen from the left picture,
Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.
With considering that, our Model ZWY-80H can be apply to the mine or tunnel which section is more than 2.2M*2.2M
Can be seen from the left picture,
Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device.
With considering that, our Model ZWY-80H can be apply to the mine or tunnel which section is more than 2.2M*2.2M

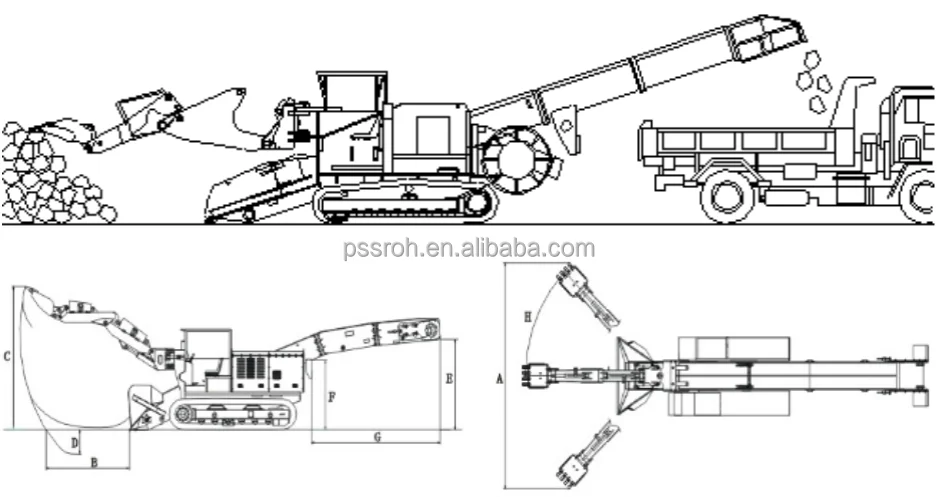

A: Excavating width B: Excavating distance C: Excavating height D: Excavating depth
E: Unloading height F: Min. loading height G: Unloading distance H: Max. rotation angle
E: Unloading height F: Min. loading height G: Unloading distance H: Max. rotation angle
ZWY-50H mine mucking loader is an indispensable advanced mining equipment for mining enterprises. It replaces the manual operation and puts all kinds of slag stone after blasting onto the transportation vehicle. It is a substitute for labor and other machinery, filling the gap of blank space in the small space for mechanical work.
Before you send me inquiry, please provide the below detailed information of your mine or tunnel
Q1 : What kind of mine or tunnel you are going to use our machine ? Coal mine or phosphate rock ?
Q2 : What is your mine width and height ? Has curve inside the mine hole ?
Q3 : What is your mine or tunnel slope ? More than 8 degrees ?
Q4 : Do you have transporting vehicle behind our machine ? what is the size(above flow diagram E, F and G) ?
SIMILAR PRODUCTS
Overall size: 3300*1120*1500mm Hopper: 1800*1120*590mm
Engine power: 17kw/24hp/2200rpm
Overall size: 4600*1630*1500mm
42kw/58hp diesel engine
Turbocharger/4wd/diesel preheating device
LKCE-1 electric scooptram loader
Overall size: 6300*1300*2000mm
Total motor power: 56.5kw
Weight: 6800kg
Bucket capacity: 1m³
Overall size: 3300*1100*1350mm
Hopper: 1800*1100*620mm
72V4000W(Brushless AC motor)
Direct-inserted full floating rear axle
Hopper: 1800*1100*620mm
72V4000W(Brushless AC motor)
Direct-inserted full floating rear axle
Overall size: 3200*1050*1450mm
Hopper: 1600*1050*600mm
72V4000W(Brushless motor) DATAI or YUANHAO
Direct-inserted full floating rear axle
Hopper: 1600*1050*600mm
72V4000W(Brushless motor) DATAI or YUANHAO
Direct-inserted full floating rear axle
Detailed configuration

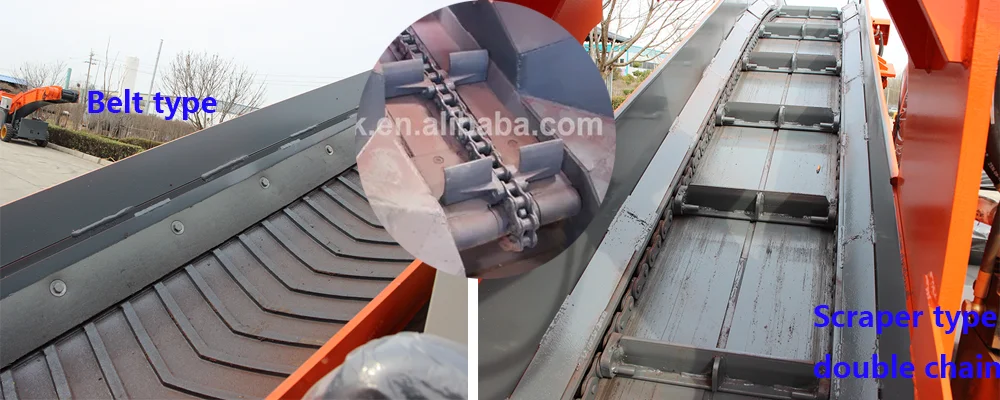

The conveying system-Belt type and Scraper type
Now our ZWY-80H tunnel mucking loader haggloader has two type,
Belt type: used for conveying loose materials or small particles, such as soil, low density stones, etc.
Advantages: high transport efficiency and easy replace.
Disadvantages: When transporting metal materials, the belt wears out quickly and needs to be replaced every month. Large gradients are prone to slipping, resulting in low conveying efficiency.

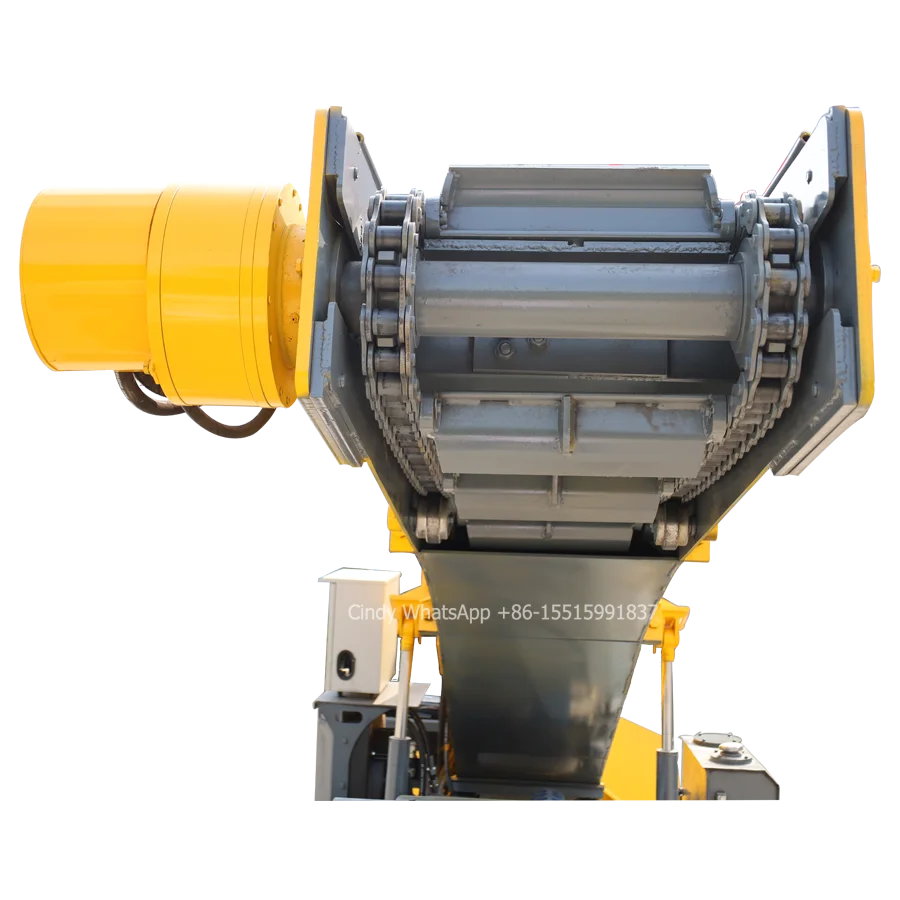

Scraper type: Now the newest type is double chain on each side of the hopper. Materials conveying large blocks and sharp angles.
Advantages: Long service life and large conveying angle on a slope road in narrower place.
Belt type: used for conveying loose materials or small particles, such as soil, low density stones, etc.
Advantages: high transport efficiency and easy replace.
Disadvantages: When transporting metal materials, the belt wears out quickly and needs to be replaced every month. Large gradients are prone to slipping, resulting in low conveying efficiency.
Scraper type: Now the newest type is double chain on each side of the hopper. Materials conveying large blocks and sharp angles.
Advantages: Long service life and large conveying angle on a slope road in narrower place.
Disadvantages: High cost, need an extra cost of $1800 from belt type.
The old version is single chain scraper like above photo shows, according to customer feedback, it is easy to get stuck during transportation, and now we have eliminated this single chain type.
The old version is single chain scraper like above photo shows, according to customer feedback, it is easy to get stuck during transportation, and now we have eliminated this single chain type.

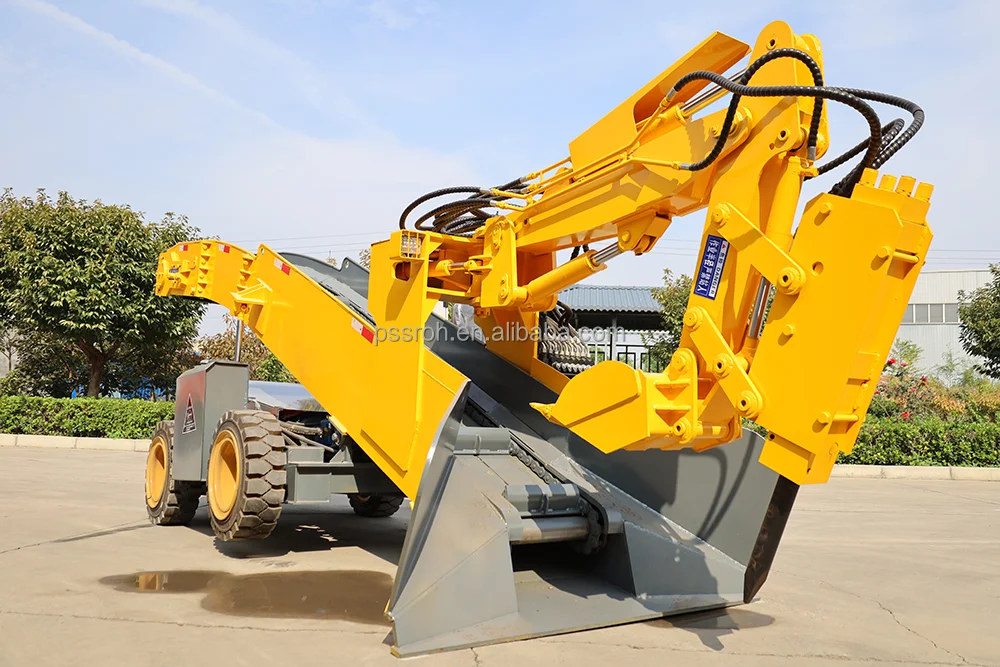

The excavation loading system

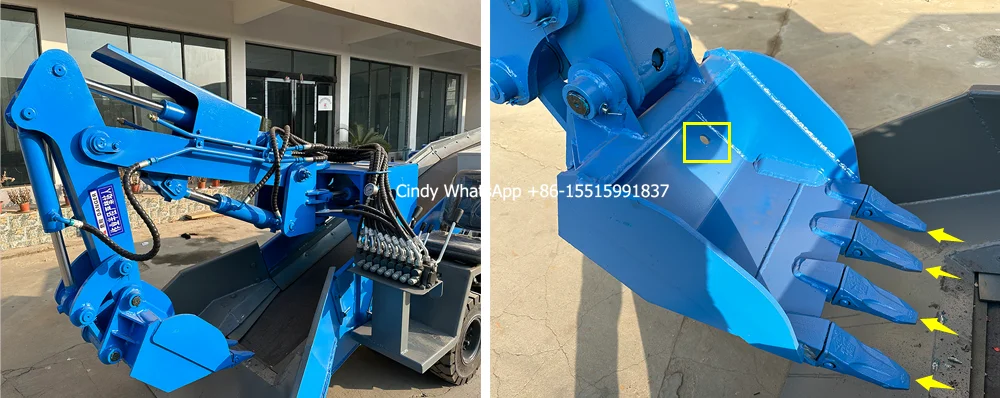

We have strengthened at the connection part between big arm and small arm, with one extra thickness of 10mm wear plate and add several 8mm thick wear plate on the bucket. When the ZWY-80H haggler is working, the front shovel must be on the ground and cannot work while walking. The width of the front shovel opening is 1.3m.
Two holes are added in the bucket to prevent water ingress during excavation. When shipping, the customer will be given a few bucket tooth sleeves for free, as the bucket teeth are made of alloy steel and are not easy to replace.
Two holes are added in the bucket to prevent water ingress during excavation. When shipping, the customer will be given a few bucket tooth sleeves for free, as the bucket teeth are made of alloy steel and are not easy to replace.

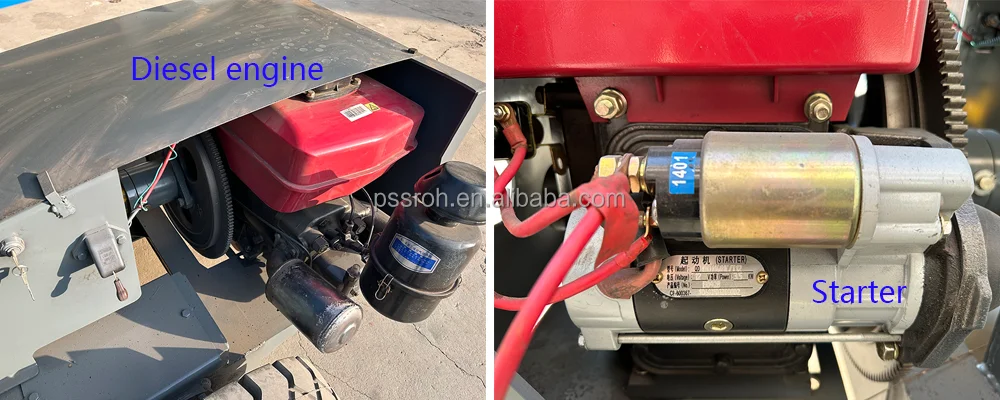

The diesel engine can be added
When the mucking loader needs to be transfer to another place, it is not convenient to connect the electricity, you can startup the diesel engine, or it is not convenient to use electricity, it can replace electricity for a short time.
Now we have listened to customers' opinions and added a layer of iron sheet to protect the engine from water ingress and flying stones while working in mines.
Now we have listened to customers' opinions and added a layer of iron sheet to protect the engine from water ingress and flying stones while working in mines.

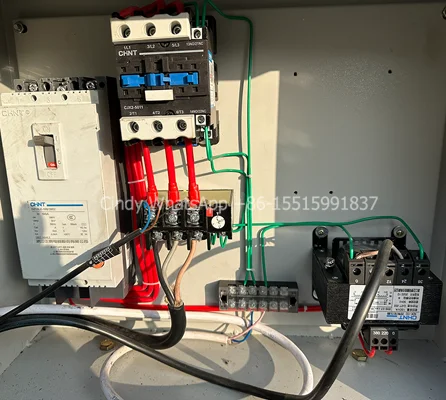

The electric control cabinet
The electrical control system ZWY-80H consists of external power supply, electric motor, mine explosion-proof electromagnetic starter (or electrical control box), explosion-proof (ordinary) lighting, electric bell, cable, control button, electric roller and so on.

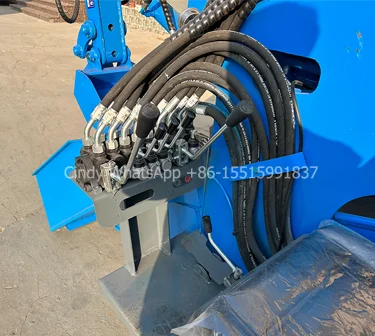

It is controlled by the secondary, equipped with imported hydraulic joystick.
Customized item

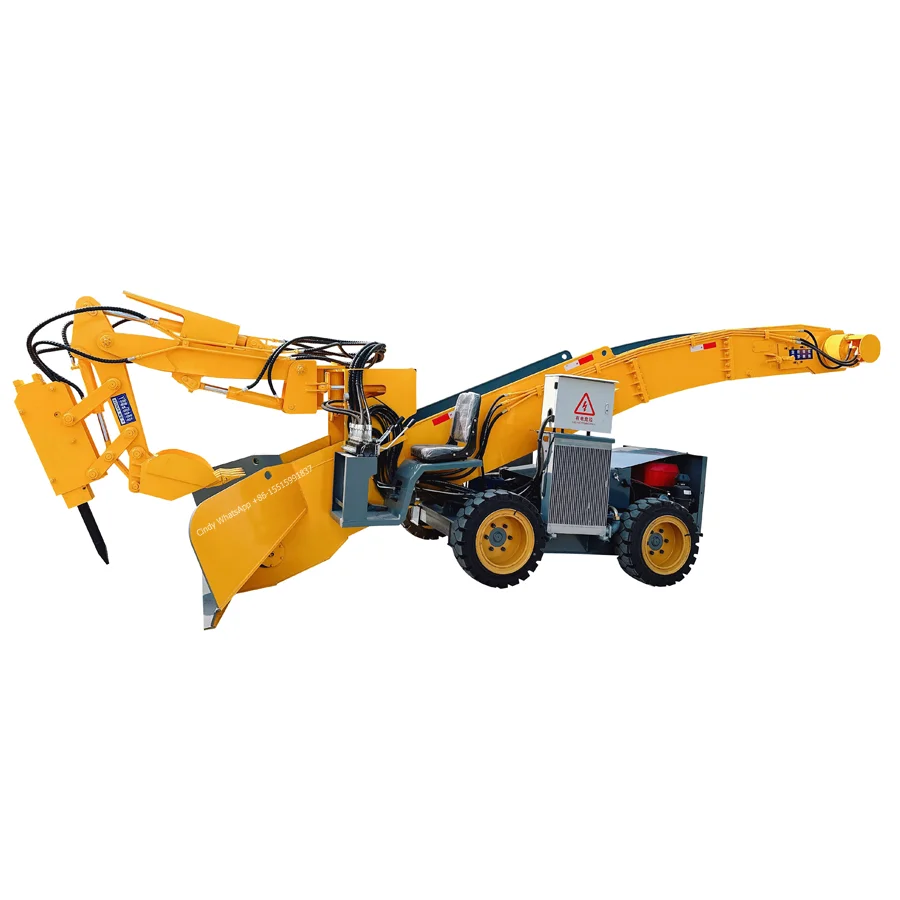

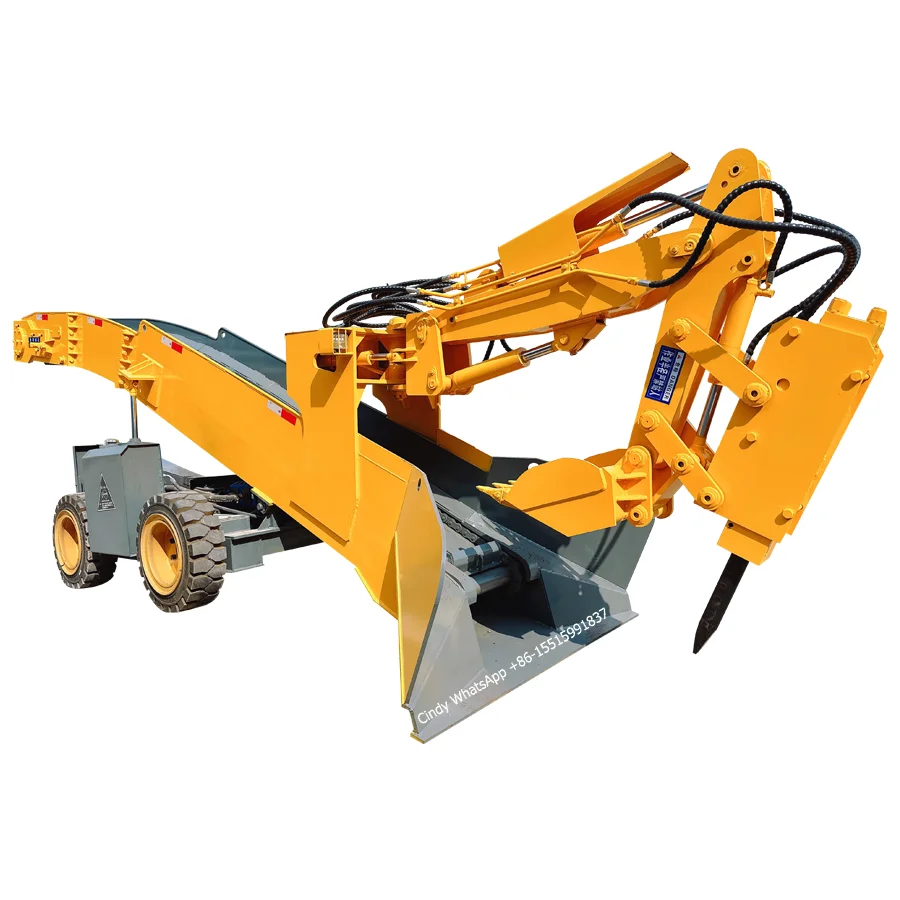

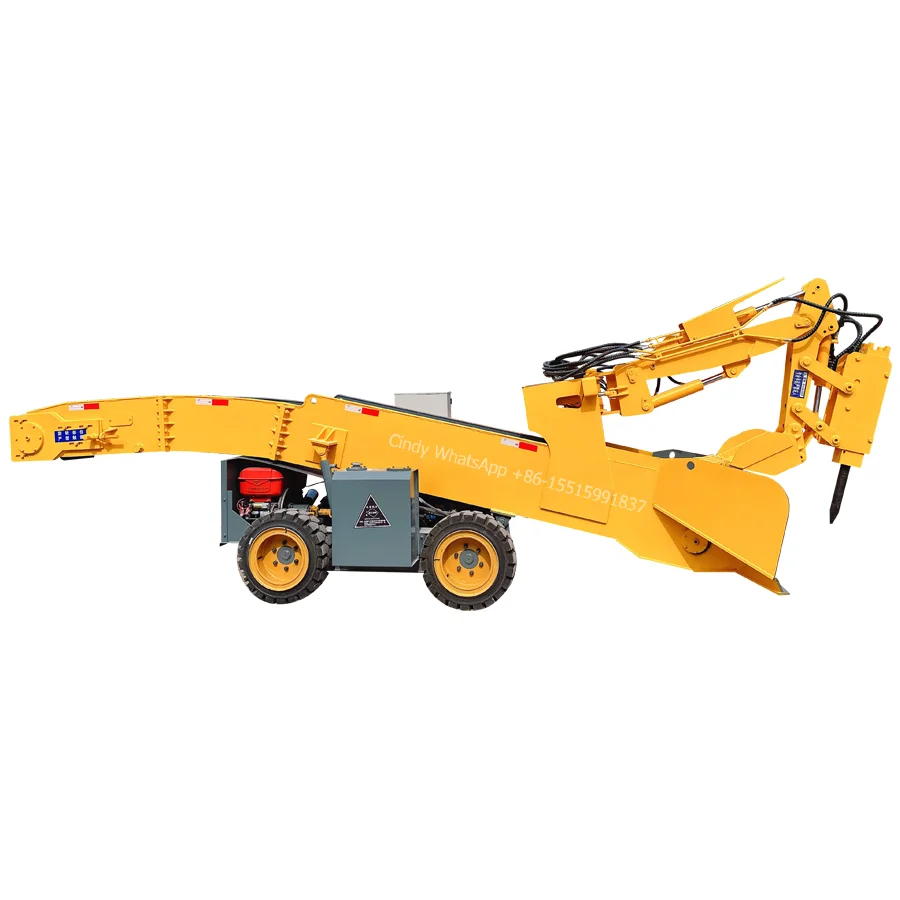

Digging bucket and broken hammer
1. Digging bucket is standard configuration of our mucking loader.

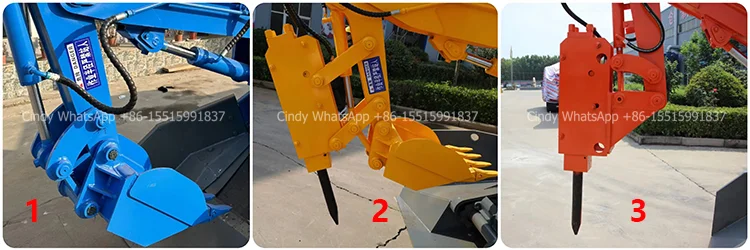

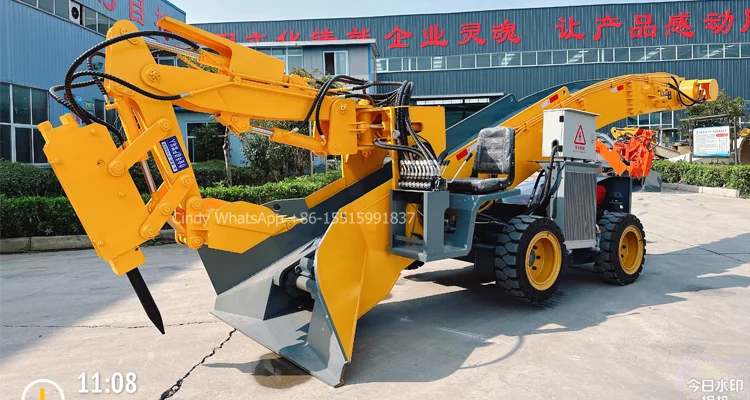

2. and 3. Our mucking loader has two styles of broken hammer can be chosen: One is the broken hammer and the digging as a whole like 2 shows, and 3 is that the broken hammer and the digging bucket are separated.
You can choose according to your need.
Walking system

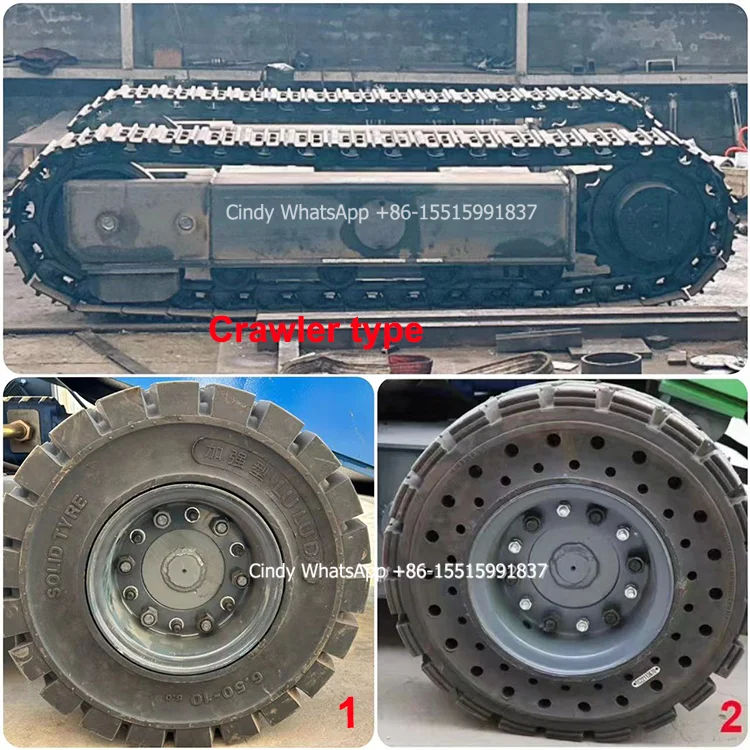

Walking type 1: standard configuration is solid tire
Walking type 2: optional configuration is Mining tires with holes. There will be vibrations when the machine is walking and working, and using hollow tires can reduce the stress during walking and have a shock-absorbing effect.
Crawler type: If your local road conditions need to be climbed and the slope is greater than 12 degrees, you need to use crawler type. The walking system consists of a walking frame, a track assembly, track roller assembly, carrier roller assembly, guide wheel assembly, driving wheel, tensioning device, deceleration hydraulic motor and etc.
Explosion-proof system for coal mines
All models of our ZWY series slag mucking loader machines can be equipped with this explosion-proof system. If they are not used in coal mines, they do not need this system.

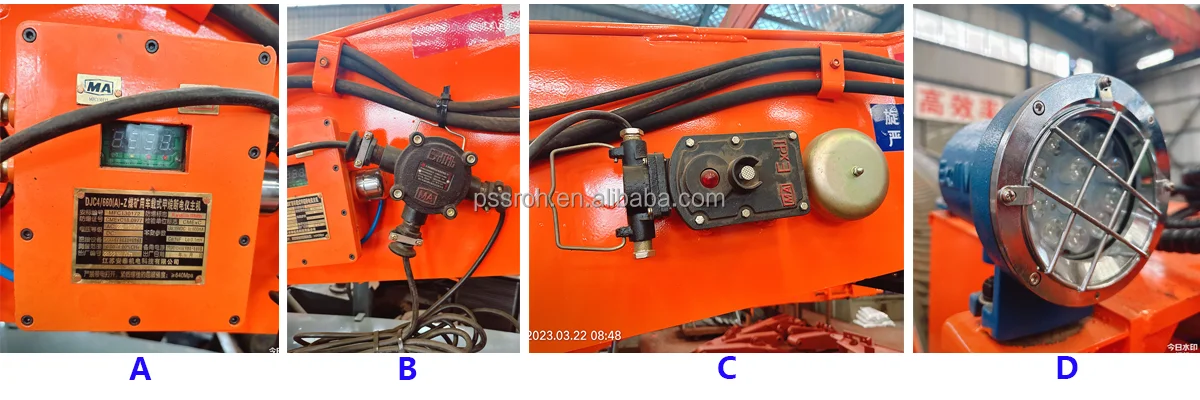

A: Main machine of vehicular methane power cut-off instrument for coal mines
B: Explosion-proof low-voltage cable junction box for mining
C: Low concentration methane sensor for coal mines
D: Explosion-proof lamp
A: Main machine of vehicular methane power cut-off instrument for coal mines
B: Explosion-proof low-voltage cable junction box for mining
C: Low concentration methane sensor for coal mines
D: Explosion-proof lamp
